Model Whirlpool SF375PEWN2 – Common Parts & Diagrams

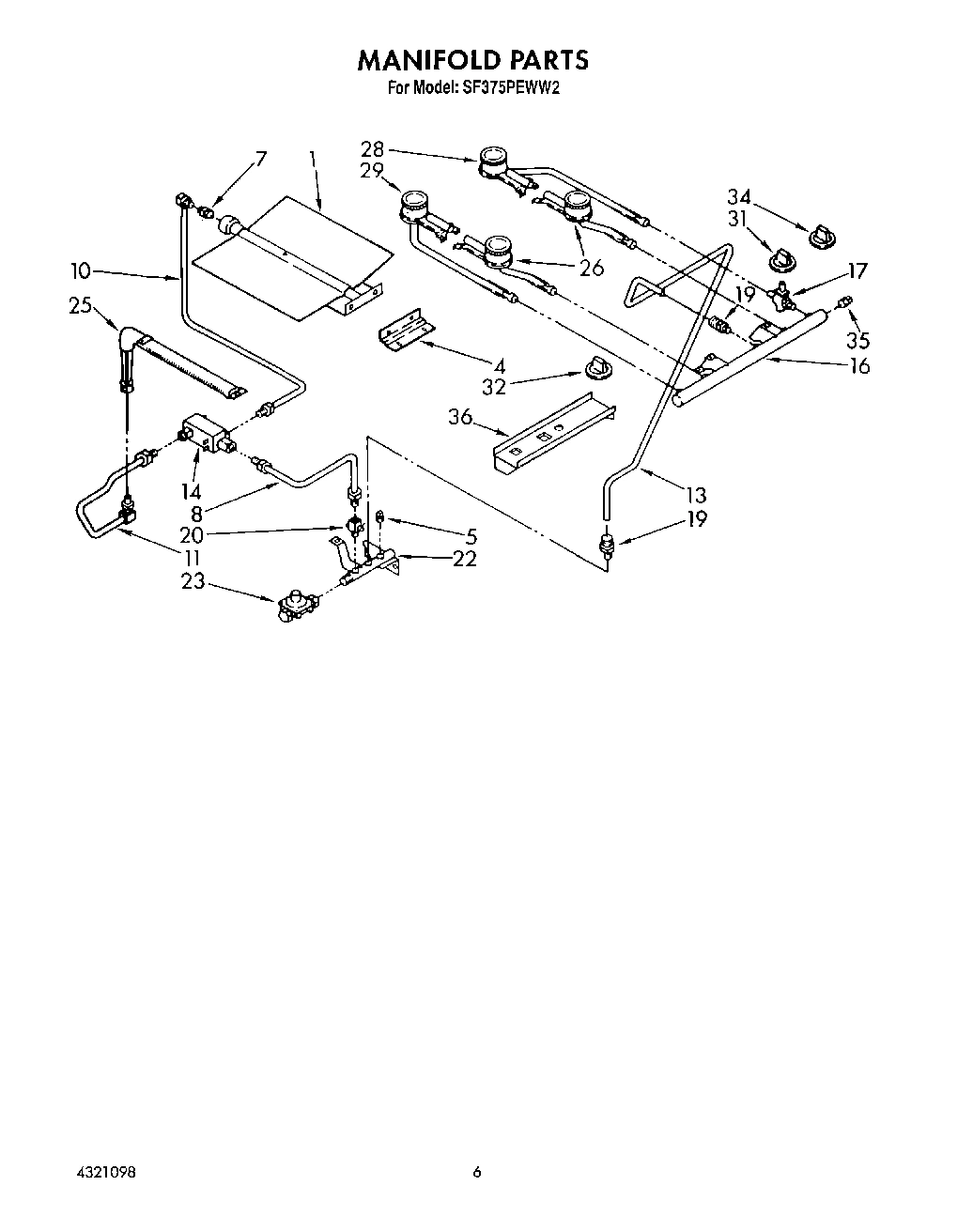

04 - MANIFOLD

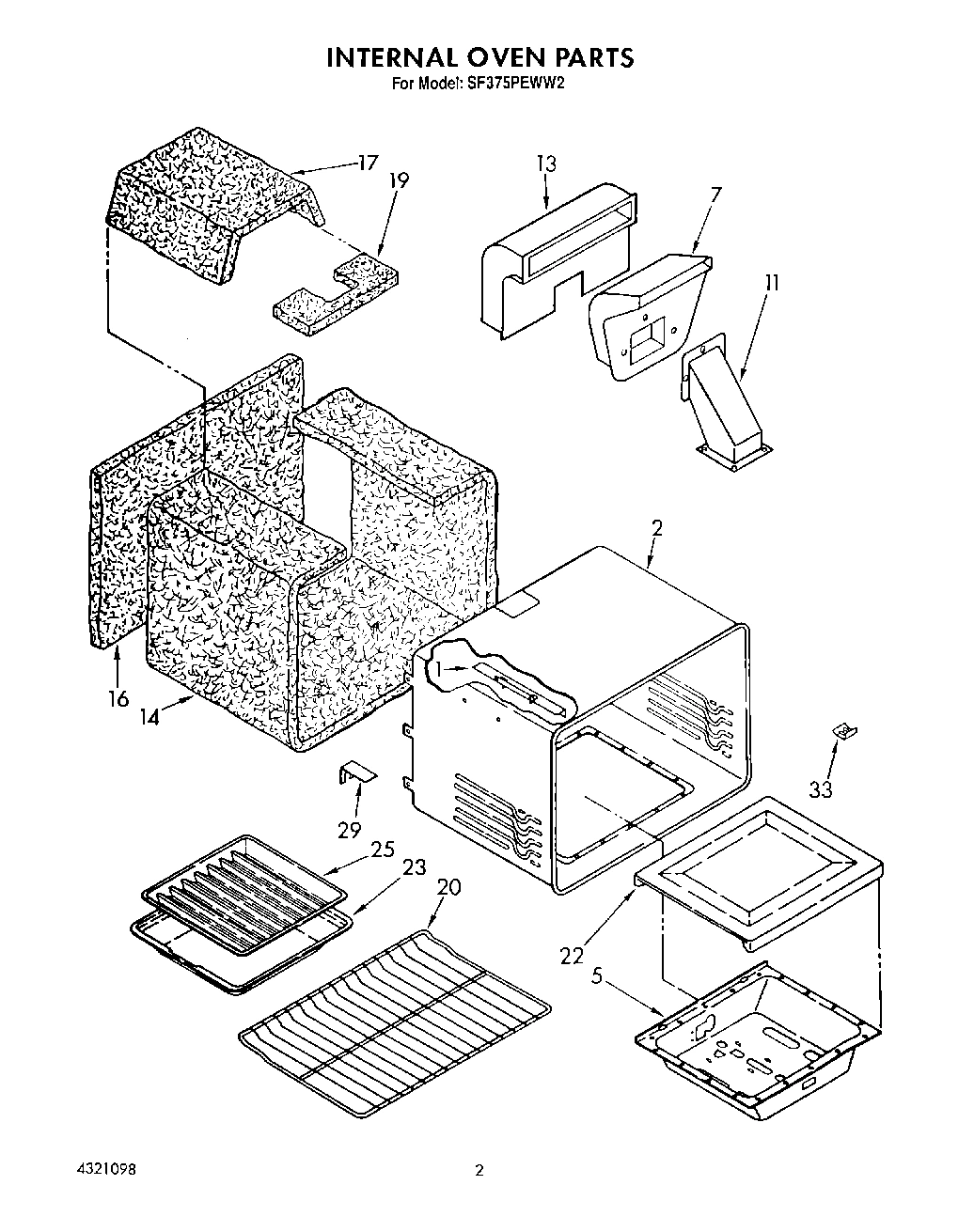

02 - INTERNAL OVEN

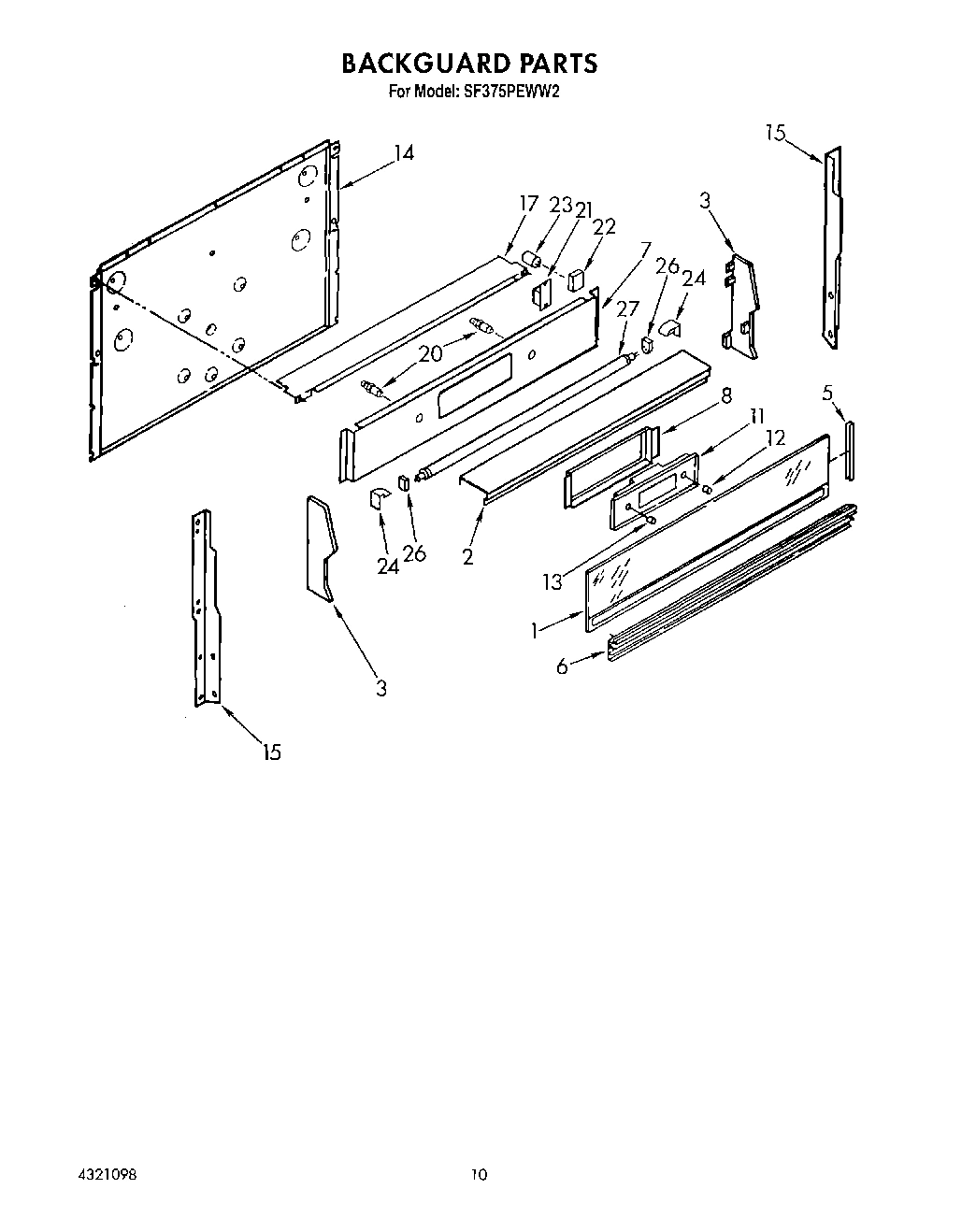

07 - BACKGUARD, LITERATURE

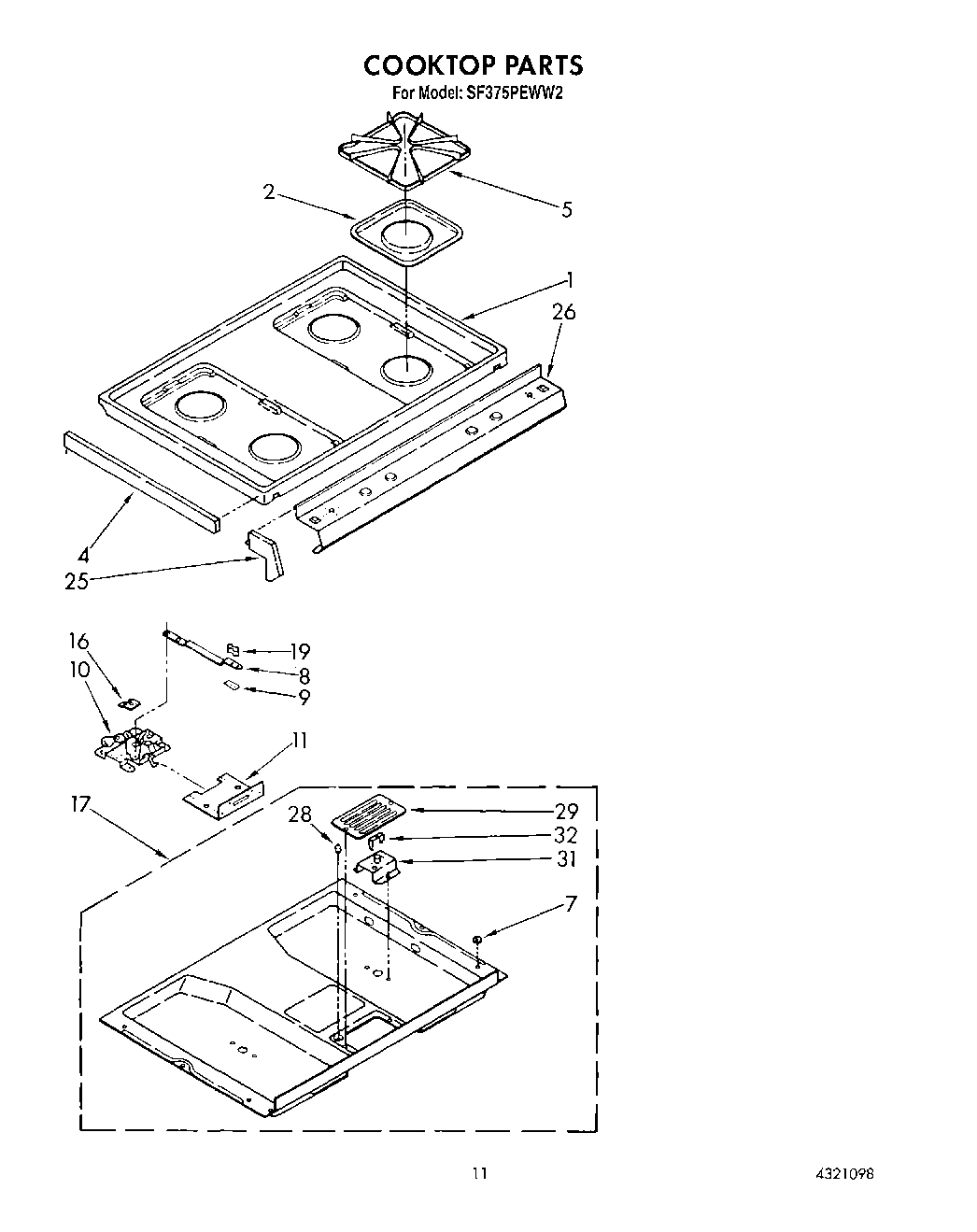

08 - COOKTOP

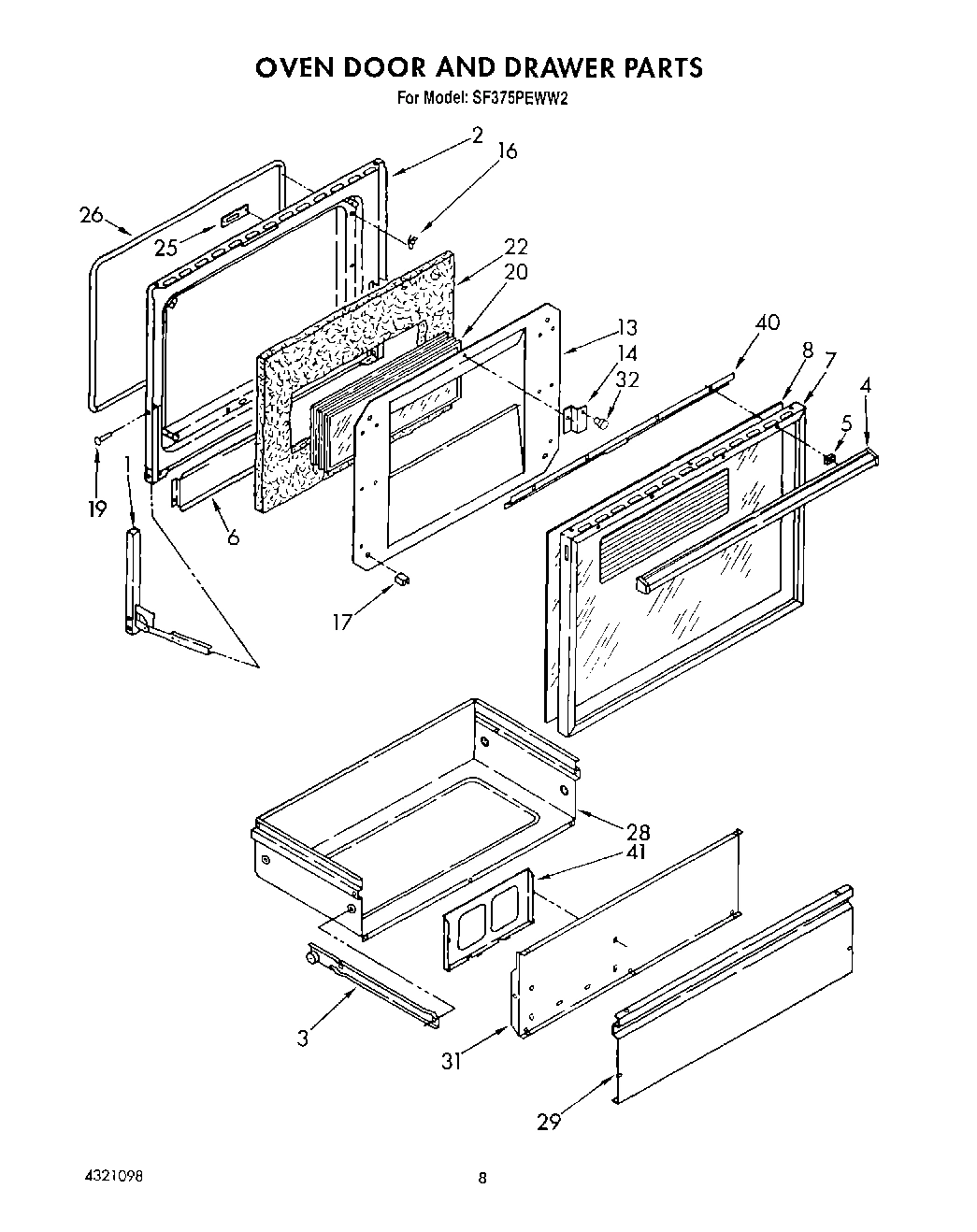

06 - OVEN DOOR AND DRAWER

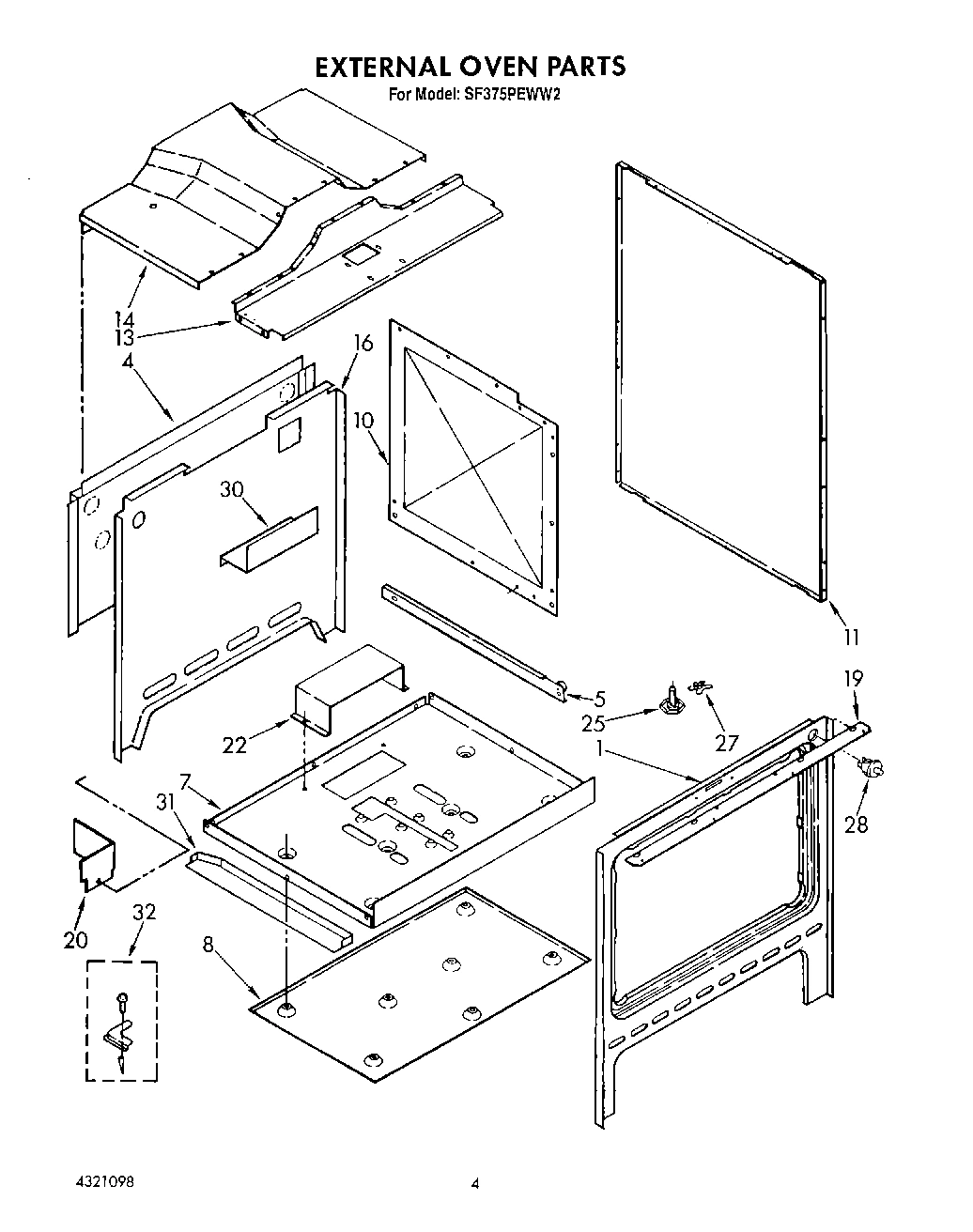

03 - EXTERNAL OVEN

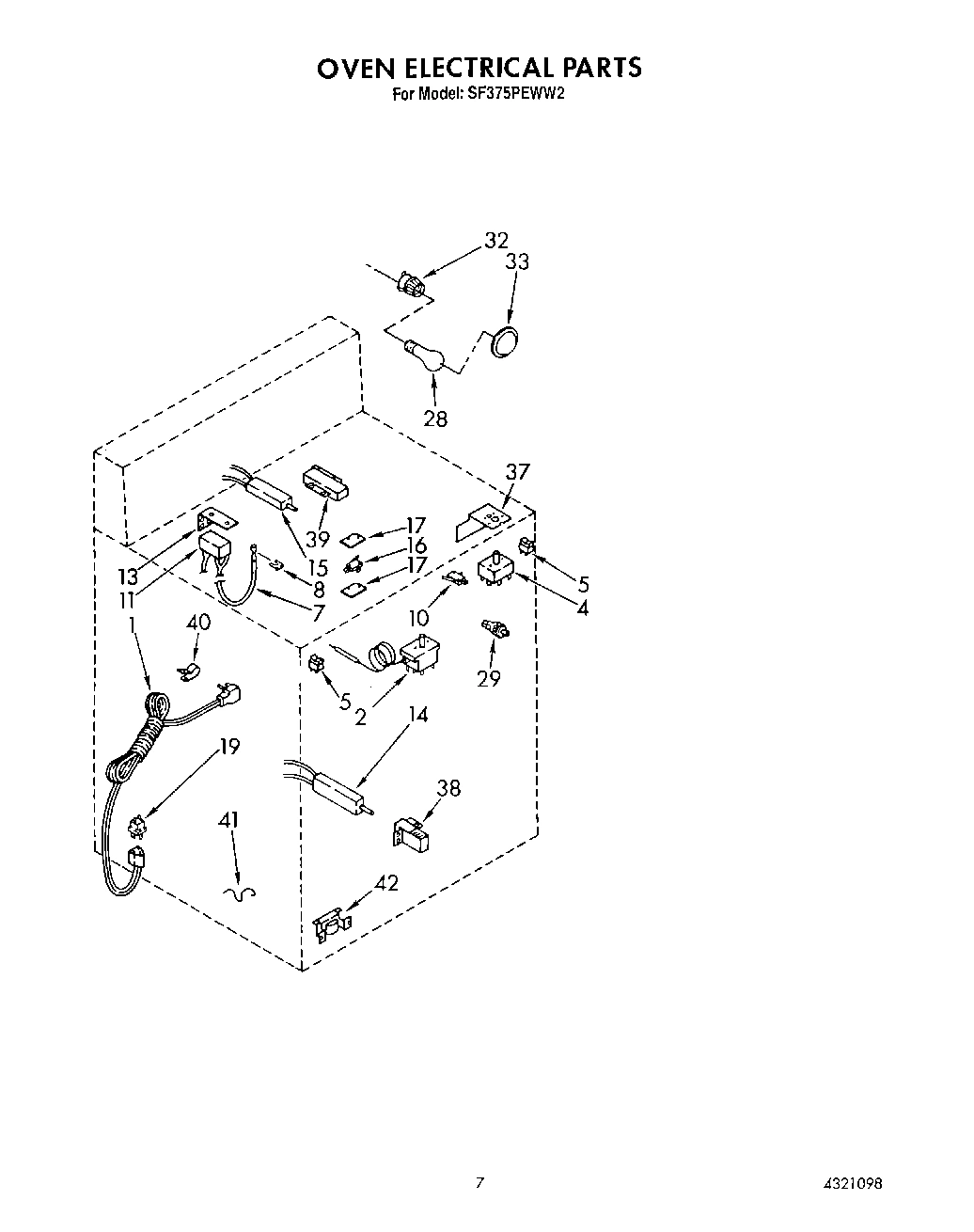

05 - OVEN ELECTRICAL
Common parts from model Whirlpool SF375PEWN2
Guide, Use & Care WPL LIT4315706 Contact Us For Availability
Instructions, Installation WPL LIT4315727 Contact Us For Availability
List, Repair Parts WPL LIT4321098 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Glass, Backguard WPL 4320782 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786739 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320914 Contact Us For Availability
2
Trim, Backguard Top WPL 4320871 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Thermostat, Oven WPL 4321095 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
3
End Cap (L.H.) WPL 4320872 Contact Us For Availability
3
End Cap (R.H.) WPL 4320873 Contact Us For Availability
3
Storage Drawer Track (L.H.) WPL 4320308 Contact Us For Availability
3
Storage Drawer Track (R.H.) WPL 4320309 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4320888 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Retainer, Back WPL 4320889 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Channel, Glass WPL 786760 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4314875 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
5
Switch, Light (2) WPL 786325 Contact Us For Availability
5
Track, Storage Drawer (Left Side) WPL 4315768 Contact Us For Availability
5
Track, Storage Drawer (Right Side) WPL 4315769 Contact Us For Availability
6
Trim, Lower WPL 4320870 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
7
Spud, Orifice (Natural Gas No. 50) WPL 4320926 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
Panel, Control WPL 4320885 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
Frame, Oven Door WPL 786417 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Bracket, clip WPL 4320878 Contact Us For Availability
8
Handle, Latch WPL 4320864 Contact Us For Availability
8
Panel, White Glass WPL 786419 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Broil WPL 4320925 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4315771 Contact Us For Availability
10
switch, top burner actuator WPL 4320326 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Gasket, Vent WPL 4320930 Contact Us For Availability
11
Vent WPL 4320951 Contact Us For Availability
11
Timer WPL 4320811 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Panel, End (2) (Trim, End Panel) WPL 4320973 Contact Us For Availability
11
Panel, End (2) (White) WPL 4321094 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 4321097 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
12
Knob, Clock WPL 4314999 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
13
Button, Set WPL 4320905 Contact Us For Availability
13
backer, oven door WPL 4315799 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4320891 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4315676 Contact Us For Availability
15
Nut (2) WPL 786753 Contact Us For Availability
15
Support, Backguard (R.H.) WPL 4315795 Contact Us For Availability
15
Support, Backguard (L.H.) WPL 4315796 Contact Us For Availability
15
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
16
rear panel, WPL 4315785 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Clip, Speed (15) WPL 786426 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 4320318 Contact Us For Availability
17
Shield, Heat WPL 4320974 Contact Us For Availability
17
Burner Box WPL 4320886 Contact Us For Availability
17
Bumper, Window (5) WPL 4179237 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Knob, Latch Handle WPL 4315663 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Frame, Filler Front WPL 4315775 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
20
Valve, Shut-Off WPL 4320320 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Light, Indicator (2) WPL 4179335 Contact Us For Availability
20
Retainer WPL 4179236 Contact Us For Availability
20
Window Assy. WPL 786429 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Socket, Light WPL 786542 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Cover, Burner WPL 4320890 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Starter, Light WPL 786541 Contact Us For Availability
24
Bracket, Socket (L.H) WPL 786701 Contact Us For Availability
24
Bracket, Socket (R.H.) WPL 786702 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
Socket, Lamp WPL 786536 Contact Us For Availability
26
Panel, Control WPL 4320918 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
27
Lamp WPL 786539 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
28
Spud, Orfice WPL 786309 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4179232 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
29
Plate, Cover WPL 4320377 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Switch, Oven Light WPL 4179328 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320722 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
31
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
32
Knob, Oven Control WPL 4321096 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Bumper, Rubber (5) WPL 786526 Contact Us For Availability
32
Anti Tip Kit WPL 4315756 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
34
Knob, Selector WPL 4320738 Contact Us For Availability
35
Pipe Plug, 3/8 NPT WPL 786665 Contact Us For Availability
36
shelf, gas valve WPL 4315767 Contact Us For Availability
37
Insulator (2) WPL 786689 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
40
Clamp WPL 4157298 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
41
Clip, Wire WPL 4179338 Contact Us For Availability
42
Ballast, 60 Cycle WPL 786540 Contact Us For Availability
× ![]()
