Model Whirlpool SF370PEWW5 – Common Parts & Diagrams
05 - OVEN DOOR AND DRAWER
07 - COOKTOP

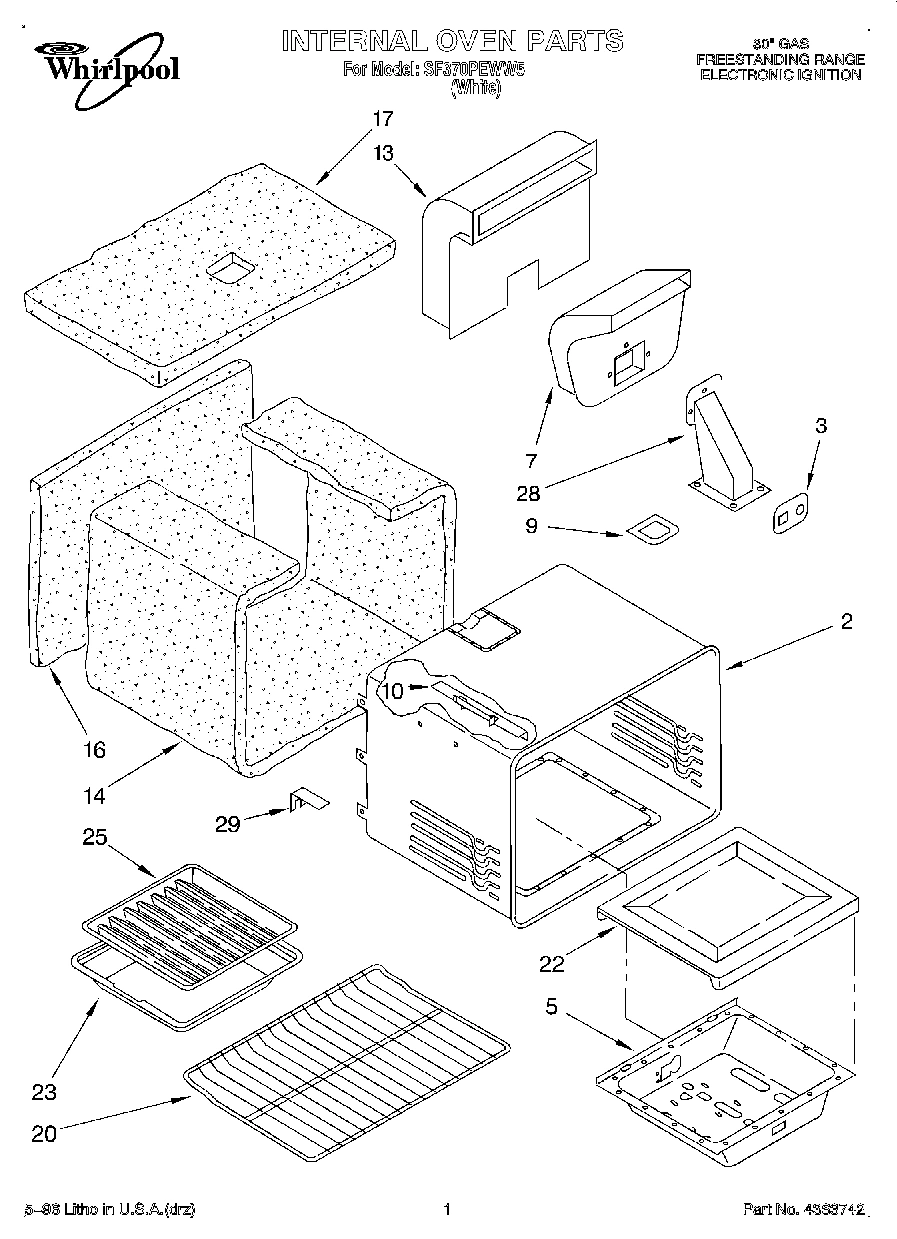

01 - INTERNAL OVEN

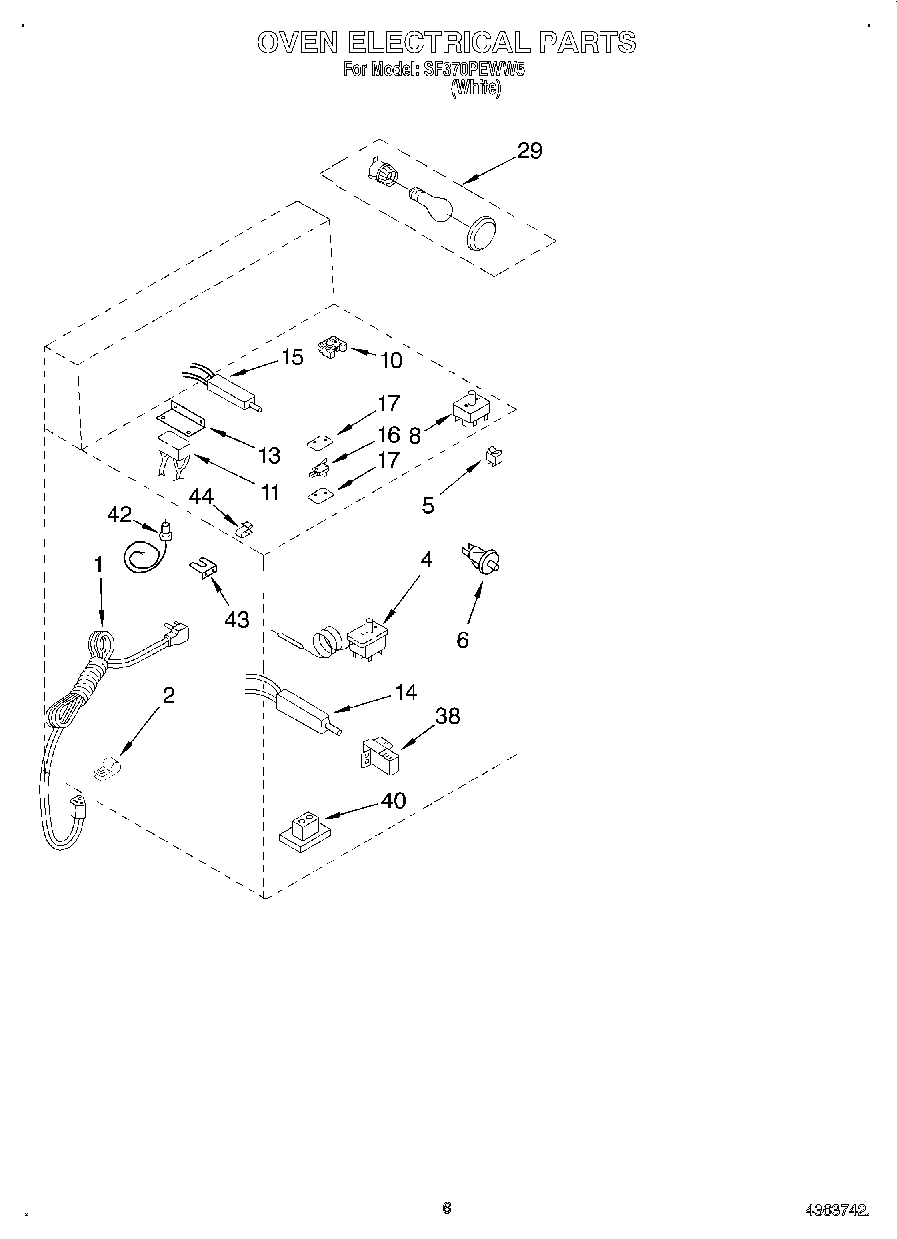

04 - OVEN ELECTRICAL, LITERATURE

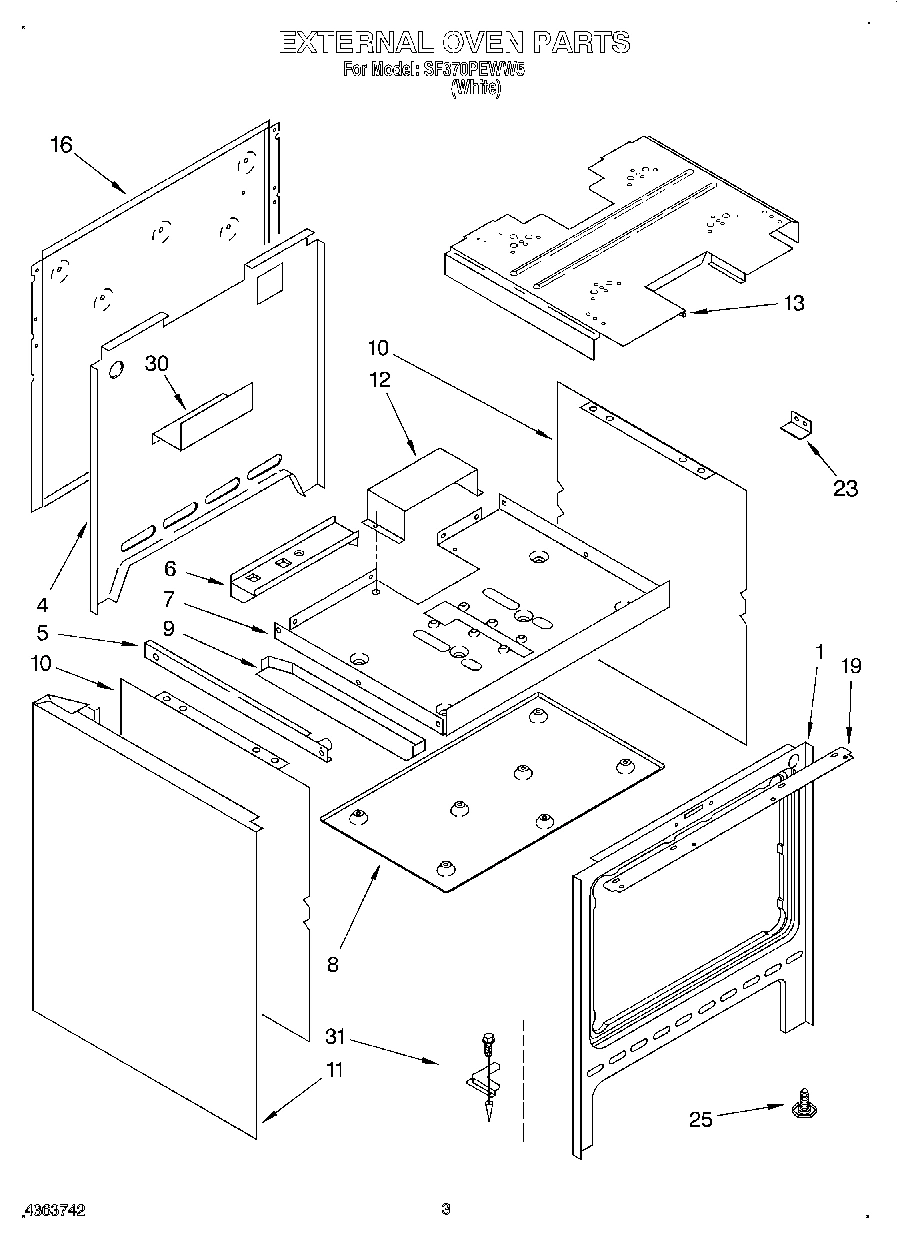

02 - EXTERNAL OVEN

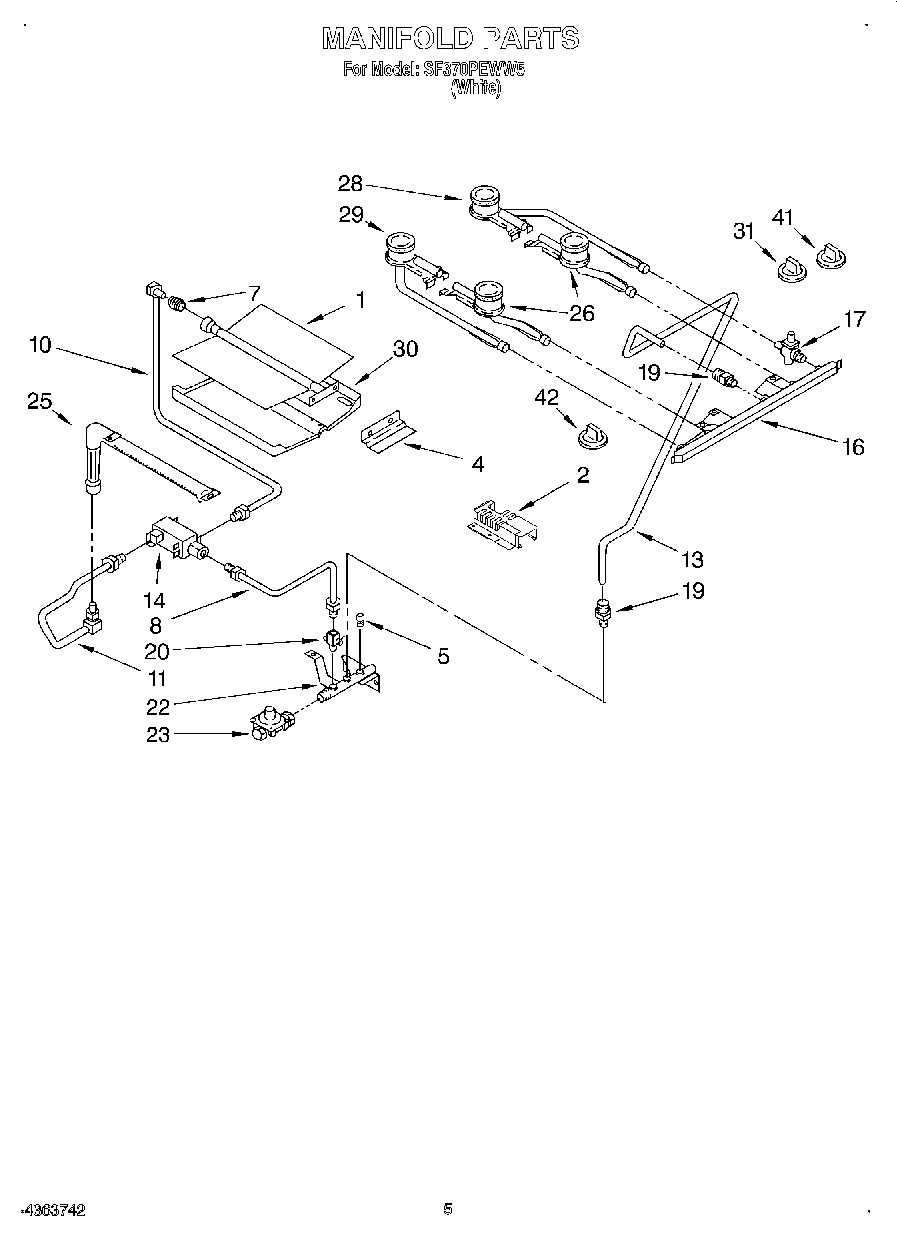

03 - MANIFOLD

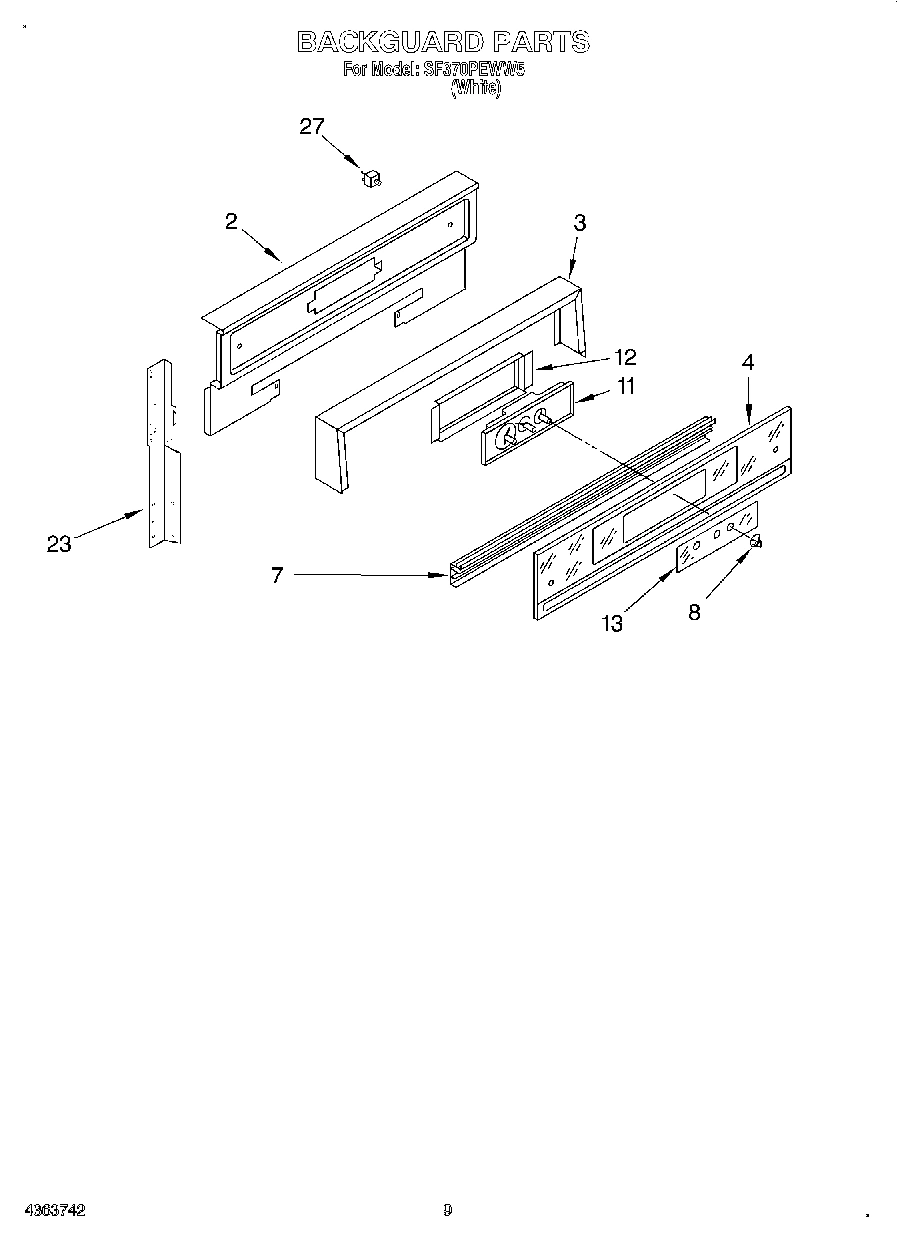

06 - BACKGUARD
Common parts from model Whirlpool SF370PEWW5
Instructions, Installation WPL LIT4363370 Contact Us For Availability
Guide, Use & Care WPL LIT4363373 Contact Us For Availability
Diagram, Wiring WPL LIT4363644 Contact Us For Availability
1
Hinge, Oven Door (R.H.) WPL 4363718 Contact Us For Availability
1
Top, Main (White) WPL 4363439 Contact Us For Availability
1
Top, Main (Almond) WPL 4363634 Contact Us For Availability
1
Cord, Power WPL 4363561 Contact Us For Availability
1
Frame, Front Not Serviceable WPL 4363324 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
2
Rivet, Semi-Tube WPL 4362533 Contact Us For Availability
2
Liner, Oven Door WPL 4363746 Contact Us For Availability
2
Oven 30`` WPL 4320923 Contact Us For Availability
2
Clamp, Wire WPL 4157298 Contact Us For Availability
2
Shield, Ignitor WPL 4363532 Contact Us For Availability
2
Panel, Control Mounting (White) WPL 4362898 Contact Us For Availability
3
Runner (R.H.) WPL 4363734 Contact Us For Availability
3
Runner (L.H.) WPL 4363735 Contact Us For Availability
3
Plate, Broiler WPL 4320952 Contact Us For Availability
3
Frame WPL 4320900 Contact Us For Availability
4
Handle, Oven Door WPL 4362534 Contact Us For Availability
4
Thermostat, Oven WPL 4321095 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4363724 Contact Us For Availability
4
Support, Burner Mounting WPL 4320888 Contact Us For Availability
4
Decorative Inlay WPL 4320932 Contact Us For Availability
5
Spacer, Handle (4) WPL 786410 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4363227 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Switch, Rocker WPL 786325 Contact Us For Availability
5
Track, Storage Drawer (Right Side) WPL 4363727 Contact Us For Availability
5
Track, Storage Drawer (Left Side) WPL 4363728 Contact Us For Availability
6
Baffle, Heat WPL 4363316 Contact Us For Availability
6
Switch, Oven Light WPL 4363736 Contact Us For Availability
6
Shelf, Gas Valve WPL 4363314 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 4363725 Contact Us For Availability
7
Orifice (Natural Gas No. 51.) WPL 4320926 Contact Us For Availability
7
Trim, Lower WPL 786694 Contact Us For Availability
8
Glass, Outer Door WPL 4363731 Contact Us For Availability
8
Handle, Latch WPL 4320864 Contact Us For Availability
8
Switch, Selector WPL 4179076 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 4363723 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Knob, Clock (3) WPL 786434 Contact Us For Availability
9
Gasket, Vent WPL 4320930 Contact Us For Availability
9
Brace, Bottom (L.H.) WPL 4363720 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4363721 Contact Us For Availability
10
Plate, Air Baffle WPL 786422 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Shield, Thermostat WPL 786349 Contact Us For Availability
10
Switch, Ignition WPL 4320326 Contact Us For Availability
10
Retainer, Insulation WPL 4362922 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 4320925 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Module, Spark WPL 4363272 Contact Us For Availability
11
Panel, End (White) WPL 4363743 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Clock WPL 4320904 Contact Us For Availability
12
Retainer, Ignitor WPL 4320890 Contact Us For Availability
12
Plate, Clock Mounting WPL 786454 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Retainer, Top Insulation WPL 4363744 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
13
Glass, Timer WPL 786453 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
15
Ignitor, Broil WPL 4363531 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
Screw WPL 786752 Contact Us For Availability
16
Switch, Oven Door Latch WPL 4362916 Contact Us For Availability
16
Panel, Rear WPL 4362559 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Screw WPL 786751 Contact Us For Availability
17
Valve, Top Burner WPL 4320318 Contact Us For Availability
19
Knob, Latch Handle WPL 4320863 Contact Us For Availability
19
Frame, Filler Front WPL 4362949 Contact Us For Availability
19
Screw WPL 4179116 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
20
Window Assembly WPL 4362602 Contact Us For Availability
20
Rack, Oven (2) WPL 4363737 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
Screw WPL 4363526 Contact Us For Availability
23
Pan, Broiler WPL 4363570 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Nut, Hex ``KEP`` WPL 786753 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Support, Control Panel (2) (L.H.) WPL 4363522 Contact Us For Availability
23
Support, Control Panel (2) (R.H.) WPL 4363523 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Grid, Broiler WPL 4362695 Contact Us For Availability
25
Leg, Leveling (4) WPL 4363722 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Panel, Control WPL 4362889 Contact Us For Availability
26
Top Burner Front WPL 786315 Contact Us For Availability
27
Screw WPL 4363528 Contact Us For Availability
27
Lens WPL 4315798 Contact Us For Availability
27
Light Indicator WPL 4363638 Contact Us For Availability
27
Screw WPL 786761 Contact Us For Availability
28
Drawer, Storage WPL 4363306 Contact Us For Availability
28
Vent WPL 4320951 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
30
Burner Box WPL 4362919 Contact Us For Availability
30
Cover, Electrical WPL 4363315 Contact Us For Availability
30
Reflector WPL 4179139 Contact Us For Availability
31
Liner, Door Panel WPL 4363307 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320722 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
40
Plug, Ignitor Wires WPL 4362620 Contact Us For Availability
41
Knob, Thermostat WPL 4321096 Contact Us For Availability
42
Electrode WPL 4157608 Contact Us For Availability
42
Screw WPL 4363320 Contact Us For Availability
42
Backer, Door WPL 4363745 Contact Us For Availability
42
Bumper, Rubber WPL 786526 Contact Us For Availability
42
Knob, Selector WPL 4320738 Contact Us For Availability
44
Clip, Cable ESM WPL 4315780 Contact Us For Availability
× ![]()
