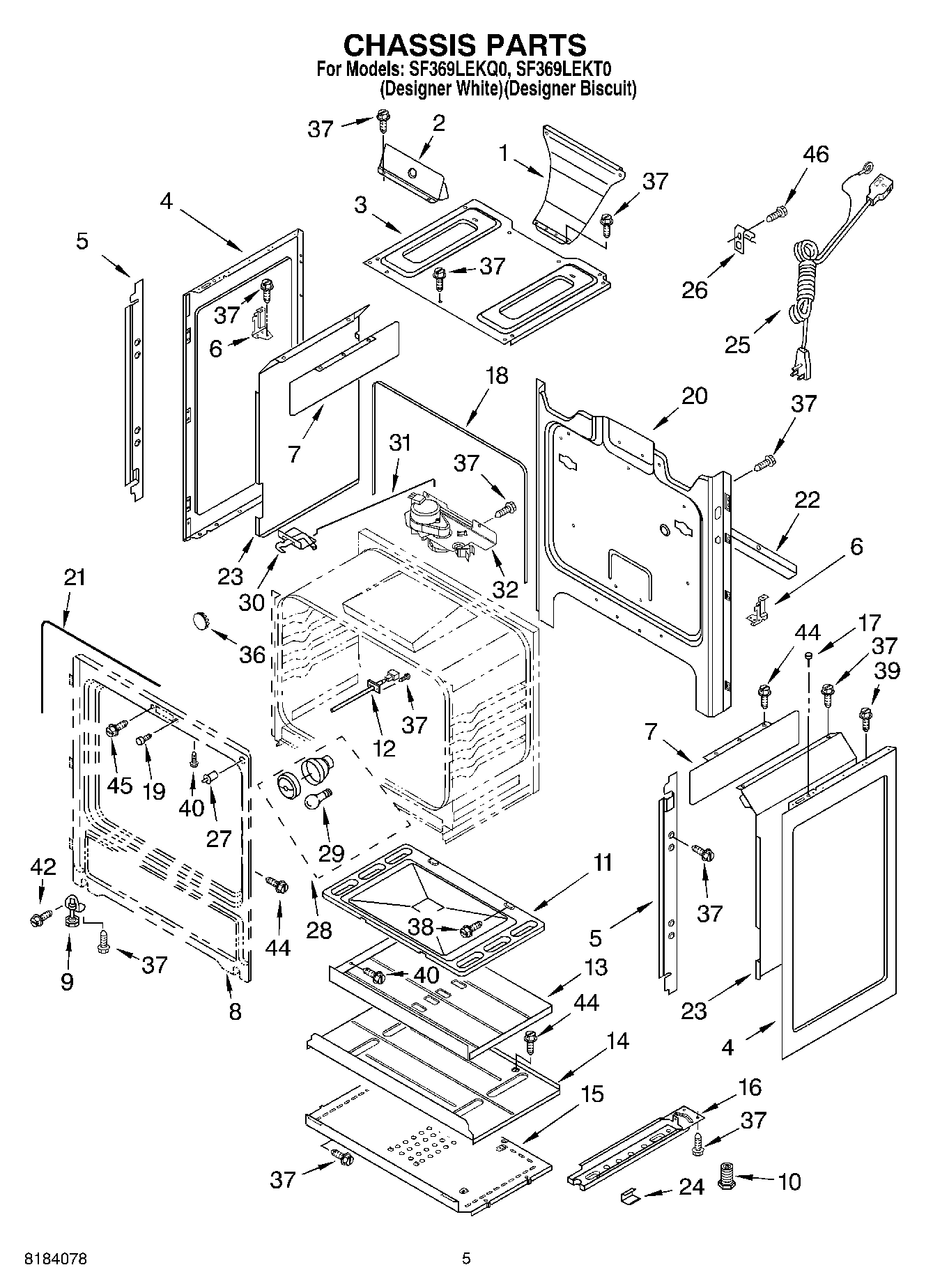

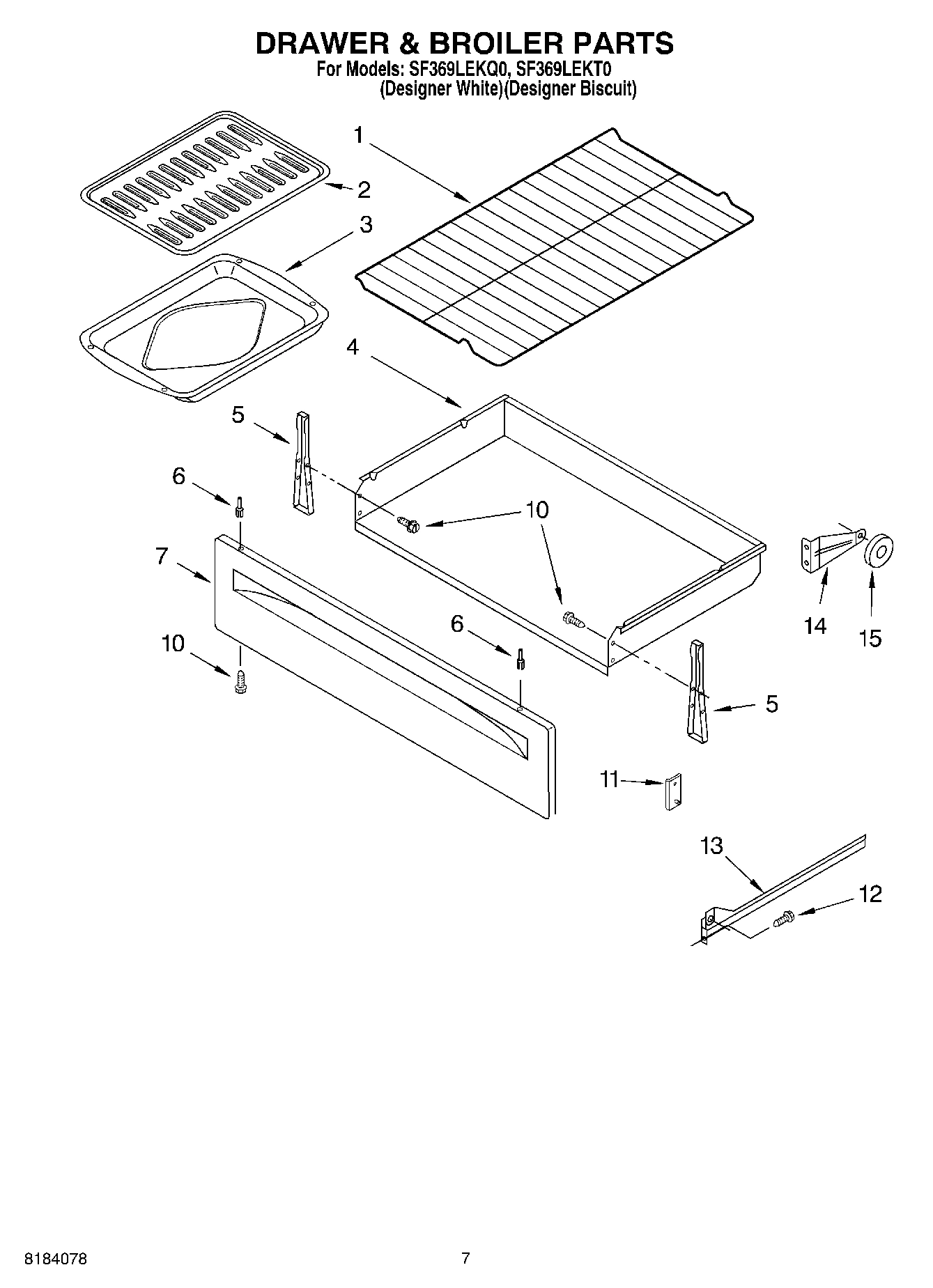

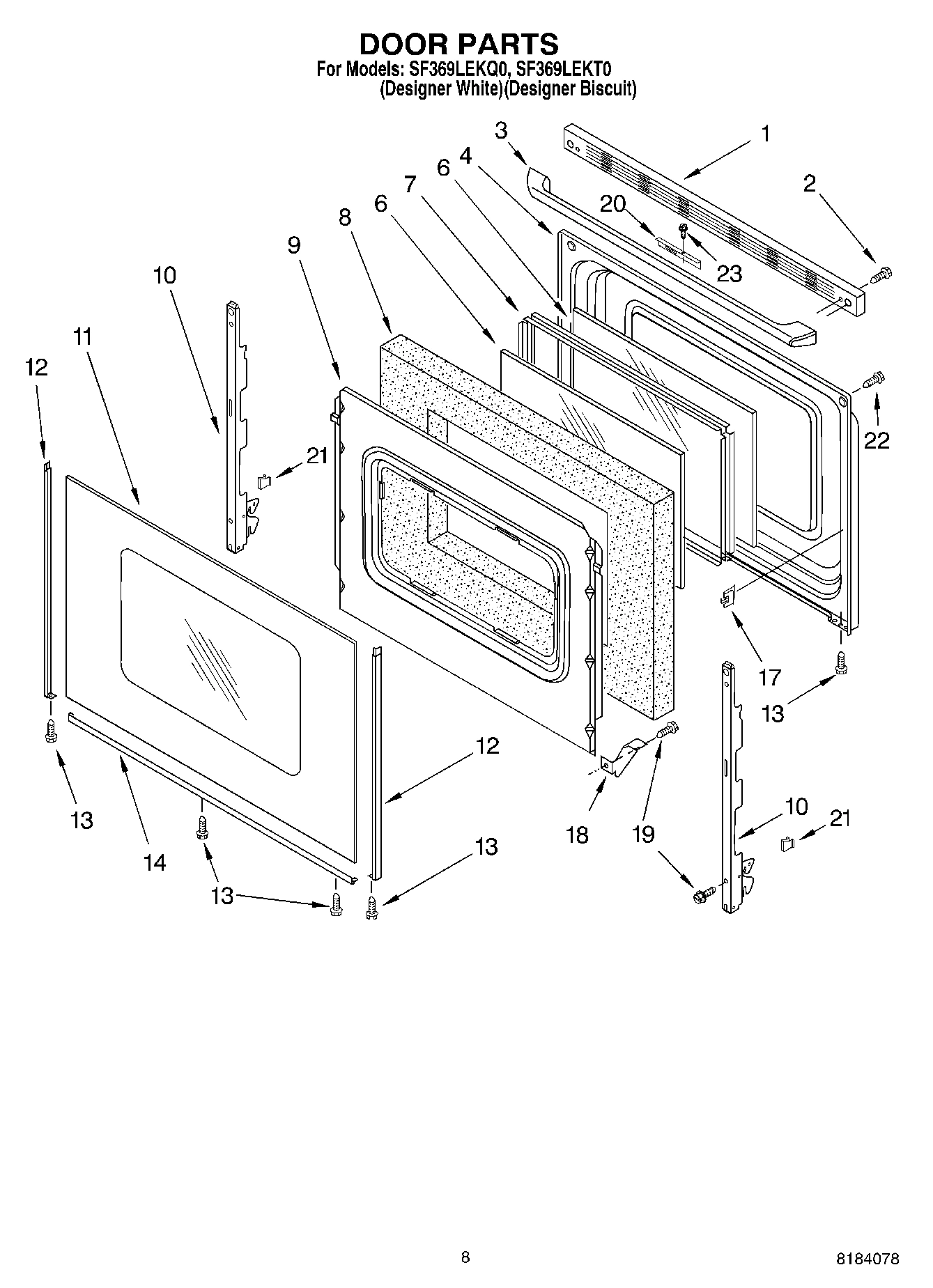

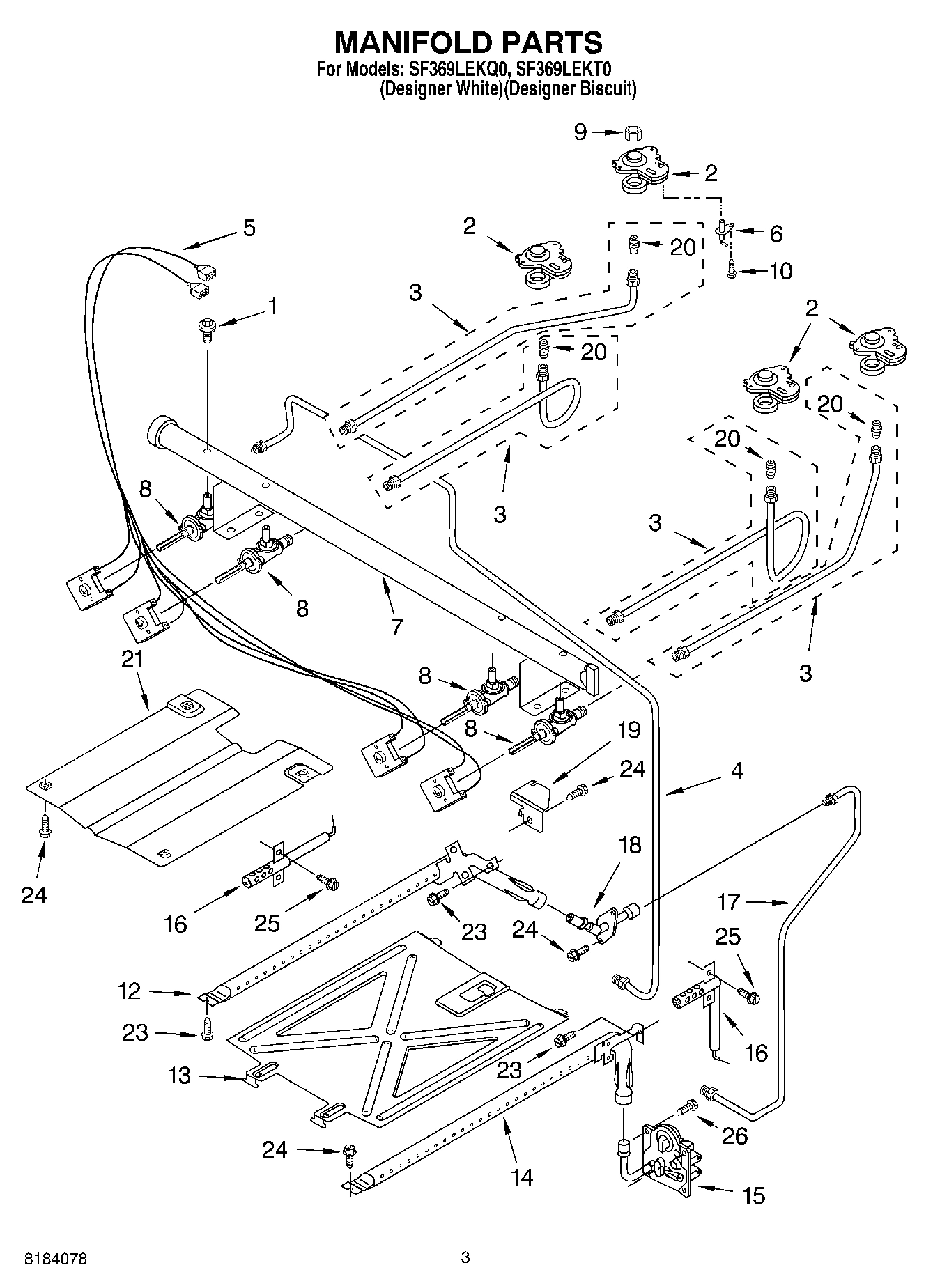

Model Whirlpool SF369LEKT0 GAS RANGE – Common Parts &amp; Diagrams

1

Screw, Valve WPL 8273096 Contact Us For Availability

1

Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability

2

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 $101.63

2

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $46.21

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

2

WP8273700 Whirlpool Base Burner In Stock WPL WP8273700 $58.44

2

Cap, Burner (RR White) WPL 3191899 Contact Us For Availability

2

Burner Base (Small (1)) WPL 8273701 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

Tubing, Burner W/Orifice (Right Front) WPL 8273695 Contact Us For Availability

3

Tubing, Burner W/Orifice (Left Front) WPL 8273692 Contact Us For Availability

3

Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $79.59

4

Screw WPL 4449746 Contact Us For Availability

4

Liner, Door WPL 3186292 Contact Us For Availability

5

Harness, Igniter (Incl. Switches) WPL 8273075 Contact Us For Availability

5

Sheild, Heat (2) WPL 3196137 Contact Us For Availability

6

8053505 Whirlpool Range Shield Backorder WPL 8053505 $57.07

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $68.30

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

WP8273104 Whirlpool Knob In Stock WPL WP8273104 $9.17

7

WP8273106 Whirlpool Knob Backorder WPL WP8273106 $10.89

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $30.25

7

Shield, Heat (2) WPL 3196136 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $42.51

8

Valve (Right Rear) WPL 8273004 Contact Us For Availability

8

Frame, Front (Not Serviceable) WPL ARI163397A Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $84.51

9

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

9

Nut (4) WPL 8273060 Contact Us For Availability

10

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

10

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

10

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3149360 Whirlpool Light Switch Backorder WPL 3149360 $37.94

W10837340 Whirlpool Grate Kit Backorder WPL W10837340 $181.24

WP3195097 Whirlpool Range Bottom In Stock WPL WP3195097 $85.47

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $135.30

Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability

8184860 Whirlpool Range Door Trim Backorder WPL 8184860 $58.01

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

WP8054078 Whirlpool Broiler Burner Backorder WPL WP8054078 $98.14

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $66.20

13

8053967 Whirlpool Range Heat Baffle Backorder WPL 8053967 $112.34

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.51

13

Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $38.41

14

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $50.93

15

8053968 Whirlpool Range Heat Shield Backorder WPL 8053968 $30.89

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $78.63

16

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

17

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

17

Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability

17

Clip, Door Glass WPL 3196025 Contact Us For Availability

18

Fitting, Broiler WPL 3186489 Contact Us For Availability

18

Seal, Oven Flange WPL 3195737 Contact Us For Availability

18

Bracket, Window (2) WPL 3196794 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $28.09

19

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $34.55

WP8273067 Whirlpool Orifice Backorder WPL WP8273067 $34.62

Orifice, Burner (Left Front) WPL 8273063 Contact Us For Availability

Back, Main WPL 8274179 Contact Us For Availability

Bracket, Latch WPL 3195914 Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

22

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

22

Brace, Main Back WPL 8053971 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

3196265 Whirlpool Range Screw Backorder WPL 3196265 $9.59

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

3196896 Whirlpool Clip Backorder WPL 3196896 $5.14

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

WPL 8273901 WPL 8273901 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability

Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053527 WPL 8053527 Contact Us For Availability

WPL 8273897 WPL 8273897 Contact Us For Availability

WPL 8274195 WPL 8274195 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

24

Clip, Panel (6) WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $50.80

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

26

Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability

27

Switch, Door WPL 3195993 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $90.99

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $30.25

32

WPW10107830 Whirlpool Stove Door Lock Latch A Backorder WPL WPW10107830 $121.04

36

Button, Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

39

Screw (Almond) WPL 3196167 Contact Us For Availability

40

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

42

Screw WPL 3196179 Contact Us For Availability

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

46

W11688737 Whirlpool Insulation Backorder WPL W11688737 $47.58
