Model Whirlpool SF367LEMB1 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts & Diagrams

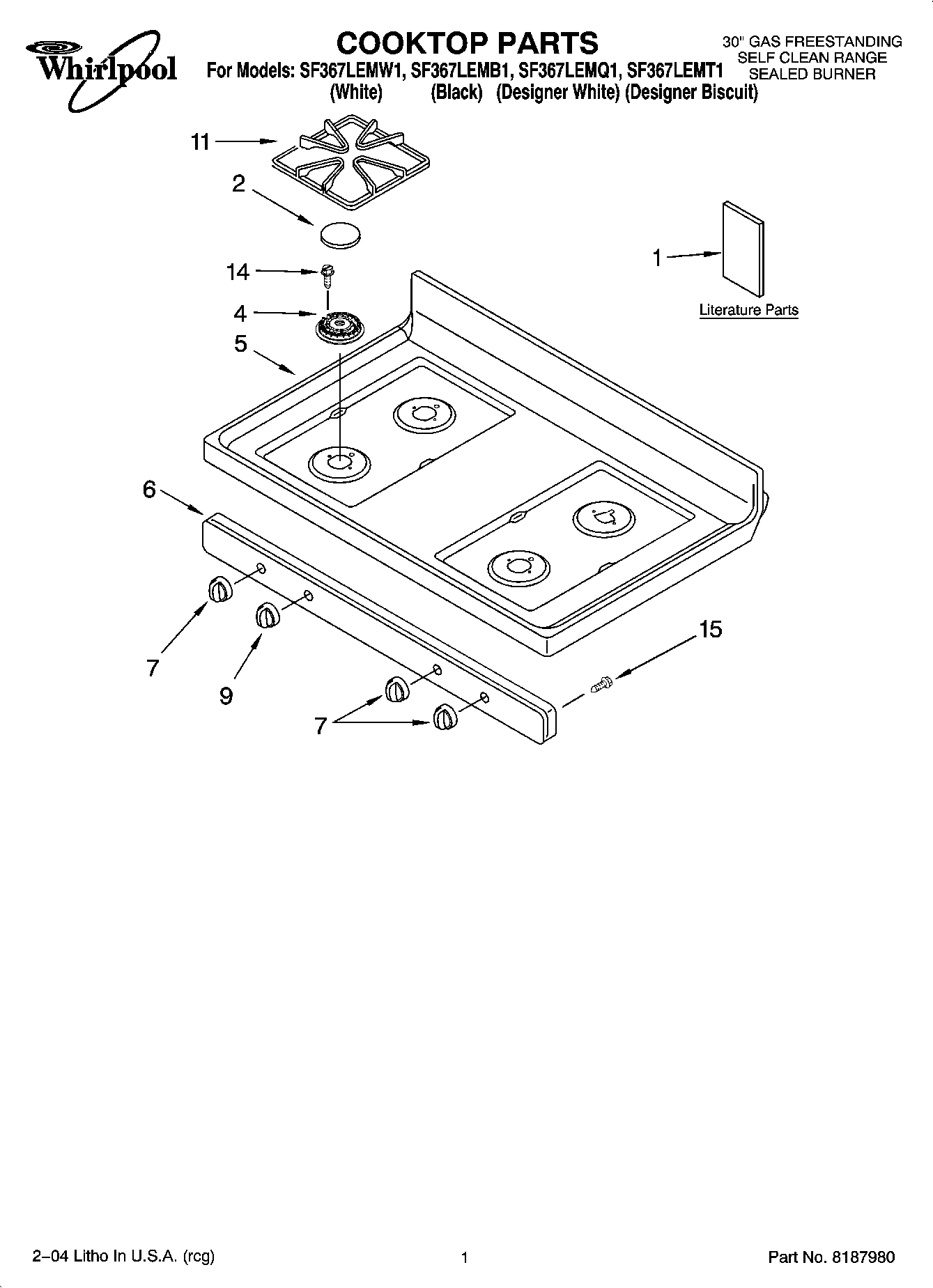

01 - COOKTOP PARTS

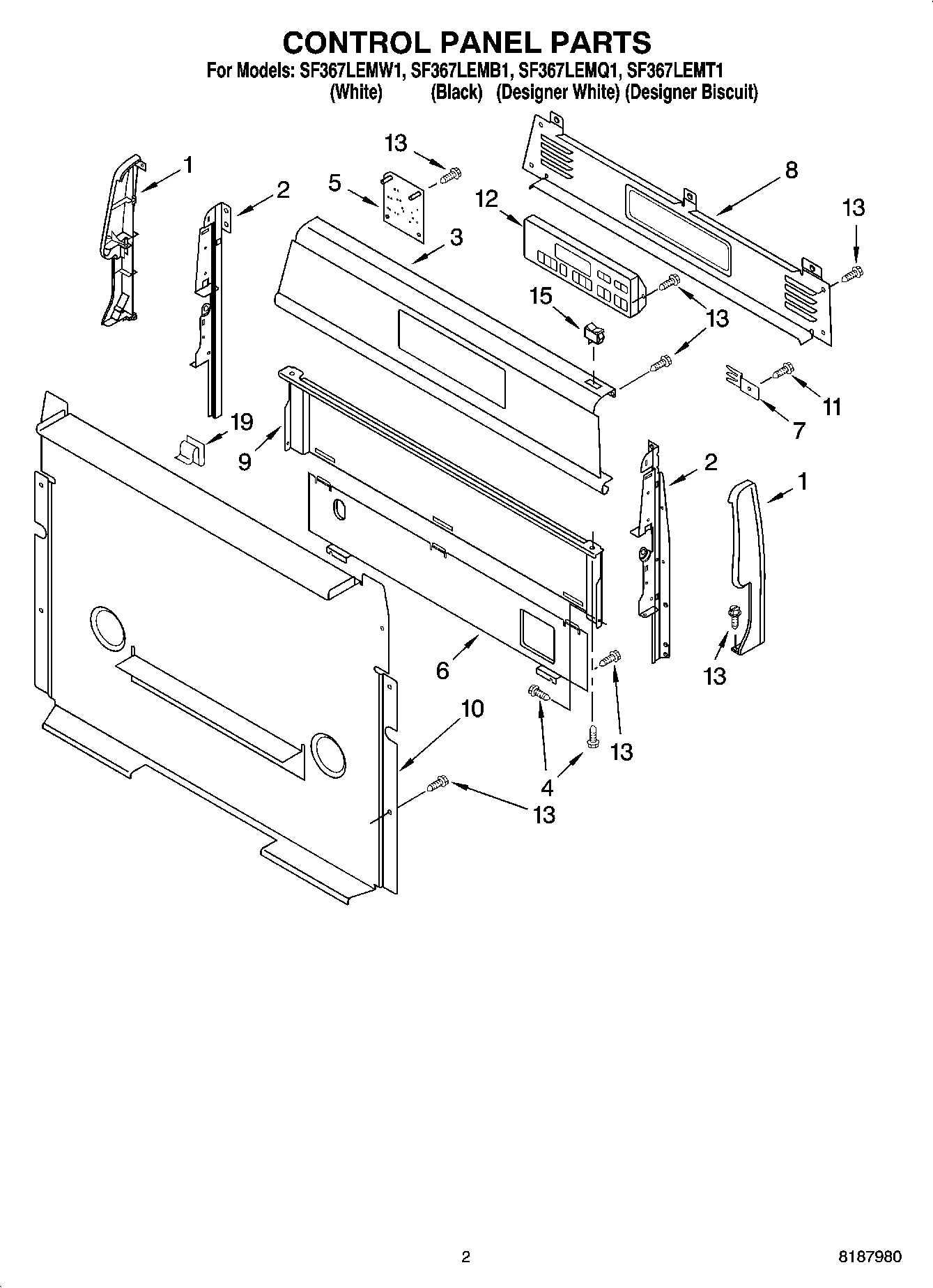

02 - CONTROL PANEL PARTS

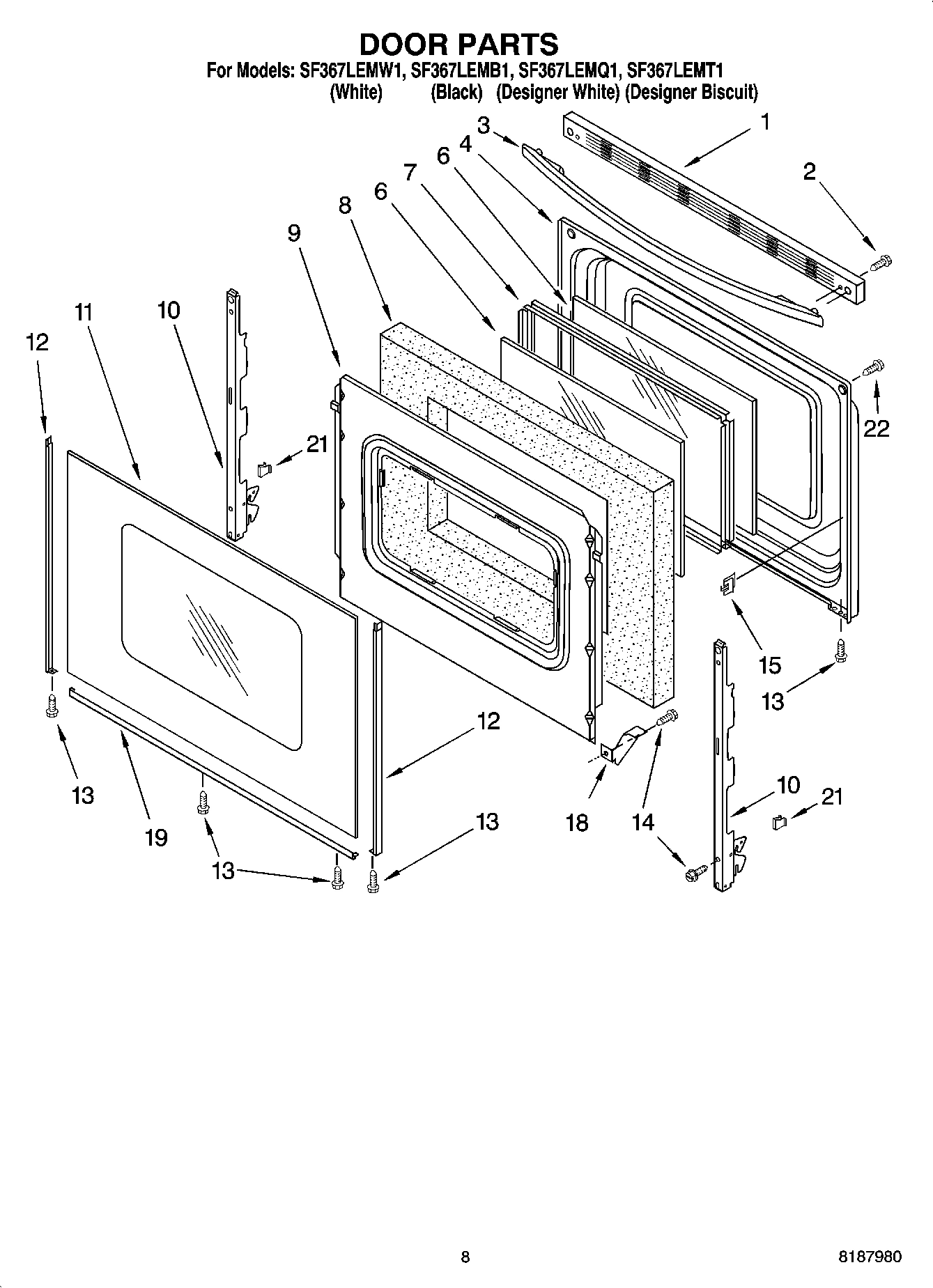

06 - DOOR PARTS, MISCELLANEOUS PARTS

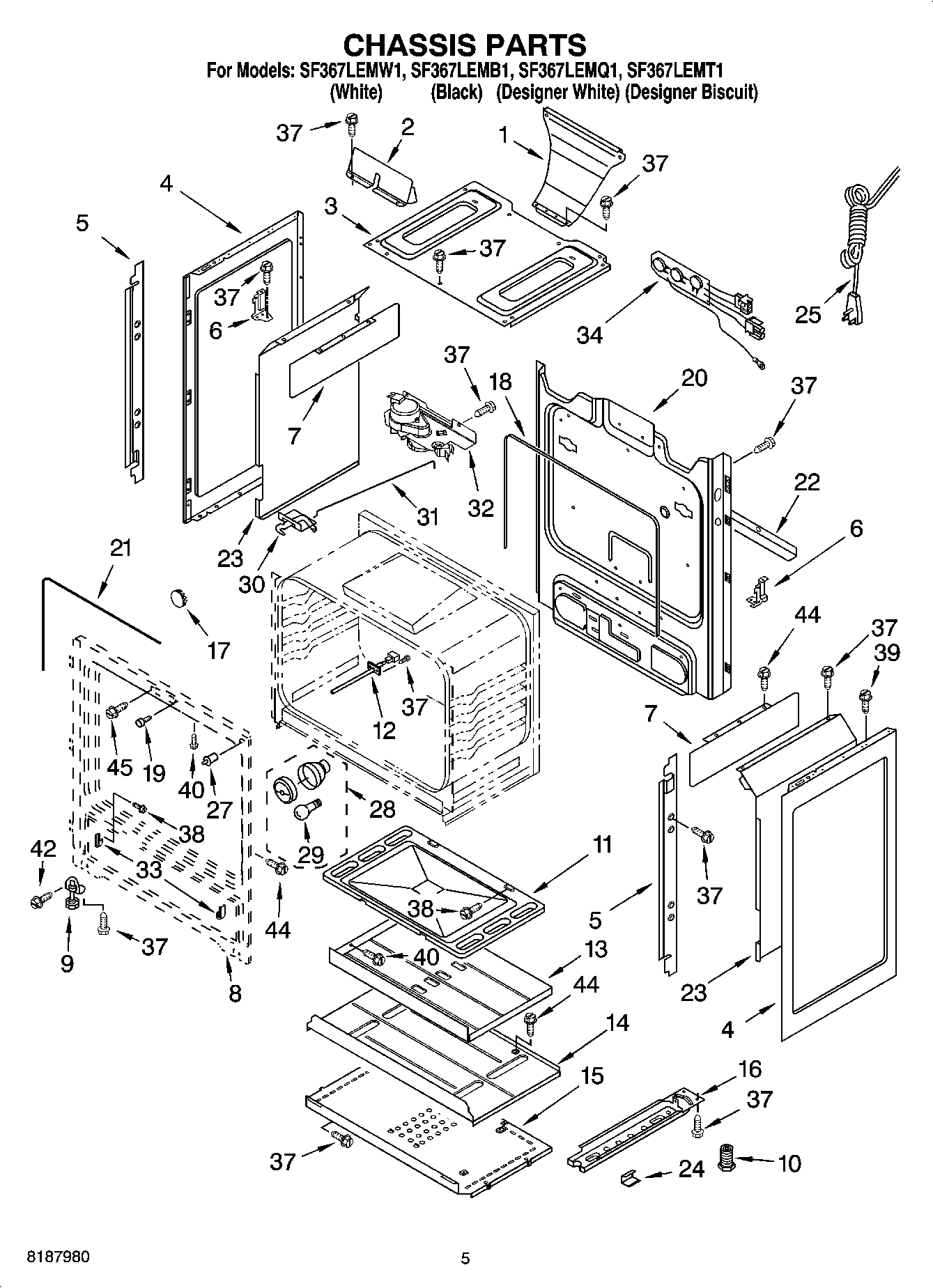

04 - CHASSIS PARTS

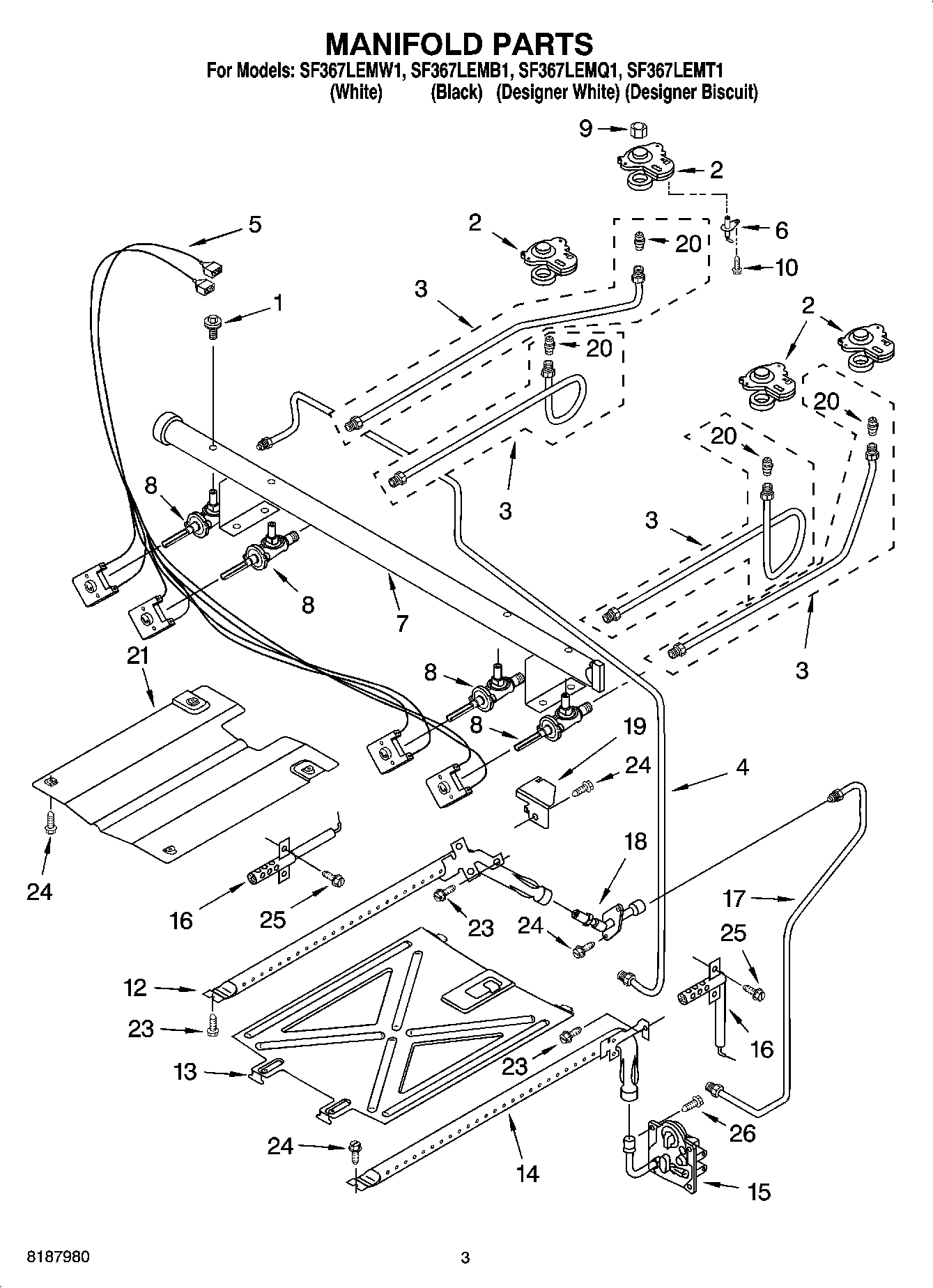

03 - MANIFOLD PARTS

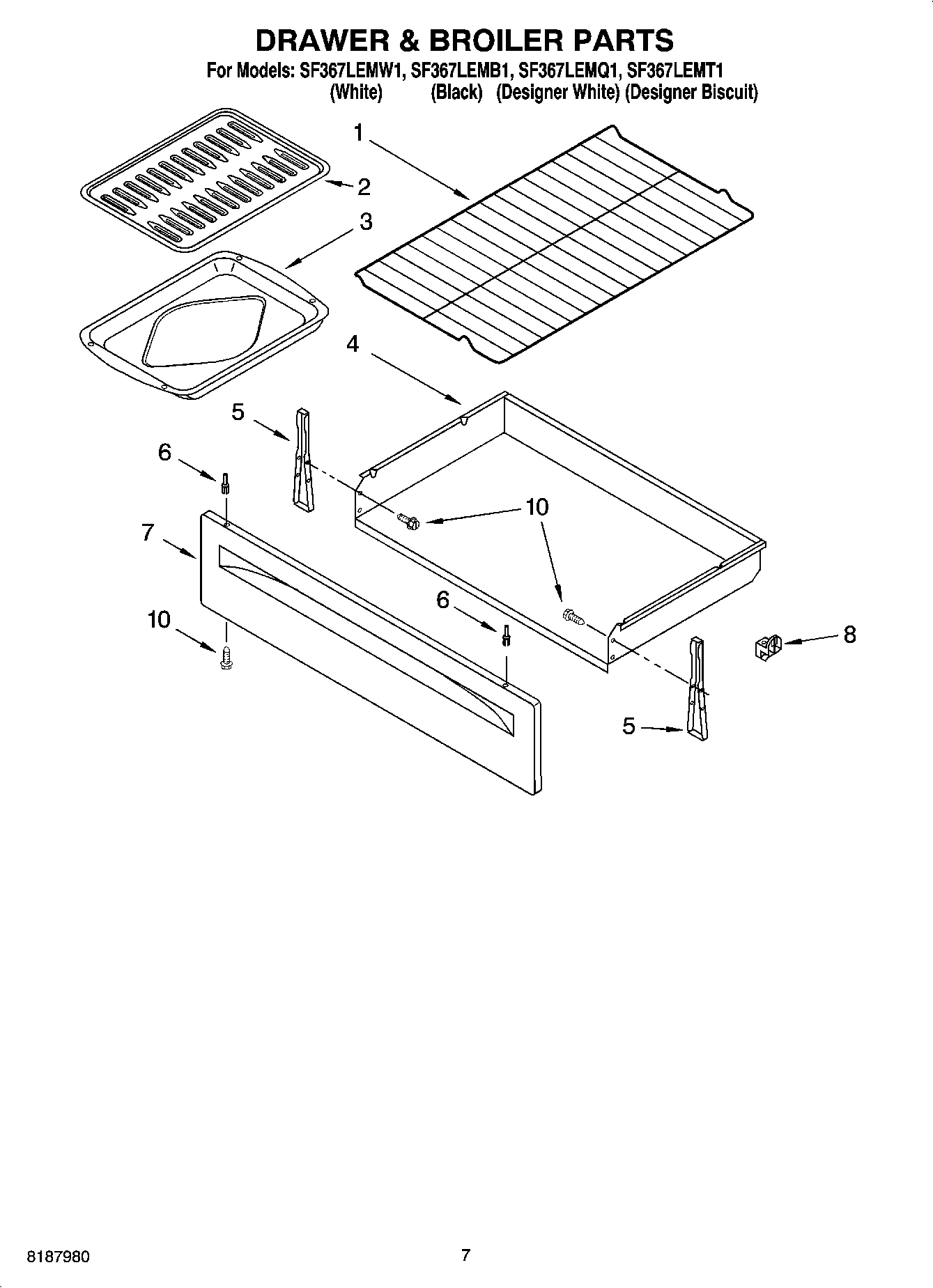

05 - DRAWER & BROILER PARTS
Common parts from model Whirlpool SF367LEMB1 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN
WPL 72017 WPL 72017 Contact Us For Availability
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 8524207 WPL 8524207 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 200 WPL 242831 Contact Us For Availability
WPL 242832 WPL 242832 Contact Us For Availability
WPL 261582 WPL 261582 Contact Us For Availability
WPL 3195927 WPL 3195927 Contact Us For Availability
WPL 3196696 WPL 3196696 Contact Us For Availability
WPL 3196896 WPL 3196896 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 8316781 WPL 8316781 Contact Us For Availability
WPL 8523424 WPL 8523424 Contact Us For Availability
WPL ARI163110A WPL ARI163110A Contact Us For Availability
WPL ARI163111A WPL ARI163111A Contact Us For Availability
WPL ARI163112A WPL ARI163112A Contact Us For Availability
WPL ARI163113A WPL ARI163113A Contact Us For Availability
WPL ARI163114A WPL ARI163114A Contact Us For Availability
WPL ARI163115A WPL ARI163115A Contact Us For Availability
WPL ARI163116A WPL ARI163116A Contact Us For Availability
WPL ARI163117A WPL ARI163117A Contact Us For Availability
1
Screw, Valve WPL 8273096 Contact Us For Availability
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability
2
Cap, Burner (Right Rear) (Grey) WPL 3191899 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) WPL 8273695 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Front) WPL 8273693 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Rear) WPL 8273698 Contact Us For Availability
4
Burner (Right Rear) WPL 4455979 Contact Us For Availability
4
Screw WPL 4449746 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
4
Tubing (Manifold to Regulator) WPL 8523402 Contact Us For Availability
4
Drawer, Storage WPL 8272606 Contact Us For Availability
5
Shield, Heat (2) WPL 8524111 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8523855 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
7
Shield, Heat (2) WPL 3196136 Contact Us For Availability
7
Pipe, Manifold WPL 8523407 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
8
Frame, Front (Non-Serviceable) WPL ARI163108A Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
11
Grate, Burner (4) (Espresso) WPL 8522853 Contact Us For Availability
11
Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
15
Clip, Door Glass WPL 3196025 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
17
Plug-Button WPL 3196439 Contact Us For Availability
18
Seal, Oven Flange WPL 8524109 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Bracket, Window (2) WPL 3196794 Contact Us For Availability
19
Cover, Igniter WPL 8272403 Contact Us For Availability
20
Back, Main WPL 9757098 Contact Us For Availability
21
Clip, Door Stop WPL 3196925 Contact Us For Availability
22
Brace, Main Back WPL 8053971 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
23
Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability
23
Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability
24
Clip, Panel (6) WPL 3196576 Contact Us For Availability
26
Spuds, LP Gas (Kit of 4) WPL 8523418 Contact Us For Availability
26
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI163107A Contact Us For Availability
27
Switch, Door WPL 3195993 Contact Us For Availability
34
Suppressor, Trans WPL 9756133 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
39
Screw (White) WPL 3196166 Contact Us For Availability
39
Screw (Almond) WPL 3196167 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
45
Insulation WPL ARI163109A Contact Us For Availability
× ![]()
