Model Whirlpool SF365BEYQ5 GAS RANGE – Common Parts & Diagrams

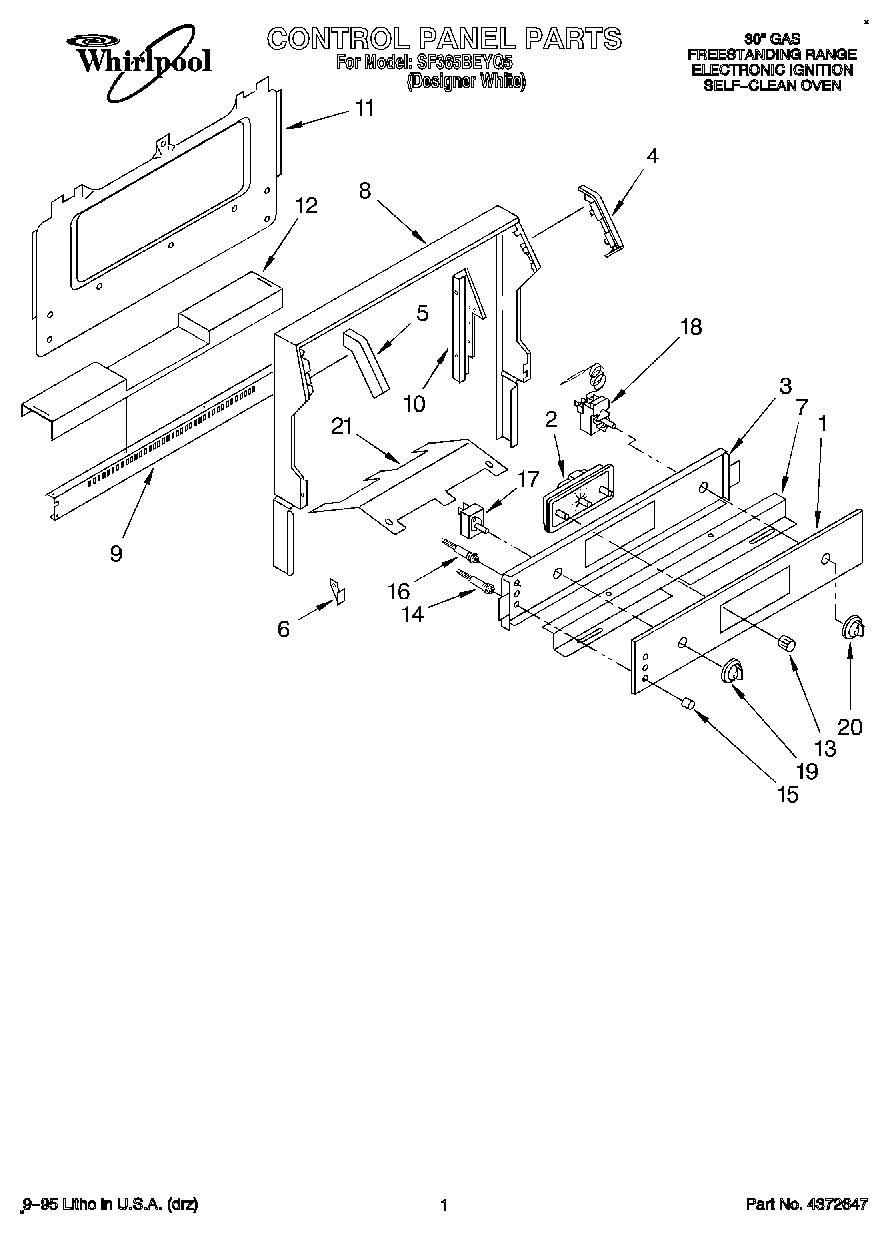

01 - CONTROL PANEL

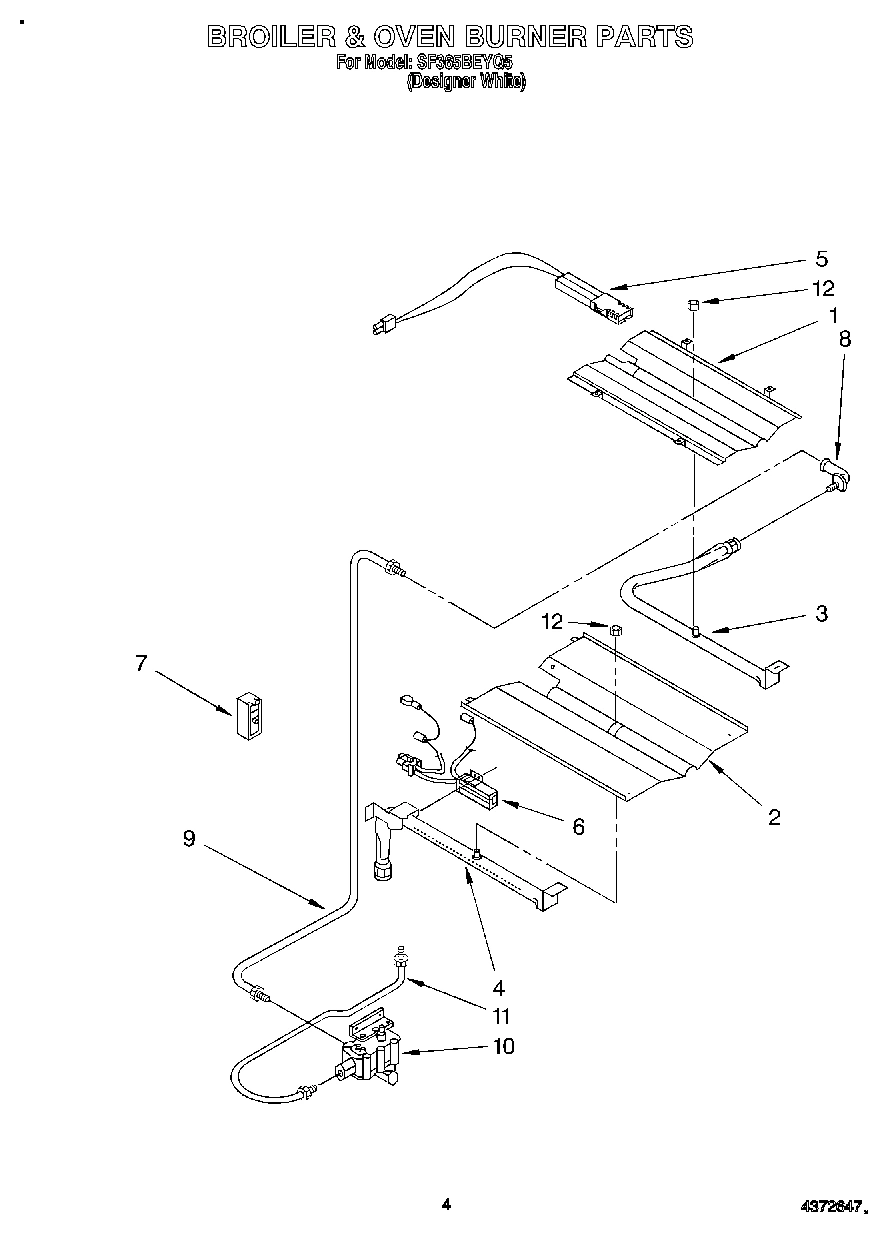

04 - BROILER & OVEN BURNER

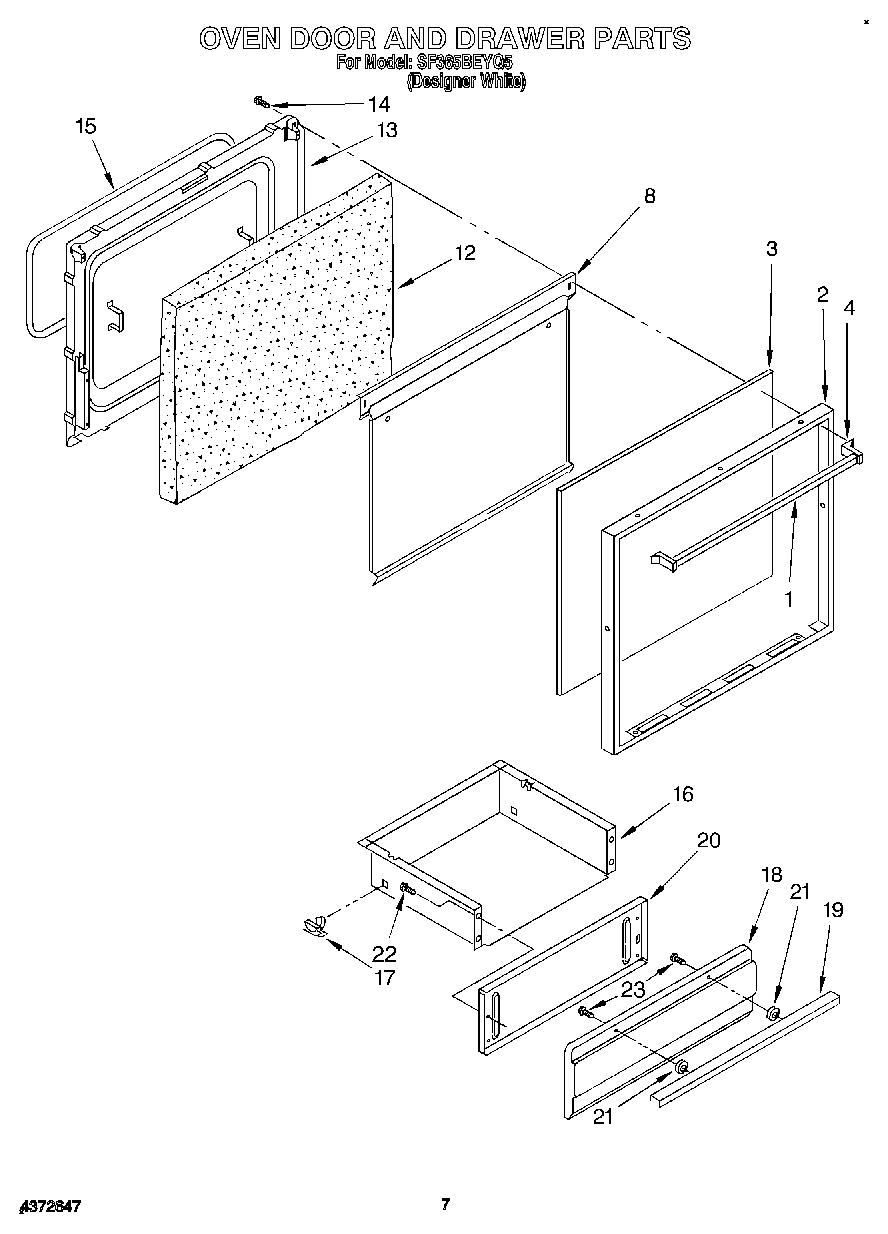

06 - OVEN DOOR AND DRAWER

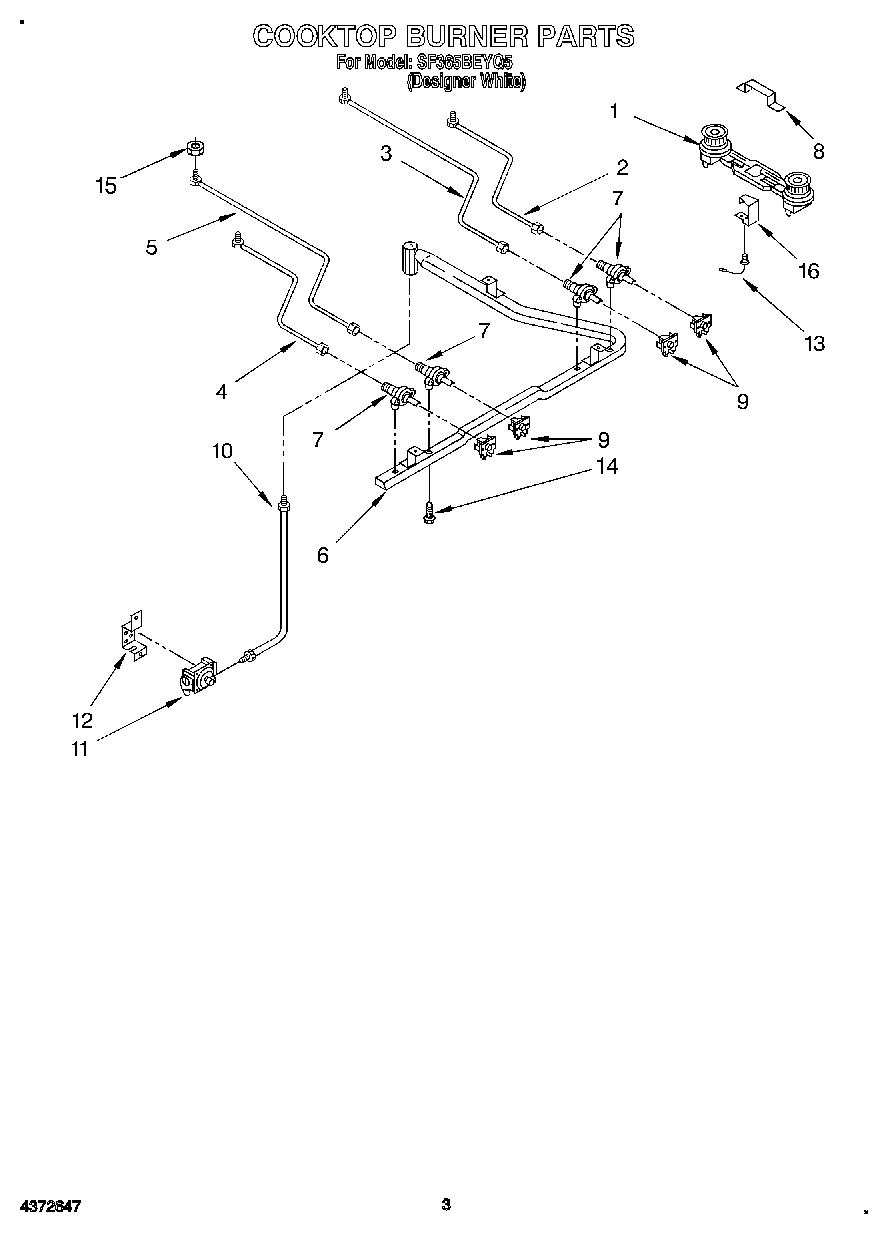

03 - COOKTOP BURNER

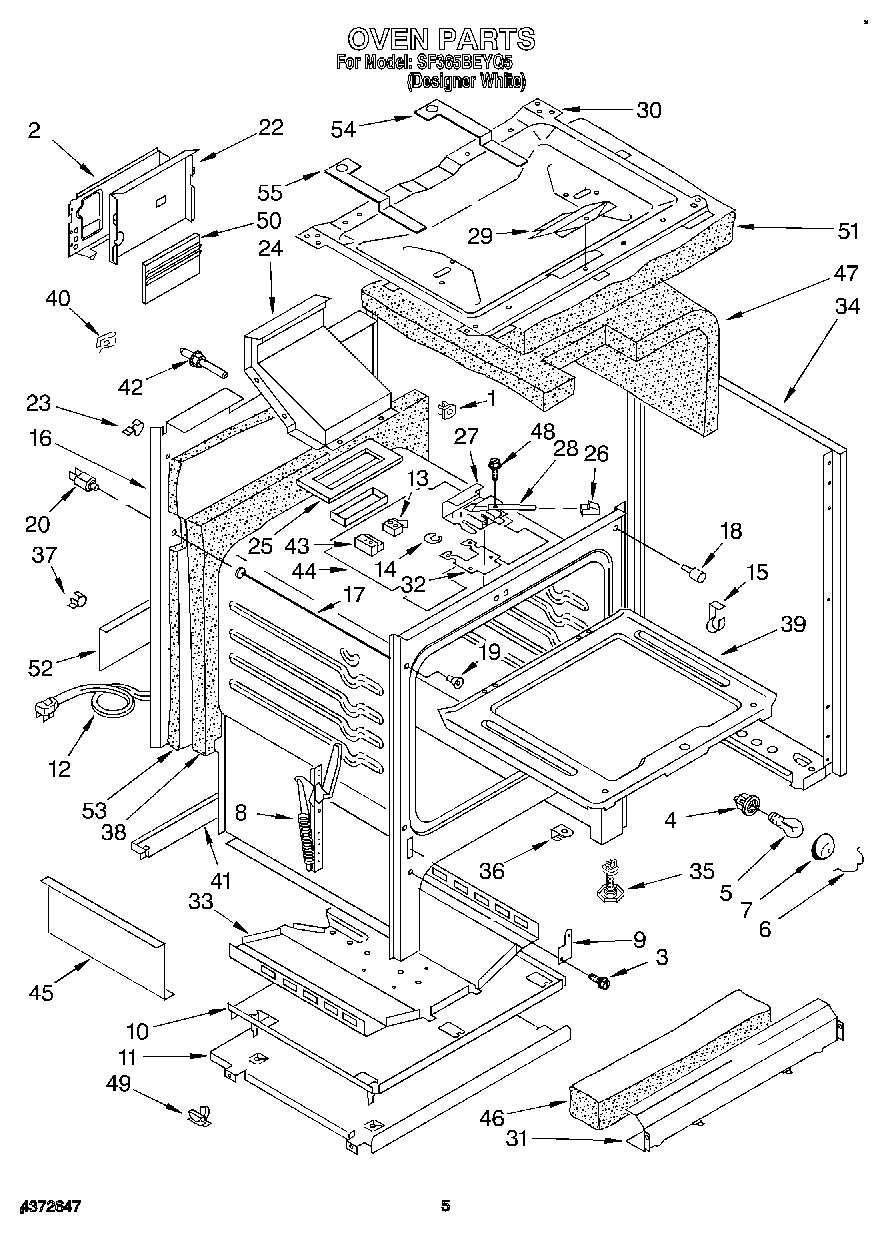

05 - OVEN

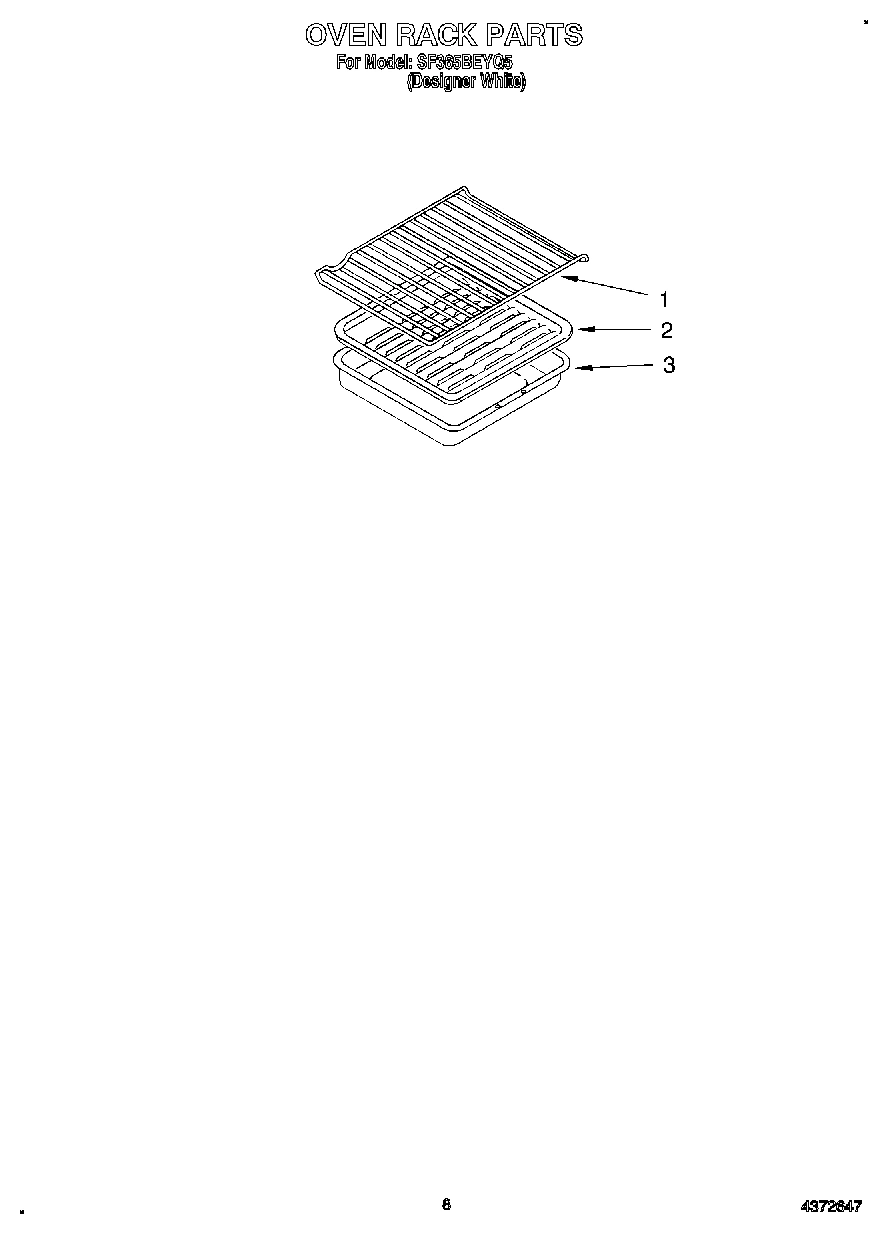

07 - OVEN RACK, LITERATURE

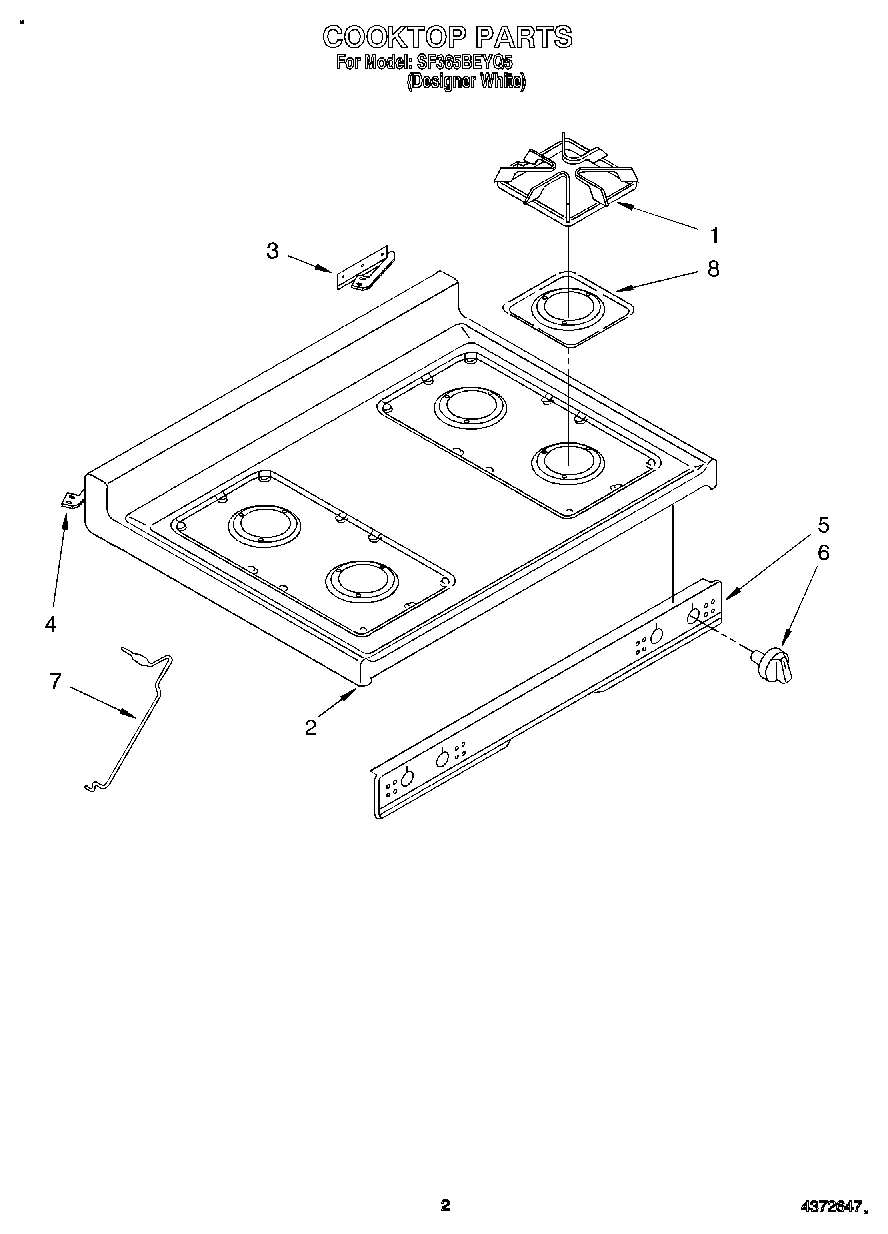

02 - COOKTOP
Common parts from model Whirlpool SF365BEYQ5 GAS RANGE
Guide, Use & Care WPL LIT4372660 Contact Us For Availability
Instructions, Installation WPL LIT4372661 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Handle, Door WPL 816736 Contact Us For Availability
1
Burner, Double (2) WPL 4372225 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Grate (4) WPL 4372211 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Trim, Door WPL 816746 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
2
Shield, Rear Wall WPL 816659 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Top, Main WPL 4371547 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Glass, Door WPL 4371678 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
3
Screw, Oven Bottom WPL 816651 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Endcap (2) WPL 4371074 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
4
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
5
Panel, Manifold WPL 4371673 Contact Us For Availability
6
Cap, Filler WPL 4371563 Contact Us For Availability
6
Pipe, Manifold WPL 4372306 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Knob, Control (4) WPL 4372642 Contact Us For Availability
7
Retainer, Timer WPL 4371320 Contact Us For Availability
7
Module, Spark WPL 4371030 Contact Us For Availability
7
Valve, Top (4) WPL 4372651 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Rod, Support Top WPL 4372341 Contact Us For Availability
8
Trim, Wrapper WPL 4371674 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Shield, Heat WPL 4371609 Contact Us For Availability
8
Bracket, Burner Mounting WPL 4371019 Contact Us For Availability
8
Hinge, Oven Door WPL 4371087 Contact Us For Availability
8
Pan, Burner (4) WPL 4371565 Contact Us For Availability
9
Trim, Deflector WPL 4371562 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 4372314 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
10
Support, Backguard (R.H.) WPL 4372307 Contact Us For Availability
10
Support, Backguard (L.H.) WPL 4372308 Contact Us For Availability
10
Valve, Safety WPL 816692 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4372316 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
11
Shield, Rear Wall WPL 4371524 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 4372315 Contact Us For Availability
11
Control, Regulator WPL 4372040 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
12
Deflector, Flue WPL 4371537 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
13
Ignitor, Top Burner WPL 4371017 Contact Us For Availability
13
Knob, Clock (3) WPL 4371568 Contact Us For Availability
13
Liner, Oven Door WPL 4371044 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
14
Light, Indicator (2) WPL 4371626 Contact Us For Availability
14
Screw, Handle WPL 4371542 Contact Us For Availability
15
Lens, Ind Light (3) WPL 4372285 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Nut, Special (4) WPL 4371029 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
16
Light, Indicator WPL 4371627 Contact Us For Availability
16
Drawer, Utility WPL 816711 Contact Us For Availability
16
Retainer, Ignitor WPL 4371242 Contact Us For Availability
16
Back, Main WPL 4372290 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Switch, Selector WPL 4371629 Contact Us For Availability
17
Rod, Light WPL 4372288 Contact Us For Availability
18
Thermostat WPL 4371630 Contact Us For Availability
18
Panel, Drawer WPL 4372318 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
19
Knob, Selector WPL 4371676 Contact Us For Availability
19
Handle, Utility Drawer WPL 816753 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
20
Knob, Thermostat WPL 4371677 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
20
Switch, Door WPL 4372289 Contact Us For Availability
21
Shield, Inner Bkgd WPL 4371655 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Screw, Drawer (5) WPL 4371062 Contact Us For Availability
22
Shield, Rear Heat WPL 4371661 Contact Us For Availability
23
Screw, Handle (2) WPL 4371063 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
24
Flue Box WPL 4371652 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 4371680 Contact Us For Availability
27
Latch, Door WPL 4371036 Contact Us For Availability
28
Handle, Latch WPL 4371151 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (R.H.) WPL 816708 Contact Us For Availability
34
Panel, Side (LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
36
Support, Oven Bottom WPL 4372313 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 4372312 Contact Us For Availability
39
Bottom, Oven WPL 4372245 Contact Us For Availability
40
Fastener, U Type WPL 4371033 Contact Us For Availability
41
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
42
Spacer, (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Shield, Oven Top WPL 816658 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 4371664 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
50
Shield, Flue WPL 4371662 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 816663 Contact Us For Availability
53
Shield, Wool WPL 816664 Contact Us For Availability
54
Bracket, Maintop RH WPL 4371527 Contact Us For Availability
55
Bracket, Maintop LH WPL 4371528 Contact Us For Availability
× ![]()
