Model Whirlpool SF365BEXN0 GAS RANGE – Common Parts & Diagrams

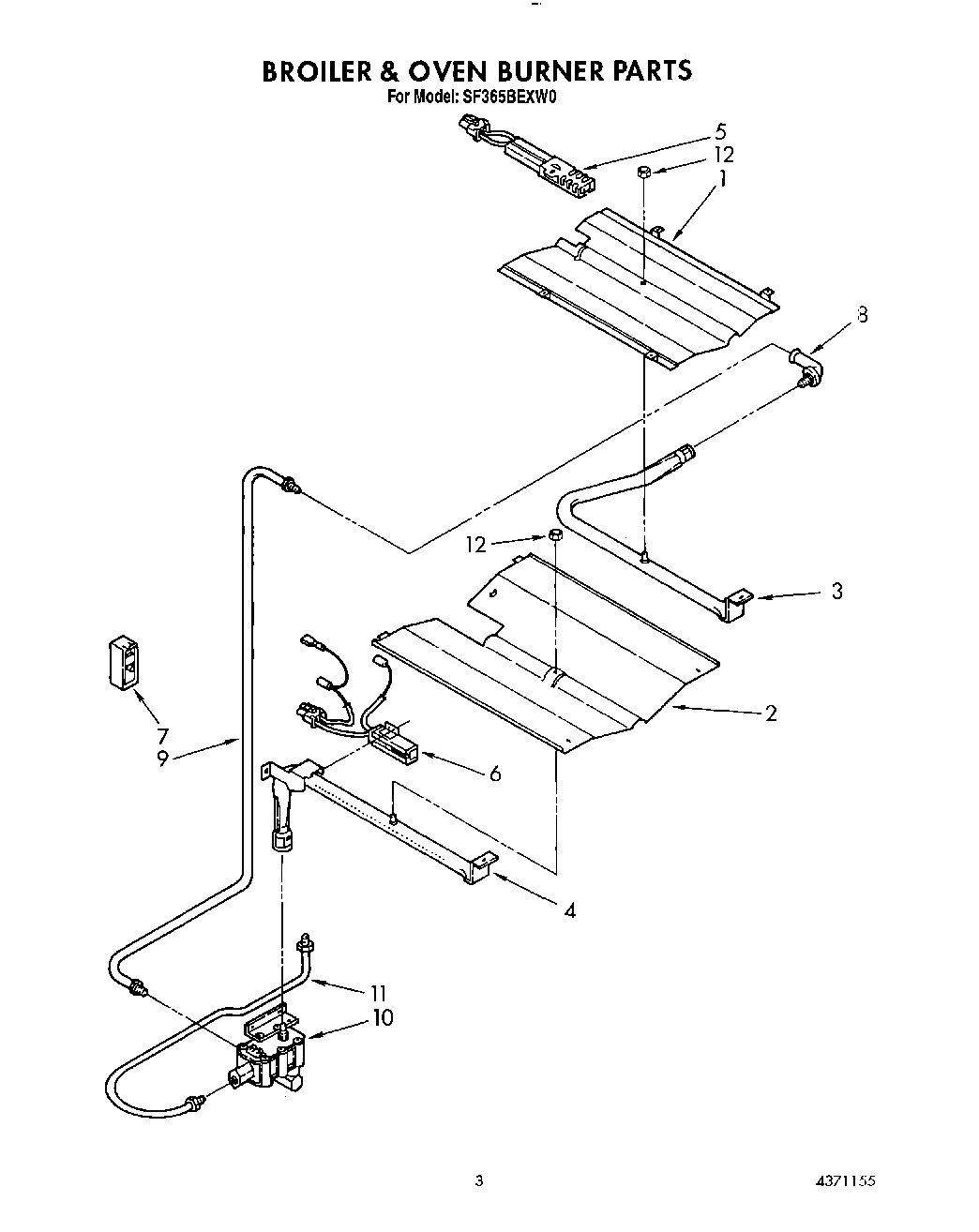

03 - BROILER & OVEN BURNER

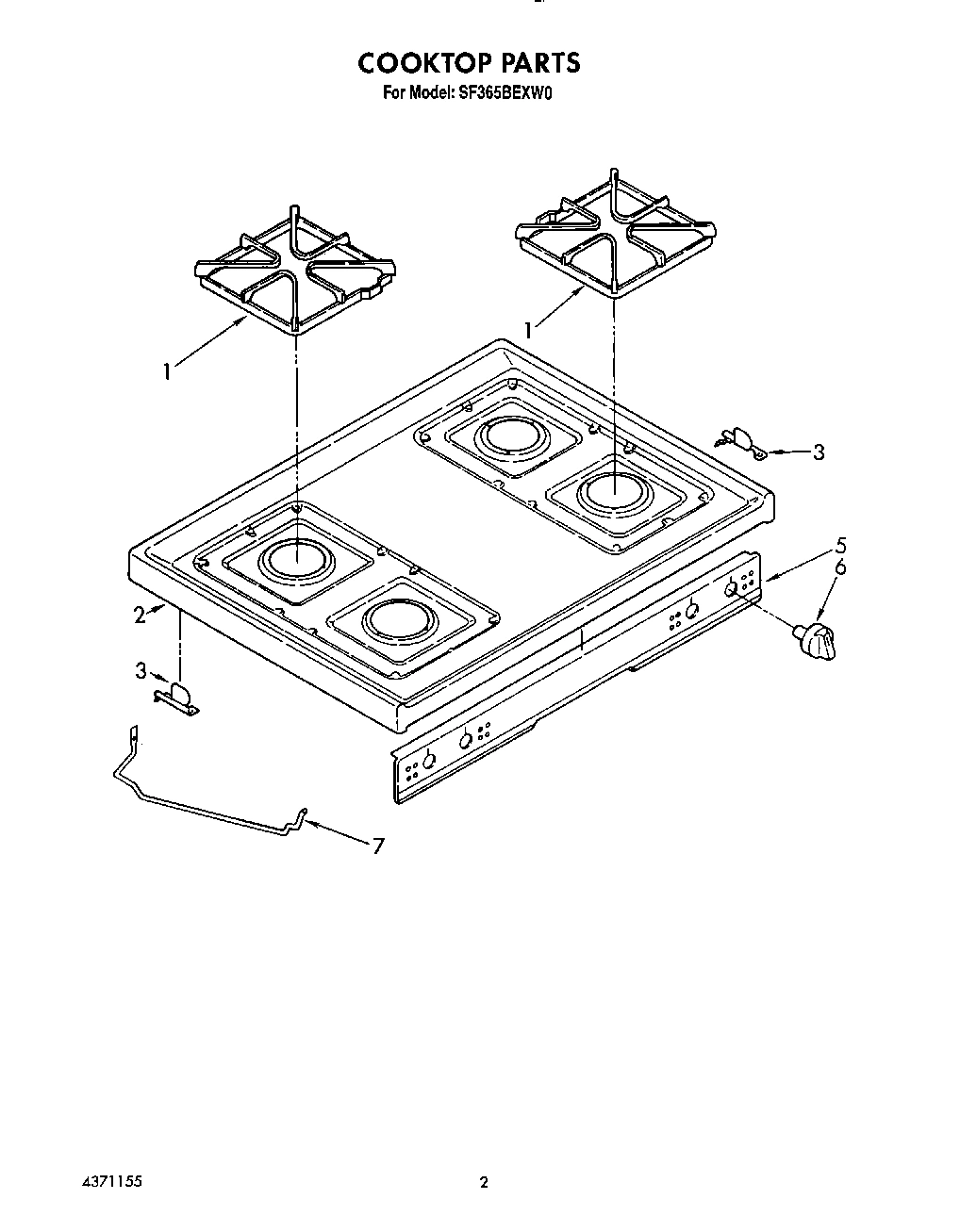

02 - COOKTOP

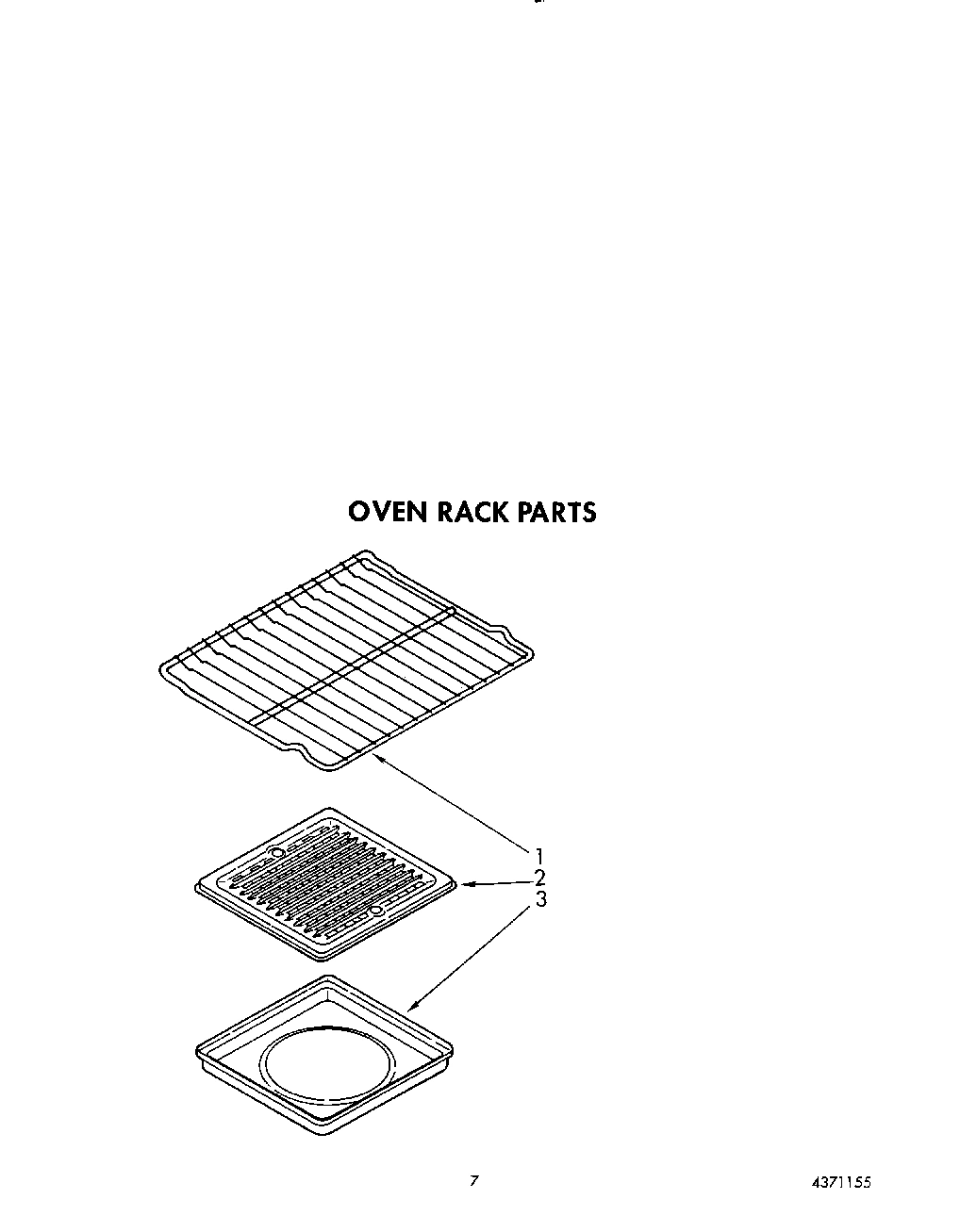

07 - OVEN RACK, LIT/OPTIONAL

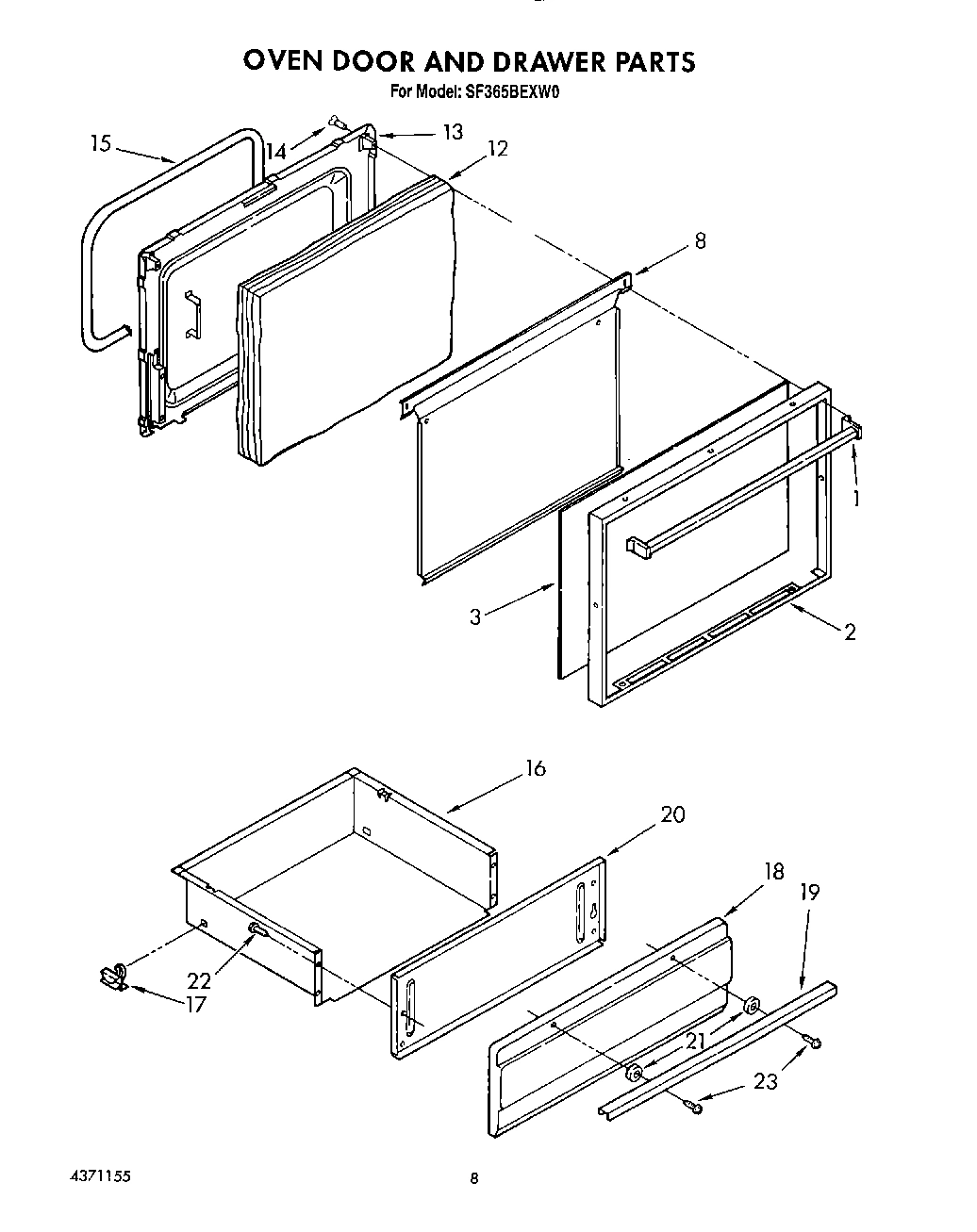

08 - OVEN DOOR AND DRAWER

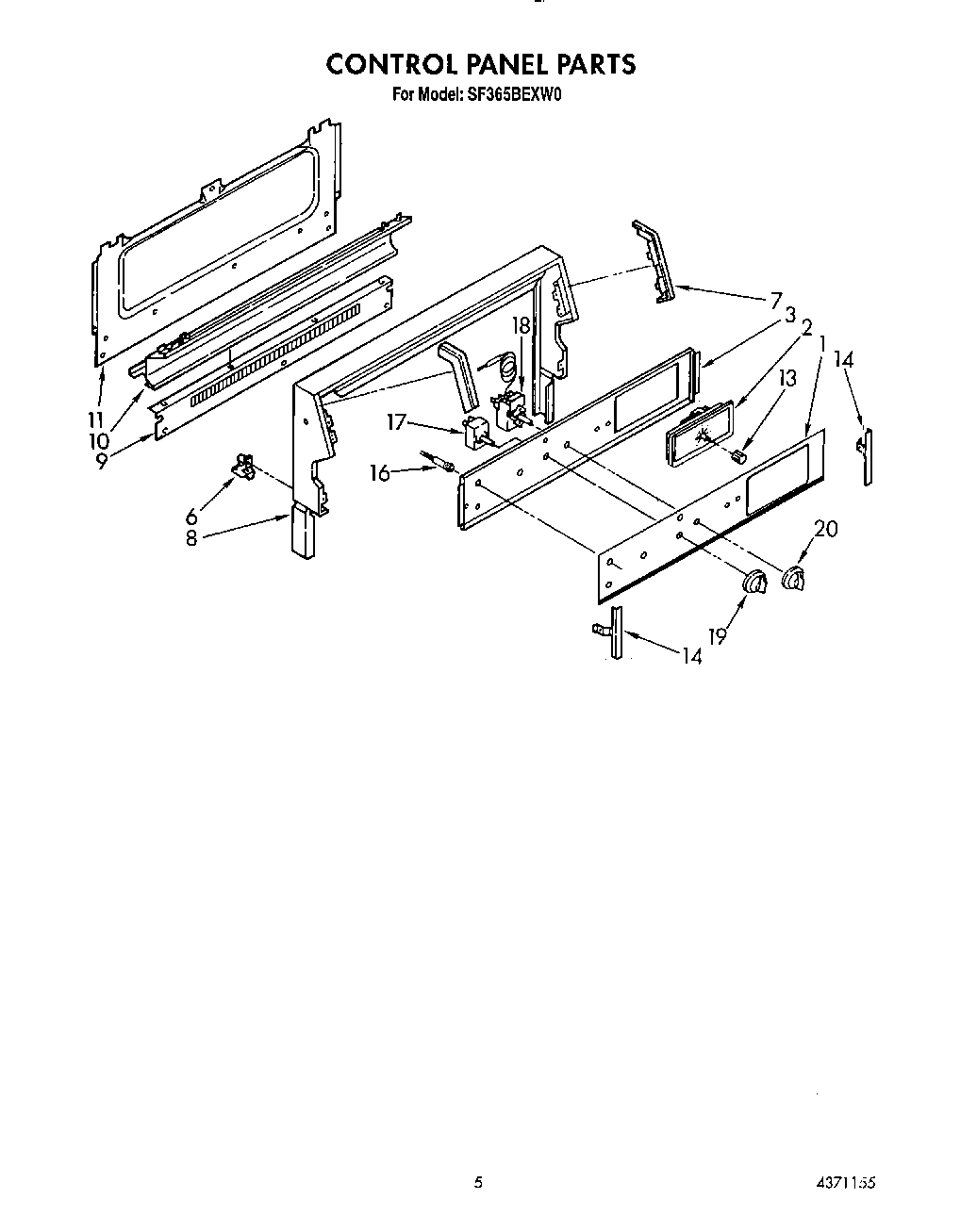

05 - CONTROL PANEL

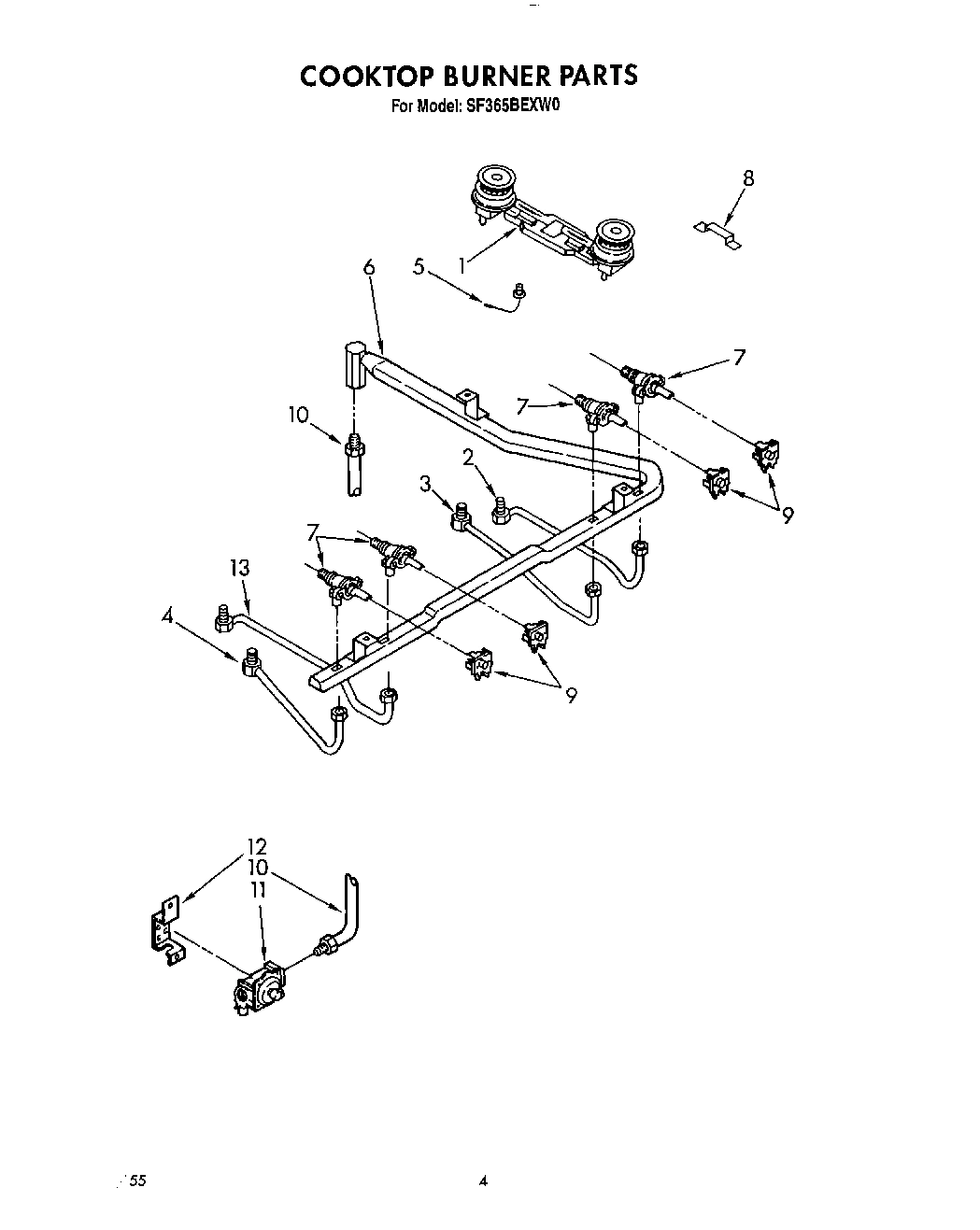

04 - COOKTOP BURNER

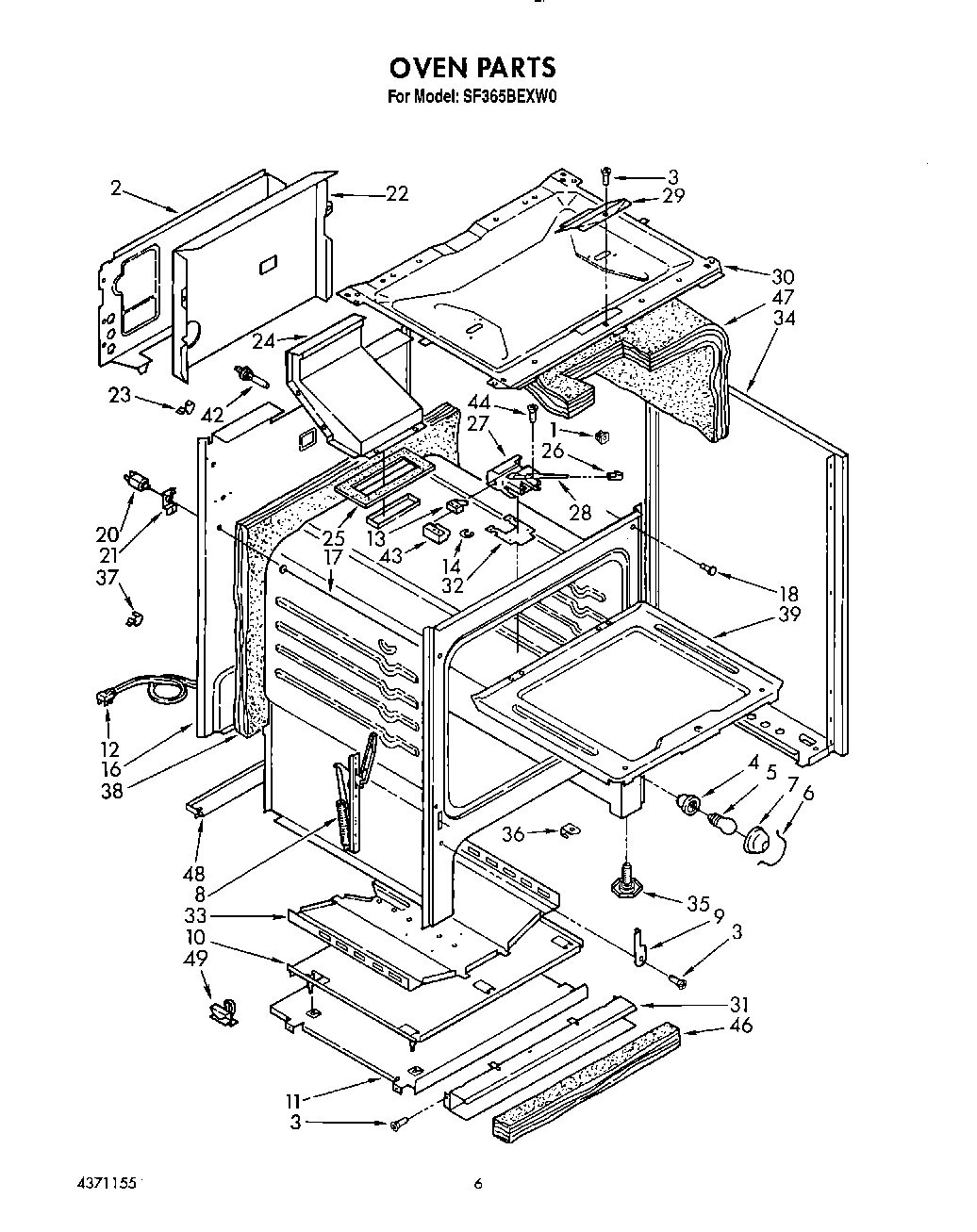

06 - OVEN
Common parts from model Whirlpool SF365BEXN0 GAS RANGE
Guide, Use & Care WPL LIT4371146 Contact Us For Availability
Instructions, Installation WPL LIT4371149 Contact Us For Availability
List, Repair Parts WPL LIT4371155 Contact Us For Availability
1
Grate WPL 4371034 Contact Us For Availability
1
Rack, Oven WPL 816646 Contact Us For Availability
1
Handle, Door WPL 816622 Contact Us For Availability
1
Glass, Backguard WPL 4371050 Contact Us For Availability
1
Burner, Double WPL 4371020 Contact Us For Availability
1
Spacer, Body WPL 816669 Contact Us For Availability
2
Top, Main (White) WPL 4371064 Contact Us For Availability
2
Top, Main (Almond) WPL 4371065 Contact Us For Availability
2
Broiler Pan WPL 786451 Contact Us For Availability
2
Insert, WPL 816626 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Clock, Auto WPL 4371049 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
2
Shield, Wool WPL 816659 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Bracket, Hinges (Left Side) WPL 816586 Contact Us For Availability
3
Bracket, Hinges (Right Side) WPL 816721 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Glass, Door WPL 4371043 Contact Us For Availability
3
Plate, Instrument Mounting WPL 4371055 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
3
No.8-18 x 17/16 WPL 786375 Contact Us For Availability
3
Screw WPL 816651 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
5
Ignitor, Top Burner (2) WPL 4371017 Contact Us For Availability
5
Panel, Manifold WPL 816643 Contact Us For Availability
6
Knob, Control (4) WPL 816632 Contact Us For Availability
6
Brace, Backguard WPL 816702 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
7
Module, Spark WPL 4371030 Contact Us For Availability
7
Rod, Support Top WPL 4371039 Contact Us For Availability
7
End Cap (Left) WPL 816694 Contact Us For Availability
7
End Cap (Right) WPL 816696 Contact Us For Availability
7
Valve, Top Burner (4) WPL 4371028 Contact Us For Availability
7
Lens, Oven Lamp WPL 816609 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Shield, Heat WPL 4371046 Contact Us For Availability
8
Trim, Wrapper WPL 4371058 Contact Us For Availability
8
Bracket, Burner Mounting WPL 4371019 Contact Us For Availability
8
Hinge, Oven WPL 4371035 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 816689 Contact Us For Availability
9
Trim, Vent WPL 816707 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371014 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
10
Valve, Dual WPL 816692 Contact Us For Availability
10
Trim, Splasher WPL 4320326 Contact Us For Availability
10
White WPL 4371059 Contact Us For Availability
10
Almond WPL 4371066 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 816691 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 816690 Contact Us For Availability
11
Shield, Rear Wall WPL 4371041 Contact Us For Availability
11
Control, Regulator WPL 4371032 Contact Us For Availability
11
Heat (Lower) WPL 4320309 Contact Us For Availability
11
Shield, WPL 816657 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
13
Liner, Oven Door WPL 4371044 Contact Us For Availability
13
Knob, Clock WPL 816951 Contact Us For Availability
13
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
13
Switch, Latch WPL 4371037 Contact Us For Availability
14
Screw, Handle WPL 4371045 Contact Us For Availability
14
Retainer, Glass WPL 816706 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
16
Drawer, Utility WPL 816711 Contact Us For Availability
16
Light, Indicator WPL 4371053 Contact Us For Availability
16
Lock, Indicator WPL 4371054 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Switch, Selector WPL 4371056 Contact Us For Availability
17
Rod, Light WPL 4371038 Contact Us For Availability
18
Panel, Drawer WPL 816715 Contact Us For Availability
18
Thermostat WPL 4371057 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371060 Contact Us For Availability
19
Knob, Selector WPL 4371051 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
20
Knob, Thermostat WPL 4371052 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
21
Bracket, Light Switch WPL 816587 Contact Us For Availability
22
Shield, Heat WPL 816662 Contact Us For Availability
23
Screw, 10-18 x 1/2 (2) WPL 816755 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
24
Flue Box WPL 816619 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 816613 Contact Us For Availability
27
Latch, Door WPL 816635 Contact Us For Availability
28
Handle, Latch WPL 816634 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Heat Baffle WPL 786521 Contact Us For Availability
33
Shield, WPL 816660 Contact Us For Availability
34
Panel, Side (L.H.) (Almond) WPL 816672 Contact Us For Availability
34
Panel, Side (L.H.) (Almond Panel, Side (RH)) WPL 816695 Contact Us For Availability
34
Panel, Side (L.H.) (White) WPL 816708 Contact Us For Availability
34
Panel, Side (L.H.) (White) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 816650 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
42
Spacer, (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Screw, Latch Knob WPL 816653 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
× ![]()
