Model Whirlpool SF365BEWN1 GAS RANGE – Common Parts & Diagrams
01 - INTERNAL OVEN
02 - EXTERNAL OVEN
04 - OVEN ELECTRICAL

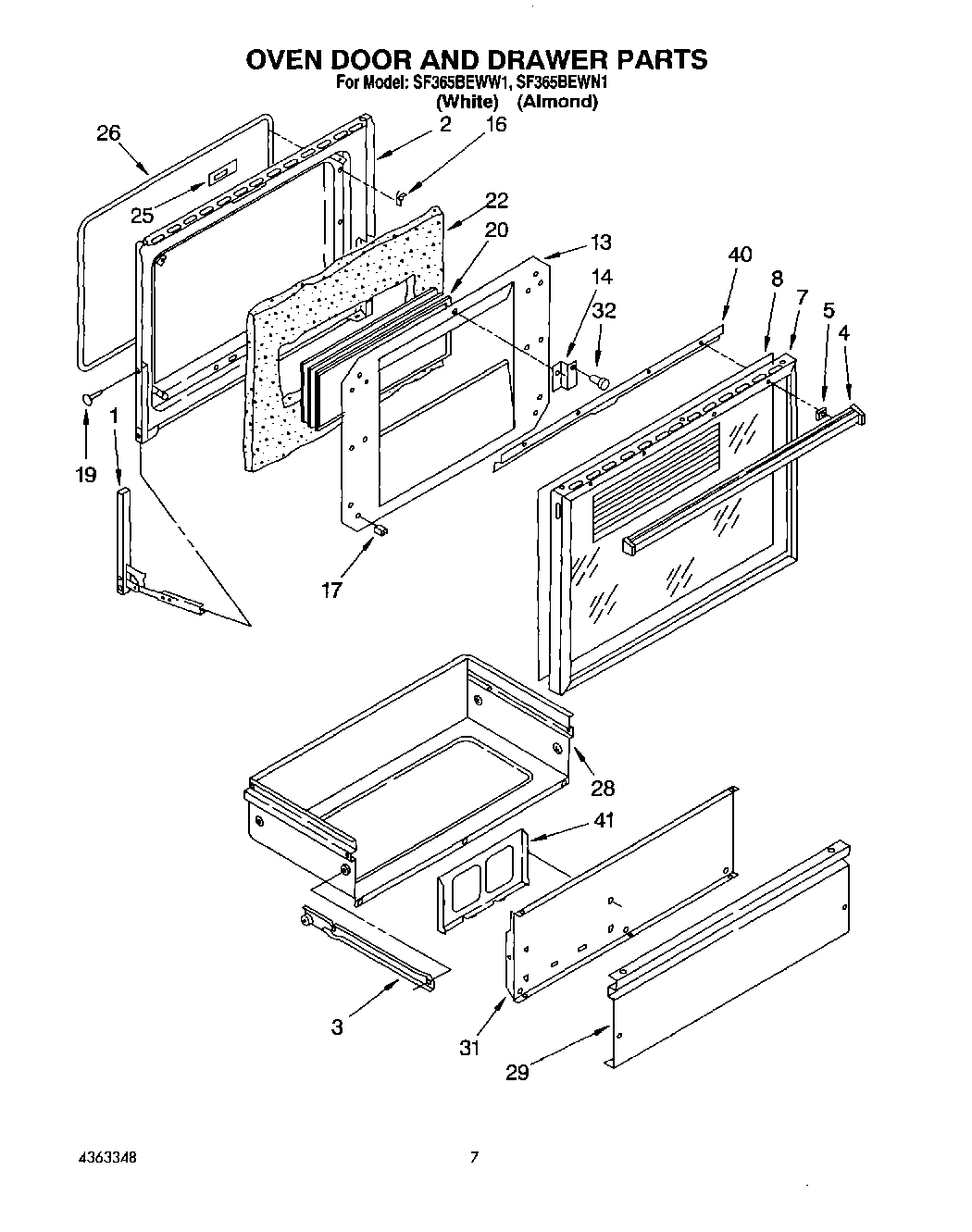

05 - OVEN DOOR AND DRAWER

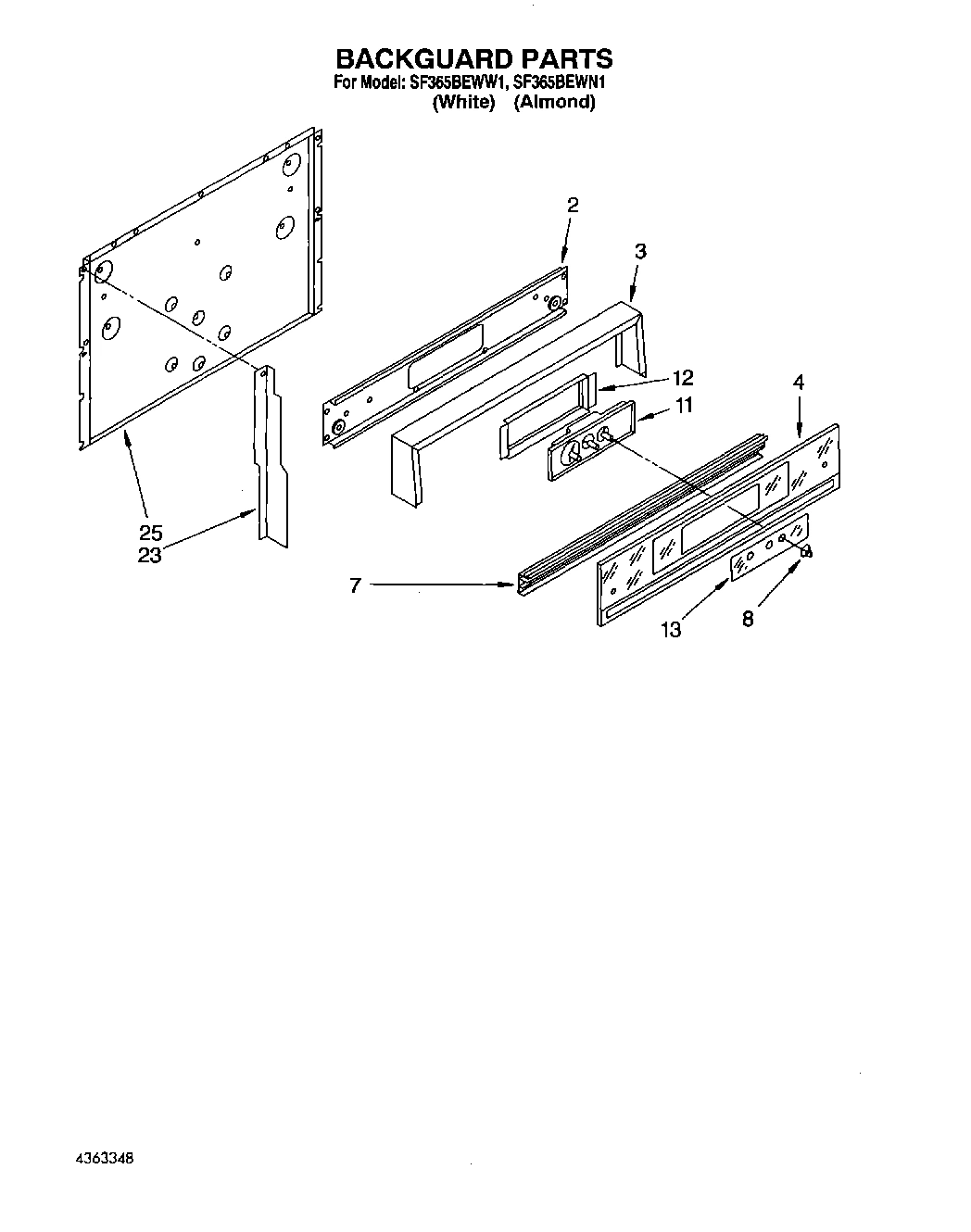

06 - BACKGUARD, LITERATURE

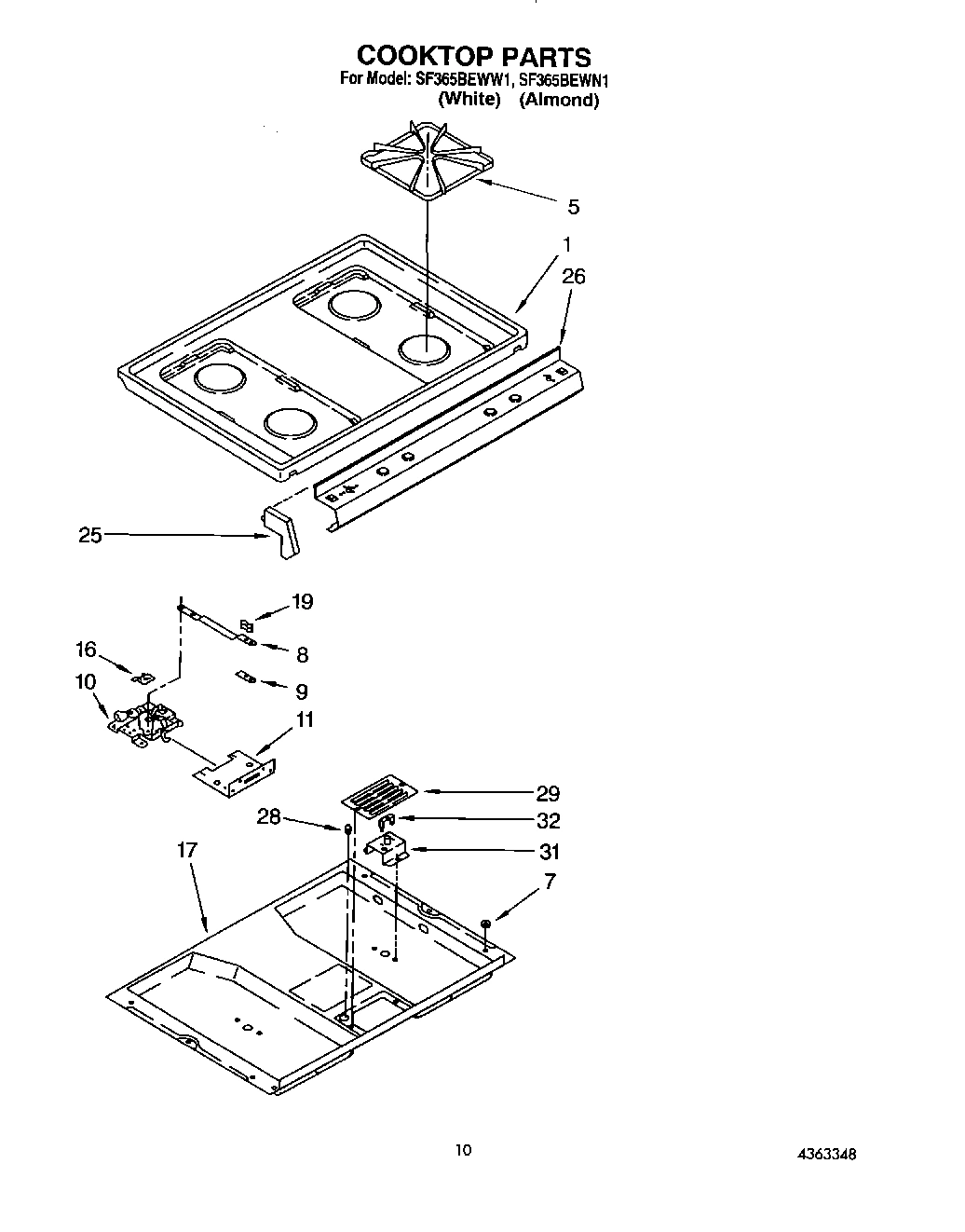

07 - COOKTOP

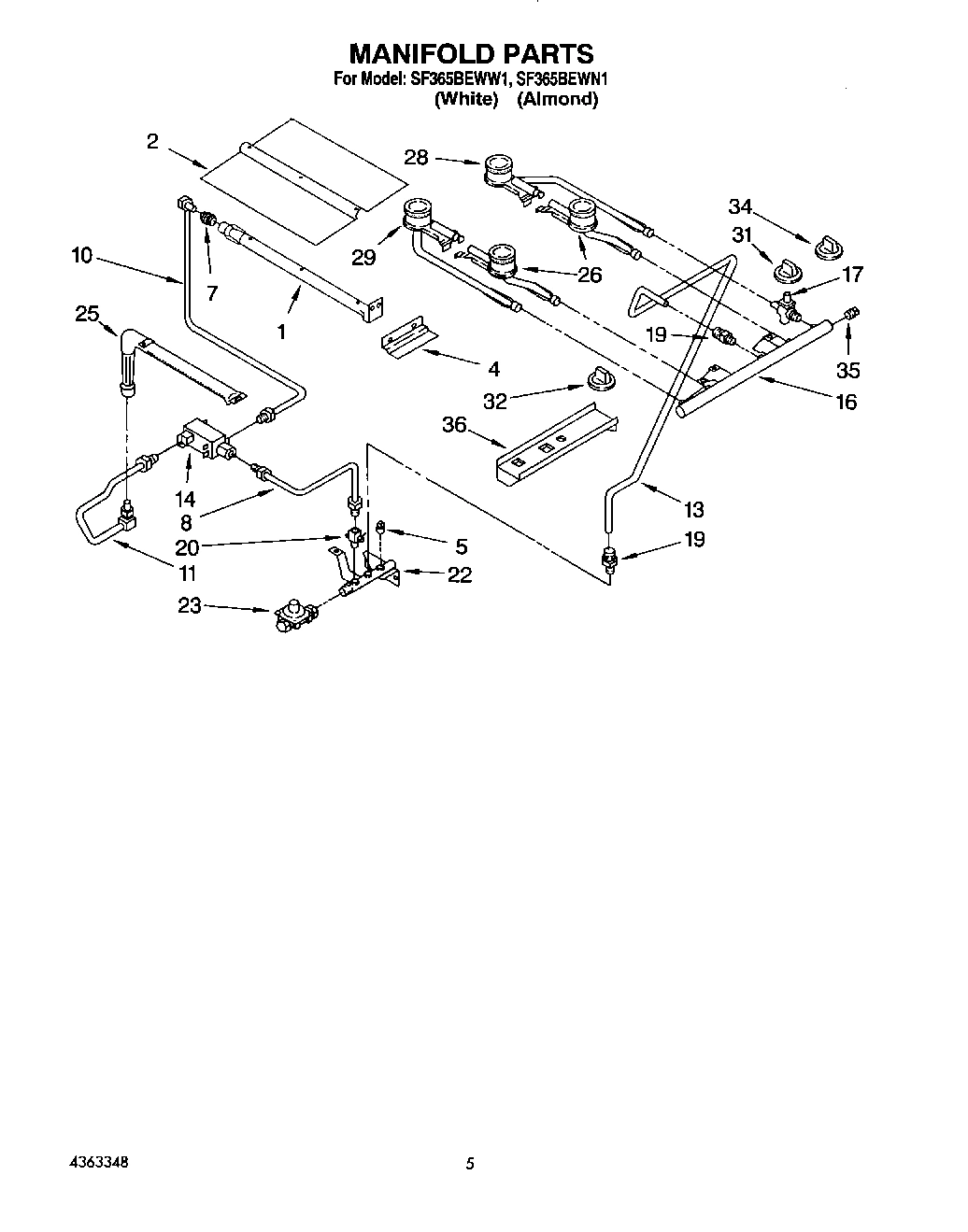

03 - MANIFOLD
Common parts from model Whirlpool SF365BEWN1 GAS RANGE
Guide, Use & Care WPL LIT4315706 Contact Us For Availability
Instructions, Installation WPL LIT4315710 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Frame, Front WPL 4320374 Contact Us For Availability
1
Screw (10) WPL 786325 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Nut, 6-32 (6) WPL 786753 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (Left Side) WPL 786375 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
Top, Main (Toast) WPL 4179073 Contact Us For Availability
1
Top, Main (Platinum) WPL 4179074 Contact Us For Availability
1
Burner, Ultra Ray Broiler WPL 4320907 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320923 Contact Us For Availability
2
Thermostat, Oven WPL 4314978 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
2
Liner, Oven Door WPL 4320984 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Panel, Control Mounting (Almond) WPL 786450 Contact Us For Availability
2
Panel, Control Mounting (White) WPL 786451 Contact Us For Availability
3
Storage Drawer Track (L.H.) WPL 4320308 Contact Us For Availability
3
Storage Drawer Track (R.H.) WPL 4320309 Contact Us For Availability
3
Frame WPL 4320900 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Decorative Inlay WPL 4320932 Contact Us For Availability
4
Bracket, Burner Mounting WPL 4320888 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Track, Storage Draw (Left Side) WPL 4315768 Contact Us For Availability
5
Track, Storage Draw (Right Side) WPL 4315769 Contact Us For Availability
5
Spacer, Door Handle (4) WPL 786410 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4314875 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
7
Frame, Oven Door WPL 786417 Contact Us For Availability
7
Trim, Lower WPL 786694 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
LP Gas No. 58 WPL 786309 Contact Us For Availability
7
Spud, Orifice (Natural Gas No. 50) WPL 4320926 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Panel, Black Glass WPL 786418 Contact Us For Availability
8
Knob, Clock (3) WPL 786434 Contact Us For Availability
8
Handle, Latch WPL 4320864 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
9
Support, Handle WPL 786690 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4315771 Contact Us For Availability
10
switch, top burner actuator WPL 4320326 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 4320925 Contact Us For Availability
11
Panel, Side (2) (White) WPL 4321094 Contact Us For Availability
11
Panel, Side (2) (Almond) WPL 4321097 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
11
Clock WPL 4320904 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
12
Plate, Clock Mounting WPL 786454 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4320891 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Plate, Insulation WPL 4315799 Contact Us For Availability
13
Glass, Timer WPL 786453 Contact Us For Availability
13
tubing (inlet to manifold) WPL 4320313 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 4315676 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
15
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
rear panel, WPL 4315785 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
Clip, Speed (15) WPL 786426 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Manifold WPL 4320317 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Bumper, Window (5) WPL 4179237 Contact Us For Availability
17
Burner Box WPL 4320886 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 4320318 Contact Us For Availability
19
Frame, Filler Front WPL 4315775 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Knob, Latch Handle WPL 4320863 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
20
Window Assy. WPL 786429 Contact Us For Availability
20
Valve, Shut-Off WPL 4320320 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
22
Cover, Burner WPL 4320890 Contact Us For Availability
22
Insulation, Door WPL 4320301 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
R.H. WPL 4315795 Contact Us For Availability
23
l.h. WPL 4315796 Contact Us For Availability
23
Support, Control Panel (2) WPL 786458 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Retainer, Rear WPL 4320889 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
25
Plate, Latch WPL 4315673 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Panel, Control WPL 4320920 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
28
Gasket, Vent WPL 4320930 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Switch, Oven Light WPL 4179328 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Plate, Cover WPL 4320377 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
31
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320722 Contact Us For Availability
32
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Bumper, Rubber (5) WPL 786526 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
32
Knob, Oven Control WPL 4320737 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
34
Knob, Selector WPL 4320738 Contact Us For Availability
35
Pipe Plug, 3/8 NPT WPL 786665 Contact Us For Availability
36
shelf, gas valve WPL 4315767 Contact Us For Availability
37
Insulator (2) WPL 786689 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broil Ignitor WPL 4362899 Contact Us For Availability
40
Clamp WPL 4157298 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Clip, Wire WPL 4179338 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
× ![]()
