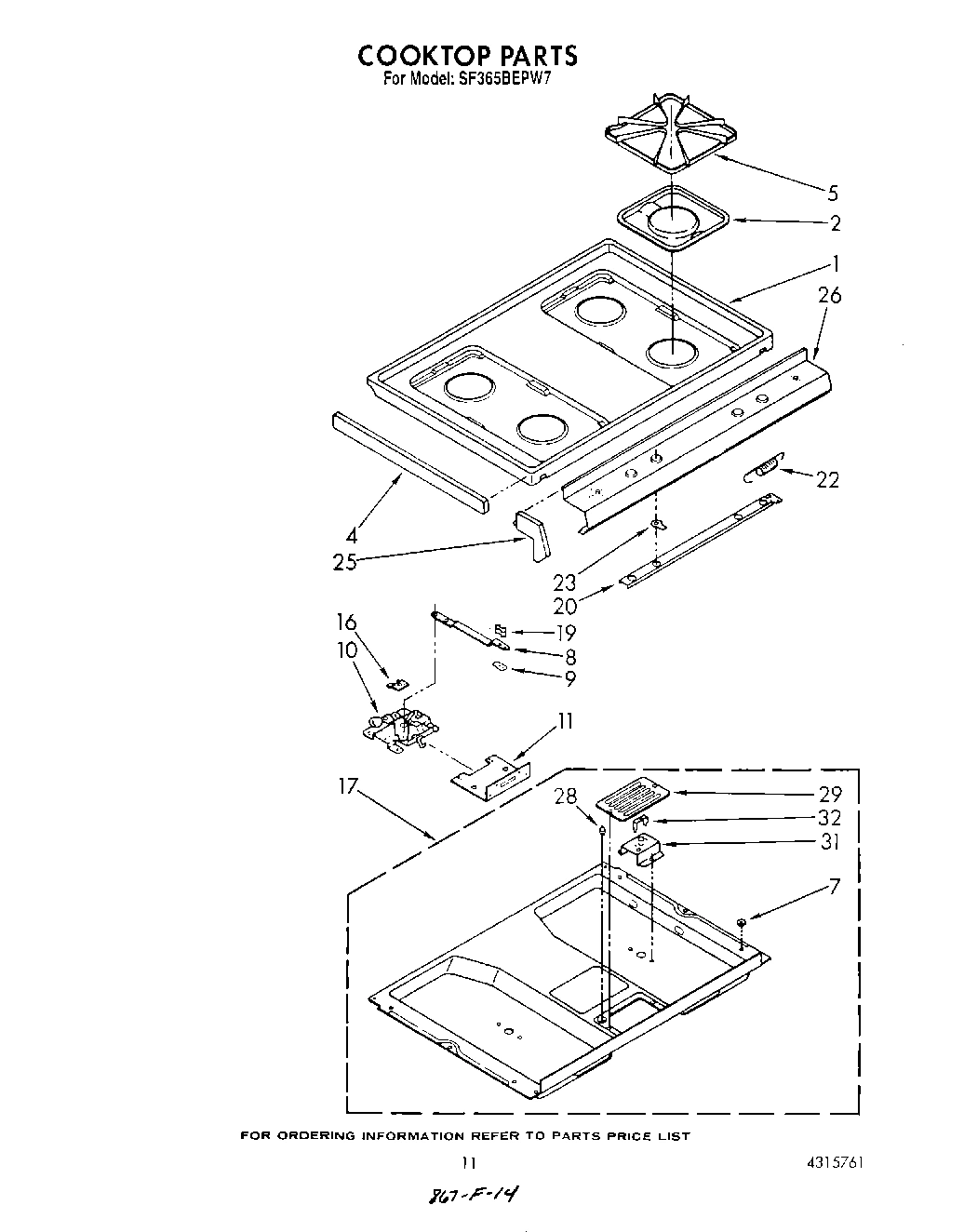

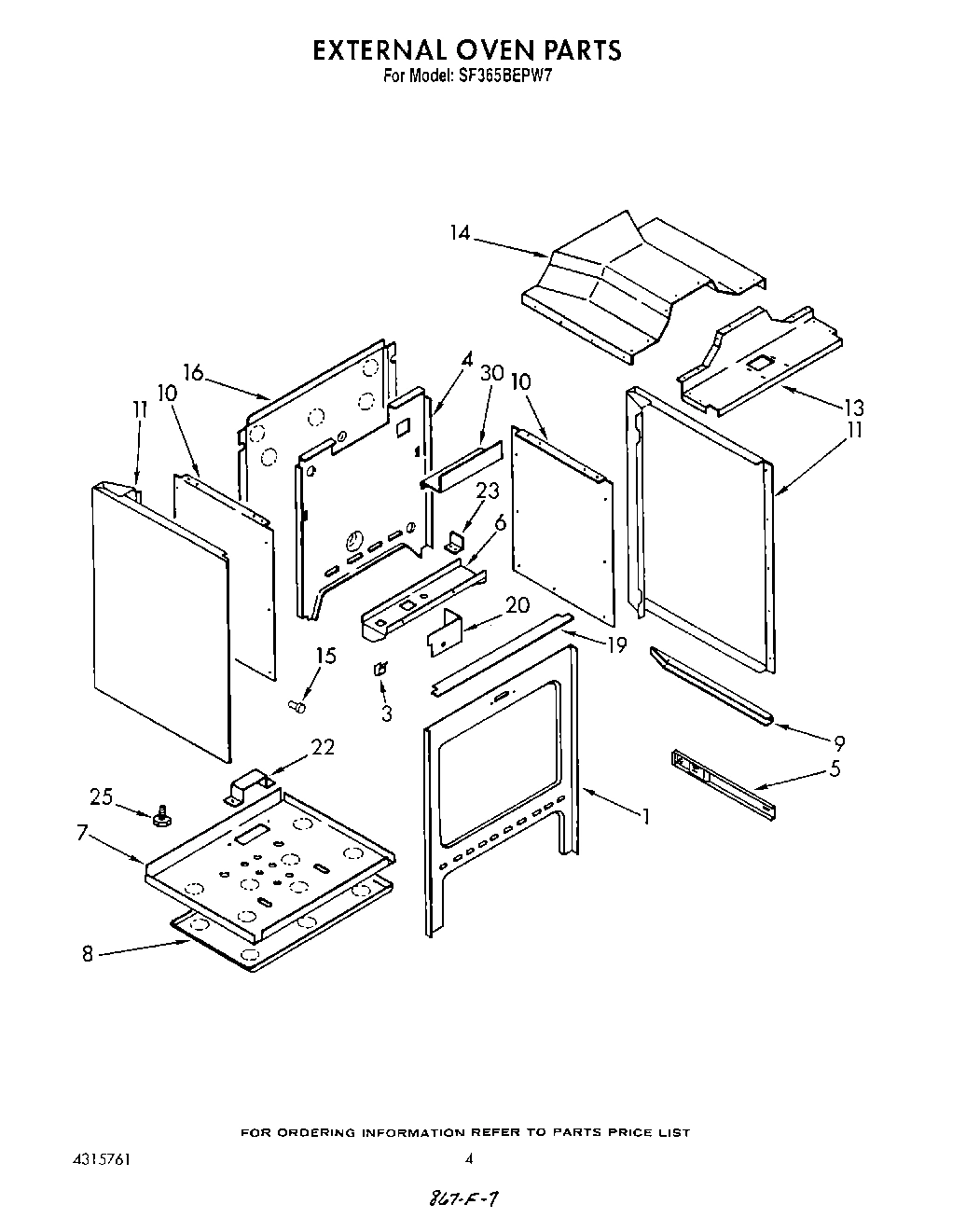

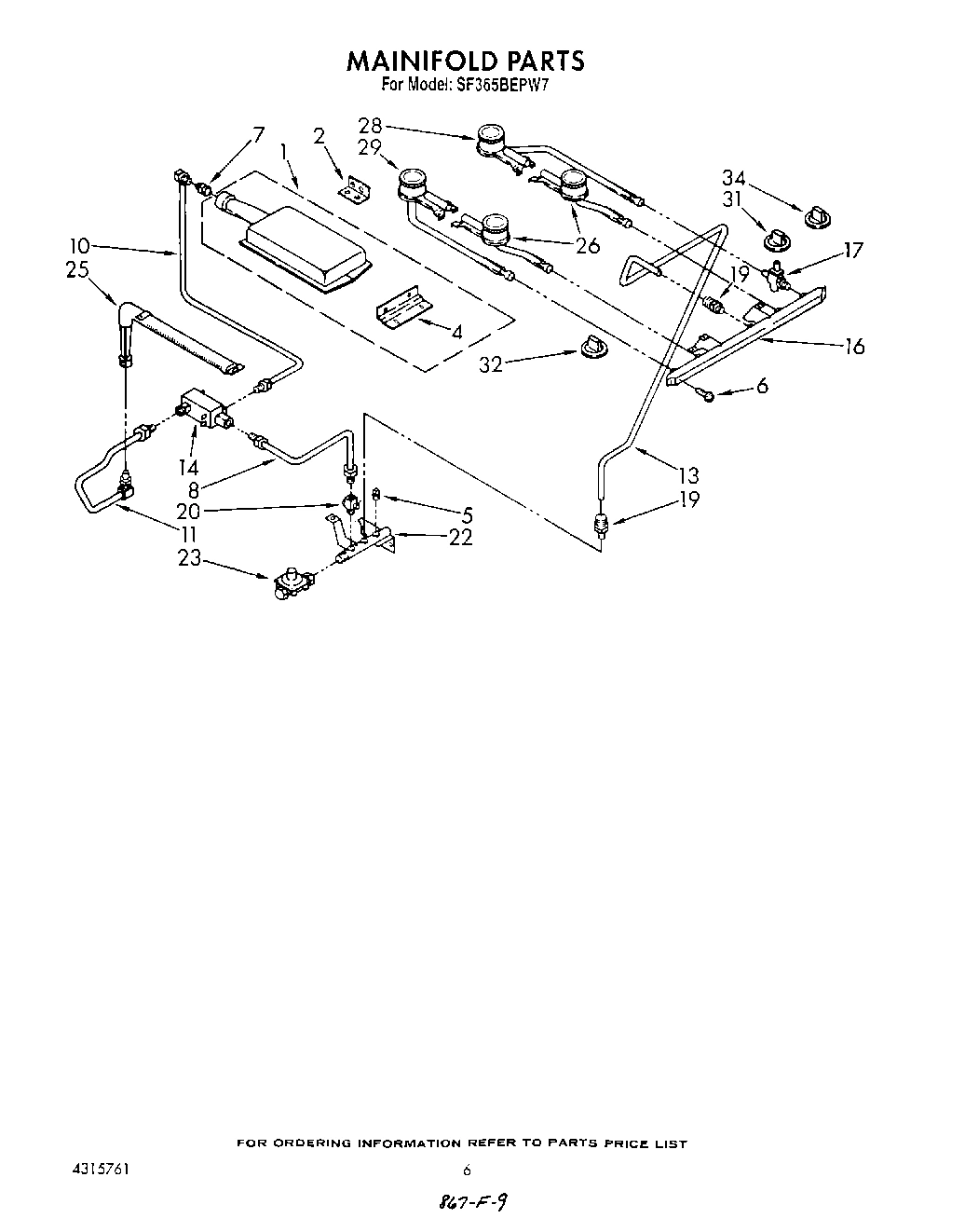

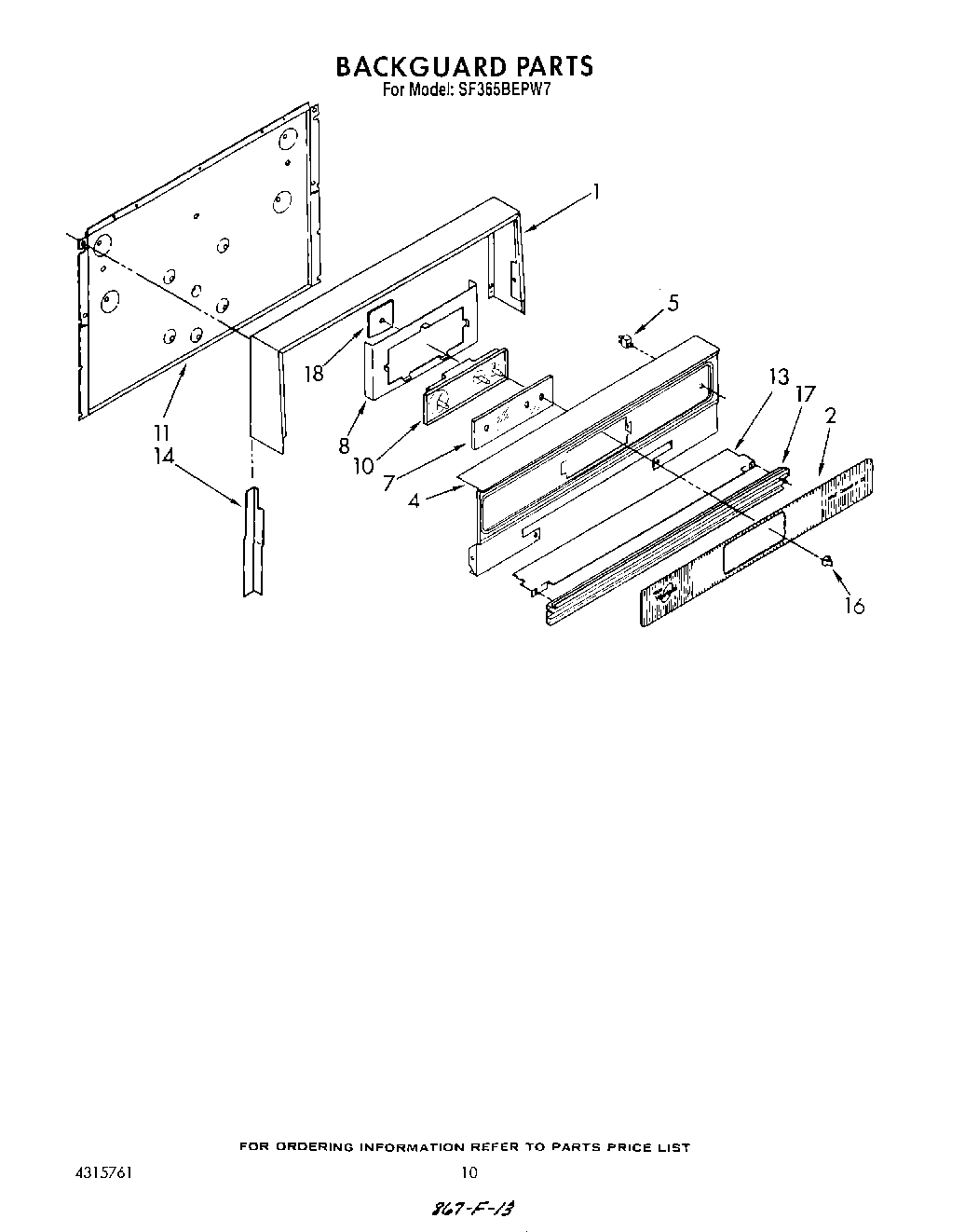

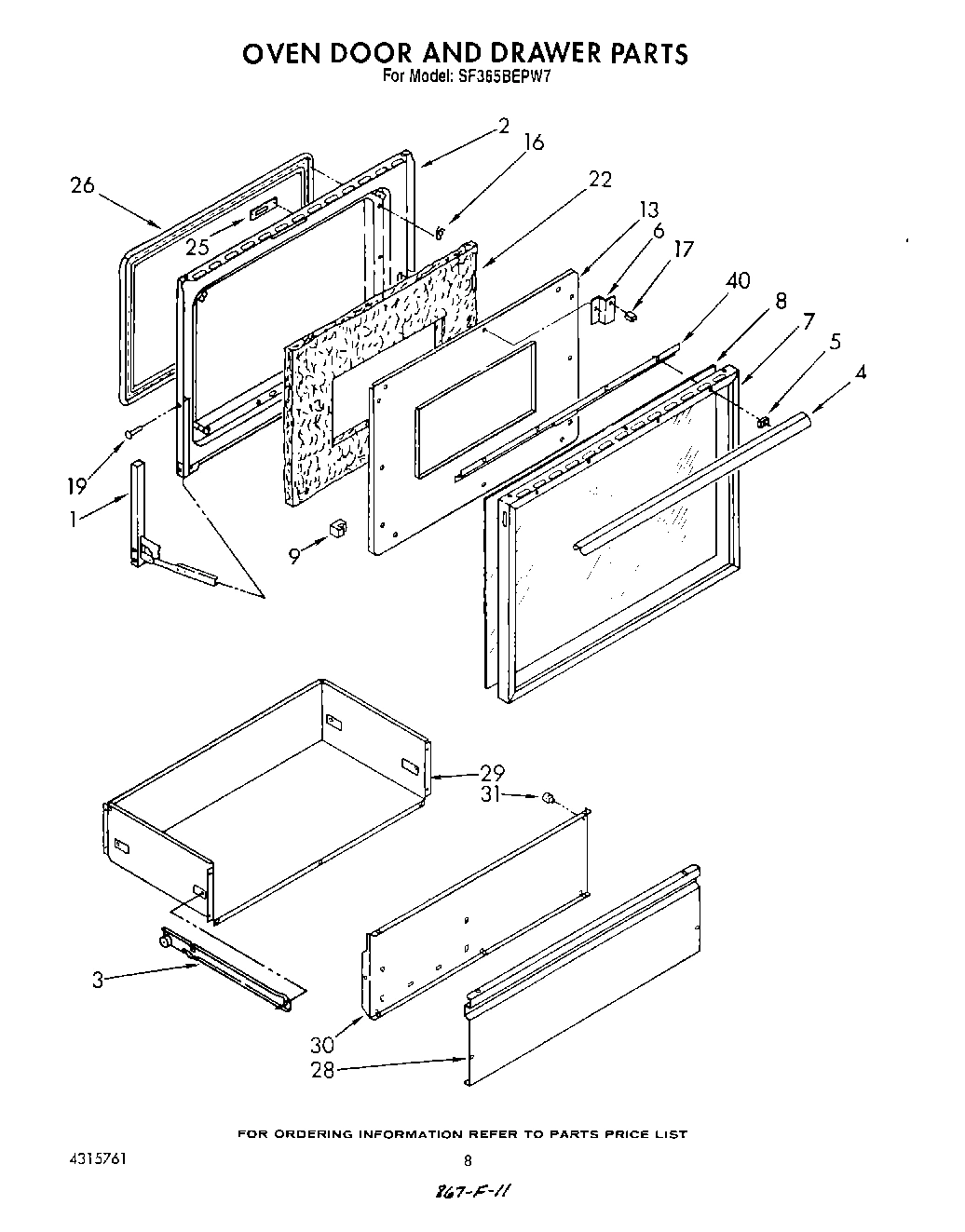

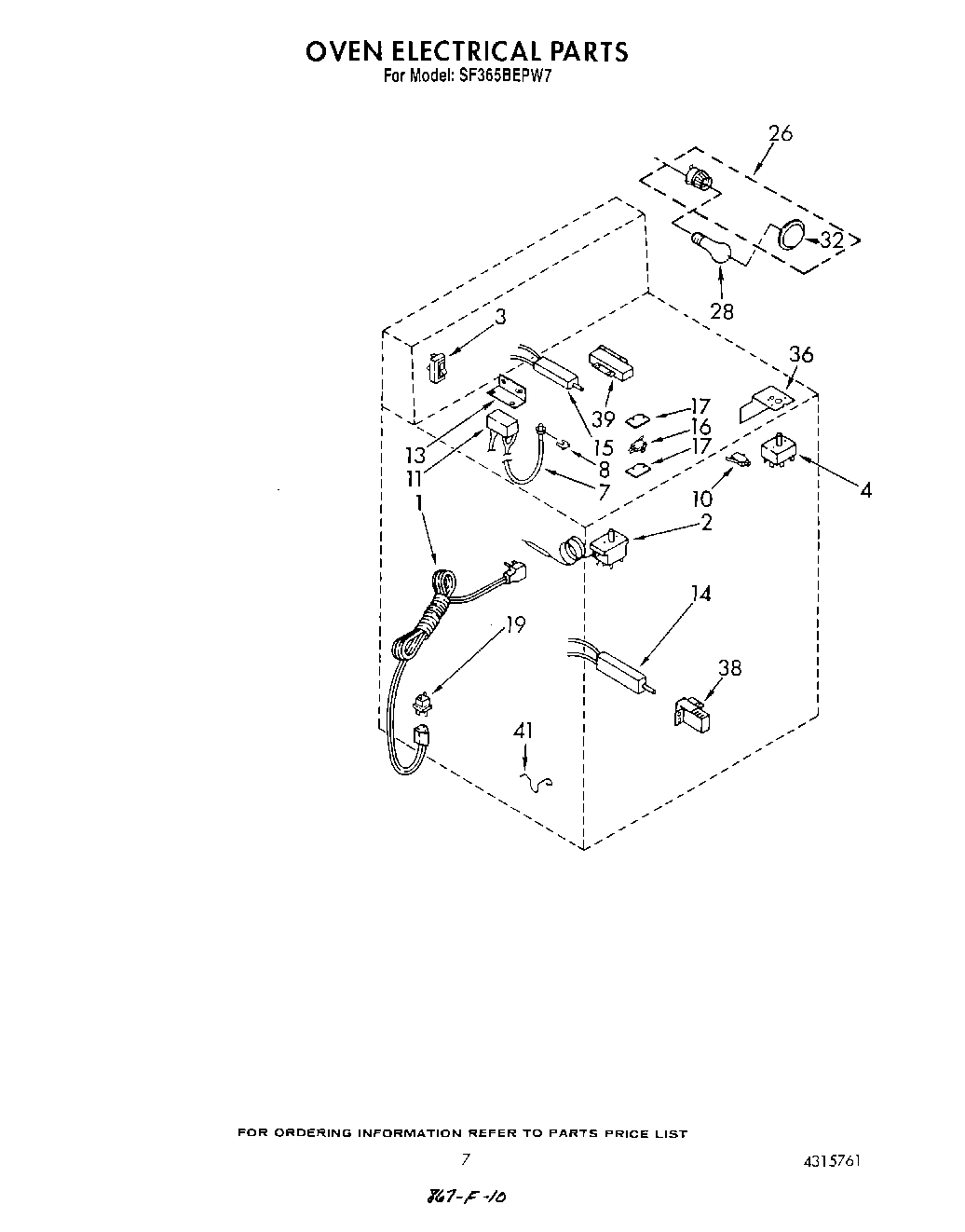

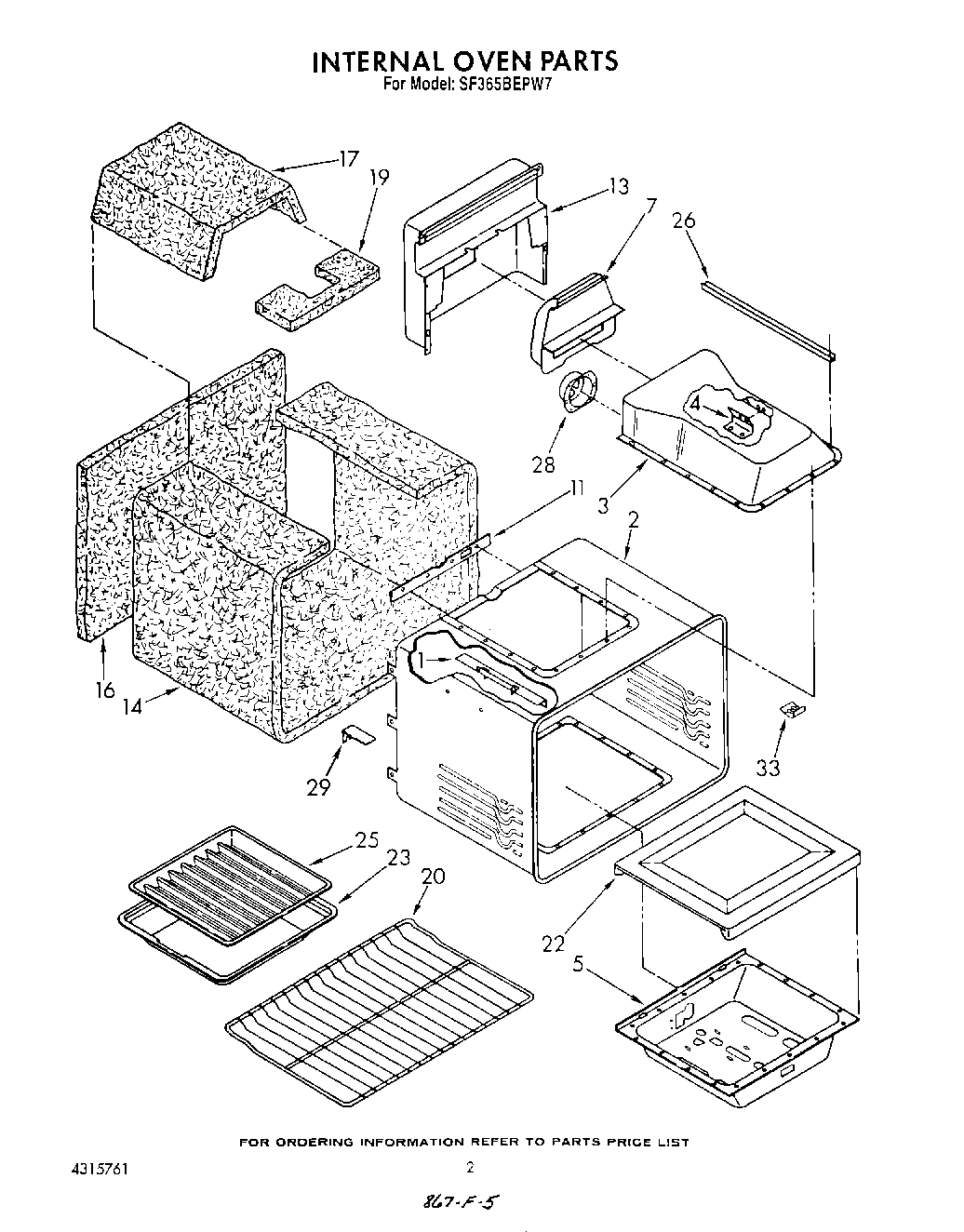

Model Whirlpool SF365BEPW7 GAS RANGE – Common Parts &amp; Diagrams

1

Cord, Power WPL 786578 Contact Us For Availability

1

hinge, oven door (right side) WPL 786374 Contact Us For Availability

1

hinge, oven door (lift side) WPL 786375 Contact Us For Availability

1

Burner, Ultra Ray Broiler WPL 4179233 Contact Us For Availability

1

Frame WPL 786444 Contact Us For Availability

1

screw (4) WPL 786761 Contact Us For Availability

1

Top, Main (White) WPL 4179071 Contact Us For Availability

1

Top, Main (Almond) WPL 4179072 Contact Us For Availability

2

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

2

WP786333 Whirlpool Drip Bowl Backorder WPL WP786333 $8.00

2

oven 30`` self-clean WPL 4320336 Contact Us For Availability

2

mounting bracket, ignitor WPL 786543 Contact Us For Availability

2

Thermostat, Oven WPL 4314978 Contact Us For Availability

2

Nut (6) WPL 786753 Contact Us For Availability

2

liner, oven door WPL 4320300 Contact Us For Availability

2

Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability

2

Panel, Inlay WPL 4179093 Contact Us For Availability

3

Chamber, Broiler Burner WPL 786597 Contact Us For Availability

3

Switch, Oven Light WPL 4179328 Contact Us For Availability

3

runner (l.h.) WPL 4320308 Contact Us For Availability

3

Runner (R.H.) WPL 4320309 Contact Us For Availability

3

bushing, snap WPL 786780 Contact Us For Availability

4

screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability

4

Switch, Selector WPL 4179076 Contact Us For Availability

4

Handle WPL 786408 Contact Us For Availability

4

retainer, insulation WPL 4315784 Contact Us For Availability

4

bracket, burner WPL 4179235 Contact Us For Availability

4

Panel, Control (Almond) WPL 786450 Contact Us For Availability

4

panel, control (white) WPL 786451 Contact Us For Availability

4

Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability

4

Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability

5

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

5

Burner, Box, Lower WPL 786336 Contact Us For Availability

5

Spacer, Handle (2) WPL 786410 Contact Us For Availability

5

track, storage drawer (right side) WPL 4315768 Contact Us For Availability

5

track, storage drawer (left side) WPL 4315769 Contact Us For Availability

5

Track, Storage Drawer (Rivet, Plastic (2)) WPL 786527 Contact Us For Availability

5

Light, Indicator WPL 786306 Contact Us For Availability

5

Grate, Top Burner (4) WPL 786354 Contact Us For Availability

6

retainer, glass (4) WPL 4179236 Contact Us For Availability

6

shelf, gas valve WPL 4315767 Contact Us For Availability

6

screw, valve mounting WPL 4179116 Contact Us For Availability

7

4157608 Whirlpool Surface Igniter Backorder WPL 4157608 $60.04

7

Flue, Inner WPL 786337 Contact Us For Availability

7

Frame WPL 786417 Contact Us For Availability

7

retainer, bottom insulation WPL 4315770 Contact Us For Availability

7

spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability

7

spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability

7

Glass, Timer WPL 786453 Contact Us For Availability

7

Spacer, Nylon (2) WPL 786342 Contact Us For Availability

8

WPY0070927 Whirlpool Microwave Clip Backorder WPL WPY0070927 $4.10

8

Panel, Black Glass WPL 786418 Contact Us For Availability

8

Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability

8

Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability

8

Bracket, Timer WPL 786454 Contact Us For Availability

8

Handle, Latch WPL 786376 Contact Us For Availability

9

brace, bottom (right side) WPL 4315781 Contact Us For Availability

9

brace, bottom (left side) WPL 4315782 Contact Us For Availability

9

Support, Handle WPL 786690 Contact Us For Availability

switch, top burner actuator WPL 4320326 Contact Us For Availability

Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability

Nut WPL 786260 Contact Us For Availability

retainer, insulation side WPL 4315771 Contact Us For Availability

Orifice & Tubing Assembly (Gas Valve To Ulta WPL 4320312 Contact Us For Availability

Timer WPL 4314918 Contact Us For Availability

Latch Assembly WPL 786303 Contact Us For Availability

Gasket, Oven Back WPL 786340 Contact Us For Availability

Module, Spark WPL 786323 Contact Us For Availability

panel, end (2) (almond) WPL 4315765 Contact Us For Availability

panel, end (2) (white) WPL 4315766 Contact Us For Availability

cover, rear WPL 4315785 Contact Us For Availability

hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability

bracket, latch mounting WPL 43315774 Contact Us For Availability

Flue, Dillution WPL 786341 Contact Us For Availability

bracket, spark module WPL 4315773 Contact Us For Availability

backer, oven door WPL 4315799 Contact Us For Availability

Retainer, Top Front Insulation WPL 4315677 Contact Us For Availability

tubing (inlet to manifold) WPL 4320313 Contact Us For Availability

Shield, Heat WPL 786456 Contact Us For Availability

786324 Whirlpool Flat Igniter In Stock WPL 786324 $34.35

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Retainer, Top Back Insulation WPL 4315676 Contact Us For Availability

Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability

support, backguard (right side) WPL 4315795 Contact Us For Availability

support, backguard (left side) WPL 4315796 Contact Us For Availability

15

bushing, snap WPL 786750 Contact Us For Availability

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

Switch, Oven Door Latch WPL 786669 Contact Us For Availability

screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability

Clip, Speed (15) WPL 786426 Contact Us For Availability

nut, 6-32 WPL 786748 Contact Us For Availability

Manifold WPL 4320317 Contact Us For Availability

Knob, Timer (3) WPL 786434 Contact Us For Availability

Bracket, Switch WPL 786381 Contact Us For Availability

screw, 4-40 (2) WPL 786752 Contact Us For Availability

insulator, switch WPL 787380 Contact Us For Availability

Bumper, Window (5) WPL 4179237 Contact Us For Availability

Valve, Top Burner (4) WPL 4320318 Contact Us For Availability

Trim, Lower WPL 786694 Contact Us For Availability

Burner Box WPL 4315643 Contact Us For Availability

18

Insulation WPL 4315034 Contact Us For Availability

Plug, Male WPL 786570 Contact Us For Availability

Pin, Hinge (2) WPL 786428 Contact Us For Availability

Frame, Filler Front WPL 4315775 Contact Us For Availability

Fitting WPL 4320319 Contact Us For Availability

Knob, Latch Handle WPL 786386 Contact Us For Availability

Rack, Oven (2) WPL 786347 Contact Us For Availability

cover, gas valve WPL 4315776 Contact Us For Availability

Valve, Shut-Off WPL 4320320 Contact Us For Availability

Actuator, Spark Ignitor WPL 786390 Contact Us For Availability

Bottom, Oven WPL 4315114 Contact Us For Availability

Insulation, Door WPL 4315673 Contact Us For Availability

Cover, Burner WPL 786388 Contact Us For Availability

Inlet, Pipe WPL 4320321 Contact Us For Availability

Spring WPL 786391 Contact Us For Availability

Pan, Broiler WPL 4315109 Contact Us For Availability

Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability

Regulator, Pressure WPL 786313 Contact Us For Availability

Cam (4) WPL 786392 Contact Us For Availability

Grid, Broiler WPL 786346 Contact Us For Availability

Plate, Latch WPL 786671 Contact Us For Availability

leg, leveling (4) WPL 4315777 Contact Us For Availability

Oven Burner, Lower WPL 786314 Contact Us For Availability

End Cap (Right) WPL 786393 Contact Us For Availability

End Cap (Left) WPL 786394 Contact Us For Availability

WP74011278 Whirlpool Light Backorder WPL WP74011278 $62.45

Channel, Broiler Burner (2) WPL 786355 Contact Us For Availability

gasket assembly WPL 4320302 Contact Us For Availability

Top Burner, Front (2) WPL 786315 Contact Us For Availability

Panel, Control WPL 4314965 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Duct, Cup WPL 786353 Contact Us For Availability

Panel, Drawer (Almond) WPL 786521 Contact Us For Availability

Panel, Drawer (White) WPL 786522 Contact Us For Availability

Top Burner, R.R. WPL 786316 Contact Us For Availability

Orifice WPL 786682 Contact Us For Availability

bracket, oven shell WPL 4320330 Contact Us For Availability

wrapper, drawer WPL 4320306 Contact Us For Availability

Top Burner, L.R. WPL 786317 Contact Us For Availability

Plate, Cover WPL 786683 Contact Us For Availability

30

liner, drawer WPL 4320307 Contact Us For Availability

30

cover, electrical WPL 4315779 Contact Us For Availability

31

Bumper (2) WPL 786526 Contact Us For Availability

31

Knob, Top Burner (4) WPL 786559 Contact Us For Availability

31

Bracket, Top (2) WPL 786684 Contact Us For Availability

32

Oven Light Lens WPL ARI130148A Contact Us For Availability

32

Knob, Oven Control WPL 4179070 Contact Us For Availability

32

Bracket, Electrode (2) WPL 786754 Contact Us For Availability

33

cover, chip WPL 4315764 Contact Us For Availability

34

Knob, Selector WPL 786562 Contact Us For Availability

36

Insulator (2) WPL 786689 Contact Us For Availability

38

Bracket, Bake Ignitor WPL 786801 Contact Us For Availability

39

Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability

40

Baffle, Air WPL 786422 Contact Us For Availability

41

Clip, Wire WPL 4179338 Contact Us For Availability
