Model Whirlpool SF362BEGW1 GAS RANGE – Common Parts &amp; Diagrams

1

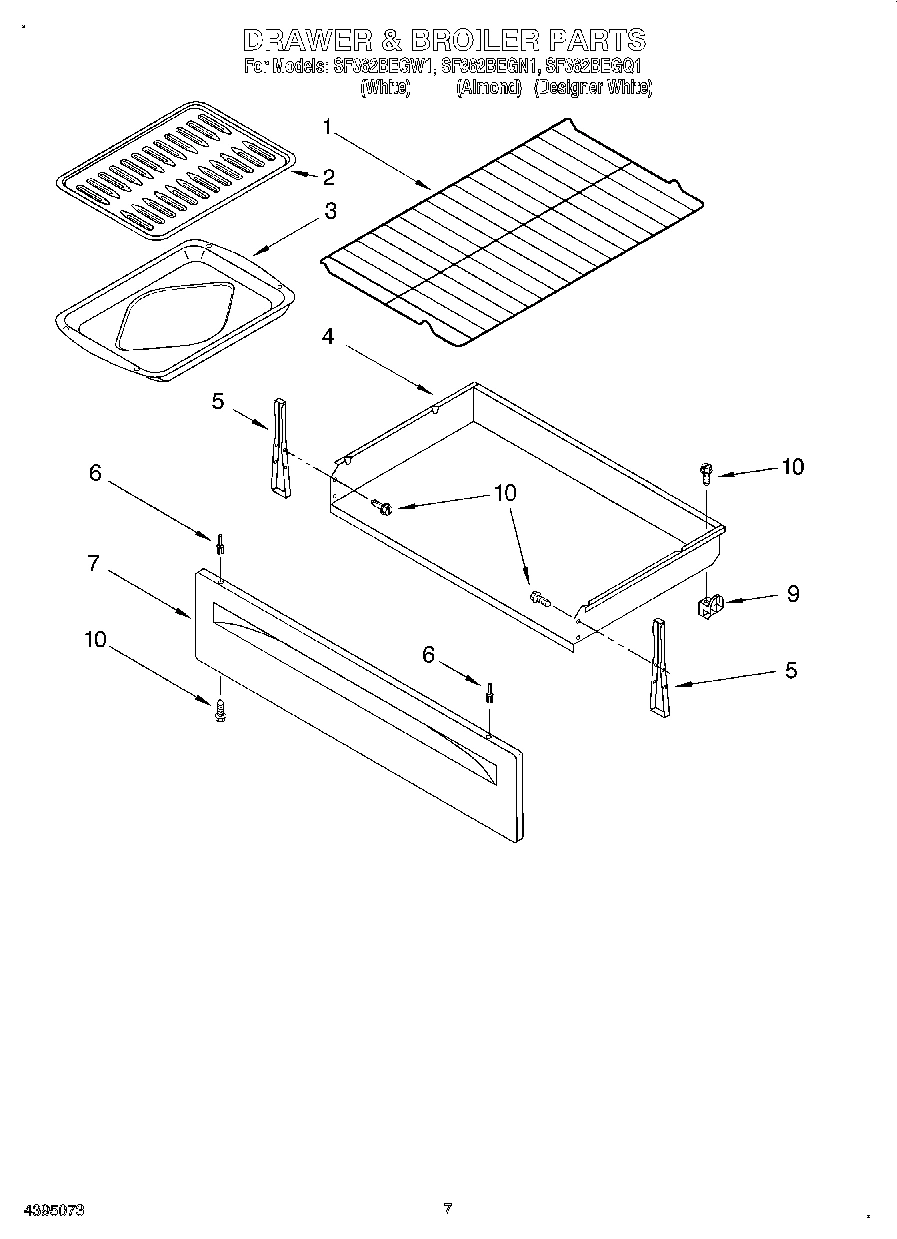

W10837340 Whirlpool Grate Kit Backorder WPL W10837340 $181.24

1

W11457094 Whirlpool Oven Flue Backorder WPL W11457094 $82.95

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

WPW10268483 Whirlpool Grate Kit In Stock WPL WPW10268483 $80.83

1

Burner (Left Rear) WPL 3186213 Contact Us For Availability

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

2

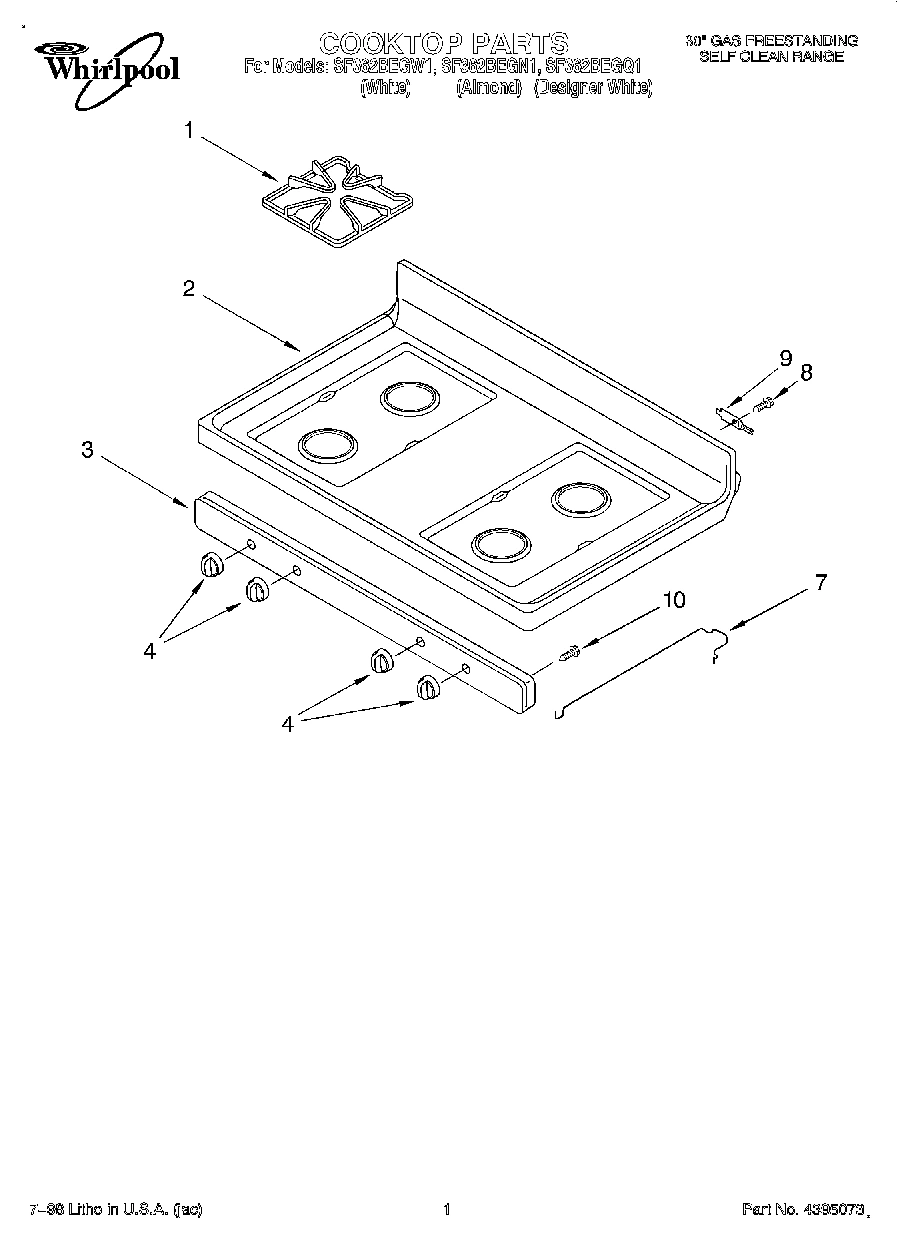

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WP8272747 Whirlpool Heat Shield Backorder WPL WP8272747 $26.21

2

Burner, Left Front WPL 3186209 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

2

Cooktop (White) WPL 3186030 Contact Us For Availability

2

Cooktop (Almond) WPL 3186031 Contact Us For Availability

3

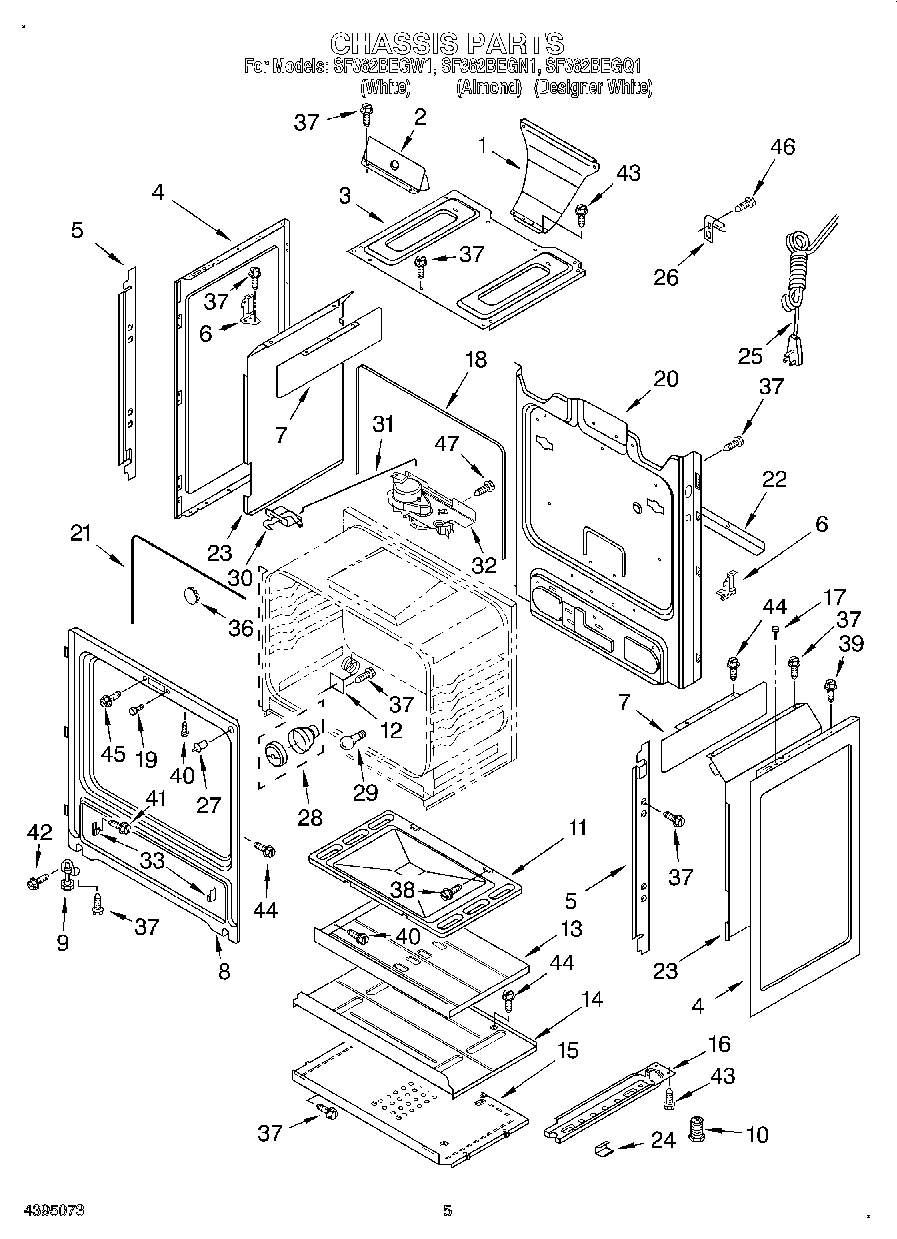

8523855 Whirlpool Oven Manifold Panel Backorder WPL 8523855 $61.99

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP8523854 Whirlpool Manifold Panel Backorder WPL WP8523854 $113.92

3

Burner (Right Front) WPL 3186214 Contact Us For Availability

3

Panel, Backguard (Black) WPL 8053677 Contact Us For Availability

3

Panel, Backguard (White) WPL 8053678 Contact Us For Availability

3

Burner Box WPL 8053503 Contact Us For Availability

4

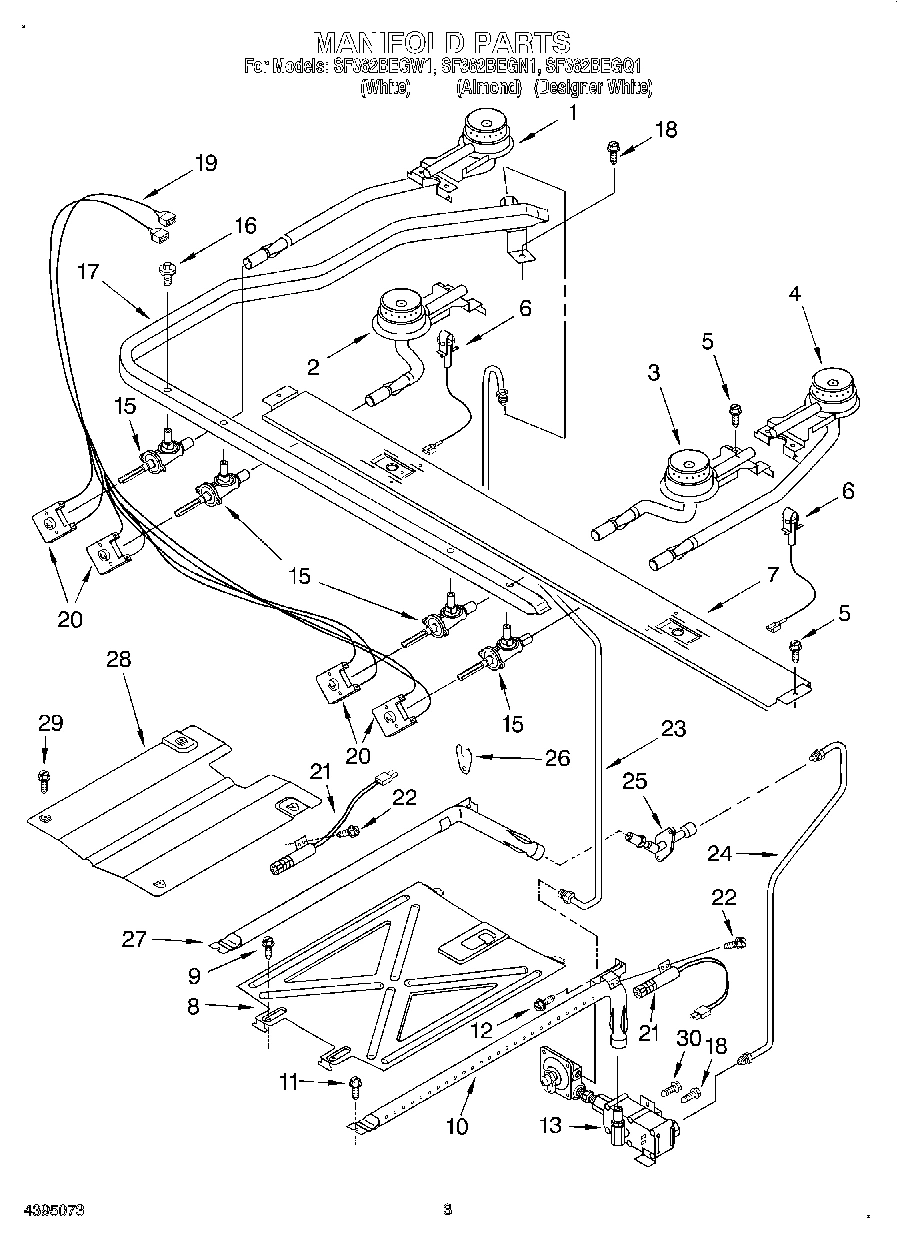

WP3186135 Whirlpool Control Knob Backorder WPL WP3186135 $13.19

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

Knob, Burner (4) (Black) WPL 3186134 Contact Us For Availability

4

Screw WPL 4449746 Contact Us For Availability

4

Burner (Right Rear) WPL 3186215 Contact Us For Availability

4

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

4

Drawer, Storage WPL 8053343 Contact Us For Availability

5

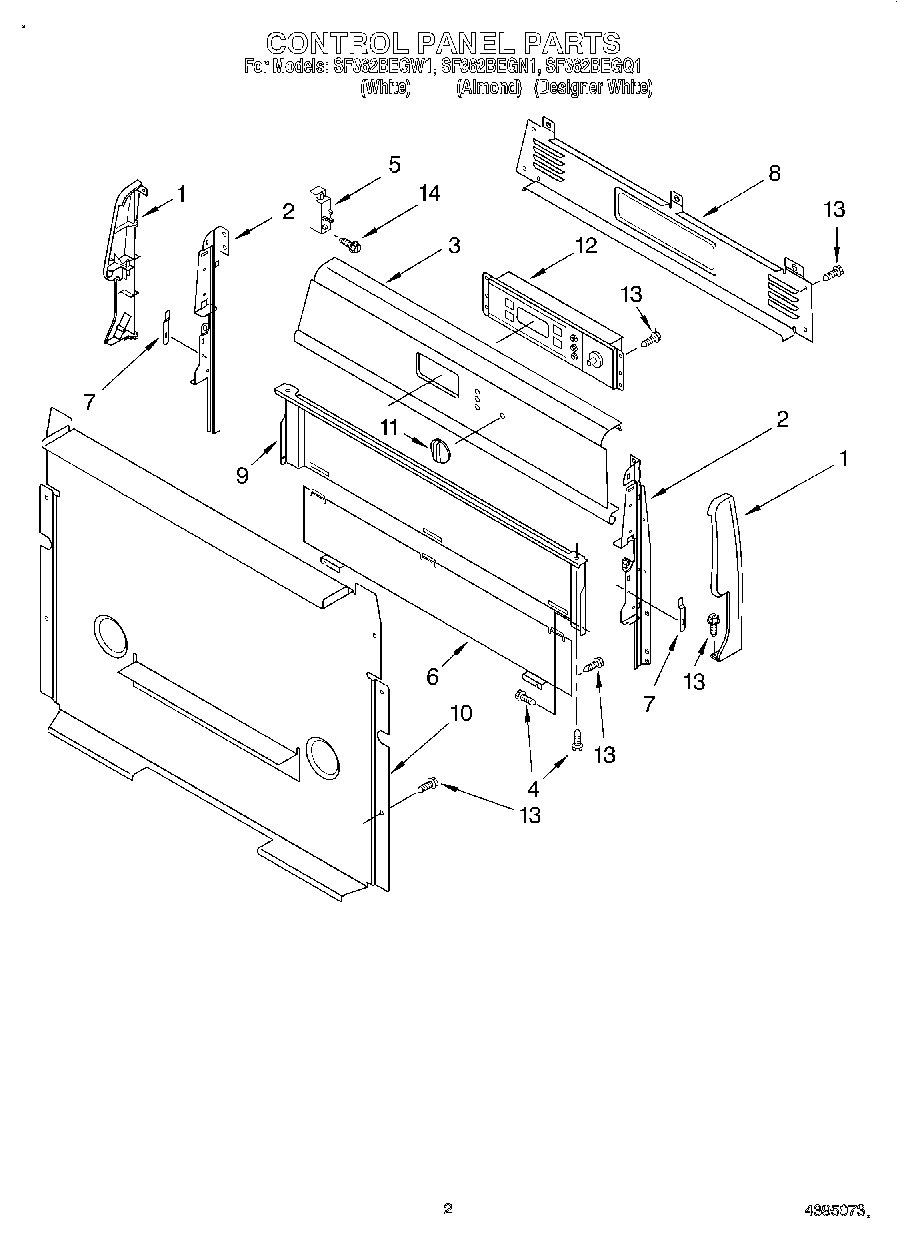

W11759228 Whirlpool Mounting Bracket Backorder WPL W11759228 $11.02

5

Module, Spark WPL 8053420 Contact Us For Availability

5

Sheild, Heat (2) WPL 3196137 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

8053505 Whirlpool Oven Shield Backorder WPL 8053505 $54.35

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

Igniter, Surface (Right Hand) WPL 3186107 Contact Us For Availability

6

Ignitor, Surface (Left) WPL 3186108 Contact Us For Availability

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

W11230486 Whirlpool Drawer Panel Backorder WPL W11230486 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

Support, Burner WPL 3186207 Contact Us For Availability

7

Shield, Heat (2) WPL 3196136 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053337 Contact Us For Availability

8

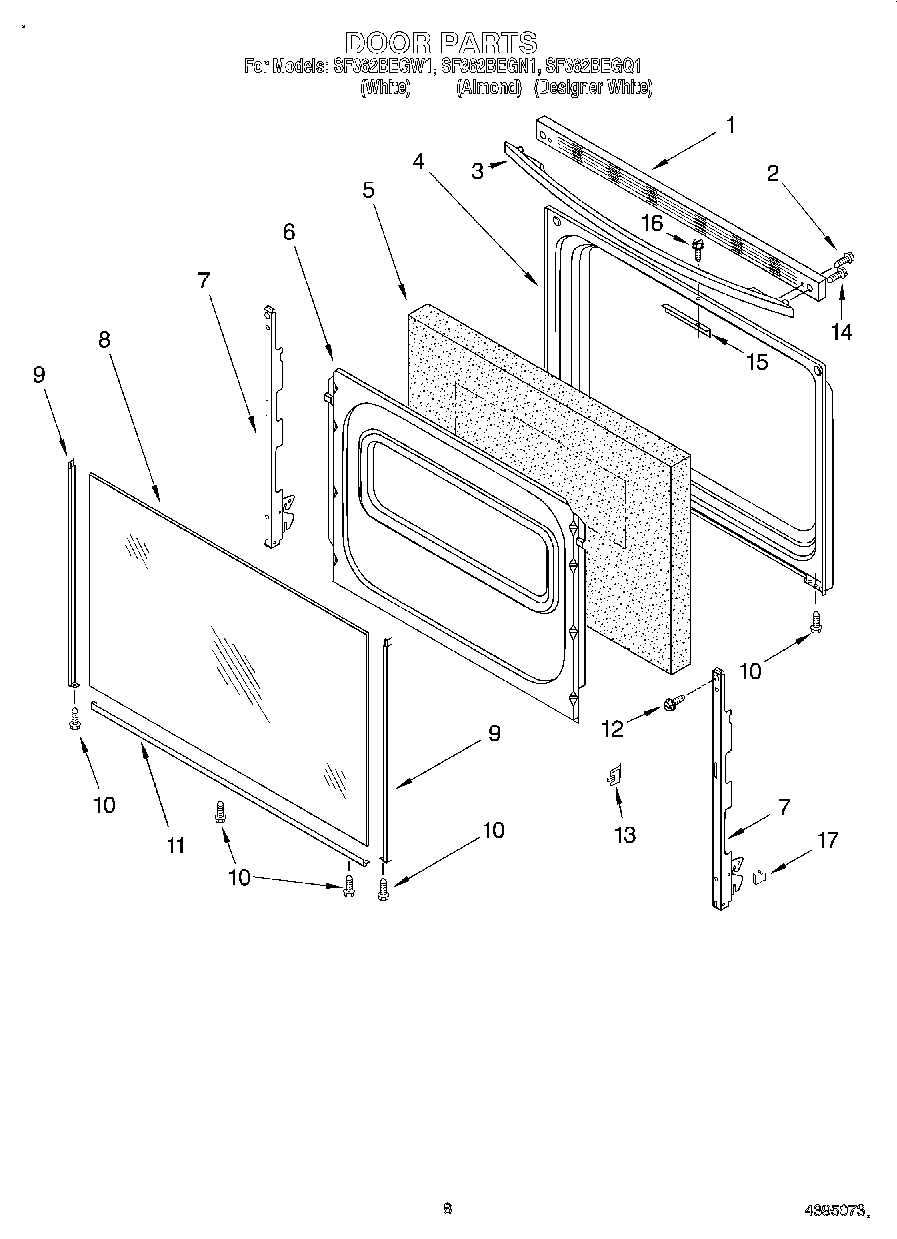

Glass, Outer Door (White) WPL 3196810 Contact Us For Availability

8

Glass, Outer Door (Black) WPL 3195610 Contact Us For Availability

8

Cover, Upper WPL 3195963 Contact Us For Availability

8

Spreader, Flame (Bake) WPL 8053256 Contact Us For Availability

8

Frame, Front WPL 3186183 Contact Us For Availability

9

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Shield, Heat WPL 3186187 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Cover, Lower WPL 8053509 Contact Us For Availability

Burner, Oven WPL 3196446 Contact Us For Availability

11

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

11

Knob, 150 Control (White) WPL 8053352 Contact Us For Availability

11

Knob, 150 Control (Black) WPL 8053351 Contact Us For Availability

12

Control, Oven (Black) WPL 3196970 Contact Us For Availability

12

Control, Oven (White) WPL 3196971 Contact Us For Availability

12

Sensor, Oven WPL 3196966 Contact Us For Availability

13

8053967 Whirlpool Oven Heat Baffle Backorder WPL 8053967 $106.98

13

Valve, Gas Combo WPL 3196545 Contact Us For Availability

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

15

8053968 Whirlpool Oven Heat Shield Backorder WPL 8053968 $29.43

15

Valve, Burner (4) WPL 3196850 Contact Us For Availability

16

WP3186217 Whirlpool Screw Backorder WPL WP3186217 $2.51

16

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Pipe, Manifold WPL 3186221 Contact Us For Availability

18

Seal, Oven Flange WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

19

Harness, Igniter (Incl. Switches) WPL 8053695 Contact Us For Availability

20

Switch, Igniter (4) WPL 8053693 Contact Us For Availability

20

Back, Main WPL 8053507 Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

21

Igniter, Bake/Broil WPL 3196447 Contact Us For Availability

22

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

22

Brace, Main Back WPL 3196838 Contact Us For Availability

23

Tubing (Regulator to Manifold) WPL 3186497 Contact Us For Availability

23

Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability

23

Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability

24

Tubing (Valve To Broiler Fitting) WPL 3186446 Contact Us For Availability

24

Clip, Panel (6) WPL 3196576 Contact Us For Availability

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

25

Fitting, Broiler WPL 3186489 Contact Us For Availability

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

26

Cover, Igniter WPL 3196026 Contact Us For Availability

27

3196265 Whirlpool Oven Screw Backorder WPL 3196265 $9.59

27

WP3195993 Whirlpool Light Switch In Stock WPL WP3195993 $56.02

27

Burner, Broiler WPL 3196462 Contact Us For Availability

28

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $154.20

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

Spuds, Natural Gas (Kit of 4) WPL 814391 Contact Us For Availability

Spuds, LP Gas (Kit of 4) WPL 3196471 Contact Us For Availability

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

33

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

36

Button, Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

40

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

41

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

45

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

47

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

47

W11688737 Whirlpool Insulation Backorder WPL W11688737 $45.31
