Model Whirlpool SF335PEWW0 GAS RANGE – Common Parts & Diagrams

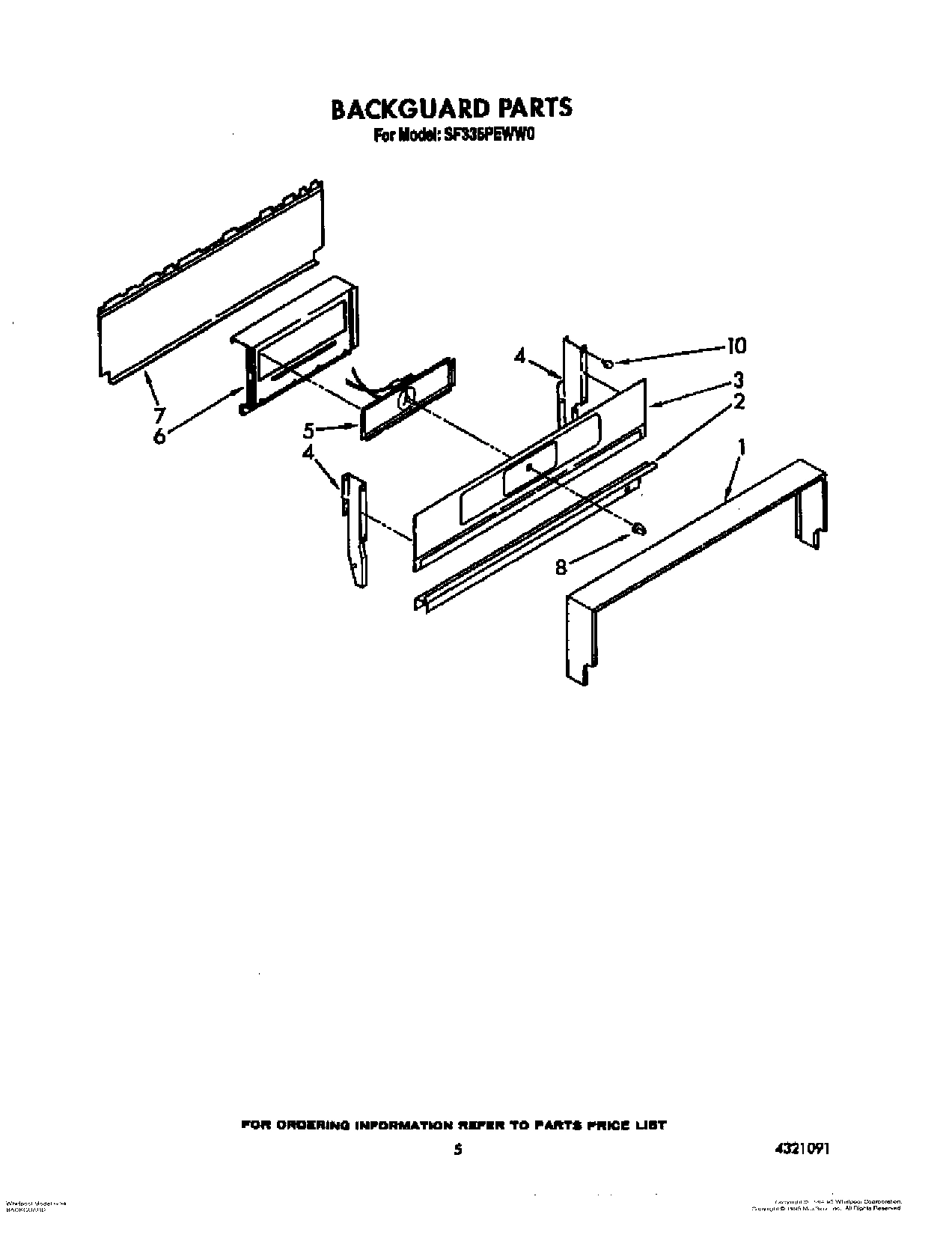

04 - BACKGUARD

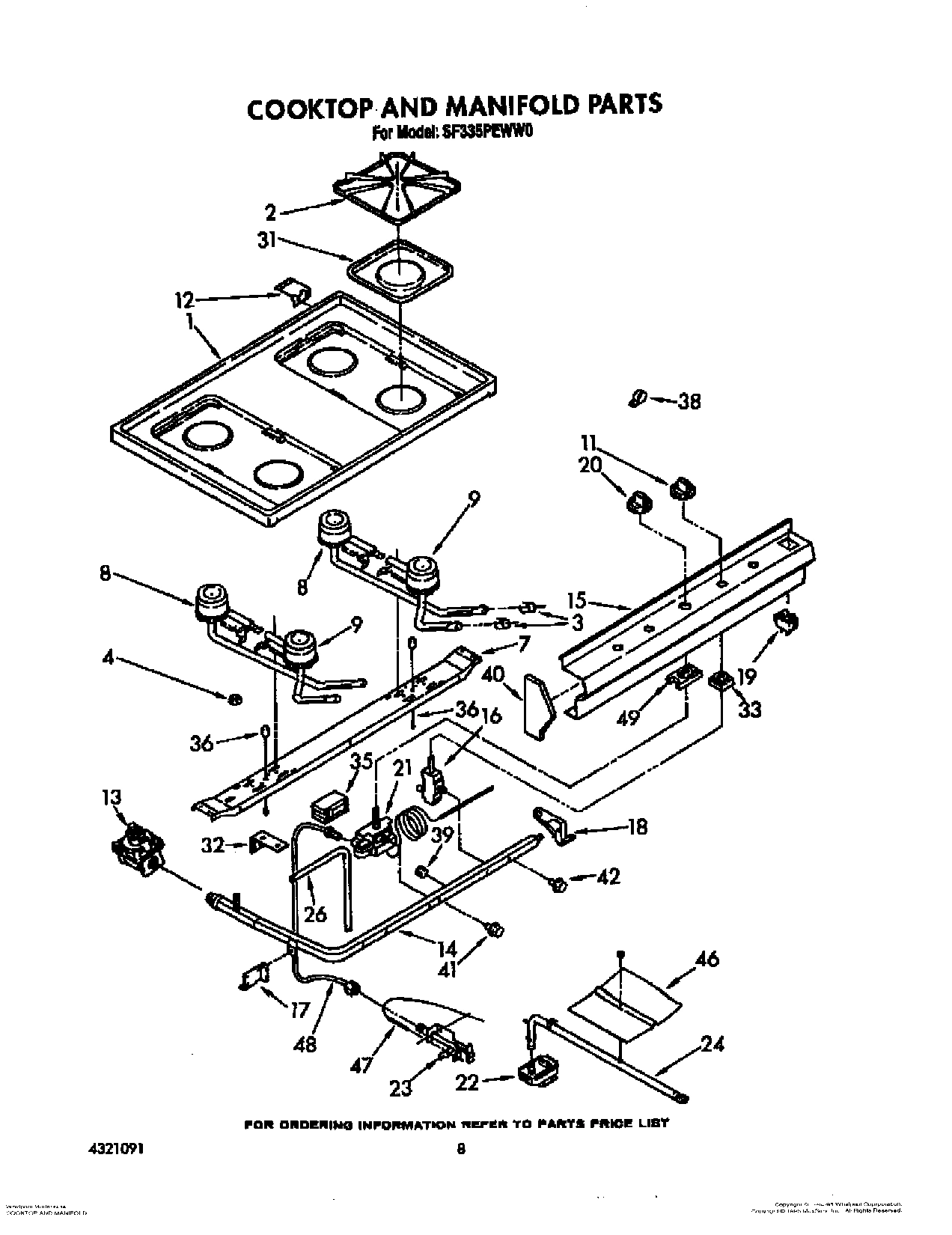

06 - COOKTOP AND MANIFOLD, LITERATURE AND OPTIONAL
03 - INTERNAL OVEN
05 - OVEN DOOR AND BROILER
02 - EXTERNAL OVEN
Common parts from model Whirlpool SF335PEWW0 GAS RANGE
Guide, Use & Care WPL LIT4320879 Contact Us For Availability
Instuctions, Installation WPL LIT4320880 Contact Us For Availability
List, Repair Parts WPL LIT4321091 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4320729 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
2
Screw, 10-12 x 1/2 (4) WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4320719 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
3
Glass WPL 4320759 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4320577 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Glass WPL 4320471 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 X 1/2 (4) Black WPL 4315330 Contact Us For Availability
5
Clock WPL 4320728 Contact Us For Availability
5
Ring, Hold Down WPL 4320351 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
6
Bracket, Clock WPL 4179246 Contact Us For Availability
6
Window WPL 4157147 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Liner, Oven Back WPL 4315055 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Liner, Door WPL 4320765 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
11
Bottom, Oven WPL 4320763 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4314910 Contact Us For Availability
12
Screw, 10-12 X 1/2 (4) WPL 4315121 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Panel, Broiler (Screw, 10-12 X 1/2 (5)) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Seal, Door (2) WPL 4320463 Contact Us For Availability
14
Manifold WPL 4320642 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
15
Panel, Manifold WPL 4320797 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315621 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4315408 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. N0. 42) WPL 4314814 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
19
Clip, Wire (2) WPL 4315726 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Thermostat (Includes Ill. No. 41) WPL 4179354 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Screw, 10-12 X 1/2 (2) WPL 4320391 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Extension, Burner WPL 4320479 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Tubing 3/8`` (Manifold To Safety Valve) WPL 4157098 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Plate, Spark Module WPL 4157171 Contact Us For Availability
32
Anchor (2) WPL 4315786 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
35
Module, Spark WPL 4315322 Contact Us For Availability
36
Ignitor (R.H.) WPL 4320433 Contact Us For Availability
36
Ignitor (L.H.) WPL 4320434 Contact Us For Availability
38
Strain Relief WPL 4157185 Contact Us For Availability
40
Endcap (L.H.) WPL 4320602 Contact Us For Availability
40
Endcap (R.H.) WPL 4320603 Contact Us For Availability
41
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
42
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
46
Spreader, Flame WPL 4320440 Contact Us For Availability
47
Ignitor, Oven WPL 4315316 Contact Us For Availability
48
Tubing, Pilot WPL 4157099 Contact Us For Availability
× ![]()
