Model Whirlpool SF335ESPW0 GAS RANGE – Common Parts & Diagrams
04 - COOK TOP
06 - OVEN DOOR AND BROILER

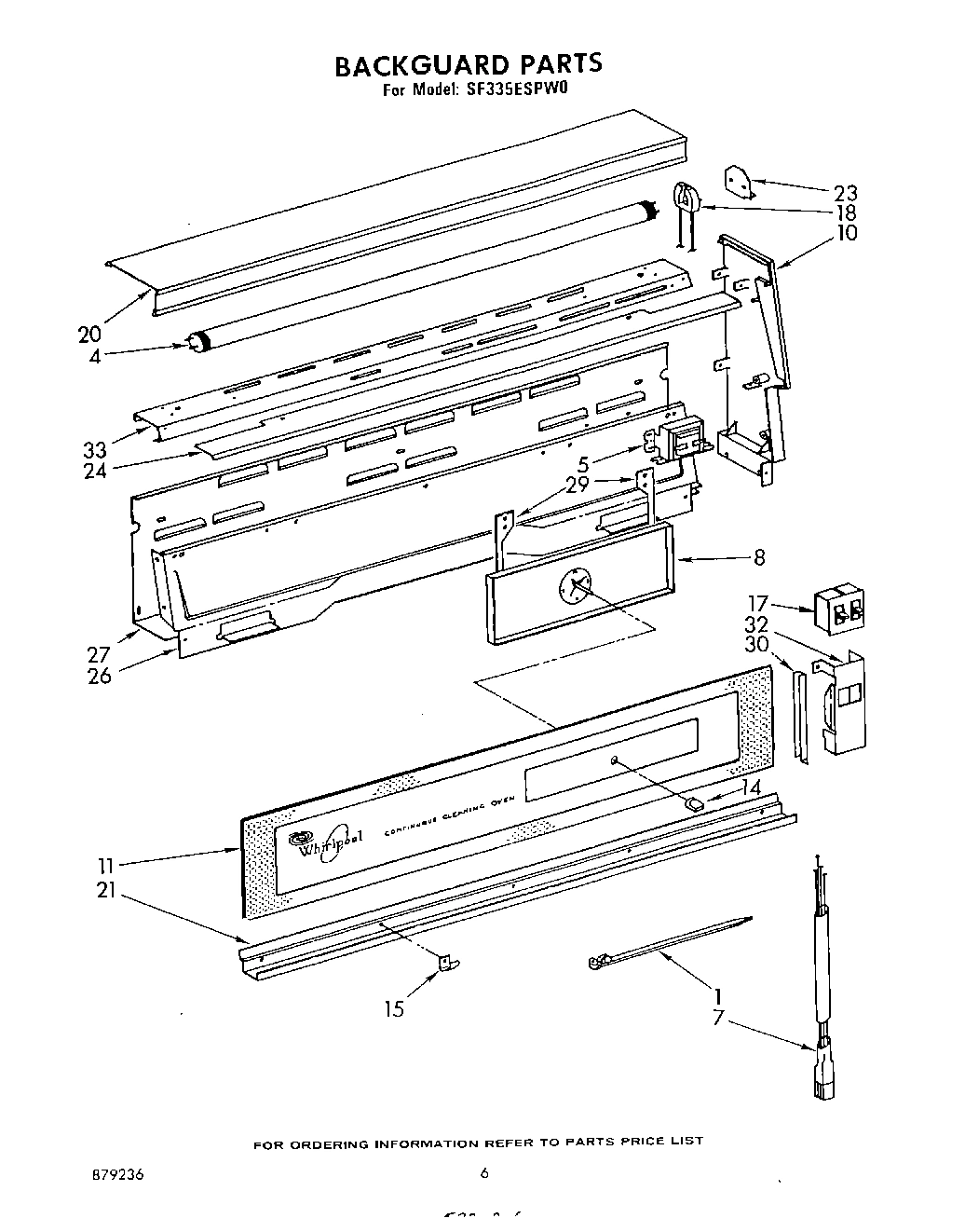

05 - BACKGUARD

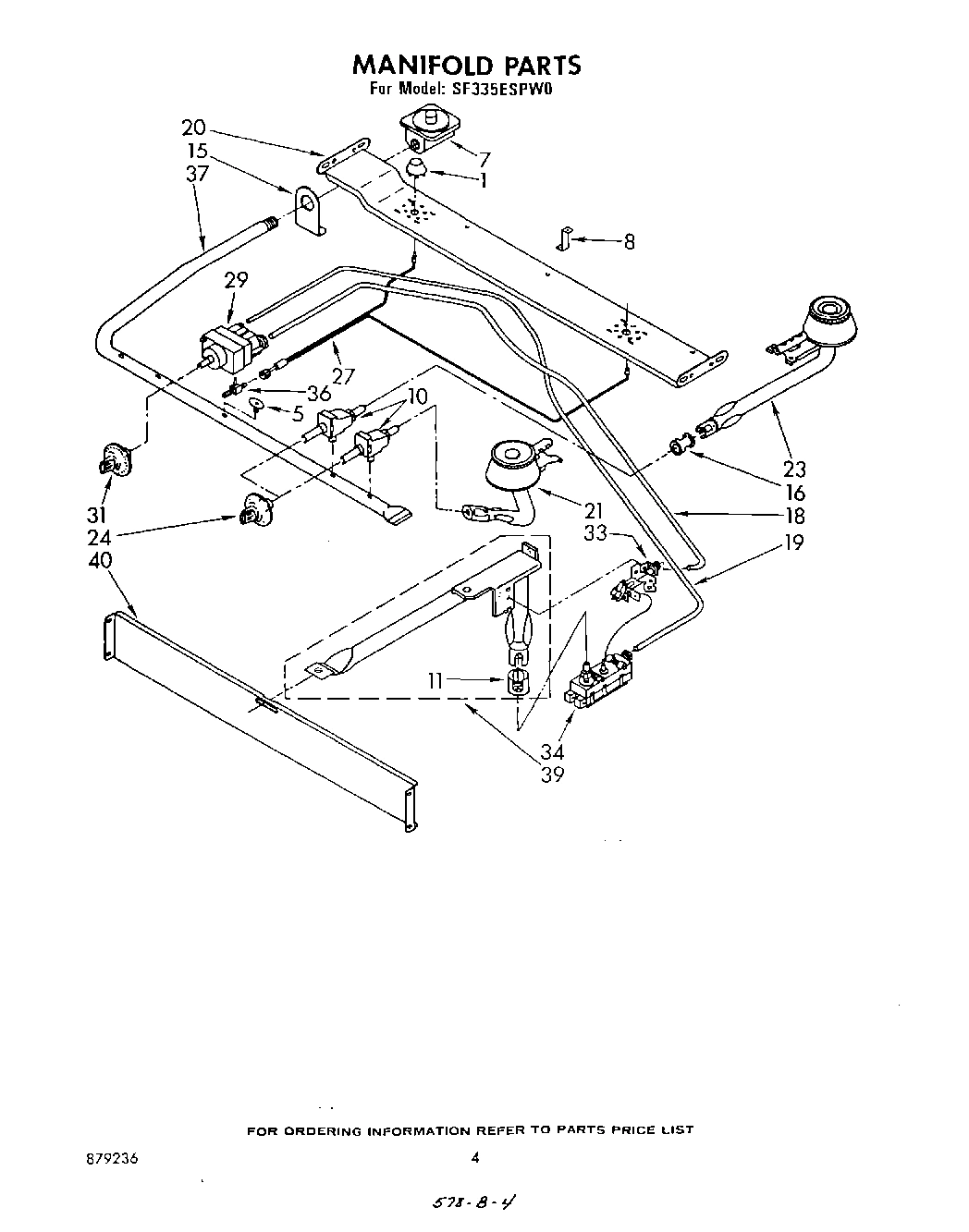

03 - MANIFOLD

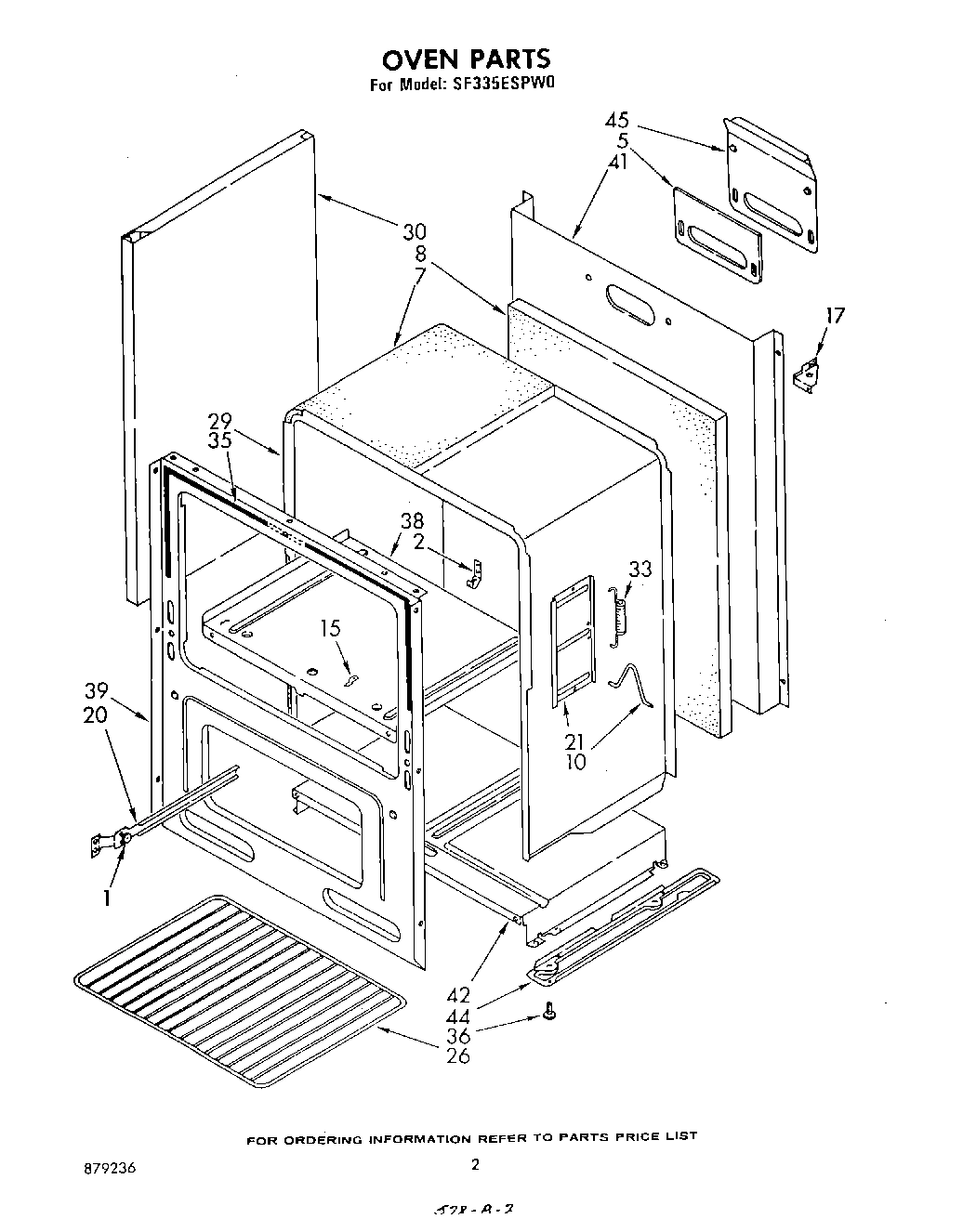

02 - OVEN , LIT/OPTIONAL
Common parts from model Whirlpool SF335ESPW0 GAS RANGE
Instructions, Installation WPL LIT878063 Contact Us For Availability
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Wiring WPL LIT878924 Contact Us For Availability
Diagram, Installations WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879236 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Clamp, Wire WPL 878083 Contact Us For Availability
1
Clamp Wire (2) WPL 879056 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878302 Contact Us For Availability
4
Stop, Cook Top (2) WPL 878098 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
5
Ballast, Fluorescent Light WPL 878913 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
7
Cover, Wire WPL 878719 Contact Us For Availability
7
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Block, Disconnect Pin WPL 878196 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
8
Bottom, Burner Box WPL 878126 Contact Us For Availability
8
Spacer, Door Handle (4) WPL 878097 Contact Us For Availability
8
Clock, Automatic WPL 879229 Contact Us For Availability
8
Support, Burner Hanger WPL 878542 Contact Us For Availability
10
Inlay, Manifold Panel WPL 879230 Contact Us For Availability
10
Cap, End (Left Side) WPL 878801 Contact Us For Availability
10
Cap, End (Right Side) WPL 878802 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
11
Panel, Manifold (Almond) WPL 878468 Contact Us For Availability
11
Panel, Manifold (White) WPL 878470 Contact Us For Availability
11
Panel, Manifold (Toast) WPL 879097 Contact Us For Availability
11
Panel, Manifold (Platinum) WPL 879098 Contact Us For Availability
11
Handle, Door (2) WPL 878132 Contact Us For Availability
11
Glass, Backguard WPL 879231 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
13
Panel, Oven Door (Ebony) WPL 879235 Contact Us For Availability
14
Knob, Clock (2) WPL 878201 Contact Us For Availability
15
Grate, Burner WPL 878940 Contact Us For Availability
15
Spacer, Backguard Glass (2) WPL 878804 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
16
Cap, Top Burner Air Mixer (4) WPL 878116 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Switch, Combination WPL 879228 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
18
Socket, Fluorescent Light (Left Side) WPL 878661 Contact Us For Availability
18
Socket, Fluorescent Light (Right Side) WPL 878662 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Trim, Backguard Top WPL 878805 Contact Us For Availability
20
Hanger, Top Burner WPL 878870 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Trim, Backguard Bottom WPL 878806 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Top, Main (Toast) WPL 879091 Contact Us For Availability
23
Top, Main (Platinum) WPL 879092 Contact Us For Availability
23
Lining, Oven Door WPL 879190 Contact Us For Availability
23
Bracket, Backguard Lampholder (Left Side) WPL 878807 Contact Us For Availability
23
Bracket, Backguard Lampholder (Right Side) WPL 878808 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
24
Retainer, Glass WPL 878809 Contact Us For Availability
24
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
26
Panel Backguard (Almond) WPL 878810 Contact Us For Availability
26
Panel Backguard (White) WPL 878812 Contact Us For Availability
26
Panel Backguard (Toast) WPL 879099 Contact Us For Availability
26
Panel Backguard (Platinum) WPL 879100 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
27
Cover, Backguard Wire WPL 879233 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
29
Panel, Broiler Door (Toast) WPL 879085 Contact Us For Availability
29
Panel, Broiler Door (Platinum) WPL 879086 Contact Us For Availability
29
Support, Clock (Right Side) WPL 878815 Contact Us For Availability
29
Support, Clock (Left Side) WPL 878816 Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
29
Oven 30`` Continuous Clean (Not Serviceable) WPL ARI129970A Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Trim, Backguard Glass (2) WPL 878817 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
30
Panel, End (2) (Toast) WPL 879081 Contact Us For Availability
30
Panel, End (2) (Platinum) WPL 879082 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
32
Plate, Switch WPL 878818 Contact Us For Availability
33
Brace, Backguard WPL 879234 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878459 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878358 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
35
Support, Oven Door Hinge (Left Side) WPL 878104 Contact Us For Availability
35
Support, Oven Door Hinge (Right Side) WPL 878105 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
36
Filter, Top Lighter WPL 878712 Contact Us For Availability
36
Screw, Leveling (4) WPL 878417 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
37
Pipe, Manifold WPL 879014 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
38
Plate, Oven Bottom WPL 879039 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
40
Deflector, Heat WPL 879144 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Back, Main WPL 879015 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
× ![]()
