Model Whirlpool SF334BSPW0 GAS RANGE – Common Parts & Diagrams
03 - MANIFOLD
04 - OVEN DOOR AND BROILER

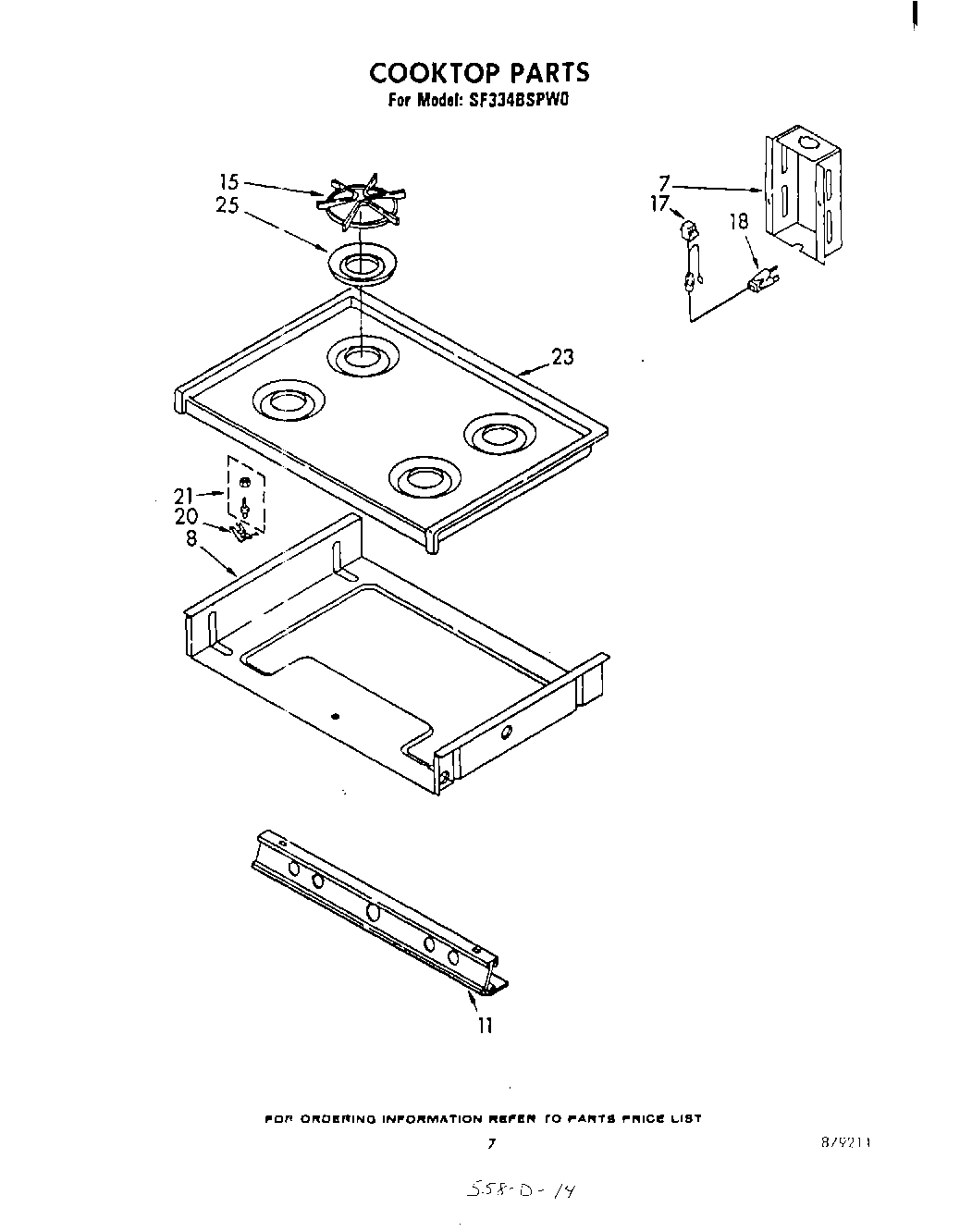

06 - COOKTOP

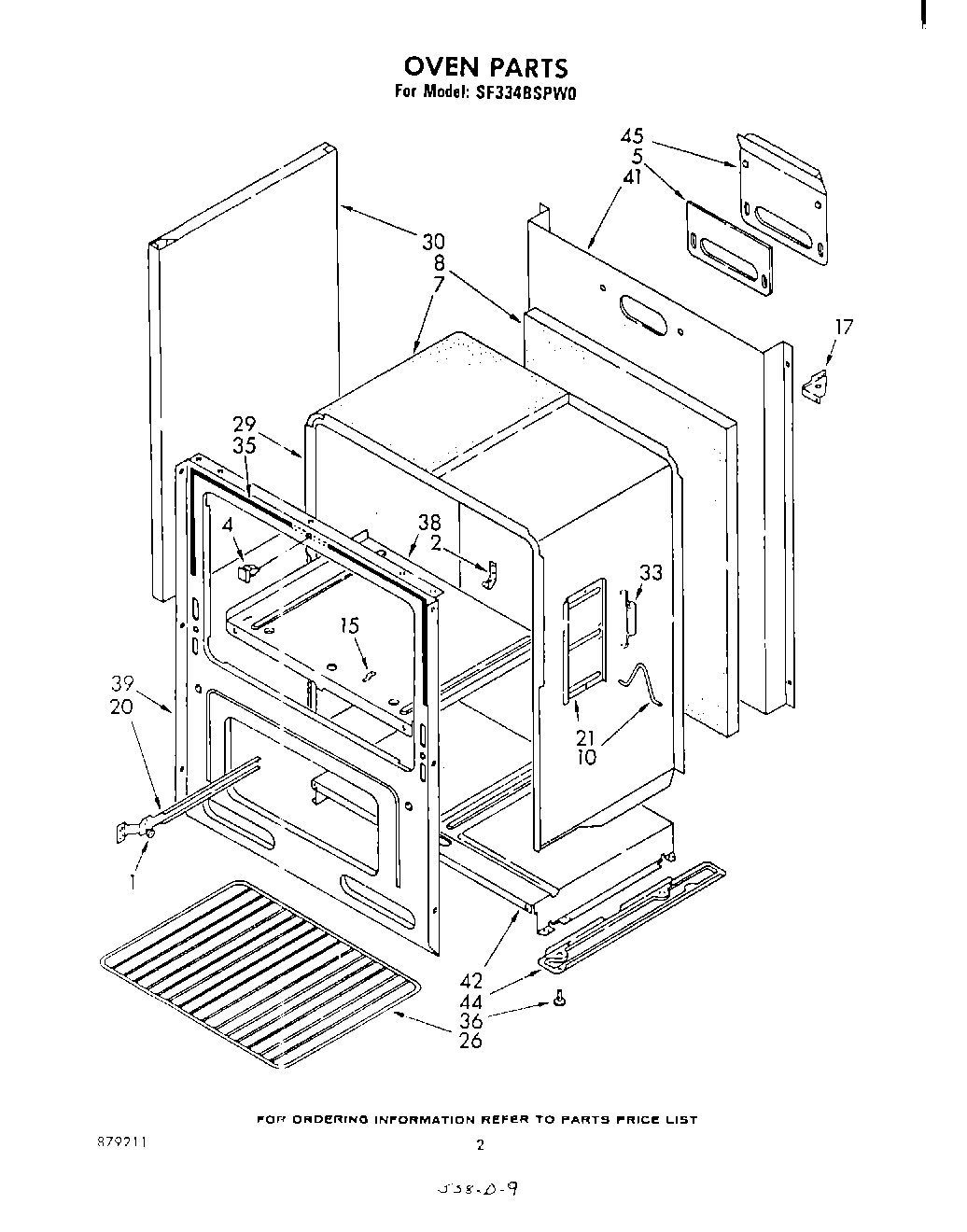

02 - OVEN , LITERATURE

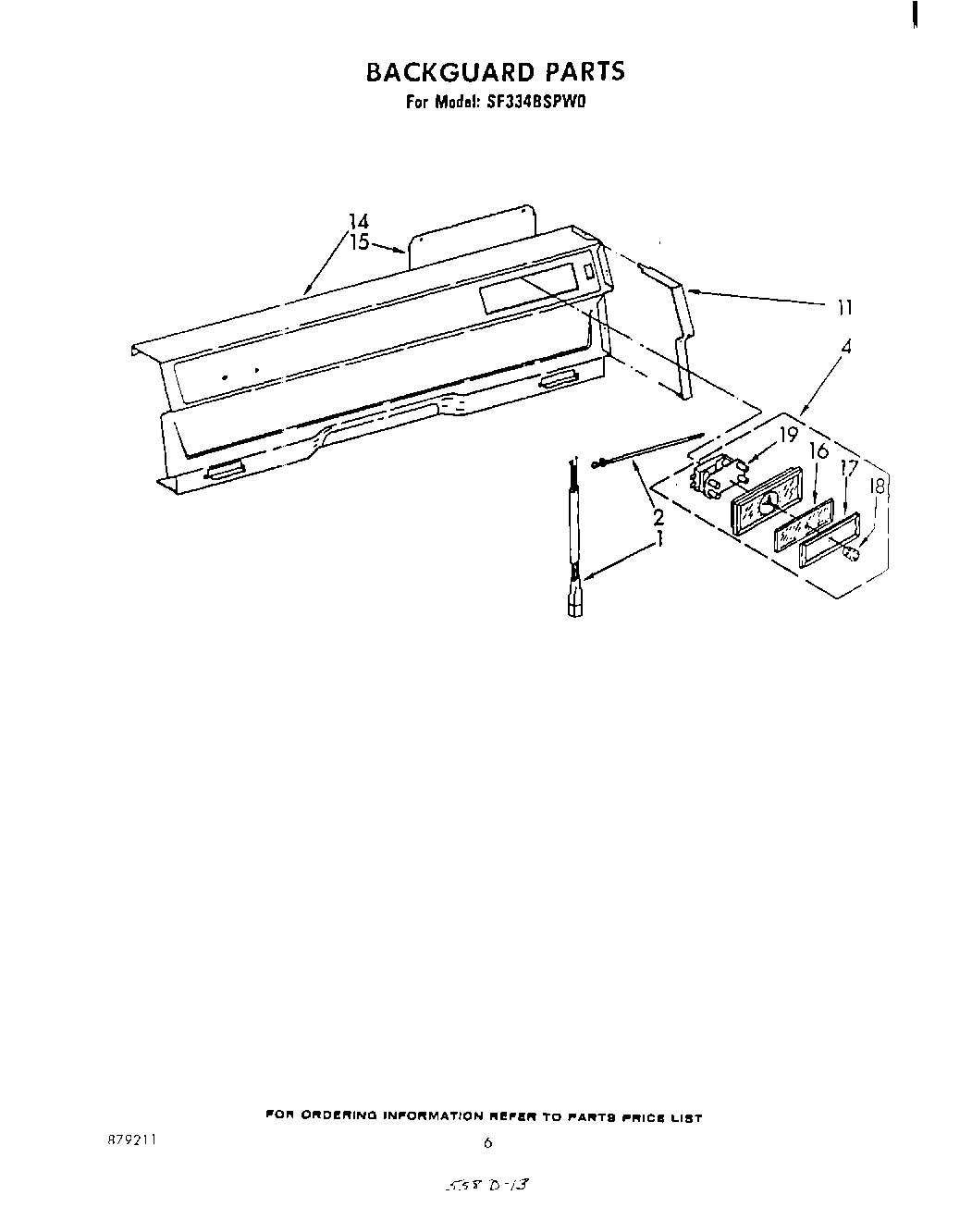

05 - BACKGUARD
Common parts from model Whirlpool SF334BSPW0 GAS RANGE
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Block, Disconnect Pin WPL 878196 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878302 Contact Us For Availability
2
Clamp, Wire WPL 879056 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
4
Clock, Regular WPL 878597 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
6
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
7
Cover, Wire WPL 878719 Contact Us For Availability
8
Spacer, Door Handle (4) WPL 878097 Contact Us For Availability
8
Bottom, Burner Box WPL 878695 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Handle, Broiler Door (2) WPL 878728 Contact Us For Availability
11
Panel, Manifold (Almond) WPL 878685 Contact Us For Availability
11
Panel, Manifold (White) WPL 878687 Contact Us For Availability
11
Panel, Manifold (Toast) WPL 879089 Contact Us For Availability
11
Panel, Manifold (Platinum) WPL 879090 Contact Us For Availability
11
Trim, Backguard (Right Side) WPL 878602 Contact Us For Availability
11
Trim, Backguard (Left Side) WPL 878603 Contact Us For Availability
14
Panel, Backguard (White) WPL 879193 Contact Us For Availability
14
Panel, Backguard (Almond) WPL 879194 Contact Us For Availability
14
Panel, Backguard (Toast) WPL 879195 Contact Us For Availability
14
Panel, Backguard (Platinum) WPL 879196 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Panel, Oven Door (Almond) WPL 878689 Contact Us For Availability
15
Panel, Oven Door (White) WPL 878691 Contact Us For Availability
15
Panel, Oven Door (Toast) WPL 879083 Contact Us For Availability
15
Panel, Oven Door (Platinum) WPL 879084 Contact Us For Availability
15
Grate, Burner (4) WPL 878940 Contact Us For Availability
15
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
15
Cover, Clock WPL 878608 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
16
Glass WPL 308441 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
17
Bezel WPL 258851 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
19
Motor WPL 256466 Contact Us For Availability
20
Hanger, Top Burner WPL 878826 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
23
Lining, Oven Door WPL 879190 Contact Us For Availability
23
Top, Main (Toast) WPL 878091 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
24
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
25
Bowl, Drip (4 WPL 878914 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
29
Panel, Broiler Door (Toast) WPL 879085 Contact Us For Availability
29
Panel, Broiler Door (Platinum) WPL 879086 Contact Us For Availability
29
Oven 30`` Continuous Clean (Not Serviceable) WPL ARI129968A Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
30
Panel, End (2) (Toast) WPL 879081 Contact Us For Availability
30
Panel, End (2) (Platinum) WPL 879082 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878459 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878358 Contact Us For Availability
35
Support, Oven Door Hinge (Left Side) WPL 878104 Contact Us For Availability
35
Support, Oven Door Hinge (Right Side) WPL 878105 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
36
Filter, Top Lighter WPL 878712 Contact Us For Availability
36
Screw, Leveling (4) WPL 878417 Contact Us For Availability
37
Pipe, Manifold WPL 879014 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
38
Plate, Oven Bottom WPL 879039 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
40
Deflector, Heat WPL 878189 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
41
Support, Burner Hanger WPL 878542 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Back, Main WPL 879015 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
× ![]()
