Model Whirlpool SF330PEWW8 GAS RANGE – Common Parts & Diagrams
01 - EXTERNAL
02 - OVEN DOOR AND BROILER

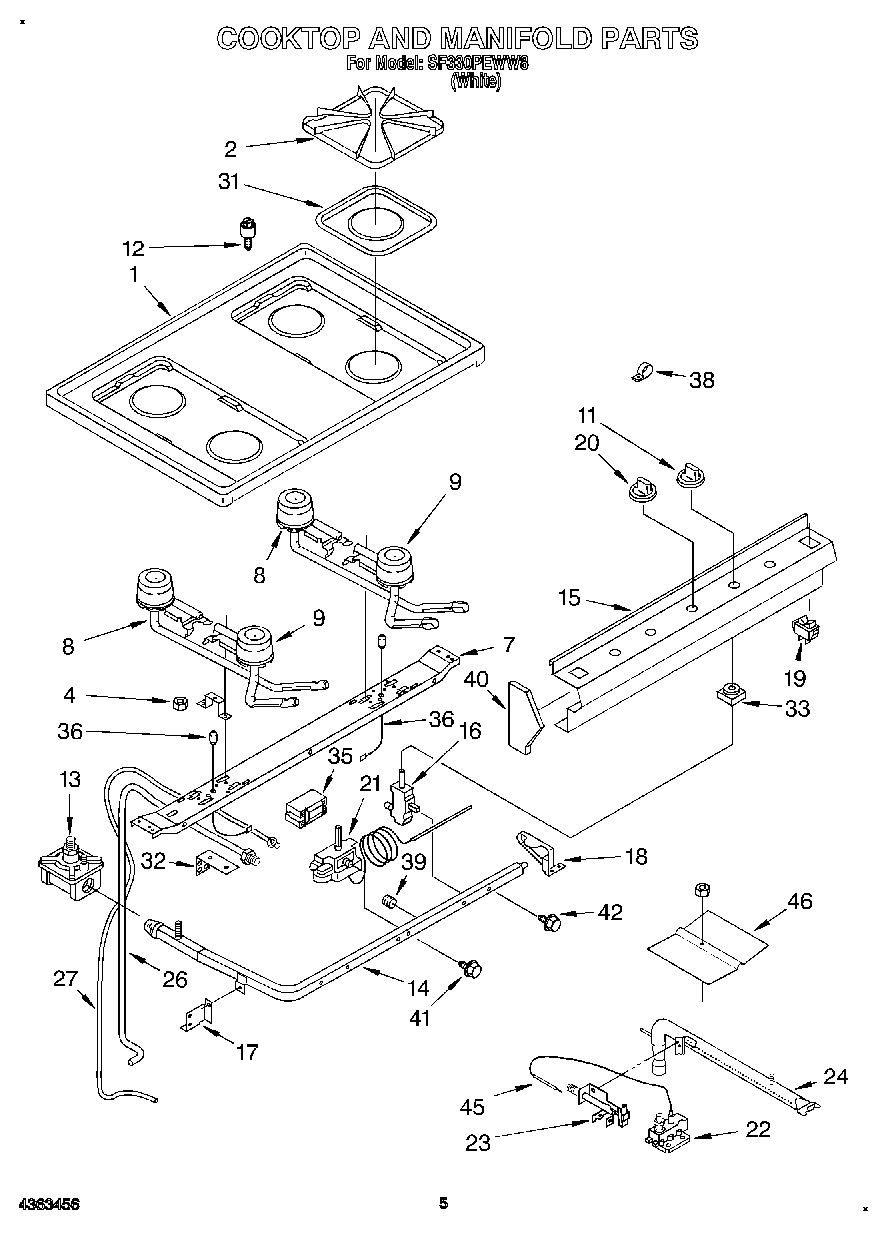

04 - COOKTOP AND MANIFOLD, LITERATURE

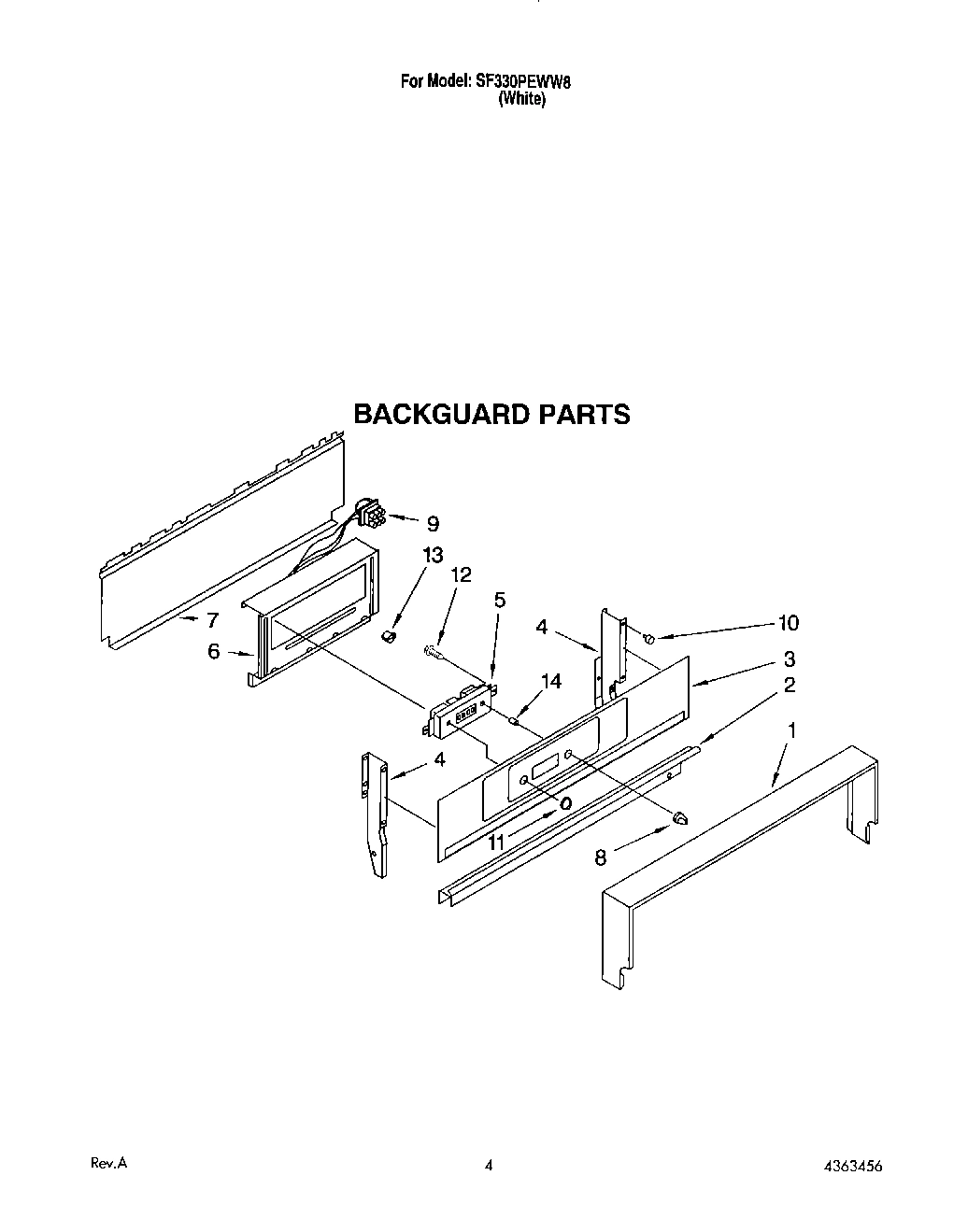

03 - BACKGUARD

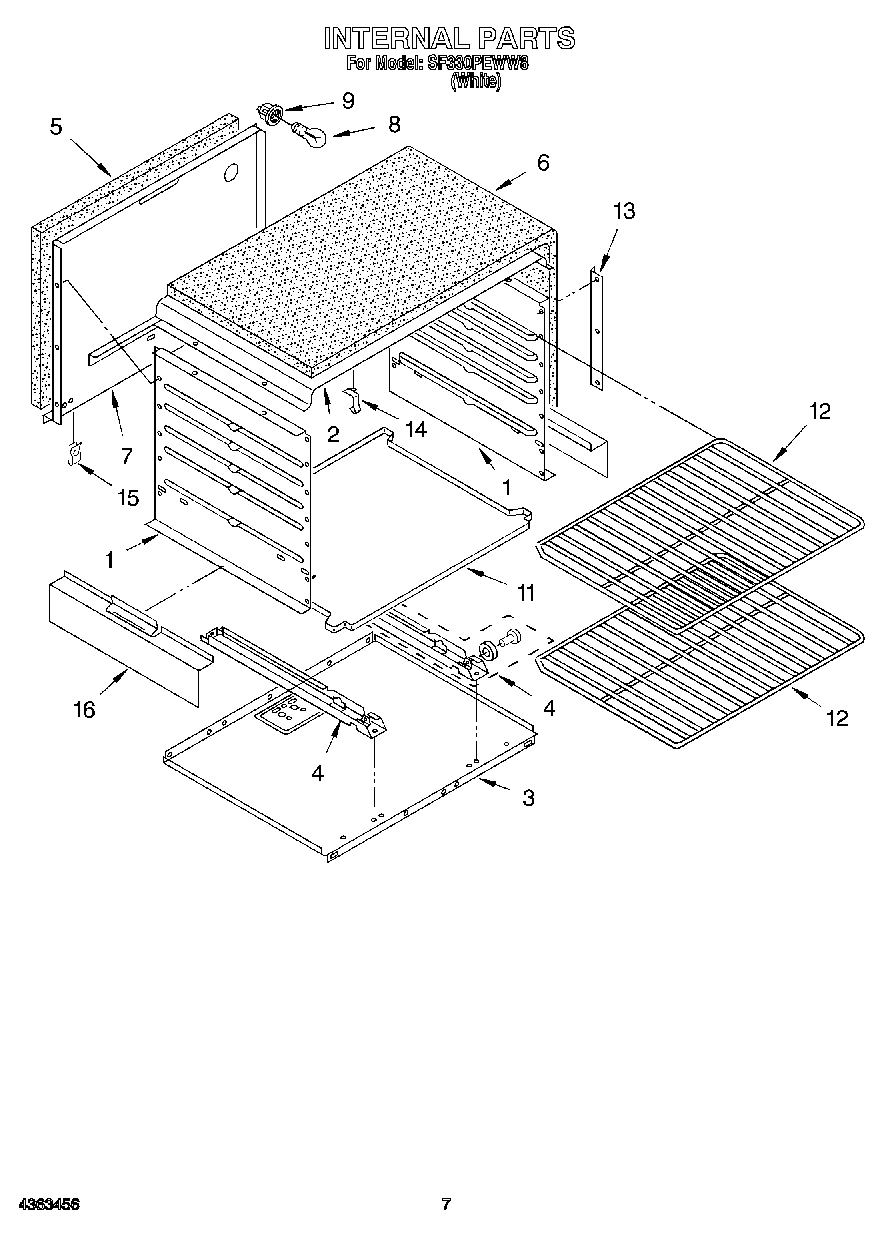

05 - INTERNAL
Common parts from model Whirlpool SF330PEWW8 GAS RANGE
Installation Instuctions WPL LIT4363121 Contact Us For Availability
Guide, Use & Care WPL LIT4363375 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Cooktop WPL 4314891 Contact Us For Availability
1
Frame, Backguard WPL 4320693 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4320729 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4320474 Contact Us For Availability
2
Grate (4) WPL 4314875 Contact Us For Availability
2
Bottom, Backguard WPL 4315482 Contact Us For Availability
2
Screw, 10-12 x 1/2 (4) WPL 4320575 Contact Us For Availability
2
Liner, Oven Top WPL 4315046 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Glass WPL 4321088 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 X 1/2 (4) Black WPL 4315330 Contact Us For Availability
4
Glass WPL 4320471 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4320577 Contact Us For Availability
4
Track, Broiler (Left Track Assy.) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Track Assy.) WPL 4364033 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Screw, 10-12 X 1/2 (6) WPL 4363237 Contact Us For Availability
5
Baffle, Oven Door WPL 4363238 Contact Us For Availability
5
Clock, Timer WPL 4363091 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Window WPL 4157791 Contact Us For Availability
6
Bracket, Clock WPL 4321087 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Tie, Wire WPL 4315726 Contact Us For Availability
7
Insulation, Door WPL 4363236 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Liner, Oven Back WPL 4363240 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Burner, Rear (2) WPL 4363108 Contact Us For Availability
8
Knob, Clock WPL 4314999 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
9
Liner, Door WPL 4363276 Contact Us For Availability
9
Burner, Front (2) WPL 4363107 Contact Us For Availability
9
Harness, Backguard WPL 4362882 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Bumper, Rubber (4) WPL 4321083 Contact Us For Availability
11
Cord, Power WPL 4320470 Contact Us For Availability
11
Button, Set WPL 4363117 Contact Us For Availability
11
Bottom, Oven WPL 4363242 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Screw, 10-12 X 1/2 (5) WPL 4320742 Contact Us For Availability
12
Panel, Broiler WPL 4320807 Contact Us For Availability
12
Locator Stud (2) WPL 4314933 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
13
Seal, Oven Door WPL 4320463 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4320438 Contact Us For Availability
13
Relief, Strain WPL 4157127 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Seal, Broiler Door WPL 4315333 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
14
Shaft, Timer WPL 4363590 Contact Us For Availability
15
Bumper, Cooktop (4) WPL 4157027 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Panel, Manifold WPL 4320732 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Spring, Broiler (2) WPL 4363233 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 42) WPL 4314814 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Rod, Push (2) WPL 4363047 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Drawer, Broiler WPL 4363145 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320644 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (2) WPL 4363046 Contact Us For Availability
21
Thermostat (Includes Ill. No. 41) WPL 4179354 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Carriage Broiler WPL 4362896 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Screw WPL 4320567 Contact Us For Availability
23
Pilot, Oven WPL 4363115 Contact Us For Availability
24
Extension, Burner WPL 4320479 Contact Us For Availability
24
Clip, Broiler WPL 4157959 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Bracket, Door (2) WPL 4363048 Contact Us For Availability
26
Tubing 3/8`` (Manifold To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
31
Anti-Tip Kit WPL 4363057 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
32
Plate, Spark Module WPL 4157171 Contact Us For Availability
35
Locator stud (2) WPL 4315408 Contact Us For Availability
35
Stud Screw (2) WPL 4315409 Contact Us For Availability
35
Module, Spark WPL 4179297 Contact Us For Availability
36
Ignitor & Bracket (R.H.) WPL 4320433 Contact Us For Availability
36
Ignitor & Bracket (L.H.) WPL 4320434 Contact Us For Availability
38
Strain Relief WPL 4320760 Contact Us For Availability
40
Endcap (L.H.) WPL 4320602 Contact Us For Availability
40
Endcap (R.H.) WPL 4320603 Contact Us For Availability
41
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
42
Bolt, Valve Mounting (4) WPL 4314817 Contact Us For Availability
45
Screw WPL 4320604 Contact Us For Availability
45
Ignitor, Oven WPL 4363119 Contact Us For Availability
46
Spreader, Flame WPL 4320440 Contact Us For Availability
× ![]()
