Model Whirlpool SF325PEEZ0 GAS RANGE – Common Parts & Diagrams

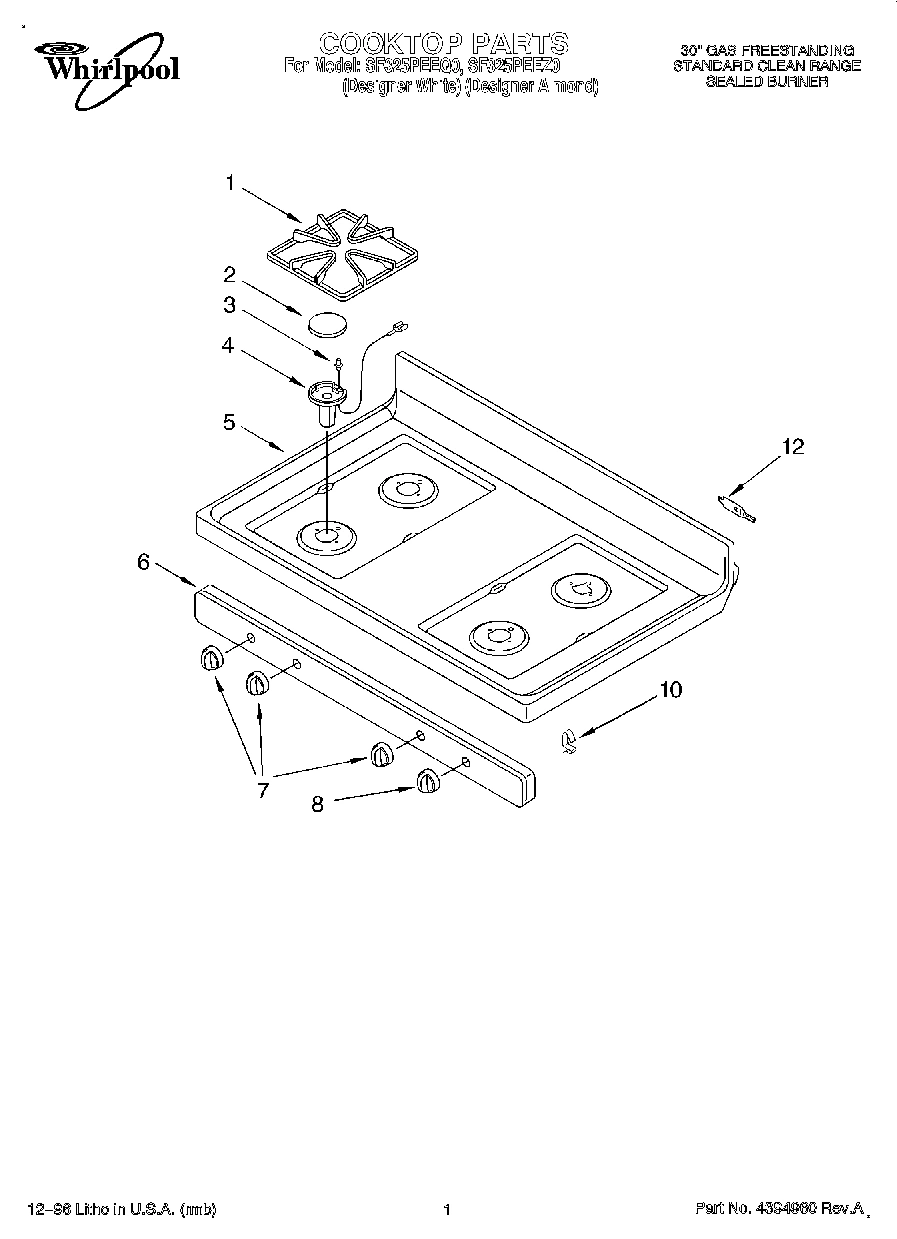

01 - COOKTOP

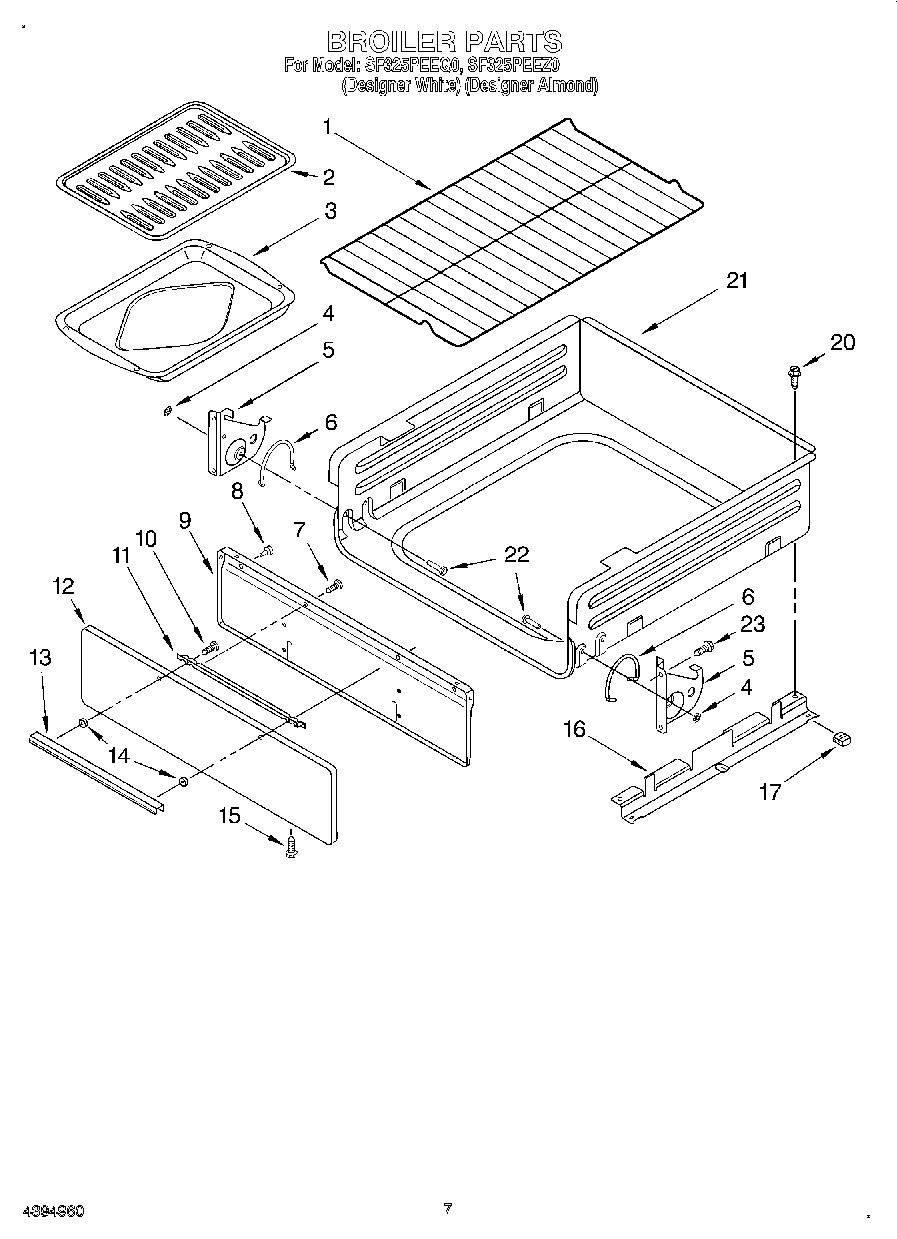

05 - BROILER

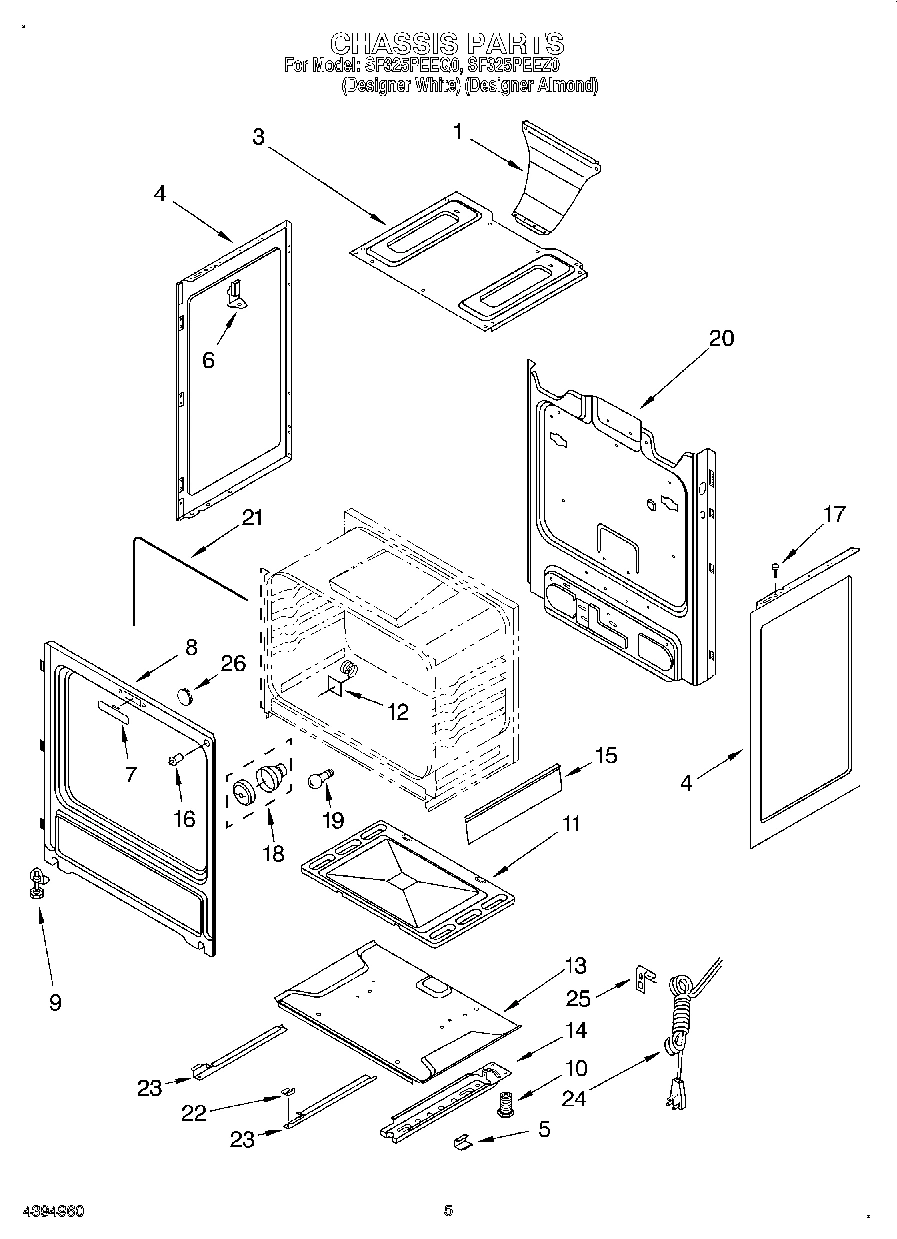

04 - CHASSIS

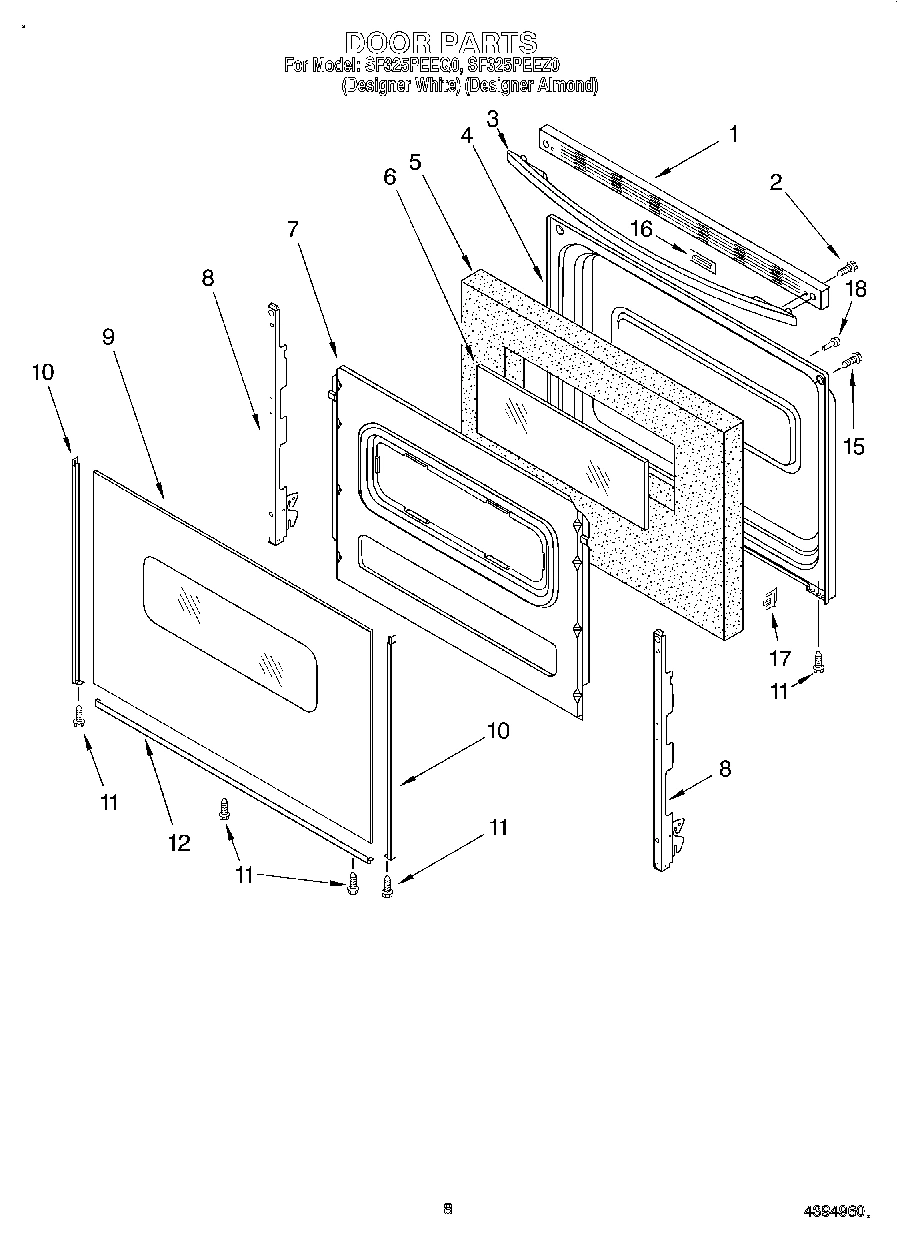

06 - DOOR, LIT/OPTIONAL

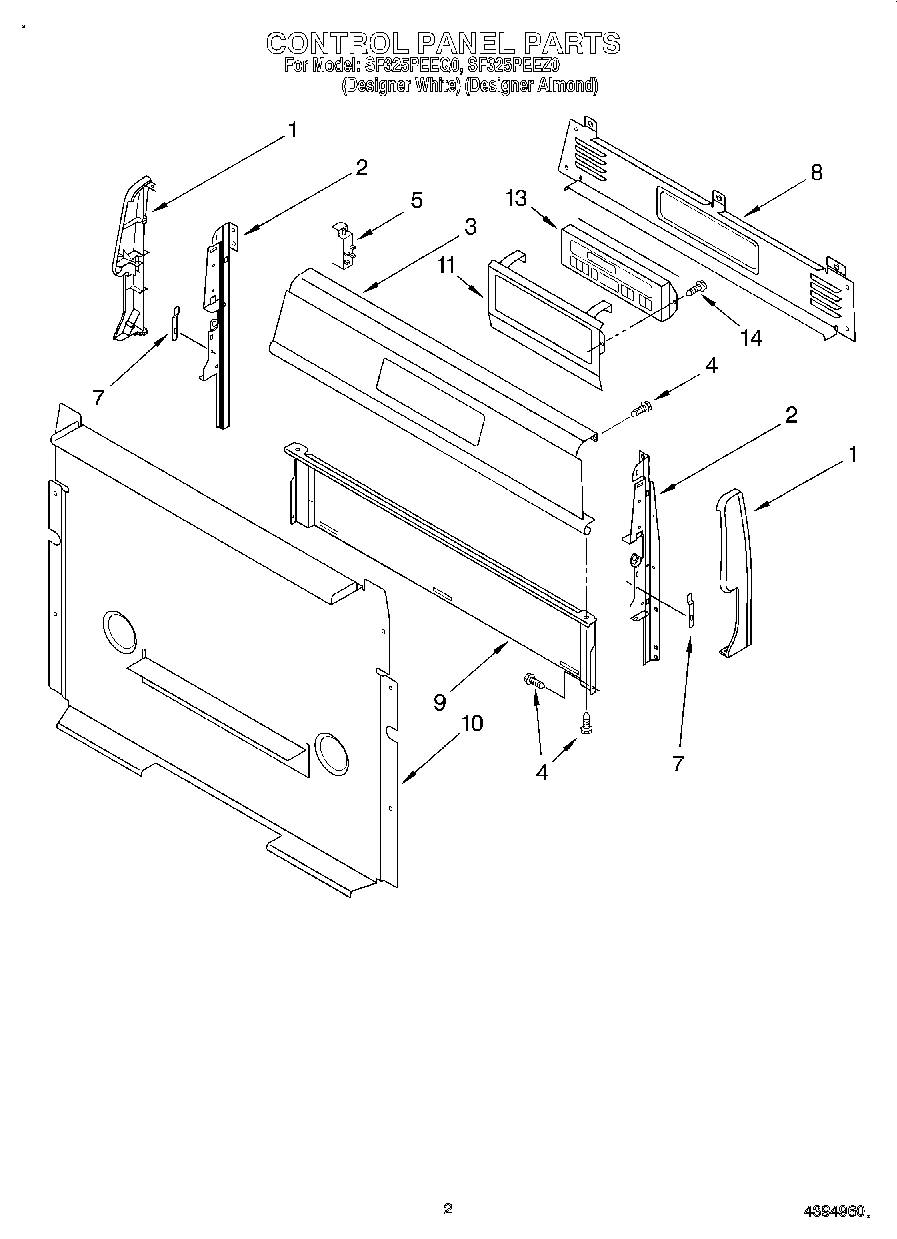

02 - CONTROL PANEL

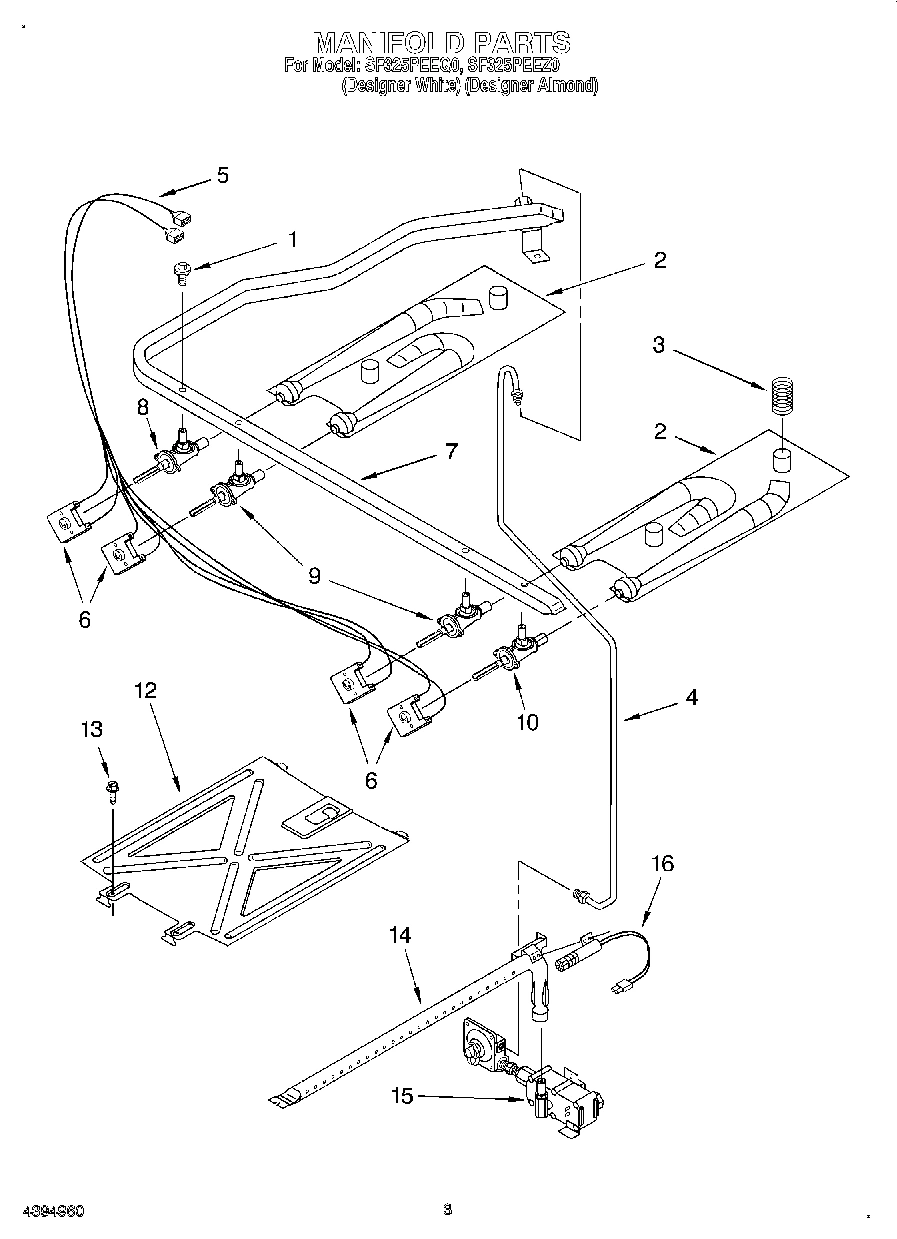

03 - MANIFOLD
Common parts from model Whirlpool SF325PEEZ0 GAS RANGE
WPL 311311 WPL 311311 Contact Us For Availability
WPL 3196555 WPL 3196555 Contact Us For Availability
WPL 3196577 WPL 3196577 Contact Us For Availability
WPL LIT3195945 WPL LIT3195945 Contact Us For Availability
WPL LIT3196195 WPL LIT3196195 Contact Us For Availability
WPL LIT3196288 WPL LIT3196288 Contact Us For Availability
WPL LIT3196322 WPL LIT3196322 Contact Us For Availability
1
Trim, Top (Almond) WPL 3195604 Contact Us For Availability
1
Endcap Left Hand (White Model) WPL 3186190 Contact Us For Availability
1
(End Cap Right Hand) (White Model) WPL 3186191 Contact Us For Availability
1
Endcap Left Hand (Almond Model) WPL 3186192 Contact Us For Availability
1
(End Cap Right Hand) (Almond Model) WPL 3186193 Contact Us For Availability
1
Screw, Valve (4) WPL 3186217 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
2
Plate, Venturi (Right Hand) WPL 3195020 Contact Us For Availability
2
Plate, Venturi (Left Hand) WPL 3195021 Contact Us For Availability
3
Handle, Door (Almond) WPL 3195921 Contact Us For Availability
3
Panel, Backguard (White Model) WPL 3195781 Contact Us For Availability
3
Panel, Backguard (Almond Model) WPL 3195782 Contact Us For Availability
3
Spring, Seal (4) WPL 3196459 Contact Us For Availability
4
Burner, 6,500 BTU (RR) WPL 3186478 Contact Us For Availability
4
Panel, Side (2) (White) WPL 3186073 Contact Us For Availability
4
Panel, Side (2) (Screw (4)) WPL 3196179 Contact Us For Availability
4
Liner, Door WPL 3186296 Contact Us For Availability
4
Tubing (Manifold to Regulator) WPL 3186497 Contact Us For Availability
5
Clip, Panel (6) WPL 3196576 Contact Us For Availability
5
Harness, Igniter (Incl. Switches) WPL 3196469 Contact Us For Availability
5
Insulation, Door WPL 3186256 Contact Us For Availability
6
Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability
6
Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability
6
Switch, Spark (4) WPL 3196470 Contact Us For Availability
7
Plug, Frame WPL 3196072 Contact Us For Availability
7
Pipe, Manifold WPL 3186221 Contact Us For Availability
8
Frame, Front WPL 3186183 Contact Us For Availability
8
Hinge, Door (2) WPL 3196073 Contact Us For Availability
8
Cover, Upper WPL 3195963 Contact Us For Availability
8
Valve, 7,500 BTU (LR) WPL 3186402 Contact Us For Availability
9
Screw (4) WPL 4449746 Contact Us For Availability
9
Glass, Outer (Almond) WPL 3195616 Contact Us For Availability
9
Shield, Heat WPL 3186187 Contact Us For Availability
9
Valve, 9,500 BTU (LF, RF) WPL 3186401 Contact Us For Availability
10
Cover, Lower WPL 3195964 Contact Us For Availability
10
Valve, 6,500 BTU (RR) WPL 3186403 Contact Us For Availability
11
Screw (2) WPL 3196152 Contact Us For Availability
11
Bracket, Control WPL 3195823 Contact Us For Availability
12
Sensor, Oven WPL 3148440 Contact Us For Availability
12
Spreader, Flame WPL 3196084 Contact Us For Availability
13
Baffle, Base WPL 3186056 Contact Us For Availability
13
Control, Oven (White Model) WPL 6610066 Contact Us For Availability
13
Control, Oven (Almond Model) WPL 6610067 Contact Us For Availability
14
Spacer, Handle (2) WPL 3196645 Contact Us For Availability
14
Burner, Bake/Broil WPL 3196446 Contact Us For Availability
15
Valve, Gas Combo WPL 3196544 Contact Us For Availability
15
Shield, Lower WPL 3196070 Contact Us For Availability
16
Guide, Upper (2) WPL 3195733 Contact Us For Availability
16
Plug, Door WPL 3196071 Contact Us For Availability
16
Igniter, Bake/Broil WPL 3196447 Contact Us For Availability
17
Guide, Broiler (2) WPL 3195730 Contact Us For Availability
17
Clip, Glass (6) WPL 3196025 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 3196473 WPL 3196473 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
20
Back, Main WPL 3186117 Contact Us For Availability
21
Carriage, Broiler WPL 3186079 Contact Us For Availability
22
Pin, Pivot (2) WPL 3186097 Contact Us For Availability
22
Guide, Front (2) WPL 3195994 Contact Us For Availability
23
Plate, Guide (Right Hand) WPL 3195731 Contact Us For Availability
23
Plate, Guide (Left Hand) WPL 3195732 Contact Us For Availability
26
Tie, Insulation WPL 3195927 Contact Us For Availability
26
Button, Plug (5/16`` (2)) WPL 3196439 Contact Us For Availability
26
Button, Plug (25/32`` (2)) WPL 3196440 Contact Us For Availability
× ![]()
