Model Whirlpool SF317PEYN0 GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

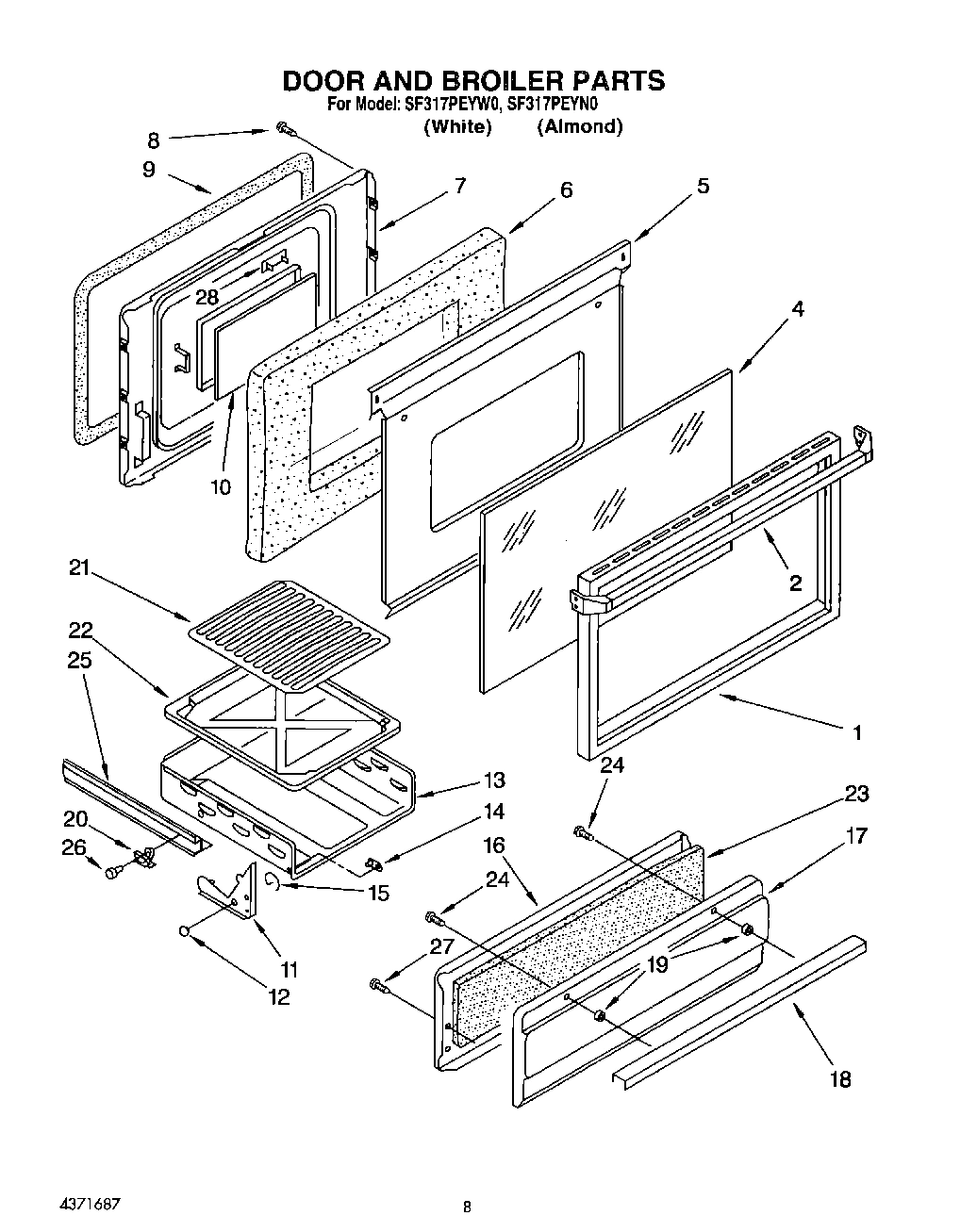

07 - DOOR AND BROILER

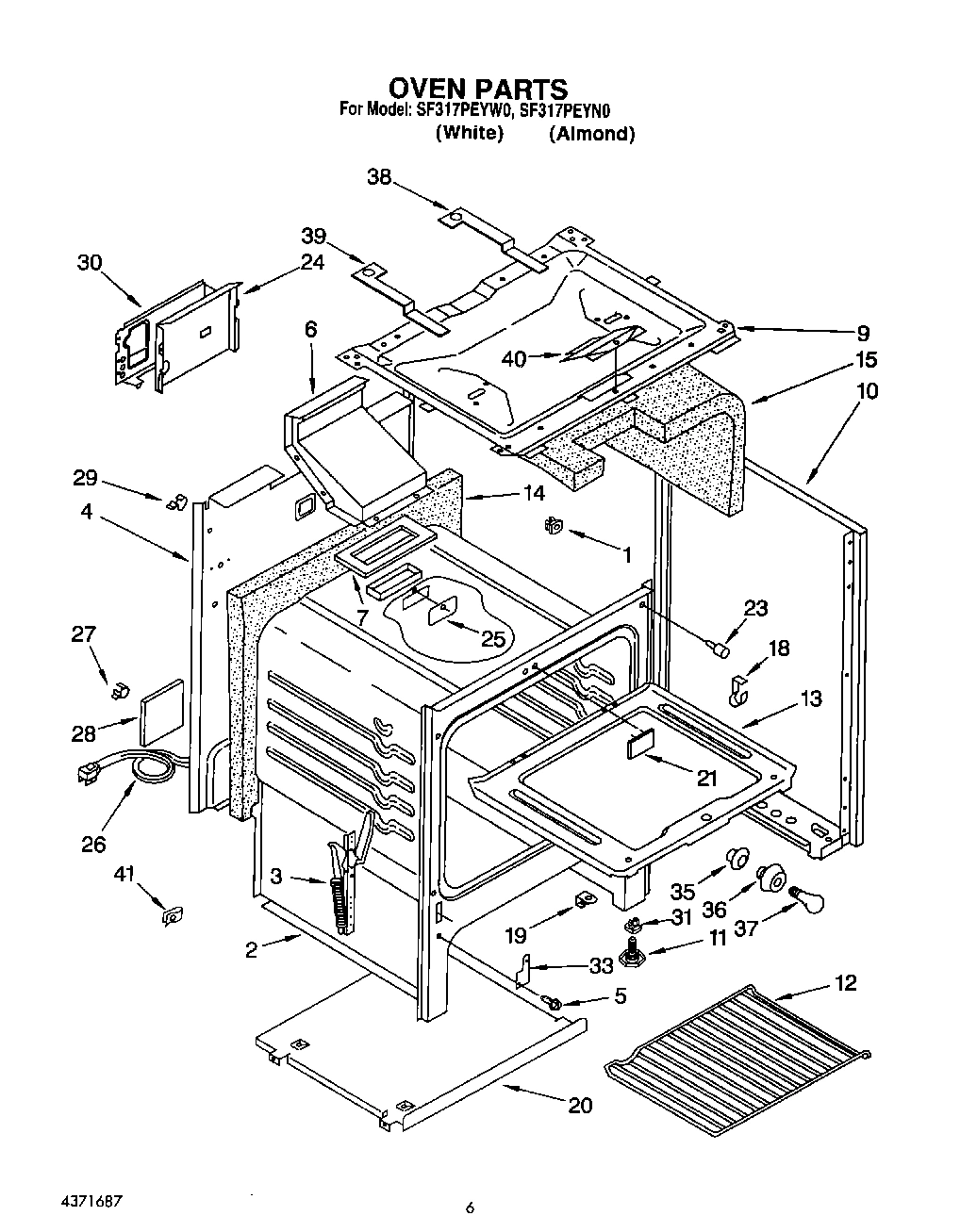

06 - OVEN

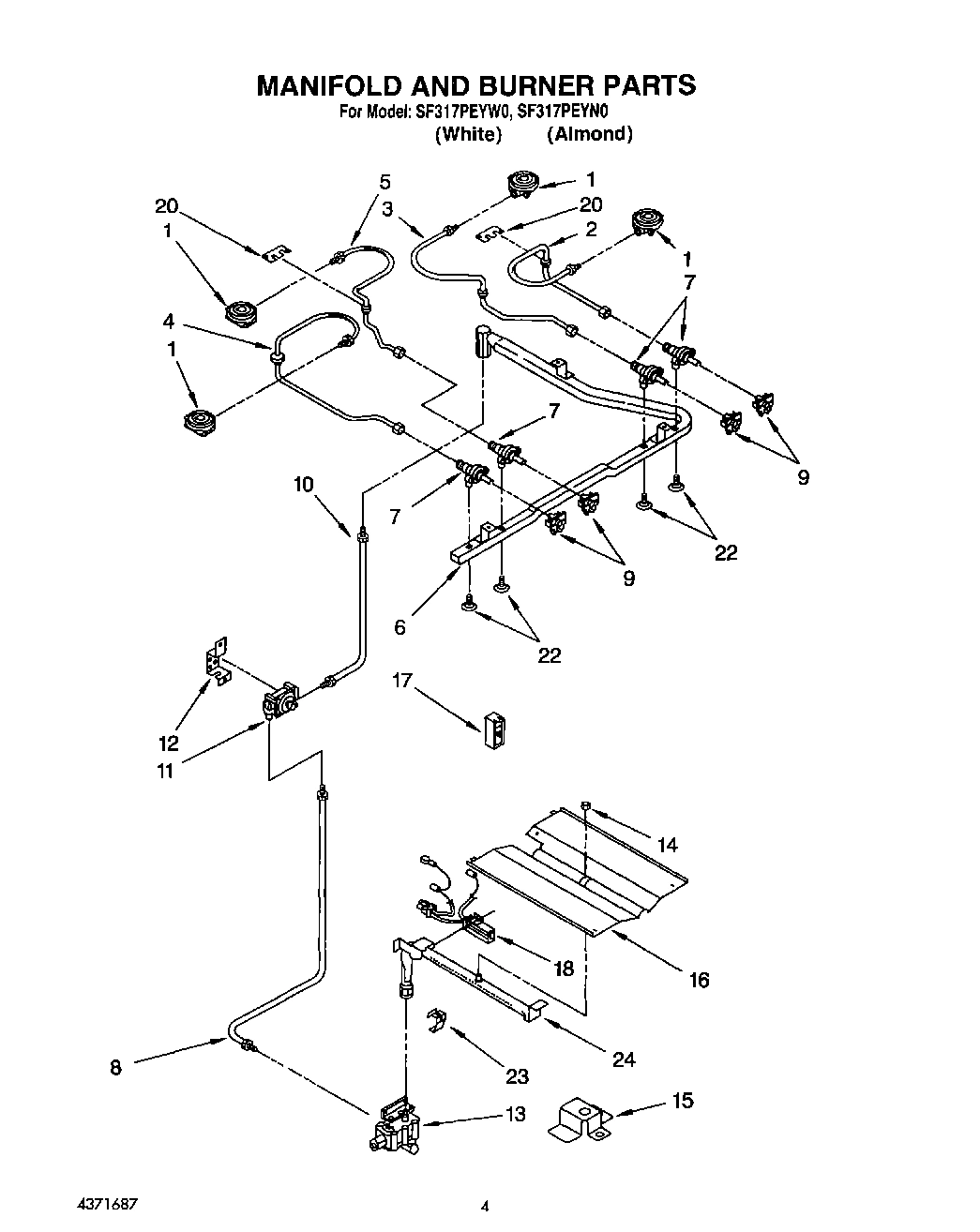

04 - MANIFOLD AND BURNER

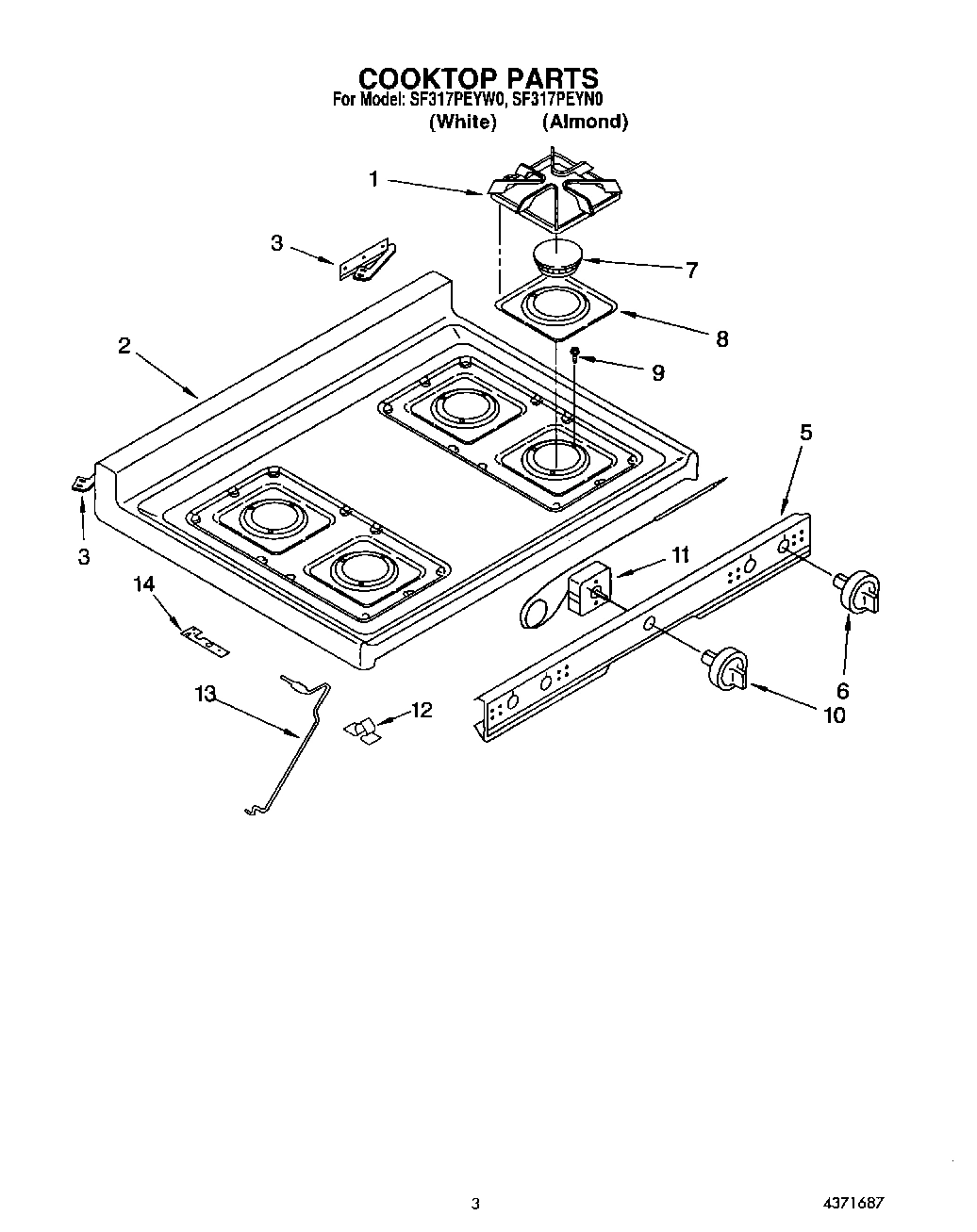

03 - COOKTOP

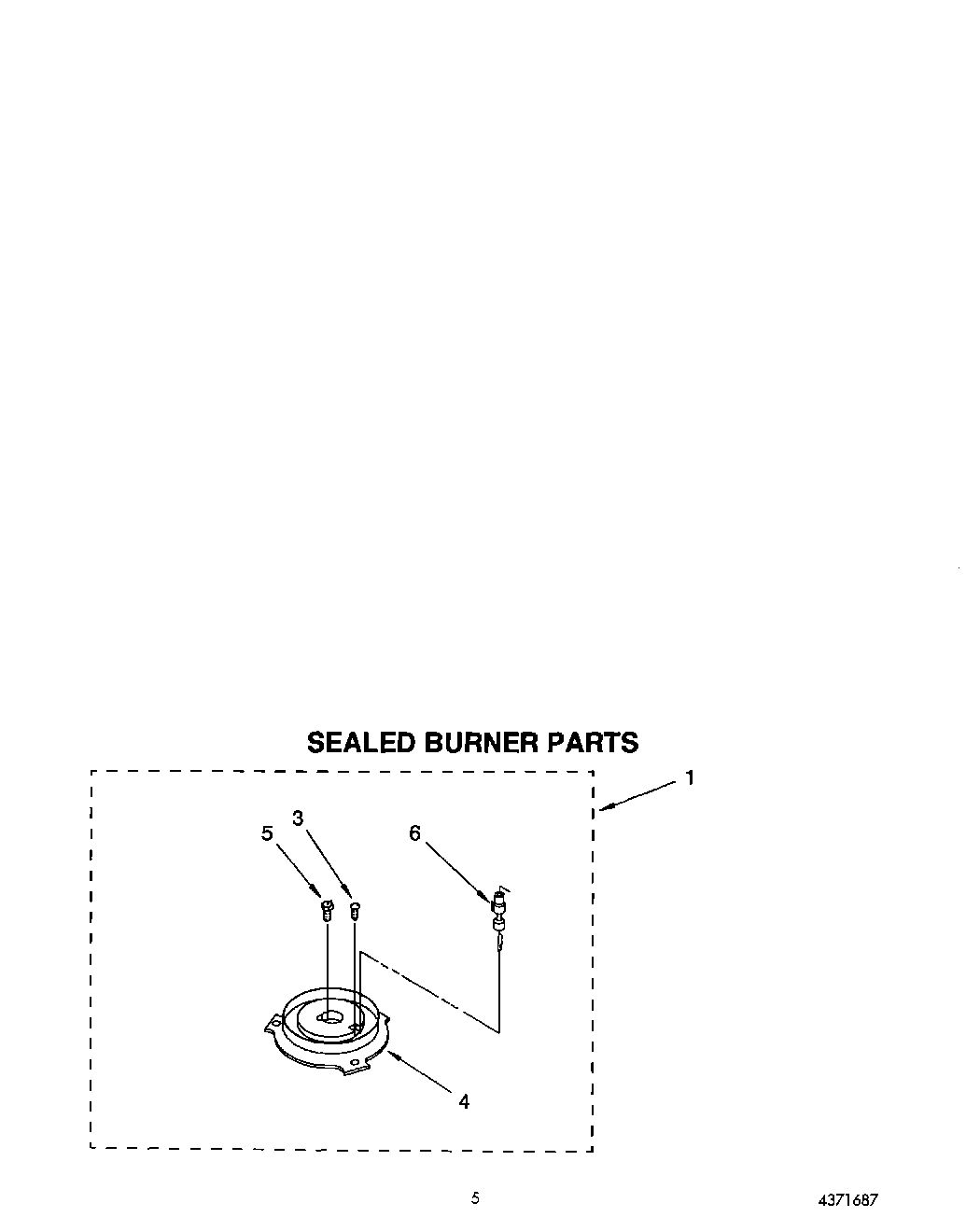

05 - SEALED BURNER
Common parts from model Whirlpool SF317PEYN0 GAS RANGE
1
Trim, Oven Door WPL 816688 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Burner, Gas (Assy.) WPL 4371596 Contact Us For Availability
1
Grate, Burner WPL 816723 Contact Us For Availability
2
Handle, Door WPL 816622 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI129911A Contact Us For Availability
2
Tubing, Burner (RF) WPL 816603 Contact Us For Availability
2
Top, Main (White) WPL 4371697 Contact Us For Availability
2
Top, Main (Almond) WPL 4371698 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Tubing, Burner (RR) WPL 816605 Contact Us For Availability
3
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
3
Screw, Ignitor Brkt WPL 4371599 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
4
Glass, Door WPL 4371310 Contact Us For Availability
4
Back, Main WPL 816581 Contact Us For Availability
4
Tubing, Burner (LF) WPL 816604 Contact Us For Availability
4
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
4
Head, Burner WPL 4371597 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Shield, Heat WPL 4371311 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Tubing, Burner (LR) WPL 816606 Contact Us For Availability
5
Panel, Manifold WPL 4371694 Contact Us For Availability
5
Orifice, Burner WPL 816567 Contact Us For Availability
6
Knob, Control (4) WPL 4371663 Contact Us For Availability
6
Deflector, Flue WPL 4371537 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
6
Flue WPL 4371529 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
6
Ignitor and Brkt WPL 4371598 Contact Us For Availability
7
Channel, Support (R.H.) WPL 4371532 Contact Us For Availability
7
Channel, Support (L.H.) WPL 4371533 Contact Us For Availability
7
Liner, Oven Door WPL 816683 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Valve, Top Burner WPL 4371587 Contact Us For Availability
7
Cap, Burner WPL 4371684 Contact Us For Availability
8
Pan, Burner WPL 4371691 Contact Us For Availability
8
Trim, Wrapper WPL 4371534 Contact Us For Availability
8
Screw, Handle (2) WPL 4371542 Contact Us For Availability
8
Tubing 3/8 WPL 4371544 Contact Us For Availability
9
Trim, Vent WPL 4371535 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
9
Burner Box WPL 816595 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
9
Screw, Burner Mtg. WPL 4371589 Contact Us For Availability
10
Cap, Filler WPL 4371536 Contact Us For Availability
10
Glass, Rear WPL 4371309 Contact Us For Availability
10
Panel B/S (Almond RH) WPL 816672 Contact Us For Availability
10
Panel B/S (Almond LH) WPL 816695 Contact Us For Availability
10
Panel B/S (White RH) WPL 816708 Contact Us For Availability
10
Panel B/S (White LH) WPL 816709 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Knob, Thermostat WPL 4371477 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
11
Screw, Leveler (4) WPL 816650 Contact Us For Availability
11
Control, Regulator WPL 4371032 Contact Us For Availability
11
Thermostat WPL 4371308 Contact Us For Availability
12
Cable, Anti-Tip WPL 4371295 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
12
Rack, Oven (2) WPL 816646 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Clip, Top WPL 816612 Contact Us For Availability
13
Knob, Clock WPL 816480 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
13
Bottom, Oven WPL 4371018 Contact Us For Availability
13
Valve, Safety WPL 4371313 Contact Us For Availability
13
Rod, Support WPL 4371541 Contact Us For Availability
14
Retainer, Timer WPL 4371320 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
14
Nut, Baffle WPL 816642 Contact Us For Availability
14
Bracket, Mounting (R.H.) WPL 4371591 Contact Us For Availability
14
Bracket, Mounting (L.H.) WPL 4371592 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
15
Bracket, Valve WPL 4371470 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
16
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
17
Panel, Drawer WPL 816715 Contact Us For Availability
17
Ignitor Module WPL 4371583 Contact Us For Availability
18
Handle WPL 4371060 Contact Us For Availability
18
Clip, Thermo Bulb WPL 4371031 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Plate, Tube (2) WPL 816602 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
22
Screw, Valve Mtg. WPL 4371027 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
23
Bumper, Door WPL 816608 Contact Us For Availability
23
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
24
Shield, Flue WPL 4371543 Contact Us For Availability
24
Conversion Kit (Natural Gas To L.P. Gas) WPL 4319116 Contact Us For Availability
24
Burner, Oven WPL 4371284 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
26
Button, Glide WPL 4371115 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
27
Screw (5) WPL 4371062 Contact Us For Availability
27
Fastener, Cord WPL 816618 Contact Us For Availability
28
Cover, Door Liner WPL 4371125 Contact Us For Availability
28
Cover, Power Cord WPL 4371288 Contact Us For Availability
29
Fastener, Wire WPL 816758 Contact Us For Availability
30
Shield, Rear Wall WPL 4371306 Contact Us For Availability
31
Fastener, T Nut WPL 4371040 Contact Us For Availability
33
Cover, Hinge (2) WPL 816617 Contact Us For Availability
36
Housing, Oven Light WPL 4371293 Contact Us For Availability
38
Bracket, Top RH WPL 4371527 Contact Us For Availability
39
Bracket, Top LH WPL 4371528 Contact Us For Availability
40
Plate, Cover WPL 816615 Contact Us For Availability
41
Fastener, U Type WPL 4371033 Contact Us For Availability
× ![]()
