Model Whirlpool SF317PEXW0 GAS RANGE – Common Parts & Diagrams
03 - OVEN DOOR AND BROILER
04 - BACKGUARD

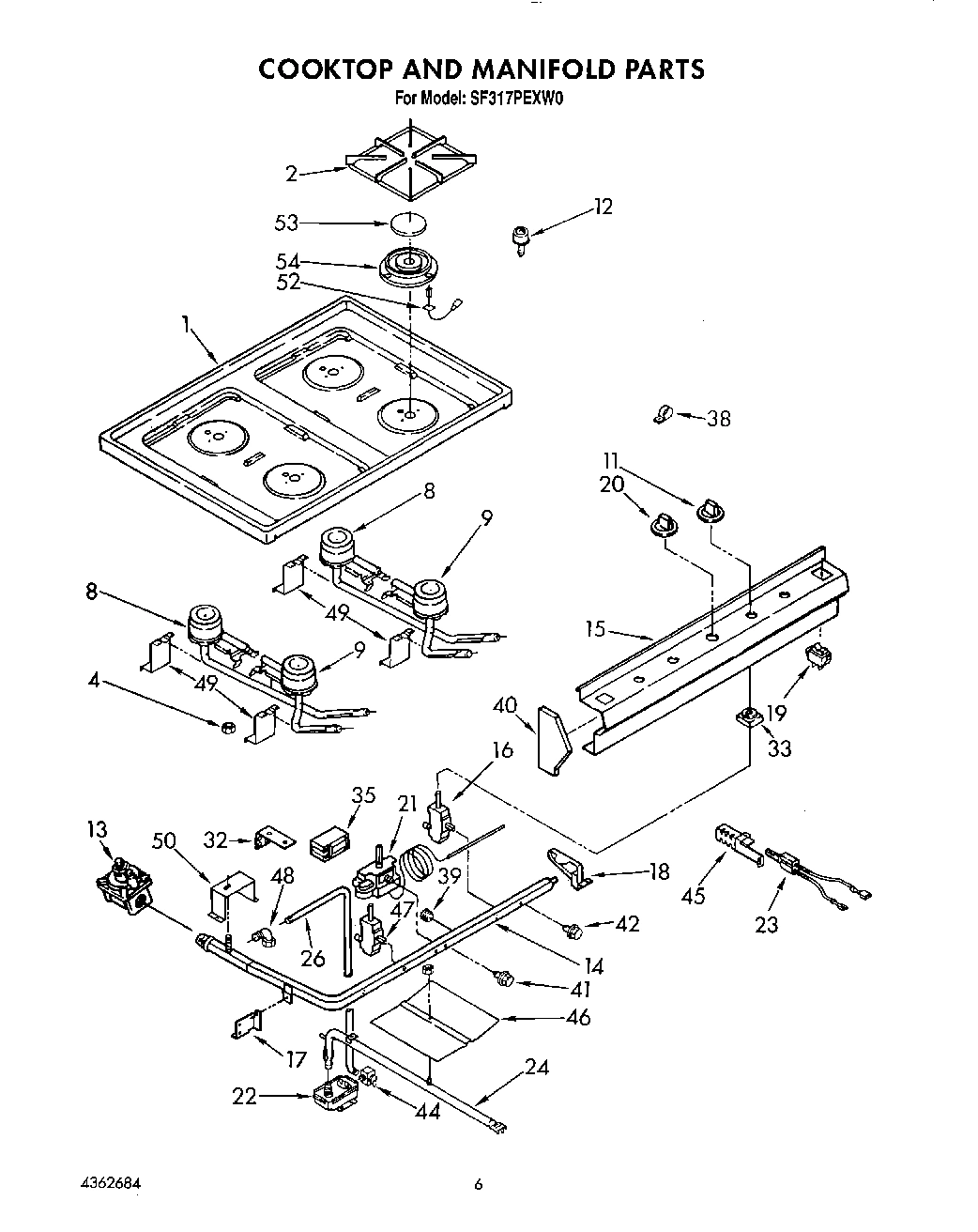

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

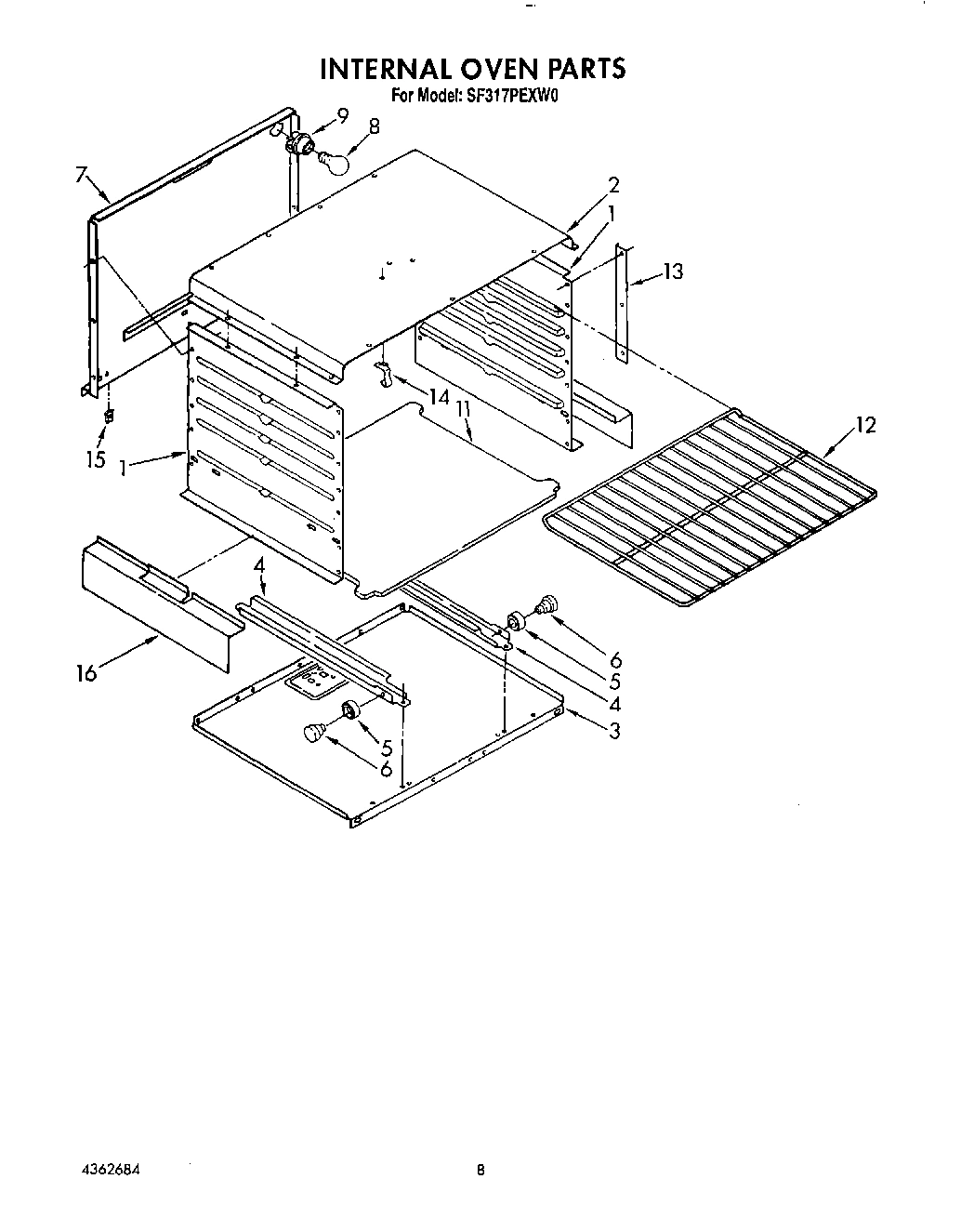

06 - INTERNAL OVEN

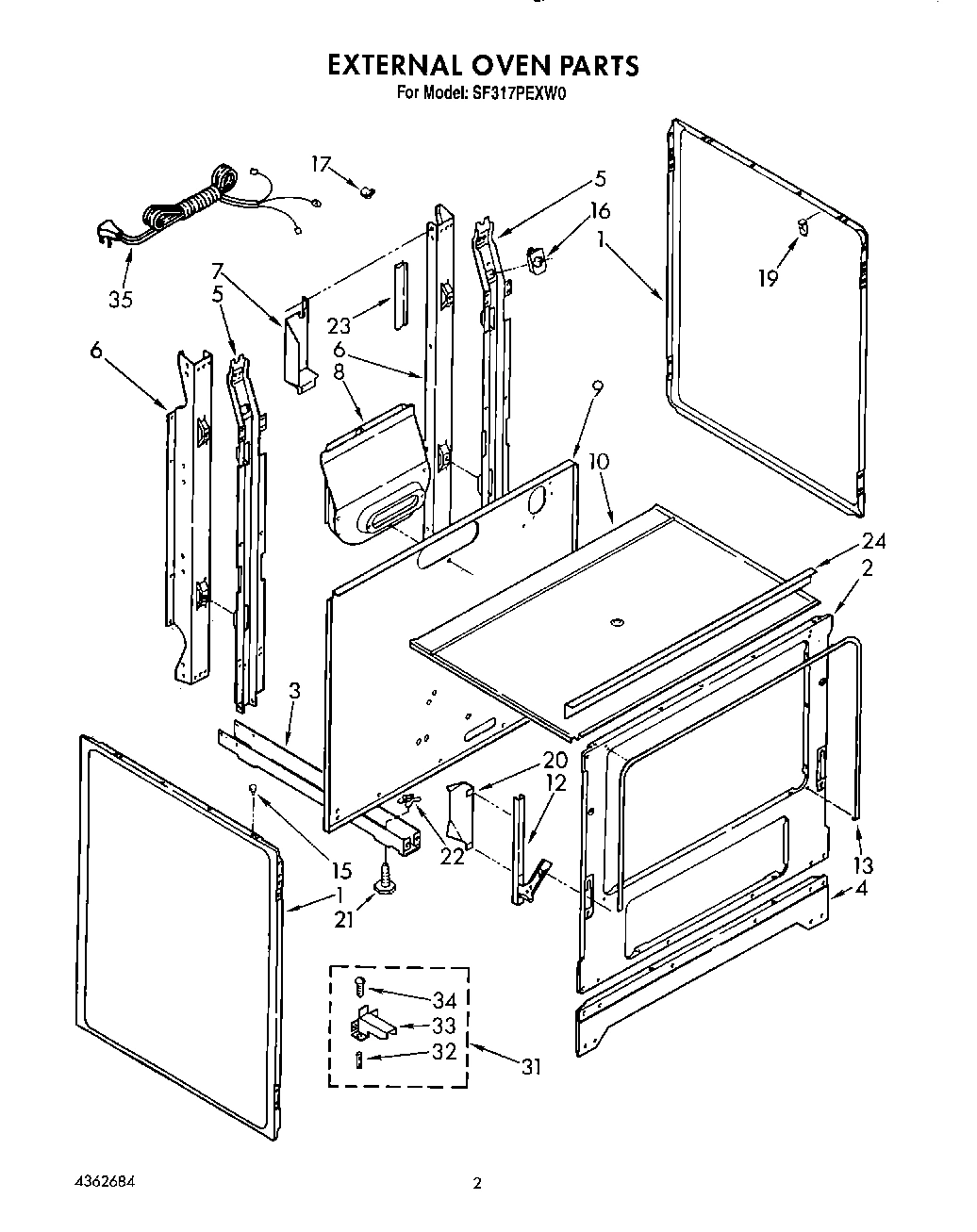

02 - EXTERNAL OVEN
Common parts from model Whirlpool SF317PEXW0 GAS RANGE
WPL LIT4321146 WPL LIT4321146 Contact Us For Availability
WPL LIT4321147 WPL LIT4321147 Contact Us For Availability
WPL LIT4362684 WPL LIT4362684 Contact Us For Availability
WPL LIT786302 WPL LIT786302 Contact Us For Availability
1
Frame WPL 4320693 Contact Us For Availability
1
Cooktop (Almond) WPL 4362613 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Bottom, Backguard WPL 4315482 Contact Us For Availability
2
Screw, 10-12 x 1/2 (4) WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4362614 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Glass WPL 4321088 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
4
Glass WPL 4320471 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4320577 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 X 1/2 (4) Black WPL 4315330 Contact Us For Availability
5
Ring, Hold Down WPL 4320351 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Clock WPL 4321086 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
6
Window WPL 4157147 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Bracket, Clock WPL 4321087 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
8
Knob, Clock WPL 4314999 Contact Us For Availability
8
Venturi, Rear (2) WPL 4362615 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Liner, Door WPL 4320475 Contact Us For Availability
9
Venturi, Front (2) WPL 4362616 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Burner Box WPL 4320670 Contact Us For Availability
11
Set Button WPL 4320905 Contact Us For Availability
11
Bottom, Oven WPL 4320462 Contact Us For Availability
12
Panel, Broiler (Screw, 10-12 X 1/2 (5)) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Locator Stud (2) WPL 4314933 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4320438 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) WPL 4320463 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
15
Liner, Broiler Door WPL 4315621 Contact Us For Availability
15
Panel, Manifold WPL 4320732 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (4) WPL 4315408 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 180~ (2) (Includes Ill. N0. 42) L.R. & WPL 4362612 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
19
Tie, Wire (2) WPL 4315726 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4320593 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 41) WPL 4320594 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4321264 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Ignitor WPL 4320445 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Burner, Oven WPL 4320441 Contact Us For Availability
24
Extension, Burner WPL 4320479 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Manifold To Safety Valve) WPL 4321263 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
31
Anti-Tip Kit WPL 4321080 Contact Us For Availability
32
Plate, Spark Module WPL 4157171 Contact Us For Availability
32
Anchor (2) WPL 4321081 Contact Us For Availability
33
Bracket WPL 4320650 Contact Us For Availability
34
Screw (2) WPL 4321082 Contact Us For Availability
35
Module, Spark WPL 4315322 Contact Us For Availability
35
Cord, Power WPL 4320470 Contact Us For Availability
38
Strain Relief WPL 4320760 Contact Us For Availability
40
Endcap (L.H.) WPL 4320602 Contact Us For Availability
40
Endcap (R.H.) WPL 4320603 Contact Us For Availability
41
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
42
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
44
Valve, Shut Off WPL 4321267 Contact Us For Availability
45
Shield, Ignitor WPL 4320447 Contact Us For Availability
46
Spreader, Flame WPL 4320440 Contact Us For Availability
47
Valve, 180~ (2) (Includes Ill. No. 42) R.R. & WPL 4362610 Contact Us For Availability
48
Elbow 90~ WPL 4321265 Contact Us For Availability
49
Bracket, Venturi WPL 4321268 Contact Us For Availability
50
Bracket, Manifold WPL 4321269 Contact Us For Availability
52
Electrode (4) WPL 4321276 Contact Us For Availability
52
Electrode, Wire (4) WPL 4321277 Contact Us For Availability
52
Clip, Tinnerman (2) WPL 4321278 Contact Us For Availability
53
Cap, Burner (Large WPL 4321280 Contact Us For Availability
53
WPL 4321281 WPL 4321281 Contact Us For Availability
54
WPL 4321282 WPL 4321282 Contact Us For Availability
54
WPL 4321283 WPL 4321283 Contact Us For Availability
× ![]()
