Model Whirlpool SF317PEAW2 GAS RANGE – Common Parts & Diagrams

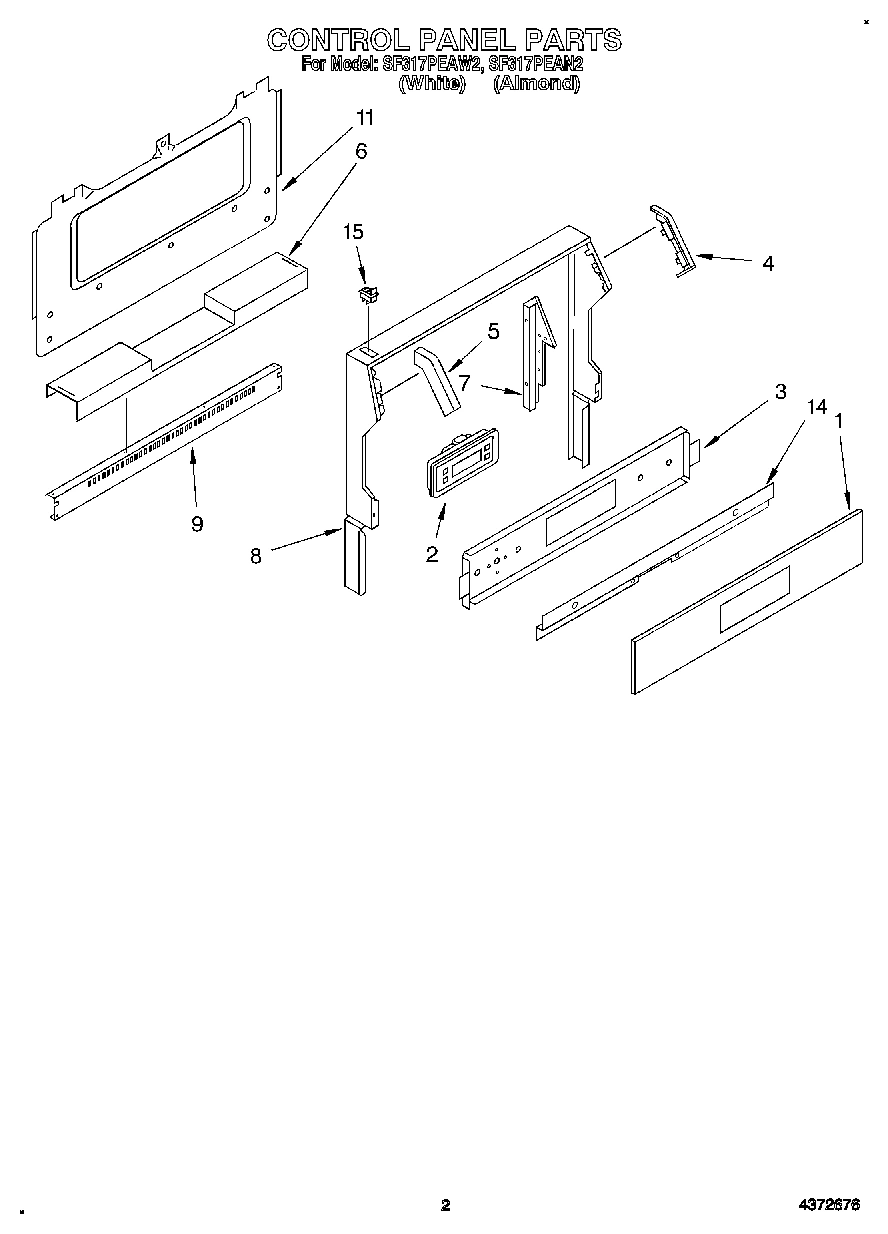

02 - CONTROL PANEL

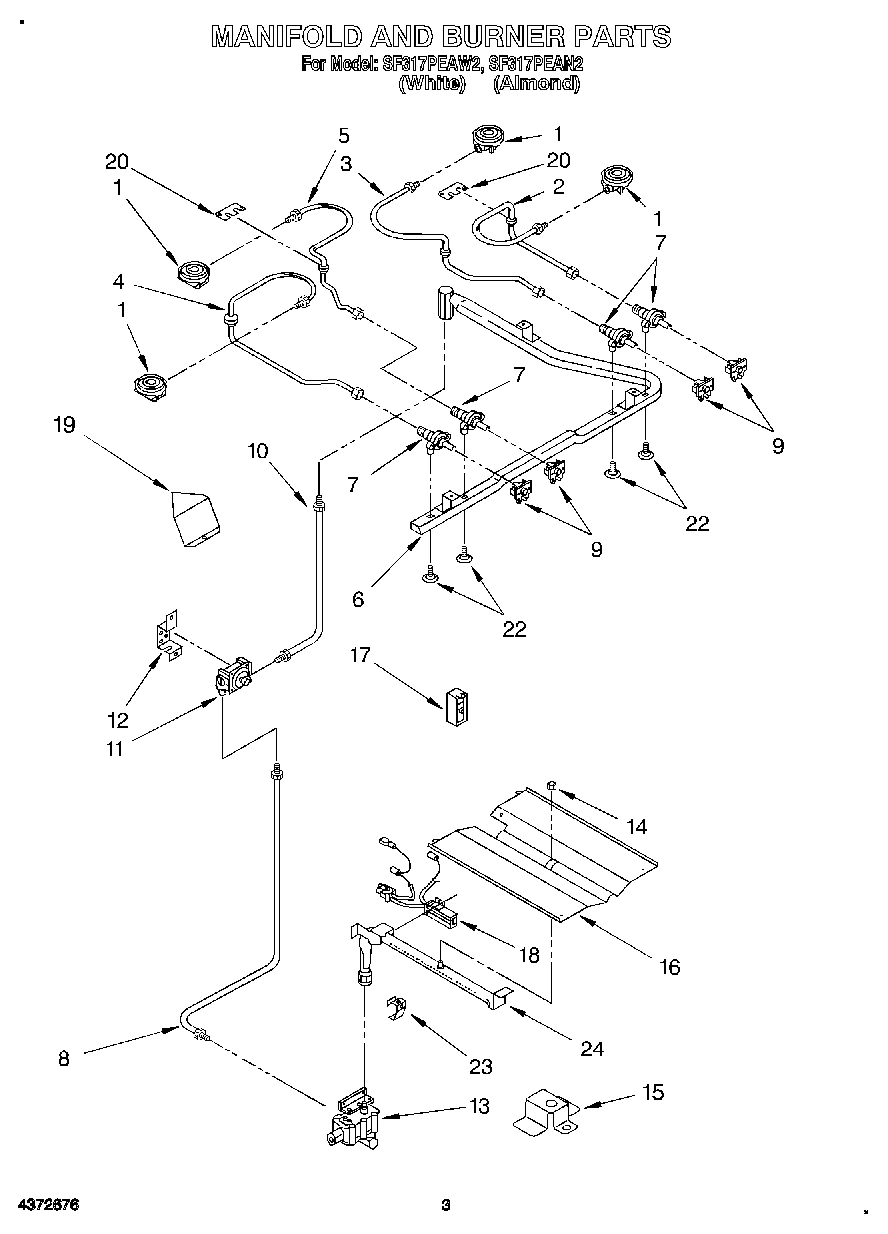

03 - MANIFOLD AND BURNER

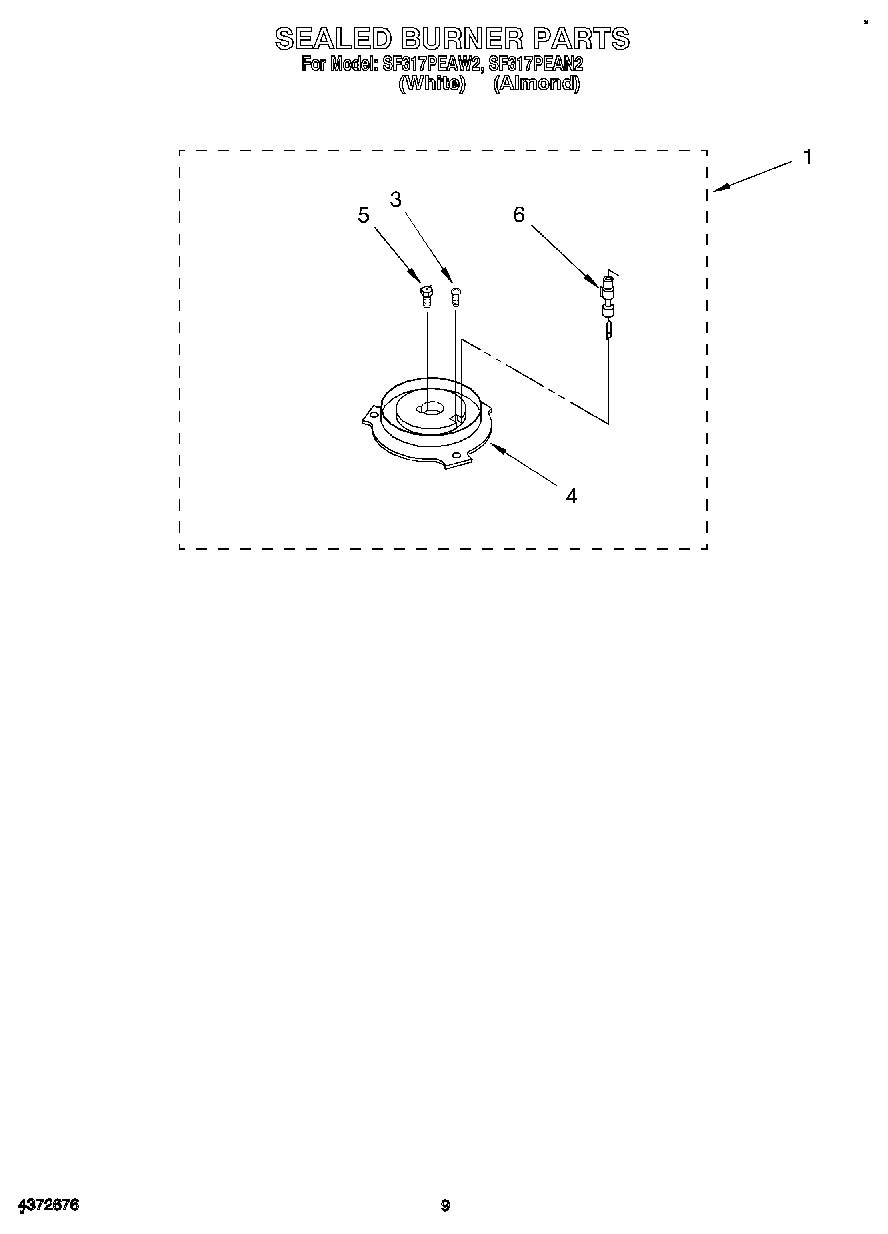

06 - SEALED BURNER

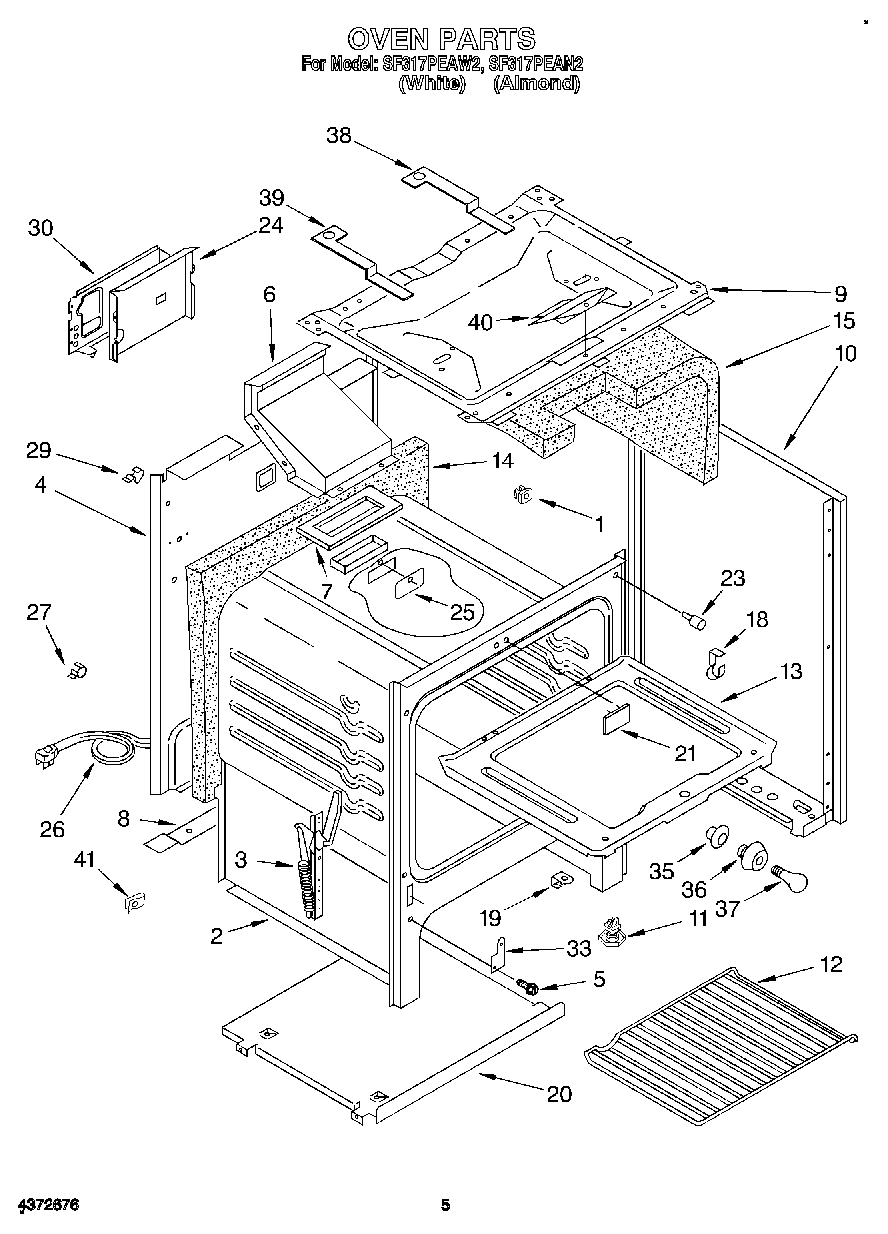

04 - OVEN

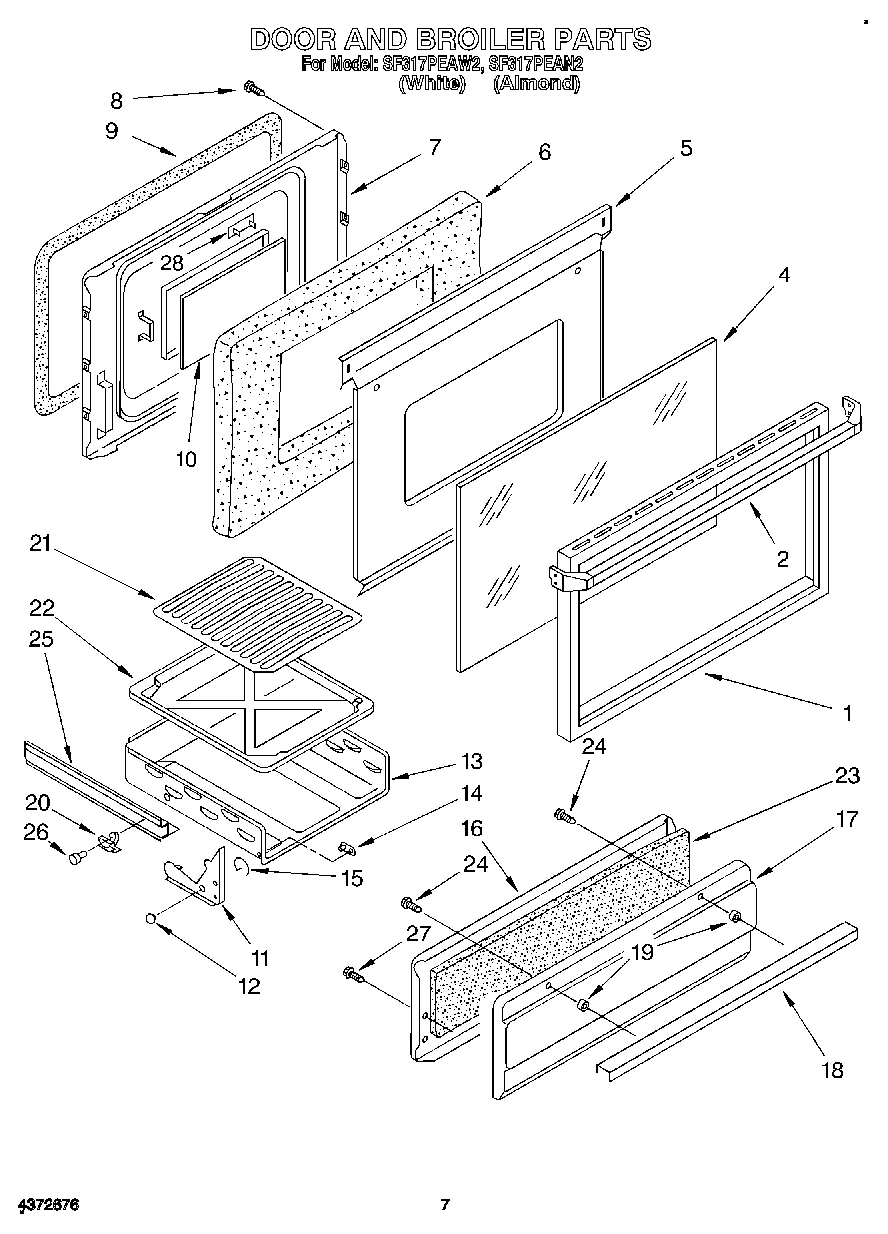

05 - DOOR AND BROILER

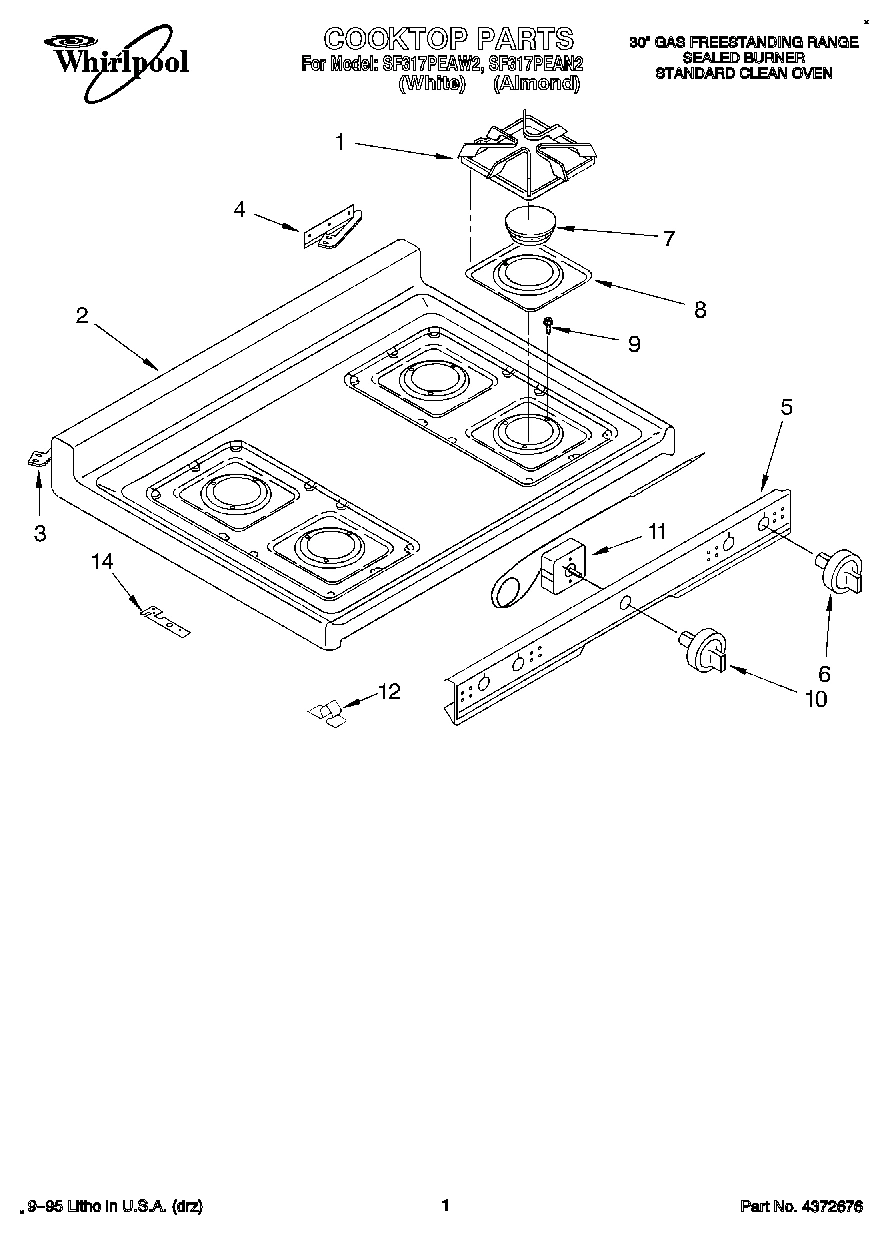

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool SF317PEAW2 GAS RANGE
Guide, Use & Care WPL LIT4372677 Contact Us For Availability
Instructions, Installation WPL LIT4372678 Contact Us For Availability
1
Burner, Gas (Assy.) WPL 4371596 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Trim, Oven Door WPL 816688 Contact Us For Availability
1
Grate, Burner WPL 816723 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4372146 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI129908A Contact Us For Availability
2
Handle, Door WPL 816622 Contact Us For Availability
2
Top, Main (White) WPL 4371697 Contact Us For Availability
2
Top, Main (Almond) WPL 4371698 Contact Us For Availability
3
Bracket, Timer WPL 4372227 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4372148 Contact Us For Availability
3
Screw, Ignitor Brkt WPL 4371599 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4372147 Contact Us For Availability
4
Head, Burner WPL 4371597 Contact Us For Availability
4
Back, Main WPL 4372437 Contact Us For Availability
4
Glass, Door WPL 4371310 Contact Us For Availability
4
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Tubing, Burner (LR) WPL 4372149 Contact Us For Availability
5
Orifice, Burner WPL 816567 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Shield, Heat WPL 4371311 Contact Us For Availability
5
Panel, Manifold WPL 4371694 Contact Us For Availability
6
Knob, Control (4) WPL 4372668 Contact Us For Availability
6
Deflector, Flue WPL 4371537 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
6
Ignitor and Brkt WPL 4371598 Contact Us For Availability
6
Flue WPL 4371529 Contact Us For Availability
6
Insulation WPL 816682 Contact Us For Availability
7
Channel, Support (R.H.) WPL 4371532 Contact Us For Availability
7
Channel, Support (L.H.) WPL 4371533 Contact Us For Availability
7
Valve, Top Burner WPL 4372658 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Liner, Oven Door WPL 816683 Contact Us For Availability
7
Cap, Burner (4) WPL 4371684 Contact Us For Availability
8
Pan, Burner (4) WPL 4371691 Contact Us For Availability
8
Trim, Wrapper WPL 4371654 Contact Us For Availability
8
Tubing 3/8 WPL 4371544 Contact Us For Availability
8
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
8
Screw, Handle (2) WPL 4371542 Contact Us For Availability
9
Trim, Vent WPL 4371535 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
9
Burner Box WPL 816595 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
9
Screw, Burner Mtg. WPL 4371589 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Panel B/S (Almond RH) WPL 816672 Contact Us For Availability
10
Panel B/S (Almond LH) WPL 816695 Contact Us For Availability
10
Panel B/S (White RH) WPL 816708 Contact Us For Availability
10
Panel B/S (White LH) WPL 816709 Contact Us For Availability
10
Glass, Rear WPL 4371309 Contact Us For Availability
10
Knob, Thermostat WPL 4371477 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
11
Regulator, Pressure WPL 4372040 Contact Us For Availability
11
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
11
Thermostat WPL 4371308 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Rack, Oven (2) WPL 4371483 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
12
Clip, Top WPL 816612 Contact Us For Availability
13
Valve, Safety WPL 4371313 Contact Us For Availability
13
Bottom, Oven WPL 4372245 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
14
Retainer, Timer WPL 4371836 Contact Us For Availability
14
Nut, Baffle WPL 816642 Contact Us For Availability
14
Insulation, Back WPL 816630 Contact Us For Availability
14
Pin, Hinge (2) WPL 4371121 Contact Us For Availability
14
Bracket, Mounting (R.H.) WPL 4371591 Contact Us For Availability
14
Bracket, Mounting (L.H.) WPL 4371592 Contact Us For Availability
15
Switch, Light WPL 4372576 Contact Us For Availability
15
Bracket, Valve WPL 4371470 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
16
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
17
Ignitor Module WPL 4371583 Contact Us For Availability
17
Panel, Drawer WPL 816715 Contact Us For Availability
18
Clip, Thermo Bulb WPL 4371741 Contact Us For Availability
18
Handle WPL 4371060 Contact Us For Availability
19
Shield, Ignitor WPL 4372095 Contact Us For Availability
19
Support, Oven (2) WPL 816670 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
20
Plate, Tube (2) WPL 816602 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Glide, Drawer (6) WPL 4371084 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
23
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
23
Bumper, Door WPL 816608 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
24
Burner, Oven WPL 4371284 Contact Us For Availability
24
Conversion Kit (Natural Gas To L.P. Gas) WPL 4372091 Contact Us For Availability
24
Shield, Flue WPL 4371543 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
26
Button, Glide (2) WPL 4371115 Contact Us For Availability
27
Fastener, Cord WPL 816618 Contact Us For Availability
27
Screw (5) WPL 4371062 Contact Us For Availability
28
Cover, Door Liner WPL 4371125 Contact Us For Availability
29
Fastener, Wire WPL 816758 Contact Us For Availability
30
Shield, Module WPL 4372096 Contact Us For Availability
33
Cover, Hinge (2) WPL 816617 Contact Us For Availability
36
Housing, Oven Light WPL 4371293 Contact Us For Availability
38
Bracket, Top RH WPL 4371527 Contact Us For Availability
39
Bracket, Top LH WPL 4371528 Contact Us For Availability
40
Plate, Cover WPL 816615 Contact Us For Availability
41
Fastener, U Type WPL 4371033 Contact Us For Availability
× ![]()
