Model Whirlpool SF316PEWN0 GAS RANGE – Common Parts & Diagrams

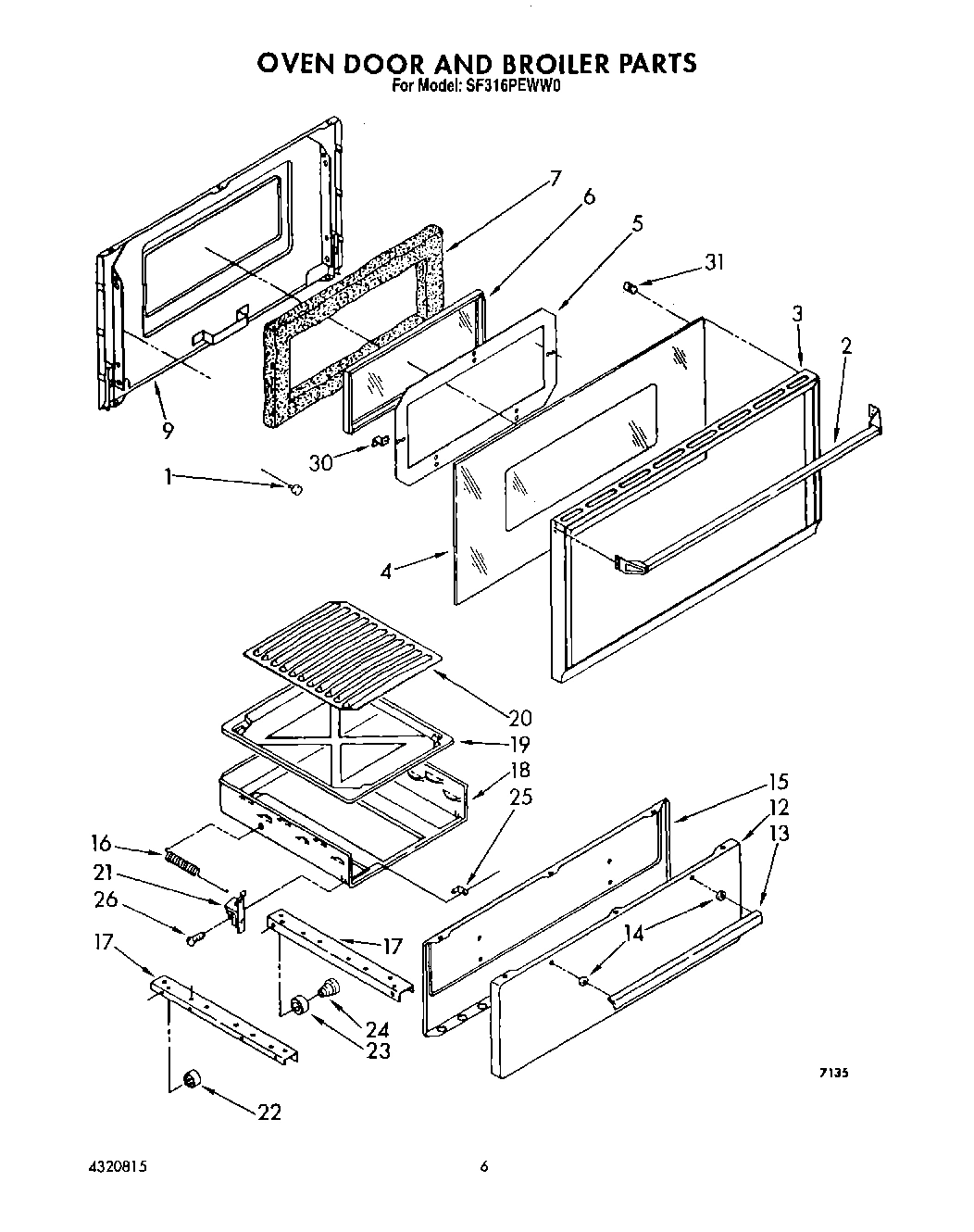

05 - OVEN DOOR AND BROILER

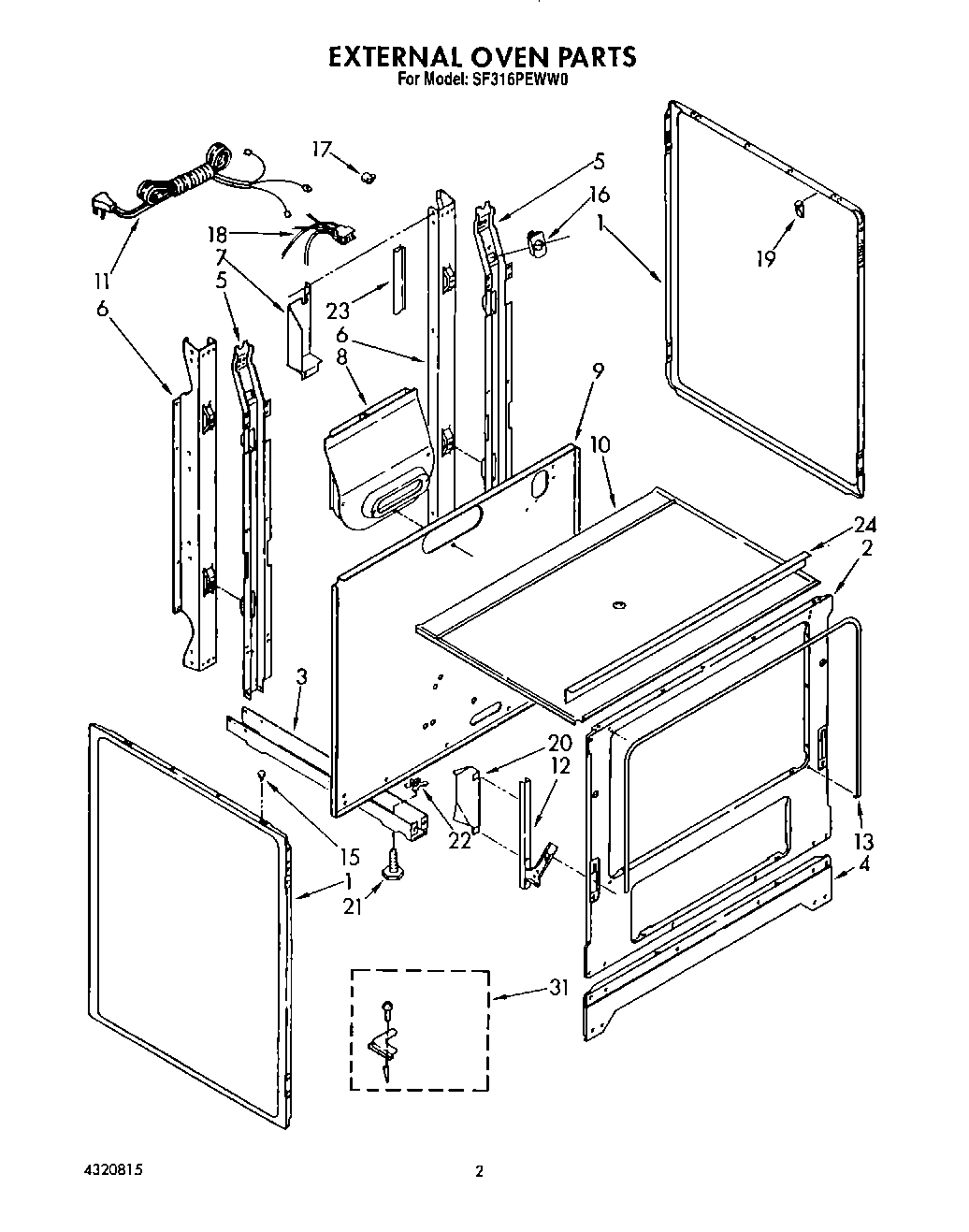

02 - EXTERNAL OVEN

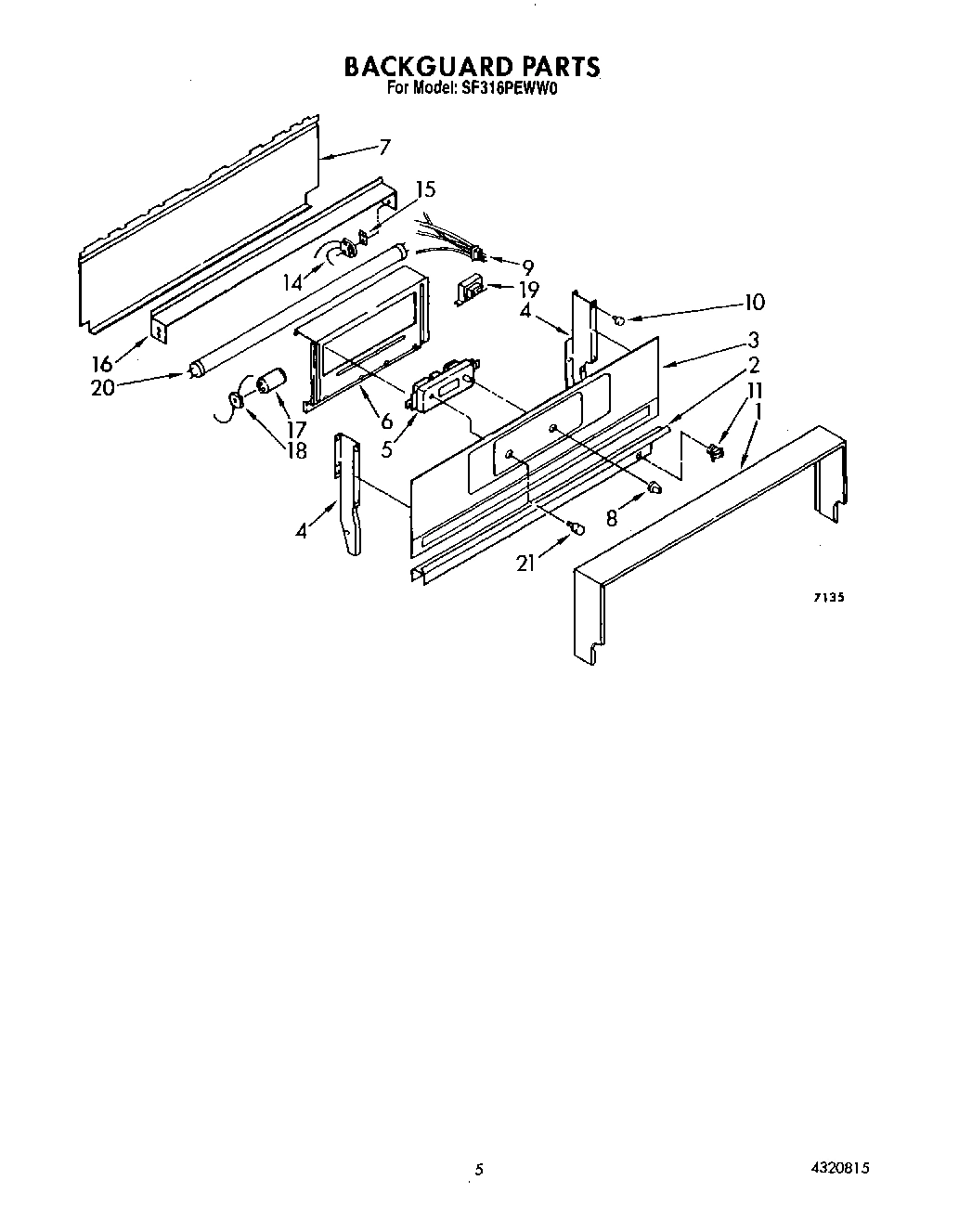

04 - BACKGUARD

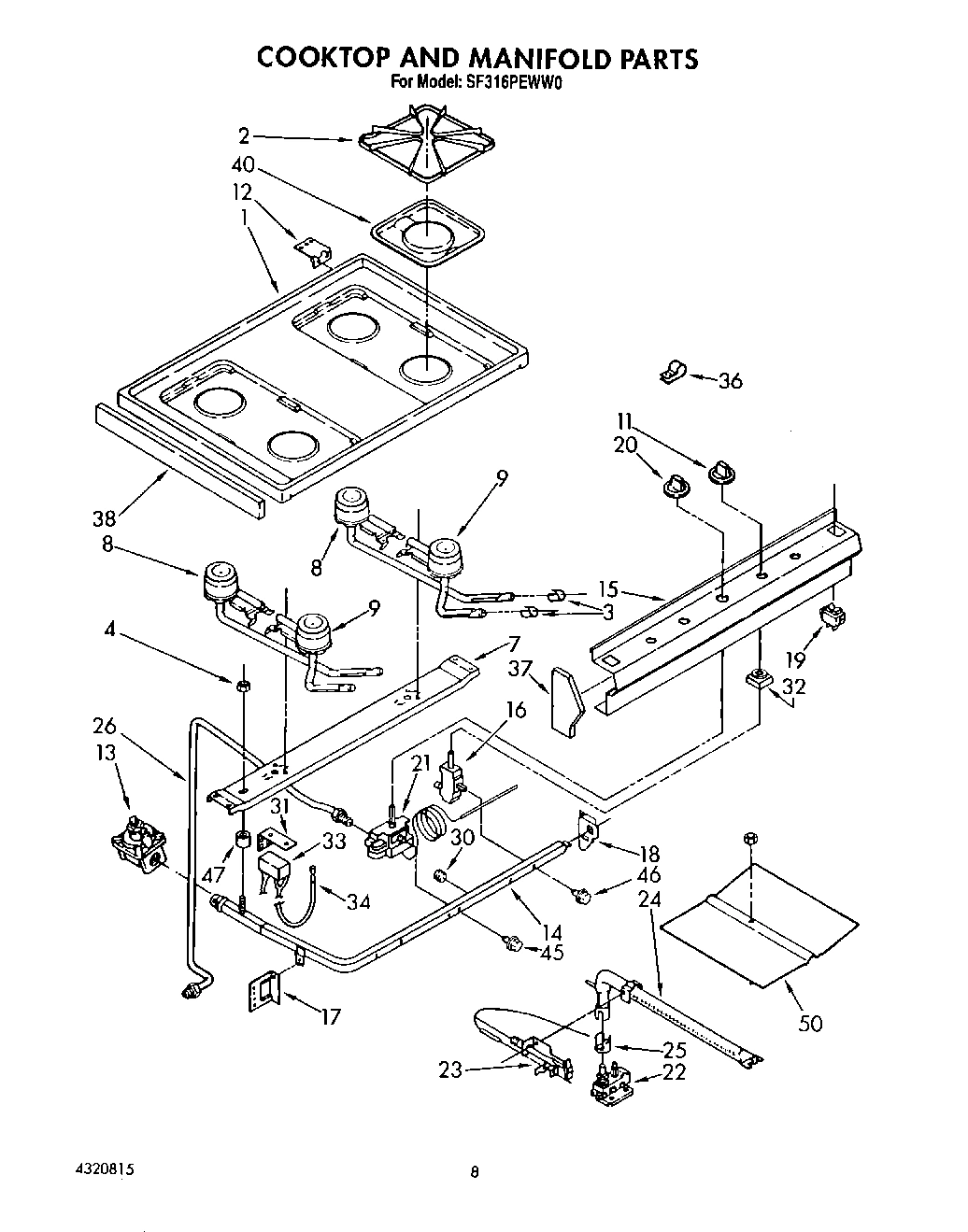

06 - COOK TOP AND MANIFOLD , LIT/OPTIONAL

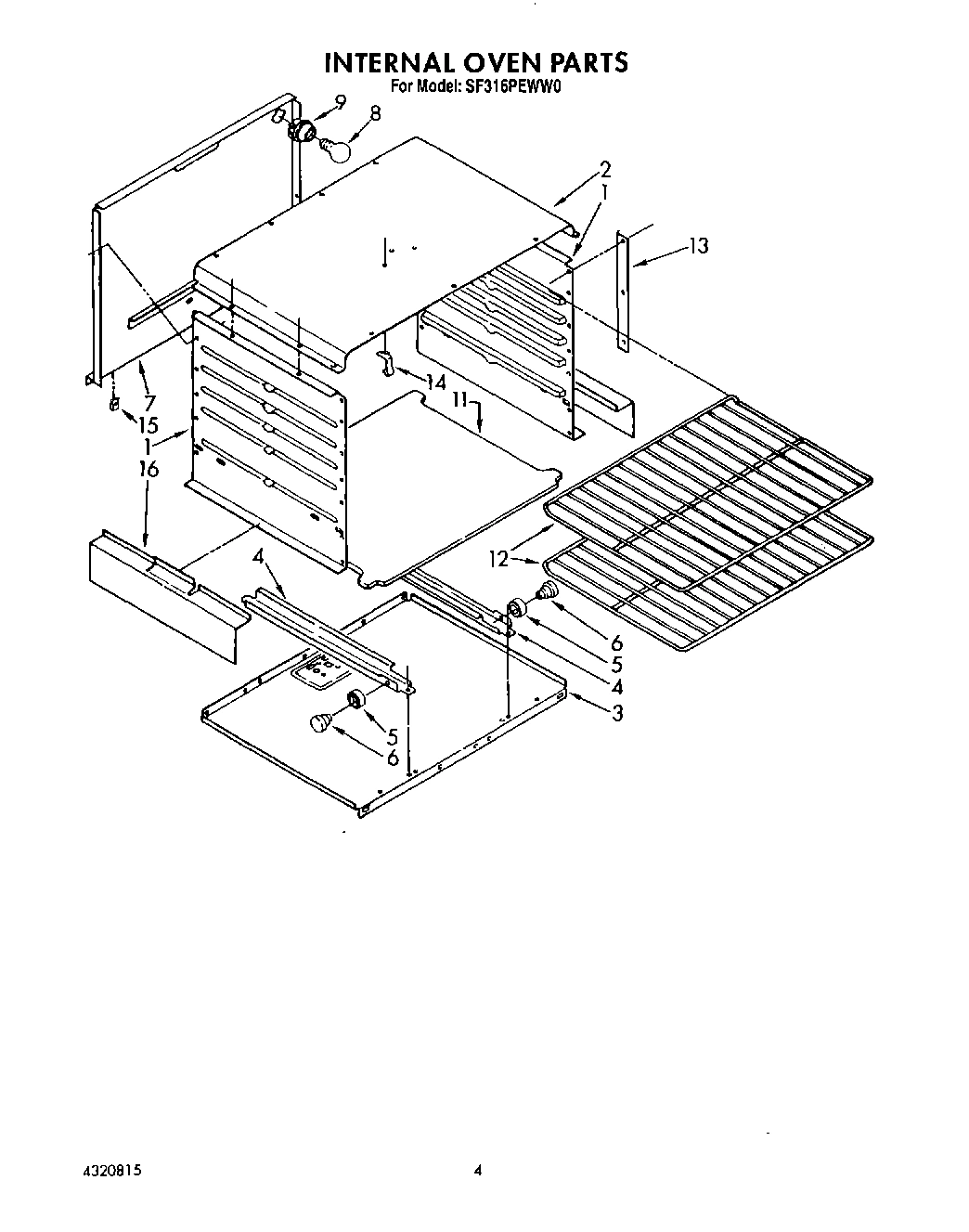

03 - INTERNAL OVEN
Common parts from model Whirlpool SF316PEWN0 GAS RANGE
WPL LIT3149508 WPL LIT3149508 Contact Us For Availability
WPL LIT4315705 WPL LIT4315705 Contact Us For Availability
WPL LIT4315709 WPL LIT4315709 Contact Us For Availability
WPL LIT4320815 WPL LIT4320815 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond 10-12 X 1/2 (10)) WPL 4157130 Contact Us For Availability
1
Frame WPL 4320693 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
2
Frame, Front WPL 4315060 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backugard WPL 4157150 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Glass, Backguard WPL 4320810 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
4
Glass WPL 4320471 Contact Us For Availability
4
Base, Front WPL 4315330 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Nut, Hex WPL 4320719 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
5
Ring, Hold Down WPL 4320351 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Clock WPL 4320811 Contact Us For Availability
6
Window WPL 4157147 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Bracket, Clock WPL 4157178 Contact Us For Availability
7
Insulation 01 WPL 4157033 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Liner, Door WPL 4320475 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Block, Disconnect WPL 4157112 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
11
Bottom, Oven WPL 4320809 Contact Us For Availability
12
Panel, Broiler (Screw, 10-12 X 1/2 (5)) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Bracket, Cooktop (2) WPL 4314910 Contact Us For Availability
12
Rack, Oven (2) WPL 4320534 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Seal, Door WPL 4320463 Contact Us For Availability
13
Regulator, Pressure WPL 4320438 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Socket, Light (2) WPL 4157164 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Stud, Locator Screw 6-20 X 1`` WPL 4315408 Contact Us For Availability
15
Spacer (4) WPL 4157170 Contact Us For Availability
15
Panel, Manifold WPL 4320814 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Bracket, Support WPL 4157169 Contact Us For Availability
16
Valve, 180~ (4) (Includes Ill. No. 46) WPL 4179356 Contact Us For Availability
16
Shield, Radiation WPL 4315082 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Starter, Light WPL 4157199 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
18
Base, Light WPL 4157200 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
19
Tie, Wire (2) WPL 4315727 Contact Us For Availability
19
Ballast WPL 4157207 Contact Us For Availability
19
Switch, Oven Light WPL 4179106 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Lamp, Fluorscent WPL 4157162 Contact Us For Availability
20
Knob, Thermostat WPL 4320593 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Knob, Set WPL 4314999 Contact Us For Availability
21
Thermostat WPL 4320594 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4320442 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157121 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Ignitor WPL 4320445 Contact Us For Availability
24
Extension Burner Box WPL 4320479 Contact Us For Availability
24
Burner, Oven WPL 4320441 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing, (Manifold To Safety Valve WPL 4320595 Contact Us For Availability
30
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
31
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
33
Module, Spark WPL 4320446 Contact Us For Availability
34
Ignitor (R.H.) WPL 4320433 Contact Us For Availability
34
Ignitor (L.H.) WPL 4320434 Contact Us For Availability
36
Strain Relief WPL 4320760 Contact Us For Availability
37
Endcap (L.H.) WPL 4320602 Contact Us For Availability
37
Endcap (R.H.) WPL 4320603 Contact Us For Availability
38
Trim, Cooktop (2) WPL 4314888 Contact Us For Availability
45
Bolt, Thermostat Mounting (2) WPL 4320604 Contact Us For Availability
46
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
47
Spacer, Manifold WPL 4315207 Contact Us For Availability
48
Switch, Selector WPL 4315472 Contact Us For Availability
49
Bracket WPL 4320447 Contact Us For Availability
50
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
50
WPL 4157012 WPL 4157012 Contact Us For Availability
50
