Model Whirlpool SF315PEEN0 GAS RANGE – Common Parts & Diagrams
04 - CHASSIS
06 - DOOR, LIT/OPTIONAL

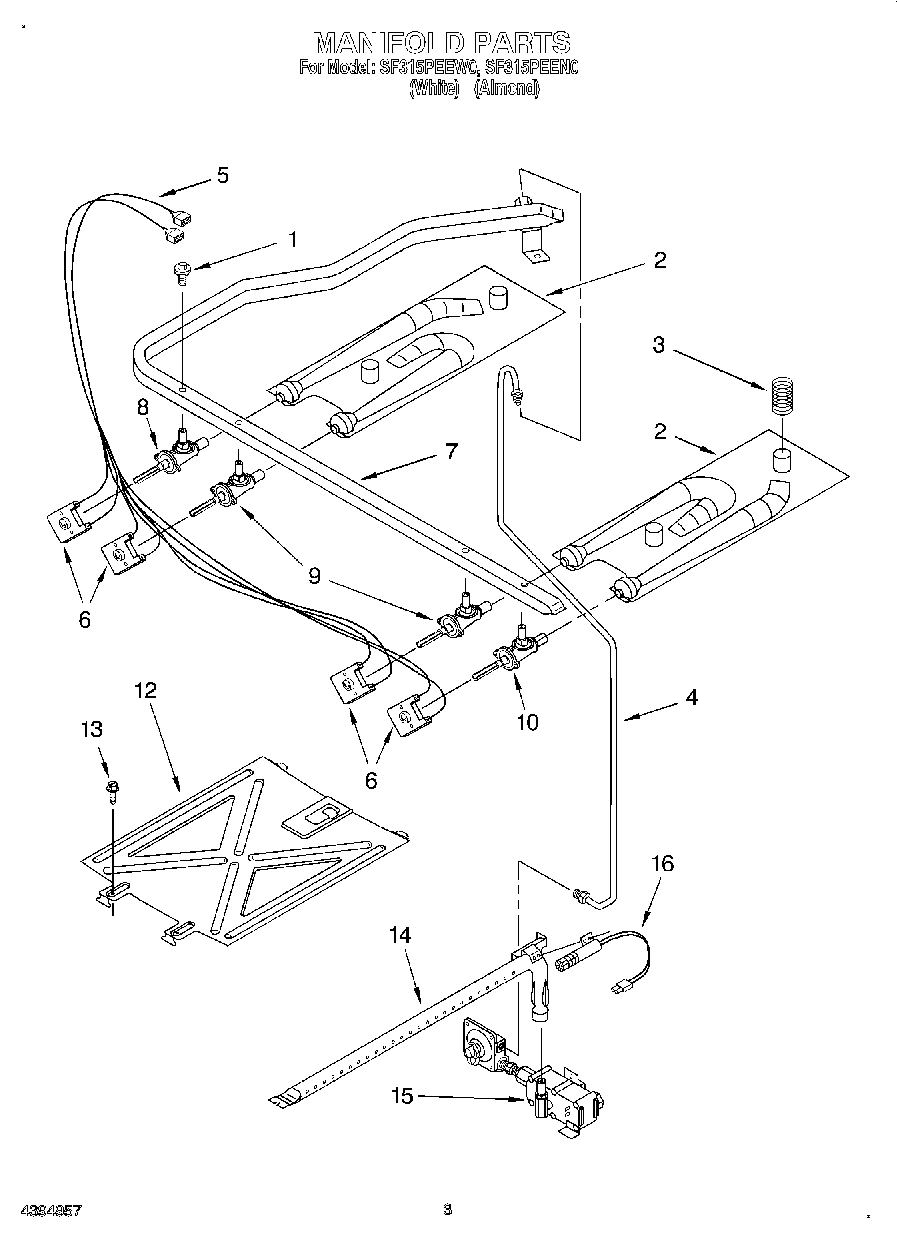

03 - MANIFOLD

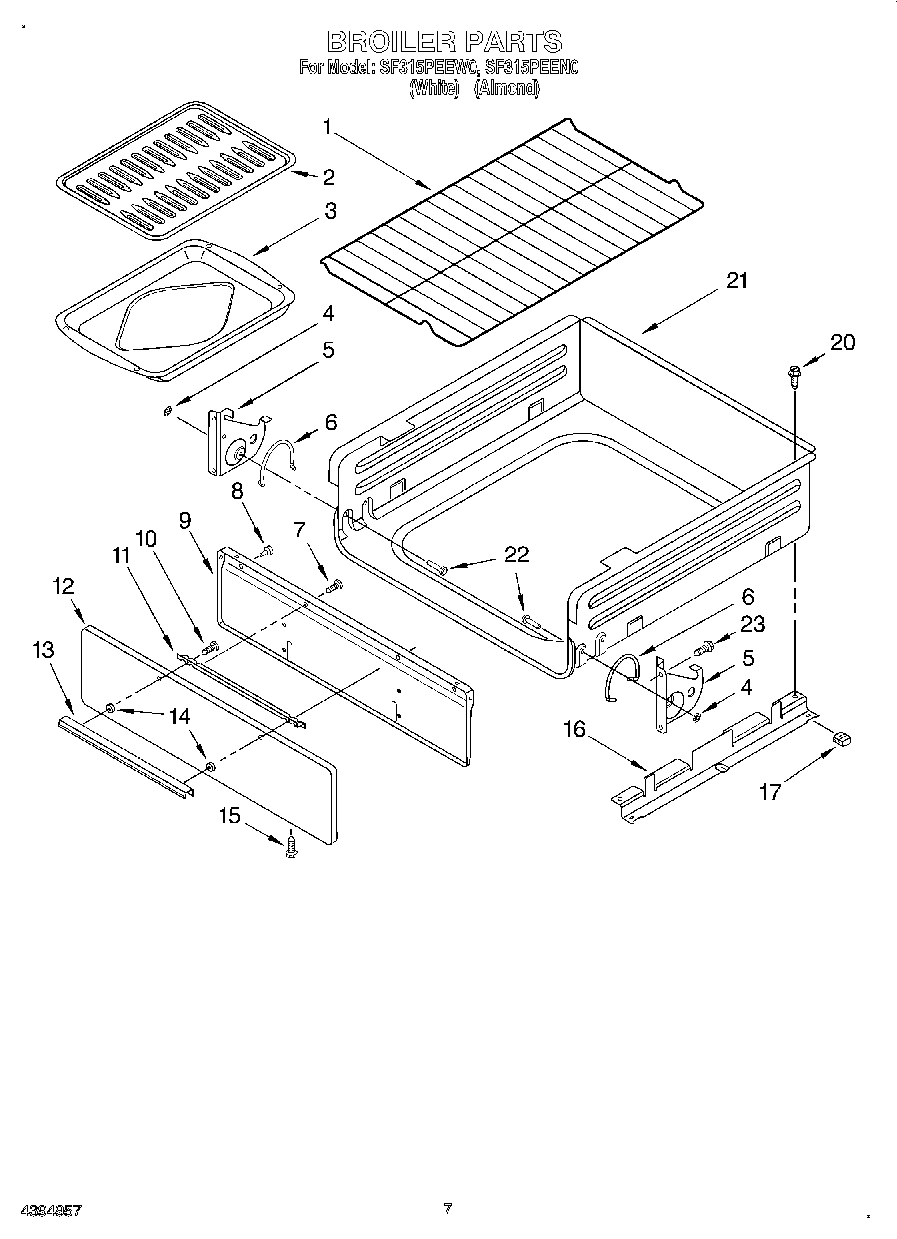

05 - BROILER

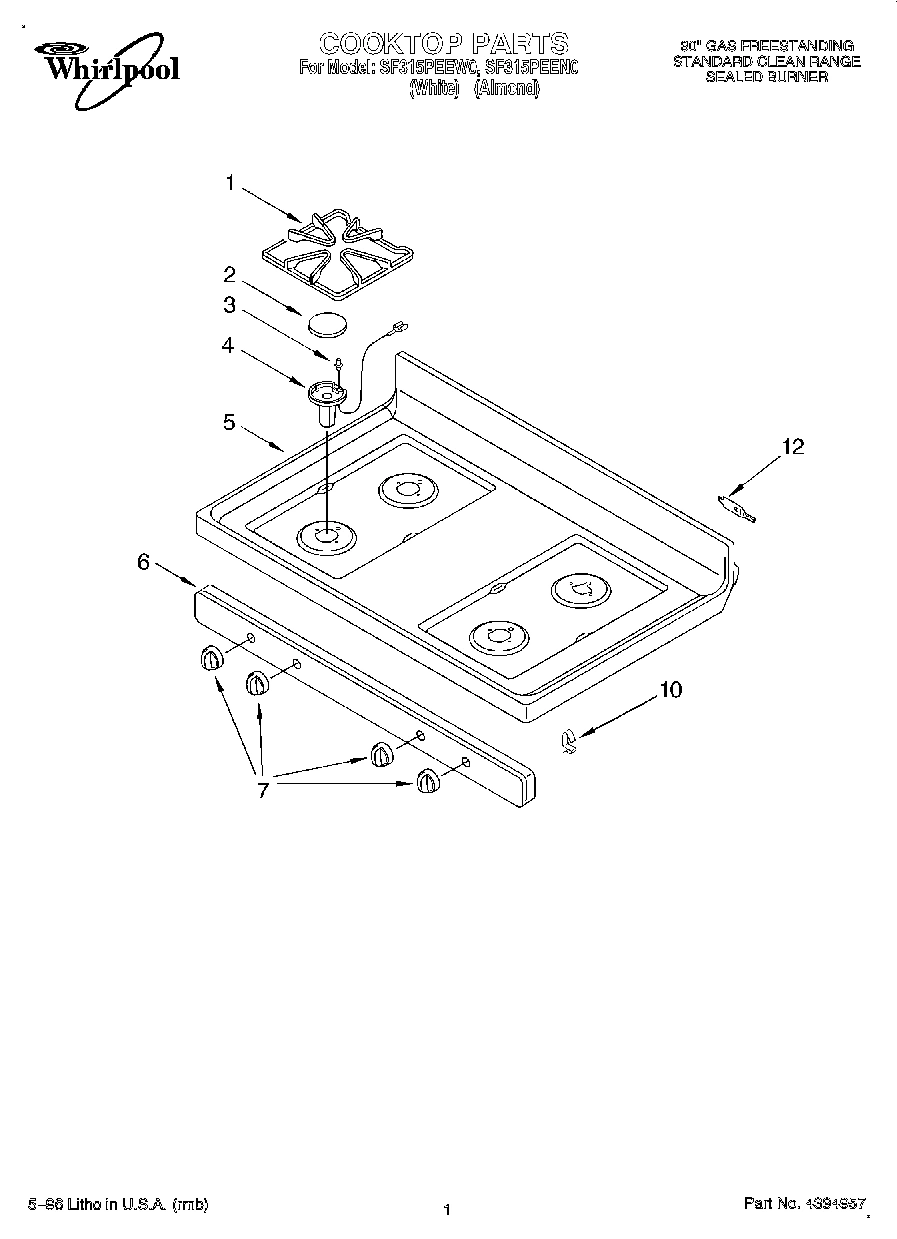

01 - COOKTOP

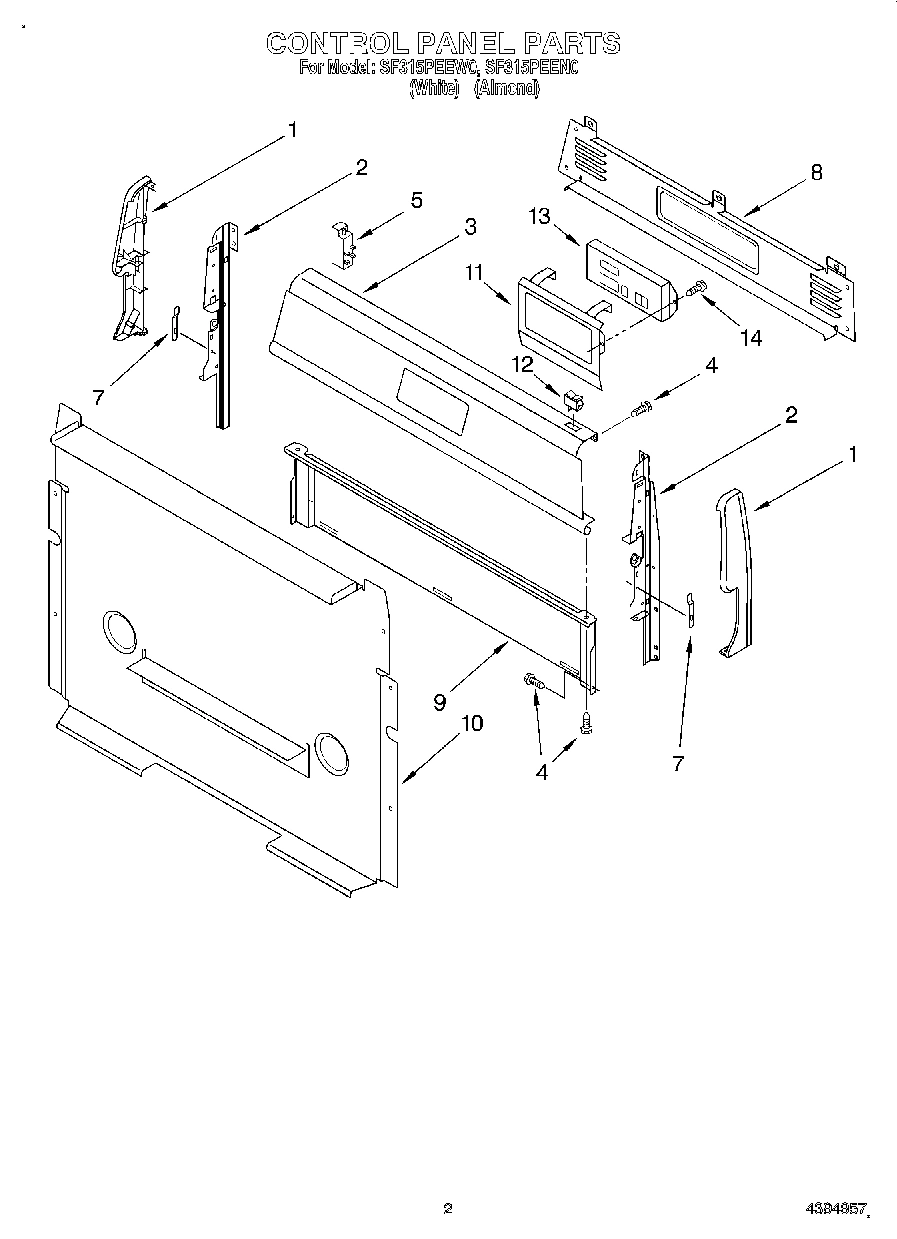

02 - CONTROL PANEL
Common parts from model Whirlpool SF315PEEN0 GAS RANGE
WPL 311311 WPL 311311 Contact Us For Availability
WPL 3196230 WPL 3196230 Contact Us For Availability
WPL 3196577 WPL 3196577 Contact Us For Availability
WPL LIT3195945 WPL LIT3195945 Contact Us For Availability
WPL LIT3196194 WPL LIT3196194 Contact Us For Availability
WPL LIT3196287 WPL LIT3196287 Contact Us For Availability
WPL LIT3196322 WPL LIT3196322 Contact Us For Availability
1
Trim, Top WPL 3195605 Contact Us For Availability
1
Grate, Burner (4) WPL 3196038 Contact Us For Availability
1
Endcap (Left Hand) WPL 3186188 Contact Us For Availability
1
Endcap (Right Hand) WPL 3186189 Contact Us For Availability
2
Plate, Venturi (Right Hand) WPL 3195020 Contact Us For Availability
2
Plate, Venturi (Left Hand) WPL 3195021 Contact Us For Availability
2
Cap, Burner (Small (1)) WPL 3196611 Contact Us For Availability
2
Cap, Burner (Large (3)) WPL 3196614 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
3
Spring, Seal (4) WPL 3196459 Contact Us For Availability
3
Panel, Backguard WPL 3195773 Contact Us For Availability
4
Burner, 6,500 BTU (RR) WPL 3186478 Contact Us For Availability
4
Liner, Door WPL 3186296 Contact Us For Availability
4
Tubing (Manifold to Regulator) WPL 3186497 Contact Us For Availability
5
Insulation, Door WPL 3186256 Contact Us For Availability
5
Harness, Igniter (Incl. Switches) WPL 3196466 Contact Us For Availability
5
Bracket, Hinge (Right Hand) WPL 3195268 Contact Us For Availability
5
Bracket, Hinge (Left Hand) WPL 3195269 Contact Us For Availability
5
Cooktop (White) WPL 3186014 Contact Us For Availability
5
Cooktop (Almond) WPL 3186015 Contact Us For Availability
6
Switch, Spark (4) WPL 3196468 Contact Us For Availability
6
Spring, Hinge (Right Hand) WPL 3195205 Contact Us For Availability
6
Spring, Hinge (Left Hand) WPL 3195267 Contact Us For Availability
7
Knob, Control (4) WPL 3186134 Contact Us For Availability
7
Pipe, Manifold WPL 3186221 Contact Us For Availability
8
Hinge, Door (2) WPL 3196073 Contact Us For Availability
8
Valve, 7,500 BTU (LR) WPL 3196210 Contact Us For Availability
8
Bumper, Door (2) WPL 3148182 Contact Us For Availability
8
Cover, Upper WPL 3195963 Contact Us For Availability
9
Screw (4) WPL 4449746 Contact Us For Availability
9
Valve, 9,500 BTU (LF, RF) WPL 3196212 Contact Us For Availability
9
Liner, Brlr Door WPL 3195739 Contact Us For Availability
9
Shield, Heat WPL 3186187 Contact Us For Availability
10
Valve, 6,500 BTU (RR) WPL 3196211 Contact Us For Availability
10
Screw, Handle (2) WPL 3196426 Contact Us For Availability
10
Clip, Cooktop (2) WPL 3195813 Contact Us For Availability
10
Cover, Lower WPL 3195964 Contact Us For Availability
11
Screw (2) WPL 3196152 Contact Us For Availability
11
Bracket, Standoff WPL 3195551 Contact Us For Availability
11
Bracket, Control WPL 3195823 Contact Us For Availability
12
Spreader, Flame WPL 3196084 Contact Us For Availability
12
Panel, Door (White) WPL 3186087 Contact Us For Availability
12
Panel, Door (Almond) WPL 3195096 Contact Us For Availability
13
Handle, Brlr Door WPL 3186090 Contact Us For Availability
13
Control, Oven WPL 3196253 Contact Us For Availability
14
Burner, Bake/Broil WPL 3196446 Contact Us For Availability
14
Spacer, Handle (2) WPL 3196645 Contact Us For Availability
15
Valve, Gas Combo WPL 3196544 Contact Us For Availability
16
Plug, Door WPL 3196071 Contact Us For Availability
16
Igniter, Bake/Broil WPL 3196447 Contact Us For Availability
16
Guide, Upper (2) WPL 3195733 Contact Us For Availability
17
Guide, Broiler (2) WPL 3195730 Contact Us For Availability
17
Clip, Glass (6) WPL 3196025 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
18
Platinum (Uncut) WPL 285368 Contact Us For Availability
18
LP Conversion Kit (Natural Gas To L.P. Gas) WPL 3196473 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
21
Carriage, Broiler WPL 3186079 Contact Us For Availability
22
Pin, Pivot (2) WPL 3186097 Contact Us For Availability
25
Tie, Insulation WPL 3195927 Contact Us For Availability
× ![]()
