Model Whirlpool SF314PSYN0 GAS RANGE – Common Parts & Diagrams

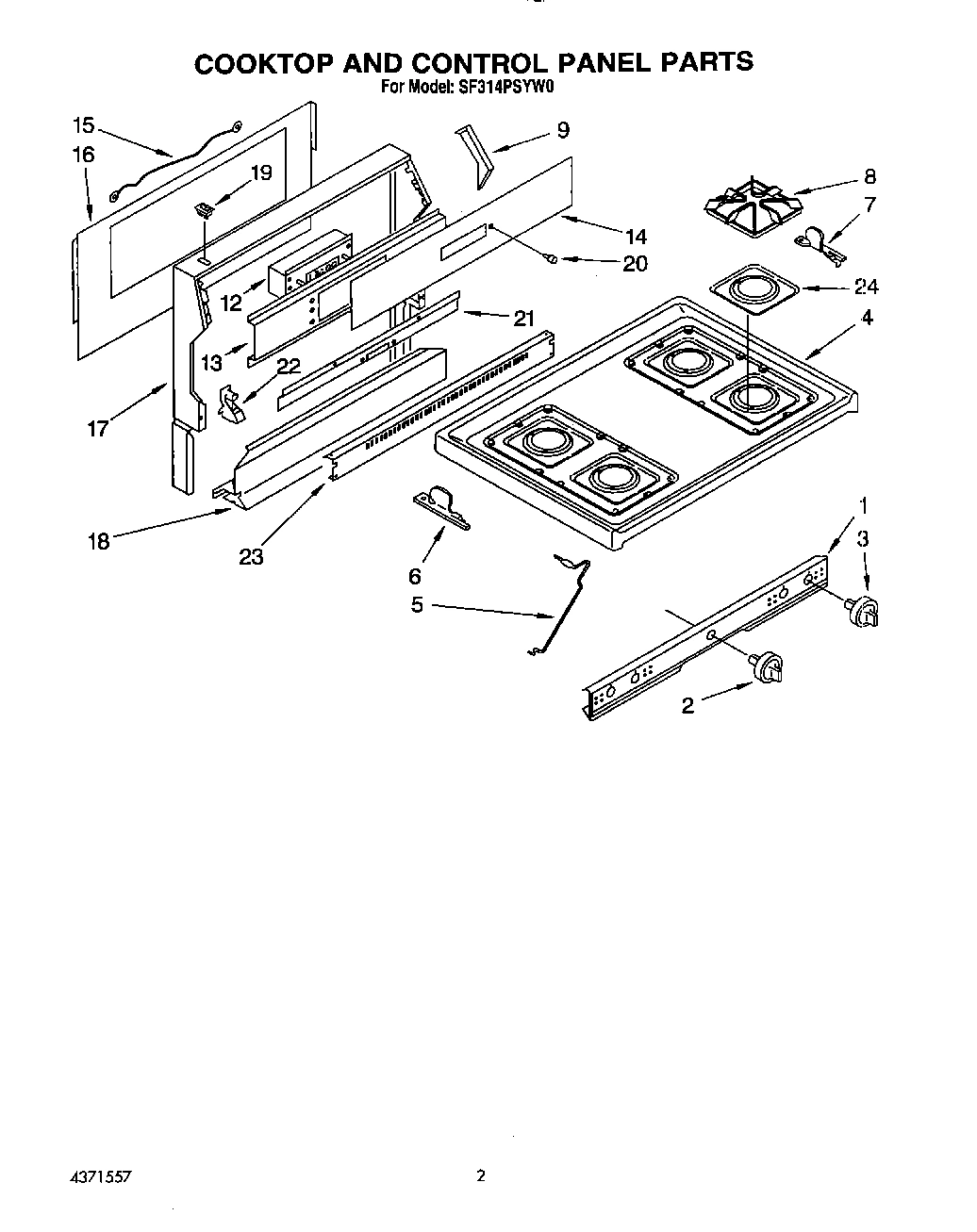

02 - COOKTOP AND CONTROL PANEL, LIT/OPTI

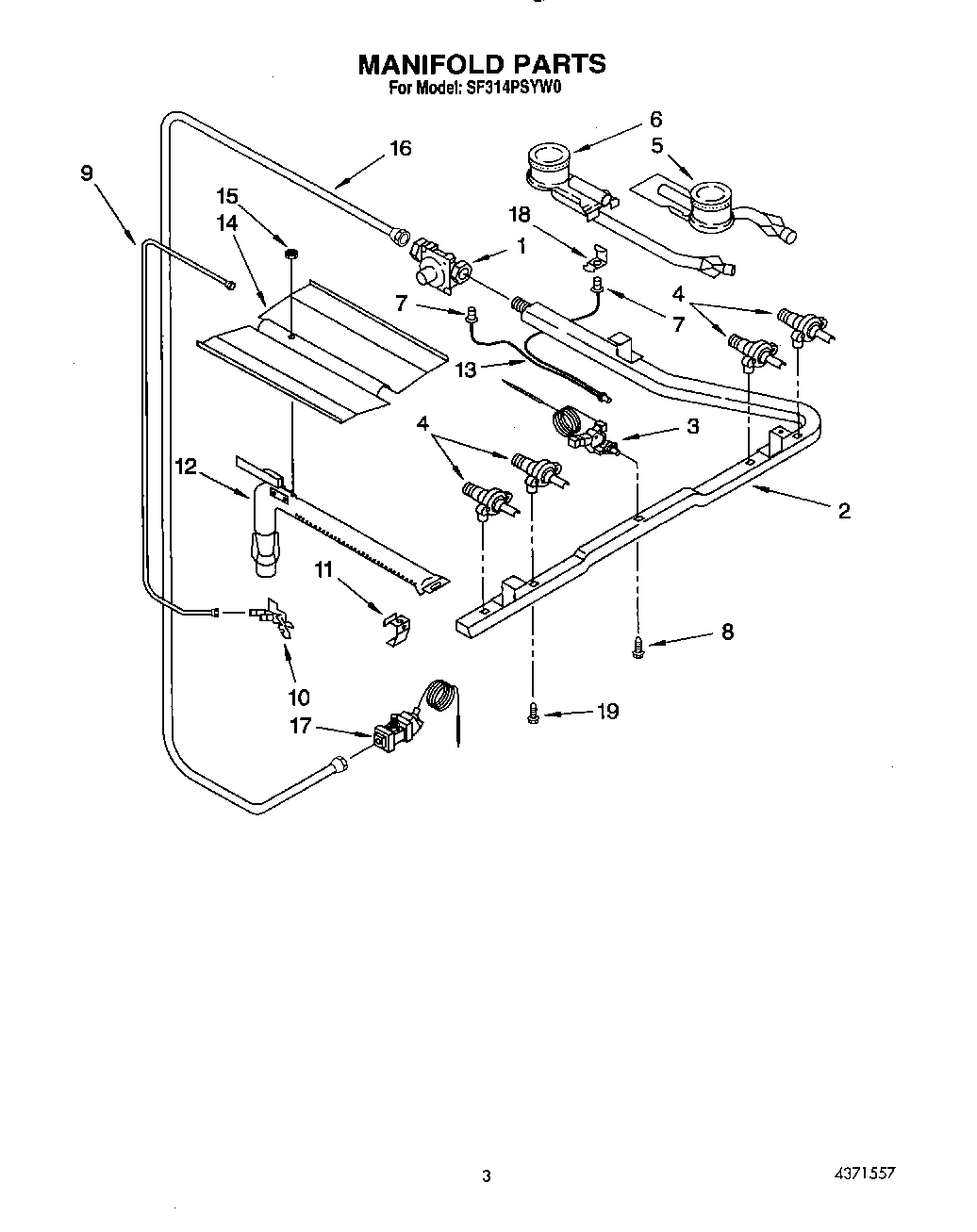

03 - MANIFOLD

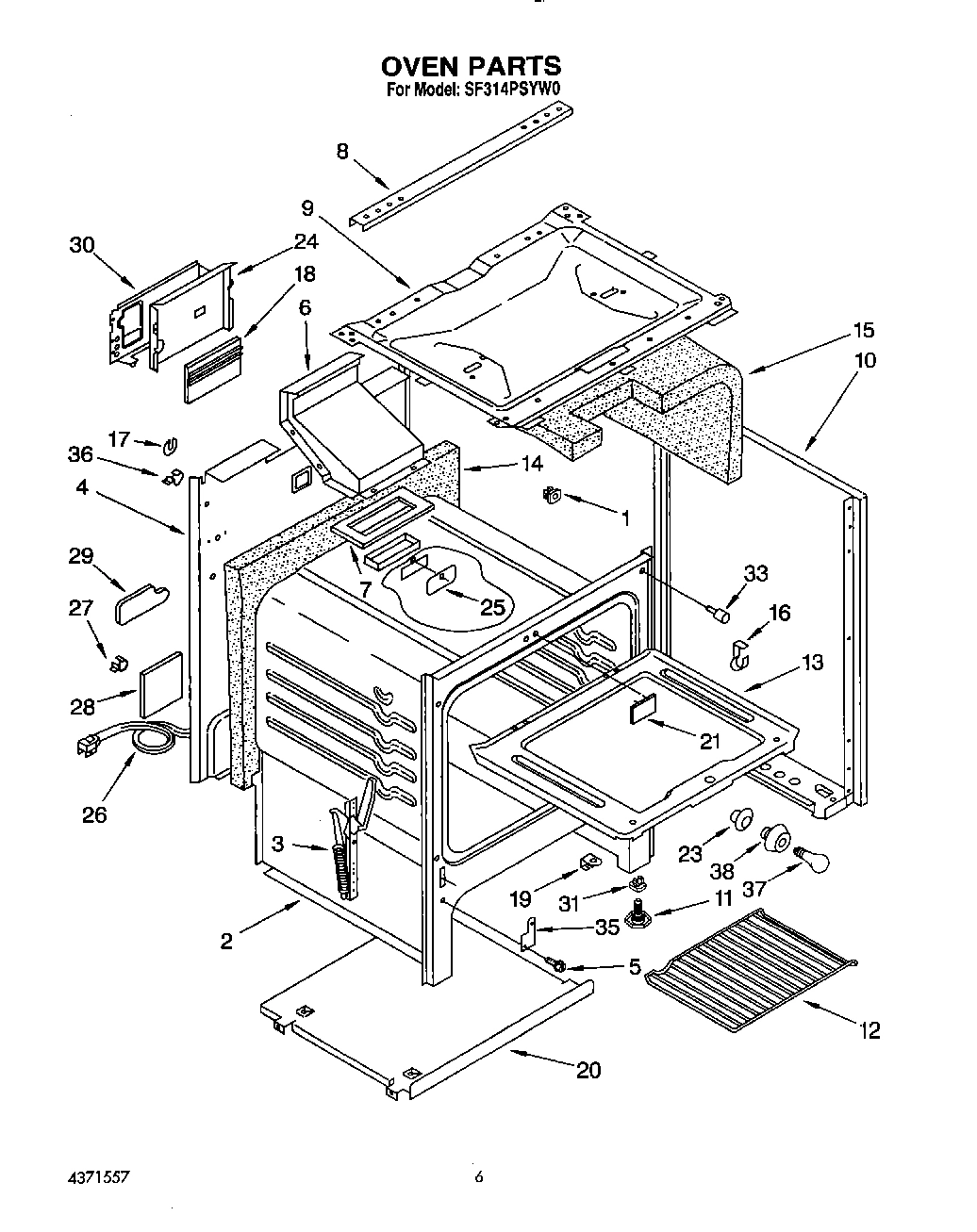

05 - OVEN

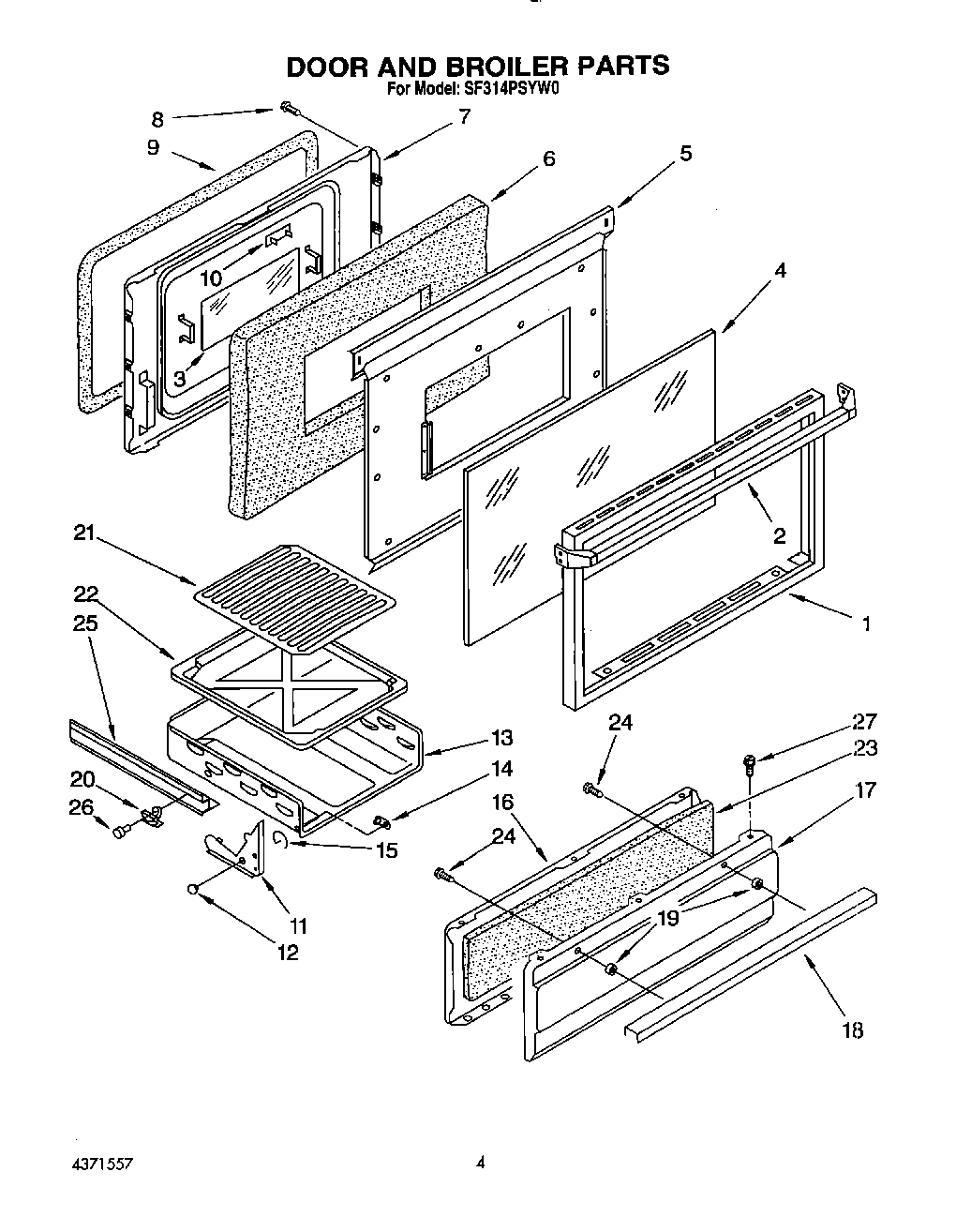

04 - DOOR AND BROILER
Common parts from model Whirlpool SF314PSYN0 GAS RANGE
Guide, Use & Care WPL LIT4371158 Contact Us For Availability
List, Repair Parts WPL LIT4371557 Contact Us For Availability
1
Panel, Control WPL 4371551 Contact Us For Availability
1
Regulator, Pressure WPL 4371496 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Trim, Oven Door WPL 816688 Contact Us For Availability
2
Knob, Thermostat WPL 4371490 Contact Us For Availability
2
Pipe, Manifold WPL 4371094 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI129604A Contact Us For Availability
2
Handle, Door WPL 816622 Contact Us For Availability
3
Knob, Burner (4) WPL 4371476 Contact Us For Availability
3
Thermostat WPL 4371096 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Glass, Rear WPL 4371309 Contact Us For Availability
4
Top, Main (White) WPL 4371064 Contact Us For Availability
4
Top, Main (Almond) WPL 4371065 Contact Us For Availability
4
Top, Main (Gold) WPL 4371556 Contact Us For Availability
4
Valve, 2 pos (4) WPL 4371497 Contact Us For Availability
4
Back, Main WPL 816581 Contact Us For Availability
4
Glass, Door Blk WPL 4371310 Contact Us For Availability
5
Rod, Support WPL 4371039 Contact Us For Availability
5
Burner, Front (2) WPL 4371480 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Shield, Heat WPL 4371311 Contact Us For Availability
6
Bracket, Top LH WPL 816586 Contact Us For Availability
6
Burner, Rear (2) WPL 4371481 Contact Us For Availability
6
Flue WPL 4371291 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
7
Bracket, Top RH WPL 816721 Contact Us For Availability
7
Cap, Pilot (2) WPL 4371075 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Liner, Oven Door WPL 816683 Contact Us For Availability
8
Grate, Burner (4) WPL 4371474 Contact Us For Availability
8
Screw, Thermostat WPL 4371095 Contact Us For Availability
8
Support, Burner WPL 4371076 Contact Us For Availability
8
Screw, Handle (2) WPL 4371542 Contact Us For Availability
9
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
9
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
9
Tubing, Thermostat WPL 4371103 Contact Us For Availability
9
Burner, Box WPL 4371073 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
10
Pilot, Oven WPL 4371098 Contact Us For Availability
10
Panel, Side (Gold RH) WPL 4371499 Contact Us For Availability
10
Panel, Side (Gold LH) WPL 4371500 Contact Us For Availability
10
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
10
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
10
Panel, Side (White RH) WPL 816708 Contact Us For Availability
10
Panel, Side (White LH) WPL 816709 Contact Us For Availability
10
Cover, Door WPL 4371125 Contact Us For Availability
11
Bracket, Burner WPL 4371069 Contact Us For Availability
11
Screw, Leveler (4) WPL 816650 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
12
Clock WPL 4371539 Contact Us For Availability
12
Burner, Oven WPL 4371070 Contact Us For Availability
12
Rack, Oven (2) WPL 4371483 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
13
Bracket, Clock WPL 4371538 Contact Us For Availability
13
Tubing, Pilot WPL 4371104 Contact Us For Availability
13
Bottom, Oven WPL 4371018 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
14
Panel, Upper Control WPL 4371540 Contact Us For Availability
14
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
15
Cable, Anti-Tip WPL 4371295 Contact Us For Availability
15
Nut WPL 816642 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
16
Panel, Rear Upper WPL 4371524 Contact Us For Availability
16
Tubing, Valve WPL 4371105 Contact Us For Availability
16
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
17
Trim, Panel WPL 4371314 Contact Us For Availability
17
Valve, Safety WPL 4371498 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
17
Panel, Drawer WPL 816715 Contact Us For Availability
18
Panel, Splash (White) WPL 4371315 Contact Us For Availability
18
Panel, Splash (Almond) WPL 4371326 Contact Us For Availability
18
Panel, Splash (Gold) WPL 4371555 Contact Us For Availability
18
Shield, Pilot WPL 4371101 Contact Us For Availability
18
Cover, Flue WPL 4371307 Contact Us For Availability
18
Handle WPL 4371060 Contact Us For Availability
19
Screw, Valve Mtg. WPL 4371027 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
20
Knob, Clock WPL 816480 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
21
Bracket, Timer WPL 4371320 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
22
Support, Back WPL 816702 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
23
Trim, Vent WPL 816707 Contact Us For Availability
23
Housing, Oven Light WPL 4371293 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
24
Pan, Burner WPL 4371552 Contact Us For Availability
24
Shield, Flue WPL 4371102 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
26
Button, Glide WPL 4371115 Contact Us For Availability
27
Fastener, Cord WPL 816618 Contact Us For Availability
27
Screw, Liner (5) WPL 4371062 Contact Us For Availability
28
Cover, Power Cord WPL 4371288 Contact Us For Availability
29
Cover, Top Rear WPL 4371305 Contact Us For Availability
30
Shield, Rear Wall WPL 4371306 Contact Us For Availability
31
Fastener, T Nut WPL 4371040 Contact Us For Availability
33
Bumper WPL 816608 Contact Us For Availability
35
Cover, Hinge WPL 816617 Contact Us For Availability
36
Fastener, Wire WPL 4371553 Contact Us For Availability
× ![]()
