Model Whirlpool SF314PEAW2 GAS RANGE – Common Parts & Diagrams
03 - DOOR AND BROILER
01 - COOKTOP AND CONTROL PANEL, LITERATURE

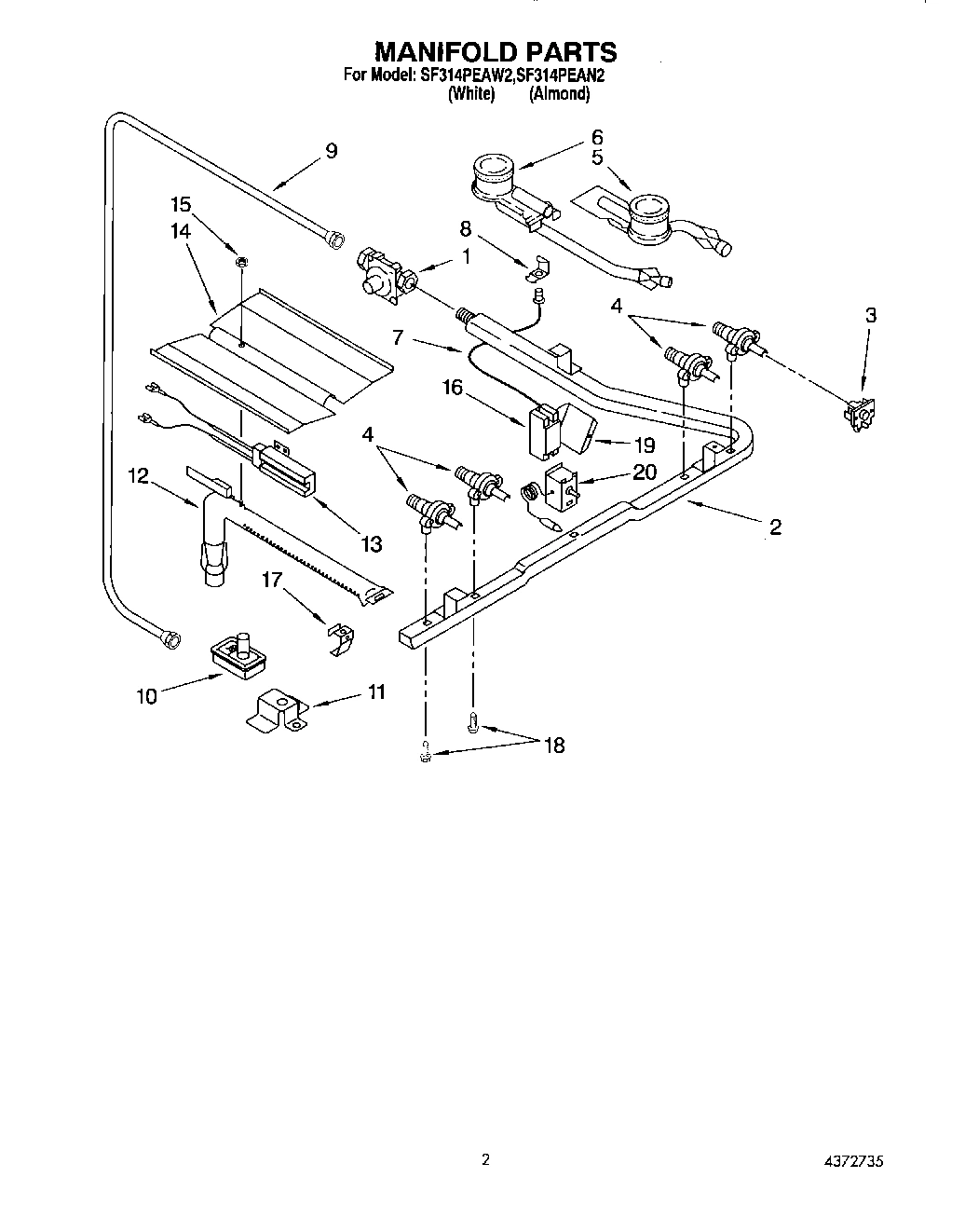

02 - MANIFOLD

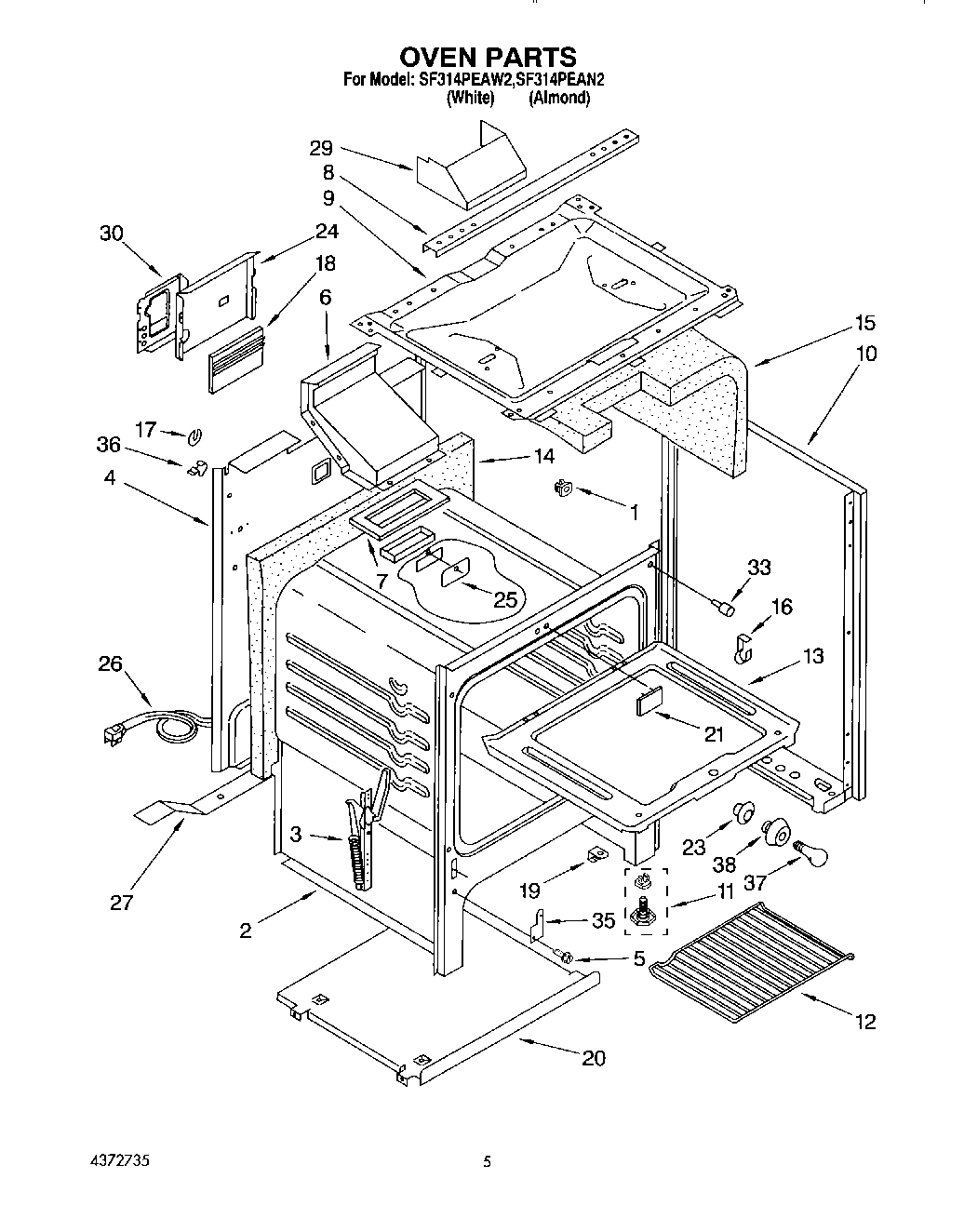

04 - OVEN
Common parts from model Whirlpool SF314PEAW2 GAS RANGE
Guide, Use & Care WPL LIT4372186 Contact Us For Availability
Installation, Instructions WPL LIT4372193 Contact Us For Availability
1
Panel, Control WPL 4372154 Contact Us For Availability
1
Regulator, Pressure WPL 4372249 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
2
Handle, Door WPL 816622 Contact Us For Availability
2
Knob, Thermostat WPL 4371477 Contact Us For Availability
2
Pipe, Manifold WPL 4371299 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI129599A Contact Us For Availability
3
Screw, Handle (2) WPL 4371542 Contact Us For Availability
3
Knob, Burner (4) WPL 4371476 Contact Us For Availability
3
Switch, Ignitor (4) WPL 4371298 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
4
Glass, Door Blk WPL 4372754 Contact Us For Availability
4
Top, Main (White) WPL 4371064 Contact Us For Availability
4
Top, Main (Almond) WPL 4371065 Contact Us For Availability
4
Valve, Burner (4) Includes Illus. 18 WPL 4371497 Contact Us For Availability
4
Back, Main WPL 816581 Contact Us For Availability
5
Shield, Heat WPL 4372753 Contact Us For Availability
5
Rod, Support (2) WPL 4371039 Contact Us For Availability
5
Burner, Front (2) WPL 4371480 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
6
Bracket, Top LH WPL 816586 Contact Us For Availability
6
Burner, Rear (2) WPL 4371481 Contact Us For Availability
6
Flue WPL 4371291 Contact Us For Availability
7
Ignitor, Base (2) WPL 4371017 Contact Us For Availability
7
Liner, Oven Door WPL 4372745 Contact Us For Availability
7
Bracket, Top RH WPL 816721 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
8
Glass, Rear WPL 4372749 Contact Us For Availability
8
Grate, Burner (4) WPL 4371474 Contact Us For Availability
8
Retainer, Ignitor WPL 4371242 Contact Us For Availability
8
Support, Burner WPL 4371471 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
9
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
9
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
9
Tubing, Alum 3/8 WPL 4371312 Contact Us For Availability
9
Burner, Box WPL 4371073 Contact Us For Availability
10
Valve, Safety WPL 4372250 Contact Us For Availability
10
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
10
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
10
Panel, Side (White RH) WPL 816708 Contact Us For Availability
10
Panel, Side (White LH) WPL 816709 Contact Us For Availability
11
Bracket, Hinge LH WPL 4372251 Contact Us For Availability
11
Bracket, Hinge RH WPL 4372252 Contact Us For Availability
11
Cover, Manifold WPL 4371287 Contact Us For Availability
11
Bracket, Valve WPL 4371470 Contact Us For Availability
11
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
12
Clock WPL 4372228 Contact Us For Availability
12
Burner, Oven WPL 4371284 Contact Us For Availability
12
Rack, Oven (2) WPL 4371483 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
13
Bracket, Clock WPL 4372227 Contact Us For Availability
13
Bottom, Oven WPL 4372245 Contact Us For Availability
14
Pin, Hinge (2) WPL 4371121 Contact Us For Availability
14
Panel, Upper Cntrl WPL 4372229 Contact Us For Availability
14
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
15
Nut, Baffle WPL 816642 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
16
Panel, Rear Upper WPL 4371524 Contact Us For Availability
16
Module, Spark WPL 4371030 Contact Us For Availability
16
Clip, Thermo Bulb WPL 4371741 Contact Us For Availability
17
Panel, Drawer WPL 816715 Contact Us For Availability
17
Trim, Wrapper WPL 4372864 Contact Us For Availability
17
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
18
Handle WPL 4371060 Contact Us For Availability
18
Panel, Splash (White) WPL 4371315 Contact Us For Availability
18
Panel, Splash (Almond) WPL 4371326 Contact Us For Availability
18
Cover, Flue WPL 4371307 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
19
Switch, Light WPL 4372576 Contact Us For Availability
19
Shield, Ignitor WPL 4372095 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
20
Screw, Handle (2) WPL 4371063 Contact Us For Availability
20
Thermostat WPL 4371308 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
21
Bracket, Retainer WPL 4371836 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
22
Support, Back WPL 816702 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
23
Trim, Vent WPL 816707 Contact Us For Availability
23
Housing, Oven Light WPL 4371293 Contact Us For Availability
24
Glide, Drawer (6) WPL 4371084 Contact Us For Availability
24
Pan, Burner (4) WPL 4371506 Contact Us For Availability
24
Shield, Flue WPL 4371102 Contact Us For Availability
25
Track, Broiler (4) WPL 4371077 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
26
Button, Glide (2) WPL 4371115 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
27
Screw, Liner (5) WPL 4371062 Contact Us For Availability
27
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
28
Sheild, Door Top WPL 4372752 Contact Us For Availability
29
Cover, Top Rear WPL 4371305 Contact Us For Availability
30
Shield, Module WPL 4372096 Contact Us For Availability
33
Bumper WPL 816608 Contact Us For Availability
35
Cover, Hinge (2) WPL 816617 Contact Us For Availability
36
Fastener, Wire WPL 4371553 Contact Us For Availability
× ![]()
