Model Whirlpool SF3110SKN0 GAS RANGE – Common Parts & Diagrams

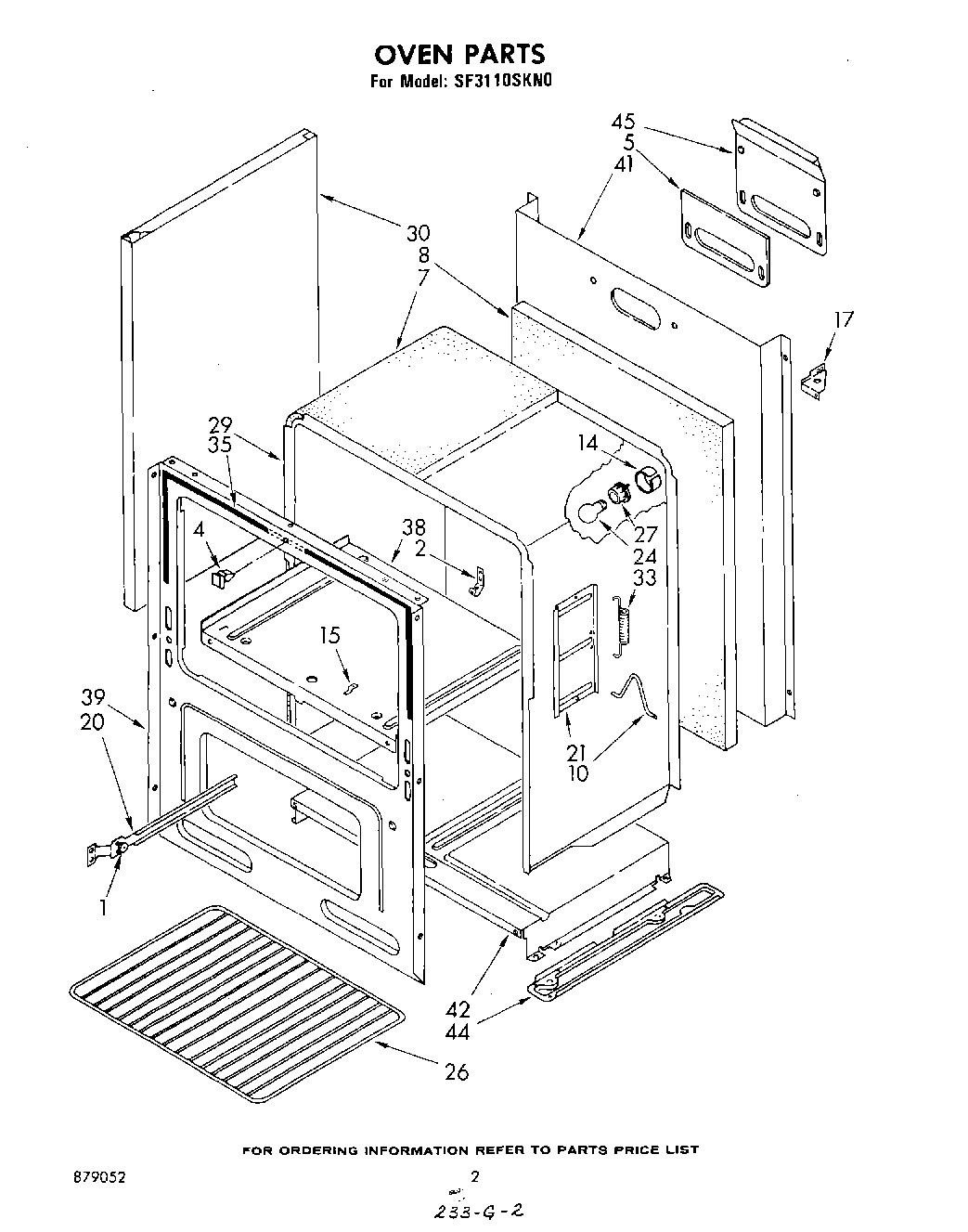

02 - OVEN , LITERATURE

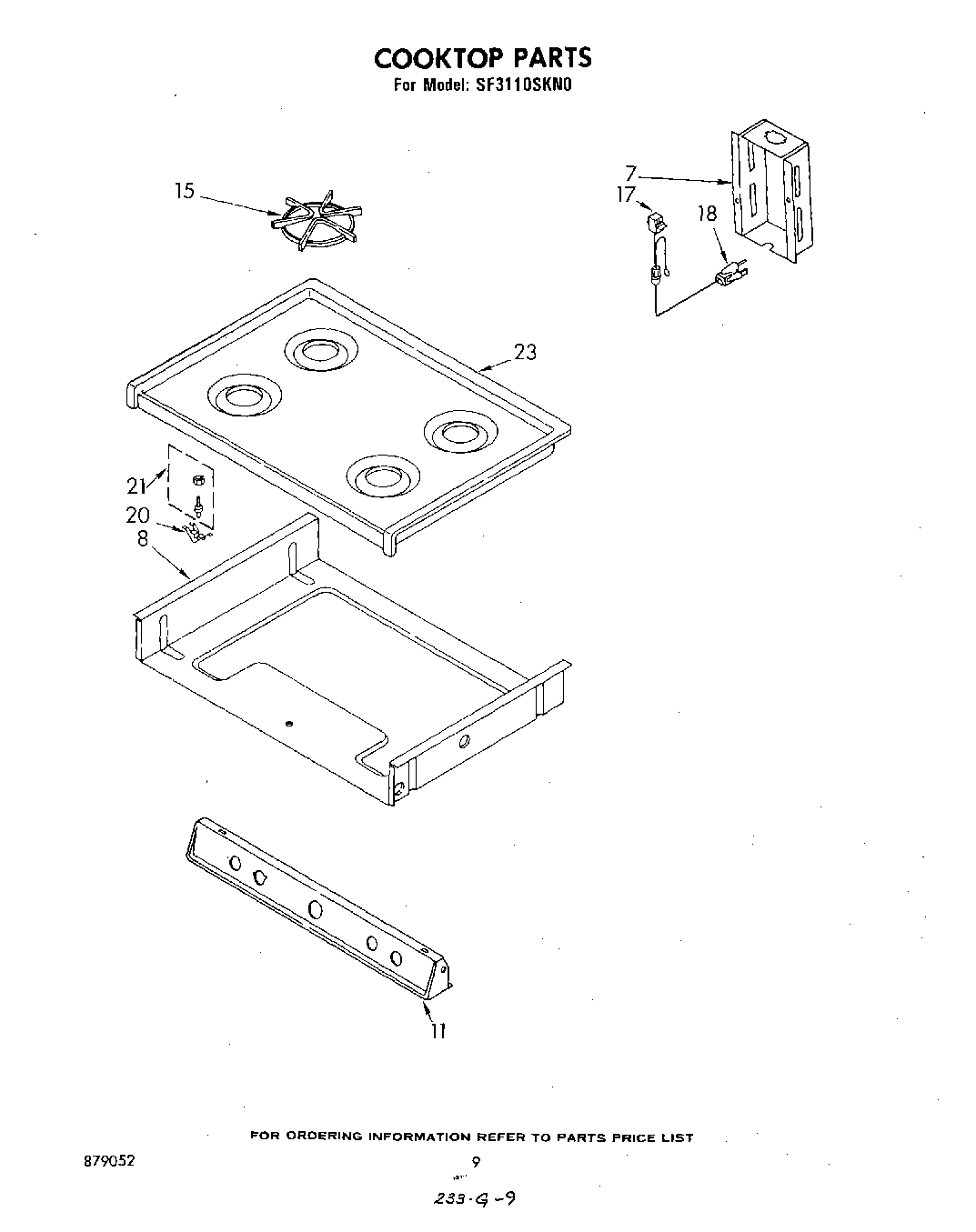

06 - COOK TOP

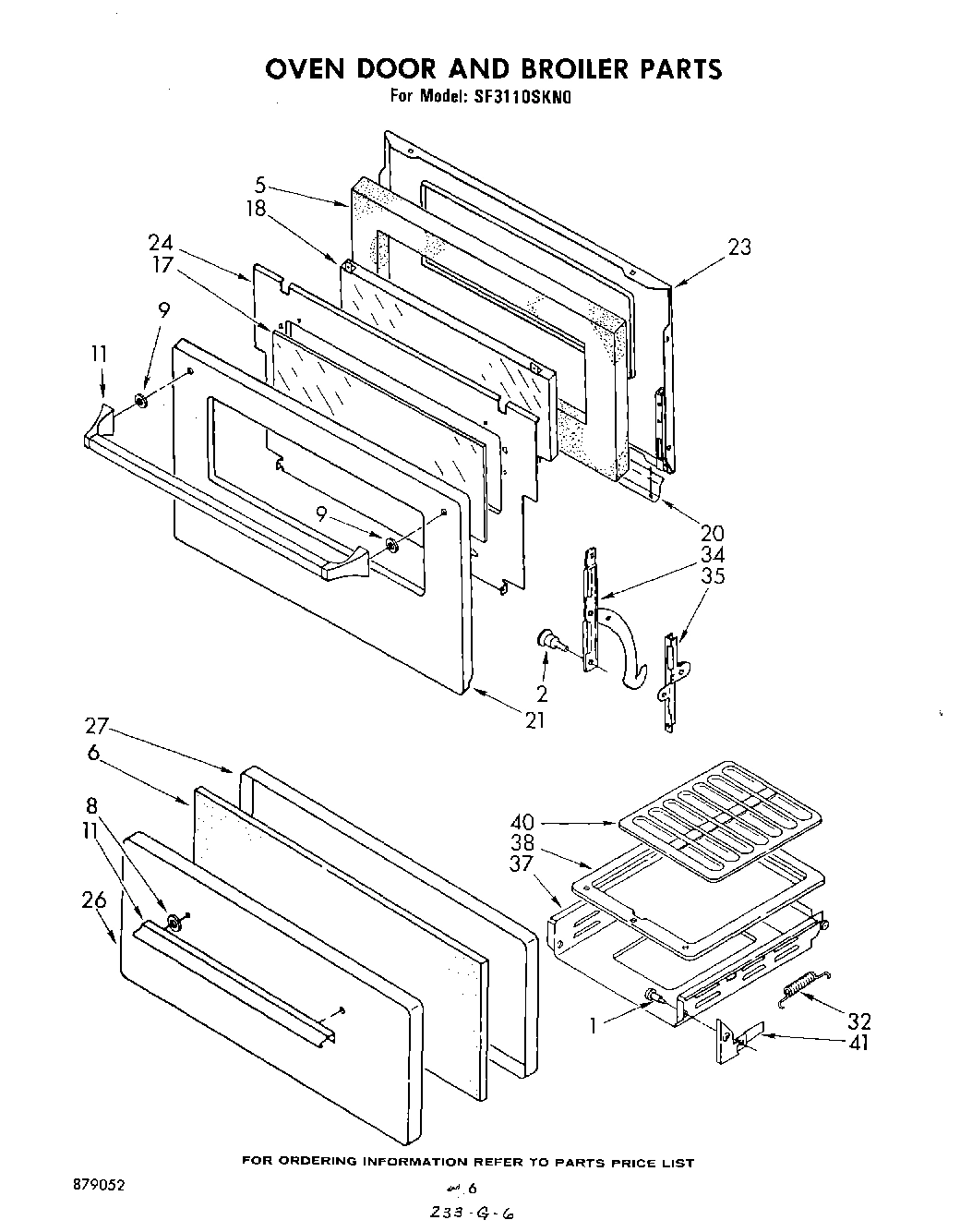

04 - OVEN DOOR AND BROILER

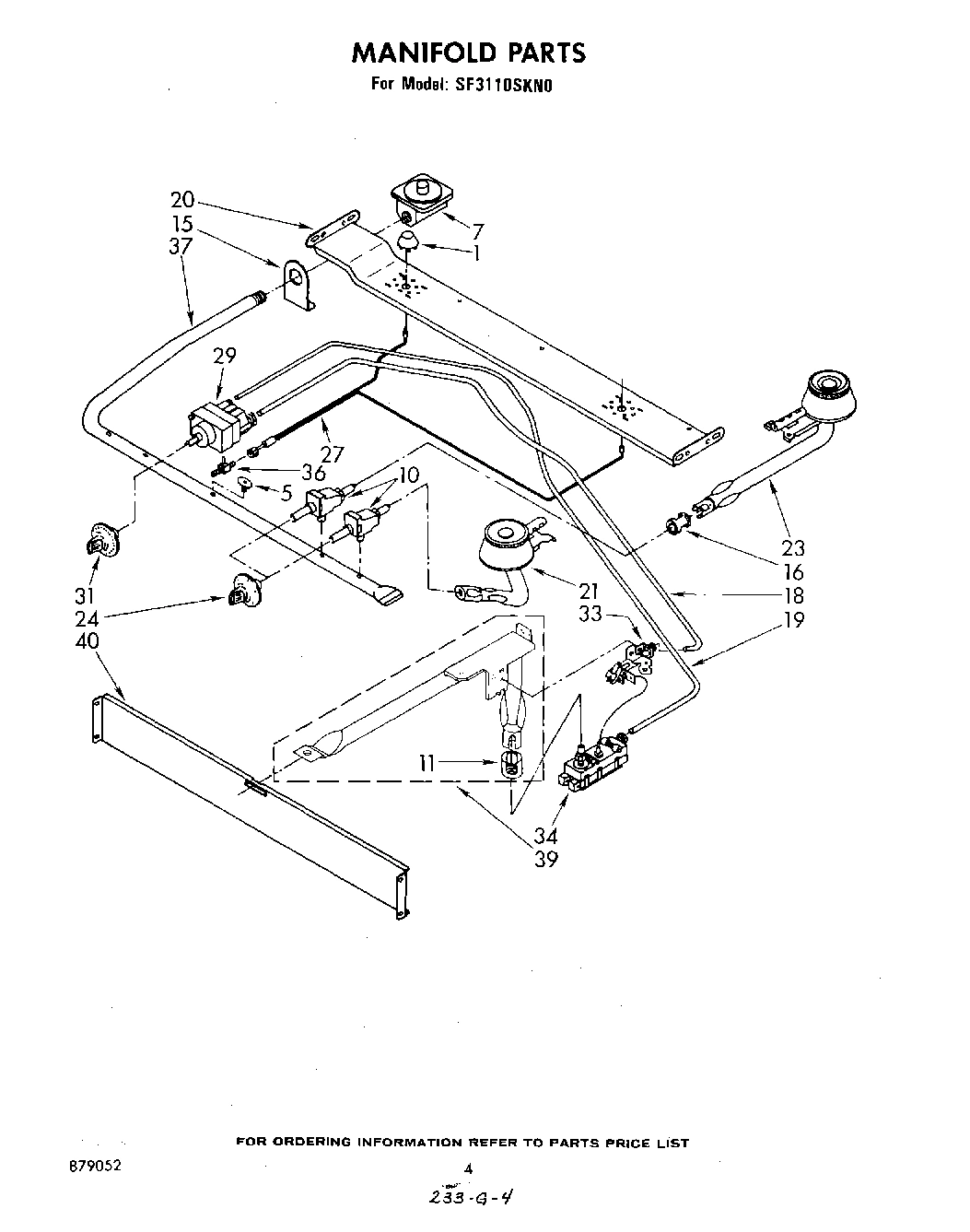

03 - MANIFOLD

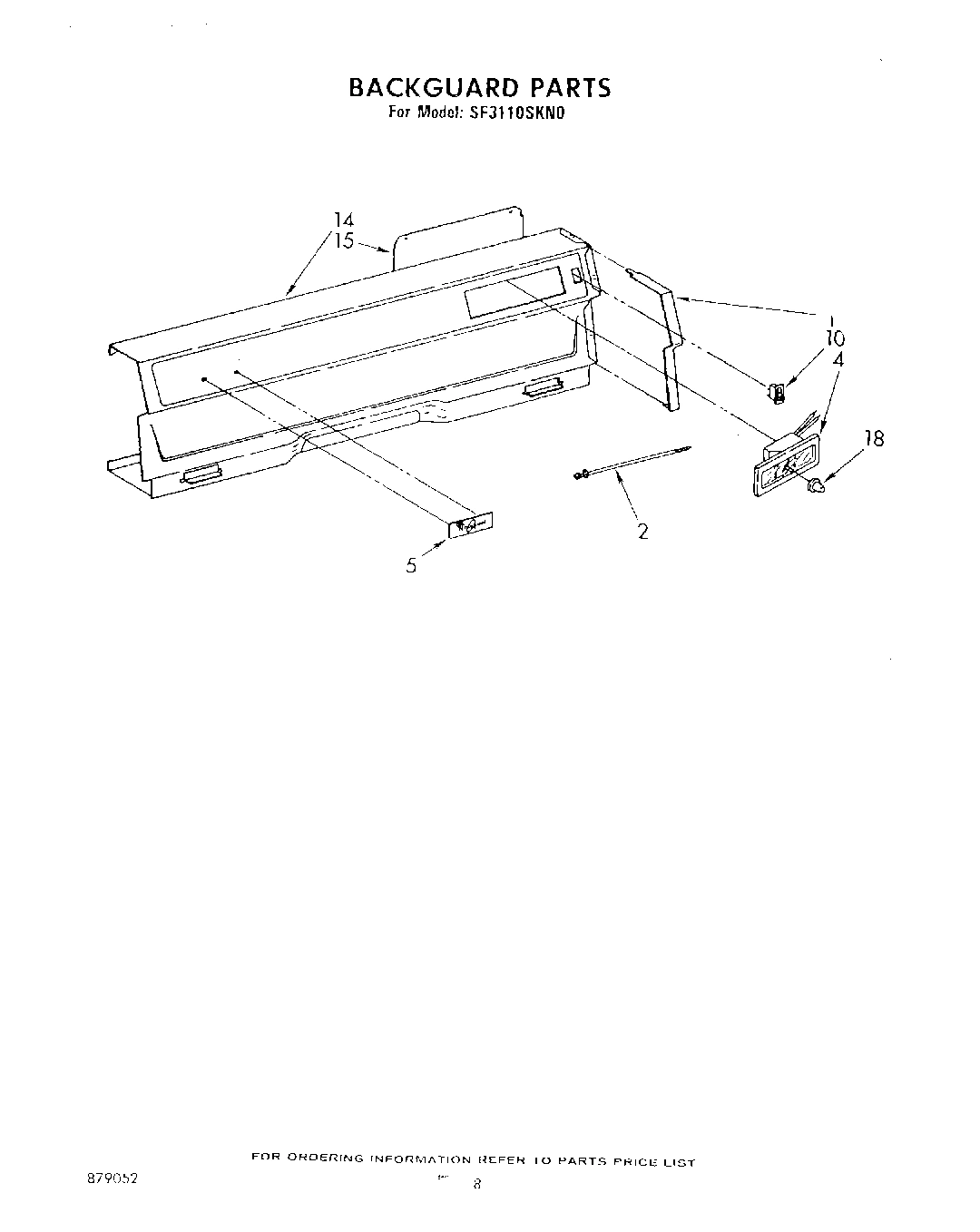

05 - BACKGUARD
Common parts from model Whirlpool SF3110SKN0 GAS RANGE
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Clamp, Wire WPL 879056 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
4
Clock, Regular WPL 879057 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Inlay, Nameplate WPL 878598 Contact Us For Availability
6
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Cover, Wire WPL 878719 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
8
Bottom, Burner Box WPL 878695 Contact Us For Availability
8
Spacer, Door Handle (2) WPL 878097 Contact Us For Availability
9
Spacer, Oven Door Handle (2) WPL 878310 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
10
Switch, Rocker WPL 878601 Contact Us For Availability
11
Panel, Manifold (Almond) WPL 878468 Contact Us For Availability
11
Handle, Broiler Door WPL 879022 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Trim, Backguard (Right Side) WPL 878602 Contact Us For Availability
11
Trim, Backguard (Left Side) WPL 878603 Contact Us For Availability
14
Sleeve, Light Hole WPL 878103 Contact Us For Availability
14
Panel, Backguard (Almond) WPL 879026 Contact Us For Availability
15
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
15
Grate, Burner WPL 878940 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Cover, Clock WPL 878608 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Glass, Oven Door (Outside) WPL 879025 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
18
Glass, Oven Door WPL 878000 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
18
Knob WPL 307802 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Strip, Door Seal WPL 878472 Contact Us For Availability
20
Hanger, Top Burner WPL 878826 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Panel, Oven Door (Almond) WPL 879054 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Lining, Oven Door WPL 878821 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
24
Baffle, Door WPL 878785 Contact Us For Availability
24
Handle, Top Valve (4) WPL 879024 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
26
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
27
Socket, Oven Light WPL 878124 Contact Us For Availability
27
Lining, Broiler Door WPL 878149 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
29
Oven, 30`` Standard (Not Serviceable) WPL ARI129588A Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
31
Dial, Oven Control WPL 879023 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878142 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
35
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
35
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
36
Filter, Top Lighter WPL 878712 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
37
Pipe, Manifold WPL 879014 Contact Us For Availability
38
Plate, Oven Bottom WPL 878822 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
40
Deflector, Heat WPL 878189 Contact Us For Availability
41
Back, Main WPL 879016 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
45
Instructions, Installation WPL 878063 Contact Us For Availability
45
Guide, Use & Care WPL 878072 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
45
Diagram, Wiring WPL 878924 Contact Us For Availability
45
List, Repair Parts WPL 879052 Contact Us For Availability
× ![]()
