Model Whirlpool SF310PEYQ1 GAS RANGE – Common Parts & Diagrams
06 - OVEN
08 - DOOR AND BROILER

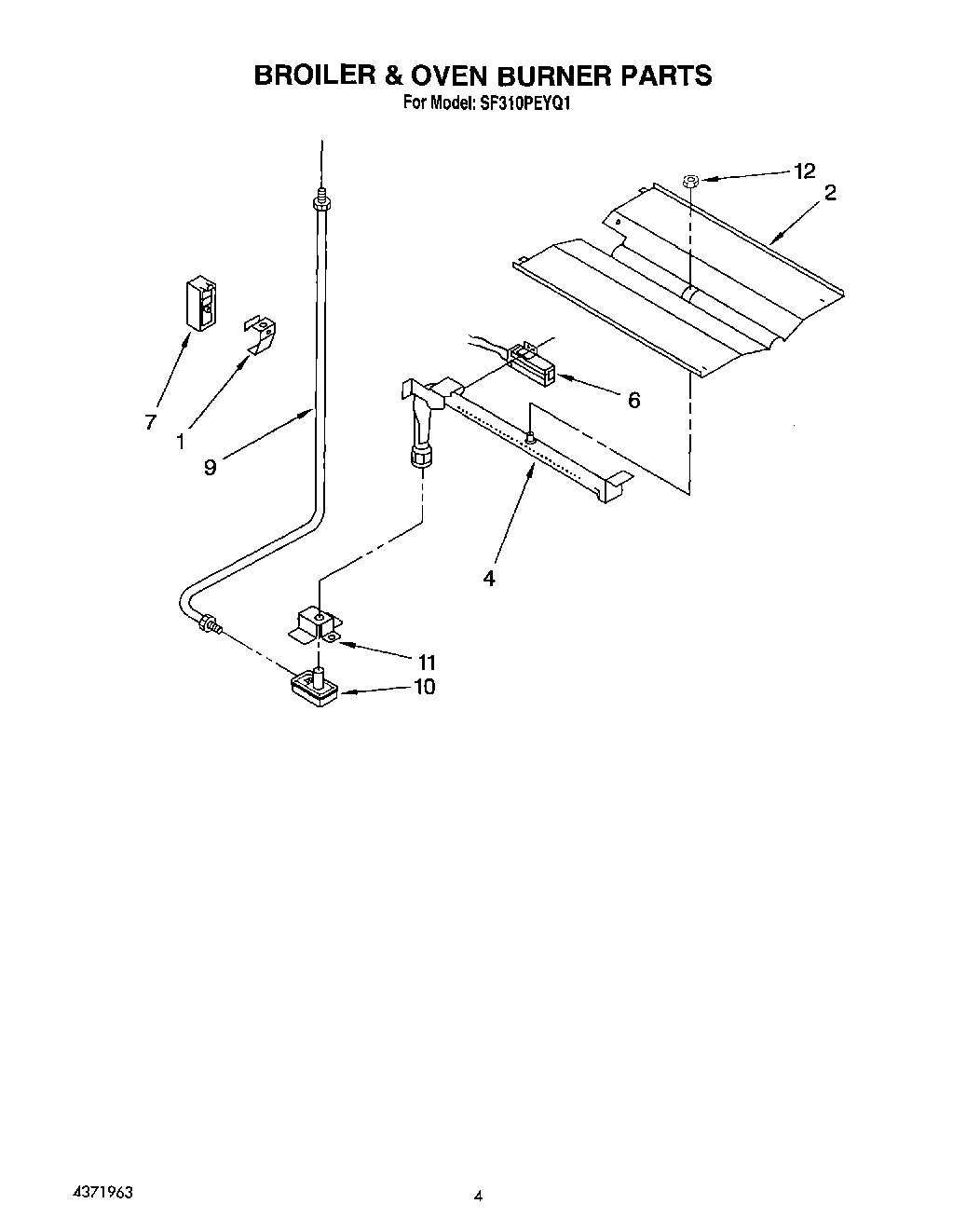

04 - BROILER AND OVEN BURNER

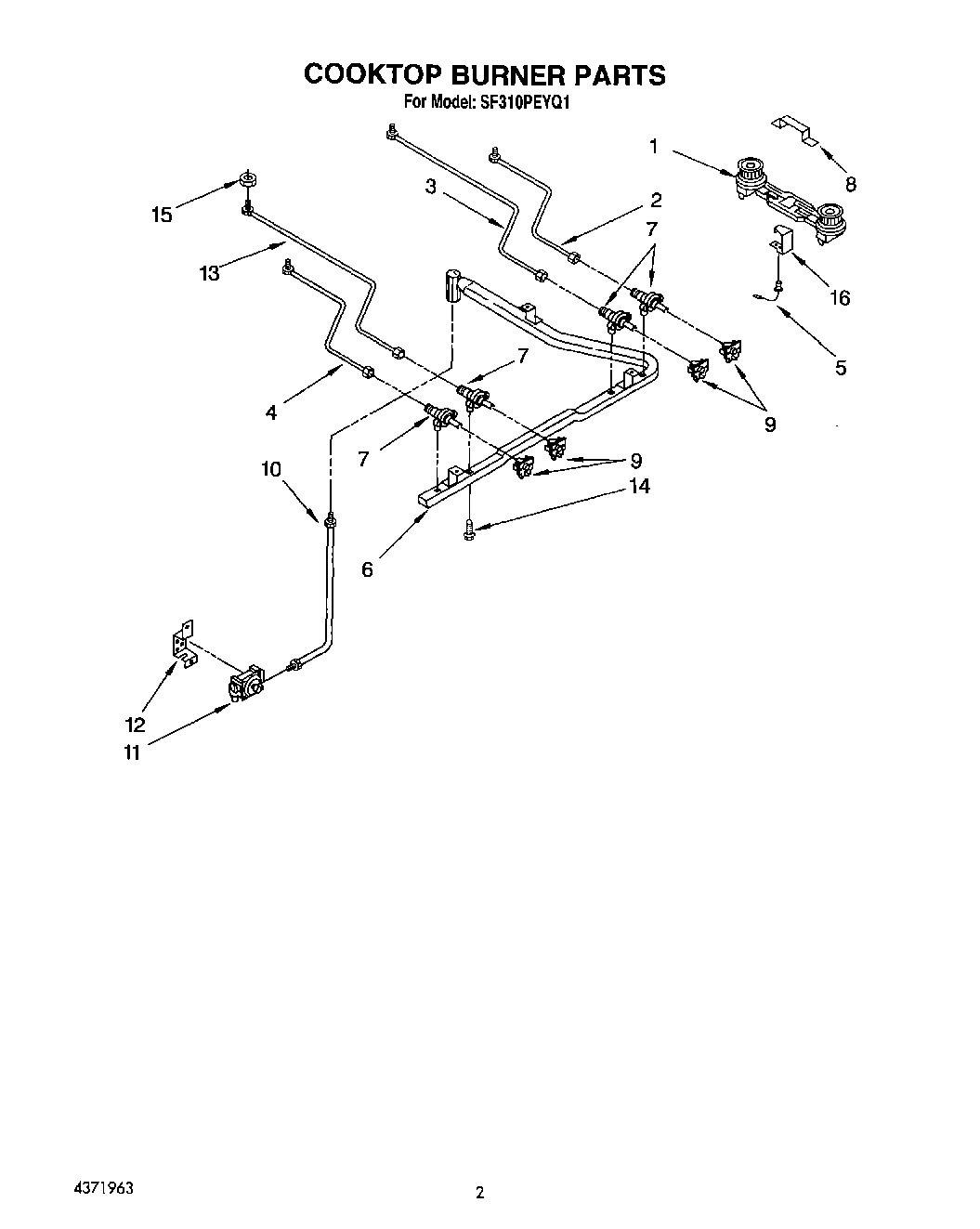

02 - COOKTOP BURNER

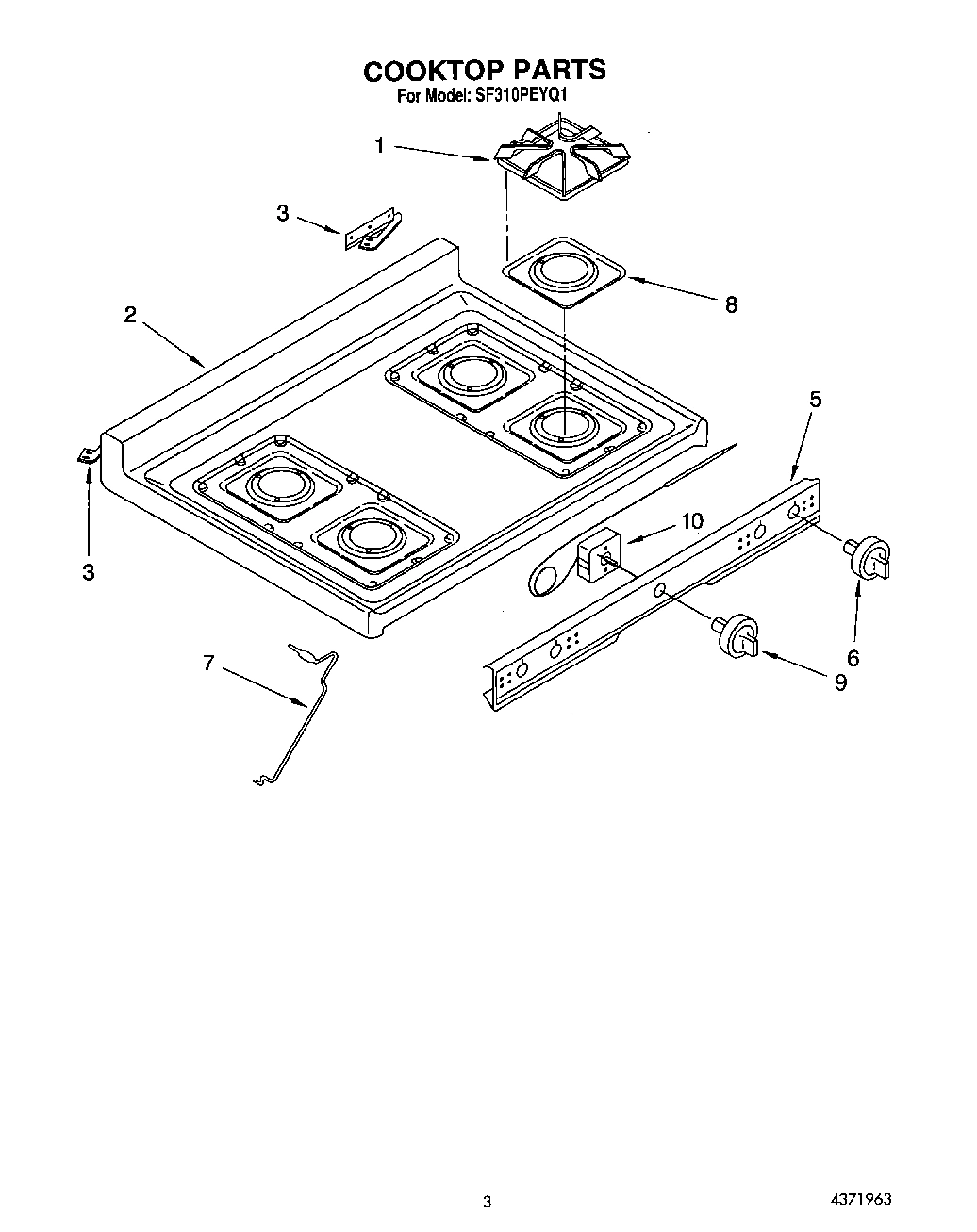

03 - COOKTOP

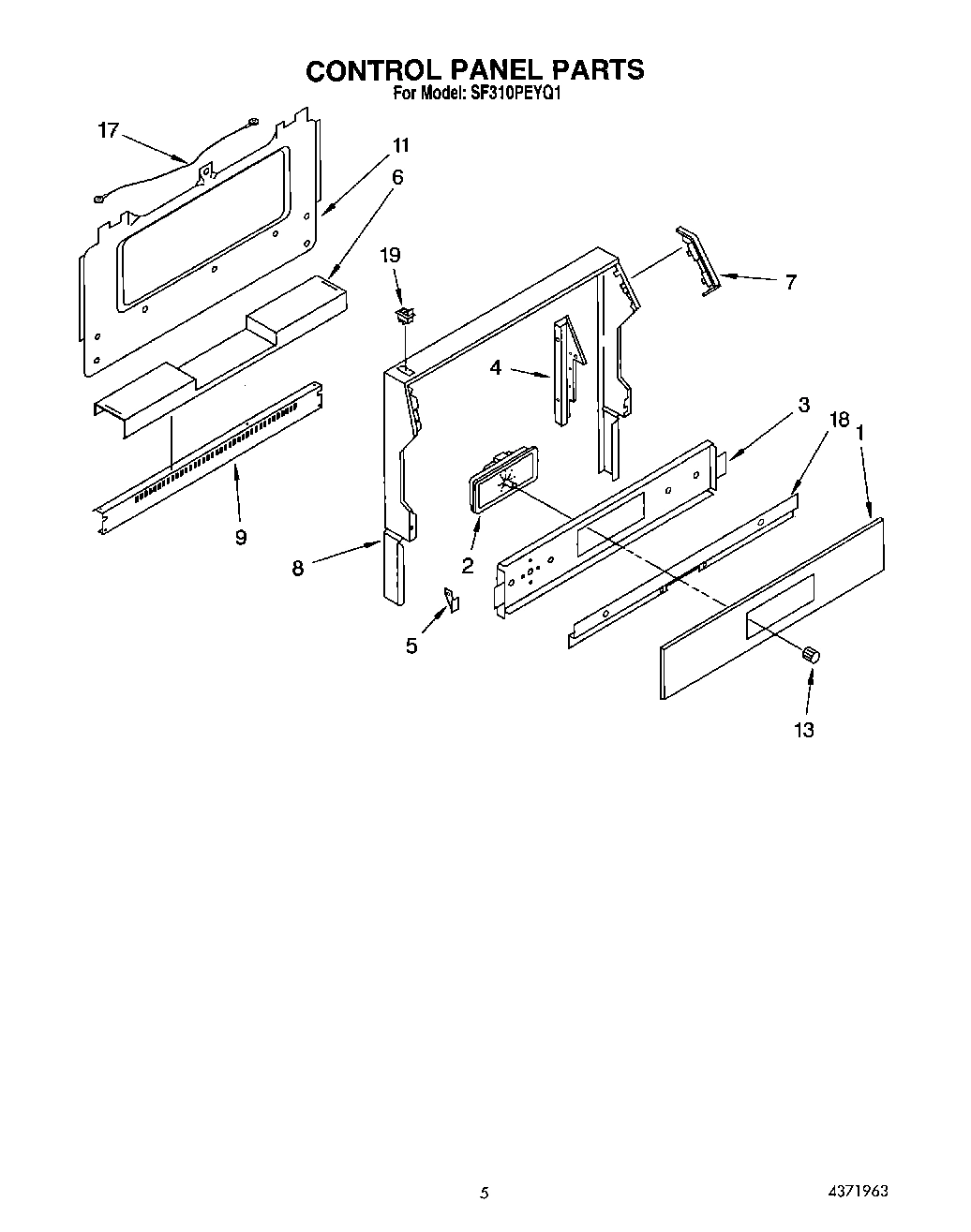

05 - CONTROL PANEL

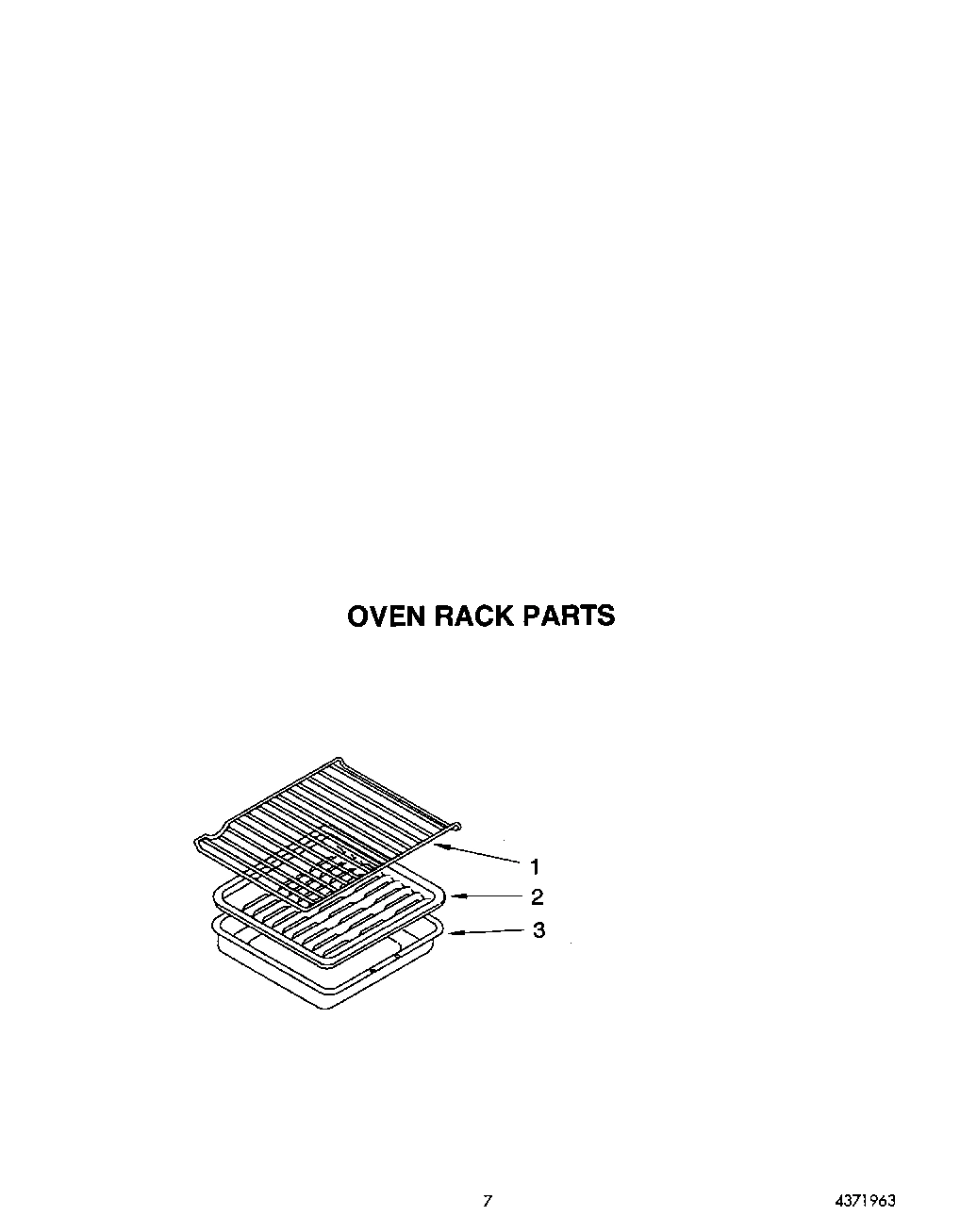

07 - OVEN RACK, LIT/OPTIONAL
Common parts from model Whirlpool SF310PEYQ1 GAS RANGE
Instructions, Installation WPL LIT4371004 Contact Us For Availability
List, Repair Parts WPL LIT4371963 Contact Us For Availability
Guide, Use & Care WPL LIT816997 Contact Us For Availability
1
Handle, Door WPL 816736 Contact Us For Availability
1
Bracket, Oven Burner WPL 4371069 Contact Us For Availability
1
Burner, Double WPL 4371020 Contact Us For Availability
1
Grate WPL 4371952 Contact Us For Availability
1
Panel, Control WPL 4371566 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
2
Shield, Rear Wall WPL 4371306 Contact Us For Availability
2
Trim, Door WPL 816746 Contact Us For Availability
2
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
2
Top, Main WPL 4371547 Contact Us For Availability
2
Clock WPL 4371567 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
3
Glass, Door WPL 4371564 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
3
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
3
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
3
Plate, Timer Mounting WPL 4371538 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
4
Housing, Oven Light WPL 4371293 Contact Us For Availability
4
Burner, Oven WPL 4371284 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
4
Support, Control Panel (R.H.) WPL 4371532 Contact Us For Availability
4
Support, Control Panel (L.H.) WPL 4371533 Contact Us For Availability
5
Ignitor, Top Burner (2) WPL 4371017 Contact Us For Availability
5
Panel, Manifold WPL 4371560 Contact Us For Availability
5
Cap, Filler WPL 4371563 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
6
Knob, Control (4) WPL 4371569 Contact Us For Availability
6
Deflector, Flue WPL 4371537 Contact Us For Availability
7
Module, Spark WPL 4371030 Contact Us For Availability
7
Valve, Top Burner (4) WPL 4371531 Contact Us For Availability
7
Rod, Support Top WPL 4371541 Contact Us For Availability
7
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
7
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
8
Hinge, Oven Door (2) WPL 4371087 Contact Us For Availability
8
Shield, Heat WPL 4371571 Contact Us For Availability
8
Bracket, Burner Mounting WPL 4371019 Contact Us For Availability
8
Pan, Burner WPL 4371565 Contact Us For Availability
8
Trim, Wrapper WPL 4371561 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Tubing, Valve WPL 4371544 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371298 Contact Us For Availability
9
Knob, Thermostat WPL 4371570 Contact Us For Availability
9
Trim, Vent WPL 4371562 Contact Us For Availability
10
Base, Broiler WPL 4371068 Contact Us For Availability
10
Valve, Safety WPL 4371313 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Thermostat WPL 4371308 Contact Us For Availability
11
Bracket, Top RH WPL 4371527 Contact Us For Availability
11
Bracket, Valve WPL 4371470 Contact Us For Availability
11
Control, Regulator WPL 4371032 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Insulation, Door WPL 4371126 Contact Us For Availability
12
Nut, Hex WPL 816642 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
13
Plate, Cover WPL 4371080 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
13
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
13
Knob, Clock WPL 4371568 Contact Us For Availability
14
Fastener, Push-On WPL 4371033 Contact Us For Availability
14
Screw, Handle WPL 4371542 Contact Us For Availability
15
Seal, Oven Door WPL 4371128 Contact Us For Availability
15
Nut (4) WPL 4371029 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Drawer, Broiler WPL 4371116 Contact Us For Availability
16
Retainer, Ignitor WPL 4371242 Contact Us For Availability
17
Guide, Drawer WPL 4371084 Contact Us For Availability
17
Cable, Anti-Tip WPL 4371295 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 816754 Contact Us For Availability
18
Retainer, Timer WPL 4371320 Contact Us For Availability
19
Handle, Broiler Drawer WPL 816753 Contact Us For Availability
20
Liner, Broiler WPL 4371120 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Shield, Flue WPL 4371543 Contact Us For Availability
22
Screw, 8-18 x 1/2 (5) WPL 4371062 Contact Us For Availability
23
Clip, Wire WPL 816758 Contact Us For Availability
23
Screw, 10-16 x 1/2 (2) WPL 4371063 Contact Us For Availability
24
Flue Box WPL 4371529 Contact Us For Availability
24
Broiler, Channel WPL 4371077 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
25
Cover, Liner WPL 4371125 Contact Us For Availability
26
Cover, Cord WPL 4371288 Contact Us For Availability
26
Glass, Inner WPL 4371309 Contact Us For Availability
27
Screw, Oven WPL 816651 Contact Us For Availability
27
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
27
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
28
Nut, Push On WPL 4371117 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
29
Pin, Hinge WPL 4371121 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
30
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
30
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
31
Button, Glide WPL 4371115 Contact Us For Availability
32
Cover, Front WPL 4371081 Contact Us For Availability
32
Insulation WPL 4371119 Contact Us For Availability
33
Bracket, Top LH WPL 4371528 Contact Us For Availability
34
Panel, Side (R.H.) WPL 816708 Contact Us For Availability
34
Panel, Side (LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 816650 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 4371092 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
42
Spacer, Side WPL 816669 Contact Us For Availability
49
Clip, Bulb WPL 4371482 Contact Us For Availability
× ![]()
