Model Whirlpool SF310PEAW2 GAS RANGE – Common Parts & Diagrams

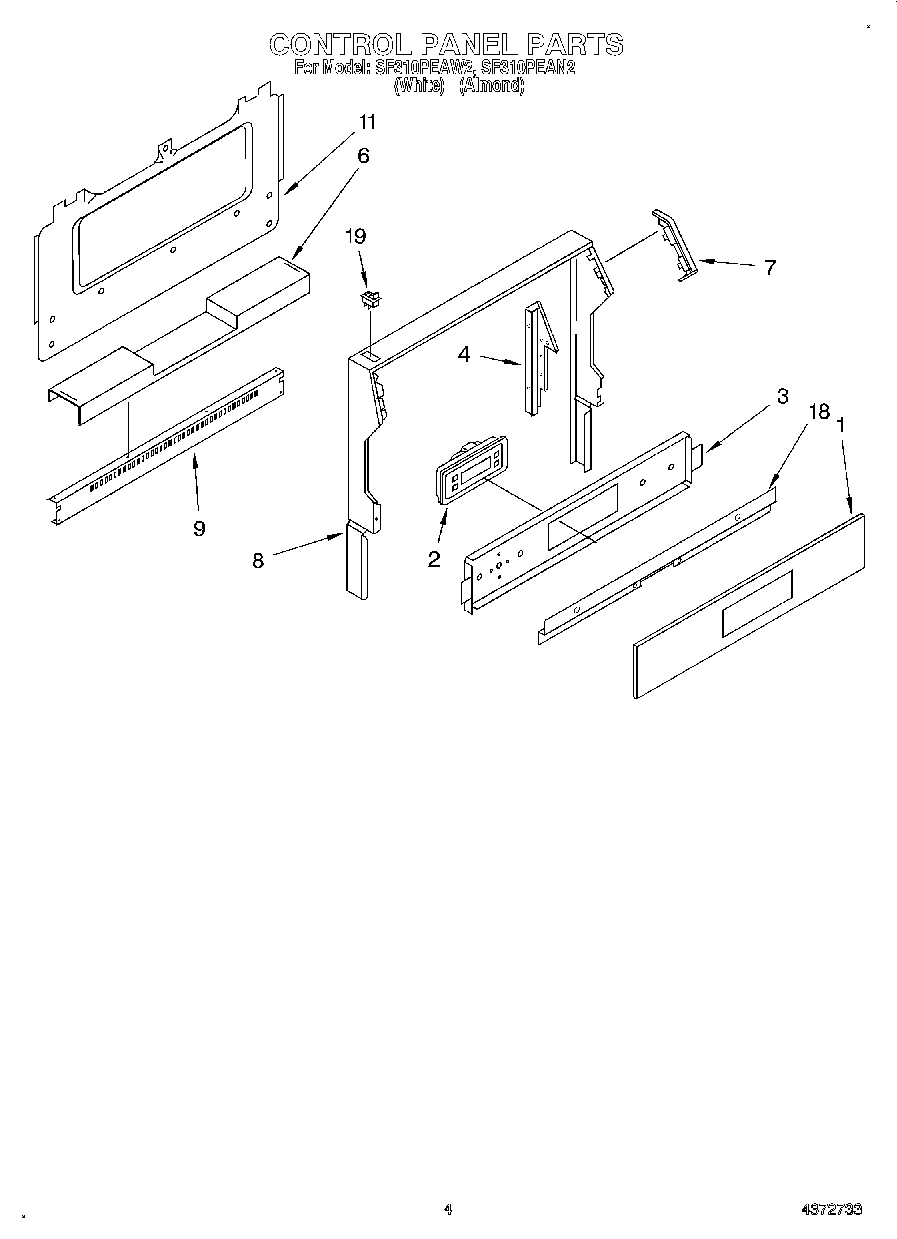

04 - CONTROL PANEL

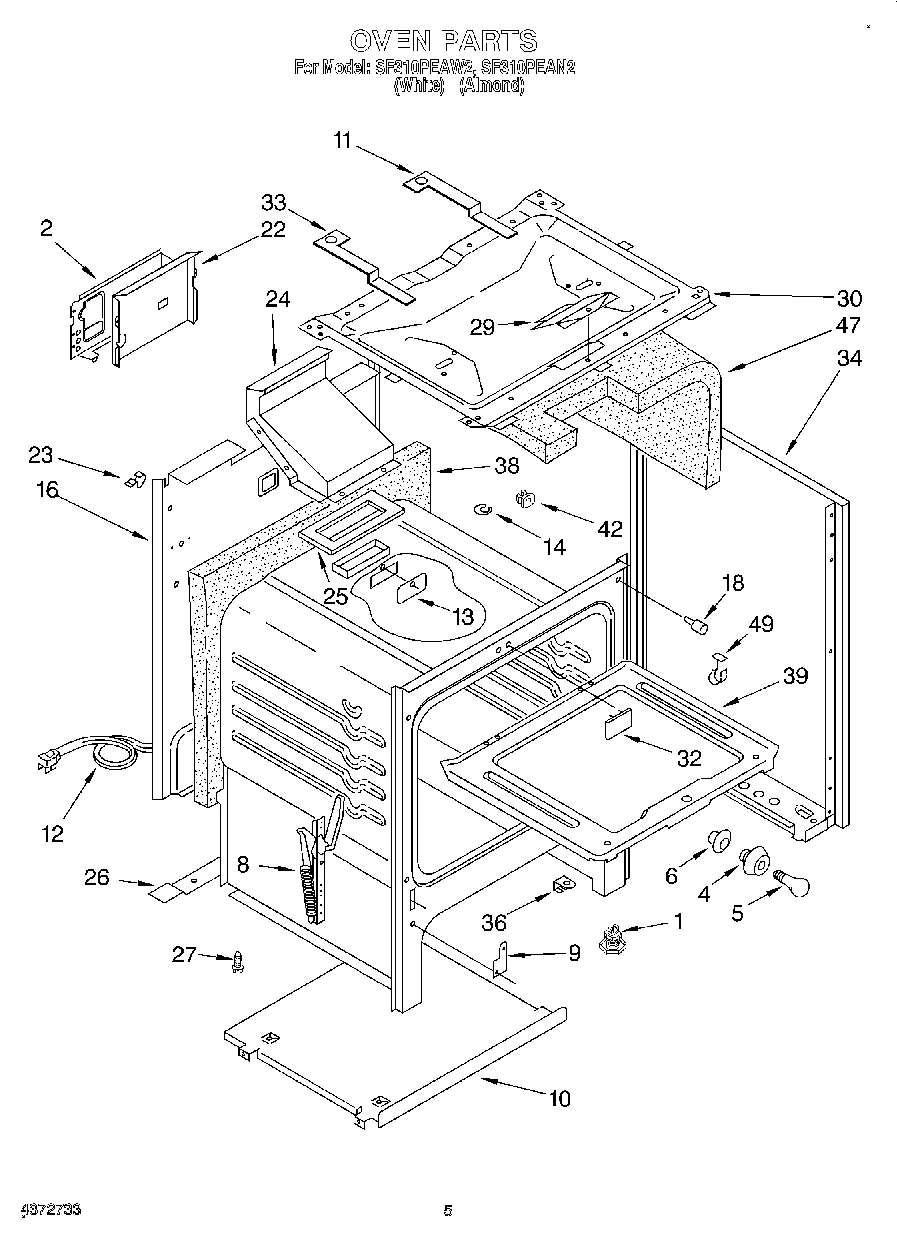

05 - OVEN

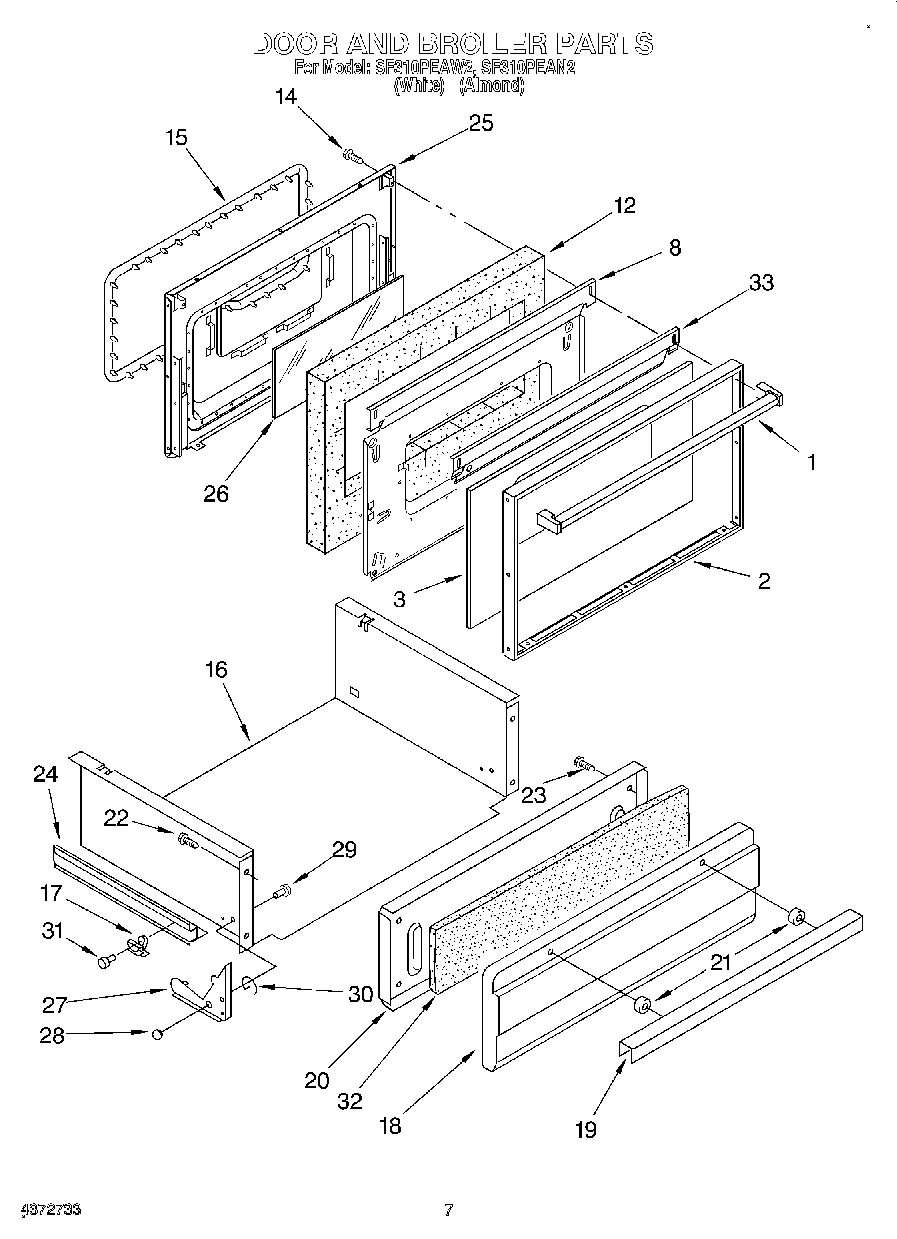

06 - DOOR AND BROILER

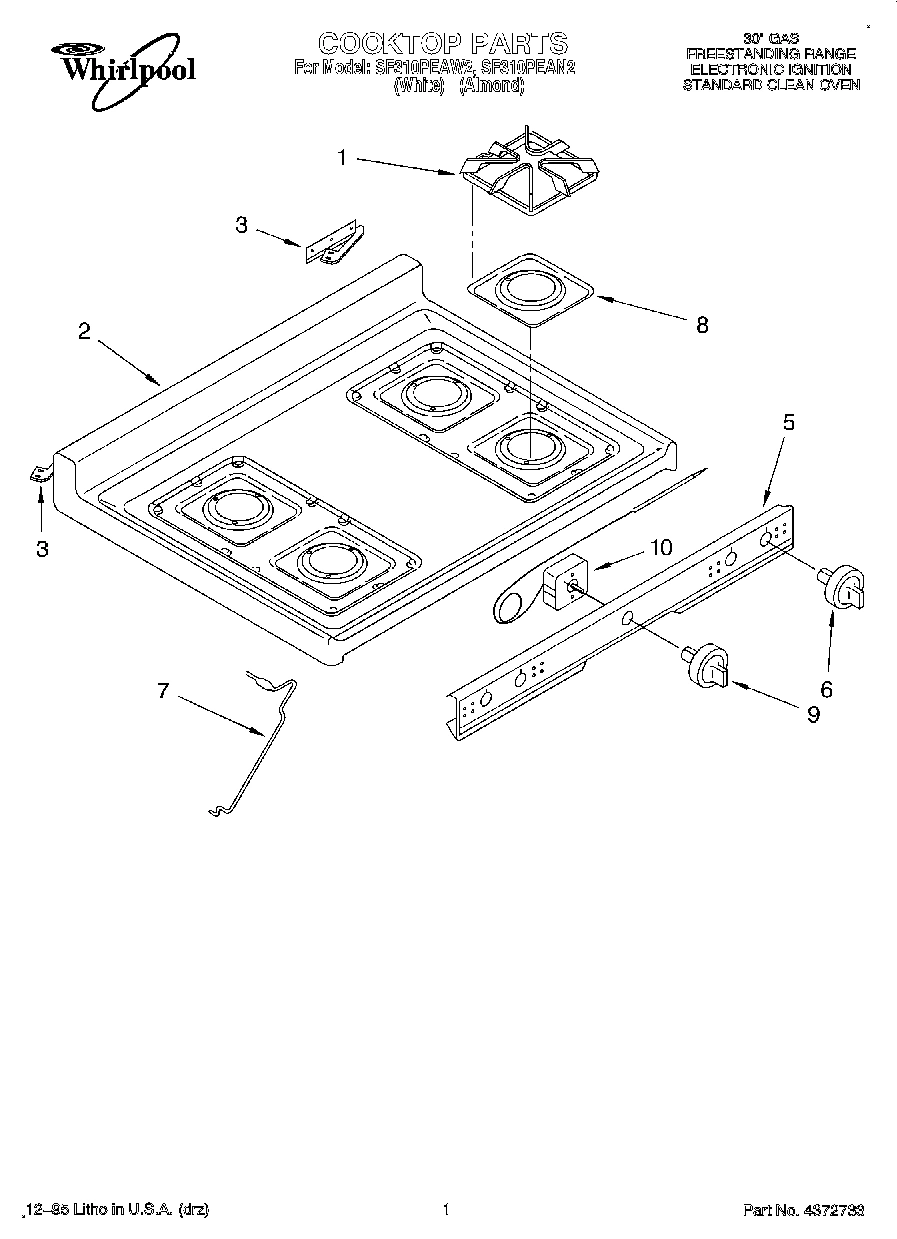

01 - COOKTOP

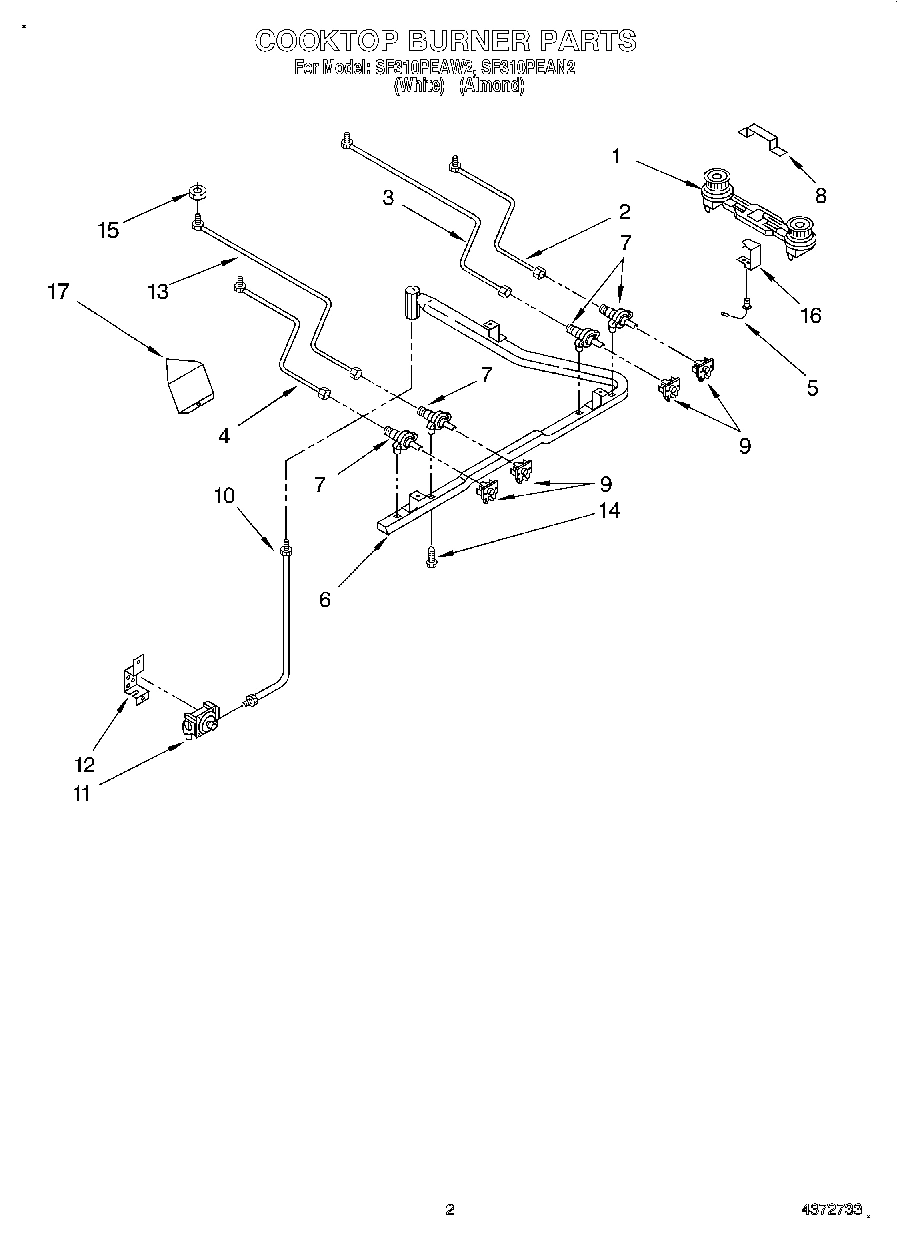

02 - COOKTOP BURNER

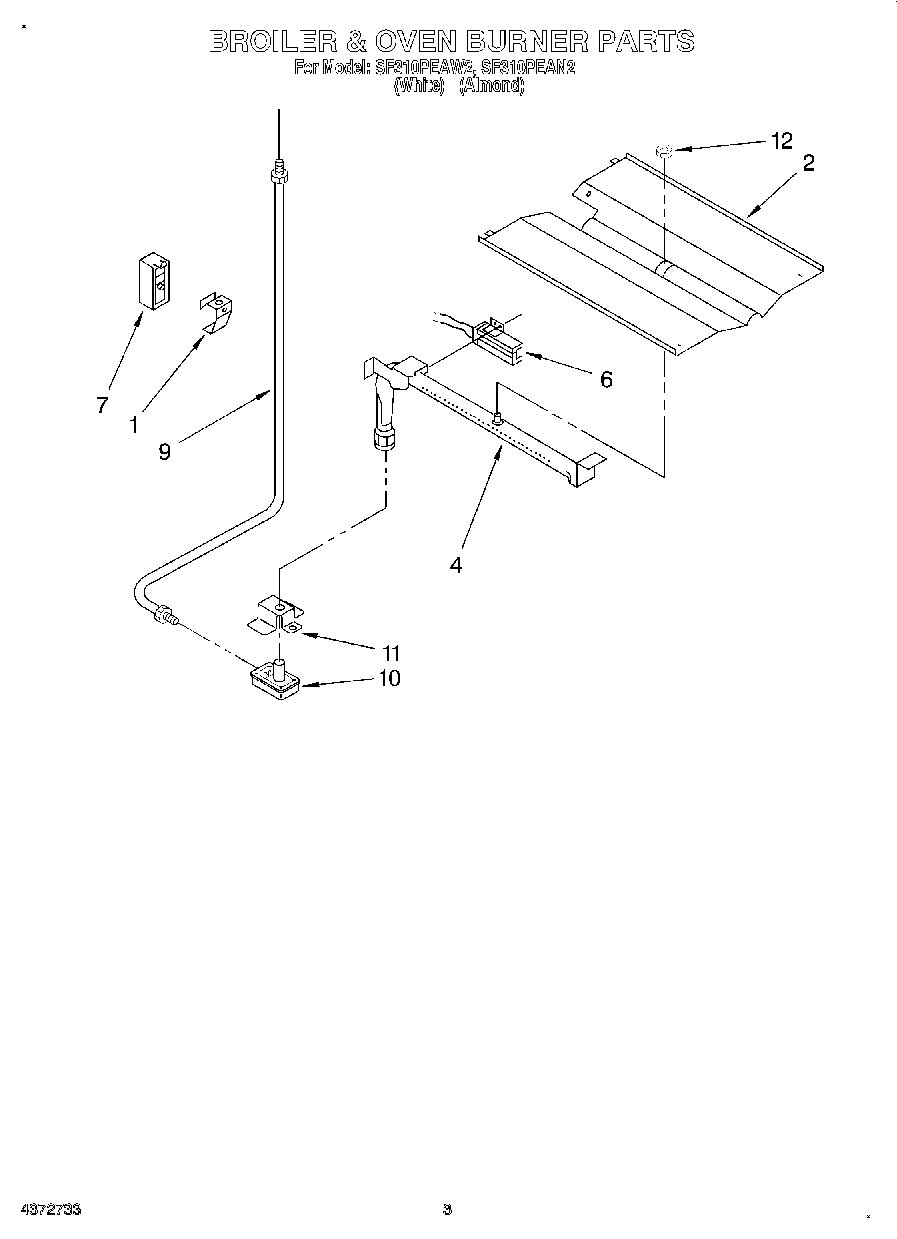

03 - BROILER AND OVEN BURNER

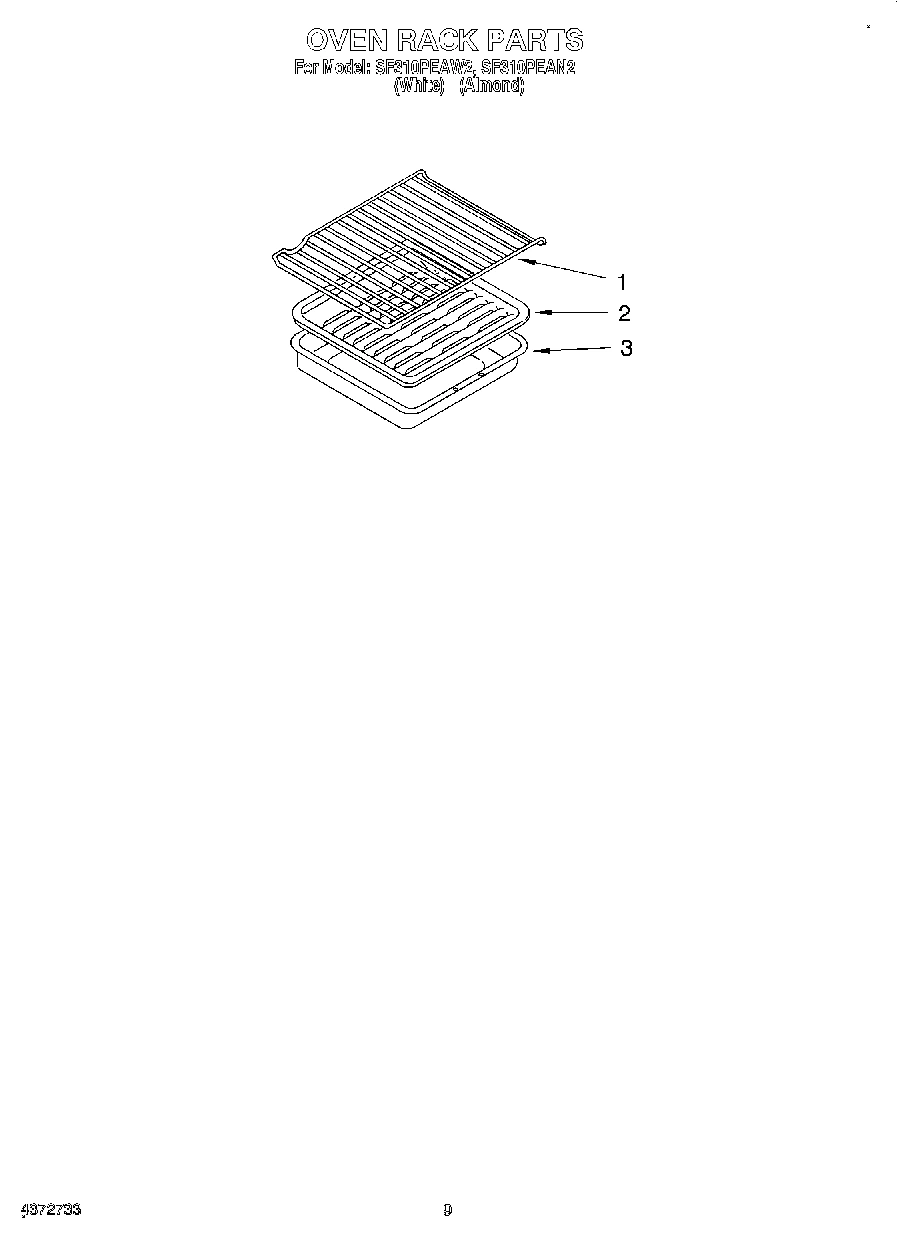

07 - OVEN RACK, LIT/OPTIONAL
Common parts from model Whirlpool SF310PEAW2 GAS RANGE
Guide, Use & Care WPL LIT4372184 Contact Us For Availability
Instructions, Installation WPL LIT4372188 Contact Us For Availability
1
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
1
Handle, Door WPL 816622 Contact Us For Availability
1
Grate WPL 4372755 Contact Us For Availability
1
Burner, Double WPL 4372225 Contact Us For Availability
1
Bracket, Oven Burner WPL 4371069 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
2
Clock, Electronic WPL 4372228 Contact Us For Availability
2
Shield, Module WPL 4372096 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Top, Main (White) WPL 4371547 Contact Us For Availability
2
Top, Main (Almond) WPL 4371549 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
2
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
3
Plate, Timer Mounting WPL 4372227 Contact Us For Availability
3
Glass, Door WPL 4372754 Contact Us For Availability
3
Bracket, Hinge (Right Side) WPL 4371545 Contact Us For Availability
3
Bracket, Hinge (Left Side) WPL 4371546 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
4
Support, Control Panel (R.H.) WPL 4371532 Contact Us For Availability
4
Support, Control Panel (L.H.) WPL 4371533 Contact Us For Availability
4
Housing, Oven Light WPL 4371293 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
4
Burner, Oven WPL 4371284 Contact Us For Availability
5
Ignitor, Top Burner (2) WPL 4371017 Contact Us For Availability
5
Panel, Manifold WPL 4371530 Contact Us For Availability
6
Deflector, Flue WPL 4371537 Contact Us For Availability
6
Knob, Control (4) WPL 4371476 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
7
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
7
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
7
Rod, Support Top WPL 4372226 Contact Us For Availability
7
Valve, Top Burner (4) WPL 4371531 Contact Us For Availability
7
Module, Spark WPL 4371030 Contact Us For Availability
8
Trim, Wrapper WPL 4371654 Contact Us For Availability
8
Hinge, Oven Door (2) WPL 4371087 Contact Us For Availability
8
Shield, Heat WPL 4372753 Contact Us For Availability
8
Pan, Burner WPL 4371552 Contact Us For Availability
8
Bracket, Burner- Mounting (2) WPL 4371019 Contact Us For Availability
9
Trim, Vent WPL 4371535 Contact Us For Availability
9
Cover, Hinge (2) WPL 816617 Contact Us For Availability
9
Knob, Thermostat WPL 4371477 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371298 Contact Us For Availability
9
Tubing, Valve WPL 4371544 Contact Us For Availability
10
Base, Broiler WPL 4371068 Contact Us For Availability
10
Thermostat WPL 4371308 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Valve, Safety WPL 4371313 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
11
Bracket, Top RH WPL 4371527 Contact Us For Availability
11
Control, Regulator WPL 4372040 Contact Us For Availability
11
Bracket, Valve WPL 4371470 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Insulation, Door Liner, Oven Door WPL 4371126 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Nut, Hex WPL 816642 Contact Us For Availability
13
Plate, Cover WPL 4371080 Contact Us For Availability
13
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
14
Fastener, Push-On WPL 4371033 Contact Us For Availability
14
Screw, Handle (2) WPL 4371542 Contact Us For Availability
15
Seal, Oven Door WPL 4371128 Contact Us For Availability
15
Nut (4) WPL 4371029 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Drawer, Broiler WPL 4371116 Contact Us For Availability
16
Retainer, Ignitor WPL 4371242 Contact Us For Availability
17
Guide, Drawer WPL 4371084 Contact Us For Availability
17
Shield, Ignitor WPL 4372095 Contact Us For Availability
18
Retainer, Timer WPL 4371836 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 816715 Contact Us For Availability
19
Switch, Rocker WPL 4372576 Contact Us For Availability
19
Handle, Broiler Drawer WPL 4371060 Contact Us For Availability
20
Liner, Broiler WPL 4371120 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Shield, Flue WPL 4371543 Contact Us For Availability
22
Screw, 8-18 x 1/2 (5) WPL 4371062 Contact Us For Availability
23
Clip, Wire WPL 816758 Contact Us For Availability
23
Screw, 10-16 x 1/2 (2) WPL 4371063 Contact Us For Availability
24
Flue Box WPL 4371529 Contact Us For Availability
24
Broiler, Channel WPL 4371077 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
25
Liner, Oven Door WPL 4372745 Contact Us For Availability
26
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
26
Glass, Inner WPL 4372749 Contact Us For Availability
27
Screw, Oven (2) WPL 816651 Contact Us For Availability
27
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
27
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
28
Nut, Push On WPL 4371117 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
29
Pin, Hinge WPL 4371121 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
30
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
30
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
31
Button, Glide WPL 4371115 Contact Us For Availability
32
Cover, Front WPL 4371081 Contact Us For Availability
32
Insulation WPL 4371119 Contact Us For Availability
33
Bracket, Top LH WPL 4371528 Contact Us For Availability
33
Sheild, Door Top WPL 4372752 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
42
Spacer, Side WPL 816669 Contact Us For Availability
49
Clip, Bulb (2) WPL 4371741 Contact Us For Availability
× ![]()
