Model Whirlpool SF310BEGQ5 GAS RANGE – Common Parts &amp; Diagrams

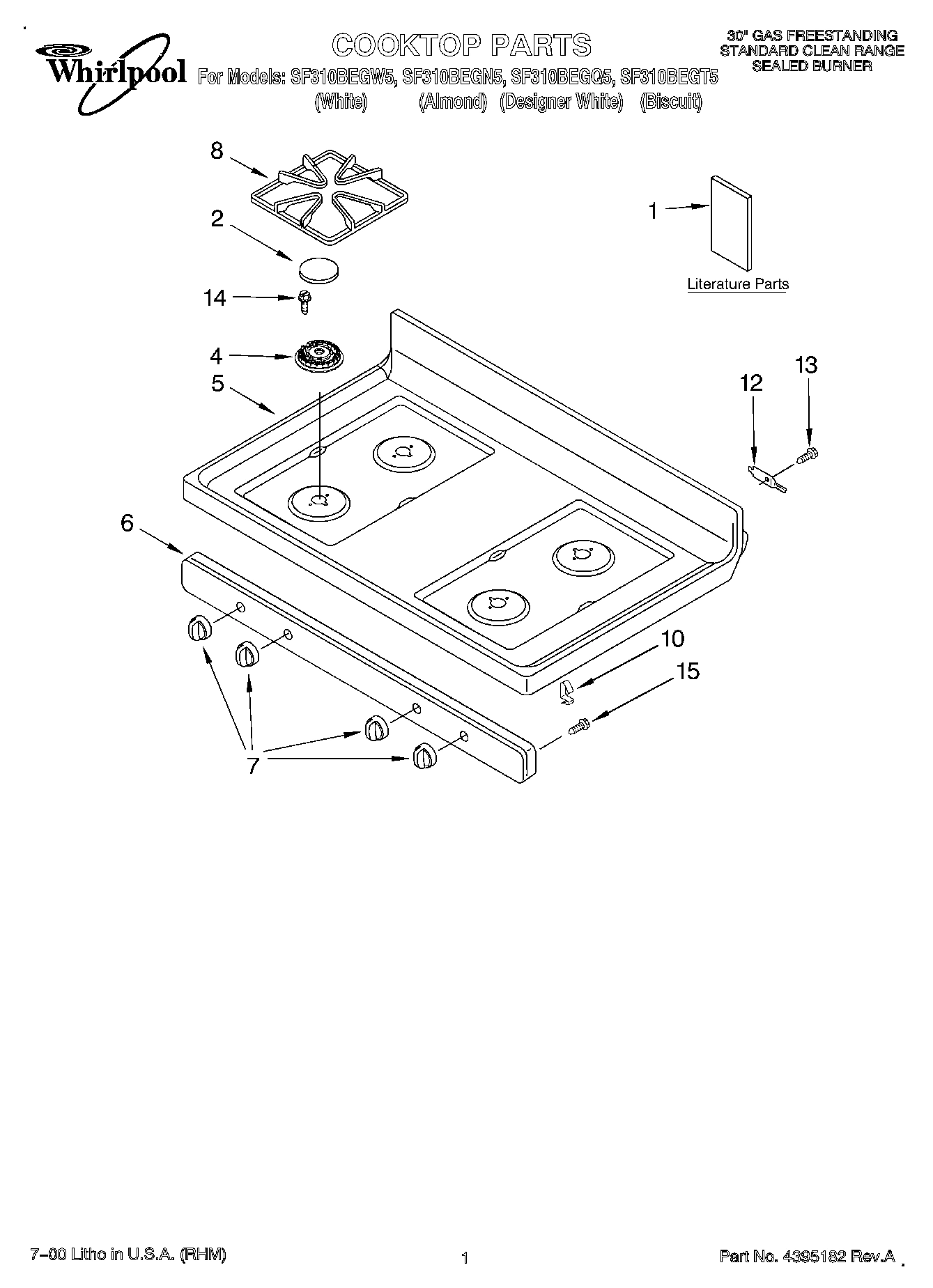

1

WP8273096 Whirlpool Screw Backorder WPL WP8273096 $2.51

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

1

Endcap (Biscuit Left Hand) WPL 8272507 Contact Us For Availability

1

Endcap (Biscuit Right Hand) WPL 8272508 Contact Us For Availability

2

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

2

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 $54.85

2

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 $96.80

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP8273700 Whirlpool Base Burner In Stock WPL WP8273700 $55.66

2

Cap, Burner (Small (1) (Grey)) WPL 3191899 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

2

Burner Base (Small (1)) WPL 8273019 Contact Us For Availability

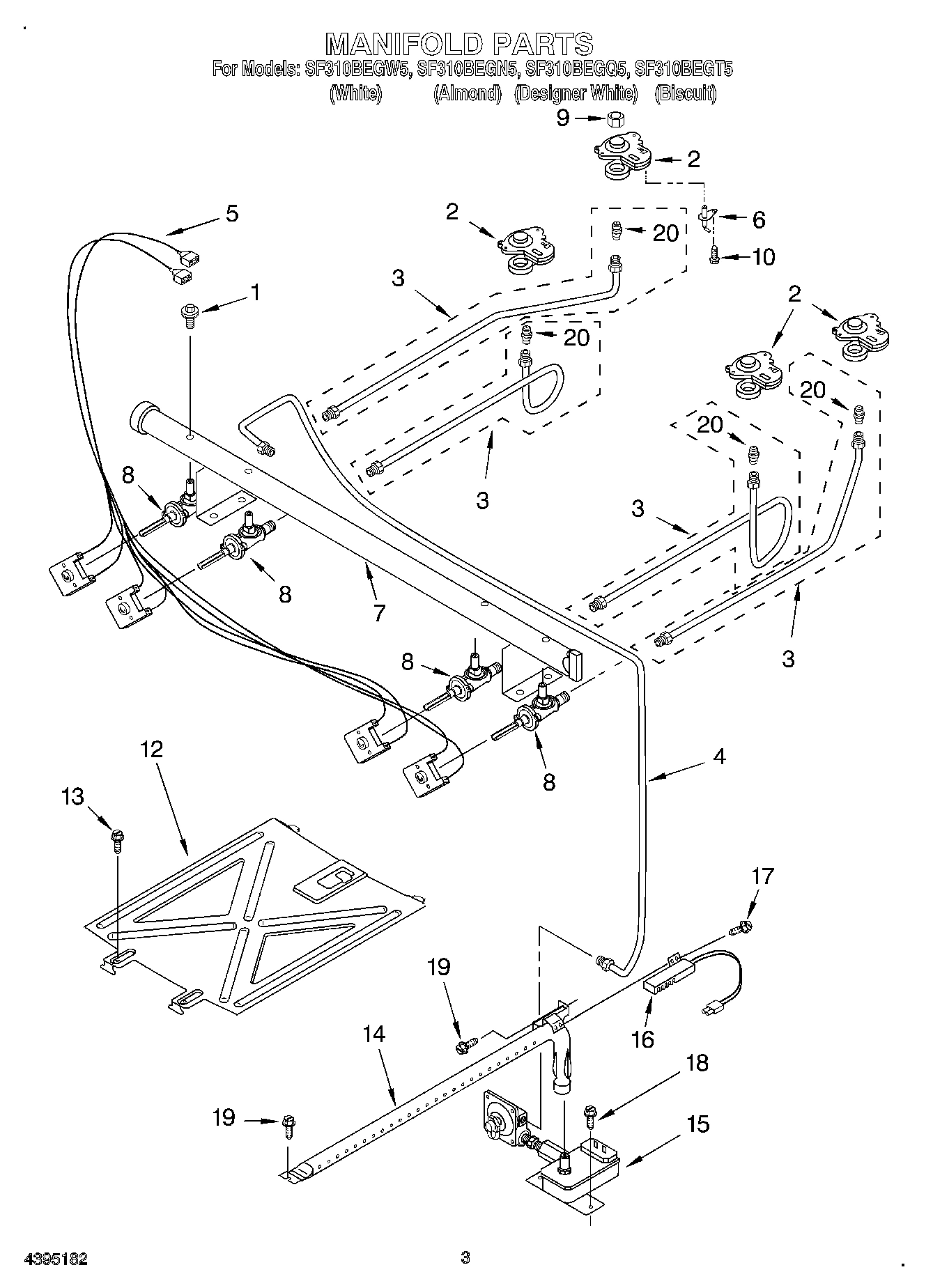

3

W11379351 Whirlpool Burner Box Backorder WPL W11379351 $34.99

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

Panel, Backguard (Black) WPL 8053684 Contact Us For Availability

3

Panel, Backguard (White) WPL 8053685 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8273795 Contact Us For Availability

3

Tubing, Burner W/Orifice ((RF)) WPL 8272905 Contact Us For Availability

3

Tubing, Burner W/Orifice ((RR)) WPL 8272907 Contact Us For Availability

3

Tubing, Burner W/Orifice (Left Rear) WPL 8273142 Contact Us For Availability

3

Tubing, Burner W/Orifice (Left Front) WPL 8273244 Contact Us For Availability

4

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

4

WP3195558 Whirlpool Nut Backorder WPL WP3195558 $4.36

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

Screw WPL 4449746 Contact Us For Availability

4

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

4

Tubing (Regulator To Manifold) WPL 8273131 Contact Us For Availability

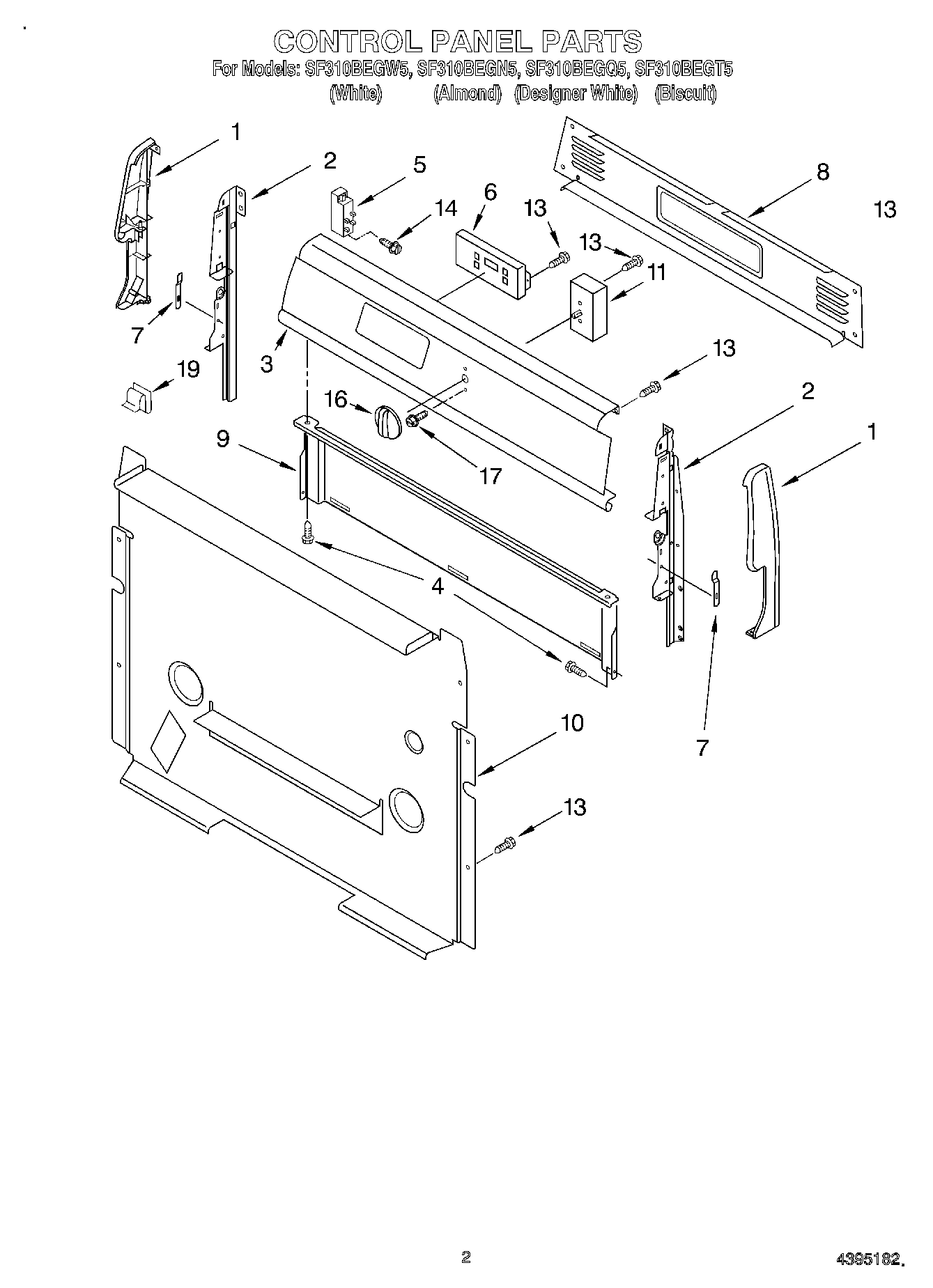

5

WP8053421 Whirlpool Oven Spark Module Backorder WPL WP8053421 $99.35

5

Clip, Panel (6) WPL 3196576 Contact Us For Availability

5

Bracket, Hinge (Right Hand) WPL 3195268 Contact Us For Availability

5

Bracket, Hinge (Left Hand) WPL 3195269 Contact Us For Availability

5

Harness, Igniter (Incl. Switches) WPL 8273076 Contact Us For Availability

6

WP8523793 Whirlpool Oven Surface Igniter In Stock WPL WP8523793 $17.68

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

6

Spring, Hinge (Right Hand) WPL 3195205 Contact Us For Availability

6

Spring, Hinge (Left Hand) WPL 3195267 Contact Us For Availability

6

Control, Range (Black) WPL 3191645 Contact Us For Availability

6

Control, Range (White) WPL 3191646 Contact Us For Availability

6

Control, Range (Biscuit) WPL 8273519 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

WP8273115 Whirlpool Knob Backorder WPL WP8273115 $12.99

7

Knob, Control (4) (White) WPL 8273116 Contact Us For Availability

7

Knob, Control (4) (Biscuit) WPL 8273859 Contact Us For Availability

7

Plug, Frame WPL 3196072 Contact Us For Availability

7

Pipe, Manifold WPL 8272411 Contact Us For Availability

8

W10837340 Whirlpool Grate Kit Backorder WPL W10837340 $181.24

8

WPW10268483 Whirlpool Grate Kit In Stock WPL WPW10268483 $80.83

8

Frame, Front (Not Serviceable) WPL ARI129542A Contact Us For Availability

8

Bumper, Door (2) WPL 3148182 Contact Us For Availability

8

Cover, Upper WPL 8272474 Contact Us For Availability

8

Valve (4) WPL 8273056 Contact Us For Availability

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

Nut (4) WPL 8273060 Contact Us For Availability

9

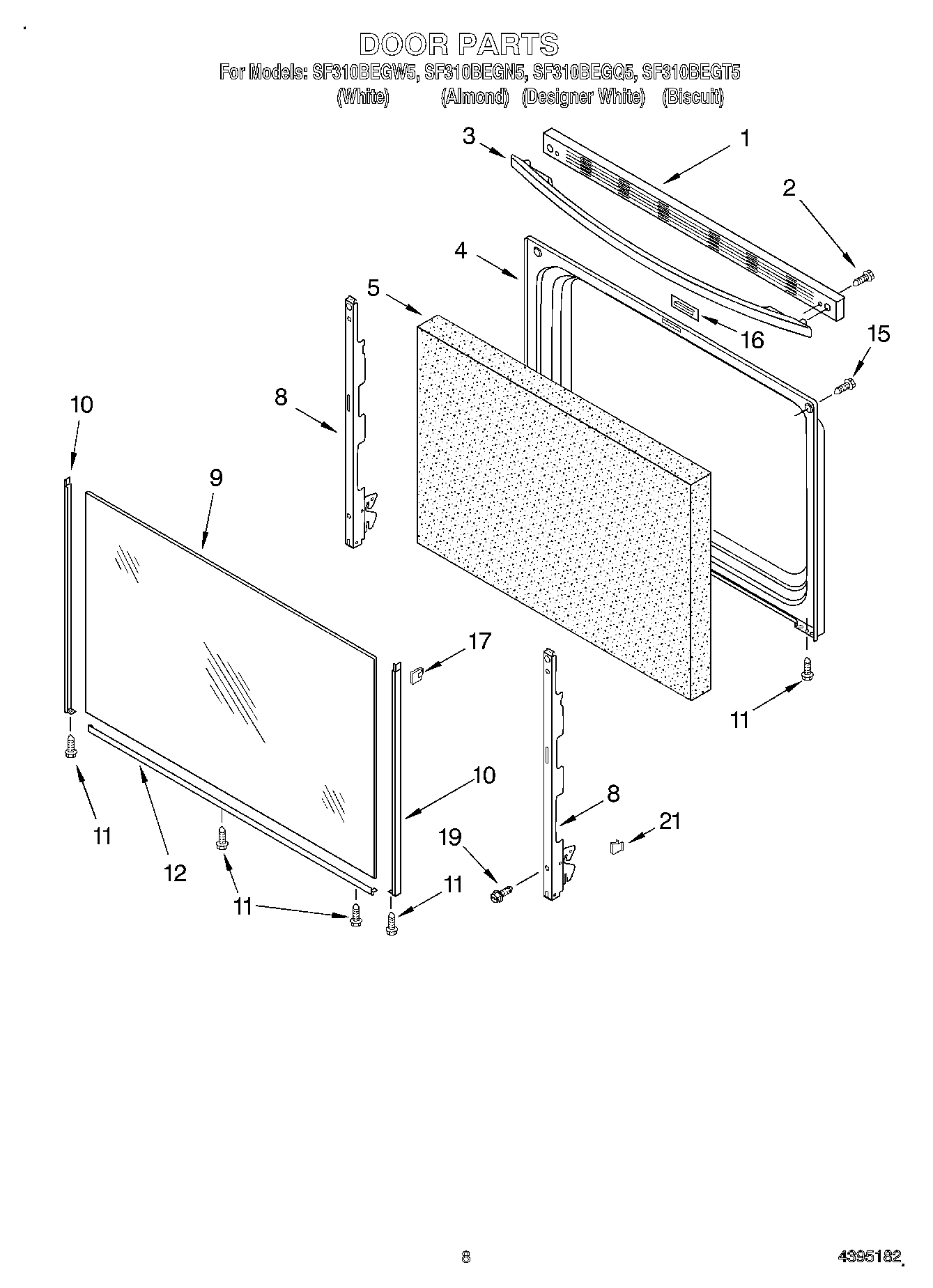

Glass, Door (White) WPL 3196810 Contact Us For Availability

9

Glass, Door (Black) WPL 3195610 Contact Us For Availability

9

Liner, Brlr Door WPL 3195739 Contact Us For Availability

9

Shield, Heat WPL 8053910 Contact Us For Availability

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Clip, Cooktop (2) WPL 3195813 Contact Us For Availability

Screw, Handle (2) WPL 3196426 Contact Us For Availability

Cover, Lower WPL 8273132 Contact Us For Availability

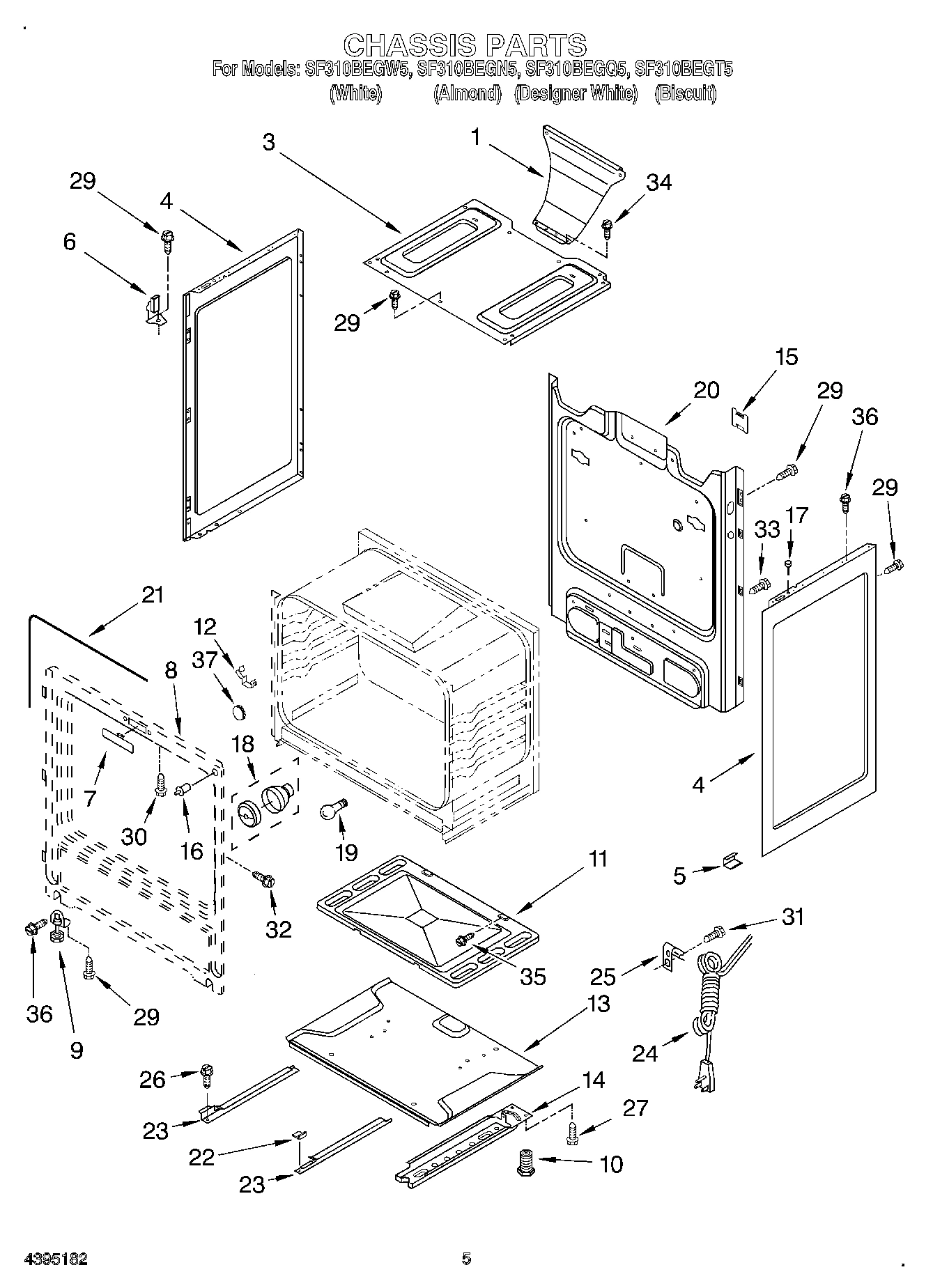

11

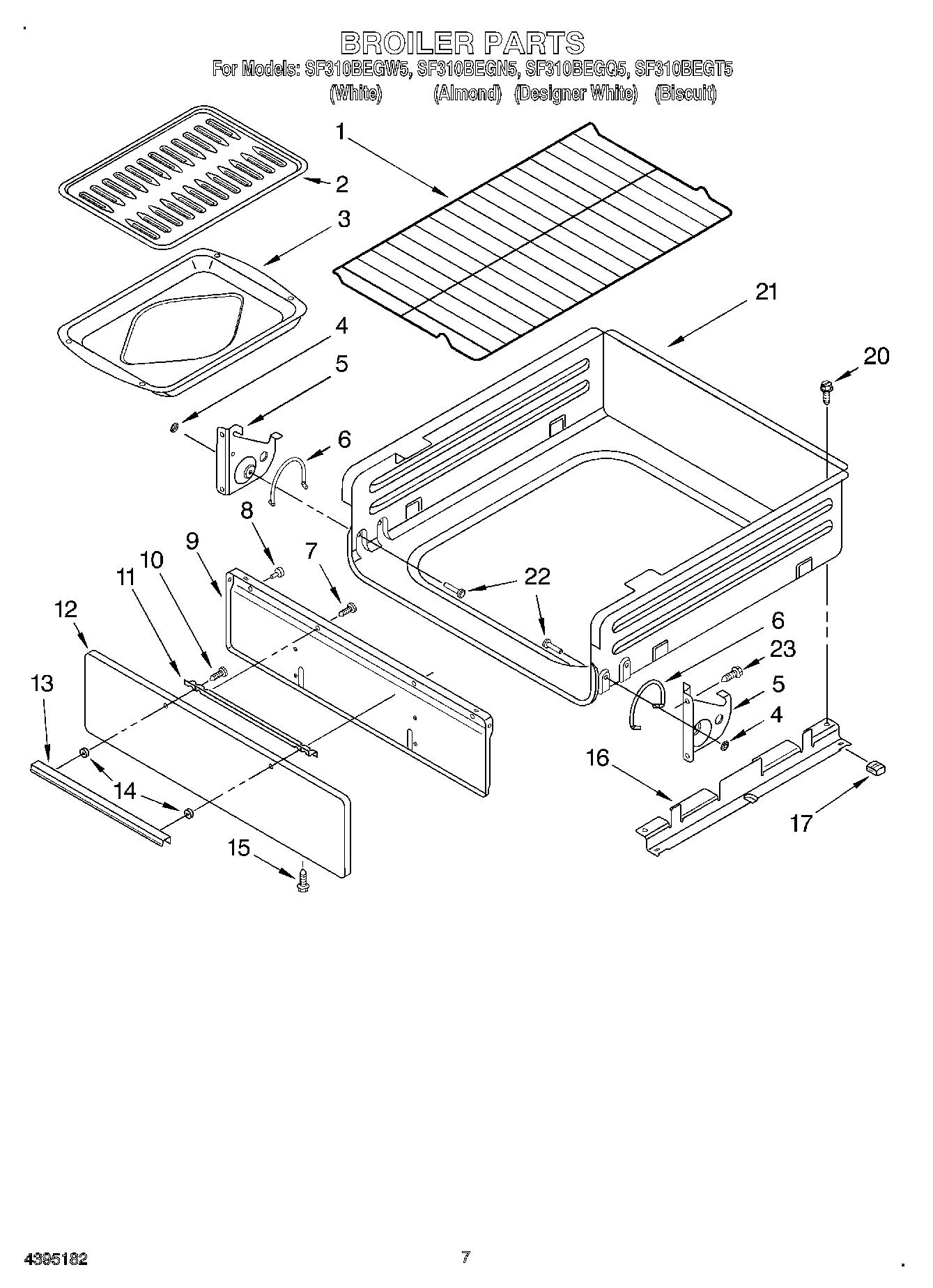

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

11

Thermostat WPL 3195211 Contact Us For Availability

11

Bracket, Standoff WPL 3195551 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

Spreader, Flame WPL 8053970 Contact Us For Availability

Panel, Door (White) WPL 3186087 Contact Us For Availability

Panel, Door (Almond) WPL 3195096 Contact Us For Availability

Panel, Door (Biscuit) WPL 8273504 Contact Us For Availability

Baffle, Base WPL 3186056 Contact Us For Availability

Handle, Brlr Door (Black) WPL 3186090 Contact Us For Availability

Handle, Brlr Door (White) WPL 3195189 Contact Us For Availability

Handle, Brlr Door (Biscuit) WPL 8273505 Contact Us For Availability

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

Spacer, Handle (2) WPL 3196645 Contact Us For Availability

Burner, Bake/Broil WPL 3186476 Contact Us For Availability

15

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

15

Valve, Gas Combo WPL 3195008 Contact Us For Availability

15

Button, Plug WPL 8054083 Contact Us For Availability

WP3186491 Whirlpool Oven Igniter Backorder WPL WP3186491 $87.06

Switch, Door WPL 310345 Contact Us For Availability

Knob, Thermostat (White) WPL 3196065 Contact Us For Availability

Guide, Upper (2) WPL 3195733 Contact Us For Availability

Knob, Thermostat (Black) WPL 3196064 Contact Us For Availability

Knob, Thermostat (Biscuit) WPL 8273796 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

Guide, Broiler (2) WPL 3195730 Contact Us For Availability

18

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

19

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $32.90

WP8273066 Whirlpool Orifice Backorder WPL WP8273066 $32.98

WP8273067 Whirlpool Orifice In Stock WPL WP8273067 $32.98

Spuds, LP Gas (Kit of 4) WPL 8273175 Contact Us For Availability

Back, Main WPL 8272921 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Carriage, Broiler WPL 3186079 Contact Us For Availability

22

Guide, Front (2) WPL 3195994 Contact Us For Availability

22

Pin, Pivot (2) WPL 3186097 Contact Us For Availability

23

Plate, Guide (Right Hand) WPL 3195731 Contact Us For Availability

23

Plate, Guide (Left Hand) WPL 3195732 Contact Us For Availability

24

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

25

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

26

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

31

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

32

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

33

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

34

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

35

Screw WPL 3196152 Contact Us For Availability

36

Screw WPL 3196179 Contact Us For Availability

37

W11688737 Whirlpool Insulation Backorder WPL W11688737 $45.31

37

Tie, Insulation WPL 3195927 Contact Us For Availability

37

Button, Plug WPL 3196440 Contact Us For Availability
