Model Whirlpool SF302BSEN0 GAS RANGE – Common Parts & Diagrams

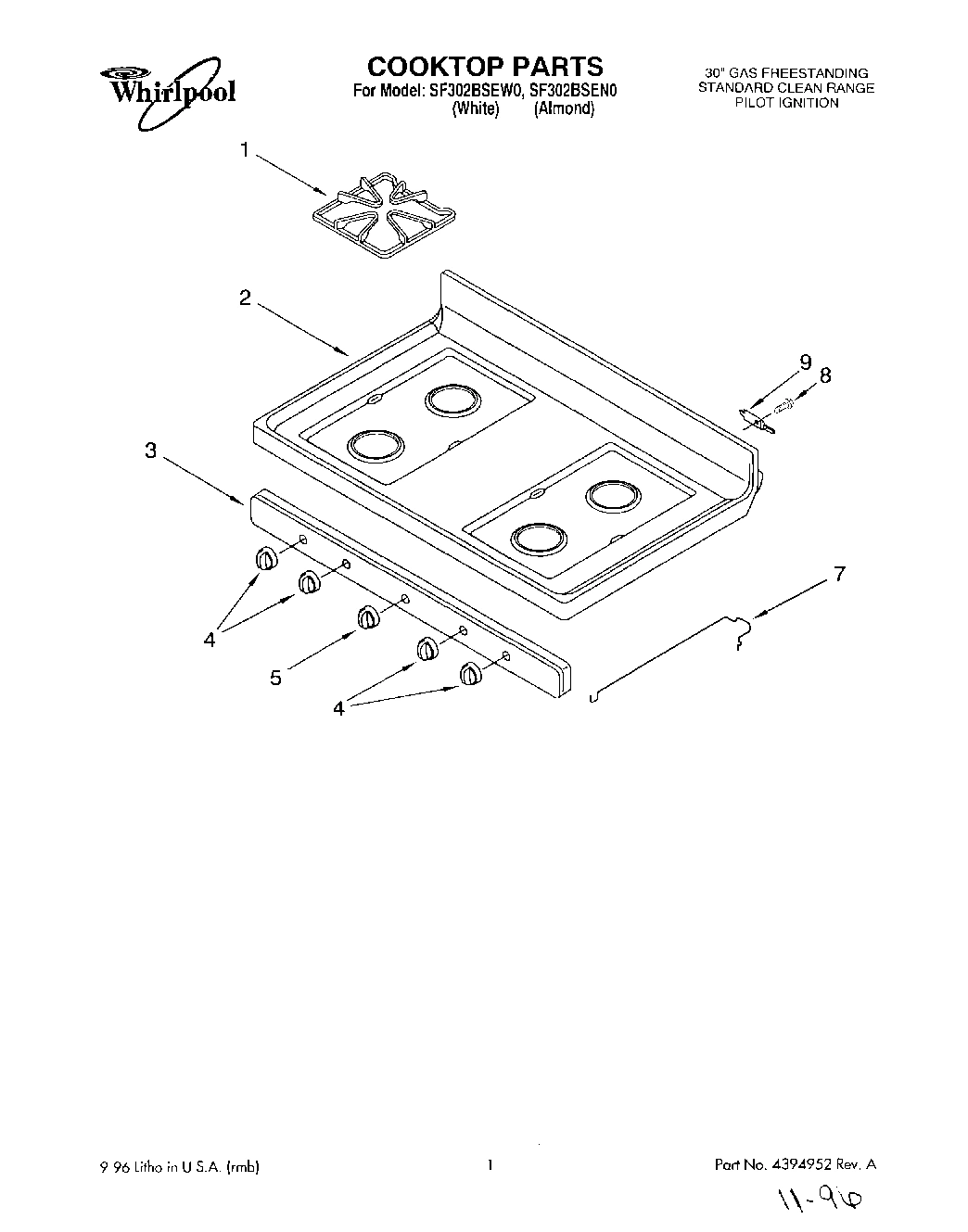

01 - COOKTOP

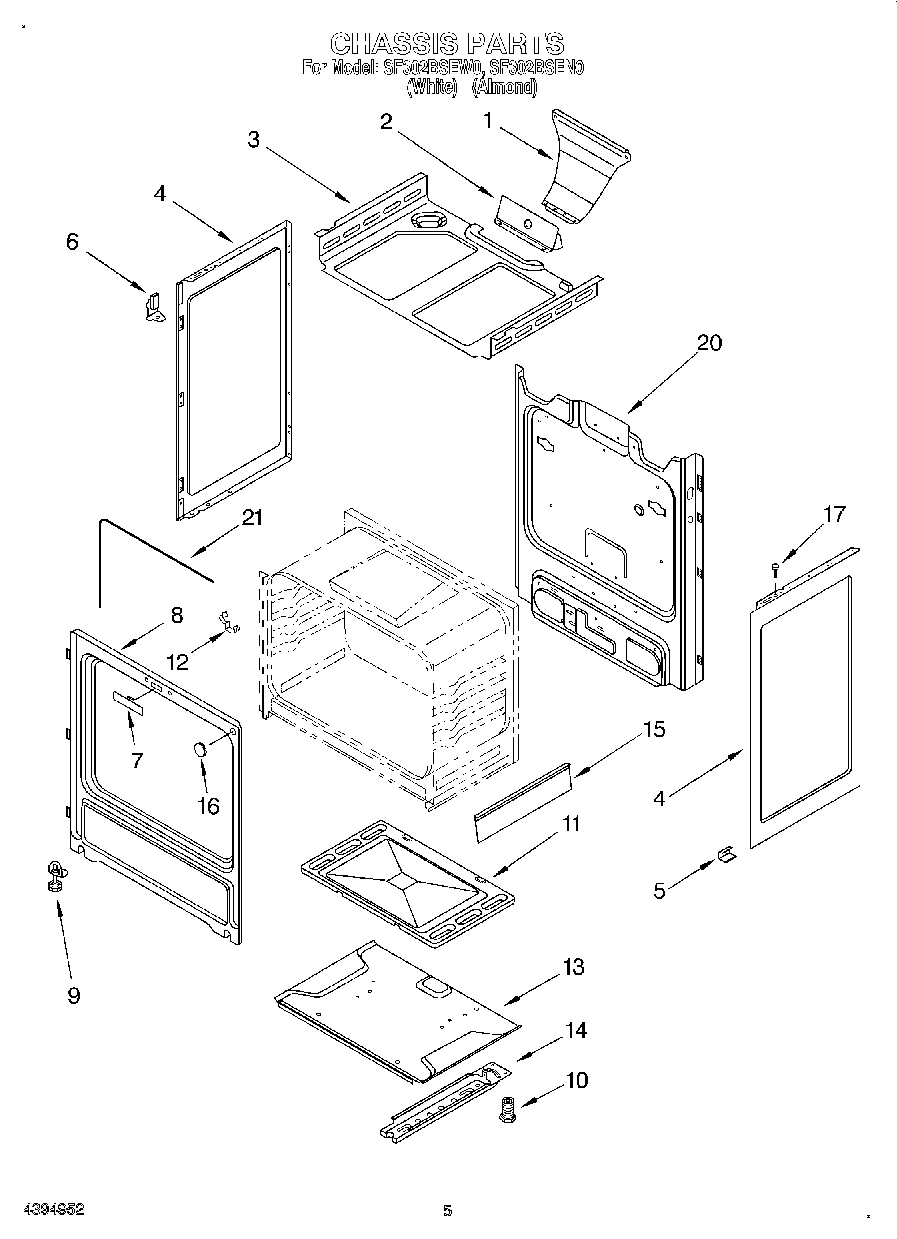

04 - CHASSIS
06 - DOOR, LIT/OPTIONAL
03 - MANIFOLD
05 - OVEN & BROILER
02 - BACKGUARD
Common parts from model Whirlpool SF302BSEN0 GAS RANGE
WPL LIT3195945 WPL LIT3195945 Contact Us For Availability
WPL LIT3196285 WPL LIT3196285 Contact Us For Availability
WPL LIT3196327 WPL LIT3196327 Contact Us For Availability
1
Burner (Left Rear) WPL 3186213 Contact Us For Availability
1
Trim, Top WPL 3195605 Contact Us For Availability
1
Endcap (Left Hand) WPL 3186188 Contact Us For Availability
1
Endcap (Right Hand) WPL 3186189 Contact Us For Availability
2
Burner, Left Front WPL 3186209 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
3
Burner (Right Front) WPL 3186214 Contact Us For Availability
3
Panel, Backguard WPL 3195768 Contact Us For Availability
4
Knob, Burner (4) WPL 3186134 Contact Us For Availability
4
Liner, Door WPL 3186294 Contact Us For Availability
4
Burner (Right Rear) WPL 3186215 Contact Us For Availability
4
Bracket, Rear WPL 3196000 Contact Us For Availability
5
Insulation, Door WPL 3186253 Contact Us For Availability
5
Panel, Guide (2) WPL 3195091 Contact Us For Availability
6
Hinge, Door (2) WPL 3196074 Contact Us For Availability
6
Regulator WPL 3195006 Contact Us For Availability
6
Shield, Heat WPL 3186187 Contact Us For Availability
7
Screw (4) WPL 4449746 Contact Us For Availability
7
Support, Burner WPL 3186207 Contact Us For Availability
7
Bumper, Door (2) WPL 3148182 Contact Us For Availability
8
Glass, Door WPL 3195610 Contact Us For Availability
8
Spreader, Flame WPL 3196084 Contact Us For Availability
8
Screw (2) WPL 3196179 Contact Us For Availability
9
Liner, Door WPL 3186089 Contact Us For Availability
10
Burner, Oven WPL 3196386 Contact Us For Availability
10
Screw, Handle (2) WPL 3196426 Contact Us For Availability
11
Screw (2) WPL 3196152 Contact Us For Availability
11
Clip, Glass (6) WPL 3196025 Contact Us For Availability
11
Bracket, Standoff WPL 3195551 Contact Us For Availability
12
Panel, Door (White) WPL 3186087 Contact Us For Availability
12
Panel, Door (Almond) WPL 3195096 Contact Us For Availability
13
Valve, Oven WPL 3186499 Contact Us For Availability
13
Handle, Brlr Door WPL 3186090 Contact Us For Availability
14
Plug, Door WPL 3196071 Contact Us For Availability
14
Screw (2) WPL 3196538 Contact Us For Availability
14
Spacer, Handle WPL 3196645 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
Coffee WPL 261886 Contact Us For Availability
15
New Avocado WPL 261888 Contact Us For Availability
15
Harvest Gold WPL 261890 Contact Us For Availability
15
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
15
Toast WPL 285365 Contact Us For Availability
15
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
15
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
15
Platinum (Uncut) WPL 285368 Contact Us For Availability
15
LP Conversion Kit (Natural Gas To L.P. Gas) WPL 3196471 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 72112 WPL 72112 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 978883 WPL 978883 Contact Us For Availability
15
Valve, Burner (4) WPL 3186218 Contact Us For Availability
15
Hinge, Brlr Door (Right Hand) WPL 3196713 Contact Us For Availability
15
Hinge, Brlr Door (Left Hand) WPL 3196714 Contact Us For Availability
17
Pipe, Manifold WPL 3186219 Contact Us For Availability
19
Thermostat WPL 3186126 Contact Us For Availability
19
Spring, Broiler (Thinner) (2 Oz.) WPL 3196234 Contact Us For Availability
20
Screw (2) WPL 3186216 Contact Us For Availability
21
Pilot, Oven WPL 3196270 Contact Us For Availability
22
Tubing (T-Stat to Oven Pilot) WPL 3195003 Contact Us For Availability
23
Tubing (T-Stat to Oven Valve) WPL 3195004 Contact Us For Availability
24
Tubing, Pilot WPL 3195001 Contact Us For Availability
25
Cover, Pilot (2) WPL 3195002 Contact Us For Availability
× ![]()
