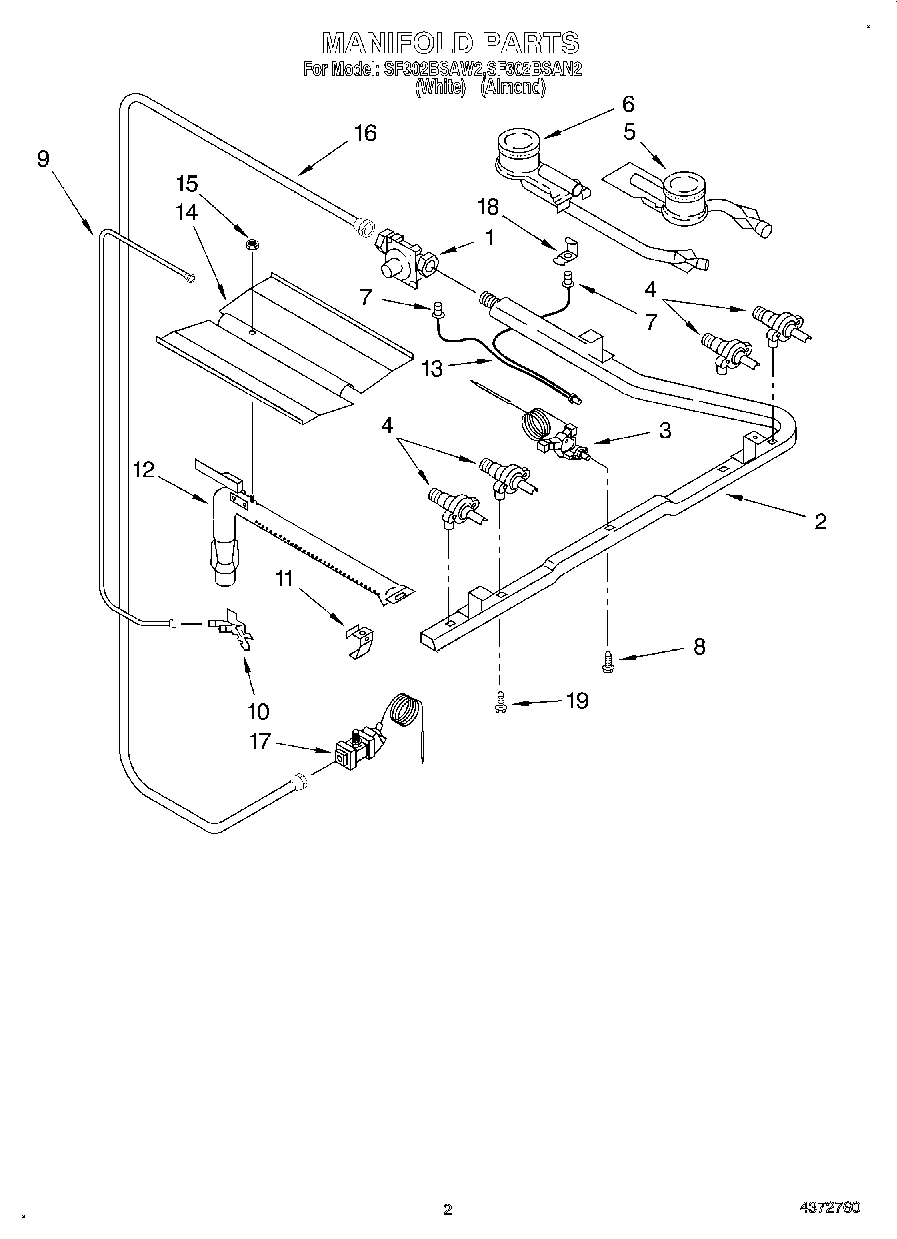

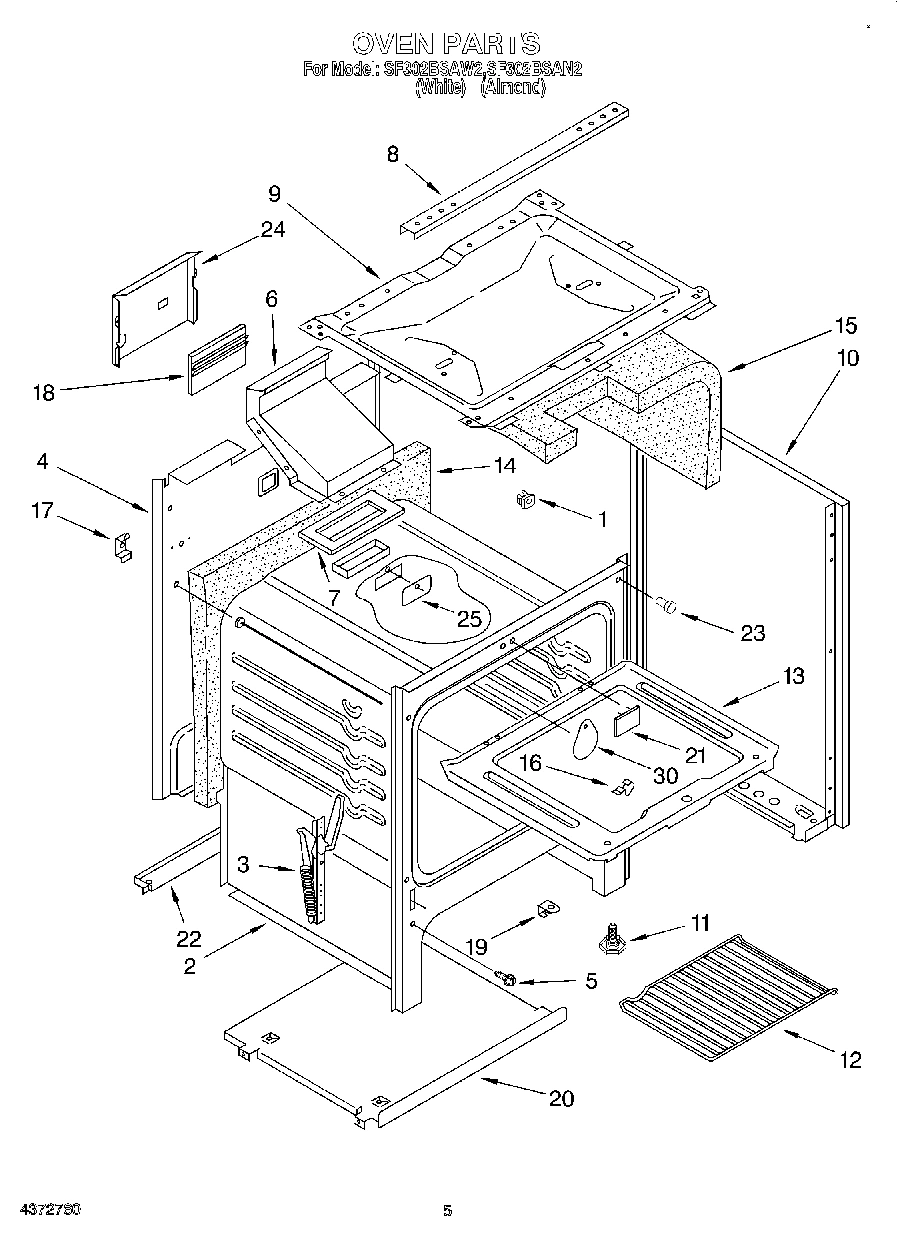

Model Whirlpool SF302BSAW2 GAS RANGE – Common Parts & Diagrams

Installation Instructions
Installation Instructions WPL LIT4371893 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT4371945 Contact Us For Availability
View on Model
1
Trim, Oven Door
Trim, Oven Door WPL 816688 Contact Us For Availability
View on Model
1
Panel, Control
Panel, Control WPL 4371551 Contact Us For Availability
View on Model
1
Regulator, Pressure
Regulator, Pressure WPL 4371093 Contact Us For Availability
View on Model
1
Spacer, B/S (8)
Spacer, B/S (8) WPL 816669 Contact Us For Availability
View on Model
2
Handle, Door
Handle, Door WPL 4371086 Contact Us For Availability
View on Model
2
Knob, Thermostat
Knob, Thermostat WPL 4372118 Contact Us For Availability
View on Model
2
Pipe, Manifold
Pipe, Manifold WPL 4371094 Contact Us For Availability
View on Model
2
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI129424A Contact Us For Availability
View on Model
3
Endcap (2)
Endcap (2) WPL 4371074 Contact Us For Availability
View on Model
3
Knob, Burner (4)
Knob, Burner (4) WPL 4371476 Contact Us For Availability
View on Model
3
Thermostat (Includes Illus.8)
Thermostat (Includes Illus.8) WPL 4372114 Contact Us For Availability
View on Model
3
Channel, Door Hinge
Channel, Door Hinge WPL 4371087 Contact Us For Availability
View on Model
4
Glass, Door Blk
Glass, Door Blk WPL 4372756 Contact Us For Availability
View on Model
4
Top, Main (White)
Top, Main (White) WPL 4371479 Contact Us For Availability
View on Model
4
Top, Main (Almond)
Top, Main (Almond) WPL 4371484 Contact Us For Availability
View on Model
4
Valve, 2 pos (4) (Includes Illus19)
Valve, 2 pos (4) (Includes Illus19) WPL 4371297 Contact Us For Availability
View on Model
4
Back, Main
Back, Main WPL 816581 Contact Us For Availability
View on Model
5
Shield, Heat
Shield, Heat WPL 4372757 Contact Us For Availability
View on Model
5
Rod, Support
Rod, Support WPL 4371039 Contact Us For Availability
View on Model
5
Burner, Front (2)
Burner, Front (2) WPL 4371480 Contact Us For Availability
View on Model
5
Screw, Oven Bottom
Screw, Oven Bottom WPL 816651 Contact Us For Availability
View on Model
6
Insulation
Insulation WPL 4371126 Contact Us For Availability
View on Model
6
Bracket, Top LH
Bracket, Top LH WPL 816586 Contact Us For Availability
View on Model
6
Burner, Rear (2)
Burner, Rear (2) WPL 4371481 Contact Us For Availability
View on Model
6
Flue
Flue WPL 4371083 Contact Us For Availability
View on Model
7
Liner, Oven Door
Liner, Oven Door WPL 4372740 Contact Us For Availability
View on Model
7
Bracket, Top RH
Bracket, Top RH WPL 816721 Contact Us For Availability
View on Model
7
Cap, Pilot (2)
Cap, Pilot (2) WPL 4371075 Contact Us For Availability
View on Model
7
Gasket, Flue
Gasket, Flue WPL 816620 Contact Us For Availability
View on Model
8
Screw, Handle (2)
Screw, Handle (2) WPL 4371100 Contact Us For Availability
View on Model
8
Grate, Burner (4)
Grate, Burner (4) WPL 4372755 Contact Us For Availability
View on Model
8
Screw, Thermostat
Screw, Thermostat WPL 4371095 Contact Us For Availability
View on Model
8
Support, Burner
Support, Burner WPL 4371076 Contact Us For Availability
View on Model
9
Seal, Door
Seal, Door WPL 4371128 Contact Us For Availability
View on Model
9
Bolt, Backguard (2)
Bolt, Backguard (2) WPL 4372129 Contact Us For Availability
View on Model
9
Tubing, Thermostat
Tubing, Thermostat WPL 4371103 Contact Us For Availability
View on Model
9
Burner, Box
Burner, Box WPL 4371073 Contact Us For Availability
View on Model
10
Wingnut (2)
Wingnut (2) WPL 4372130 Contact Us For Availability
View on Model
10
Pilot, Oven
Pilot, Oven WPL 4371098 Contact Us For Availability
View on Model
10
Panel B/S (Almond RH)
Panel B/S (Almond RH) WPL 816672 Contact Us For Availability
View on Model
10
Panel B/S (Almond LH)
Panel B/S (Almond LH) WPL 816695 Contact Us For Availability
View on Model
10
Panel B/S (White RH)
Panel B/S (White RH) WPL 816708 Contact Us For Availability
View on Model
10
Panel B/S (White LH)
Panel B/S (White LH) WPL 816709 Contact Us For Availability
View on Model
11
Bracket, Hinge (L.H.)
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
View on Model
11
Bracket, Hinge (R.H.)
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
View on Model
11
Cover, Vent
Cover, Vent WPL 4371079 Contact Us For Availability
View on Model
11
Bracket, Burner
Bracket, Burner WPL 4371069 Contact Us For Availability
View on Model
11
Screw, Leveler (4)
Screw, Leveler (4) WPL 816650 Contact Us For Availability
View on Model
12
Fastener, Push Nut
Fastener, Push Nut WPL 4371117 Contact Us For Availability
View on Model
12
Burner, Oven
Burner, Oven WPL 4371070 Contact Us For Availability
View on Model
12
Rack, Oven (2)
Rack, Oven (2) WPL 4371483 Contact Us For Availability
View on Model
13
Body, Broiler
Body, Broiler WPL 4371116 Contact Us For Availability
View on Model
13
Tubing, Pilot
Tubing, Pilot WPL 4371104 Contact Us For Availability
View on Model
13
Bottom, Oven
Bottom, Oven WPL 4371018 Contact Us For Availability
View on Model
14
Pin, Hinge
Pin, Hinge WPL 4371121 Contact Us For Availability
View on Model
14
Panel, Glass Splash
Panel, Glass Splash WPL 4372128 Contact Us For Availability
View on Model
14
Baffle, Oven Burner
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
View on Model
14
Insulation, Back
Insulation, Back WPL 4371092 Contact Us For Availability
View on Model
15
Spring, Broiler (L.H.)
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
View on Model
15
Spring, Broiler (R.H.)
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
View on Model
15
Nut
Nut WPL 816642 Contact Us For Availability
View on Model
16
Liner, Broiler Door
Liner, Broiler Door WPL 4371120 Contact Us For Availability
View on Model
16
Tubing, Valve
Tubing, Valve WPL 4371105 Contact Us For Availability
View on Model
16
Clip, Thermo Bulb
Clip, Thermo Bulb WPL 4371741 Contact Us For Availability
View on Model
17
Panel, Drawer
Panel, Drawer WPL 816715 Contact Us For Availability
View on Model
17
Trim, Wrapper
Trim, Wrapper WPL 4372127 Contact Us For Availability
View on Model
17
Valve, Safety
Valve, Safety WPL 4371106 Contact Us For Availability
View on Model
17
Fastener, U Type
Fastener, U Type WPL 4371033 Contact Us For Availability
View on Model
18
Handle
Handle WPL 4371118 Contact Us For Availability
View on Model
18
Trim, Splash Panel (White)
Trim, Splash Panel (White) WPL 4372124 Contact Us For Availability
View on Model
18
Trim, Splash Panel (Almond)
Trim, Splash Panel (Almond) WPL 4372125 Contact Us For Availability
View on Model
18
Shield, Pilot
Shield, Pilot WPL 4371101 Contact Us For Availability
View on Model
18
Cover, Flue
Cover, Flue WPL 4371082 Contact Us For Availability
View on Model
19
Fastener, Spacer
Fastener, Spacer WPL 816713 Contact Us For Availability
View on Model
19
Support, Oven
Support, Oven WPL 816670 Contact Us For Availability
View on Model
20
Glide, Drawer
Glide, Drawer WPL 4371084 Contact Us For Availability
View on Model
20
Base, Broiler
Base, Broiler WPL 4371068 Contact Us For Availability
View on Model
21
Grid, Broiler
Grid, Broiler WPL 816626 Contact Us For Availability
View on Model
21
Bracket, Backguard
Bracket, Backguard WPL 4372131 Contact Us For Availability
View on Model
21
Cover, Front
Cover, Front WPL 4371081 Contact Us For Availability
View on Model
22
Pan, Broiler
Pan, Broiler WPL 816644 Contact Us For Availability
View on Model
22
Support, Back (2)
Support, Back (2) WPL 816702 Contact Us For Availability
View on Model
22
Bracket, Anti-Tip
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
View on Model
23
Insulation
Insulation WPL 4371119 Contact Us For Availability
View on Model
23
Bumper, Front (2)
Bumper, Front (2) WPL 816608 Contact Us For Availability
View on Model
24
Screw (2)
Screw (2) WPL 4371063 Contact Us For Availability
View on Model
24
Shield, Flue
Shield, Flue WPL 4371102 Contact Us For Availability
View on Model
25
Track, Upper (2)
Track, Upper (2) WPL 4371077 Contact Us For Availability
View on Model
25
Plate, Cover
Plate, Cover WPL 4371080 Contact Us For Availability
View on Model
26
Button, Glide
Button, Glide WPL 4371115 Contact Us For Availability
View on Model
27
Sheild, Door Top
Sheild, Door Top WPL 4372752 Contact Us For Availability
View on Model
30
Cover, Oven Light
Cover, Oven Light WPL 4371099 Contact Us For Availability
View on Model
