Model Whirlpool SF302BEWN1 GAS RANGE – Common Parts & Diagrams
02 - EXTERNAL OVEN
06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

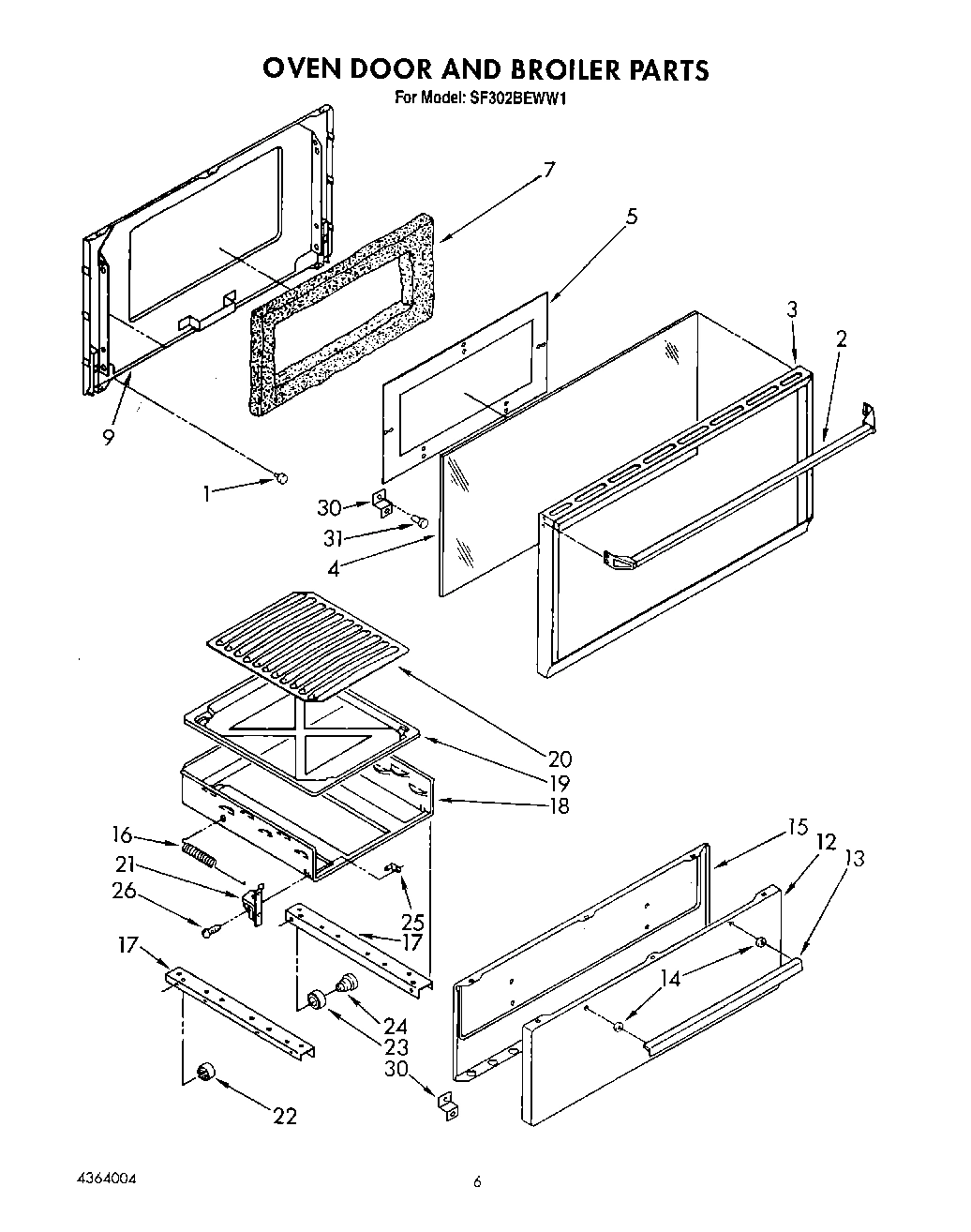

05 - OVEN DOOR AND BROILER

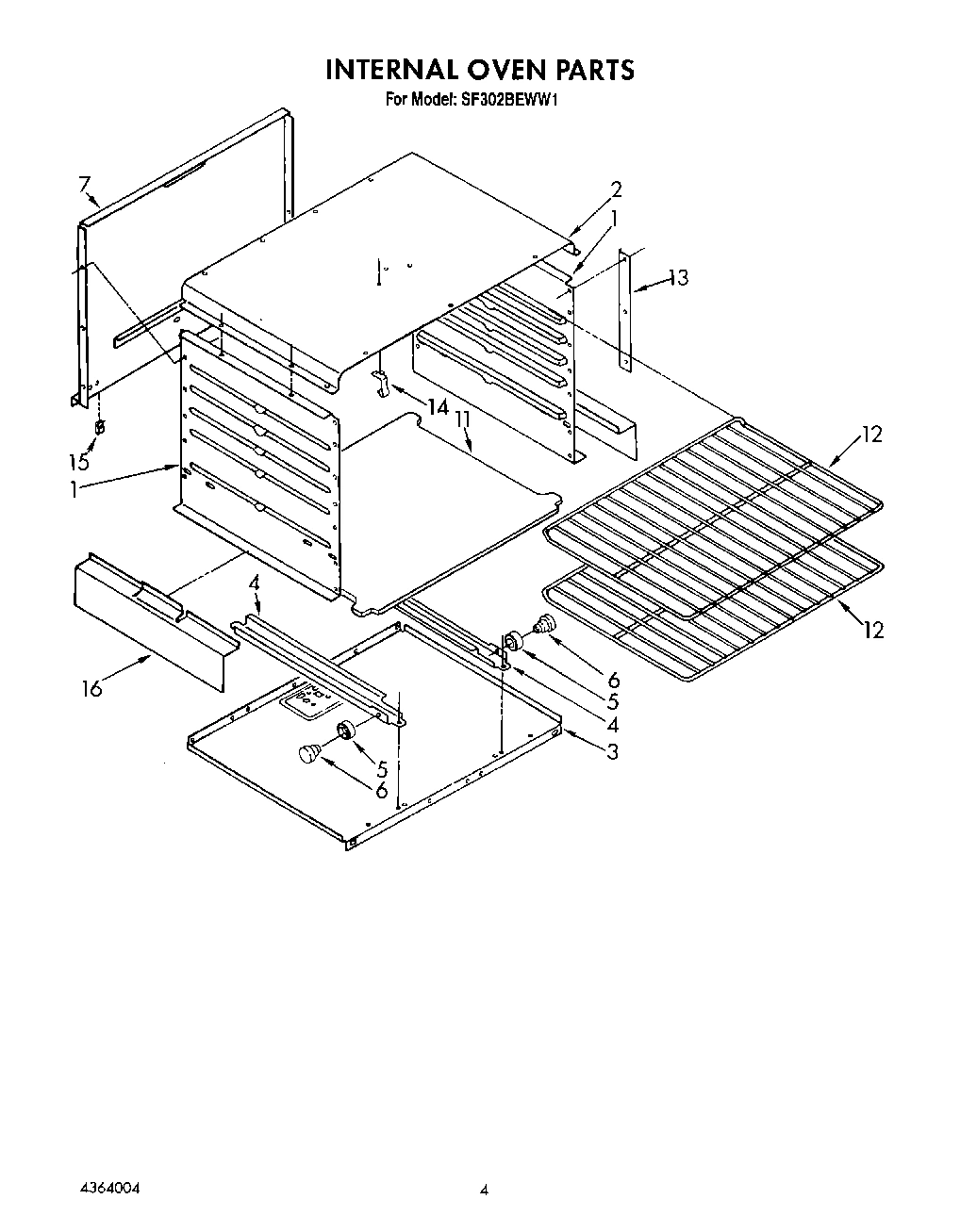

03 - INTERNAL OVEN

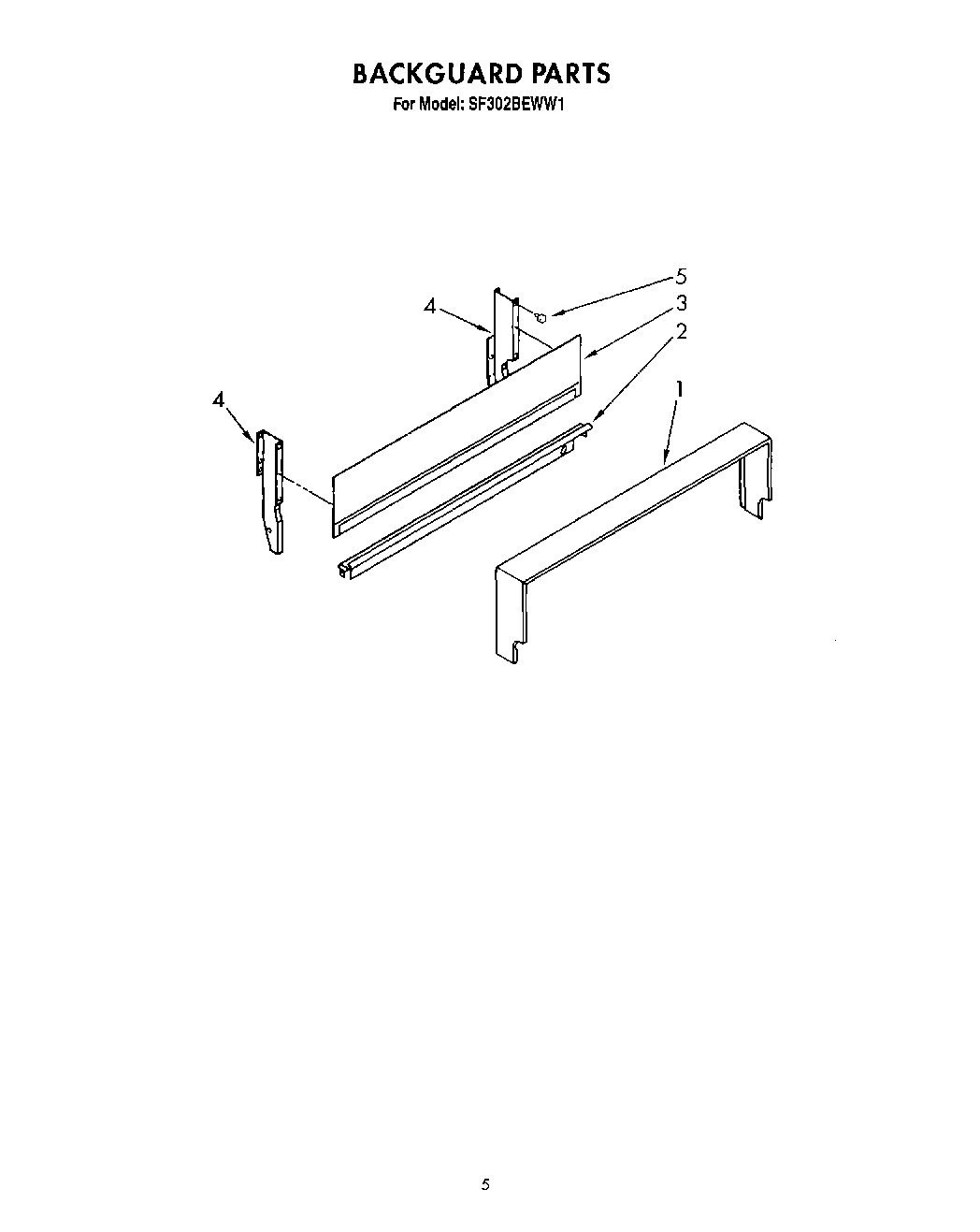

04 - BACKGUARD
Common parts from model Whirlpool SF302BEWN1 GAS RANGE
Instuctions, Installation WPL LIT4315709 Contact Us For Availability
Guide, Use & Care WPL LIT4320883 Contact Us For Availability
List, Repair Parts WPL LIT4364004 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Frame WPL 4320574 Contact Us For Availability
2
Screw, 10-12 x 1/2 (4) WPL 4320575 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Bottom, Backguard WPL 4364003 Contact Us For Availability
3
Wire Tie WPL 4315736 Contact Us For Availability
3
Frame, Door WPL 4320578 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Glass WPL 4320576 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 8-18 x 1/2 (4) WPL 4315330 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4320577 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Glass WPL 4320405 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4364001 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4364002 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Ring, Hold Down WPL 4320352 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Pin, Roller (2) WPL 4363050 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Speed Clip (2) WPL 4157115 Contact Us For Availability
7
Liner, Oven Back WPL 4320561 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Liner, Door WPL 4320562 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
13
Seal, Door (2) WPL 4320463 Contact Us For Availability
13
Regulator, Pressure WPL 4320438 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320579 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Manifold WPL 4320581 Contact Us For Availability
14
Spacer (2) WPL 4314916 Contact Us For Availability
15
locator stud WPL 4315408 Contact Us For Availability
15
screw 6-20 x 1 (2) WPL 4315409 Contact Us For Availability
15
Panel, Manifold WPL 4320582 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 40) WPL 4314814 Contact Us For Availability
16
Shield, Radiation WPL 4157043 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
18
Block, Disconnect WPL 4157220 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
18
Liner, Broiler WPL 4315520 Contact Us For Availability
19
Wire, Tie WPL 4315726 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Knob, Thermostat WPL 4320593 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat WPL 4320594 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4320442 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Ignitor WPL 4320445 Contact Us For Availability
23
Bracket, Ignitor WPL 4320447 Contact Us For Availability
24
Extension Burner Box WPL 4320479 Contact Us For Availability
24
Burner, Oven WPL 4320441 Contact Us For Availability
25
Clamp, Cable WPL 4157221 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Anti-Tip Kit WPL 4315766 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4320595 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Anchor WPL 4321081 Contact Us For Availability
28
Screw WPL 4321082 Contact Us For Availability
29
Bracket WPL 4320650 Contact Us For Availability
30
Bracket, ``Z`` (4) WPL 4320536 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
31
Bumper, Rubber WPL 4320477 Contact Us For Availability
34
Module, Spark WPL 4320446 Contact Us For Availability
35
Ignitor (R.H.) WPL 4320443 Contact Us For Availability
35
Ignitor (L.H.) WPL 4320434 Contact Us For Availability
38
Endcap (L.H.) WPL 4320602 Contact Us For Availability
38
Endcap (R.H.) WPL 4320603 Contact Us For Availability
39
Screw, Thermostat Mounting (2) WPL 4320604 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
44
Valve, Shut Off WPL 4157661 Contact Us For Availability
45
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
45
Flame Spreader WPL 4320440 Contact Us For Availability
× ![]()
