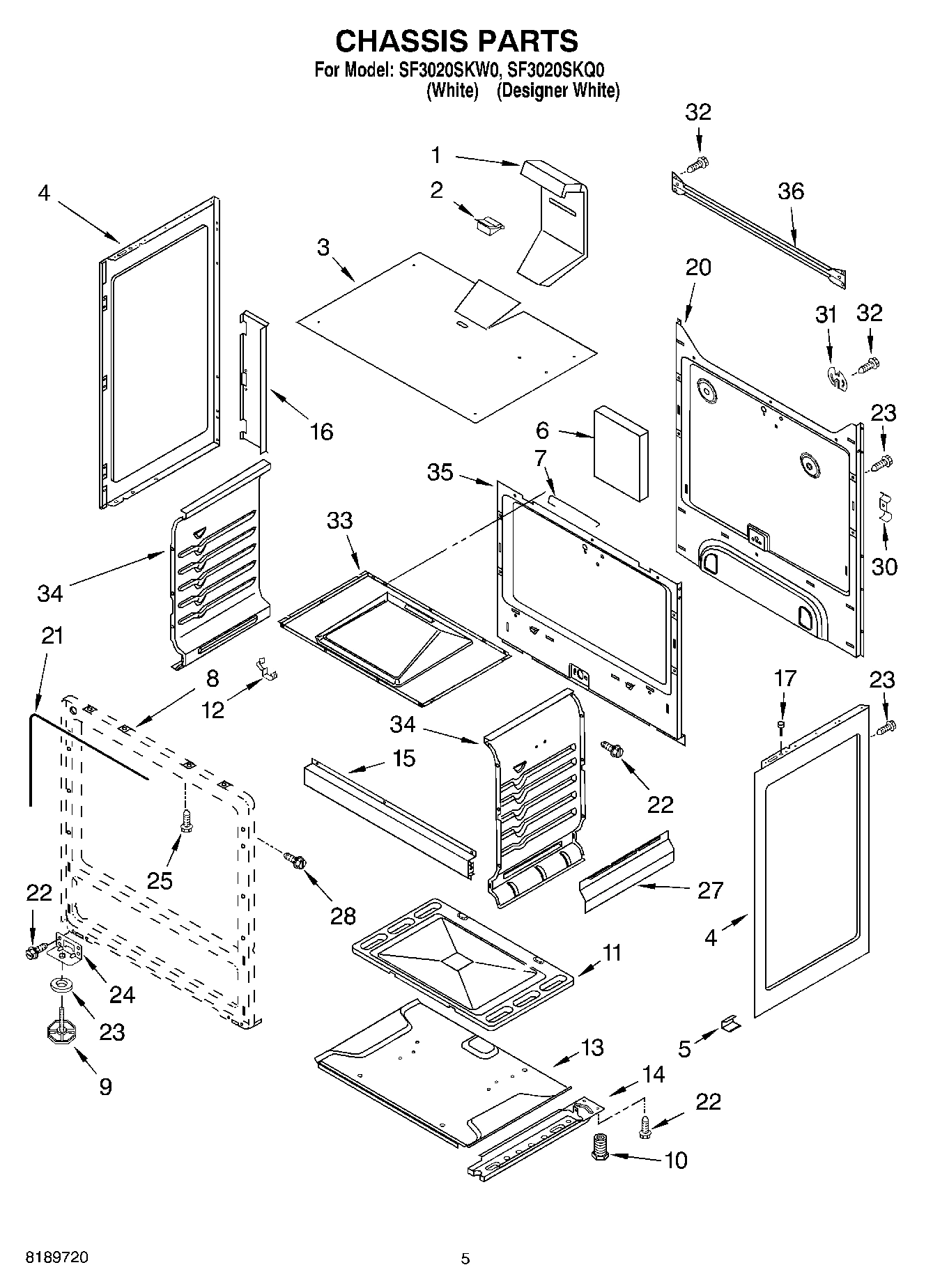

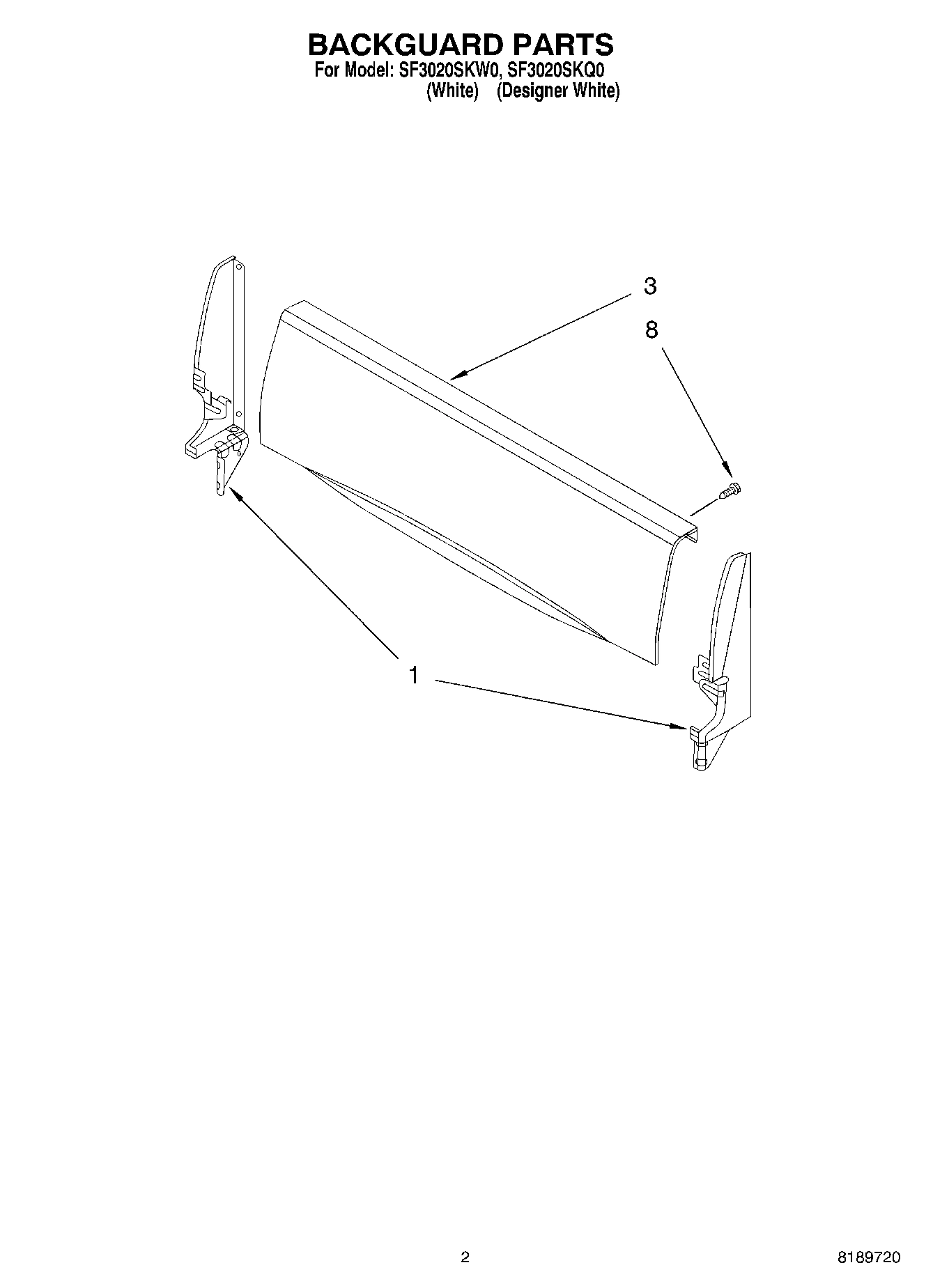

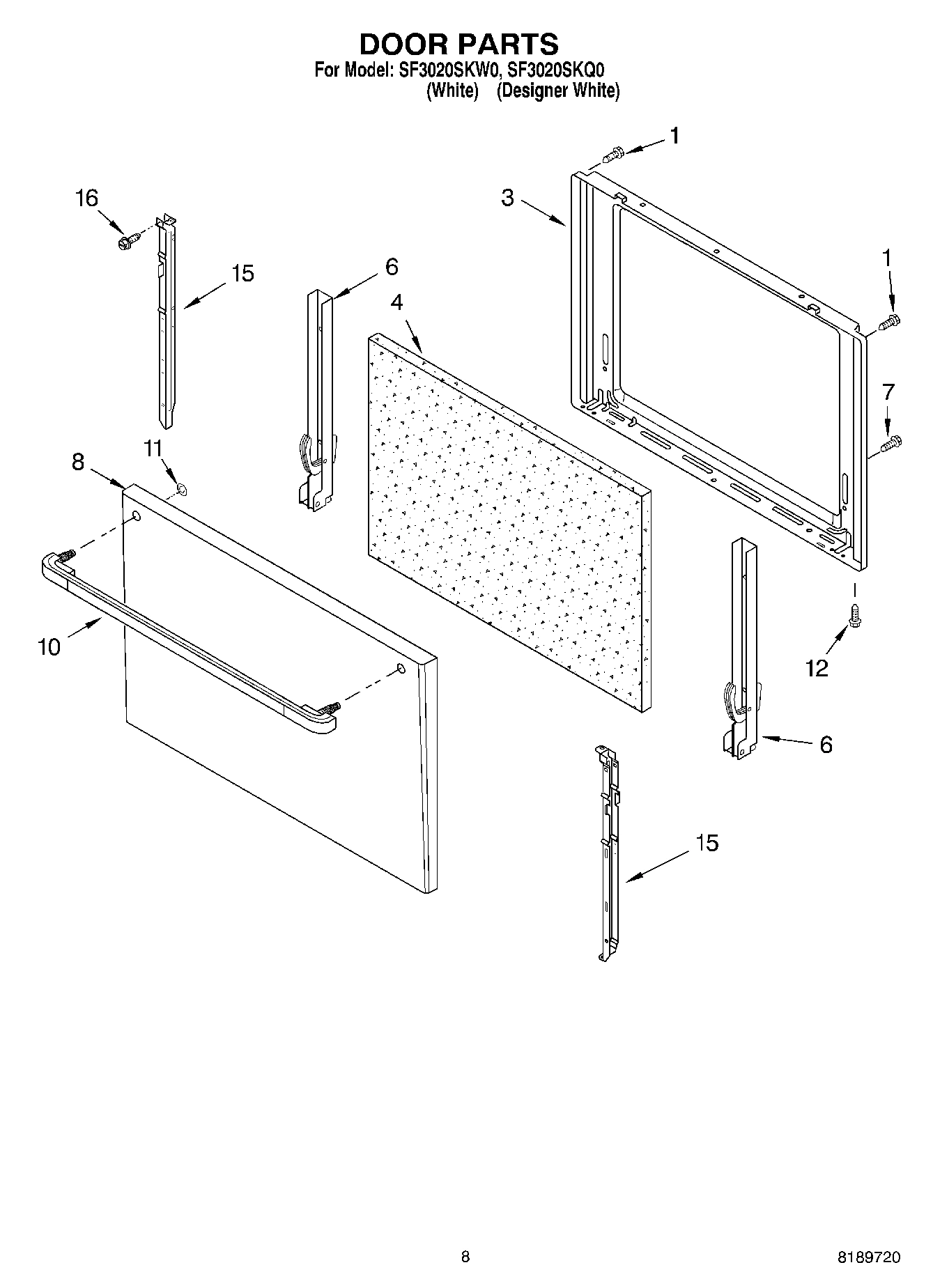

Model Whirlpool SF3020SKW0 GAS RANGE – Common Parts &amp; Diagrams

1

Literature Parts (Instructions Installation) WPL LIT98007134 Contact Us For Availability

1

Burner, Top (4) (Black) WPL 98007369 Contact Us For Availability

1

Burner, Top (4) (Gray) WPL 98013550 Contact Us For Availability

1

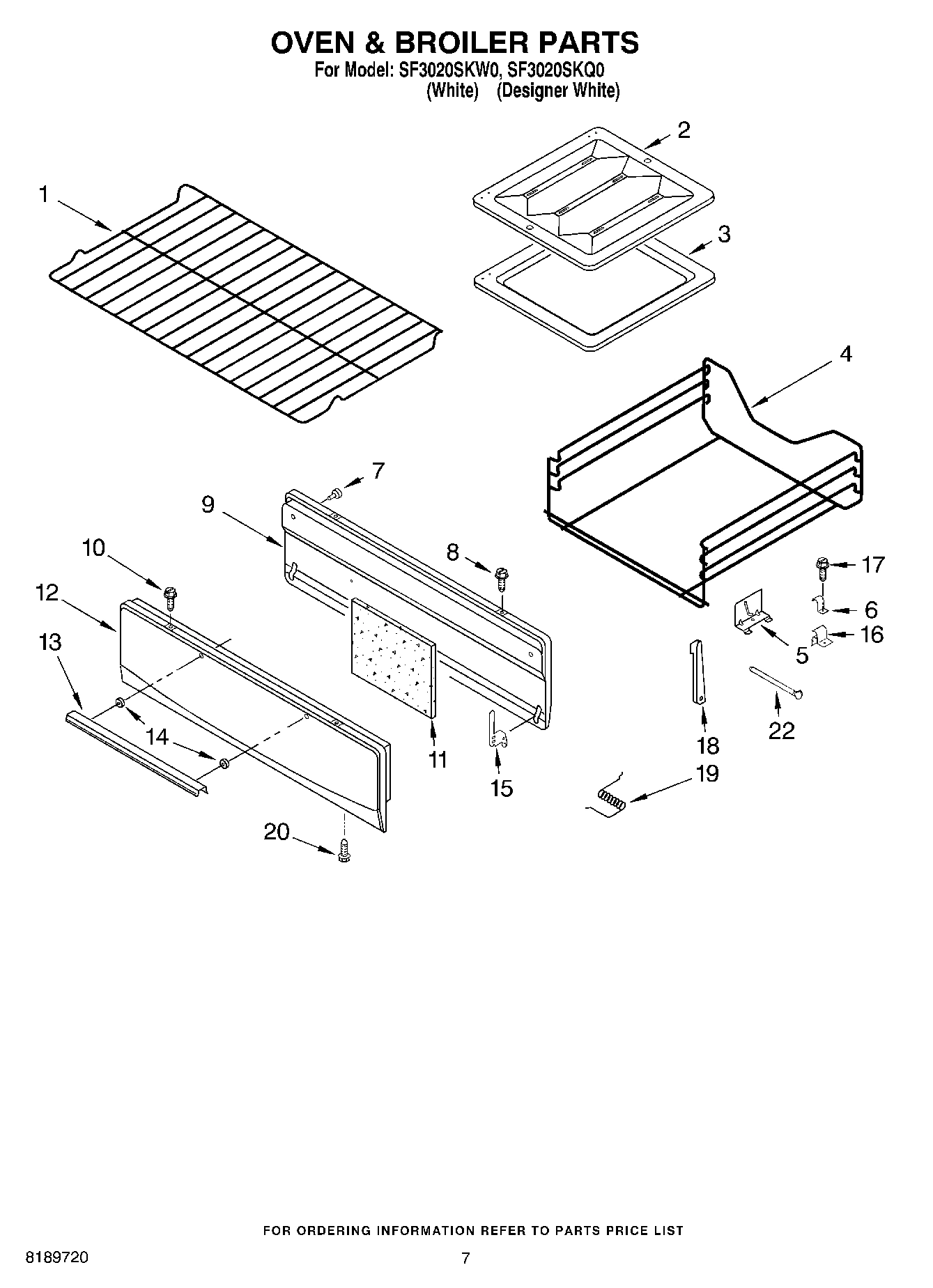

Rack, Oven (2) WPL 98006762 Contact Us For Availability

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

2

WP98003480 Whirlpool Grill Pan Backorder WPL WP98003480 $34.73

2

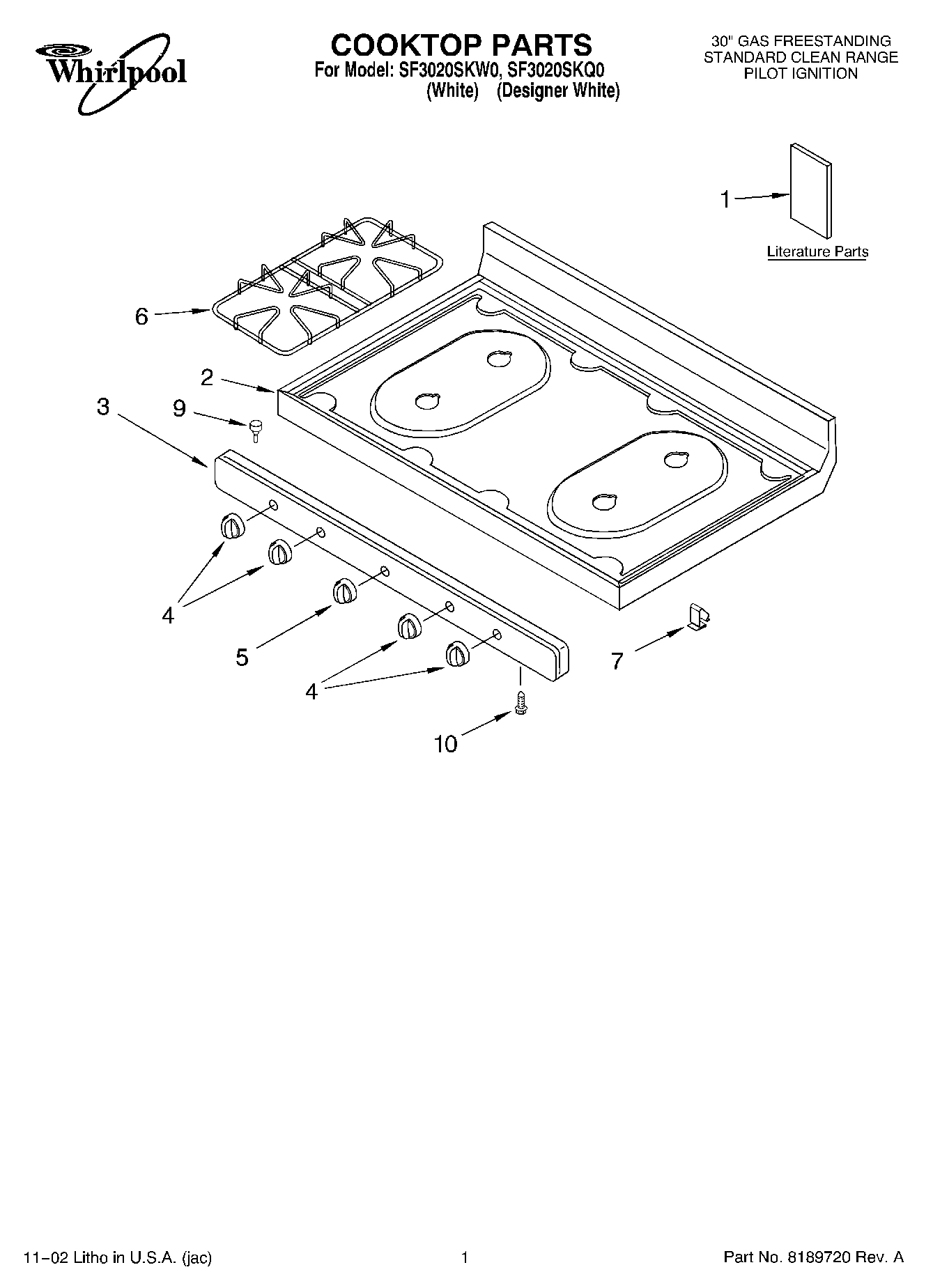

Cooktop (White) WPL 98009707 Contact Us For Availability

2

Venturi, Front (2) WPL 6610259 Contact Us For Availability

3

WP98016005 Whirlpool Broiler Pan Backorder WPL WP98016005 $46.57

3

Brkt., Venturi (4) WPL 98005500 Contact Us For Availability

3

Panel, Manifold (Black) WPL 98009450 Contact Us For Availability

3

Panel, Manifold (White) WPL 98013495 Contact Us For Availability

3

Liner, Door WPL 98010183 Contact Us For Availability

4

WP98006100 Whirlpool Knob In Stock WPL WP98006100 $13.62

4

WP98006102 Whirlpool Knob In Stock WPL WP98006102 $10.25

4

Venturi, Rear (2) WPL 6610260 Contact Us For Availability

4

Rack, Broiler WPL 98006867 Contact Us For Availability

4

Insulation, Door WPL 98006853 Contact Us For Availability

5

Knob, Thermostat (Black) WPL 98006101 Contact Us For Availability

5

Knob, Thermostat (White) WPL 98006103 Contact Us For Availability

5

Tube, Flash (2) WPL 98007237 Contact Us For Availability

5

Bracket, Rack WPL 98004761 Contact Us For Availability

6

8190014 Whirlpool Grate Kit Primary In Stock WPL 8190014 $98.34

6

98004715 Whirlpool Drawer Guide Backorder WPL 98004715 $28.80

6

Hinge, Door (2) WPL 98006897 Contact Us For Availability

6

Regulator WPL 98004418 Contact Us For Availability

7

W11206744 Whirlpool Screw In Stock WPL W11206744 $9.59

7

Clip, Cooktop (2) WPL 98004722 Contact Us For Availability

7

Support, Burner WPL 98005760 Contact Us For Availability

7

Bumper, Door (2) WPL 98004052 Contact Us For Availability

8

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

8

Spreader, Flame WPL 98003849 Contact Us For Availability

8

Panel, Oven Door WPL 98009488 Contact Us For Availability

9

98004723 Whirlpool Oven Bumper Backorder WPL 98004723 $6.33

9

Liner, Door WPL 98004698 Contact Us For Availability

W10819915 Whirlpool Door Handle Backorder WPL W10819915 $79.89

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP98006181 Whirlpool Door Handle Backorder WPL WP98006181 $78.79

Burner, Oven WPL 98004315 Contact Us For Availability

Screw, Handle WPL 98006644 Contact Us For Availability

11

WP98004449 Whirlpool Oven Bottom Backorder WPL WP98004449 $120.42

11

WP98004650 Whirlpool Nut In Stock WPL WP98004650 $3.70

11

Insulation, Door WPL 98004056 Contact Us For Availability

98005514 Whirlpool Oven Nut Backorder WPL 98005514 $9.13

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $2.51

Panel, Door (White) WPL 98009337 Contact Us For Availability

13

98003847 Whirlpool Oven Bottom Baffle Backorder WPL 98003847 $78.46

13

Valve, Oven WPL 98005639 Contact Us For Availability

13

Handle, Brlr Door WPL 98006623 Contact Us For Availability

14

Screw WPL 98005929 Contact Us For Availability

14

Spacer, Handle WPL 98004773 Contact Us For Availability

98004564 Whirlpool Oven Retainer Backorder WPL 98004564 $67.77

98004629 Whirlpool Oven Retainer Backorder WPL 98004629 $67.77

W11499074 Whirlpool Hinge Bracket Backorder WPL W11499074 $13.14

Valve, Burner (4) WPL 98005574 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

98008341 Whirlpool Clip Backorder WPL 98008341 $6.88

98017831 Whirlpool Oven Anchor Tip Backorder WPL 98017831 $5.98

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPW10277003 Whirlpool Screw In Stock WPL WPW10277003 $2.51

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

17

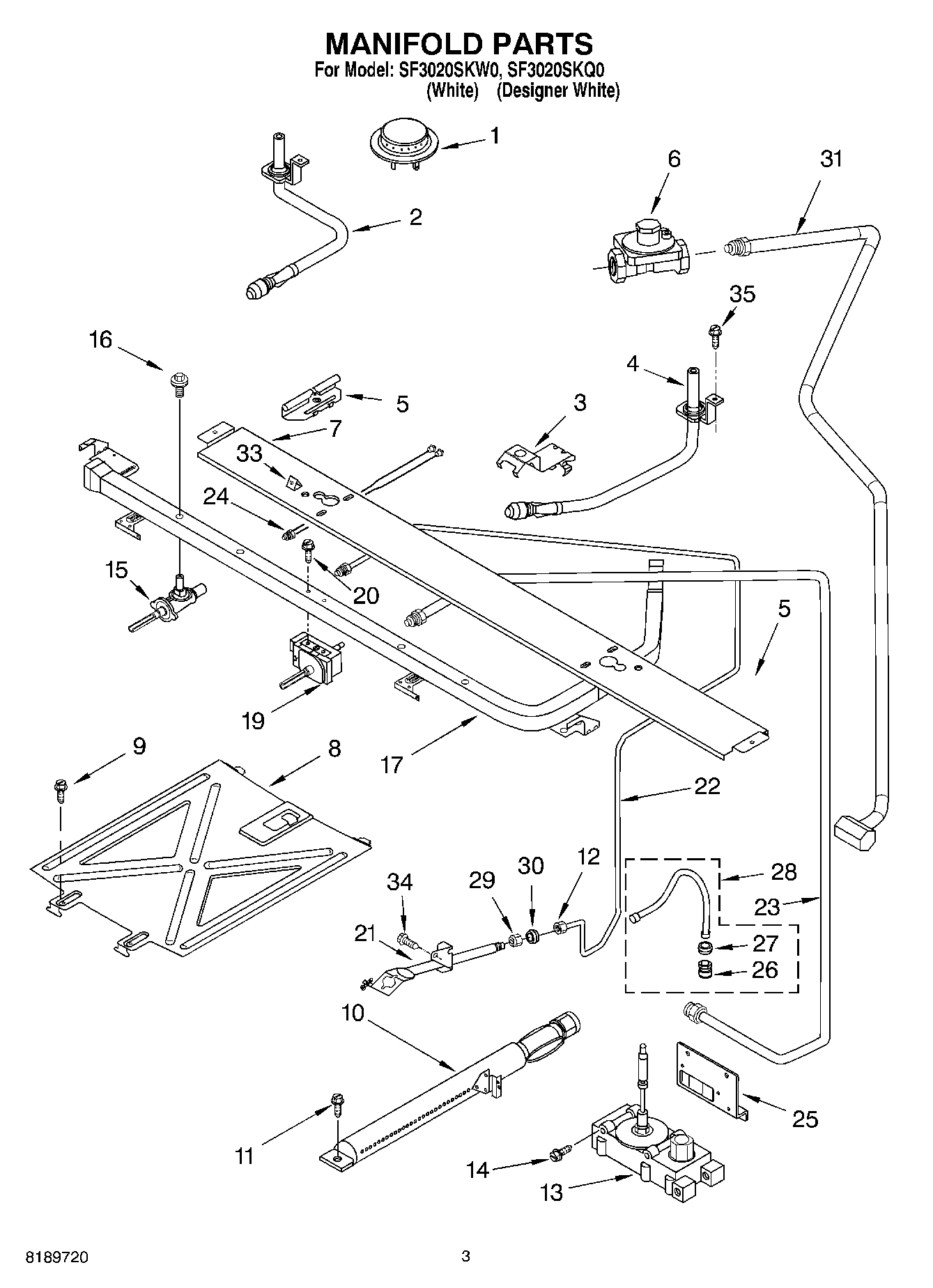

Pipe, Manifold WPL 98010086 Contact Us For Availability

18

Support, Hinge WPL 98003791 Contact Us For Availability

19

Thermostat WPL 98003983 Contact Us For Availability

19

Spring, Broiler (Left Hand) WPL 98008379 Contact Us For Availability

19

Spring, Broiler (Right Hand) WPL 98008380 Contact Us For Availability

20

Bolt, T-Stat Mtg WPL 98005662 Contact Us For Availability

21

Pilot, Oven WPL 98004302 Contact Us For Availability

22

98004053 Whirlpool Oven Hinge Pin Backorder WPL 98004053 $7.78

22

WP98004310 Whirlpool Gas Tubing Backorder WPL WP98004310 $40.88

23

98007193 Whirlpool Oven Washer Backorder WPL 98007193 $7.54

23

Tubing (T-Stat to Oven Valve) WPL 98004309 Contact Us For Availability

24

Tubing, Pilot WPL 98007238 Contact Us For Availability

25

Bracket, Valve WPL 98005708 Contact Us For Availability

26

Nut, Tubing WPL 98005507 Contact Us For Availability

27

Sleeve, Tubing WPL 98007127 Contact Us For Availability

28

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.51

28

Tubing, Oven WPL 98008930 Contact Us For Availability

29

Nut, Fitting WPL 98005562 Contact Us For Availability

30

98005026 Whirlpool Oven Clip Backorder WPL 98005026 $7.54

30

98007116 Whirlpool Oven 3/16" Ball Sleeve Backorder WPL 98007116 $29.76

31

Tubing, Inlet WPL 98008977 Contact Us For Availability

32

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

32

Nut, Loxit WPL 98005927 Contact Us For Availability

33

Cover, Pilot WPL 98007226 Contact Us For Availability

34

Screw WPL 98005658 Contact Us For Availability

35

W10837674 Whirlpool Screw In Stock WPL W10837674 $2.51

35

LP Spud Kit (For Use With LP) WPL 98005978 Contact Us For Availability
