Model Whirlpool SF301BSKN0 GAS RANGE – Common Parts & Diagrams
04 - OVEN DOOR AND BROILER
02 - OVEN , LITERATURE

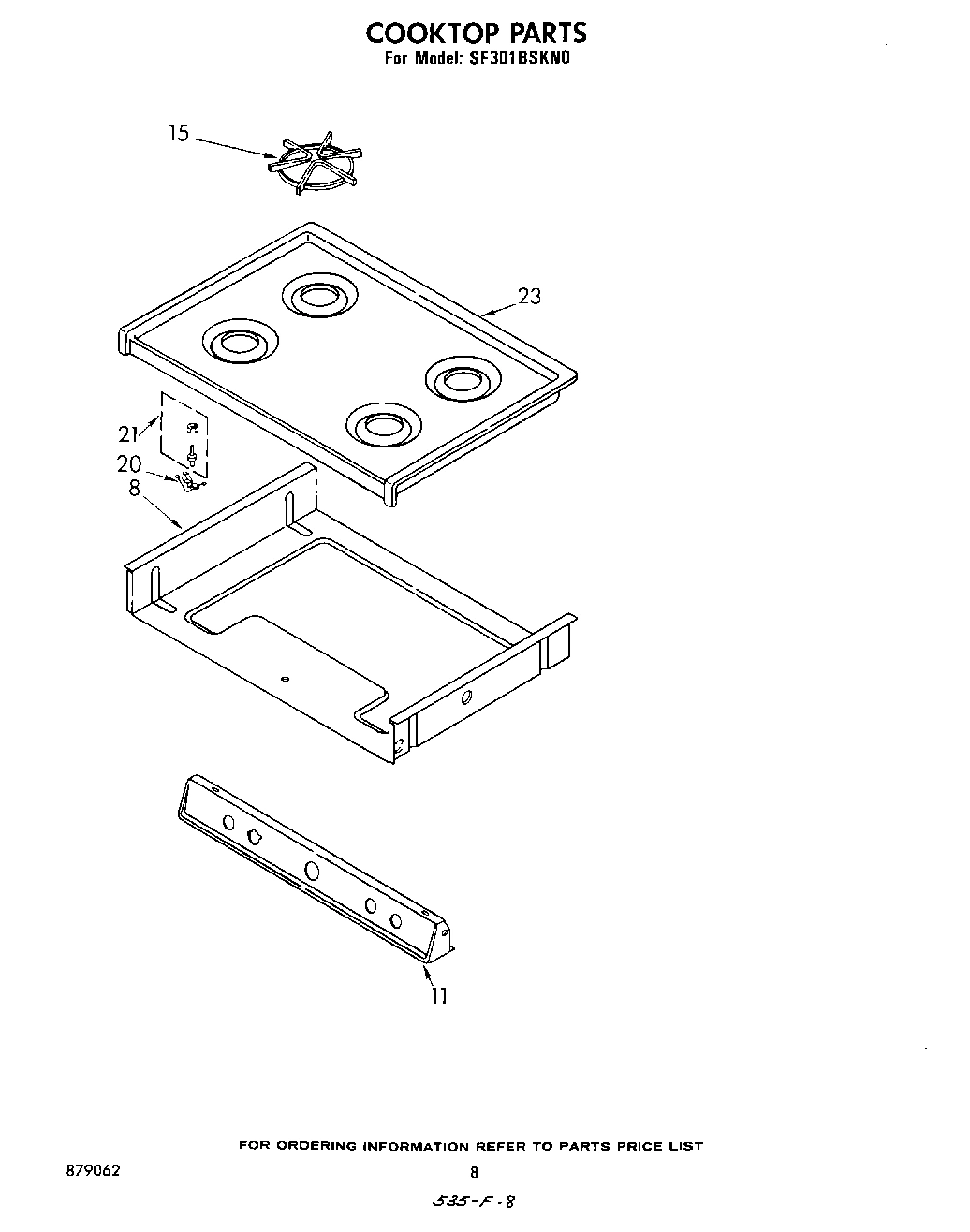

06 - COOK TOP

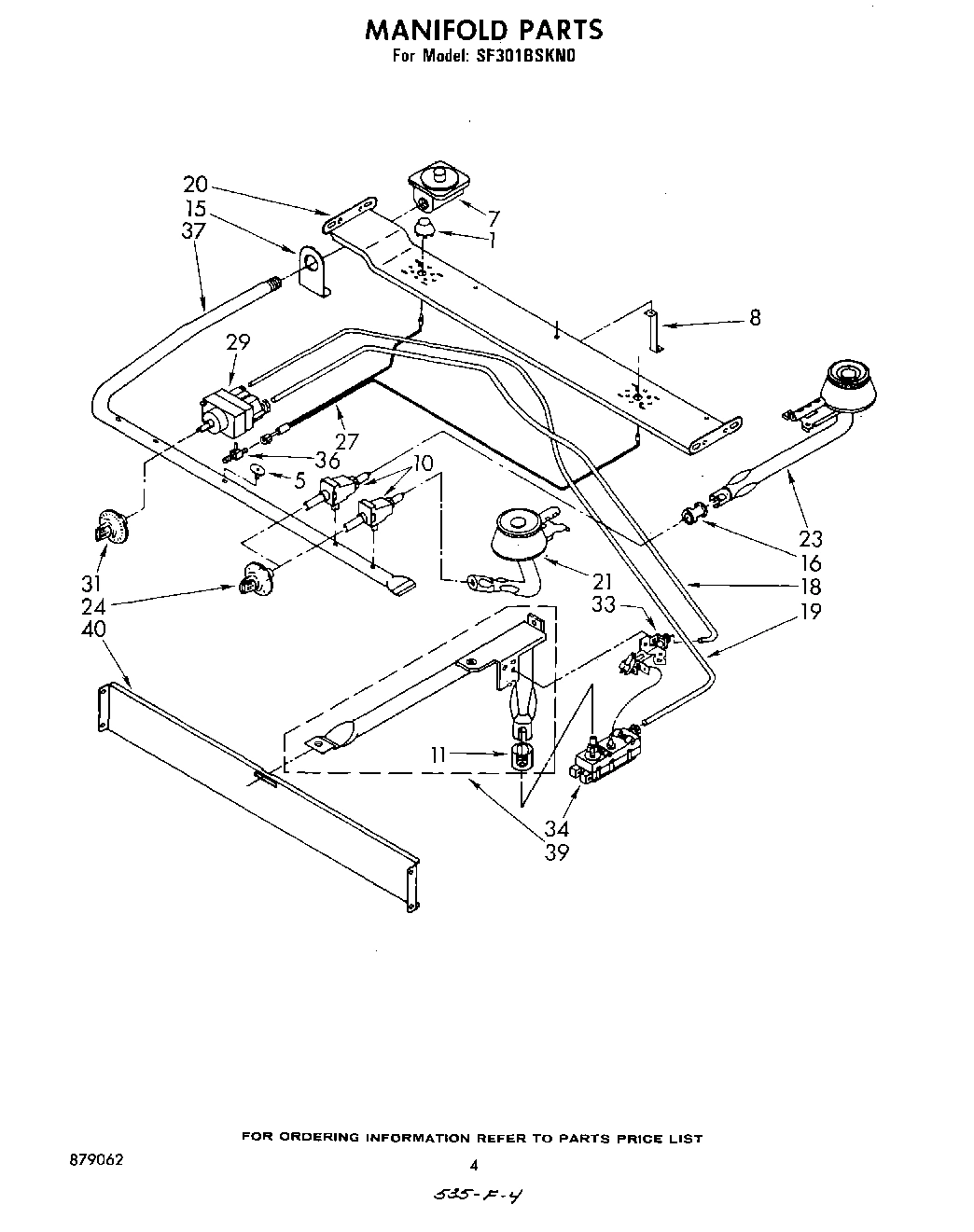

03 - MANIFOLD

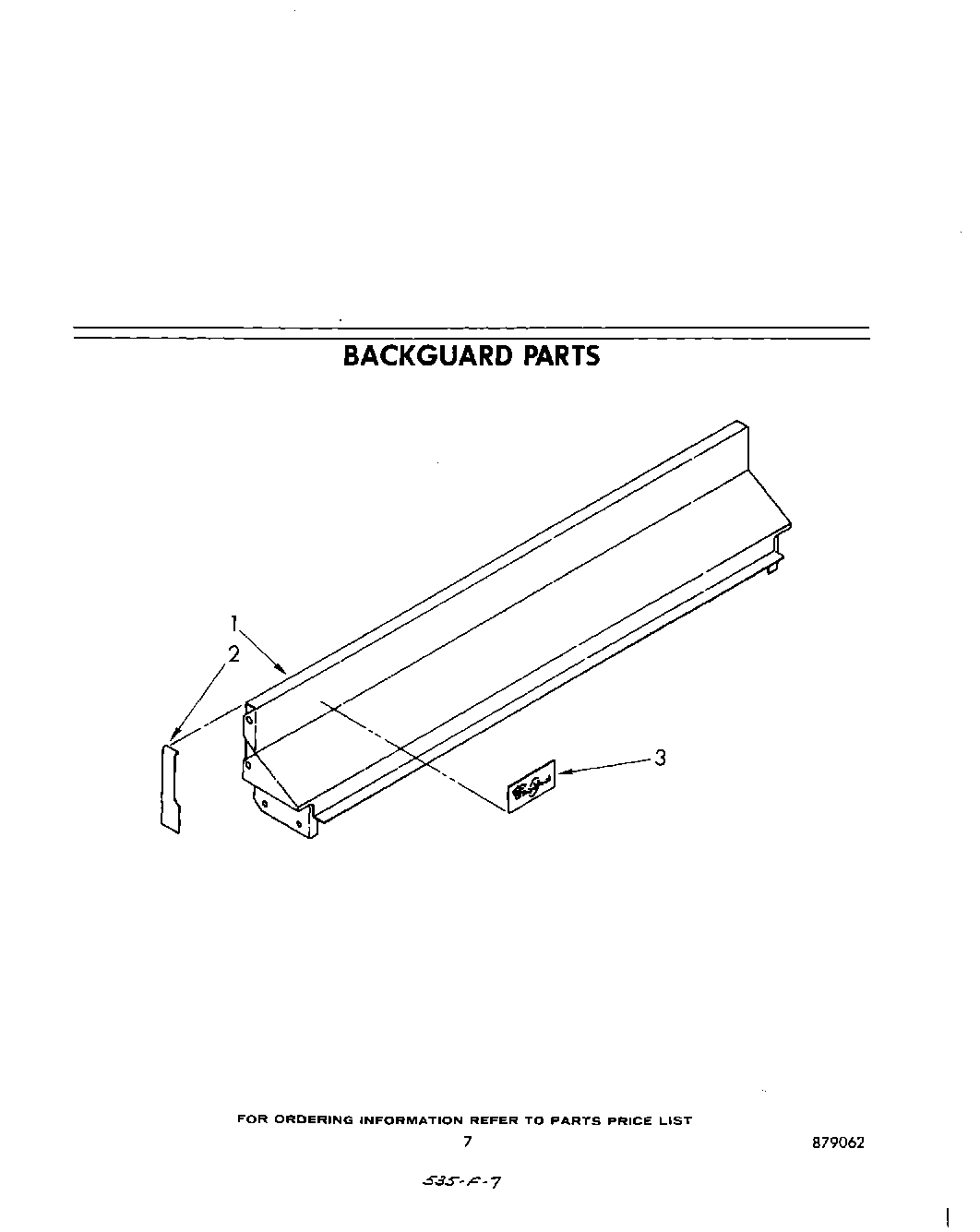

05 - BACKGUARD
Common parts from model Whirlpool SF301BSKN0 GAS RANGE
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
1
Panel, Backguard (Almond) WPL 879030 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878302 Contact Us For Availability
2
End Cap, Backguard (Left Side) WPL 879020 Contact Us For Availability
2
End Cap, Backguard (Right Side) WPL 879021 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Inlay, Nameplate WPL 878598 Contact Us For Availability
6
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
8
Spacer, Oven Door Handle (2) WPL 878097 Contact Us For Availability
8
Bottom, Burner Box WPL 878695 Contact Us For Availability
8
Support, Burner Hanger WPL 878542 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
11
Panel, Manifold (Almond) WPL 878685 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
14
Handle, Oven Door WPL 878132 Contact Us For Availability
15
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
15
Grate, Burner WPL 878940 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878720 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Strip, Door Seal WPL 878472 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Hanger, Top Burner WPL 878826 Contact Us For Availability
21
Panel, Oven Door (Almond) WPL 878689 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
23
Lining, Oven Door WPL 878442 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
24
Retainer, Insulation WPL 878146 Contact Us For Availability
24
Handle, Top Valve (4) WPL 879024 Contact Us For Availability
26
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
27
Lining, Broiler Door WPL 878149 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
29
Oven, 30`` Standard (Not Serviceable) WPL ARI129259A Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
31
Dial, Oven Control WPL 879023 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878459 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878358 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
35
Support, Oven Door Hinge (Left Side) WPL 878104 Contact Us For Availability
35
Support, Oven Door Hinge (Right Side) WPL 878105 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
36
Filter, Top Lighter WPL 878712 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
37
Pipe, Manifold WPL 879014 Contact Us For Availability
38
Plate, Oven Bottom WPL 879038 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
40
Deflector, Heat WPL 878189 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Back, Main WPL 879015 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
47
Trim, End Panel (2) WPL 878173 Contact Us For Availability
47
Diagram, Wiring WPL 878056 Contact Us For Availability
47
Instructions, Installation WPL 878063 Contact Us For Availability
47
Guide, Use WPL 878072 Contact Us For Availability
47
List, Repair Parts WPL 879062 Contact Us For Availability
× ![]()
