Model Whirlpool SF300PEPW0 – Common Parts & Diagrams
02 - OVEN , LIT/OPTIONAL
05 - OVEN DOOR AND BROILER

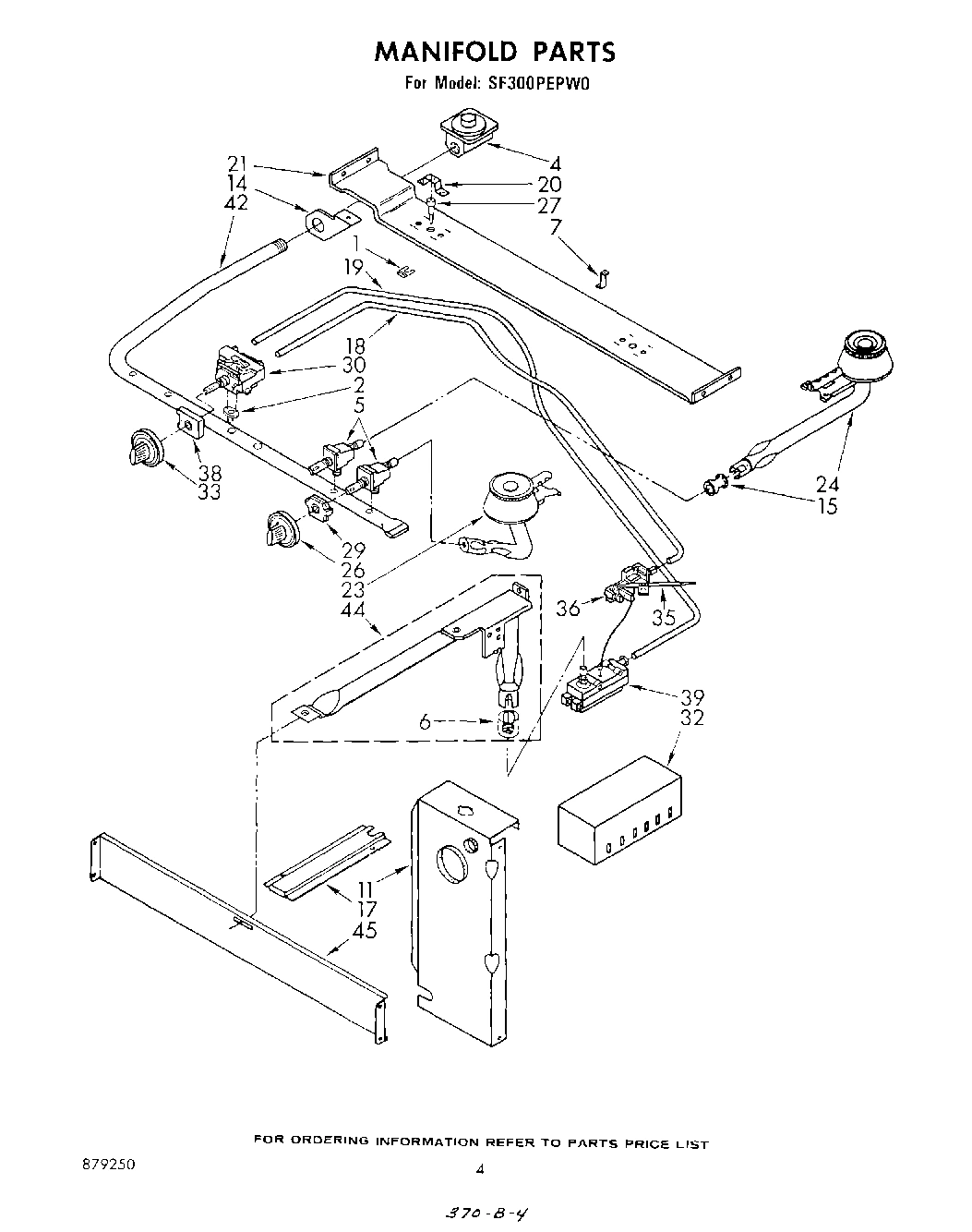

03 - MANIFOLD

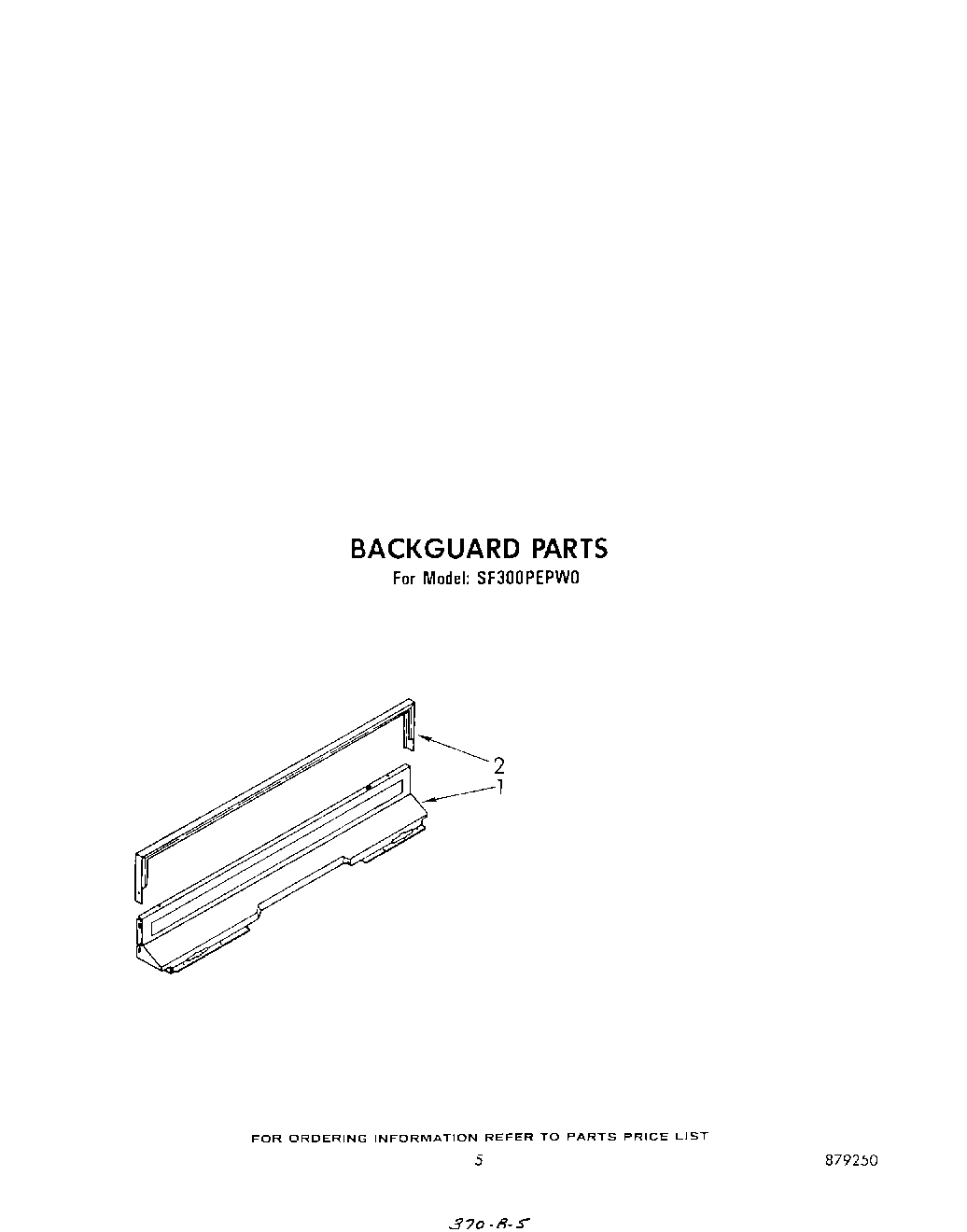

04 - BACKGUARD

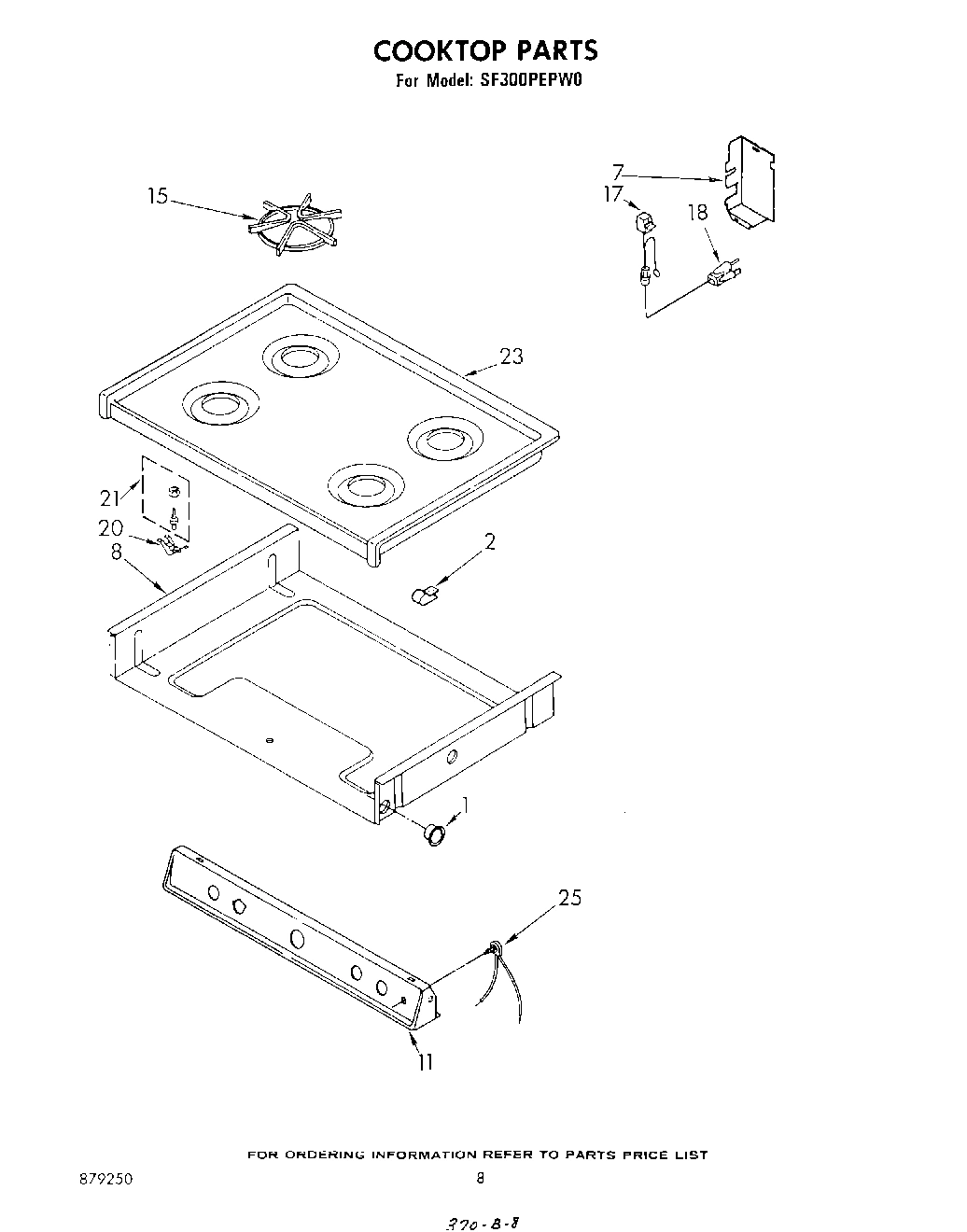

06 - COOK TOP
Common parts from model Whirlpool SF300PEPW0
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Installation Instructions WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879250 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Sleeve, Oven Light WPL 878103 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Clip, Top Ignitor (2) WPL 878100 Contact Us For Availability
1
Panel, Backguard (White) WPL 878699 Contact Us For Availability
1
Bushing, Snap (3) WPL 878364 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Fitting, Flange WPL 878303 Contact Us For Availability
2
Frame, Backguard WPL 878308 Contact Us For Availability
2
Clamp, Wire WPL 878082 Contact Us For Availability
4
Insulation, Oven Door WPL 878798 Contact Us For Availability
4
Regulator, Pressure WPL 878008 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
6
Insulation, Broiler Door WPL 878090 Contact Us For Availability
6
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
7
Support, Burner Hanger WPL 878542 Contact Us For Availability
7
Cover, Wire WPL 878458 Contact Us For Availability
8
Spacer, Broiler Door Handle (3) WPL 879176 Contact Us For Availability
8
Bottom, Burner Box WPL 878695 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Frame, Window WPL 878106 Contact Us For Availability
11
Handle, Broiler Door WPL 878324 Contact Us For Availability
11
Bracket, Wire WPL 878545 Contact Us For Availability
11
Panel, Manifold (White) WPL 879260 Contact Us For Availability
13
Socket, Oven Light WPL 878124 Contact Us For Availability
14
Handle, Oven Door WPL 878133 Contact Us For Availability
14
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
15
Frame, Door WPL 878138 Contact Us For Availability
15
Cap, Top Burner Air Mixer (4) WPL 878116 Contact Us For Availability
15
Grate, Burner (4) WPL 878940 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878139 Contact Us For Availability
17
Raceway Wire WPL 878118 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
18
Glass, Oven Door Inside WPL 878002 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878119 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Glass, Oven Door Center WPL 878141 Contact Us For Availability
20
Target, Top Ignitor (2) WPL 878121 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Hanger, Top Burner WPL 878696 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
23
Lining, Oven Door WPL 878827 Contact Us For Availability
23
Burner, Top Front (2) (Includes Illus. 15) WPL 878130 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Block, Disconnect) WPL 878196 Contact Us For Availability
24
Baffle, Door WPL 878144 Contact Us For Availability
24
Burner, Top Rear (2) (Includes Illus. 15) WPL 878131 Contact Us For Availability
25
Switch, Oven Light WPL 879264 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
26
Shield, Heat WPL 878145 Contact Us For Availability
26
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
27
Ignitor, Top Burner (Left Side) WPL 878007 Contact Us For Availability
27
Ignitor, Top Burner (Right Side) WPL 878153 Contact Us For Availability
29
Oven, 30`` Standard (Not Serviceable) WPL ARI129256A Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Switch, Top Ignitor (4) WPL 878752 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Control, Oven WPL 878338 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
32
Control, Ignitor WPL 878006 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878142 Contact Us For Availability
33
Dial, Oven Control WPL 878158 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
35
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
35
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
35
Ignitor, Oven Burner WPL 878972 Contact Us For Availability
36
Screw, Leveling (4) WPL 878417 Contact Us For Availability
36
Lighter, Oven Burner WPL 878160 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
38
Plate, Oven Bottom WPL 879038 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
39
Valve, Oven Light Safety WPL 878011 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
41
Back, Main WPL 879016 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
42
Pipe, Manifold WPL 878995 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
44
Burner, Oven WPL 878187 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
45
Deflector, Heat WPL 879144 Contact Us For Availability
× ![]()
