Model Whirlpool SF3000SGW0 – Common Parts & Diagrams

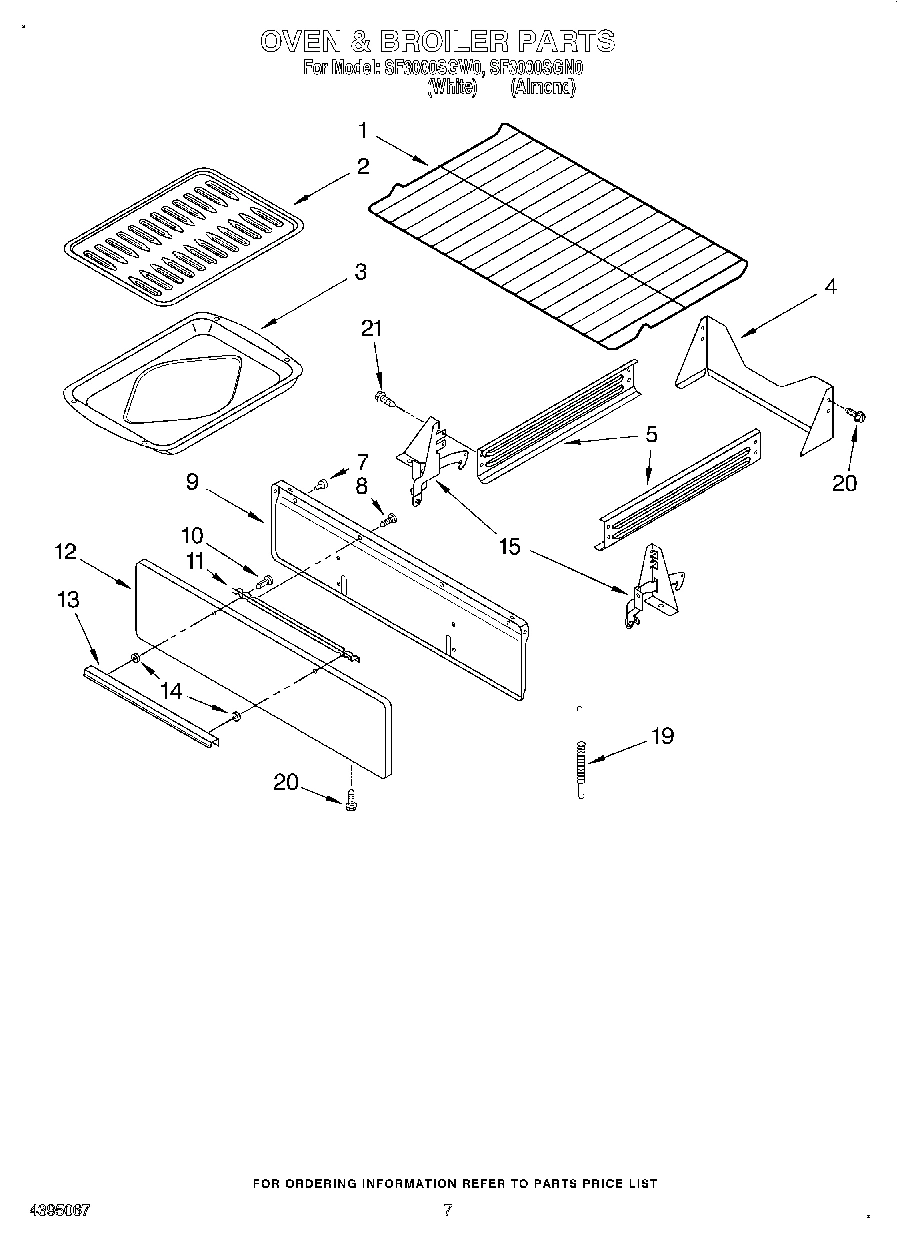

05 - OVEN & BROILER

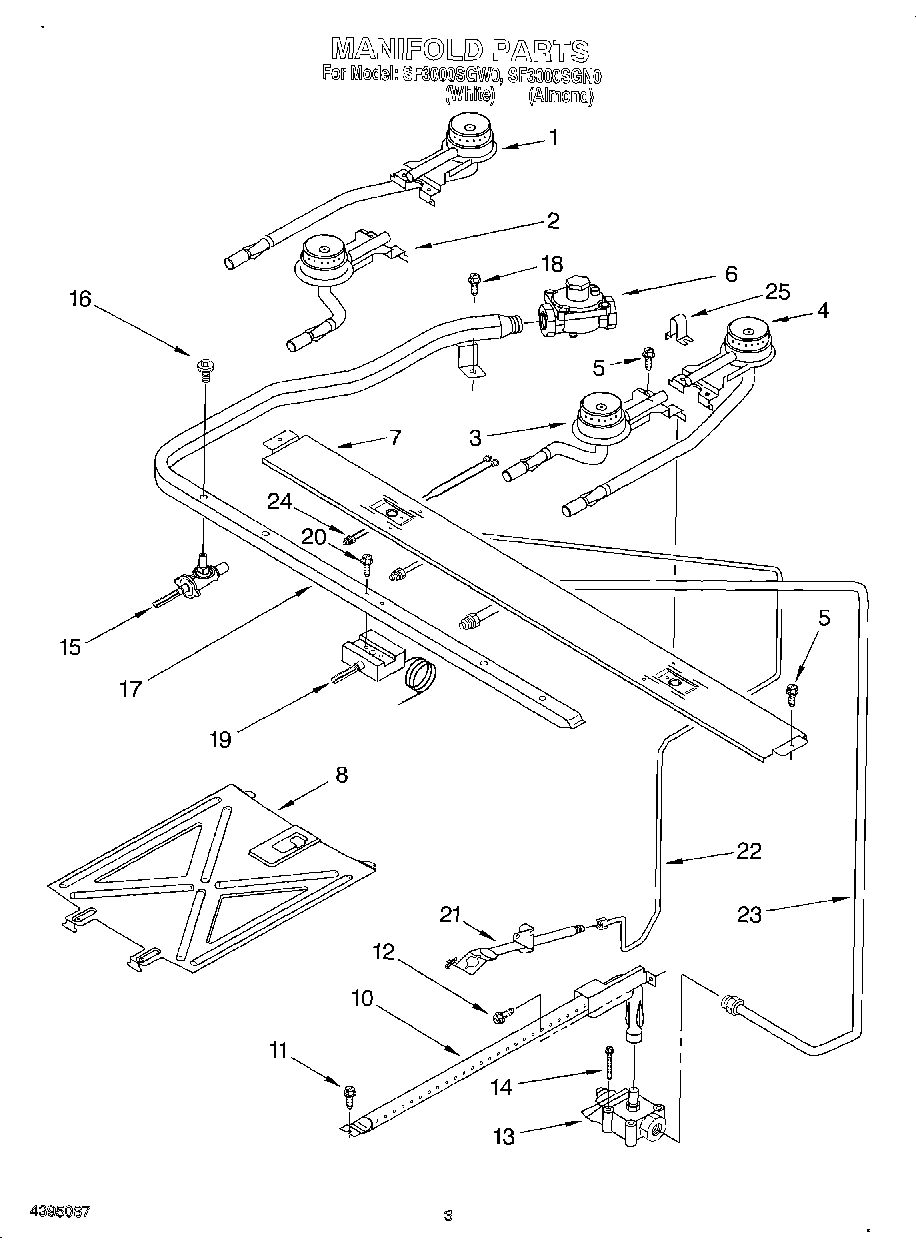

03 - MANIFOLD

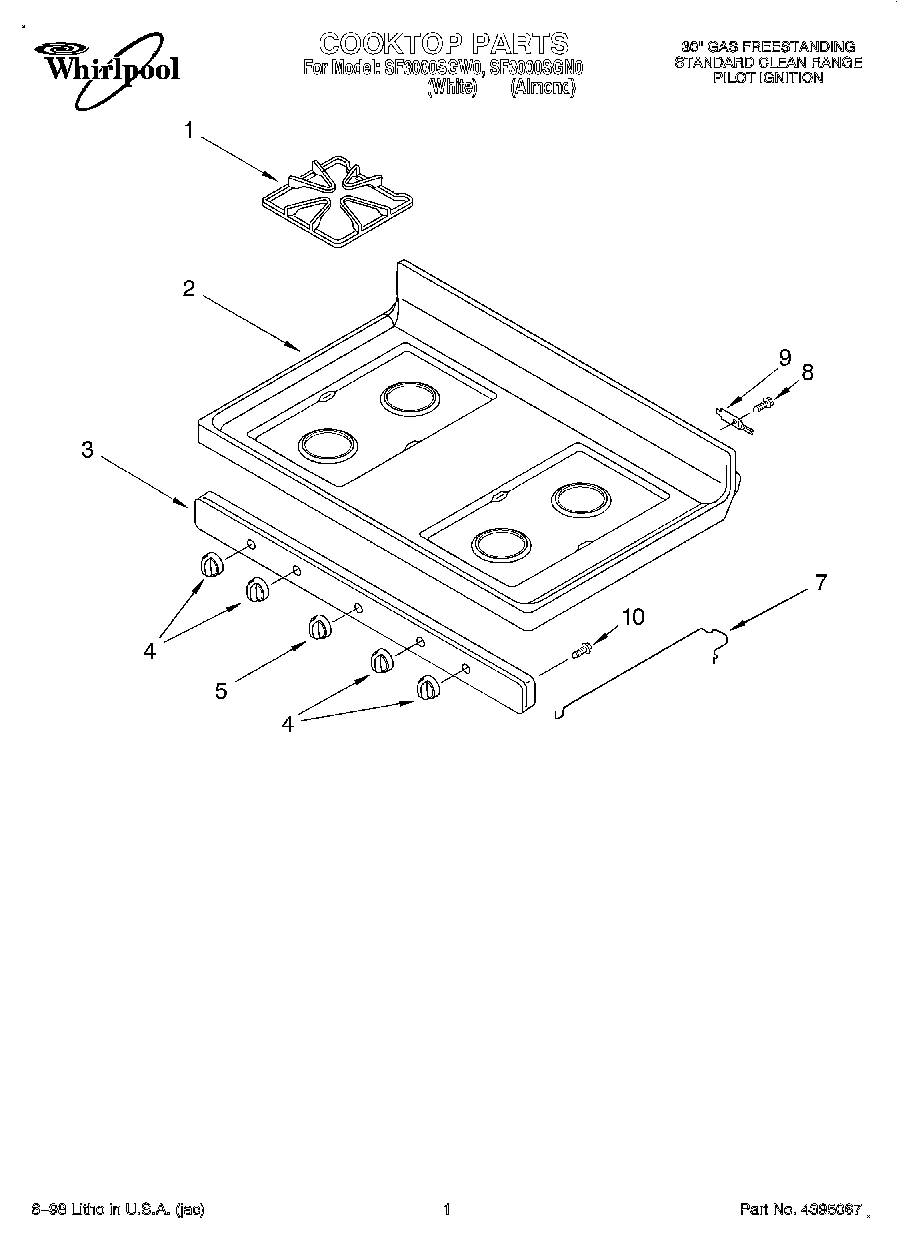

01 - COOKTOP

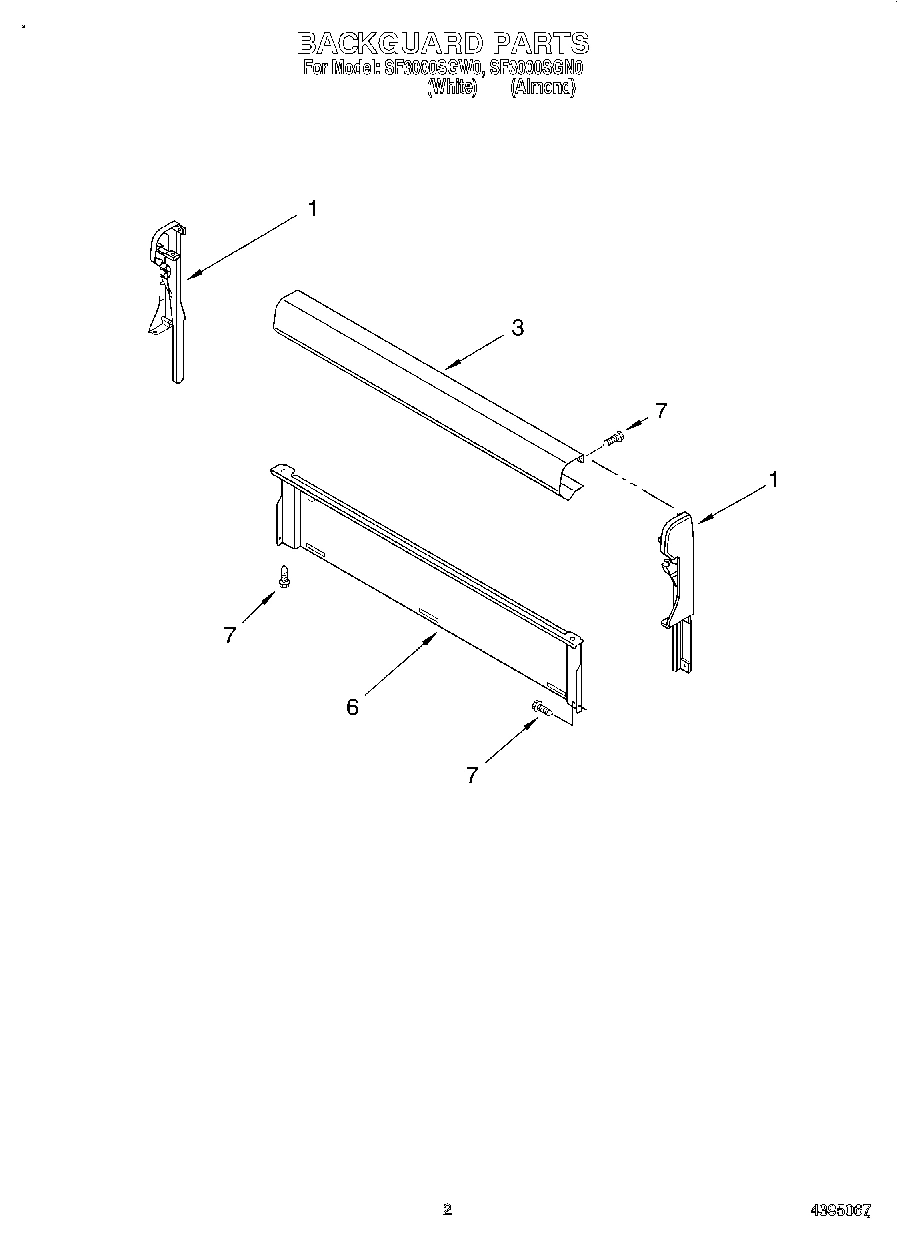

02 - BACKGUARD

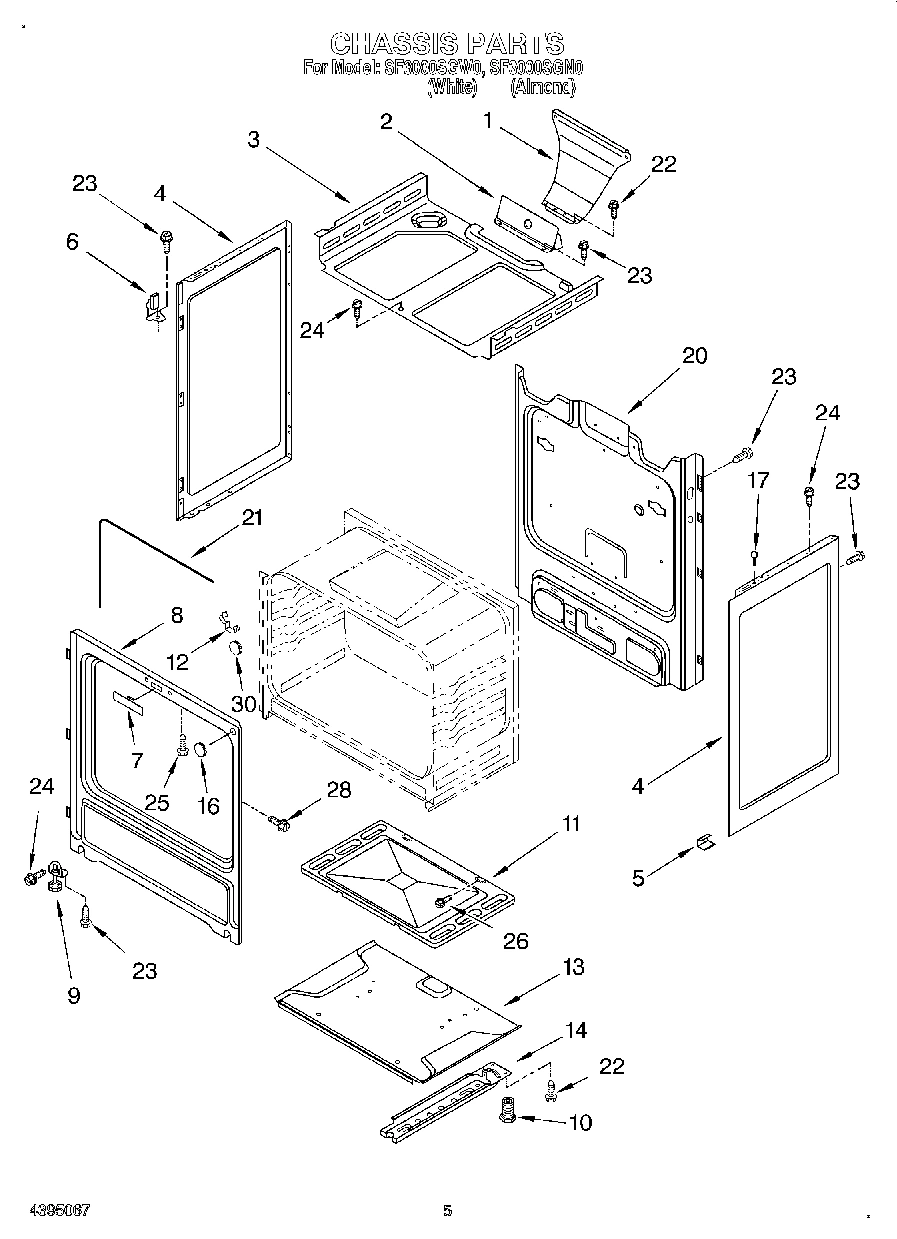

04 - CHASSIS

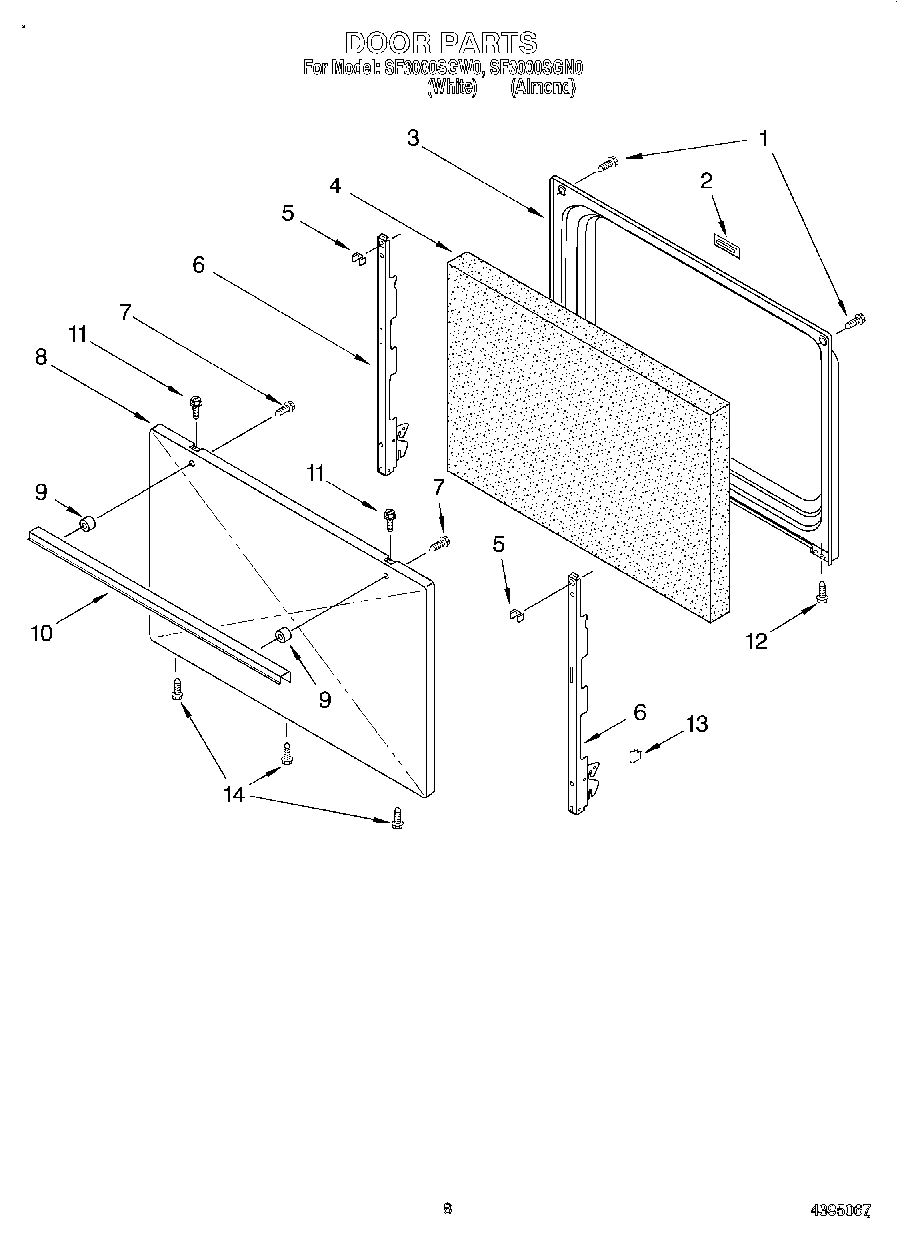

06 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool SF3000SGW0
WPL LIT3191638 WPL LIT3191638 Contact Us For Availability
WPL LIT3195945 WPL LIT3195945 Contact Us For Availability
WPL LIT8053369 WPL LIT8053369 Contact Us For Availability
WPL LIT8053705 WPL LIT8053705 Contact Us For Availability
1
Burner (Left Rear) WPL 3186213 Contact Us For Availability
1
Endcap (Left Hand) WPL 3195419 Contact Us For Availability
1
Endcap (Right Hand) WPL 3195420 Contact Us For Availability
1
Screw WPL 3196162 Contact Us For Availability
2
Burner, Left Front WPL 3186209 Contact Us For Availability
2
Plug, Door WPL 3196071 Contact Us For Availability
3
Burner (Right Front) WPL 3186214 Contact Us For Availability
3
Panel, Manifold WPL 3186017 Contact Us For Availability
3
Panel, Backguard WPL 3196461 Contact Us For Availability
3
Burner Box WPL 8053503 Contact Us For Availability
3
Liner, Door WPL 3186294 Contact Us For Availability
4
Knob, Burner (4) WPL 3186134 Contact Us For Availability
4
Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability
4
Insulation, Door WPL 3186253 Contact Us For Availability
5
Knob, Thermostat WPL 3195960 Contact Us For Availability
5
Clip, Panel (6) WPL 3196576 Contact Us For Availability
5
Bracket, Saddle (2) WPL 3195729 Contact Us For Availability
6
Shield, Heat WPL 3186187 Contact Us For Availability
6
Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability
6
Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability
6
Hinge, Door (2) WPL 3196074 Contact Us For Availability
7
Screw WPL 4449746 Contact Us For Availability
7
Plug, Frame WPL 3196072 Contact Us For Availability
8
Frame, Front WPL 3186183 Contact Us For Availability
8
Panel, Door (Almond) WPL 3195561 Contact Us For Availability
9
Spacer, Handle (2) (Almond) WPL 3196209 Contact Us For Availability
11
Screw, Panel (Almond) WPL 3196559 Contact Us For Availability
13
Baffle, Base WPL 3186056 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
WPL 799344 WPL 799344 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Toast WPL 285365 Contact Us For Availability
14
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
14
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
14
Platinum (Uncut) WPL 285368 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
16
Plug Button WPL 308535 Contact Us For Availability
20
Back, Main WPL 8053507 Contact Us For Availability
21
Pilot, Oven WPL 3196270 Contact Us For Availability
24
Screw WPL 3196179 Contact Us For Availability
25
Spud Kit-Set of 4 (LP to Nat) WPL 814391 Contact Us For Availability
26
Screw WPL 3196152 Contact Us For Availability
30
Tie, Insulation WPL 3195927 Contact Us For Availability
30
Button, Plug (2) WPL 3196440 Contact Us For Availability
× ![]()
