Model Whirlpool SF3000EYW4 – Common Parts & Diagrams
03 - DOOR AND BROILER
01 - COOKTOP AND CONTROL PANEL, LITERATURE

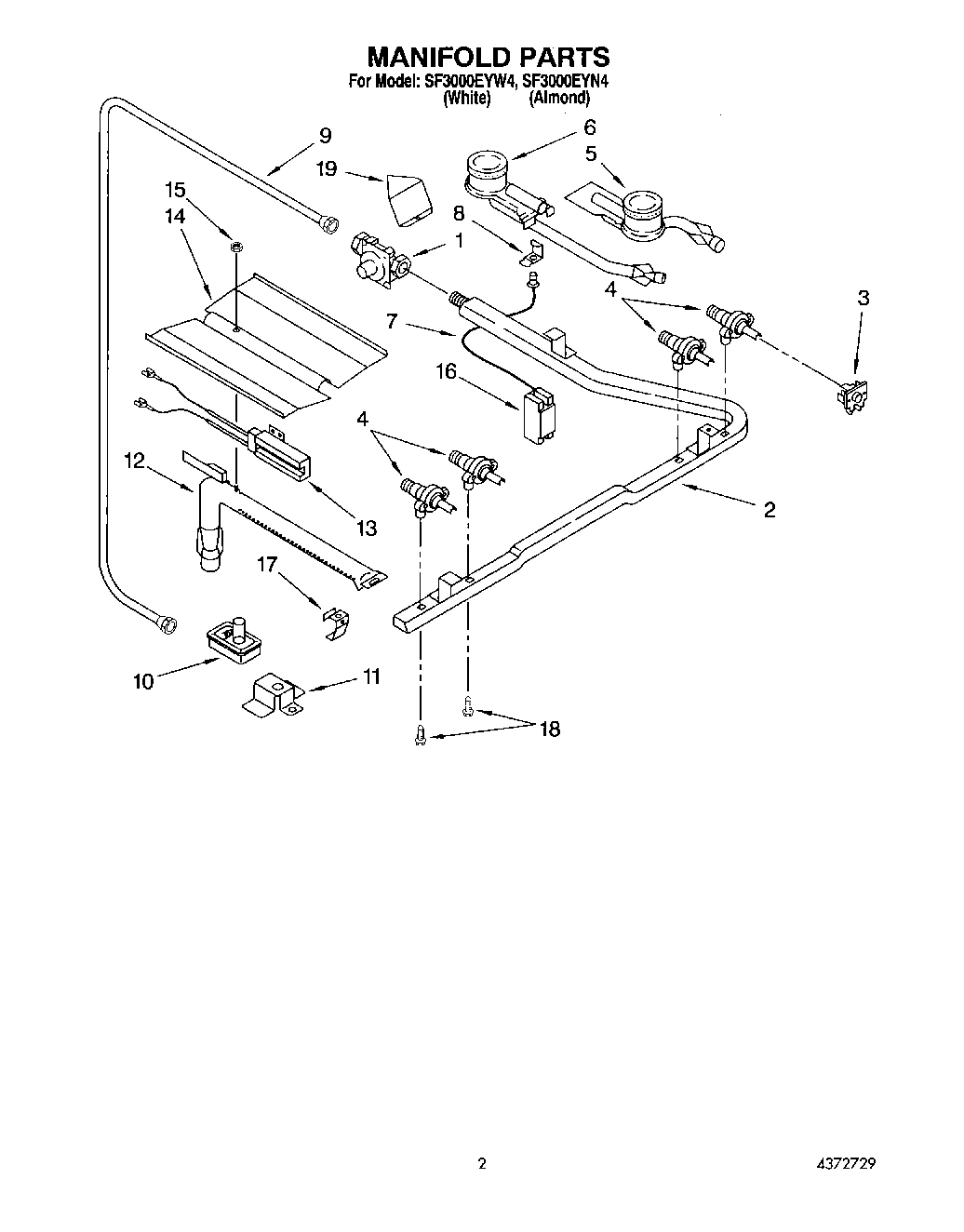

02 - MANIFOLD

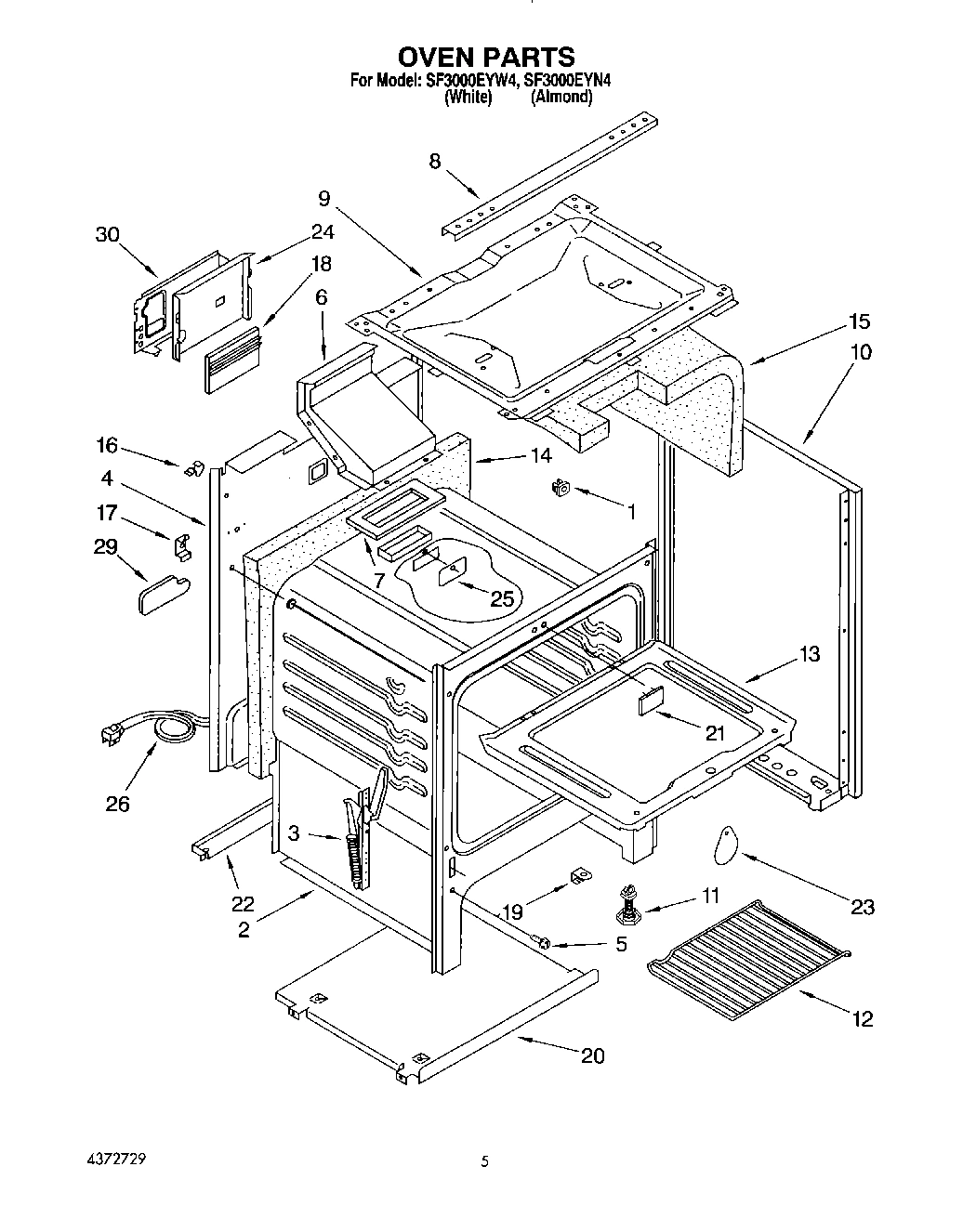

04 - OVEN
Common parts from model Whirlpool SF3000EYW4
Instructions, Installation WPL LIT4372192 Contact Us For Availability
Guide, Use & Care WPL LIT4372209 Contact Us For Availability
1
Panel, Door (White) WPL 4371486 Contact Us For Availability
1
Panel, Control WPL 4371475 Contact Us For Availability
1
Regulator, Pressure WPL 4372428 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
2
Handle, Door WPL 4371086 Contact Us For Availability
2
Knob, Thermostat WPL 4371477 Contact Us For Availability
2
Pipe, Manifold WPL 4371299 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI129242A Contact Us For Availability
3
Endcap (2) WPL 4371074 Contact Us For Availability
3
Knob, Burner (4) WPL 4371476 Contact Us For Availability
3
Switch, Ignitor (4) WPL 4371298 Contact Us For Availability
3
Hinge, Oven Door WPL 4372562 Contact Us For Availability
4
Top, Main (White) WPL 4371479 Contact Us For Availability
4
Top, Main (Almond) WPL 4371484 Contact Us For Availability
4
Valve, 2 pos (4) WPL 4371297 Contact Us For Availability
4
Back, Main WPL 4372437 Contact Us For Availability
5
Shield, Heat WPL 4372757 Contact Us For Availability
5
Rod, Support WPL 4372317 Contact Us For Availability
5
Burner, Front (2) WPL 4371480 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
6
Bracket, Top LH WPL 816586 Contact Us For Availability
6
Burner, Rear (2) WPL 4371481 Contact Us For Availability
6
Flue WPL 4371083 Contact Us For Availability
7
Igniter, Base (2) WPL 4371017 Contact Us For Availability
7
Liner, Oven Door WPL 4372740 Contact Us For Availability
7
Bracket, Top RH WPL 816721 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
8
Screw, Handle (2) WPL 4371100 Contact Us For Availability
8
Grate, Burner (4) WPL 4371474 Contact Us For Availability
8
Retainer, Ignitor WPL 4371242 Contact Us For Availability
8
Support, Burner WPL 4371471 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
9
Cover, Vent WPL 4371079 Contact Us For Availability
9
Tubing, Alum 3/8 WPL 4372429 Contact Us For Availability
9
Burner Box WPL 4372438 Contact Us For Availability
10
Cover, Manifold WPL 4371287 Contact Us For Availability
10
Valve, Safety WPL 4371313 Contact Us For Availability
10
Panel, Side (White RH) WPL 4372430 Contact Us For Availability
10
Panel, Side (White LH) WPL 4372431 Contact Us For Availability
10
Panel, Side (Almond RH) WPL 4372432 Contact Us For Availability
10
Panel, Side (Almond LH) WPL 4372433 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
11
Thermostat WPL 4371308 Contact Us For Availability
11
Bracket, Valve WPL 4371470 Contact Us For Availability
11
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
12
Endcap LH WPL 4371108 Contact Us For Availability
12
Burner, Oven WPL 4371284 Contact Us For Availability
12
Rack, Oven (2) WPL 4372439 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
13
Endcap RH WPL 4371109 Contact Us For Availability
13
Bottom, Oven WPL 4372245 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
14
Panel, Backguard WPL 4371421 Contact Us For Availability
14
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
15
Nut WPL 816642 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
16
Module, Spark WPL 4371030 Contact Us For Availability
16
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
17
Panel, Drawer (White) WPL 4372318 Contact Us For Availability
17
Panel, Drawer (Almond) WPL 4372319 Contact Us For Availability
17
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
18
Handle WPL 4371118 Contact Us For Availability
18
Cover, Flue WPL 4371082 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
19
Shield, Ignitor WPL 4372095 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
22
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
23
Cover, Oven Light WPL 4371099 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
24
Shield, Flue WPL 4371102 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
26
Button, Glide WPL 4371115 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
29
Cover, Rear Wall WPL 4371473 Contact Us For Availability
30
Shield, Module WPL 4372096 Contact Us For Availability
× ![]()
