Model Whirlpool SF114PXSW2 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO – Common Parts & Diagrams

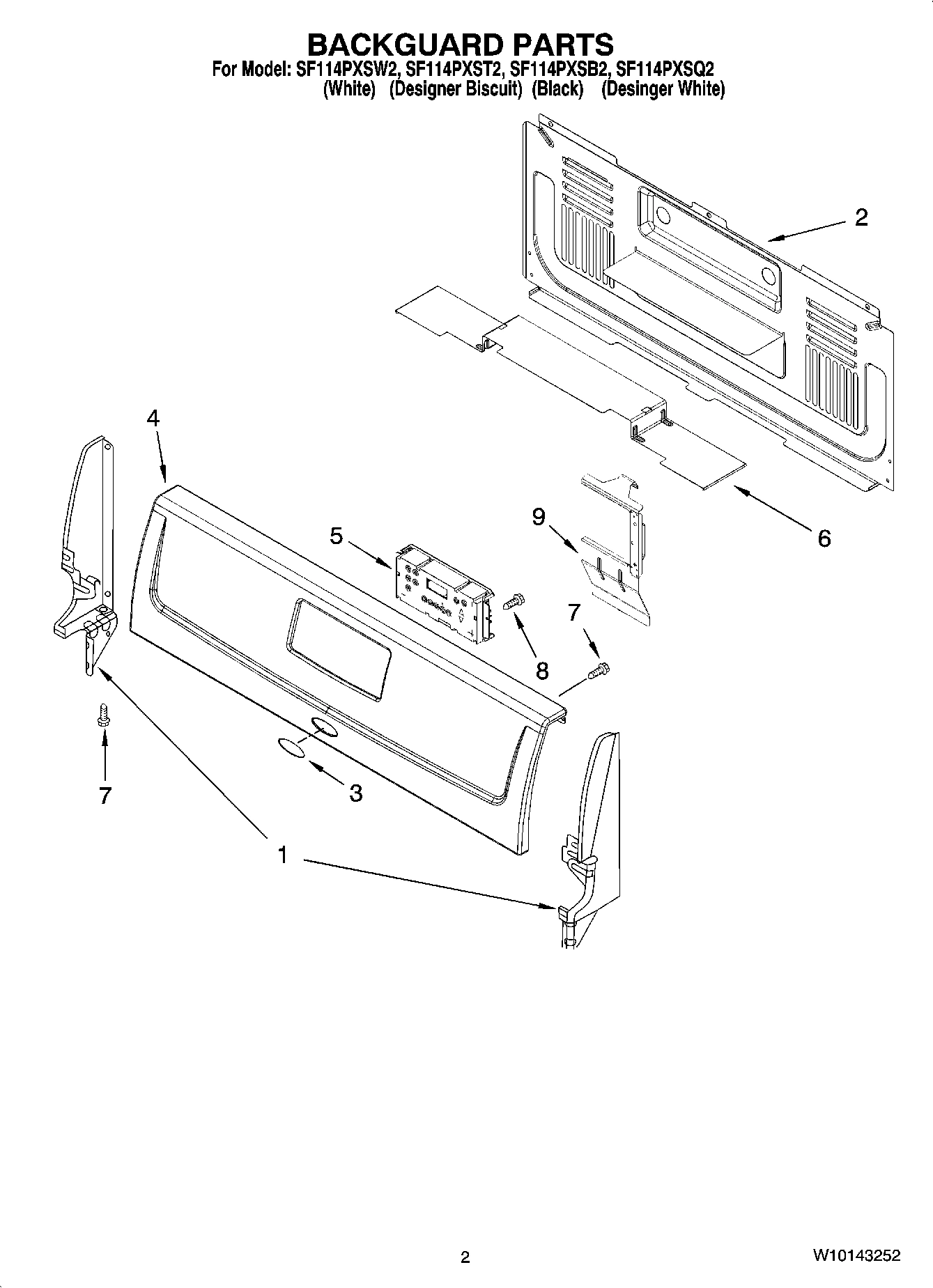

02 - BACKGUARD PARTS

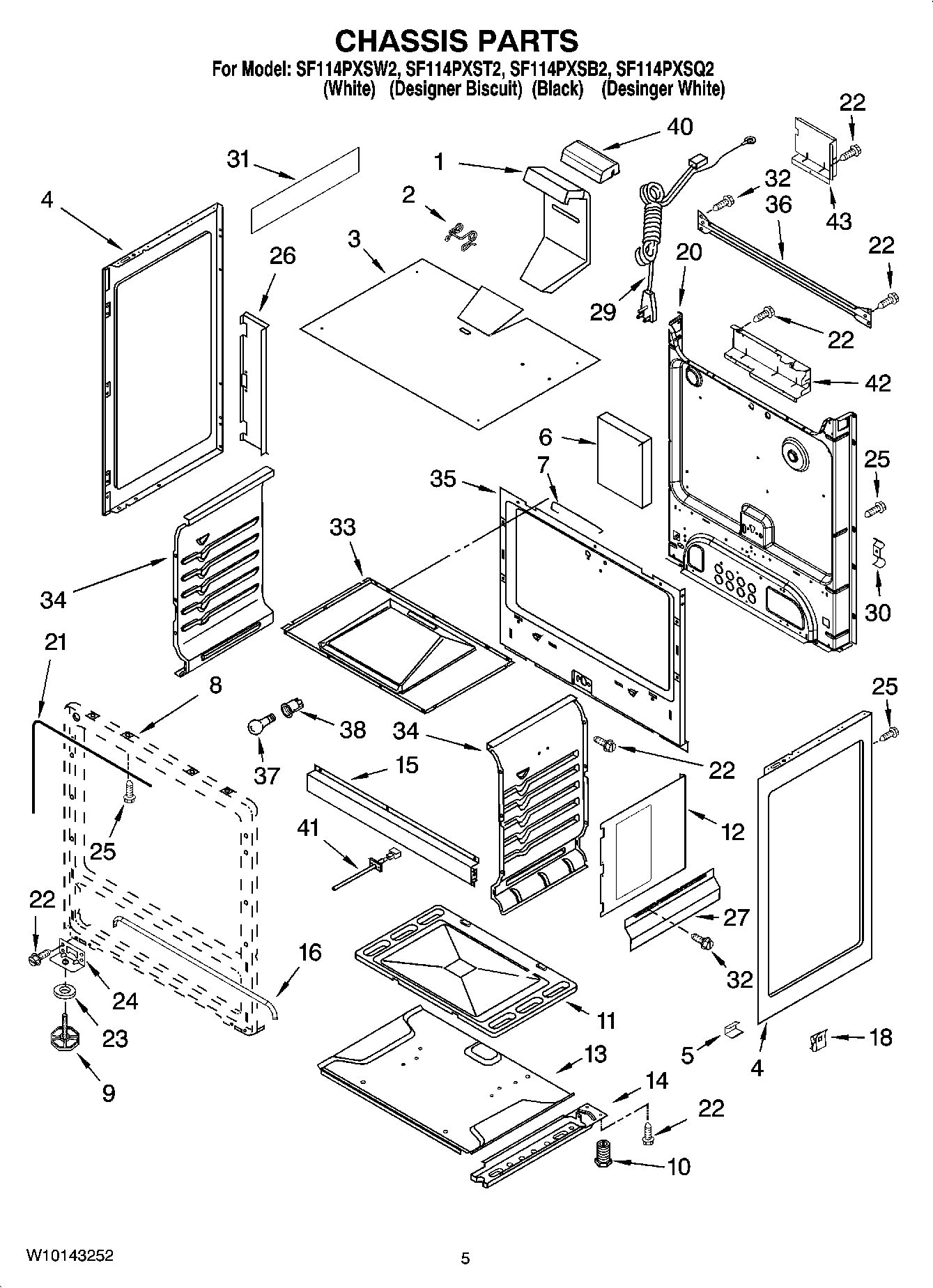

04 - CHASSIS PARTS

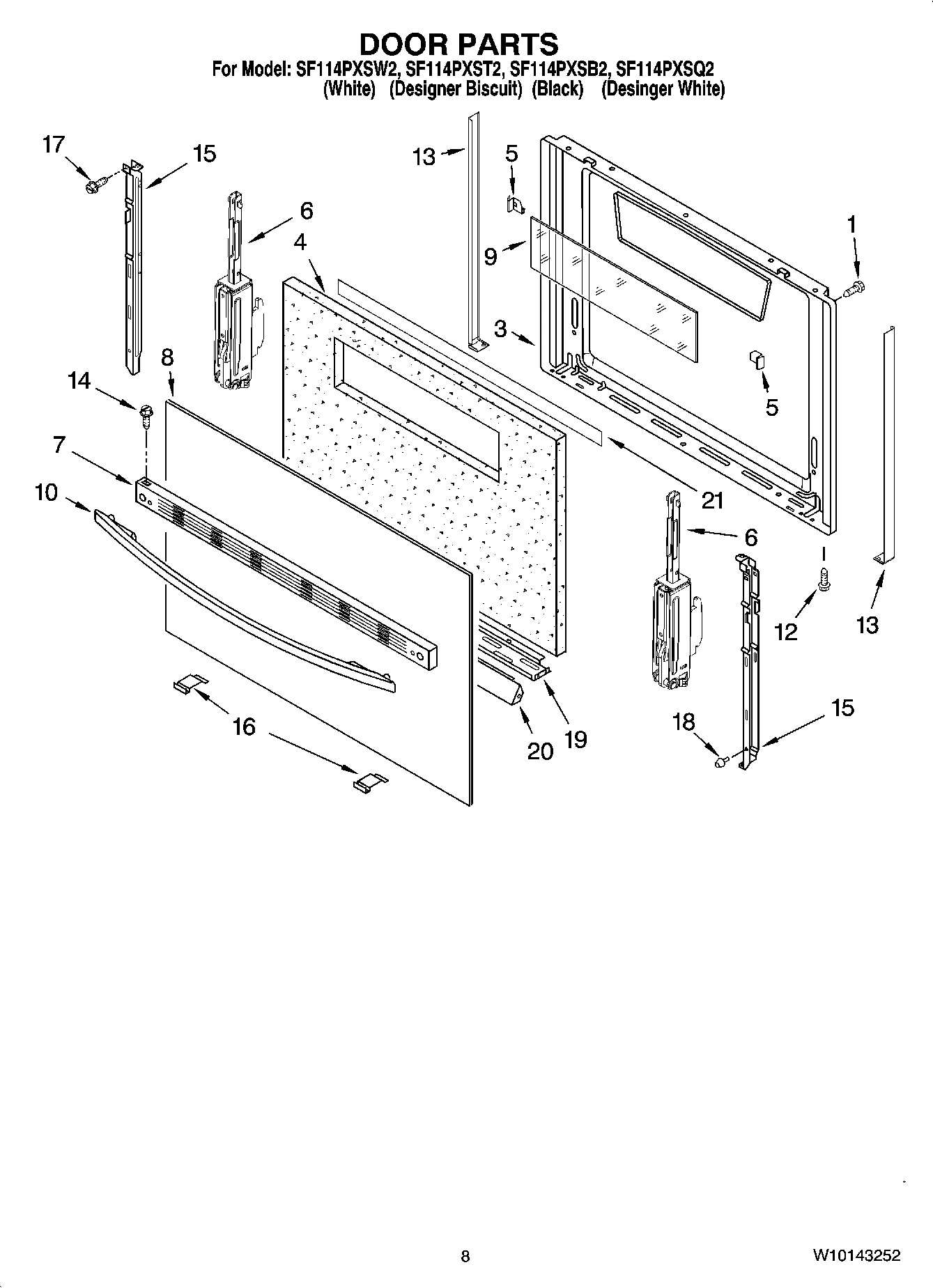

06 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

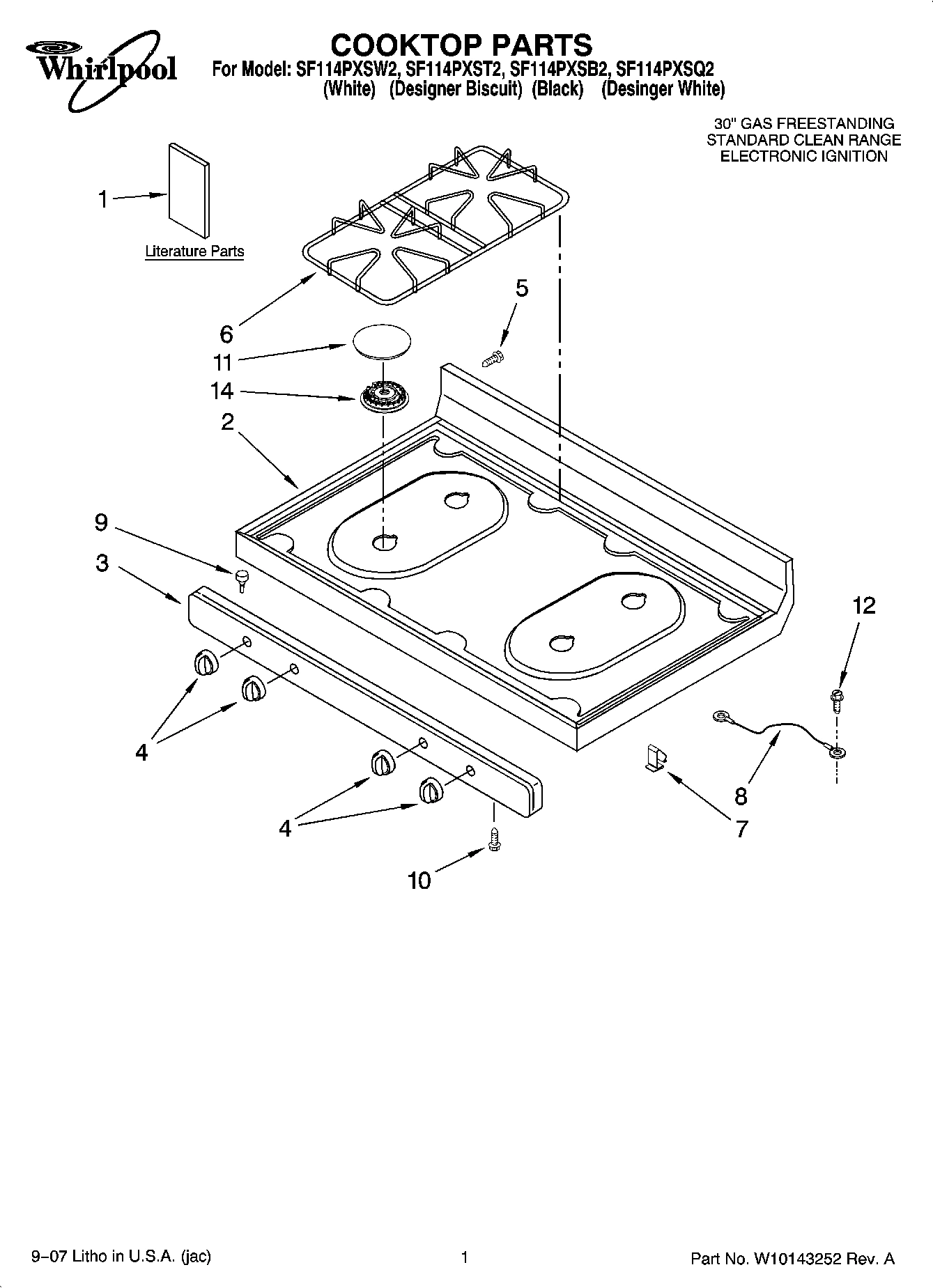

01 - COOKTOP PARTS

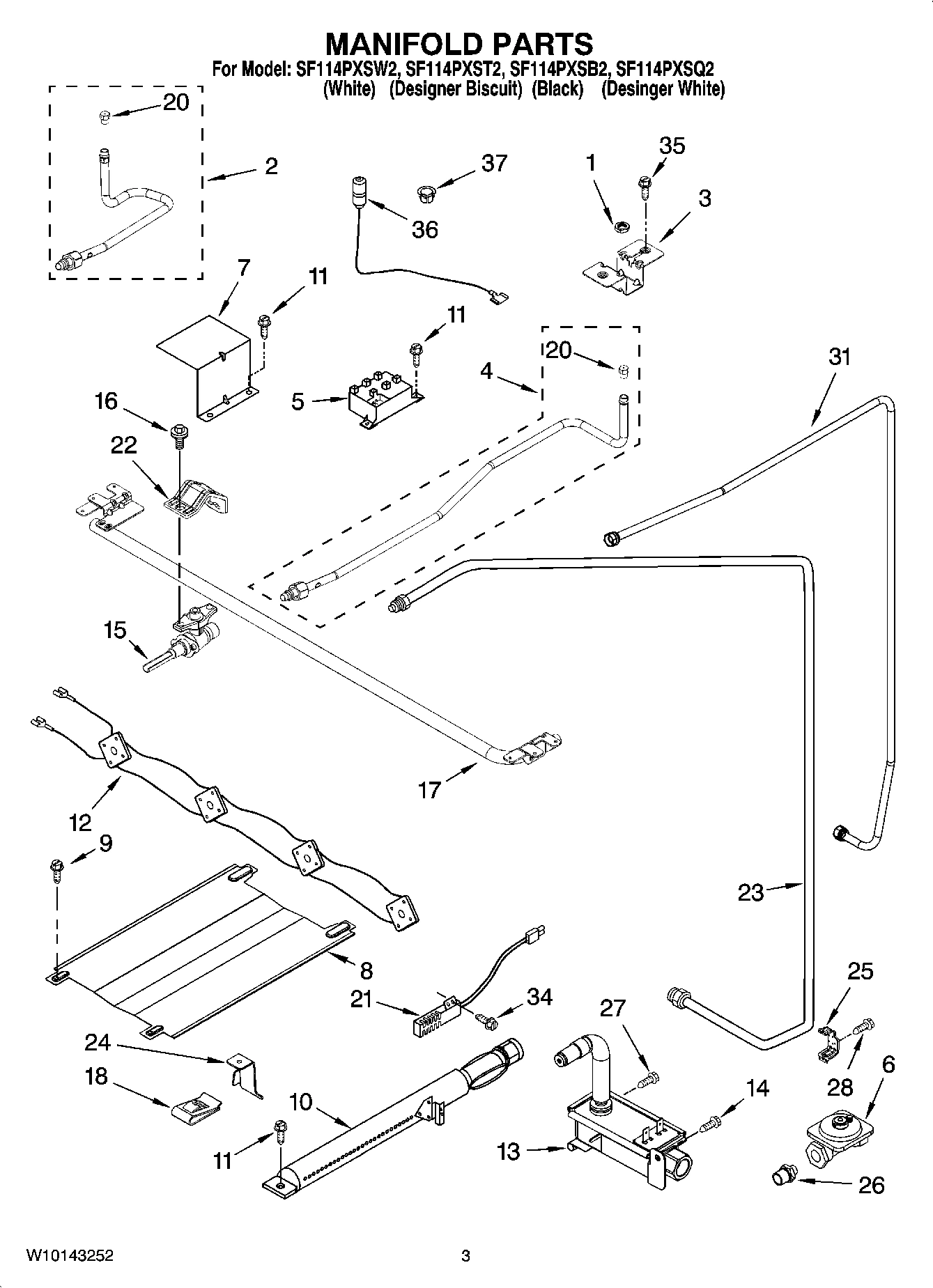

03 - MANIFOLD PARTS

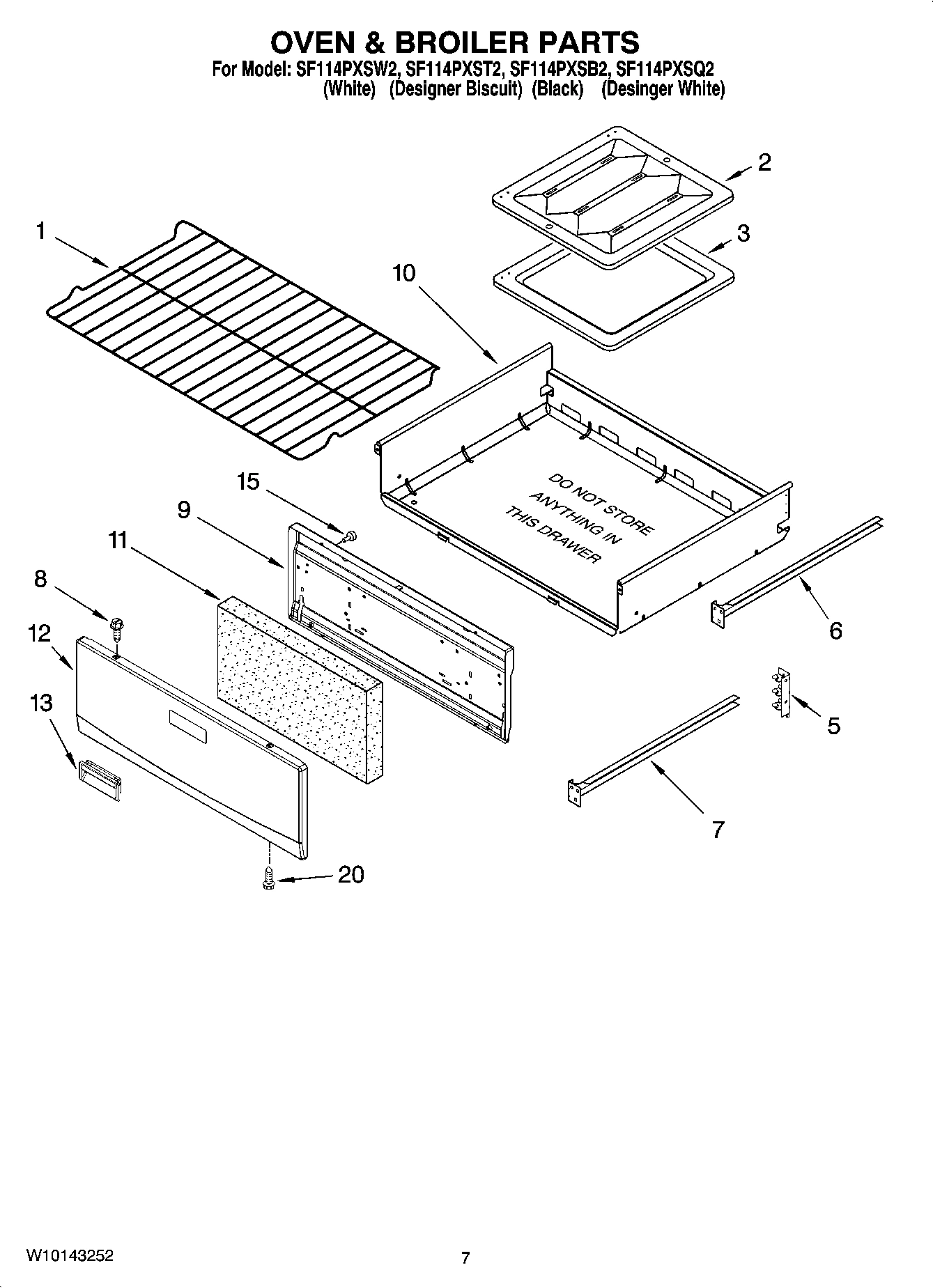

05 - OVEN & BROILER PARTS
Common parts from model Whirlpool SF114PXSW2 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO
WPL 72017 WPL 72017 Contact Us For Availability
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
WPL W10141515 WPL W10141515 Contact Us For Availability
WPL 98015022 WPL 98015022 Contact Us For Availability
WPL ARI129011A WPL ARI129011A Contact Us For Availability
WPL ARI129012A WPL ARI129012A Contact Us For Availability
WPL ARI129013A WPL ARI129013A Contact Us For Availability
WPL ARI129014A WPL ARI129014A Contact Us For Availability
WPL ARI129015A WPL ARI129015A Contact Us For Availability
WPL ARI129016A WPL ARI129016A Contact Us For Availability
WPL W10142307 WPL W10142307 Contact Us For Availability
1
SCREW WPL 8533842 Contact Us For Availability
1
Safer Cooking Tips WPL 98007130 Contact Us For Availability
1
Instruct, Install (English) WPL W10032050 Contact Us For Availability
1
Instruct, Install (Canadian) WPL W10032060 Contact Us For Availability
1
Installation Instr (Template) WPL W10138585 Contact Us For Availability
1
Tech Sheet WPL W10142327 Contact Us For Availability
1
Guide, Use & Care WPL W10142329 Contact Us For Availability
1
Nut (4) WPL 98017323 Contact Us For Availability
1
Rack, Oven (2) WPL 98014136 Contact Us For Availability
2
Cooktop (Black) WPL 98017619B Contact Us For Availability
2
Cooktop (Biscuit) WPL 98017619T Contact Us For Availability
3
Liner, Door WPL 98010182 Contact Us For Availability
3
Panel, Manifold (Black) WPL W10094830 Contact Us For Availability
3
Panel, Manifold (White) WPL W10094850 Contact Us For Availability
3
Panel, Manifold (Biscuit) WPL W10094860 Contact Us For Availability
4
Panel, Control (Black) WPL 98017734B Contact Us For Availability
4
Panel, Control (White) WPL 98017734W Contact Us For Availability
4
Insulation, Door WPL 98006753 Contact Us For Availability
5
Support, Tray (Left (2)) WPL 98016664 Contact Us For Availability
5
Support, Tray (Right (2)) WPL 98016666 Contact Us For Availability
6
Hinge, Door (2) WPL 98017875 Contact Us For Availability
6
Grate, Burner (2) (Black) WPL 98017779 Contact Us For Availability
6
Grate, Burner (2) (Grey) WPL 98017780 Contact Us For Availability
6
Regulator WPL 98007411 Contact Us For Availability
7
Trim, Top Door (Black) WPL 98017767B Contact Us For Availability
7
Trim, Top Door (White) WPL 98017767W Contact Us For Availability
7
Clip, Cooktop (2) WPL 98004722 Contact Us For Availability
7
Trim, Top Door (Biscuit) WPL 98017767T Contact Us For Availability
7
Cover, Module WPL 98007192 Contact Us For Availability
8
Panel, Door (Black) WPL 98017961B Contact Us For Availability
8
Panel, Door (White) WPL 98017961W Contact Us For Availability
8
Panel, Door (Biscuit) WPL 98017961T Contact Us For Availability
8
Screw (Biscuit) WPL 98008169 Contact Us For Availability
9
Liner, Door WPL 98017076 Contact Us For Availability
10
Handle, Oven Door (Black) WPL 98017790B Contact Us For Availability
10
Handle, Oven Door (Biscuit) WPL 98017790T Contact Us For Availability
10
Storage, Drawer WPL 98017784 Contact Us For Availability
11
Insulation, Door WPL 98015234 Contact Us For Availability
12
Panel, Door (Biscuit) WPL 98009341 Contact Us For Availability
12
Panel, Door (White) WPL 98009342 Contact Us For Availability
13
Side Trim, Door (2) (White Left) WPL 98016787W Contact Us For Availability
13
Side Trim, Door (2) (White Right) WPL 98016795W Contact Us For Availability
13
Side Trim, Door (2) (Black Right) WPL 98016795B Contact Us For Availability
13
Baffle, Base WPL 98003847 Contact Us For Availability
13
Side Trim, Door (2) (Black Left) WPL 98016787B Contact Us For Availability
13
Side Trim, Door (2) (Biscuit Left) WPL 98016787T Contact Us For Availability
13
Side Trim, Door (2) (Biscuit Right) WPL 98016795T Contact Us For Availability
15
Valve, Burner (4) WPL 98017498 Contact Us For Availability
15
Bumper, Door (2) WPL 98004052 Contact Us For Availability
17
Pipe, Manifold WPL 98017556 Contact Us For Availability
19
Insulation, Retainer-Top WPL 98004938 Contact Us For Availability
20
Insulation, Retainer-Bottom WPL 98012904 Contact Us For Availability
21
Pin Kit-Dr Removal WPL 98012220 Contact Us For Availability
21
Retainer, Upper WPL 98017250 Contact Us For Availability
21
Following Parts Not Illustrated WPL ARI129010A Contact Us For Availability
22
Bracket, Valve (4) WPL 98017516 Contact Us For Availability
26
Fitting 3/8to9/16 WPL 98007431 Contact Us For Availability
27
Screw WPL 98013634 Contact Us For Availability
28
Screw WPL 1180823 Contact Us For Availability
30
Clip, Tubing WPL 98005026 Contact Us For Availability
36
Support, Rear WPL 98015363 Contact Us For Availability
37
Following Parts Not Illustrated WPL ARI129008A Contact Us For Availability
× ![]()
