Model Whirlpool SF010ESPW0 – Common Parts & Diagrams
04 - DOOR AND DRAWER

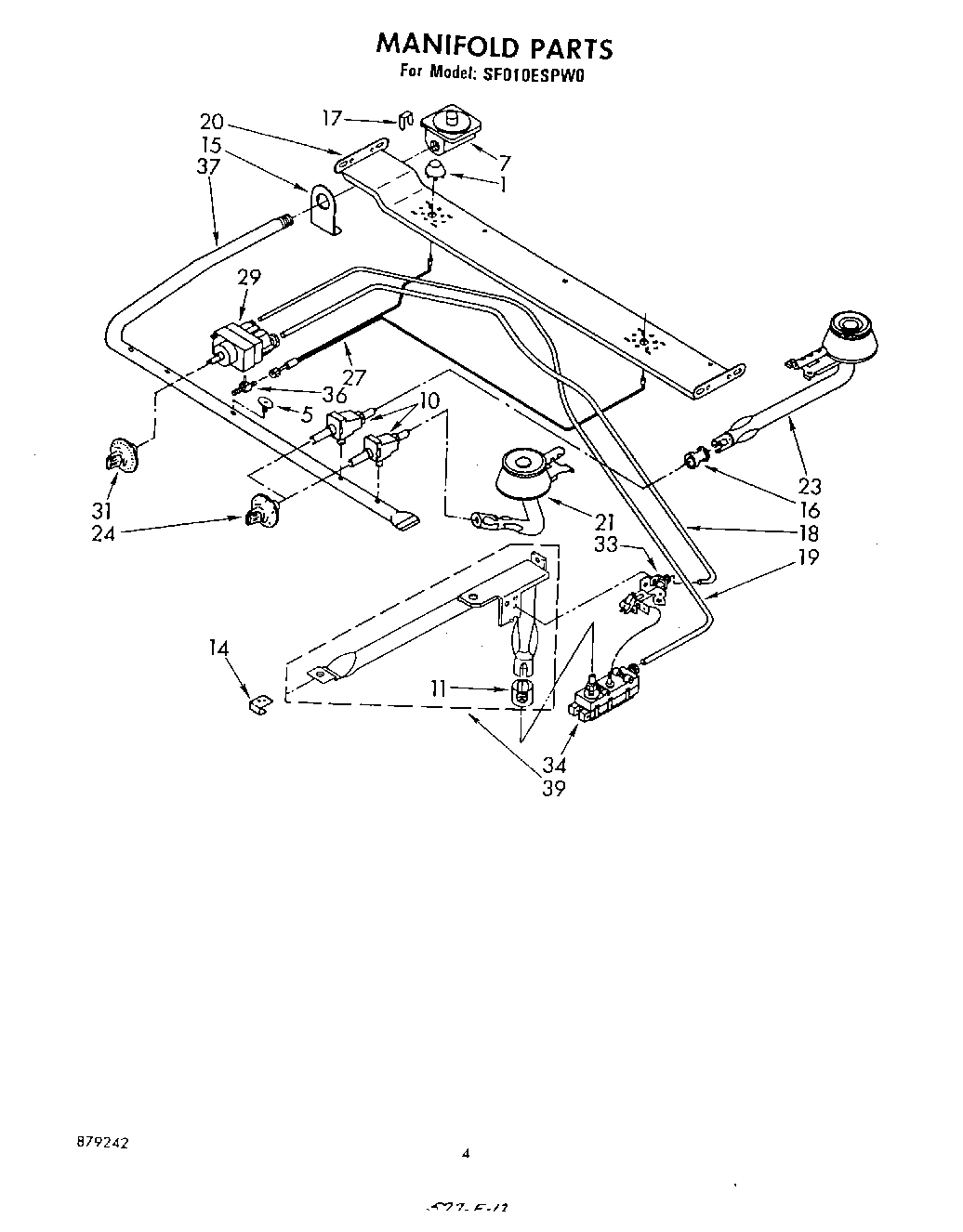

03 - MANIFOLD
05 - COOK TOP
02 - OVEN , LIT/OPTIONAL
Common parts from model Whirlpool SF010ESPW0
Instructions, Installation WPL LIT878062 Contact Us For Availability
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Installation Instructions WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879242 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (3) WPL 878079 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878302 Contact Us For Availability
2
Gasket, Vent Deflector WPL 878304 Contact Us For Availability
4
Bottom, Burner Box WPL 878982 Contact Us For Availability
5
Insulation, Broiler Door WPL 878306 Contact Us For Availability
5
Fitting, Flange WPL 878825 Contact Us For Availability
5
Panel, Manifold (Almond) WPL 878318 Contact Us For Availability
5
panel, manifold (white) WPL 878325 Contact Us For Availability
7
Stop, Broiler WPL 878309 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
7
Grate, Burner WPL 878940 Contact Us For Availability
8
Spacer, Door Handle (4) WPL 878310 Contact Us For Availability
8
Cover, Hinge WPL 878979 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
11
Handle, Broiler Door WPL 878323 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
14
Handle, Oven Door WPL 878324 Contact Us For Availability
14
Support, Oven Burner Front WPL 879068 Contact Us For Availability
14
Catch, Main Top WPL 878164 Contact Us For Availability
14
Rack, Oven WPL 878317 Contact Us For Availability
15
Panel, Oven Door (Almond) WPL 878329 Contact Us For Availability
15
Panel, Oven Door (White) WPL 878398 Contact Us For Availability
15
Support, Inlet Pipe WPL 878703 Contact Us For Availability
15
Nut, Projection Weld (2) WPL 878834 Contact Us For Availability
15
Oven, 20`` Standard (Not Serviceable) WPL ARI128864A Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
17
Lining, Oven Door WPL 878331 Contact Us For Availability
17
Shield Top Lighter WPL 878705 Contact Us For Availability
17
Strike, Main Top WPL 878499 Contact Us For Availability
17
Panel, End (2) (Almond) WPL 878385 Contact Us For Availability
17
Panel, End (2) (White) WPL 878387 Contact Us For Availability
18
Panel, Broiler Door (Almond) WPL 878332 Contact Us For Availability
18
Panel, Broiler Door (White) WPL 878438 Contact Us For Availability
18
Tubing, Control/ Pilot WPL 878704 Contact Us For Availability
18
top, main (white) WPL 878344 Contact Us For Availability
18
top, main (almond) WPL 878345 Contact Us For Availability
18
Spring, Oven Door (2) WPL 878327 Contact Us For Availability
19
Tubing, Oven WPL 878322 Contact Us For Availability
20
Lining, Broiler Door WPL 878334 Contact Us For Availability
20
Hanger, Top Burner WPL 878707 Contact Us For Availability
20
Baffle, Burner Box WPL 878981 Contact Us For Availability
20
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
20
Seal, Oven Door (Top) WPL 878328 Contact Us For Availability
21
Spring, Broiler Door WPL 878165 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
21
panel, backguard (white) WPL 879246 Contact Us For Availability
21
panel, backguard (almond) WPL 879247 Contact Us For Availability
23
Drawer, Broiler WPL 878342 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
23
Frame, Backguard WPL 878361 Contact Us For Availability
23
Screw, Leveling (4) WPL 878417 Contact Us For Availability
24
Pan, Broiler WPL 878353 Contact Us For Availability
24
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
24
Plate, Oven Bottom WPL 879040 Contact Us For Availability
26
Tray, Broiler Pan WPL 878354 Contact Us For Availability
26
Front, Main WPL 878994 Contact Us For Availability
27
Hinge, Broiler Door (Left Side) WPL 878355 Contact Us For Availability
27
Hinge, Broiler Door (Right Side) WPL 878356 Contact Us For Availability
27
Lighter, Top Burner WPL 878708 Contact Us For Availability
27
Back, Main WPL 879248 Contact Us For Availability
29
Support, Oven Door Hinge (Left Side) WPL 878104 Contact Us For Availability
29
Support, Oven Door Hinge (Right Side) WPL 878105 Contact Us For Availability
29
Control, Oven WPL 878709 Contact Us For Availability
29
Base, Main WPL 878348 Contact Us For Availability
30
Hinge, Oven Door WPL 878358 Contact Us For Availability
30
Deflector, Vent WPL 878983 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
33
Rod, Broiler Runner WPL 878357 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
36
Filter, Top Lighter WPL 878712 Contact Us For Availability
37
Pipe, Manifold WPL 878989 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
× ![]()
