Model Whirlpool SF0105EPW0 – Common Parts & Diagrams
02 - OVEN , LIT/OPTIONAL
04 - DOOR AND DRAWER

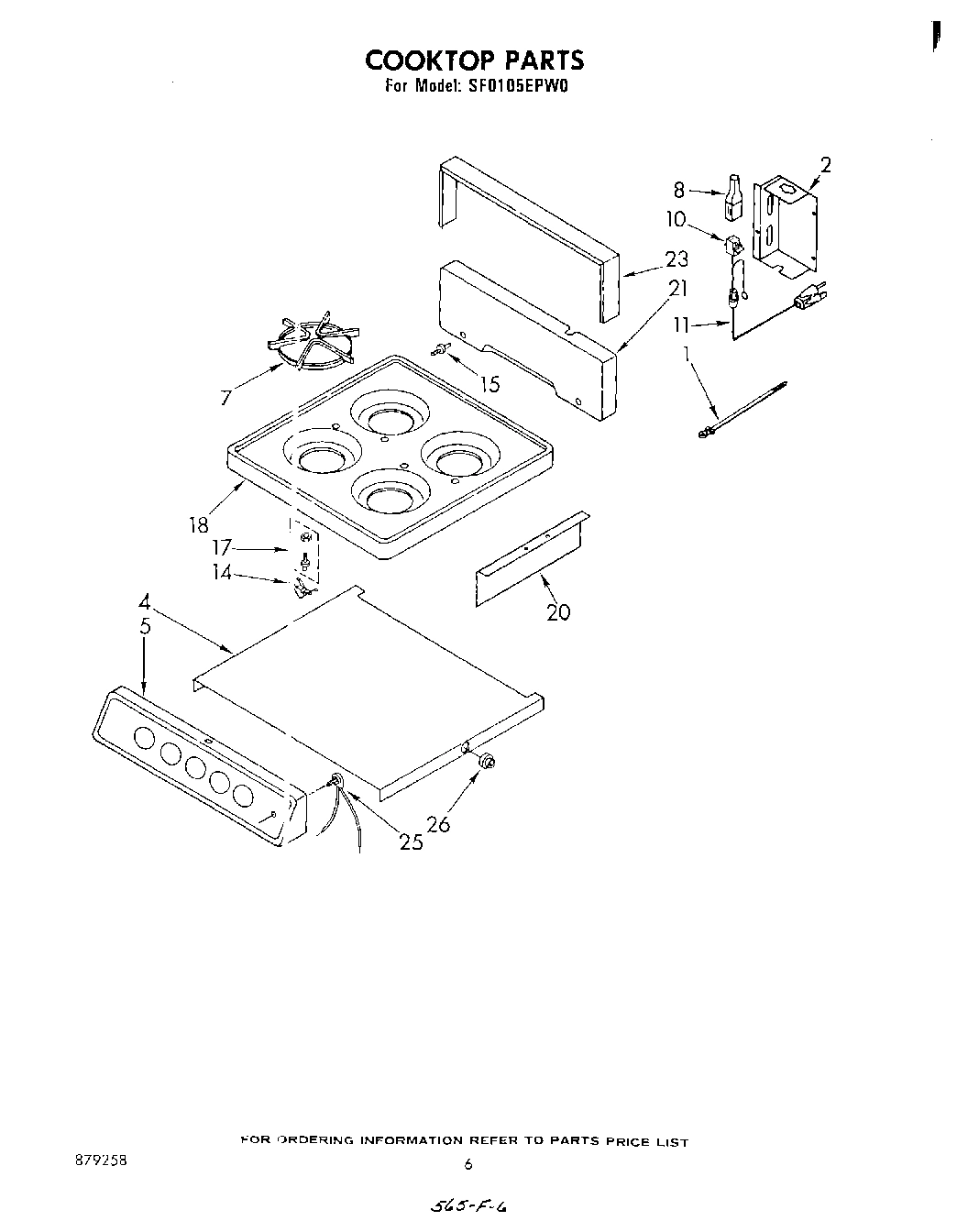

05 - COOK TOP

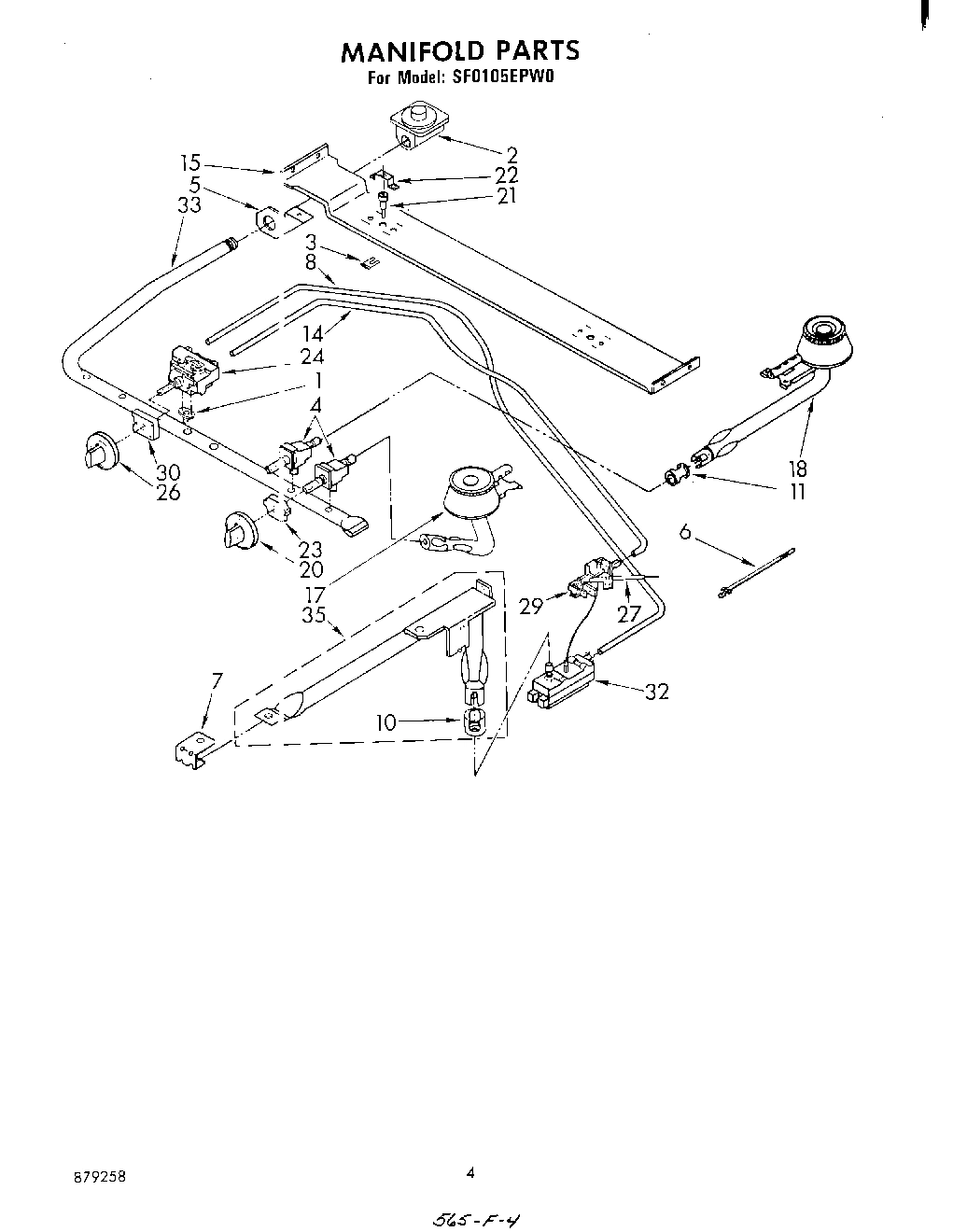

03 - MANIFOLD
Common parts from model Whirlpool SF0105EPW0
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Wiring WPL LIT878923 Contact Us For Availability
Diagram, Installation Instructions WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879258 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (3) WPL 878079 Contact Us For Availability
1
Clamp Wire (2) WPL 878082 Contact Us For Availability
1
Fitting, Flange WPL 878303 Contact Us For Availability
2
Gasket, Vent Deflector WPL 878304 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878302 Contact Us For Availability
2
Cover, Wire WPL 878314 Contact Us For Availability
2
Regulator, Pressure WPL 878008 Contact Us For Availability
3
Clip, Top Ignitor (2) WPL 878100 Contact Us For Availability
4
Bottom, Burner Box WPL 878982 Contact Us For Availability
4
Valve, Top Burner (4) WPL 878312 Contact Us For Availability
5
Insulation, Broiler Door WPL 878306 Contact Us For Availability
5
Panel, Manifold (White) WPL 879273 Contact Us For Availability
5
Support, Inlet Pipe WPL 878703 Contact Us For Availability
6
Clamp, Wire WPL 879056 Contact Us For Availability
7
Stop, Broiler WPL 878309 Contact Us For Availability
7
Grate, Burner (4) WPL 878940 Contact Us For Availability
7
Support, Oven Burner Front WPL 879068 Contact Us For Availability
8
Channel, Air Side (2) WPL 878979 Contact Us For Availability
8
Block, Disconnect Pin WPL 878196 Contact Us For Availability
8
Tubing, Oven WPL 878322 Contact Us For Availability
10
Raceway, Wire WPL 878316 Contact Us For Availability
10
Spacer, Door Handle (4) WPL 878310 Contact Us For Availability
10
Block, Disconnect Socket WPL 878162 Contact Us For Availability
10
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
11
Handle, Broiler Door WPL 878323 Contact Us For Availability
11
Cord, Extension WPL 878298 Contact Us For Availability
11
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
14
Rack, Oven WPL 878317 Contact Us For Availability
14
Handle, Oven Door WPL 878324 Contact Us For Availability
14
Catch, Main Top WPL 878164 Contact Us For Availability
14
Tubing, Control/Pilot WPL 878119 Contact Us For Availability
15
Oven, 20`` Standard (Not Serviceable) WPL ARI128862A Contact Us For Availability
15
Panel, Oven Door (White) WPL 879267 Contact Us For Availability
15
Nut, Projection Weld (2) WPL 878834 Contact Us For Availability
15
Hanger, Top Burner WPL 878321 Contact Us For Availability
17
Panel, End (2) (White) WPL 878387 Contact Us For Availability
17
Lining, Oven Door WPL 879271 Contact Us For Availability
17
Strike, Main Top WPL 878499 Contact Us For Availability
17
Burner, Top Front (2) (Includes Illus. 11) WPL 878130 Contact Us For Availability
18
Spring, Oven Door (2) WPL 879265 Contact Us For Availability
18
Panel, Broiler Door (White) WPL 878438 Contact Us For Availability
18
top, main (white) WPL 878344 Contact Us For Availability
18
Burner, Top Rear (2) (Includes Illus. 11) WPL 878131 Contact Us For Availability
20
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
20
Seal, Oven Door (Top) WPL 878328 Contact Us For Availability
20
Lining, Broiler Door WPL 878334 Contact Us For Availability
20
Baffle, Burner Box WPL 878981 Contact Us For Availability
20
Handle, Top Valve (4) WPL 878335 Contact Us For Availability
21
Control, Ignitor WPL 878006 Contact Us For Availability
21
Spring, Broiler Door WPL 878165 Contact Us For Availability
21
Panel, Backguard (White) WPL 878434 Contact Us For Availability
21
Ignitor, Top Burner (Left) WPL 878966 Contact Us For Availability
21
Ignitor, Top Burner (Right) WPL 878967 Contact Us For Availability
22
Target, Ignitor WPL 878121 Contact Us For Availability
23
Screw, Leveling (4) WPL 878417 Contact Us For Availability
23
Drawer, Broiler WPL 878342 Contact Us For Availability
23
Frame, Backguard WPL 878361 Contact Us For Availability
23
Switch, Top Ignitor (4) WPL 878752 Contact Us For Availability
24
Plate, Oven Bottom WPL 879040 Contact Us For Availability
24
Pan, Broiler WPL 878353 Contact Us For Availability
24
Control, Oven WPL 878338 Contact Us For Availability
25
Switch, Oven Light WPL 879264 Contact Us For Availability
26
Front, Main WPL 878994 Contact Us For Availability
26
Tray, Broiler Pan WPL 878354 Contact Us For Availability
26
Bushing, Burner Box (2) WPL 878364 Contact Us For Availability
26
Dial, Oven Control WPL 878158 Contact Us For Availability
27
Back, Main WPL 879266 Contact Us For Availability
27
Hinge, Broiler Door (Left Side) WPL 878355 Contact Us For Availability
27
Hinge, Broiler Door (Right Side) WPL 878356 Contact Us For Availability
27
Ignitor, Oven Burner WPL 878972 Contact Us For Availability
29
Base, Main WPL 878348 Contact Us For Availability
29
Support, Oven Door Hinge (Left Side) WPL 878104 Contact Us For Availability
29
Support, Oven Door Hinge (Right Side) WPL 878105 Contact Us For Availability
29
Lighter, Oven Burner WPL 878160 Contact Us For Availability
30
Deflector, Vent WPL 878983 Contact Us For Availability
30
Hinge, Oven Door WPL 878358 Contact Us For Availability
31
Cover, Ignitor Control WPL 878352 Contact Us For Availability
32
Glass, Inner WPL 879276 Contact Us For Availability
32
Valve, Oven Light Safety WPL 878011 Contact Us For Availability
33
Rod, Broiler Runner WPL 878357 Contact Us For Availability
33
Glass, Outer WPL 879277 Contact Us For Availability
33
Pipe, Manifold WPL 878990 Contact Us For Availability
34
Sleeve, Light Hole WPL 878103 Contact Us For Availability
34
Baffle, Door WPL 879278 Contact Us For Availability
35
Socket, Oven Light WPL 878124 Contact Us For Availability
35
Burner, Oven (Includes Illus. 10) WPL 878187 Contact Us For Availability
× ![]()
