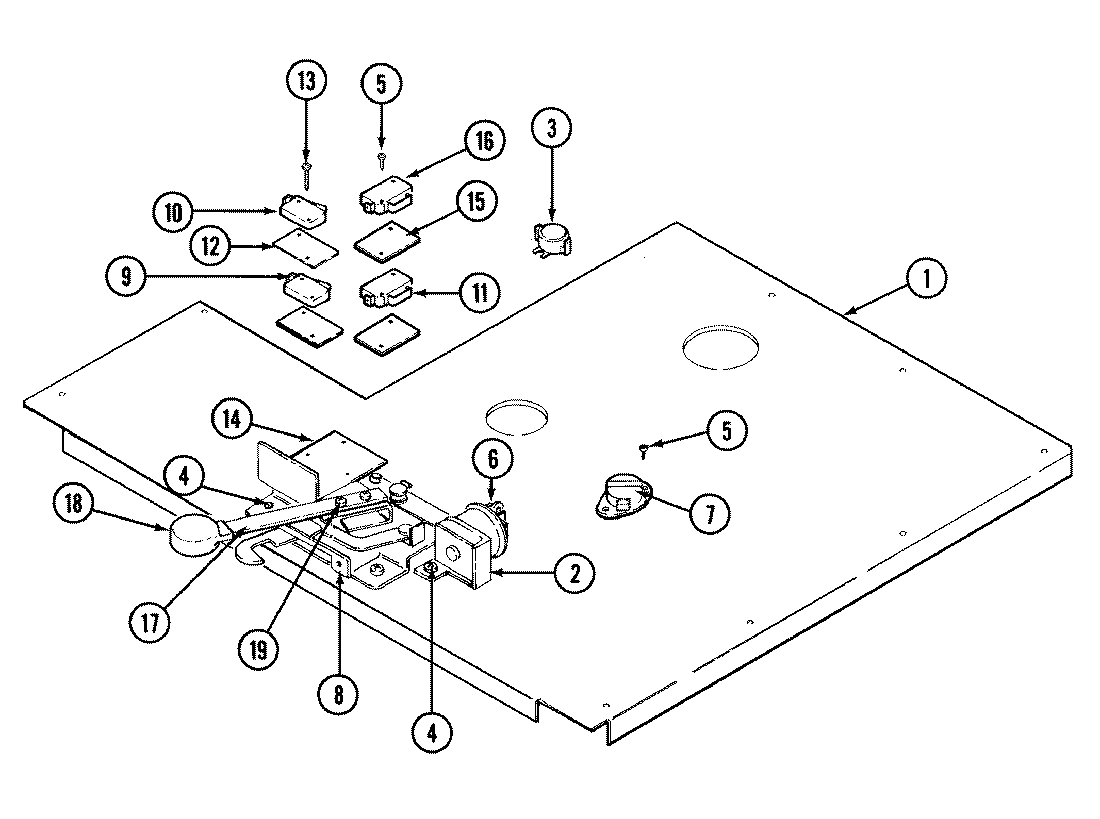

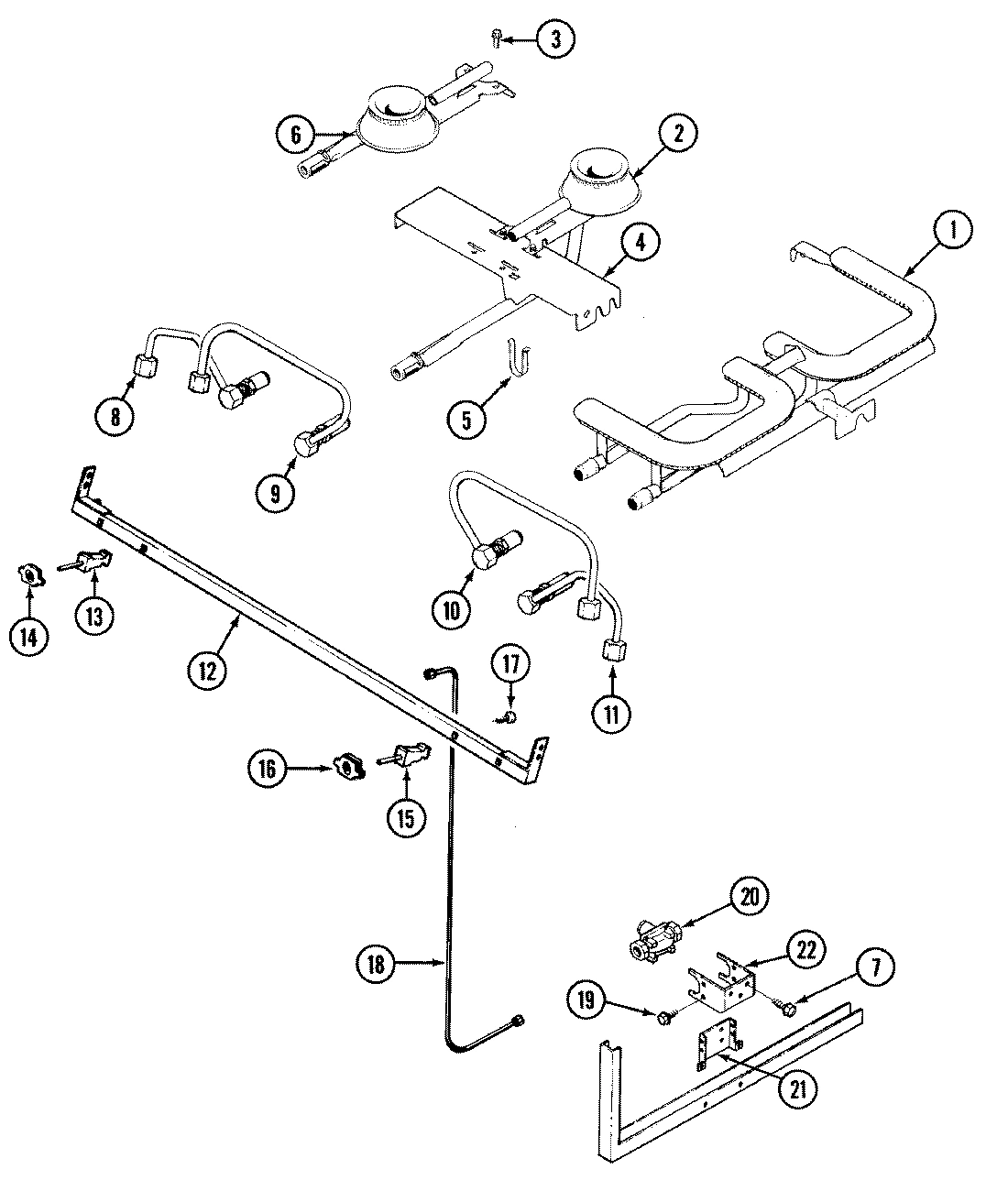

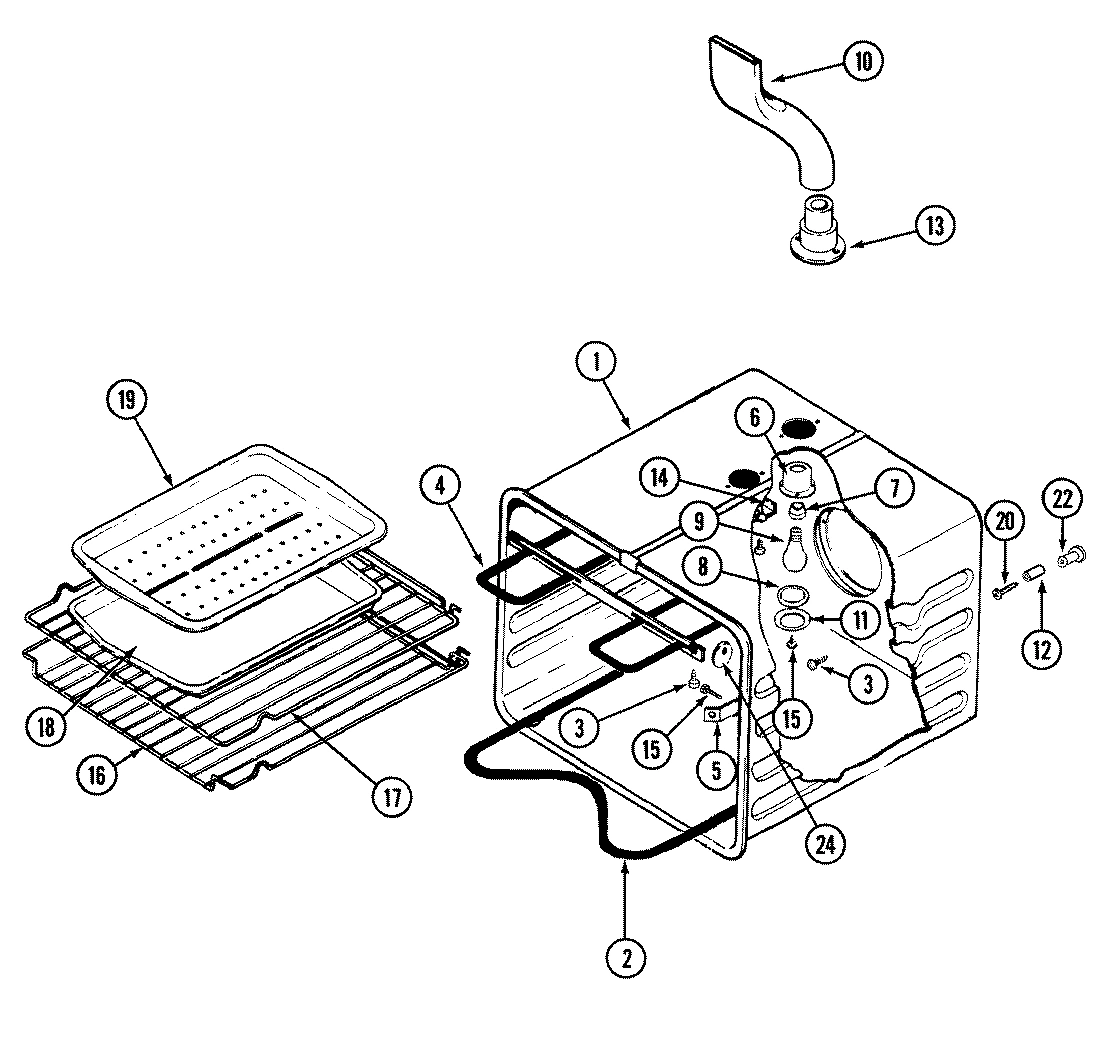

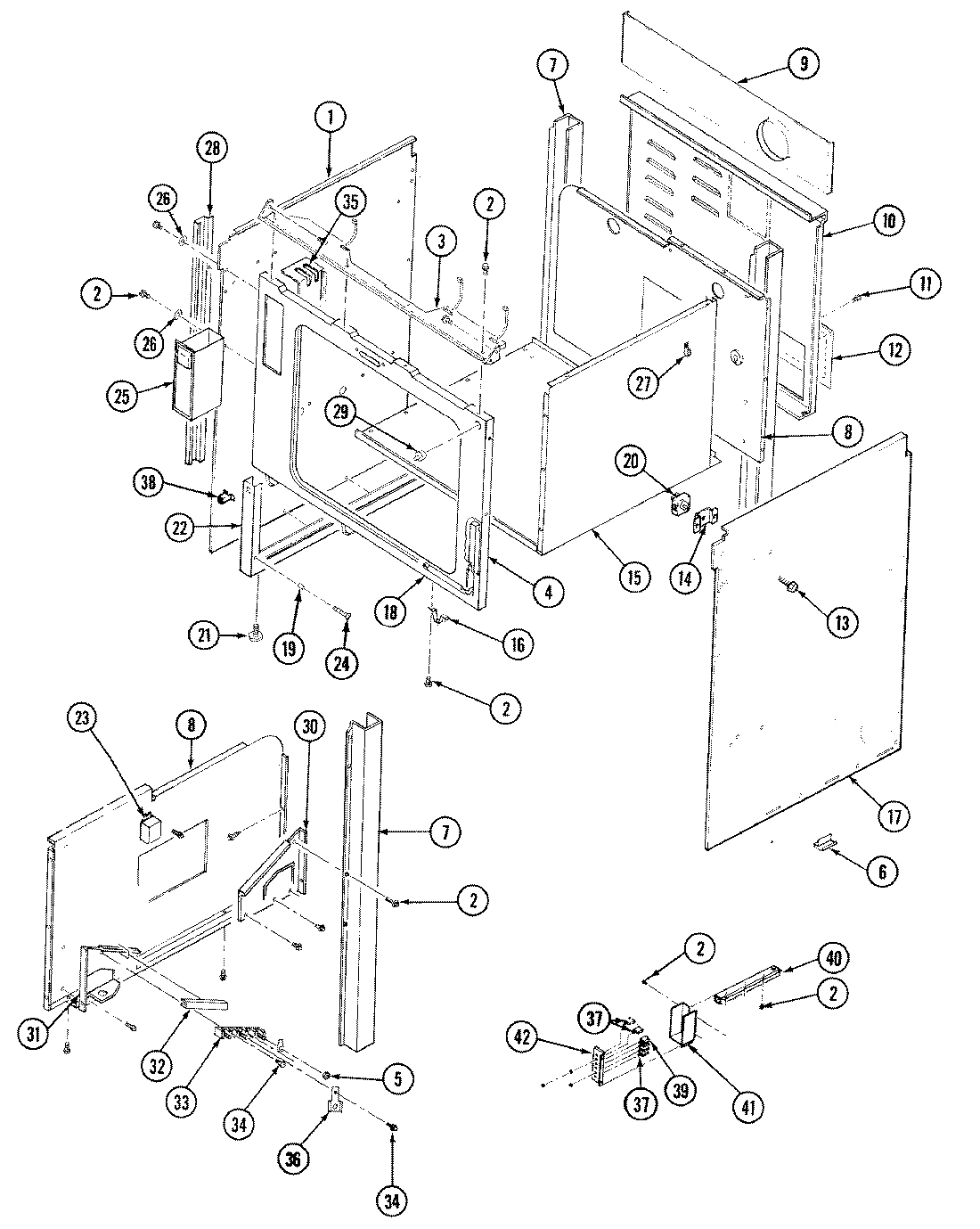

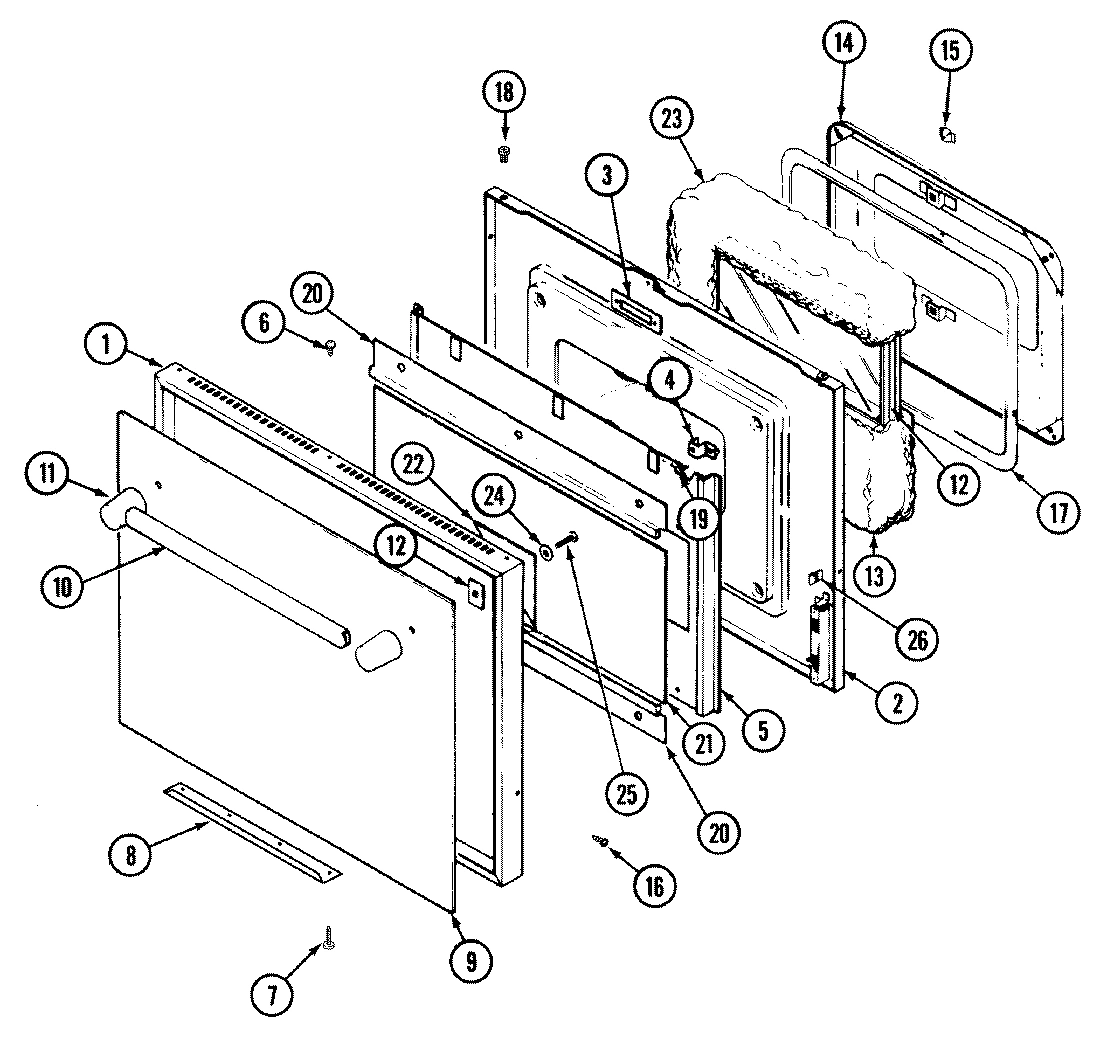

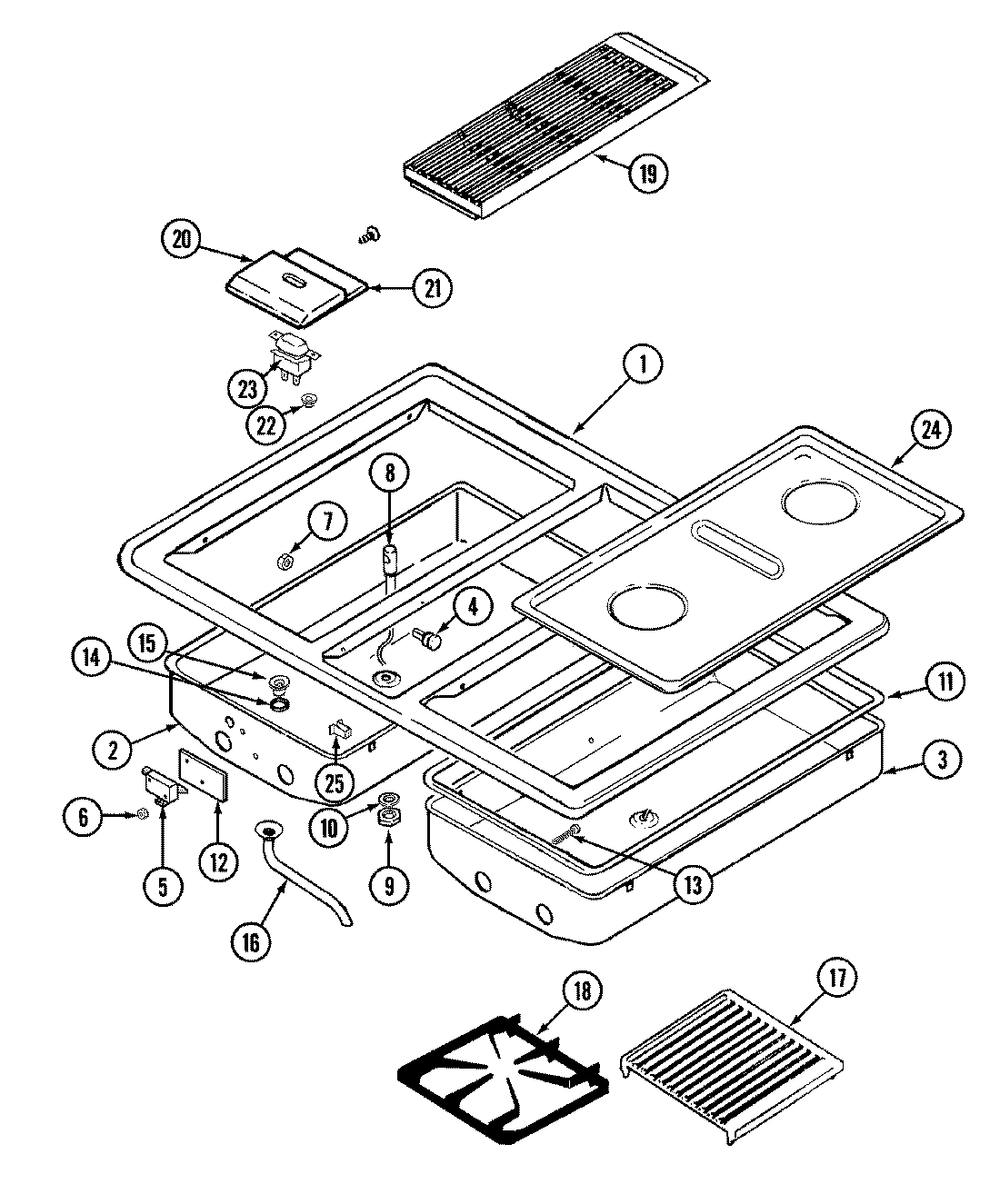

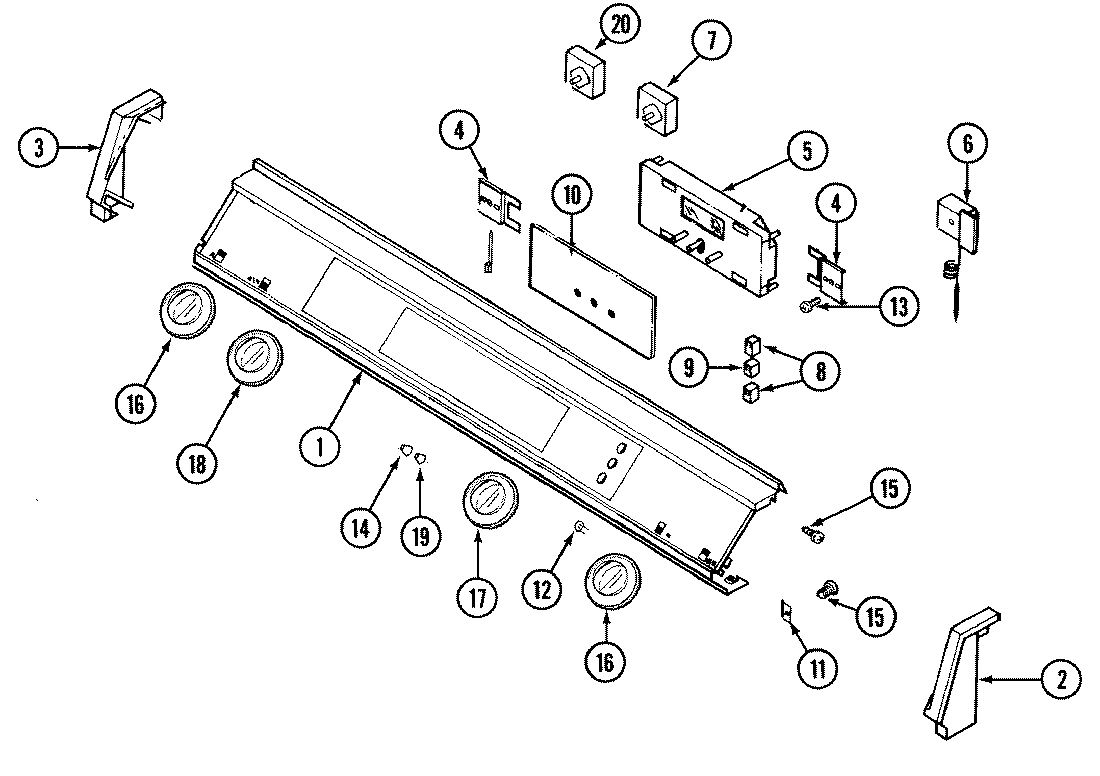

Model Whirlpool SEG196W-C DUEL FUEL RANGE – Common Parts &amp; Diagrams

1

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

1

Y712601 Whirlpool Burner Grille Backorder WPL Y712601 $173.03

1

TOP, STAINLESS STEEL WPL 712600 Contact Us For Availability

1

FRAME, BASE DOOR (CHRM) WPL Y704746 Contact Us For Availability

1

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

1

FRAME WPL 704741 Contact Us For Availability

1

PANEL, CONTROL WPL 04100162 Contact Us For Availability

1

WASHER, ALUM WPL 71001403 Contact Us For Availability

1

OVEN WELD ASSY. WPL 71001490 Contact Us For Availability

1

OVEN ASSY. WPL 712599 Contact Us For Availability

1

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

2

74005189 Whirlpool Rear Burner Backorder WPL 74005189 $163.73

2

WPY04100021 Whirlpool Bake Element Backorder WPL WPY04100021 $112.12

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.60

2

PAN, GRILL WPL Y704924 Contact Us For Availability

2

PANEL, BASE (WHT) WPL Y704747 Contact Us For Availability

2

TAPE, DOUBLE STICK (WHT) WPL Y704970 Contact Us For Availability

2

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

2

LINER WPL 712567 Contact Us For Availability

2

CAP, END (RT) WPL Y702387 Contact Us For Availability

2

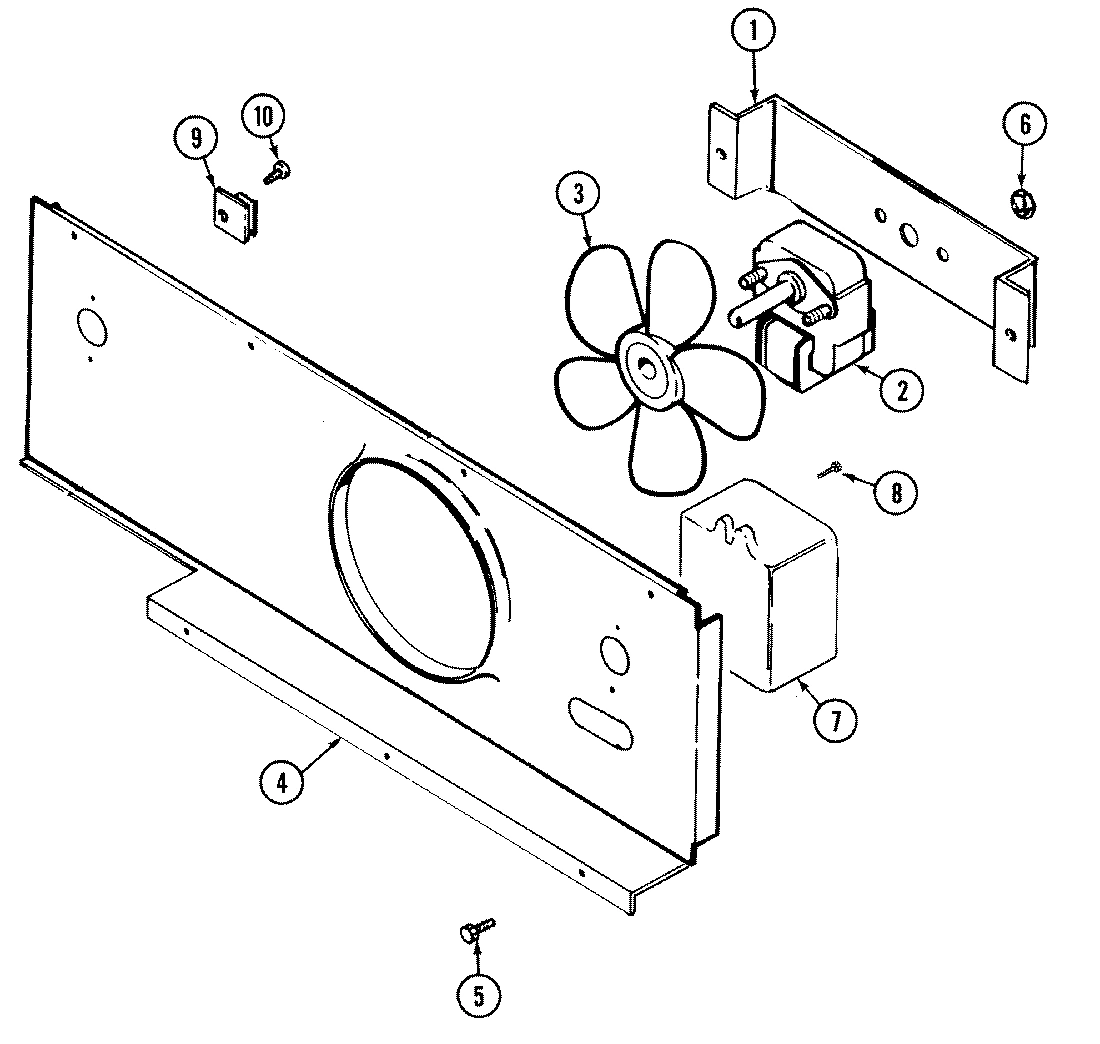

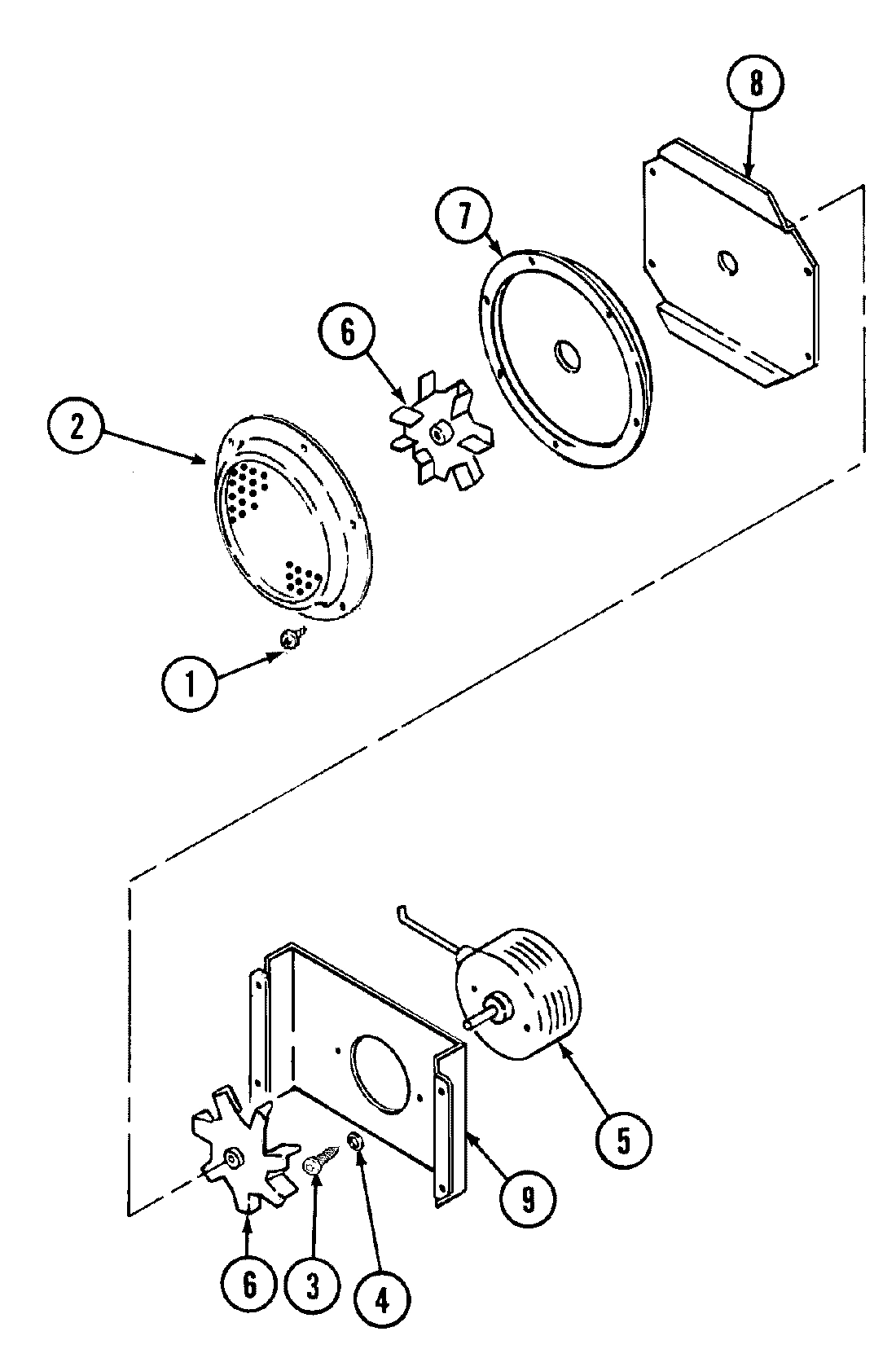

MOTOR, FAN WPL Y702549 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.74

3

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

3

PAN, GRILL (RT) WPL 704925 Contact Us For Availability

3

LINER, DOOR WPL Y702341 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

3

CAP, END (LT) WPL 702388 Contact Us For Availability

3

COVER, MOTOR WPL Y704760 Contact Us For Availability

3

BLADE, FAN WPL Y702525 Contact Us For Availability

4

WP3801F403-80 Whirlpool Bracket Backorder WPL WP3801F403-80 $33.50

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $74.79

4

SCREW WPL 707407 Contact Us For Availability

4

PIN, LOCATOR WPL 704536 Contact Us For Availability

4

PANEL, KICK WPL Y702744 Contact Us For Availability

4

CLOSURE, FRONT WPL 702329 Contact Us For Availability

4

PLATE, BACK WPL Y702345 Contact Us For Availability

4

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

4

BRACKET, CLOCK WPL 703667 Contact Us For Availability

4

WIRE, GROUND WPL 702643 Contact Us For Availability

5

7403P620-60 Whirlpool Switch Backorder WPL 7403P620-60 $62.96

5

MOTOR, CONVECT WPL Y703035 Contact Us For Availability

5

BAFFLE WPL 703782 Contact Us For Availability

5

CLOCK WPL Y04100133 Contact Us For Availability

5

CLOCK WPL Y703708 Contact Us For Availability

5

CLIP, BULB WPL Y701541 Contact Us For Availability

5

MOTOR WPL Y704759 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

CLIP, SPRING WPL 704549 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

6

WP71002179 Whirlpool Surface Igniter Backorder WPL WP71002179 $170.57

6

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

6

PIN, COTTER WPL Y701686 Contact Us For Availability

6

NUT WPL Y704522 Contact Us For Availability

6

STUD, BALL WPL Y702633 Contact Us For Availability

6

SCREW, SET WPL 701709 Contact Us For Availability

6

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

6

CLIP, SPRING WPL Y702476 Contact Us For Availability

6

SCREW WPL 704963 Contact Us For Availability

6

THERMOSTAT WPL Y703674 Contact Us For Availability

6

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

BURNER, FRONT WPL Y705318 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

7

Y052721 Whirlpool Nut Backorder WPL Y052721 $15.09

7

LIMIT, FAN WPL Y702750 Contact Us For Availability

7

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

RAIL, GLASS WPL 704744 Contact Us For Availability

7

SCREW, FLAT WPL 704745 Contact Us For Availability

7

SWITCH, SELECTOR WPL Y703673 Contact Us For Availability

7

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

7

RELAY WPL Y704923 Contact Us For Availability

8

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $2.60

8

LATCH ASSY. WPL Y703357 Contact Us For Availability

8

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

TAPE, FOAM WPL 704491 Contact Us For Availability

8

BUSHING WPL Y704489 Contact Us For Availability

8

LIGHT, OVEN PILOT (240V) WPL Y704222 Contact Us For Availability

8

LENS, LIGHT WPL Y704143 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

8

SCREW WPL 703534 Contact Us For Availability

8

TUBE, BURNER (LR) WPL Y704937 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.43

9

SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability

9

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

9

GLASS WPL 704742 Contact Us For Availability

9

CLIP, CABLE WPL 704940 Contact Us For Availability

9

TUBE, BURNER (LF) WPL Y704936 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.60

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $86.22

SWITCH, DOOR WPL 702806 Contact Us For Availability

CLIP, LOOP WPL 704941 Contact Us For Availability

PLUG, RUBBER WPL Y702825 Contact Us For Availability

COVER, REAR (LOWER) WPL 702307 Contact Us For Availability

HANDLE (WHT) WPL 704475 Contact Us For Availability

LENS, TIMER (WHT) WPL 704608 Contact Us For Availability

TUBE, VENT WPL 702290 Contact Us For Availability

TUBE, BURNER (RR) WPL 704939 Contact Us For Availability

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

SEAL, PAN WPL Y704979 Contact Us For Availability

END CAP (WHT) WPL Y704454 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

TUBE, BURNER (RF) WPL Y704938 Contact Us For Availability

INSULATOR WPL Y702350 Contact Us For Availability

INSULATOR, SWITCH WPL Y704534 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

PACK, WINDOW WPL 703804 Contact Us For Availability

LENS, PILOT LIGHT WPL Y705024 Contact Us For Availability

SPACER WPL 705252 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

MANIFOLD WPL 704921 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.79

VALVE, GAS (LT) WPL Y04100187 Contact Us For Availability

SCREW WPL 702807 Contact Us For Availability

SCREW WPL 702380 Contact Us For Availability

WASHER (TEFLON) WPL 715617 Contact Us For Availability

SCREW WPL 704335 Contact Us For Availability

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

VALVE (LT) WPL Y704505 Contact Us For Availability

WPY704513 Whirlpool Oven Igniter Switch Backorder WPL WPY704513 $91.26

SHIELD, SWITCH WPL 701706 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

BRACKET WPL 704337 Contact Us For Availability

PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.60

Y04100184 Whirlpool Gas Valve In Stock WPL Y04100184 $147.39

INSULATOR WPL 703264 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

NUT WPL 707161 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

WIRE, ORANGE WPL 703749 Contact Us For Availability

WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability

WIRE, BROWN WPL 704243 Contact Us For Availability

WIRE, BLUE WPL 704244 Contact Us For Availability

SCREW, HEX WPL Y705393 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

SWITCH, LATCH WPL Y703732 Contact Us For Availability

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

BRACKET, HAT WPL 702658 Contact Us For Availability

SCREW (TRIM) WPL 705204 Contact Us For Availability

KNOB, VALVE WPL 04100163 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $94.71

RACK, OVEN WPL Y704660 Contact Us For Availability

LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability

GRATE, GRILL WPL Y04100054 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

KNOB, THERMOSTAT (WHT) WPL Y704482 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

PLENUM, UPPER WPL 712025 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

SCREW WPL Y705019 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.60

SPRING, KNOB WPL 701671 Contact Us For Availability

KNOB (WHT) WPL 704460 Contact Us For Availability

GRATE, BURNER WPL Y04100335 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

NUT, PUSH IN WPL 701643 Contact Us For Availability

KNOB, SELECT SWITCH (GRY)-NA WPL 704483 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

TUBE, SUPPLY WPL Y704934 Contact Us For Availability

12001809 Whirlpool Oven LP Conversion Kit Backorder WPL 12001809 $29.93

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $7.70

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

GRILL, AIR (CHR) WPL 04100164 Contact Us For Availability

GRILL,AIR (CHROME) WPL 04100767 Contact Us For Availability

GRILL, AIR (WHT) WPL 71001451 Contact Us For Availability

SPACER WPL 702745 Contact Us For Availability

MANUAL, USE & CARE WPL RA196UA Contact Us For Availability

ESCUTCHEON (WHT) WPL 71001452 Contact Us For Availability

ESCUTCHEON (WHT) WPL Y04100548 Contact Us For Availability

ESCUTCHEON (WHT) WPL Y704477 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

RETAINER, GLASS WPL Y704819 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

SCREW WPL 705170 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

REGULATOR WPL Y704948 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $7.24

BRACKET, FILLER WPL Y704233 Contact Us For Availability

LEVELER, LEG WPL Y04100573 Contact Us For Availability

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

BRACKET, SUPPORT WPL Y704933 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.60

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.86

LOCKWASHER WPL 704568 Contact Us For Availability

NUT, PUSH WPL Y04100035 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

BAFFLE, INNER WPL 704466 Contact Us For Availability

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

SCREW WPL 715870 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

GUSSET----NA WPL 704805 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

LIMIT, OVEN WPL Y702107 Contact Us For Availability

TERMINAL WPL Y702711 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

U-BRACKET WPL Y704932 Contact Us For Availability

SWITCH, FAN (GRY) WPL 704478 Contact Us For Availability

MODULE, SPARK WPL Y704540 Contact Us For Availability

GROMMET WPL Y704978 Contact Us For Availability

INSULATION WPL 702293 Contact Us For Availability

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

24

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.60

24

PAN, AERATION (WHT) WPL Y704510 Contact Us For Availability

25

W11164114 Whirlpool Screw Backorder WPL W11164114 $3.02

25

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

26

WASHER, CONICAL WPL 702462 Contact Us For Availability

26

CLIP WPL 704487 Contact Us For Availability

27

CLIP, SCREW DOWN WPL 705290 Contact Us For Availability

28

TRIM, SIDE WPL 702337 Contact Us For Availability

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

INSULATOR WPL 702898 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $11.40

36

KIT,BACKSPLASH ADAPTOR WPL 712239 Contact Us For Availability

36

STRAP, GROUND WPL Y702335 Contact Us For Availability

37

BREAKER, CIRCUIT (30 AMP) WPL Y702613 Contact Us For Availability

38

CLIP----S WPL 708763 Contact Us For Availability

39

CIRCUIT BREAKER (15 AMP) WPL 701774 Contact Us For Availability

40

WIREWAY WPL 703492 Contact Us For Availability

41

ENCLOSURE, CIRCUIT BREAKER WPL 702523 Contact Us For Availability

42

COVER, CIRCUIT BREAKER WPL 705249 Contact Us For Availability

42

BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability

BAFFLE, AIR WPL 705242 Contact Us For Availability

HARNESS, CIRCUIT BREAKER WPL 705247 Contact Us For Availability

BLOCK, TERMINAL WPL Y702607 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability
