Model Whirlpool SE960PEYN2 – Common Parts & Diagrams

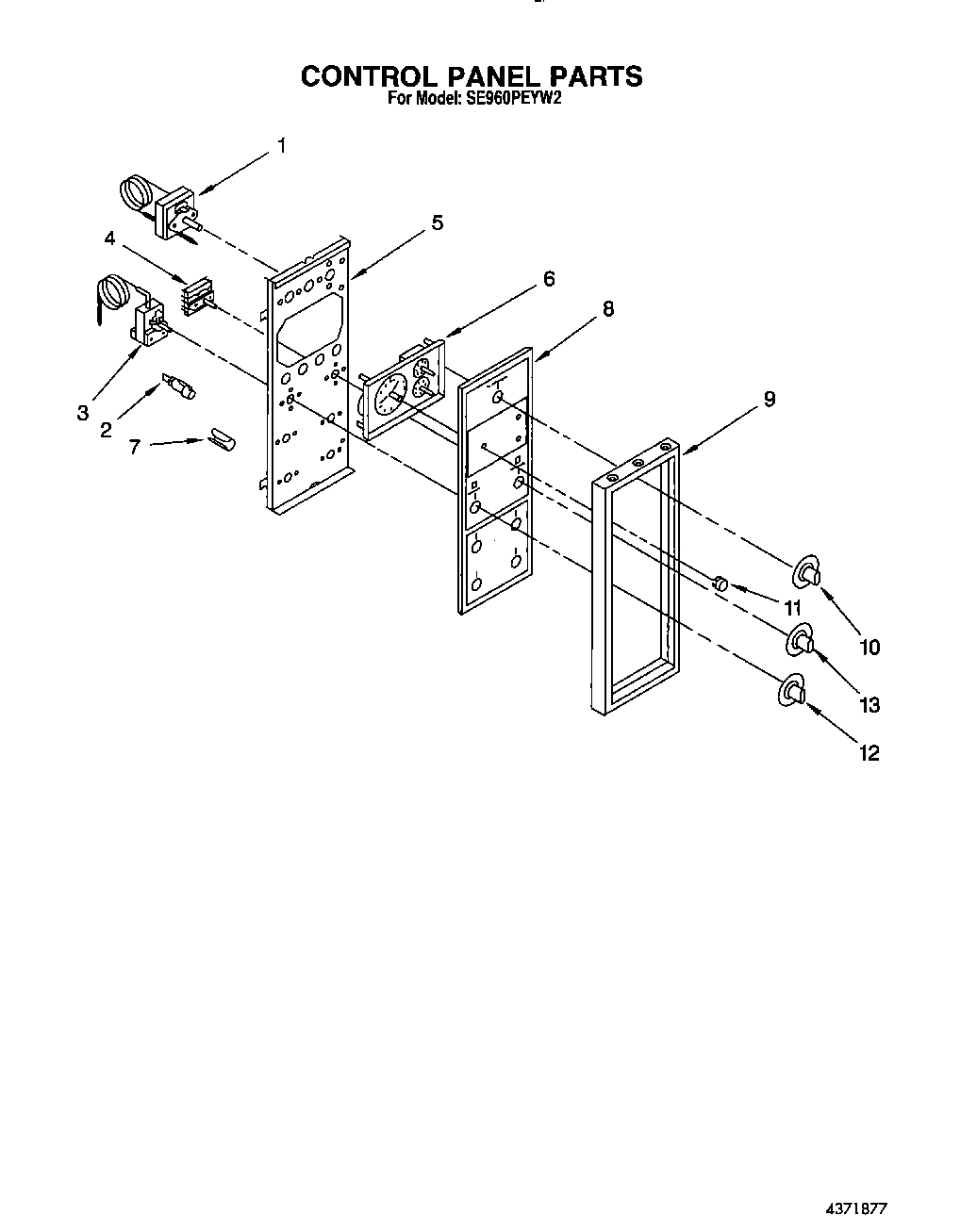

05 - CONTROL PANEL

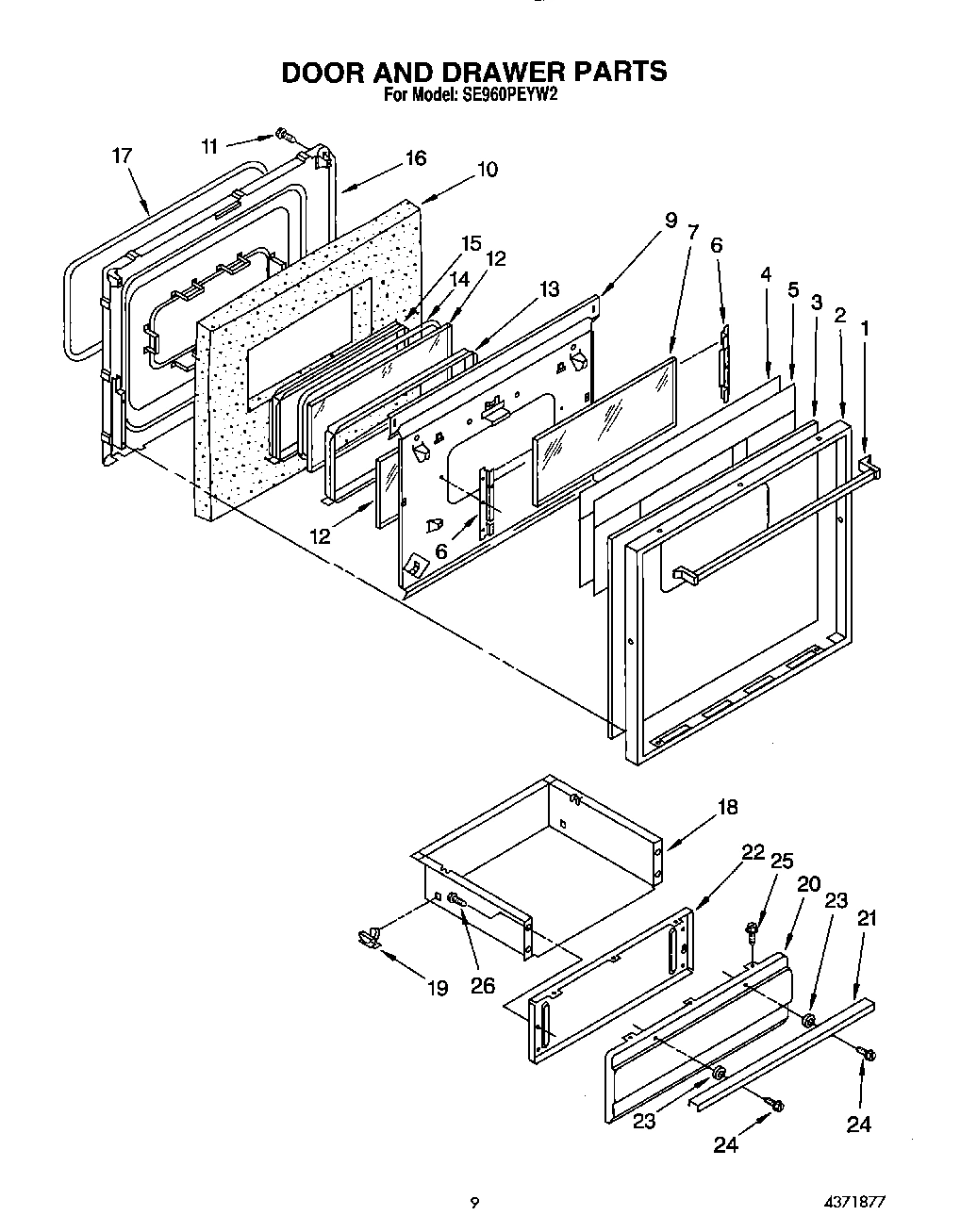

08 - DOOR AND DRAWER

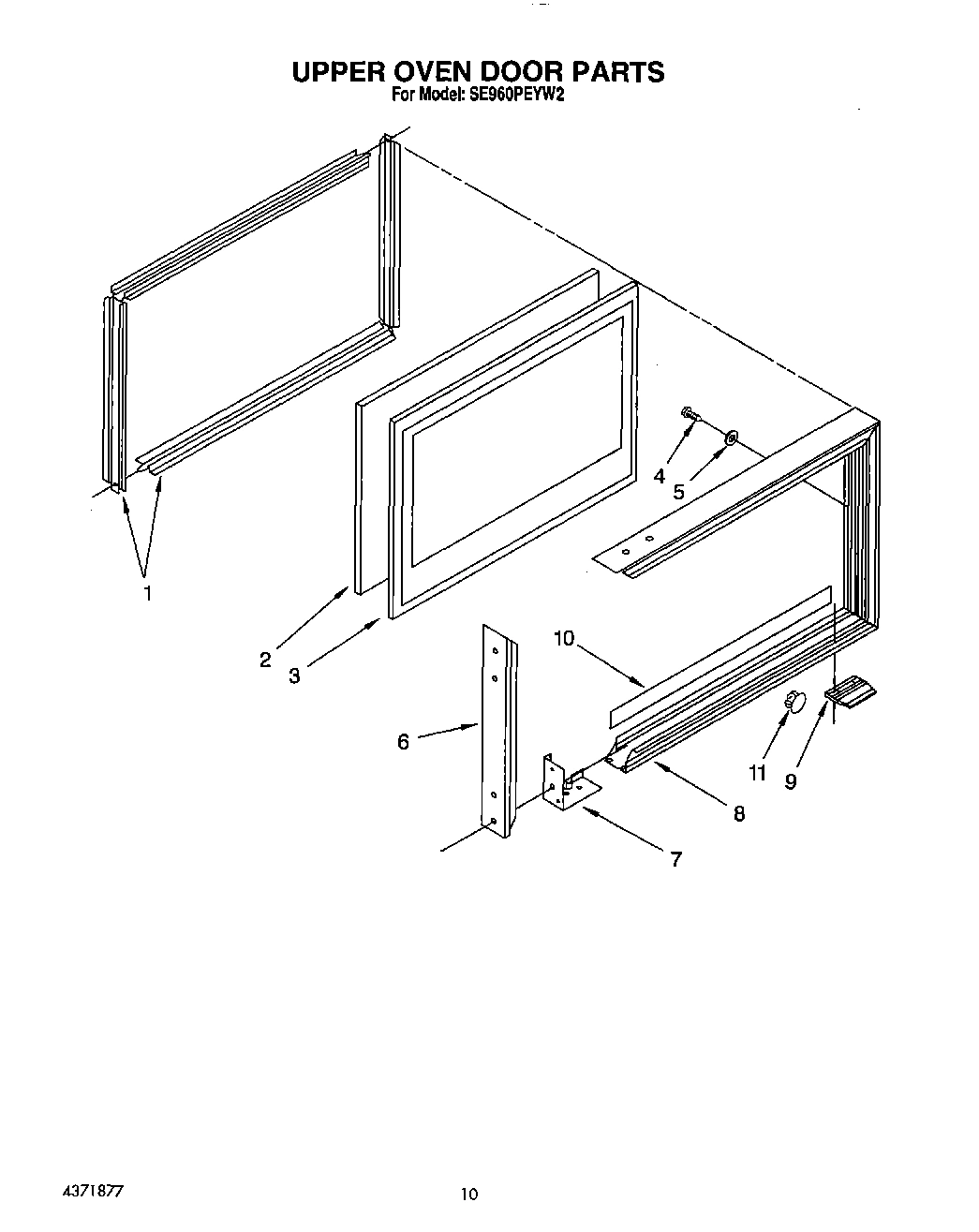

09 - UPPER OVEN DOOR

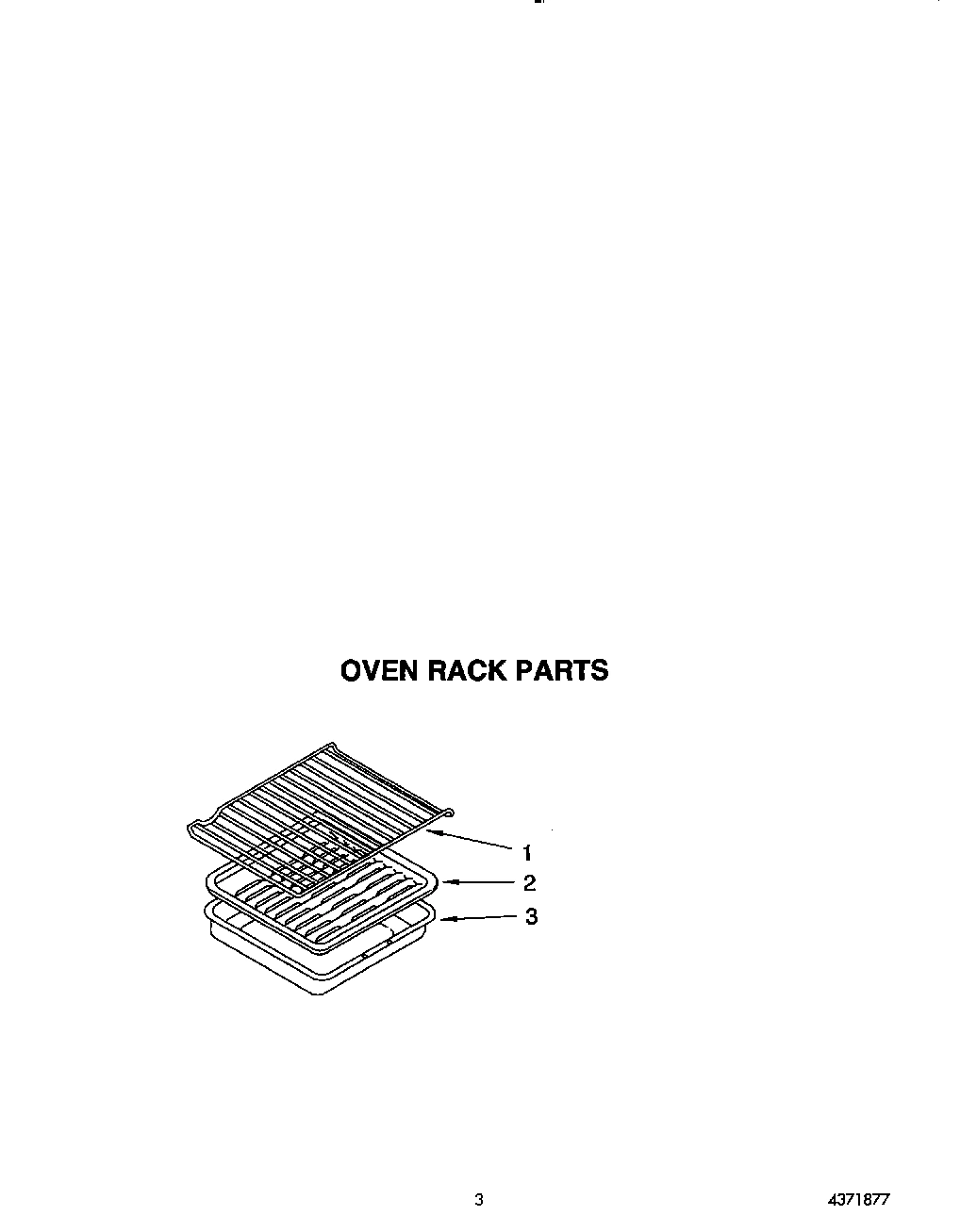

03 - OVEN RACK

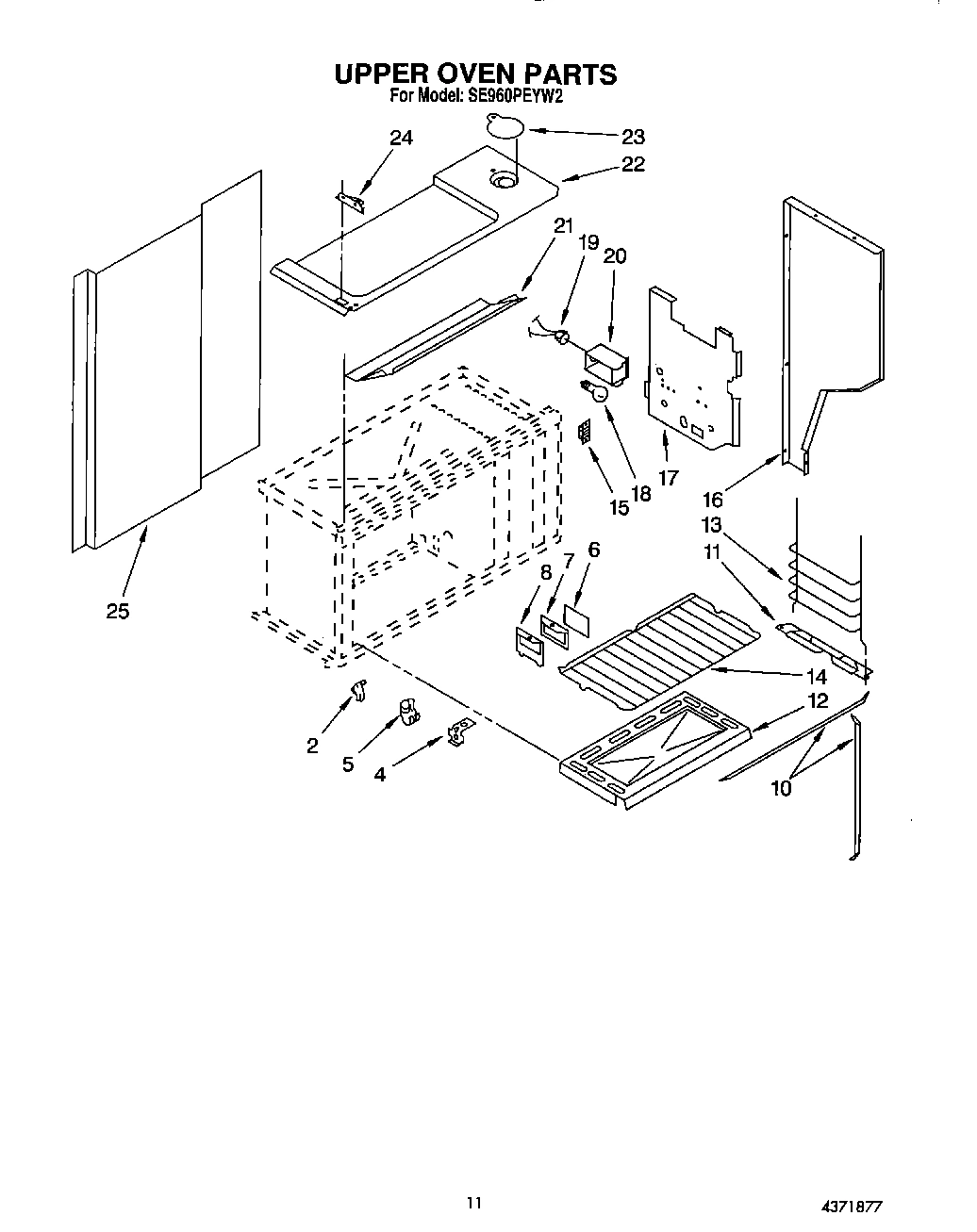

10 - UPPER OVEN

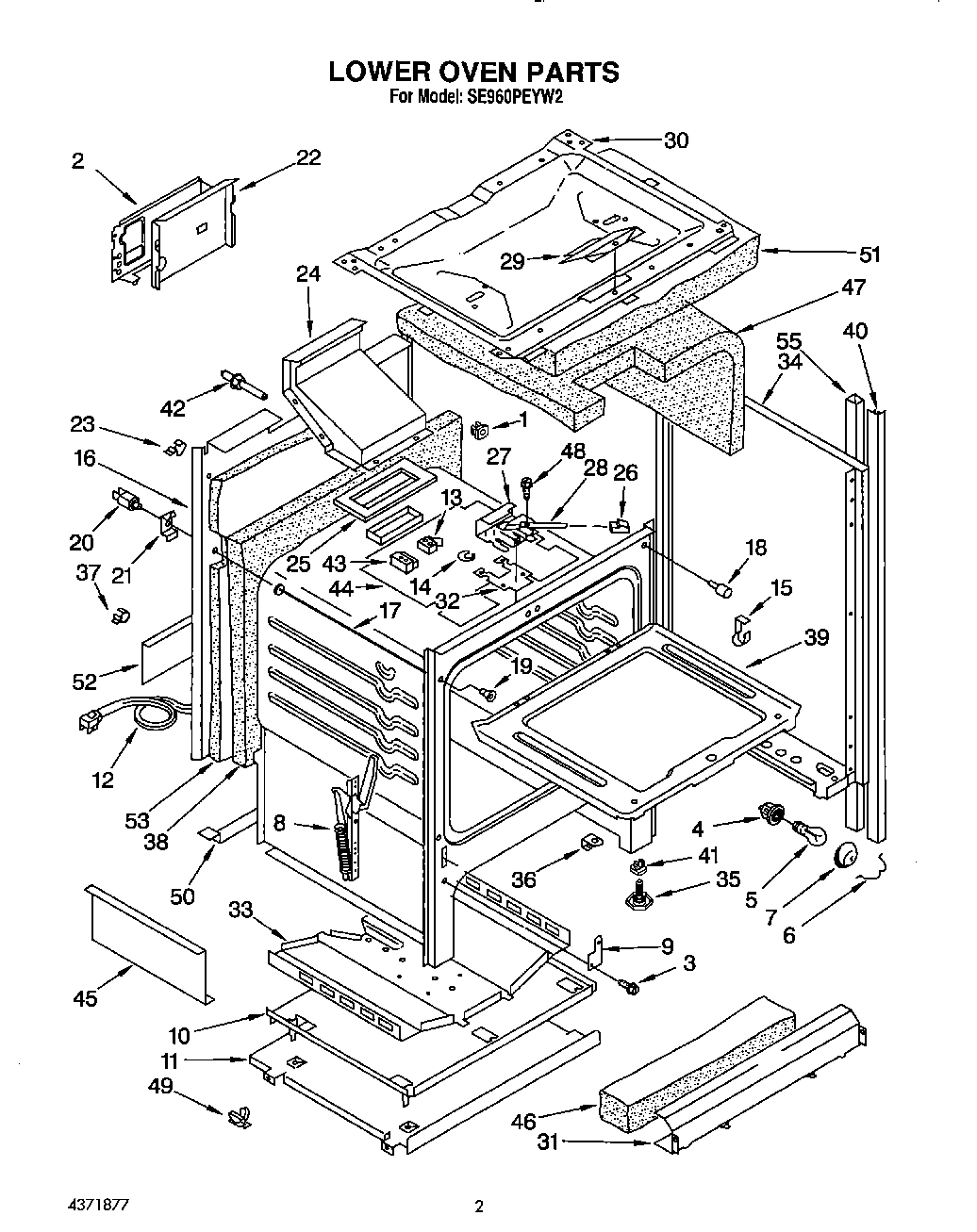

02 - LOWER OVEN

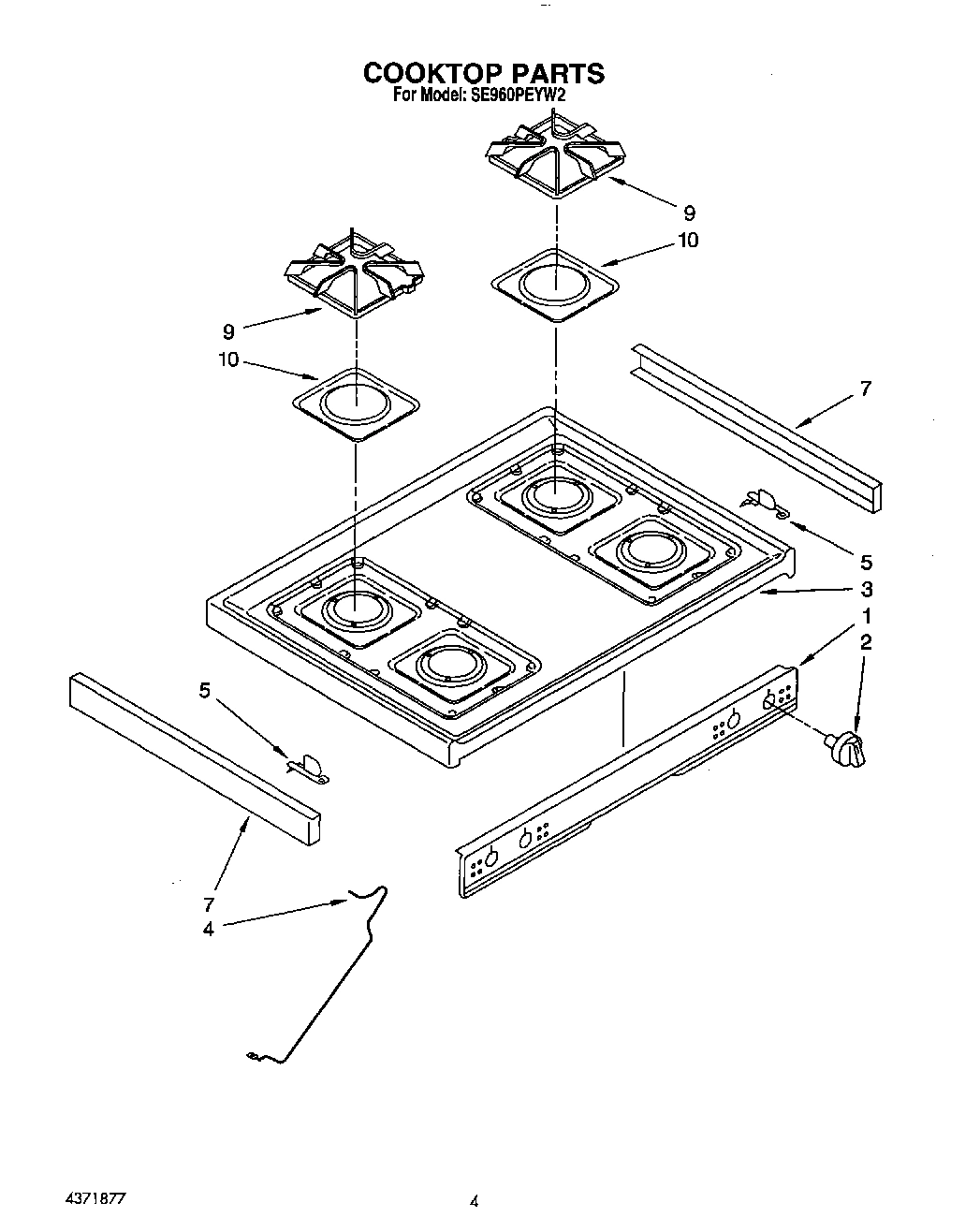

04 - COOKTOP

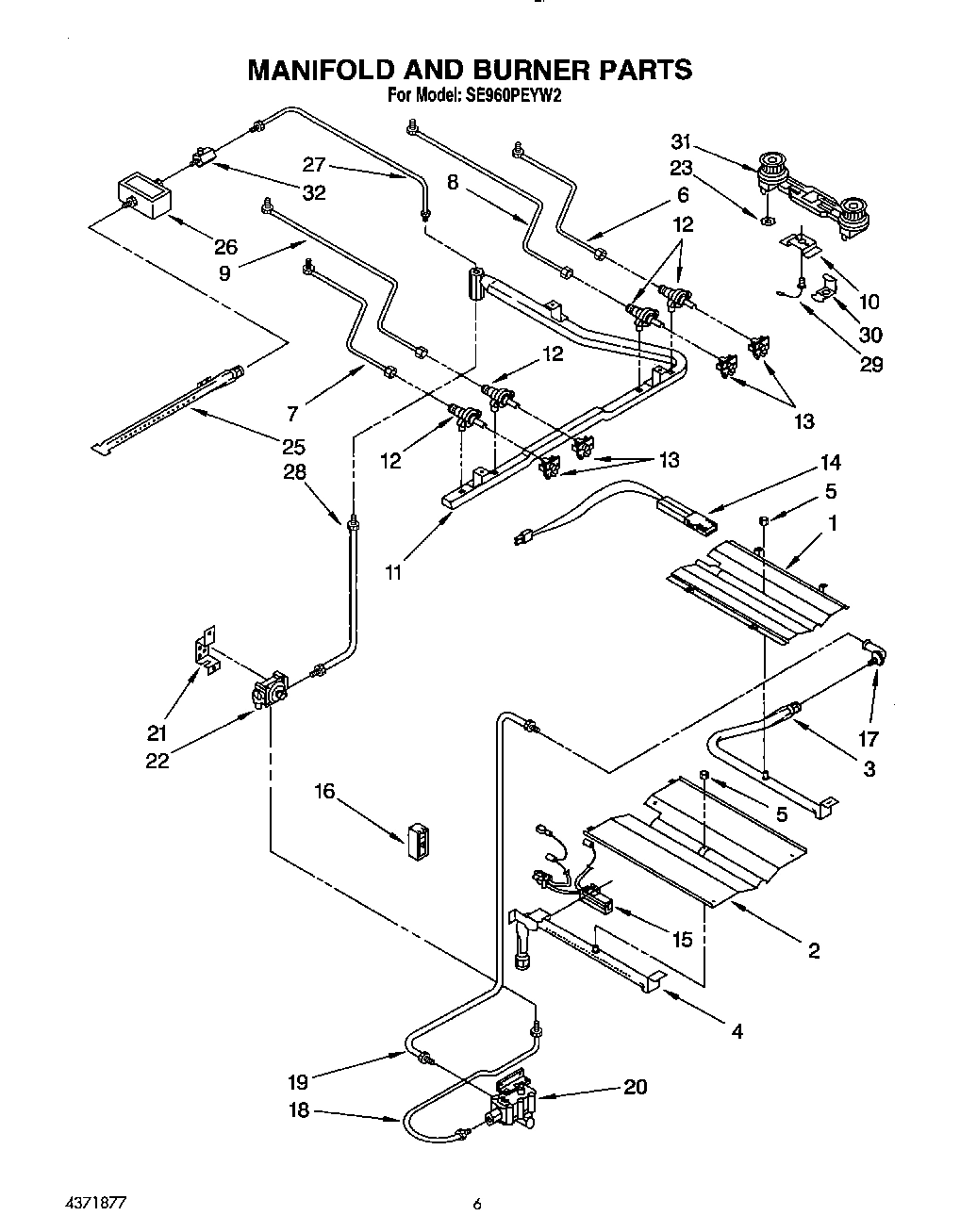

06 - MANIFOLD AND BURNER, LIT/OPTIONAL

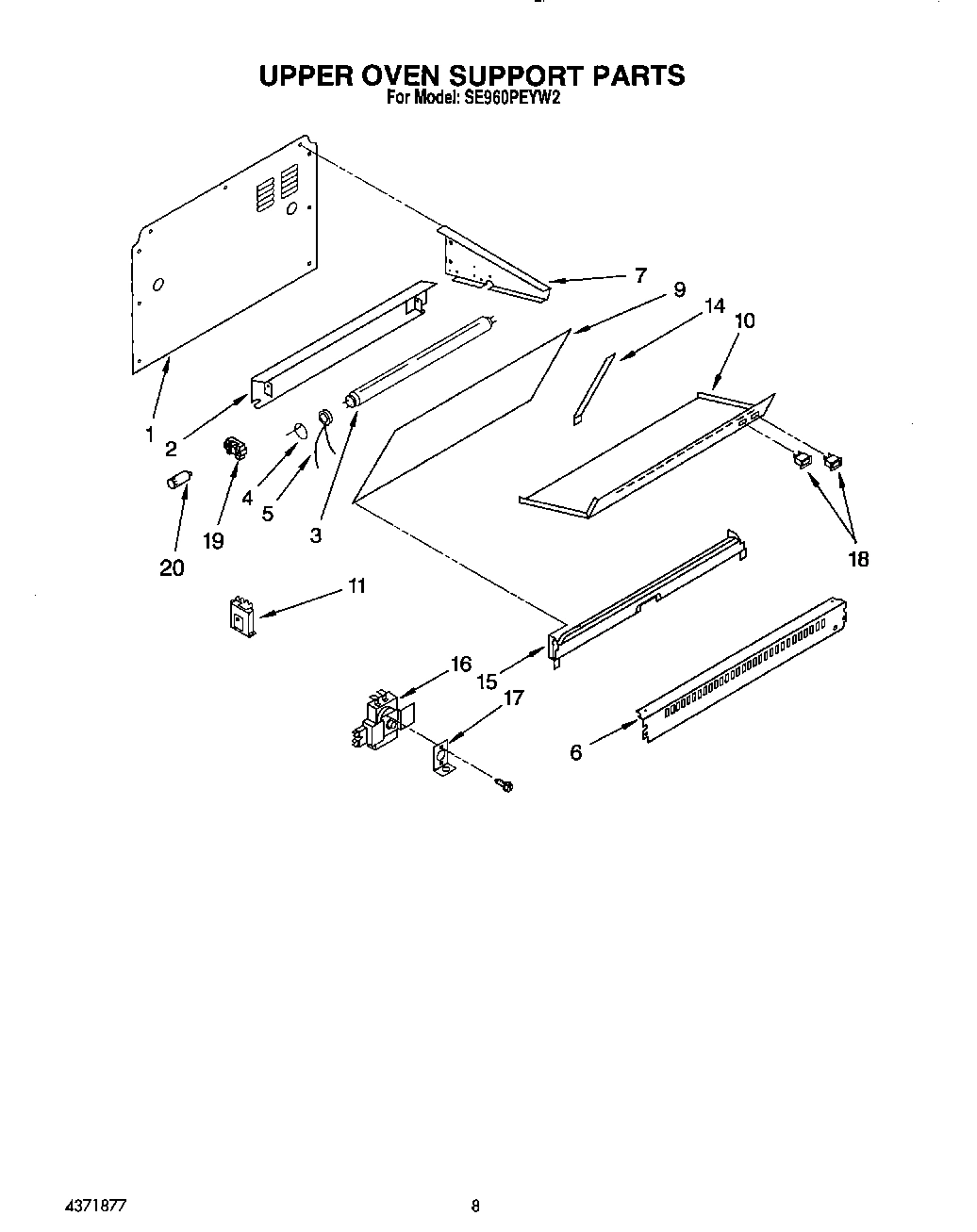

07 - UPPER OVEN SUPPORT
Common parts from model Whirlpool SE960PEYN2
Repair Parts List WPL LIT4371877 Contact Us For Availability
Use & Care Guide WPL LIT816988 Contact Us For Availability
Installation Instructions WPL LIT816989 Contact Us For Availability
1
Handle, Door WPL 816622 Contact Us For Availability
1
Spacer, Glass WPL 4371187 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Panel, Manifold WPL 4371563 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Back, Upper Oven WPL 4371177 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Glass, Rear WPL 4371184 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Hinge, Door WPL 4371213 Contact Us For Availability
2
Shield, Rear Wall WPL 4371619 Contact Us For Availability
2
Knob, Control (4) WPL 816632 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Reflector WPL 4371241 Contact Us For Availability
3
Glass, Door WPL 4371690 Contact Us For Availability
3
Glass, Door Front WPL 4371183 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Screw, Oven Bottom WPL 816651 Contact Us For Availability
3
Top, Main (White) WPL 4371064 Contact Us For Availability
3
Top, Main (Almond) WPL 4371065 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
4
Foil, Aluminum WPL 816674 Contact Us For Availability
4
Strike, Upper Oven Latch WPL 4371862 Contact Us For Availability
4
Plate, Hinge WPL 4371222 Contact Us For Availability
4
Rod, Support WPL 4371039 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Insulator WPL 4371200 Contact Us For Availability
5
Bracket, Control Panel WPL 4371495 Contact Us For Availability
5
Foil, Aluminum WPL 816675 Contact Us For Availability
5
Nut, Hex (2) WPL 816642 Contact Us For Availability
5
Clip, Bulb WPL 4371031 Contact Us For Availability
5
Bracket, Hinge (Left) WPL 816586 Contact Us For Availability
5
Bracket, Hinge (Right) WPL 816721 Contact Us For Availability
5
Receptacle WPL 4371870 Contact Us For Availability
6
Clock WPL 4371215 Contact Us For Availability
6
Bracket, Glass WPL 816676 Contact Us For Availability
6
Channel, Upper Oven Door WPL 4371859 Contact Us For Availability
6
Glass, Lens WPL 4371211 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Tubing, Burner (RF) WPL 4371021 Contact Us For Availability
6
Vent, Trim WPL 4371256 Contact Us For Availability
7
Fastener, Clock WPL 4371208 Contact Us For Availability
7
Window Door WPL 816679 Contact Us For Availability
7
Gusset, Oven Door WPL 4371185 Contact Us For Availability
7
Gasket, Light WPL 4371210 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Trim, Top (Left) WPL 4371250 Contact Us For Availability
7
Trim, Top (Right) WPL 4371251 Contact Us For Availability
7
Tubing, Burner (LF) WPL 4371022 Contact Us For Availability
7
Support, Oven (Right Hand) WPL 4371245 Contact Us For Availability
7
Support, Oven (Left Hand) WPL 4371246 Contact Us For Availability
8
Glass, Upper Oven Control Panel WPL 4371214 Contact Us For Availability
8
Channel, Upper Oven Door Frame WPL 4371860 Contact Us For Availability
8
Cover, Lens WPL 4371207 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Tubing, Burner (RR) WPL 4371023 Contact Us For Availability
9
Trim, Frame Control Panel WPL 4371865 Contact Us For Availability
9
Shield, Wool WPL 4371253 Contact Us For Availability
9
Handle, Door WPL 4371186 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Grate (4) WPL 4371034 Contact Us For Availability
9
Tubing, Burner (LR) WPL 4371024 Contact Us For Availability
9
Glass, Upper Oven WPL 4371193 Contact Us For Availability
10
Knob, Thermostat Upper WPL 4371221 Contact Us For Availability
10
Insulation, Oven Door WPL 816682 Contact Us For Availability
10
Spacer, Upper WPL 4371188 Contact Us For Availability
10
Seals, Door (Top, Bottom and Sides) WPL 4371868 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
10
Pan, Burner WPL 4371565 Contact Us For Availability
10
Bracket, Burner Mounting WPL 4371019 Contact Us For Availability
10
Splasher, Panel (Upper) WPL 4371869 Contact Us For Availability
11
Knob, Clock (3) WPL 4371866 Contact Us For Availability
11
Screw, Handle WPL 4371542 Contact Us For Availability
11
Button, Wear Oven Door WPL 4371861 Contact Us For Availability
11
Glide, Oven WPL 4371212 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
11
Pipe, Manifold WPL 4371180 Contact Us For Availability
11
Ballast WPL 4371178 Contact Us For Availability
12
Knob, Thermostat Lower WPL 4371220 Contact Us For Availability
12
Glass, Heat Shield WPL 816681 Contact Us For Availability
12
Bottom, Oven WPL 4371179 Contact Us For Availability
12
Cord, Power WPL 4371191 Contact Us For Availability
12
Valve, Top 3 Position (4) WPL 4371504 Contact Us For Availability
13
Bushing WPL 4371205 Contact Us For Availability
13
Knob, Selector Switch WPL 4371219 Contact Us For Availability
13
Spacer, Glass WPL 816687 Contact Us For Availability
13
Glide, Oven Rack WPL 4371863 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
13
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
14
Seal, Oven Window WPL 816684 Contact Us For Availability
14
Rack, Oven WPL 4371238 Contact Us For Availability
14
Trim, Upper Oven (Left Hand) WPL 4371248 Contact Us For Availability
14
Trim, Upper Oven (Right Hand) WPL 4371249 Contact Us For Availability
15
Collar, Glass WPL 816677 Contact Us For Availability
15
Catch, Door WPL 4371206 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371190 Contact Us For Availability
15
Trim, Upper Oven Spl. Filler WPL 4371255 Contact Us For Availability
16
Liner, Oven Door WPL 816683 Contact Us For Availability
16
Panel, Back Side (Right (White)) WPL 4371262 Contact Us For Availability
16
Panel, Back Side (Left (White)) WPL 4371263 Contact Us For Availability
16
Panel, Back Side (Right (Almond)) WPL 4371272 Contact Us For Availability
16
Panel, Back Side (Left (Almond)) WPL 4371273 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Module, Spark WPL 4371030 Contact Us For Availability
16
Thermostat WPL 4371247 Contact Us For Availability
17
Seal, Oven Door WPL 816685 Contact Us For Availability
17
Shield, Wool Upper Oven WPL 4371226 Contact Us For Availability
17
Rod, Light WPL 4371038 Contact Us For Availability
17
Mixer, Elbow WPL 816594 Contact Us For Availability
17
Angle Bracket WPL 4371176 Contact Us For Availability
18
Drawer, Utility WPL 4371671 Contact Us For Availability
18
Bumper, Front (4) WPL 816608 Contact Us For Availability
18
Tubing, Valve To Regulator WPL 4371260 Contact Us For Availability
19
Guide, Drawer WPL 816712 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Tubing, Valve To Mixing Elbow WPL 816689 Contact Us For Availability
19
Starter, Receptacle WPL 4371239 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 4371130 Contact Us For Availability
20
Panel, Drawer (White) WPL 816754 Contact Us For Availability
20
Box, Upper Light WPL 4371864 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Valve, Dual WPL 816692 Contact Us For Availability
20
Starter WPL 4371243 Contact Us For Availability
21
Handle WPL 4371060 Contact Us For Availability
21
Bracket, Door Switch WPL 816587 Contact Us For Availability
21
Bracket, Regulator WPL 816636 Contact Us For Availability
22
Shield, Panel WPL 816716 Contact Us For Availability
22
Top, Oven WPL 4371236 Contact Us For Availability
22
Shield, Rear Heat WPL 4371618 Contact Us For Availability
22
Control, Regulator WPL 4371032 Contact Us For Availability
23
Spacer, Handle WPL 816713 Contact Us For Availability
23
Cover, Outlet WPL 4371192 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
23
Nut WPL 4371029 Contact Us For Availability
24
Screw, Handle (2) WPL 4371063 Contact Us For Availability
24
Hinge, Door Top WPL 4371194 Contact Us For Availability
24
Flue Box WPL 816619 Contact Us For Availability
25
Bracket, Mtng. WPL 4371203 Contact Us For Availability
25
Foil, Aluminum WPL 4371175 Contact Us For Availability
25
Insulation, Wool Splasher WPL 4371196 Contact Us For Availability
25
Insulation, Wool WPL 4371197 Contact Us For Availability
25
Insulation Oven WPL 4371217 Contact Us For Availability
25
Insulation, Wool WPL 4371218 Contact Us For Availability
25
Retainer, Burner WPL 4371224 Contact Us For Availability
25
Angle, Wool Shield WPL 4371857 Contact Us For Availability
25
Strike, Door WPL 4371871 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
25
Burner, Upper Oven WPL 4371204 Contact Us For Availability
26
Screw, Drawer (4) WPL 4371062 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
26
Valve, Upper WPL 4371232 Contact Us For Availability
27
Latch, Door WPL 4371036 Contact Us For Availability
27
Tube, Upper Oven Valve WPL 4371259 Contact Us For Availability
28
Handle, Latch WPL 4371265 Contact Us For Availability
28
Tube, Regulator Manifold WPL 4371261 Contact Us For Availability
29
Ignitor, Top Burner (4) WPL 4371017 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4371025 Contact Us For Availability
30
Retainer, Ignitor WPL 4371242 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
31
Burner, (2) Top WPL 4371020 Contact Us For Availability
32
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
32
Retainer, Burner Bracket WPL 4371223 Contact Us For Availability
32
Support, Thermo Valve WPL 4371227 Contact Us For Availability
32
Tube, Spacer WPL 4371231 Contact Us For Availability
32
Valve, Shut Off WPL 4371233 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 816650 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
40
Trim, Side (2) WPL 4371252 Contact Us For Availability
41
Fastener, T Nut (4) WPL 4371867 Contact Us For Availability
42
Spacer, Stud (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Shield, Oven Top WPL 816658 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 4371664 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
50
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 816663 Contact Us For Availability
53
Shield, Wool WPL 816664 Contact Us For Availability
55
Tube, Post (LH) WPL 4371257 Contact Us For Availability
55
Tube, Post (RH) WPL 4371258 Contact Us For Availability
× ![]()
