Model Whirlpool SE960PEPW3 – Common Parts & Diagrams

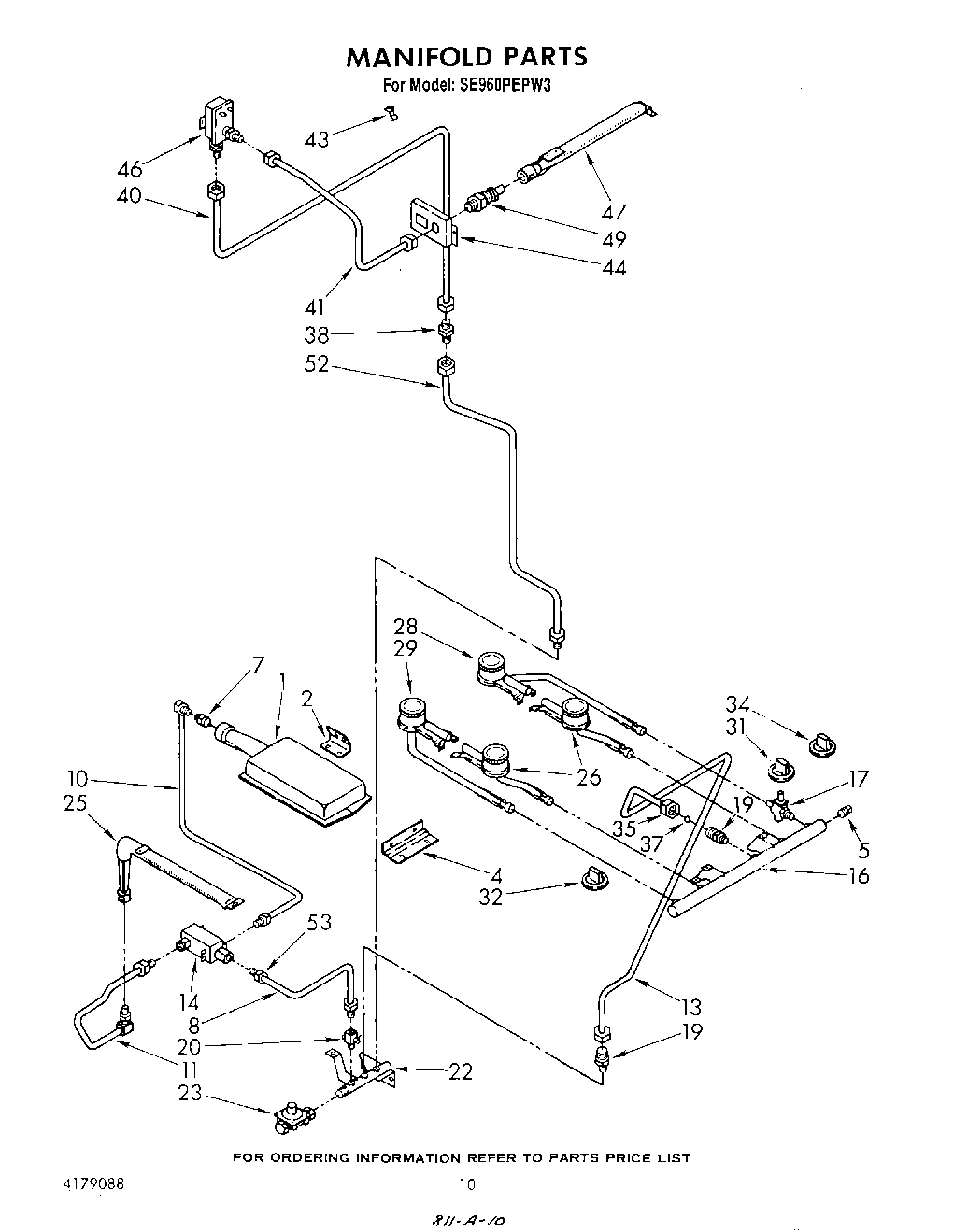

07 - MANIFOLD

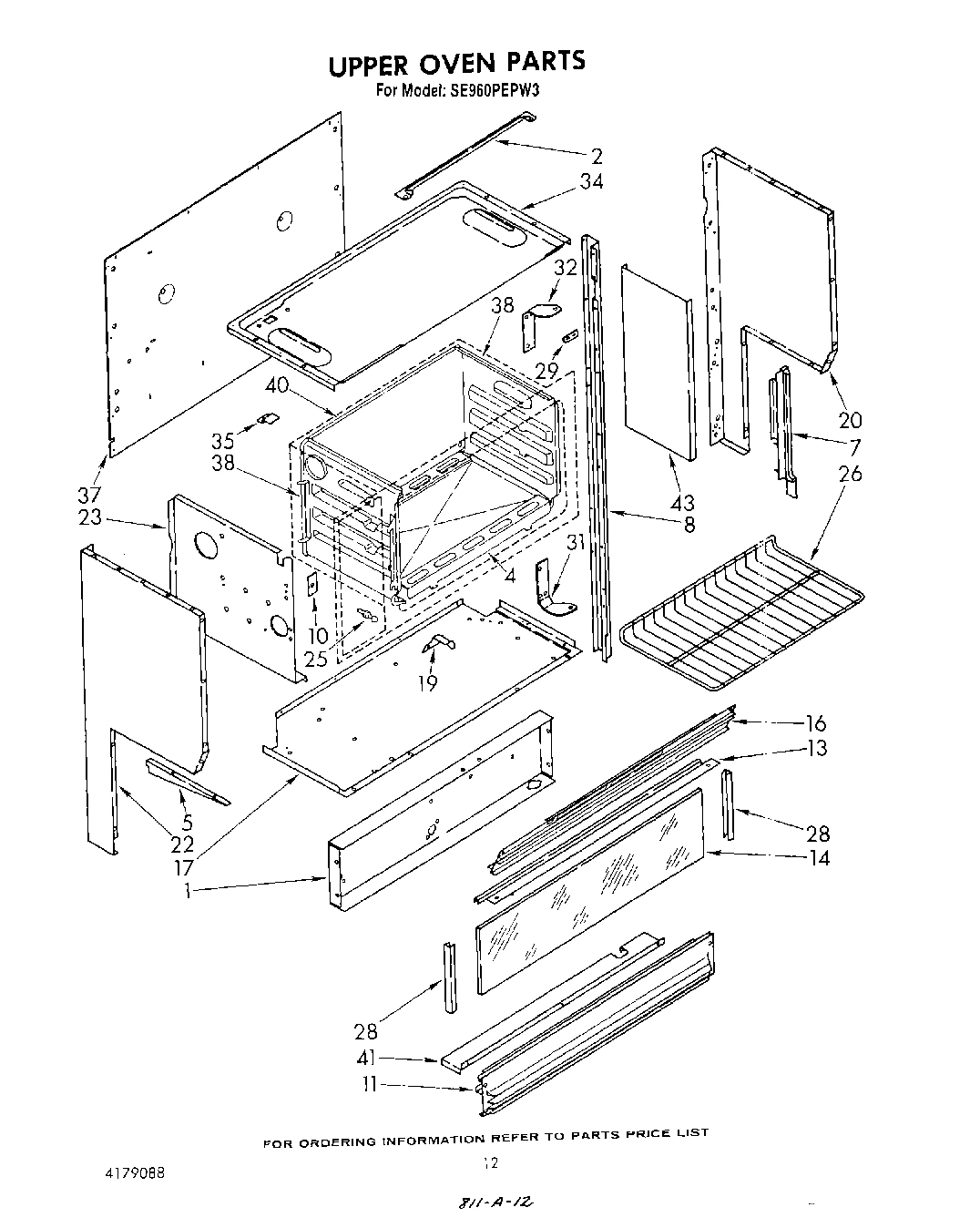

08 - UPPER OVEN

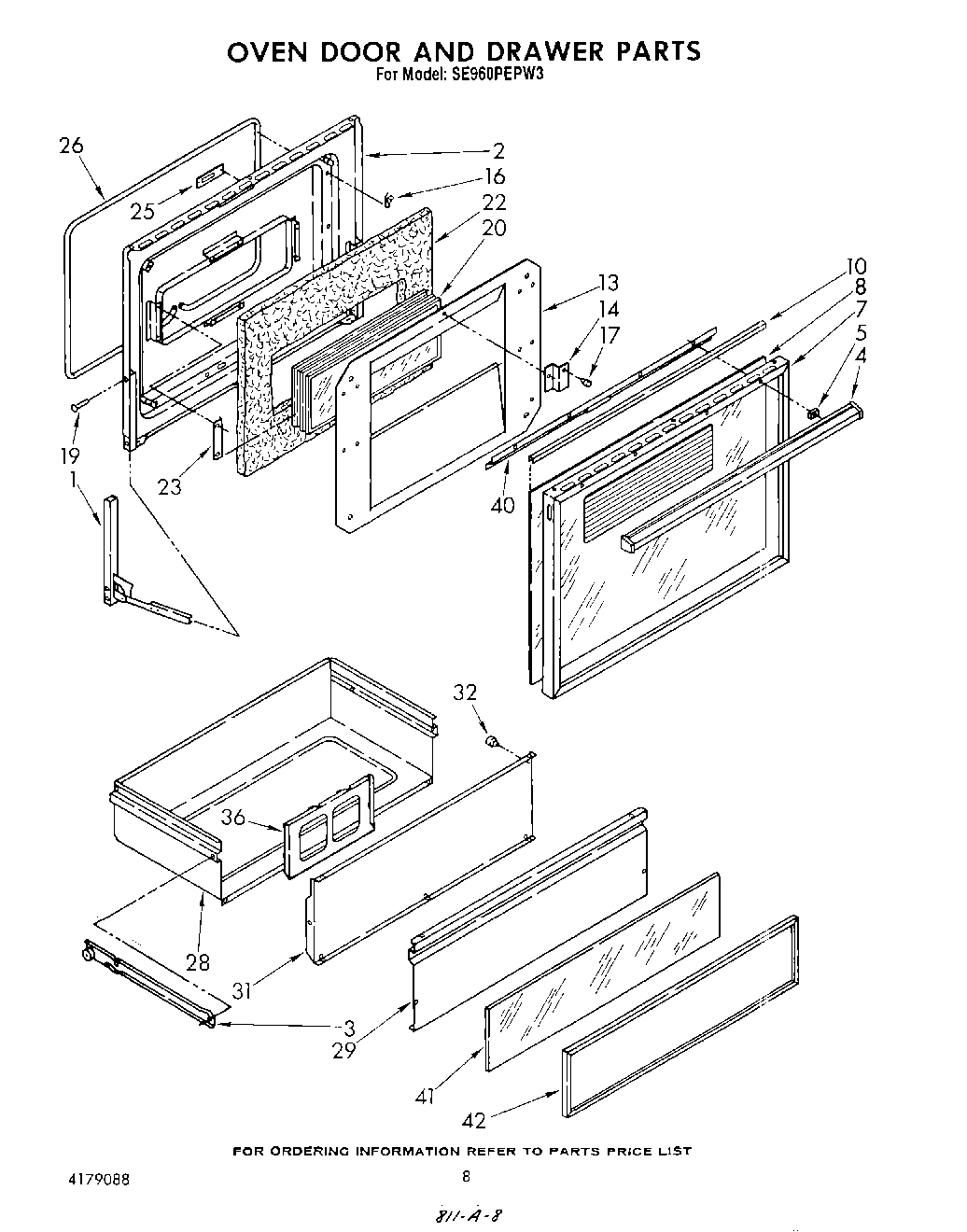

06 - OVEN DOOR AND DRAWER

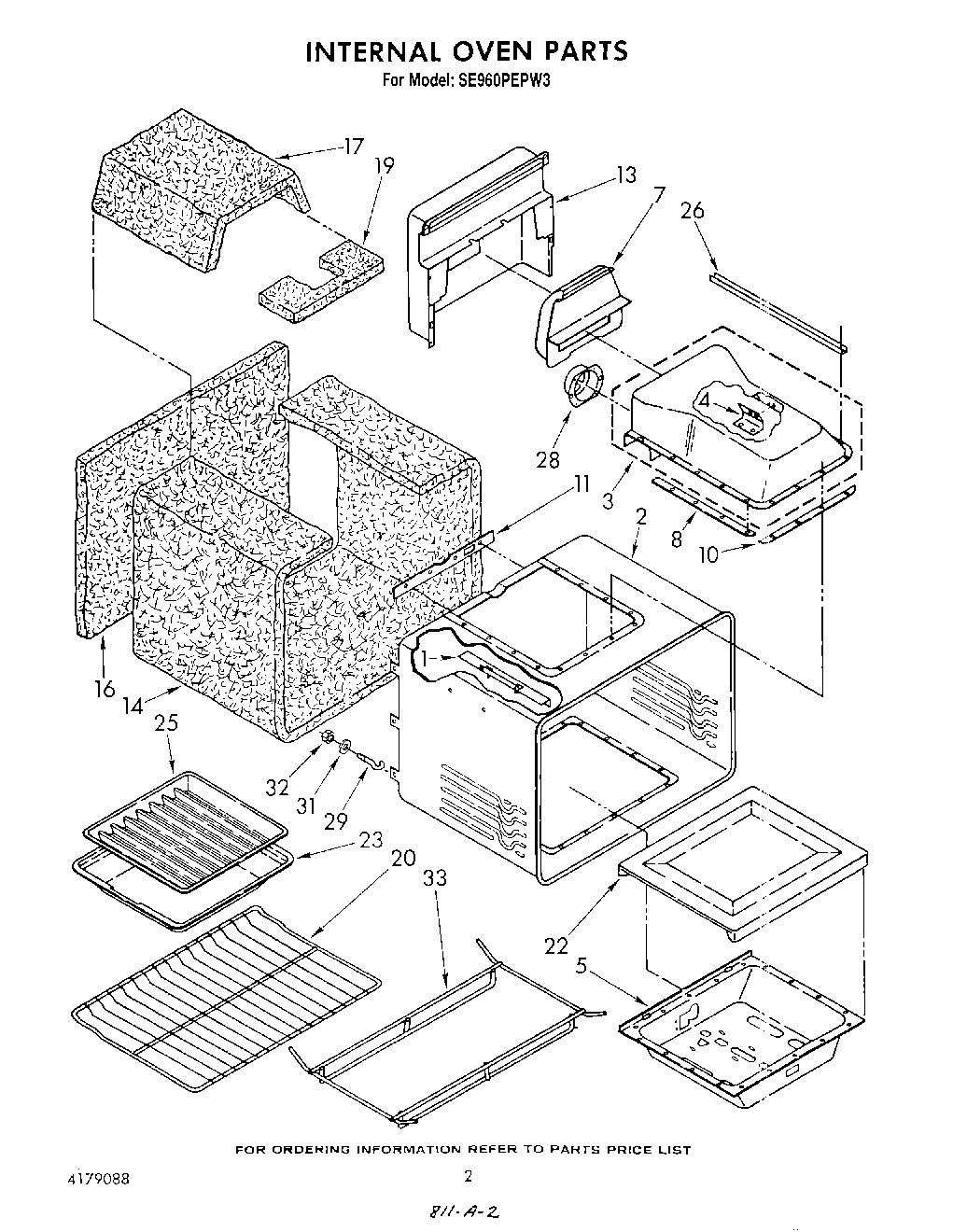

02 - INTERNAL OVEN

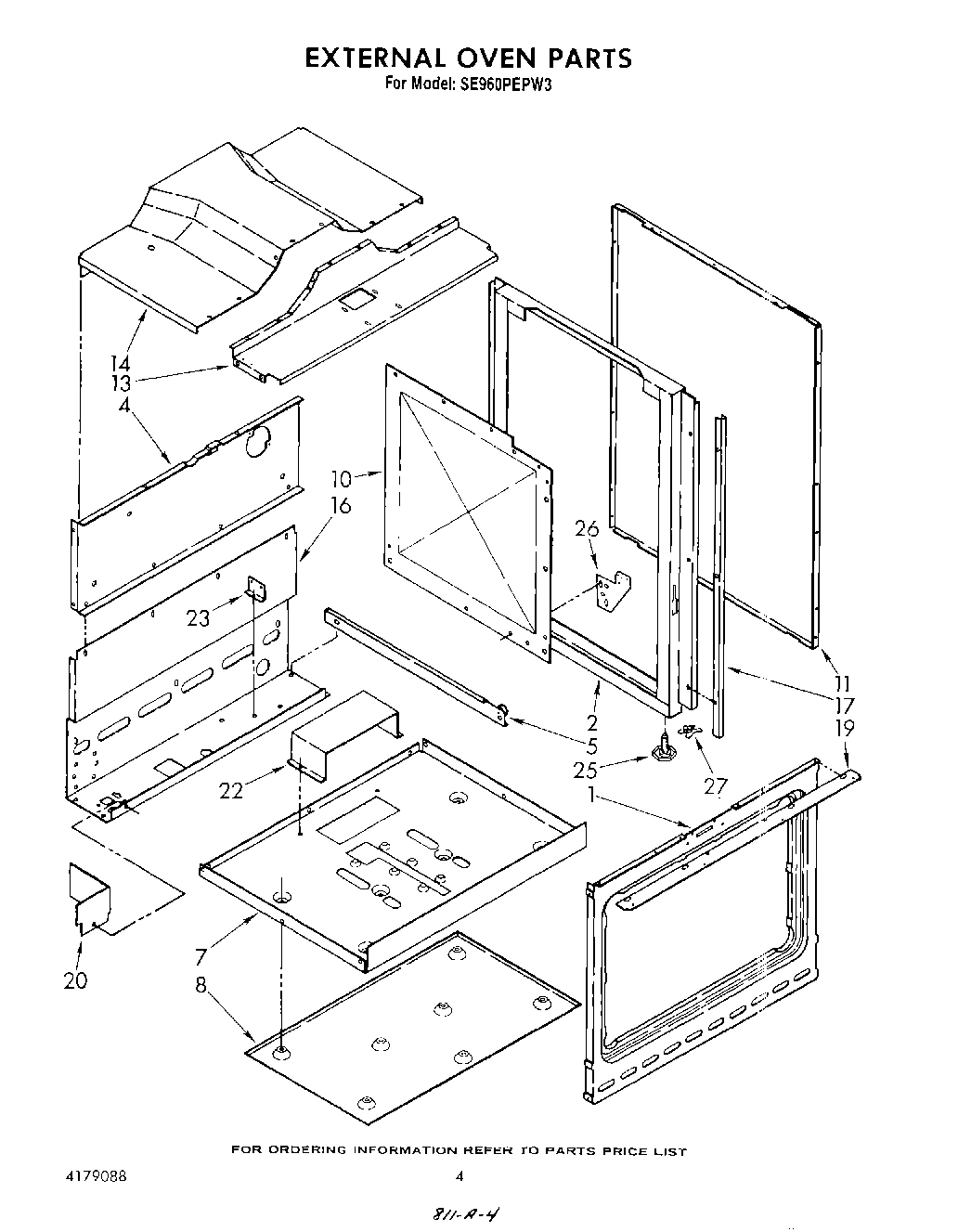

03 - EXTERNAL OVEN

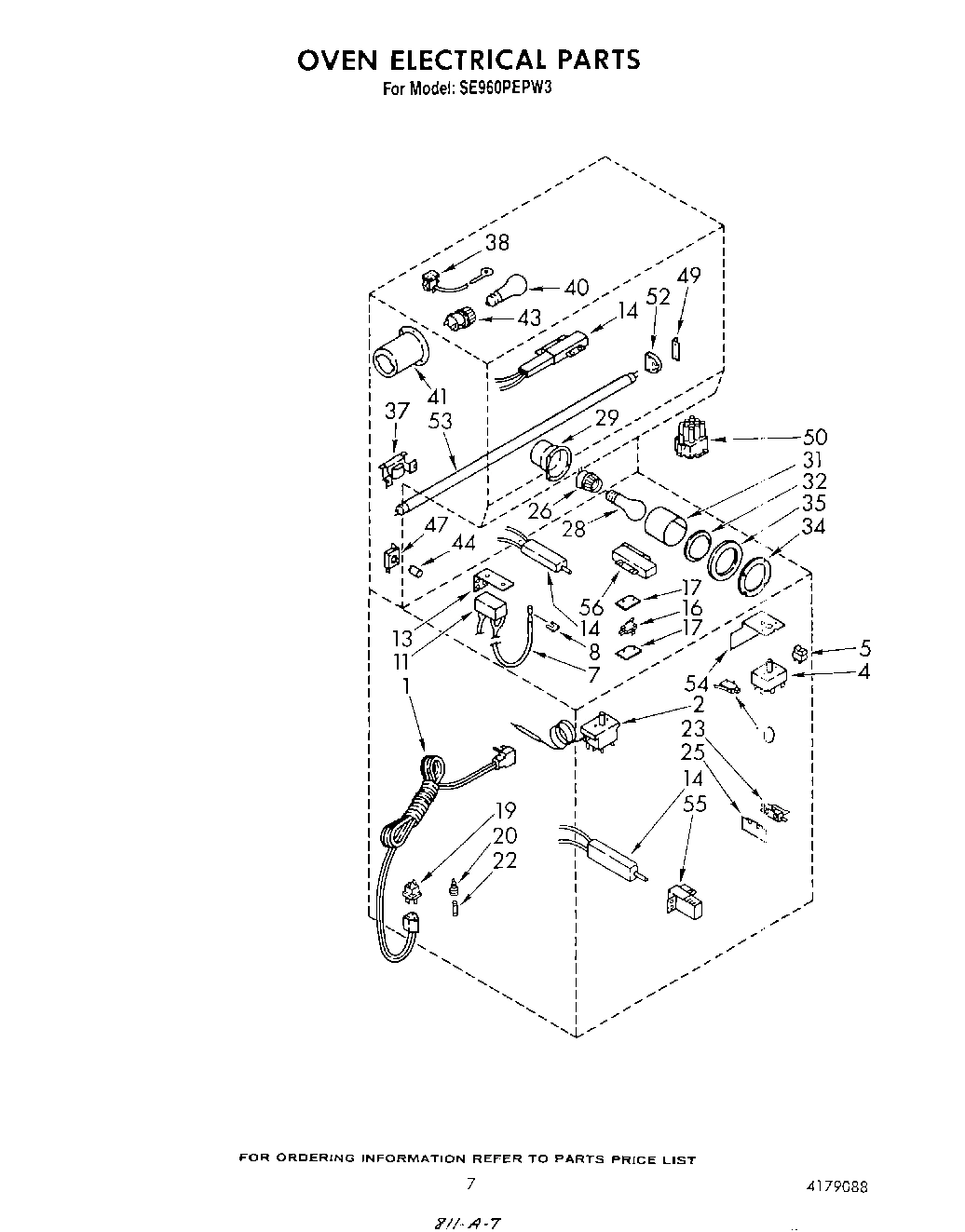

05 - OVEN ELECTRICAL

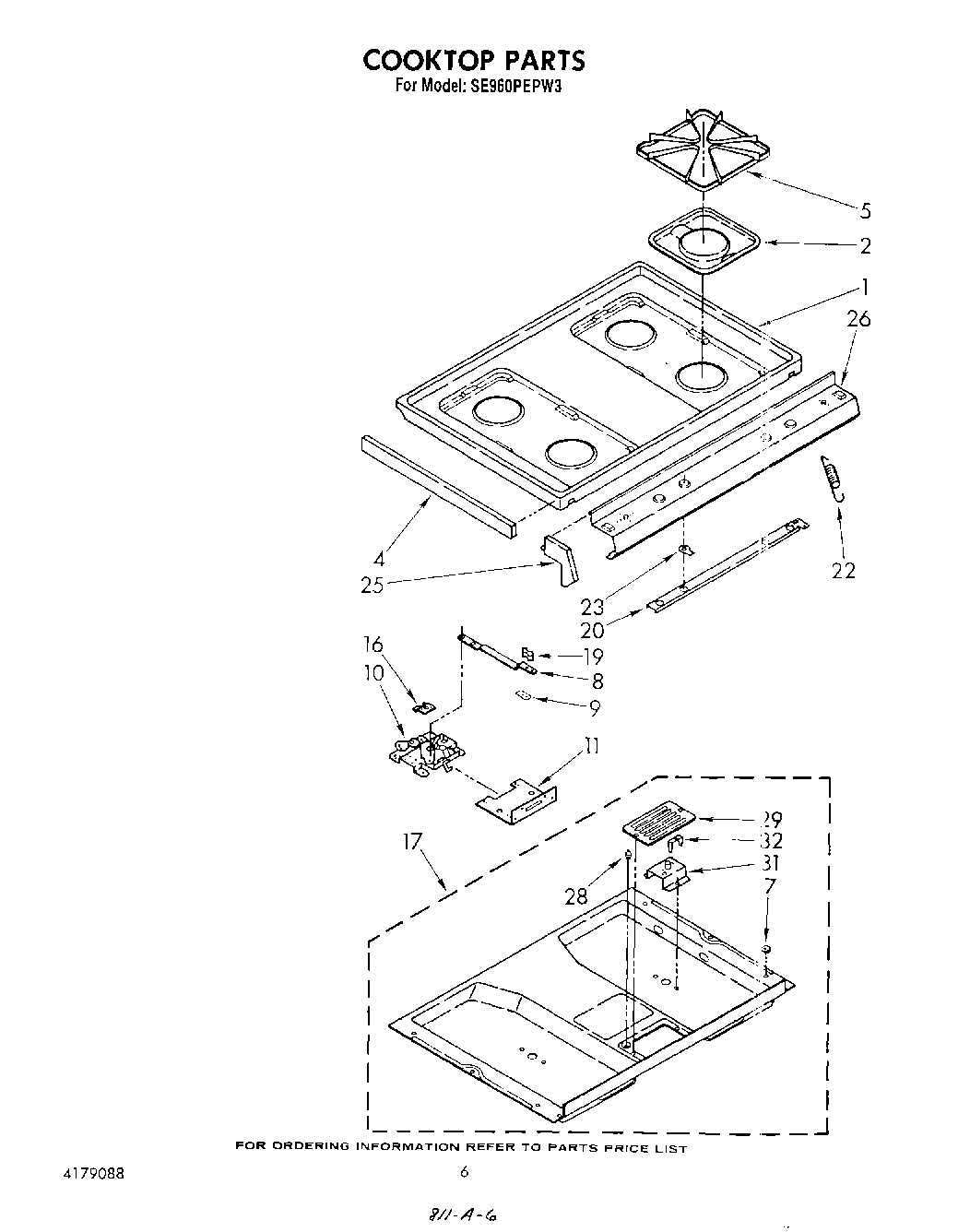

04 - COOK TOP

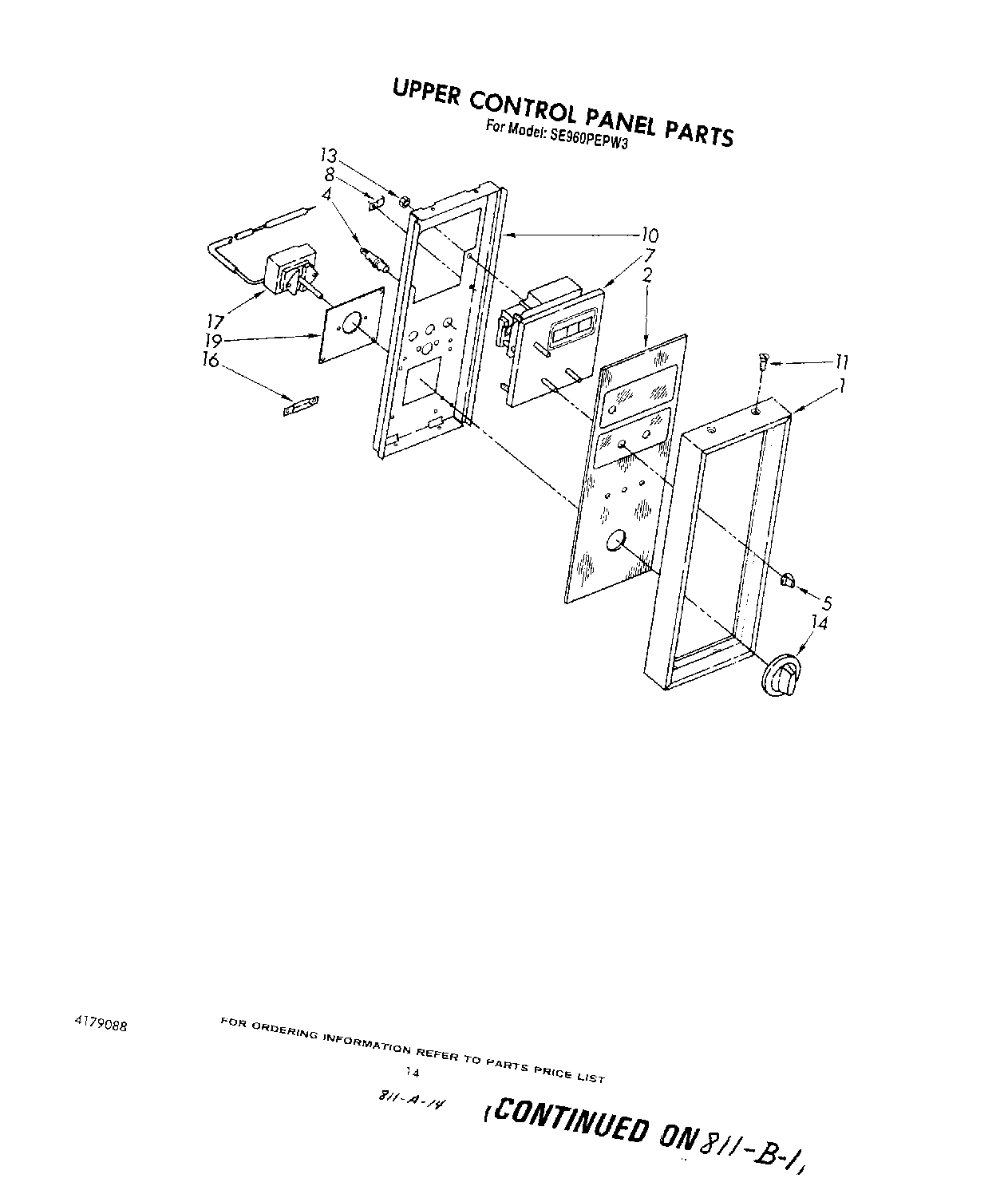

09 - UPPER CONTROL PANEL , LIT/OPTIONAL

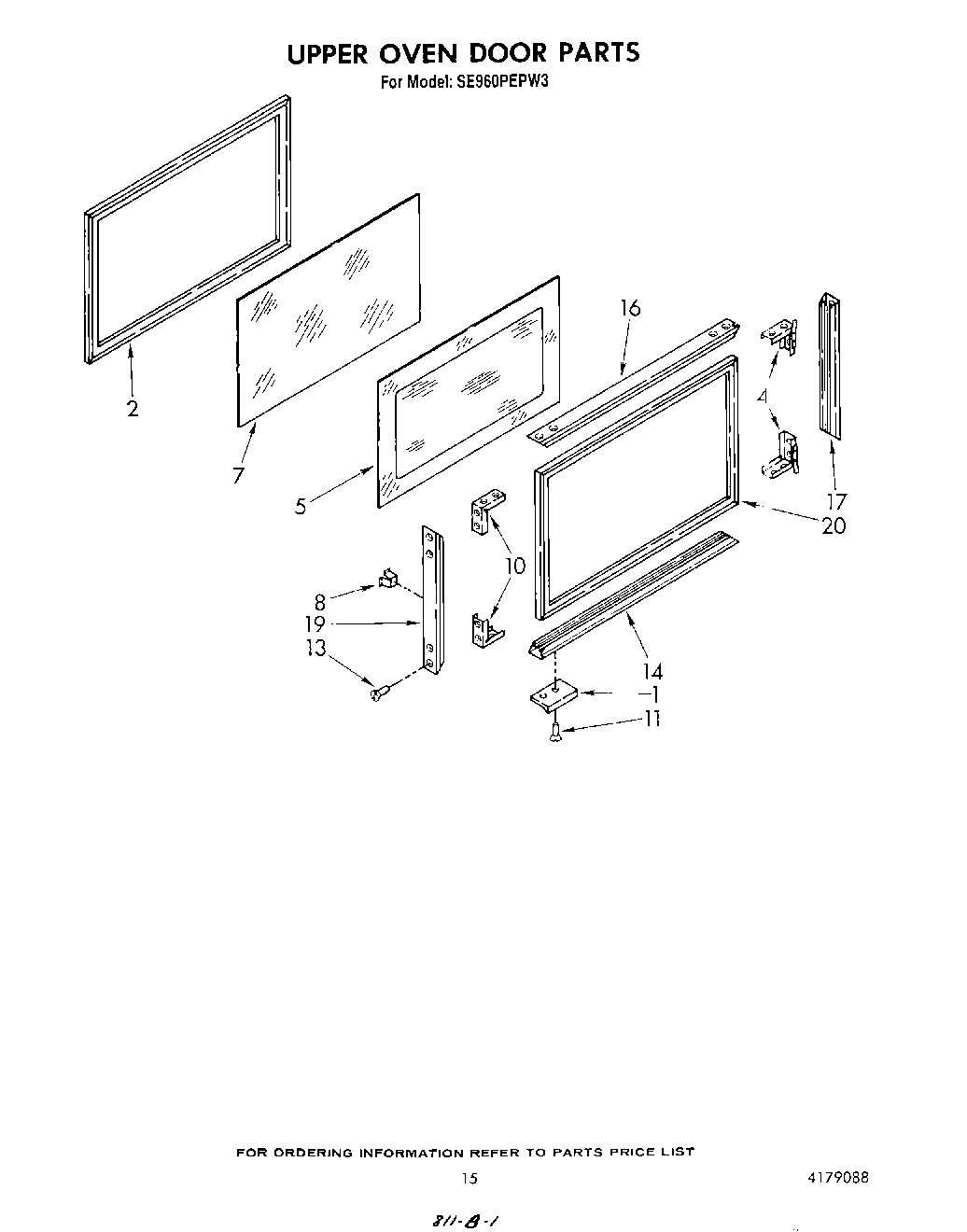

10 - UPPER OVEN DOOR
Common parts from model Whirlpool SE960PEPW3
List, Repair Parts WPL LIT4179088 Contact Us For Availability
Guide, Use & Care WPL LIT786296 Contact Us For Availability
Instructions, Installation WPL LIT786300 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Panel, Surface Light WPL 786460 Contact Us For Availability
1
hinge, oven door (right side) WPL 786374 Contact Us For Availability
1
Sheild, Thermostat Bulb WPL 786349 Contact Us For Availability
1
Frame, Front WPL 786357 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Top, Main (White) WPL 4179071 Contact Us For Availability
1
Top, Main (Almond) WPL 4179072 Contact Us For Availability
1
Top, Main (Toast) WPL 4179073 Contact Us For Availability
1
Top, Main (Platinum) WPL 4179074 Contact Us For Availability
1
Frame WPL 786377 Contact Us For Availability
1
Handle, Door WPL 786501 Contact Us For Availability
2
Trim, Flue WPL 786461 Contact Us For Availability
2
Glass, Panel WPL 786379 Contact Us For Availability
2
Liner, Oven Door WPL 786406 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 786334 Contact Us For Availability
2
Frame, Side (Right Side) WPL 786809 Contact Us For Availability
2
Frame, Side (Left Side) WPL 786810 Contact Us For Availability
2
Thermostat, Oven WPL 4179069 Contact Us For Availability
2
Gasket, Door WPL 786502 Contact Us For Availability
3
Chamber, Broiler Burner WPL 786597 Contact Us For Availability
4
Bracket, Burner Mounting WPL 786544 Contact Us For Availability
4
Bottom, Oven WPL 786462 Contact Us For Availability
4
Handle WPL 786408 Contact Us For Availability
4
Bracket, Ignitor WPL 786543 Contact Us For Availability
4
screw, 10-24 x 7/16 (2) WPL 786740 Contact Us For Availability
4
Rear Panel, Upper WPL 786360 Contact Us For Availability
4
Switch, Selector WPL 4179076 Contact Us For Availability
4
Trim, Main Top (Right Side) WPL 786343 Contact Us For Availability
4
Trim, Main Top (Left Side) WPL 786344 Contact Us For Availability
4
Light Indicator WPL 786433 Contact Us For Availability
4
support, corner (right side, lower) WPL 786503 Contact Us For Availability
4
Support, Corner (Right Side, Upper) WPL 786504 Contact Us For Availability
5
Pipe Plug, 1/8 NPT WPL 786665 Contact Us For Availability
5
Trim Strip (Right Side) WPL 786463 Contact Us For Availability
5
trim strip (left side) WPL 786464 Contact Us For Availability
5
Track, Storage Drawer (Right Side) WPL 786811 Contact Us For Availability
5
Track, Storage Drawer (Left Side) WPL 786812 Contact Us For Availability
5
Spacer, Handle (2) WPL 786410 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
Switch, Fluorescent Light (2) WPL 786325 Contact Us For Availability
5
Grate, Top Burner WPL 786354 Contact Us For Availability
5
Knob, Clock WPL 786434 Contact Us For Availability
5
Glass, Outer WPL 786505 Contact Us For Availability
7
spud, orifice (natural gas no. 50) WPL 786308 Contact Us For Availability
7
spud, orifice (LP gas no. 58) WPL 786309 Contact Us For Availability
7
Trim, Upper Oven Support (Right Side) WPL 786465 Contact Us For Availability
7
Trim, Upper Oven Support (Left Side) WPL 786466 Contact Us For Availability
7
Frame WPL 786417 Contact Us For Availability
7
Flue, Inner WPL 786337 Contact Us For Availability
7
Retainer, Bottom Insulation WPL 786363 Contact Us For Availability
7
Spacer, Nylon (2) WPL 786342 Contact Us For Availability
7
Clock WPL 786435 Contact Us For Availability
7
Glass, Inner WPL 786506 Contact Us For Availability
8
Tubing (Inlet To Gas Valve) WPL 786547 Contact Us For Availability
8
channel, support (right side) WPL 786467 Contact Us For Availability
8
channel, support (left side) WPL 786468 Contact Us For Availability
8
Panel, Black Glass WPL 786419 Contact Us For Availability
8
Gasket, Side Chamber WPL 786338 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Clip, Bracket WPL 786436 Contact Us For Availability
8
Catch, Door WPL 786507 Contact Us For Availability
9
Support, Latch WPL 786690 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 786548 Contact Us For Availability
10
Plate, Door Strike WPL 786469 Contact Us For Availability
10
Trim, Glass WPL 786420 Contact Us For Availability
10
Gasket, Front Chamber WPL 786339 Contact Us For Availability
10
Retainer, Insulation (2) WPL 786365 Contact Us For Availability
10
Switch, Top Burner Actuator WPL 786322 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Bracket, C.P. WPL 786437 Contact Us For Availability
10
Support Corner Left Side WPL 786508 Contact Us For Availability
11
Hood & Tubing Assembly (Gas Valve To Lower Ov WPL 786549 Contact Us For Availability
11
Lower Trim, Splashplate WPL 786470 Contact Us For Availability
11
Gasket, Oven Back WPL 786340 Contact Us For Availability
11
panel, end (2) (platinum) WPL 786367 Contact Us For Availability
11
panel, end (2) (toast) WPL 786368 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 786369 Contact Us For Availability
11
Panel, End (2) (White) WPL 786370 Contact Us For Availability
11
Module, Spark WPL 786323 Contact Us For Availability
11
Bracket, Mounting Latch WPL 786378 Contact Us For Availability
11
Screw WPL 786438 Contact Us For Availability
11
Screw, Handle WPL 786509 Contact Us For Availability
13
Tubing (Inlet To Manifold) WPL 786550 Contact Us For Availability
13
Trim, Rear WPL 786471 Contact Us For Availability
13
Retainer, Insulation WPL 786424 Contact Us For Availability
13
Flue, Dillution WPL 786341 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 786371 Contact Us For Availability
13
Bracket, Spark Module WPL 786581 Contact Us For Availability
13
Nut, Hex WPL 786439 Contact Us For Availability
13
Screw, Door Ass`y WPL 786510 Contact Us For Availability
14
Valve, Dual Gas WPL 786310 Contact Us For Availability
14
Glass, Splashplate WPL 786472 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Retainer, Top Back Insulation WPL 786372 Contact Us For Availability
14
Knob, Thermostat WPL 786440 Contact Us For Availability
14
Frame, Lower WPL 786511 Contact Us For Availability
16
Manifold WPL 786554 Contact Us For Availability
16
Panel, Decorative WPL 786473 Contact Us For Availability
16
Clip, Speed (14) WPL 786426 Contact Us For Availability
16
Rear Panel, Lower WPL 786747 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
Bracket, Switch WPL 786381 Contact Us For Availability
16
Bracket, Mounting WPL 786441 Contact Us For Availability
16
Frame, Upper WPL 786512 Contact Us For Availability
17
Valve, Top Burner (Tri-Set) WPL 786311 Contact Us For Availability
17
Panel, Bottom WPL 786474 Contact Us For Availability
17
Bumper Window (5) WPL 786427 Contact Us For Availability
17
Trim, Side Panel (2) WPL 786382 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Burner Box WPL 786383 Contact Us For Availability
17
Thermostat WPL 786442 Contact Us For Availability
17
Frame, Right Side WPL 786513 Contact Us For Availability
19
Fitting WPL 786556 Contact Us For Availability
19
Guide, Door WPL 786475 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Frame, Filler Front WPL 786384 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Knob, Latch Handle WPL 786386 Contact Us For Availability
19
Plate, Mounting WPL 786443 Contact Us For Availability
19
Frame, Left Side WPL 786514 Contact Us For Availability
20
Valve, Shut-Off WPL 786312 Contact Us For Availability
20
panel, side (right side) (platinum) WPL 786477 Contact Us For Availability
20
Panel, Side (Right Side) (Toast) WPL 786478 Contact Us For Availability
20
panel, side (right side) (almond) WPL 786479 Contact Us For Availability
20
panel, side (right side) (white) WPL 786480 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
20
Rack, Oven WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 786385 Contact Us For Availability
20
Holder, Fuse WPL 786584 Contact Us For Availability
20
Actuator, Spark Ignitor WPL 786390 Contact Us For Availability
20
Gasket, Window (11 ft.) WPL 786515 Contact Us For Availability
22
Inlet WPL 786557 Contact Us For Availability
22
Panel, Side (Left Side) (Platinum) WPL 786482 Contact Us For Availability
22
panel, side (left side) (toast) WPL 786483 Contact Us For Availability
22
Panel, Side (Left Side) (Almond) WPL 786484 Contact Us For Availability
22
panel, side (left side) (white) WPL 786485 Contact Us For Availability
22
Bottom, Oven WPL 786348 Contact Us For Availability
22
Cover, Burner WPL 786388 Contact Us For Availability
22
Fuse WPL 786585 Contact Us For Availability
22
Spring WPL 786391 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Retainer, Side Insulation WPL 786486 Contact Us For Availability
23
Retainer, Window (4) WPL 786430 Contact Us For Availability
23
Pan, Broiler WPL 786345 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 786389 Contact Us For Availability
23
Switch, Aux. Light WPL 786587 Contact Us For Availability
23
Cam (4) WPL 786392 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Strike, Oven Door WPL 786487 Contact Us For Availability
25
Plate, Latch (2) WPL 786671 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
Leg, Leveling (4) WPL 786602 Contact Us For Availability
25
Insulation, Door Switch (2) WPL 786588 Contact Us For Availability
25
End Cap (Right) WPL 786393 Contact Us For Availability
25
End Cap (Left) WPL 786394 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
Rack, Oven WPL 786488 Contact Us For Availability
26
Gasket Assembly WPL 786432 Contact Us For Availability
26
Channel, Broiler Burner WPL 786355 Contact Us For Availability
26
Bracket, Door Switch WPL 786699 Contact Us For Availability
26
Socket, Oven Lamp WPL 786653 Contact Us For Availability
26
Panel, Control WPL 786397 Contact Us For Availability
27
Nut (4) WPL 4157527 Contact Us For Availability
28
Top Bruner, R.R. WPL 786316 Contact Us For Availability
28
Trim, Glass WPL 786489 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 786808 Contact Us For Availability
28
Duct, Cup WPL 786353 Contact Us For Availability
28
Orifice WPL 786682 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Cover Plate, Front Frame WPL 786490 Contact Us For Availability
29
panel, drawer (black) WPL 786517 Contact Us For Availability
29
Panel, Drawer (Platinum) WPL 786519 Contact Us For Availability
29
panel, drawer (toast) WPL 786520 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
29
Housing, Oven Light WPL 786743 Contact Us For Availability
29
Plate, Cover WPL 786683 Contact Us For Availability
31
Knob, Top Burner (4) WPL 786559 Contact Us For Availability
31
Hinge, Bottom WPL 786491 Contact Us For Availability
31
Liner, Door Panel WPL 786668 Contact Us For Availability
31
Washer WPL 786351 Contact Us For Availability
31
Retainer, Insulation WPL 786573 Contact Us For Availability
31
Bracket, Top (2) WPL 786684 Contact Us For Availability
32
Knob, Oven Control WPL 4179070 Contact Us For Availability
32
Hinge, Top WPL 786492 Contact Us For Availability
32
Bumper, Rubber (2) WPL 786526 Contact Us For Availability
32
Nut, Hex 10-32 WPL 786352 Contact Us For Availability
32
Lens, Oven Light WPL 786574 Contact Us For Availability
32
Bracket, Electrode WPL 786754 Contact Us For Availability
33
Rack, Panel Support WPL 786356 Contact Us For Availability
34
Knob, Selector WPL 786562 Contact Us For Availability
34
Panel, Top WPL 786493 Contact Us For Availability
34
Retainer, Oven Light Lens WPL 786575 Contact Us For Availability
35
Nut, Compression 3/8 WPL 786565 Contact Us For Availability
35
Cover, Convenience Outlet WPL 786494 Contact Us For Availability
35
Gasket, Oven Light WPL 786576 Contact Us For Availability
36
Rack, Literature WPL 786807 Contact Us For Availability
37
Sleeve, Compressor 3/8 WPL 786566 Contact Us For Availability
37
Backplate WPL 786495 Contact Us For Availability
37
Ballast WPL 786540 Contact Us For Availability
38
Union WPL 786551 Contact Us For Availability
38
panel, side (right side) WPL 786496 Contact Us For Availability
38
Panel, Side (Left Side) WPL 786497 Contact Us For Availability
38
Outlet, Fan Motor WPL 786589 Contact Us For Availability
40
Tubing (Union To Gas Valve) WPL 786552 Contact Us For Availability
40
Panel, Back WPL 786498 Contact Us For Availability
40
Baffle, Air WPL 786422 Contact Us For Availability
41
Tubing (Gas Valve Upper Orifice) WPL 786553 Contact Us For Availability
41
Heat Shield, Splashplate WPL 786499 Contact Us For Availability
41
Glass, Black WPL 786524 Contact Us For Availability
41
Housing, Oven Light WPL 786590 Contact Us For Availability
42
Frame, Glass WPL 786525 Contact Us For Availability
43
Spring, Thermostat Bulb WPL 786558 Contact Us For Availability
43
Retainer, Insulation WPL 786500 Contact Us For Availability
43
Socket, Oven Light WPL 786591 Contact Us For Availability
44
Bracket, Mounting WPL 786563 Contact Us For Availability
44
Starter, Fluorescent Light WPL 786541 Contact Us For Availability
46
Valve, Upper WPL 786564 Contact Us For Availability
47
Burner, Upper WPL 786567 Contact Us For Availability
47
Socket, Starter WPL 786542 Contact Us For Availability
49
Orifice, Universal WPL 786568 Contact Us For Availability
49
Orifice L.P. WPL 786569 Contact Us For Availability
49
Support Bracket, Socket WPL 786592 Contact Us For Availability
50
Plug, Disconnect WPL 786593 Contact Us For Availability
52
Tubing (Inlet To Upper-Oven Union) WPL 786546 Contact Us For Availability
52
Lampholder Fluorescent WPL 786536 Contact Us For Availability
53
Nut WPL 4157867 Contact Us For Availability
54
Insulator, Control (2) WPL 786689 Contact Us For Availability
55
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
56
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
× ![]()
