Model Whirlpool SE953PEKT1 – Common Parts & Diagrams

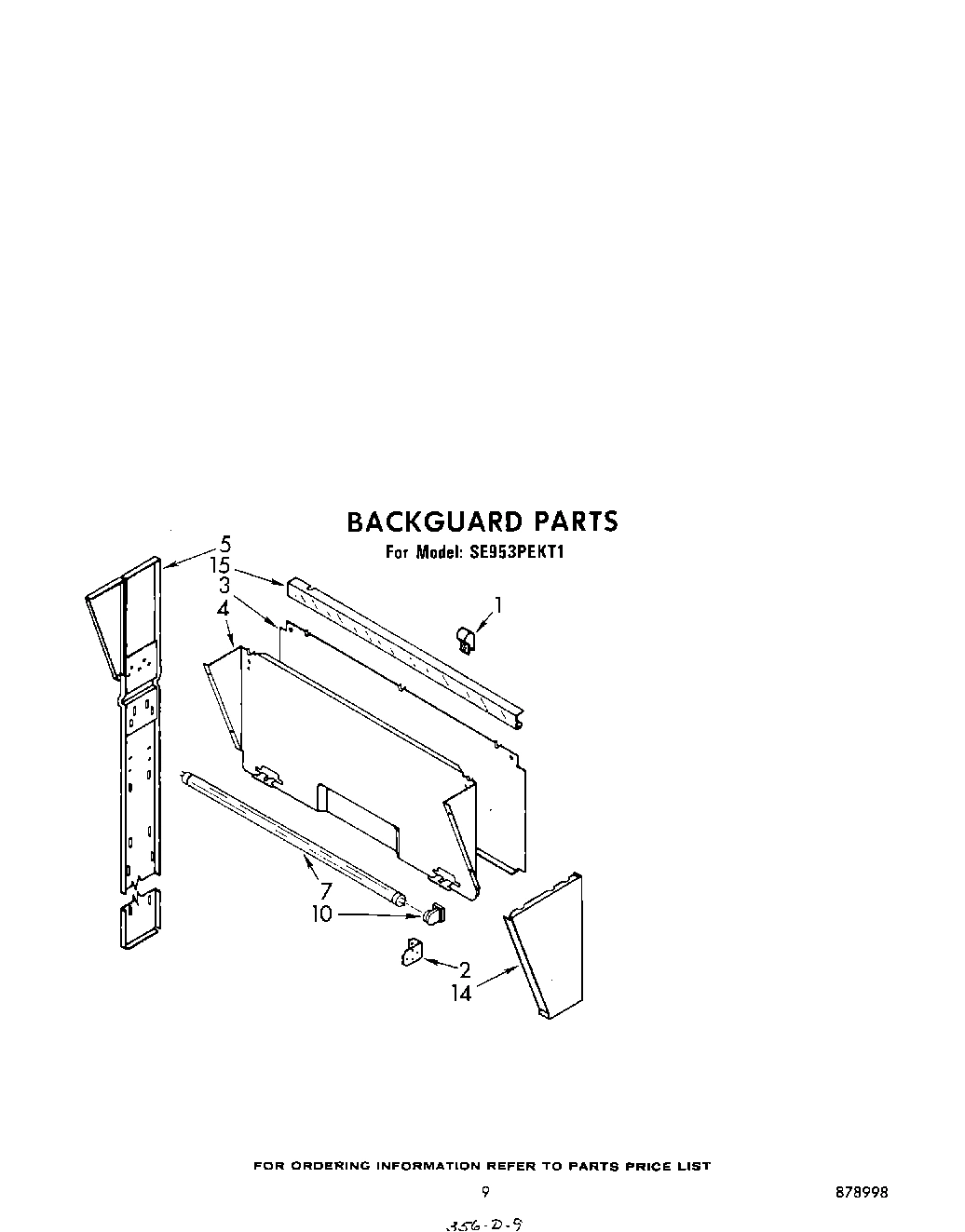

07 - BACKGUARD

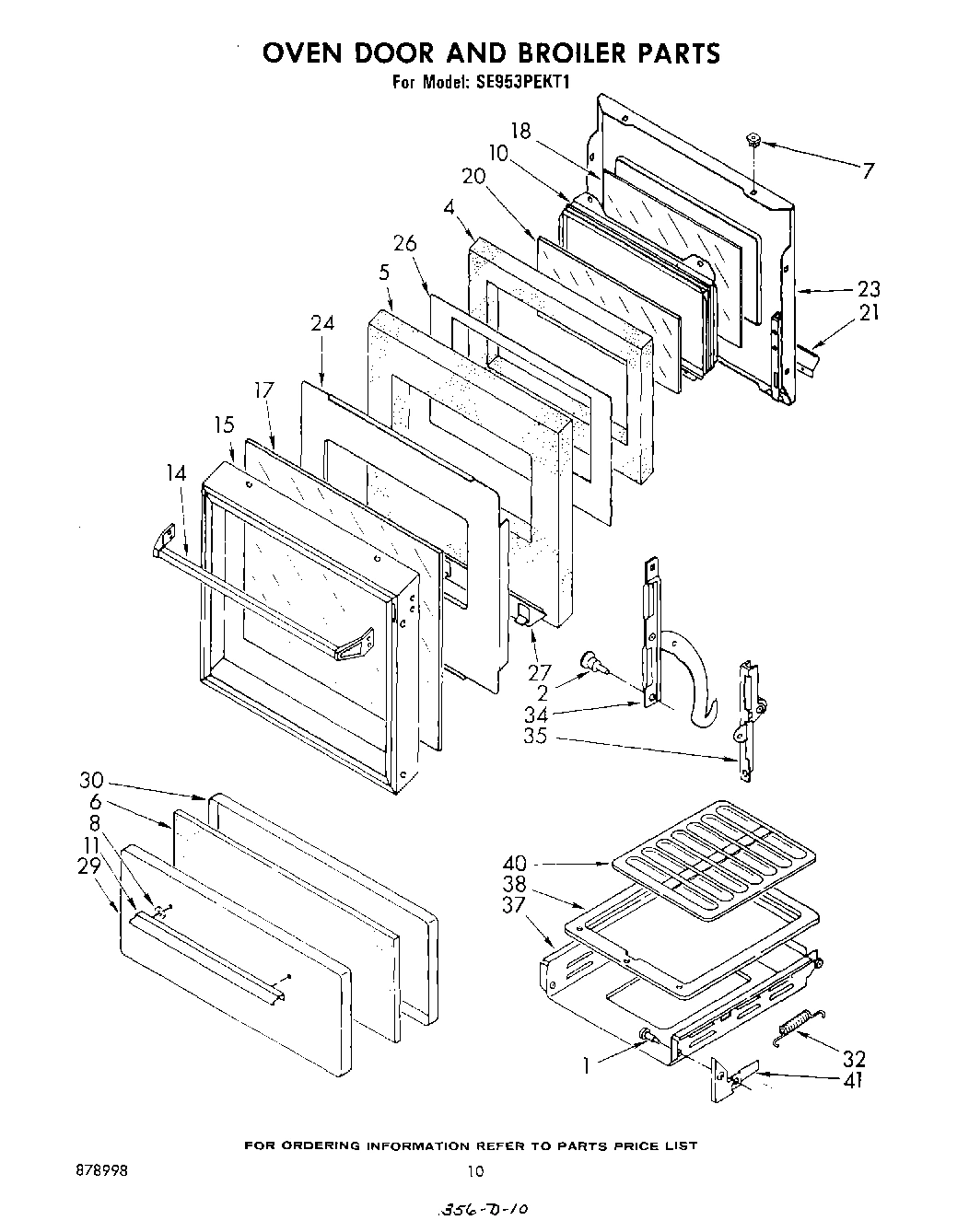

08 - OVEN DOOR AND BROILER
06 - UPPER OVEN
02 - OVEN , LITERATURE AND OPTIONAL
04 - COOK TOP
03 - MANIFOLD
05 - CONTROL PANEL AND UPPER OVEN DOOR
Common parts from model Whirlpool SE953PEKT1
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Bushing, Snap (3) WPL 878364 Contact Us For Availability
1
Clip, Top Ignitor (2) WPL 878100 Contact Us For Availability
1
Fitting, Flange WPL 878443 Contact Us For Availability
2
Bracket, Backguard Lampholder (2) WPL 878446 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Clamp, Top Stop WPL 878083 Contact Us For Availability
2
Fitting, Flange WPL 878303 Contact Us For Availability
2
Tubing, Control/Pilot WPL 878448 Contact Us For Availability
3
Cover, Cabinet Wire WPL 878111 Contact Us For Availability
3
Fitting, Straight WPL 878440 Contact Us For Availability
3
Tubing, Control/Valve WPL 878449 Contact Us For Availability
4
Backsplash (Almond) WPL 878463 Contact Us For Availability
4
Backsplash (Coffee) WPL 878464 Contact Us For Availability
4
Backsplash (White) WPL 878465 Contact Us For Availability
4
Backsplash (Harvest Gold) WPL 878466 Contact Us For Availability
4
Insulation, Oven Door WPL 878798 Contact Us For Availability
4
Support, Burner WPL 878447 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
4
Stop, Cook Top WPL 878098 Contact Us For Availability
4
Regulator, Pressure WPL 878008 Contact Us For Availability
4
Spacer, Disc Dial WPL 878454 Contact Us For Availability
5
Support, Cabinet (Right Side) WPL 878170 Contact Us For Availability
5
Support, Cabinet (Left Side) WPL 878171 Contact Us For Availability
5
Box, Oven Light Cover WPL 878450 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
5
Valve, Top Burner (4) WPL 878012 Contact Us For Availability
5
Tubing, Straight Fitting/Oven WPL 878456 Contact Us For Availability
6
Insulation, Broiler Door WPL 878090 Contact Us For Availability
6
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
7
Bulb, Fluorescent Light WPL 878108 Contact Us For Availability
7
Angle, Cabinet Base WPL 878451 Contact Us For Availability
7
Cover, Wire WPL 878458 Contact Us For Availability
7
Fitting, Straight WPL 878441 Contact Us For Availability
7
Brace, Oven Control WPL 878457 Contact Us For Availability
8
Spacer, Door Handle (2) WPL 878097 Contact Us For Availability
8
Bottom, Burner Box WPL 878126 Contact Us For Availability
8
Ballast, Fluorescent Light WPL 878192 Contact Us For Availability
9
Base, Starter WPL 878195 Contact Us For Availability
10
Socket, Fluorescent Light (Left Side) WPL 878140 Contact Us For Availability
10
Socket, Fluorescent Light (Right Side) WPL 878152 Contact Us For Availability
10
Frame, Window WPL 878106 Contact Us For Availability
10
Baffle, Heat WPL 878452 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Inlay, Manifold Panel WPL 878467 Contact Us For Availability
10
Strike, Door Catch WPL 878480 Contact Us For Availability
11
Handle, Broiler WPL 878132 Contact Us For Availability
11
Box, Oven Light WPL 878453 Contact Us For Availability
11
Panel, Manifold (Almond) WPL 878468 Contact Us For Availability
11
Panel, Manifold (Coffee) WPL 878469 Contact Us For Availability
11
Panel, Manifold (White) WPL 878470 Contact Us For Availability
11
Panel, Manifold (Harvest Gold) WPL 878471 Contact Us For Availability
11
Bracket, Wire WPL 878109 Contact Us For Availability
11
Control, Oven WPL 878482 Contact Us For Availability
12
Tubing, Manifold/Straight Fitting WPL 878455 Contact Us For Availability
14
Panel, Cabinet Support (Left) (Almond) WPL 878217 Contact Us For Availability
14
Panel, Cabinet Support (Left) (Coffee) WPL 878218 Contact Us For Availability
14
Panel, Cabinet Support (Left) (White) WPL 878219 Contact Us For Availability
14
Panel, Cabinet Support (Left) (Harvest Gold P WPL 878220 Contact Us For Availability
14
Panel, Cabinet Support (Left Side) (Almond) WPL 878525 Contact Us For Availability
14
Panel, Cabinet Support (Left Side) (Coffee) WPL 878526 Contact Us For Availability
14
Panel, Cabinet Support (Left Side) (White) WPL 878527 Contact Us For Availability
14
Panel, Cabinet Support (Left Side) (Harvest G WPL 878528 Contact Us For Availability
14
Handle, Oven Door WPL 878133 Contact Us For Availability
14
Sleeve, Light Hole WPL 878103 Contact Us For Availability
14
Support, Inlet Pipe WPL 878115 Contact Us For Availability
14
Clock, Regular WPL 878483 Contact Us For Availability
15
Reflector, Light WPL 878524 Contact Us For Availability
15
Frame, Door WPL 878138 Contact Us For Availability
15
Block, Disconnect WPL 878196 Contact Us For Availability
15
Clip, Oven Bottom Plate WPL 878107 Contact Us For Availability
15
Grate, Burner WPL 878150 Contact Us For Availability
15
Cap, Top Burner Air Mixer (4) WPL 878116 Contact Us For Availability
15
Dial, Oven Control WPL 878484 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878139 Contact Us For Availability
17
Catch, Door WPL 878481 Contact Us For Availability
17
Bracket, Corner (Right Side) WPL 878693 Contact Us For Availability
17
Bracket, Corner (Left Side) WPL 878694 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Raceway Wire WPL 878118 Contact Us For Availability
17
Frame, Control Panel WPL 878485 Contact Us For Availability
18
Glass, Oven Door Inside WPL 878002 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
18
Tubing, Control/Pilot WPL 878119 Contact Us For Availability
18
Frame, Door WPL 878486 Contact Us For Availability
19
Ignitor, Oven Burner WPL 878491 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Glass, Oven Door Center WPL 878141 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Lighter, Oven Burner WPL 878493 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Target, Top Ignitor (2) WPL 878121 Contact Us For Availability
20
Glass, Oven Door (Outside) WPL 878487 Contact Us For Availability
20
Glass, Oven Door (Inside) WPL 878488 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Hanger, Top Burner WPL 878127 Contact Us For Availability
22
Rack, Oven (2) WPL 878495 Contact Us For Availability
22
Glass, Control Panel WPL 878489 Contact Us For Availability
23
Lining, Oven Door WPL 878143 Contact Us For Availability
23
Seal, Oven Door (Top) WPL 878496 Contact Us For Availability
23
Seal, Oven Door (Side (2)) WPL 878497 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Top, Main (Coffee) WPL 878365 Contact Us For Availability
23
Top, Main (Harvest Gold) WPL 878366 Contact Us For Availability
23
Top, Main (Brushed Chrome) WPL 878479 Contact Us For Availability
23
Burner, Top Front (2) (Includes Illus. 15) WPL 878130 Contact Us For Availability
23
Handle, Door WPL 878490 Contact Us For Availability
24
Baffle, Door WPL 878144 Contact Us For Availability
24
Burner, Top Rear (2) (Includes Illus. 15) WPL 878131 Contact Us For Availability
24
Knob, Clock WPL 878201 Contact Us For Availability
26
Shield, Heat WPL 878145 Contact Us For Availability
26
Valve, Oven Lighter Safety WPL 878502 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
26
Handle, Top Valve (4) WPL 878151 Contact Us For Availability
26
Knob, Oven Control WPL 878492 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
27
Socket, Oven Light WPL 878124 Contact Us For Availability
27
Side, Oven Right WPL 878503 Contact Us For Availability
27
Ignitor, Top Burner (Left Side) WPL 878007 Contact Us For Availability
27
Ignitor, Top Burner (Right Side) WPL 878153 Contact Us For Availability
27
Plate, Switch WPL 878946 Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
29
Panel, Broiler Door (Coffee) WPL 878473 Contact Us For Availability
29
Panel, Broiler Door (Harvest Gold) WPL 878474 Contact Us For Availability
29
Panel, Broiler Door (Black) WPL 878475 Contact Us For Availability
29
Plate, Valve Closure WPL 878504 Contact Us For Availability
29
Oven 30`` Continuous Clean (Not Serviceable) WPL ARI128839A Contact Us For Availability
29
Switch, Top Ignitor (4) WPL 878154 Contact Us For Availability
29
Spring, Disc Dial WPL 878498 Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Panel, Cabinet End (2) (Almond) WPL 878505 Contact Us For Availability
30
Panel, Cabinet End (2) (Coffee) WPL 878506 Contact Us For Availability
30
Panel, Cabinet End (2) (White) WPL 878507 Contact Us For Availability
30
Panel, Cabinet End (2) (Harvest Gold) WPL 878508 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
30
Panel, End (2) (Coffee) WPL 878461 Contact Us For Availability
30
Panel, End (2) (Harvest Gold) WPL 878462 Contact Us For Availability
30
Strike, Main Top WPL 878499 Contact Us For Availability
30
Control, Oven WPL 878338 Contact Us For Availability
31
Plate, Oven Bottom WPL 878510 Contact Us For Availability
31
Starter, Fluorescent Light WPL 878156 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
32
Burner, Oven WPL 878511 Contact Us For Availability
32
Control, Ignitor WPL 878476 Contact Us For Availability
32
Switch, Light WPL 878601 Contact Us For Availability
33
Top, Cabinet WPL 878512 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878142 Contact Us For Availability
33
Dial, Oven Control WPL 878158 Contact Us For Availability
33
Trim, Vent WPL 878501 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
35
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
35
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
35
Side, Oven Left WPL 878513 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
35
Ignitor, Oven Burner WPL 878159 Contact Us For Availability
35
Support, Clock WPL 878947 Contact Us For Availability
36
Bottom, Cabinet WPL 878514 Contact Us For Availability
36
Screw, Leveling (4) WPL 878166 Contact Us For Availability
36
Lighter, Oven Burner WPL 878160 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
37
Hinge, Door Bottom WPL 878519 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
38
Top, Oven WPL 878515 Contact Us For Availability
38
Plate, Oven Bottom WPL 878175 Contact Us For Availability
38
Hinge, Door Top WPL 878520 Contact Us For Availability
39
Back, Oven WPL 878516 Contact Us For Availability
39
Front, Main WPL 878178 Contact Us For Availability
39
Valve, Oven Light Safety WPL 878011 Contact Us For Availability
39
Support, Oven Control WPL 878522 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Front, Cabinet WPL 878517 Contact Us For Availability
41
Back, Main WPL 878179 Contact Us For Availability
42
Back, Cabinet WPL 878518 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
42
Pipe, Manifold WPL 878478 Contact Us For Availability
44
Deflector, Vent WPL 878521 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
44
Burner, Oven WPL 878187 Contact Us For Availability
45
Clamp, Oven Insulation WPL 878523 Contact Us For Availability
45
Instructions, Installation WPL 878065 Contact Us For Availability
45
Guide, Use & Care WPL 878072 Contact Us For Availability
45
Diagram, Wiring WPL 878074 Contact Us For Availability
45
Deflector Vent WPL 878185 Contact Us For Availability
45
List, Repair Parts WPL 878998 Contact Us For Availability
45
Deflector, Heat WPL 878189 Contact Us For Availability
× ![]()
