Model Whirlpool SDH501B20 – Common Parts & Diagrams
03 - SECTION
02 - SECTION
04 - SECTION
01 - SECTION

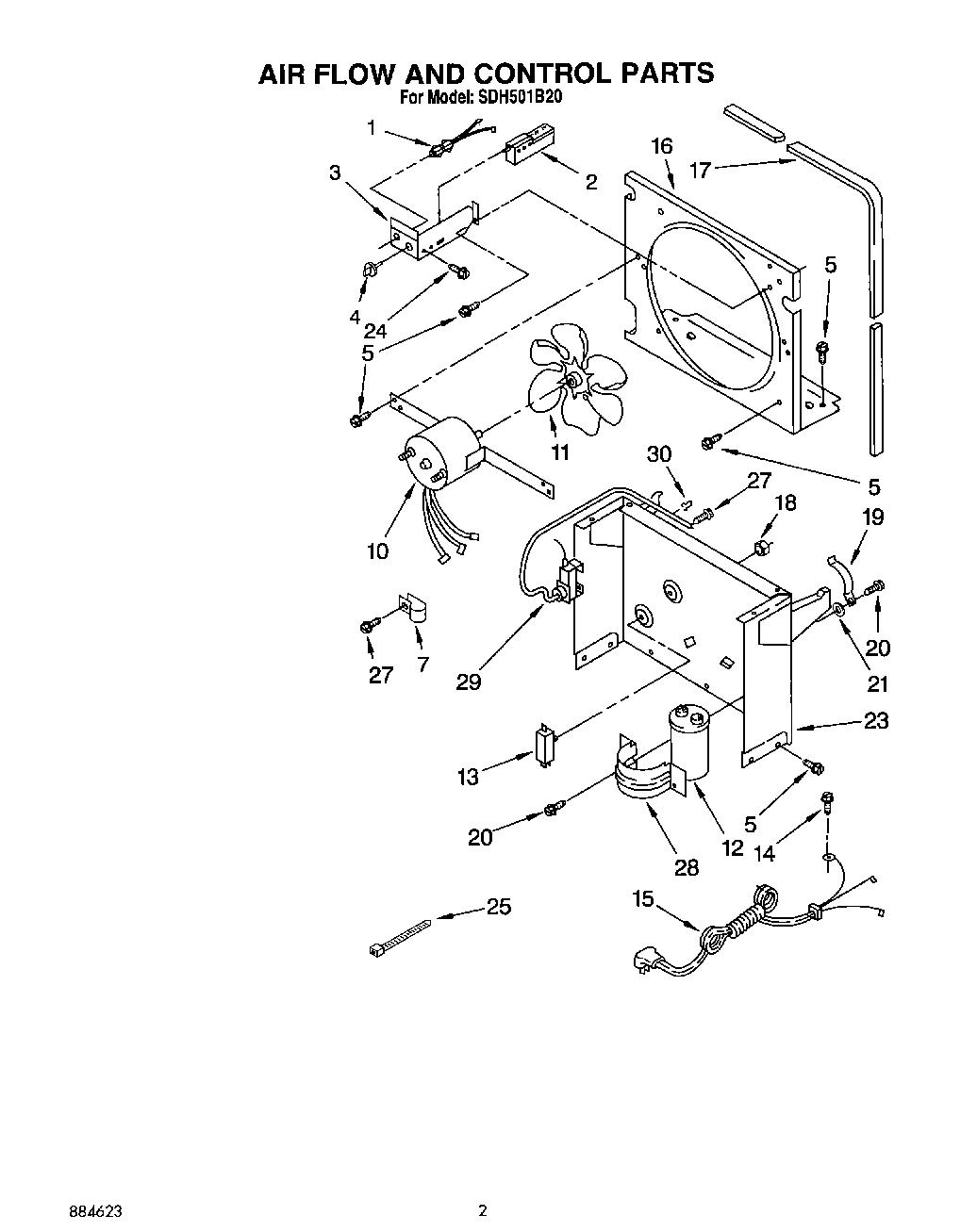

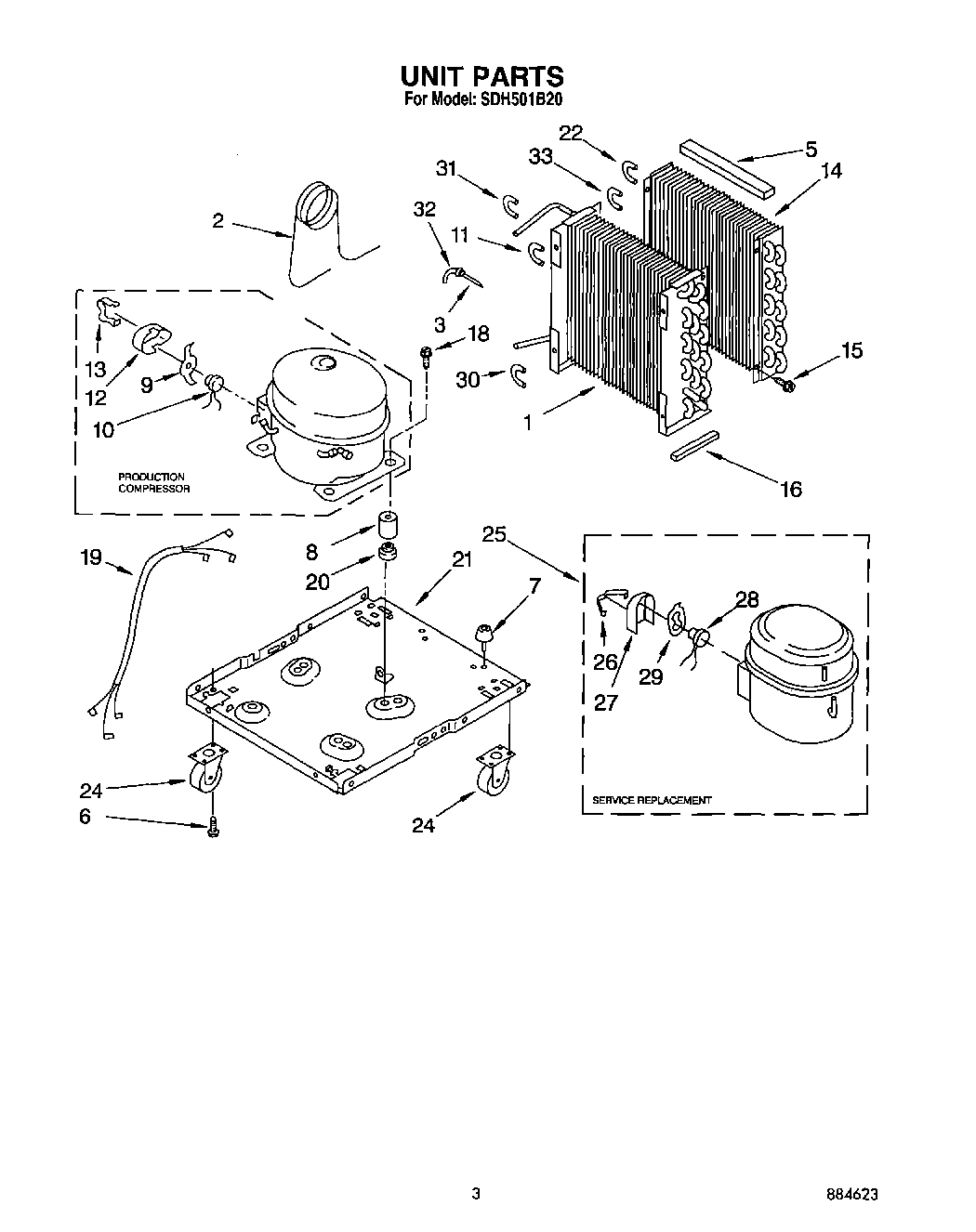

Common parts from model Whirlpool SDH501B20
Sheet, Tech And Wiring Diagram WPL LIT1162687 Contact Us For Availability
Guide, Use And Care WPL LIT1162729 Contact Us For Availability
List, Repair List WPL LIT884623 Contact Us For Availability
1
Light, WPL 1162368 Contact Us For Availability
1
Cabinet WPL 1160461 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
3
Bracket, Control WPL 951284 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Knob, Humidistat Control WPL 1162862 Contact Us For Availability
4
Grille, Front WPL 1162667 Contact Us For Availability
5
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
5
Lens, Light WPL 998846 Contact Us For Availability
6
Grille, Rear WPL 1160444 Contact Us For Availability
8
Spacer, Grille WPL 948584 Contact Us For Availability
10
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
10
Motor, Fan WPL 1162312 Contact Us For Availability
10
Pan, Condensate WPL 1159968 Contact Us For Availability
10
Valve, Access WPL 485426 Contact Us For Availability
10
Cap, Condensate Pan WPL 646753 Contact Us For Availability
10
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
10
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
10
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Bend, Return WPL 708531 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
12
Capacitor, Run WPL 951363 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1161199 Contact Us For Availability
15
Cord, Appliance WPL 1160448 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Base WPL 1157588 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer (Repair) (.091 Thickness) WPL 489091 Contact Us For Availability
22
Bend Return WPL 1158407 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Caster (4) WPL 857700 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 4318066 Contact Us For Availability
26
Retainer, Cover WPL 950056 Contact Us For Availability
27
Cover, Terminal WPL 950055 Contact Us For Availability
28
Overload WPL 951312 Contact Us For Availability
28
Bracket, Capacitor WPL 951364 Contact Us For Availability
29
Spring, Overload WPL 950061 Contact Us For Availability
29
Control, De-Icer WPL 1155109 Contact Us For Availability
30
Bend Return WPL 1156533 Contact Us For Availability
30
Clamp, Tube WPL 471363 Contact Us For Availability
31
Bend, Return (13) WPL 855199 Contact Us For Availability
32
Bend, Return WPL 854624 Contact Us For Availability
33
Wire Assy. (2) WPL 1162377 Contact Us For Availability
33
PTC Start Device WPL 1162476 Contact Us For Availability
33
PTC Clamp WPL 1162477 Contact Us For Availability
33
Bend, Return WPL 708532 Contact Us For Availability
× ![]()
