Model Speed Queen SDG309*F Dryer – Common Parts & Diagrams
Graphic Overlays and Controls - Electromechanical
Rear Control Models
Control Hood - Electromechanical Rear Control Models

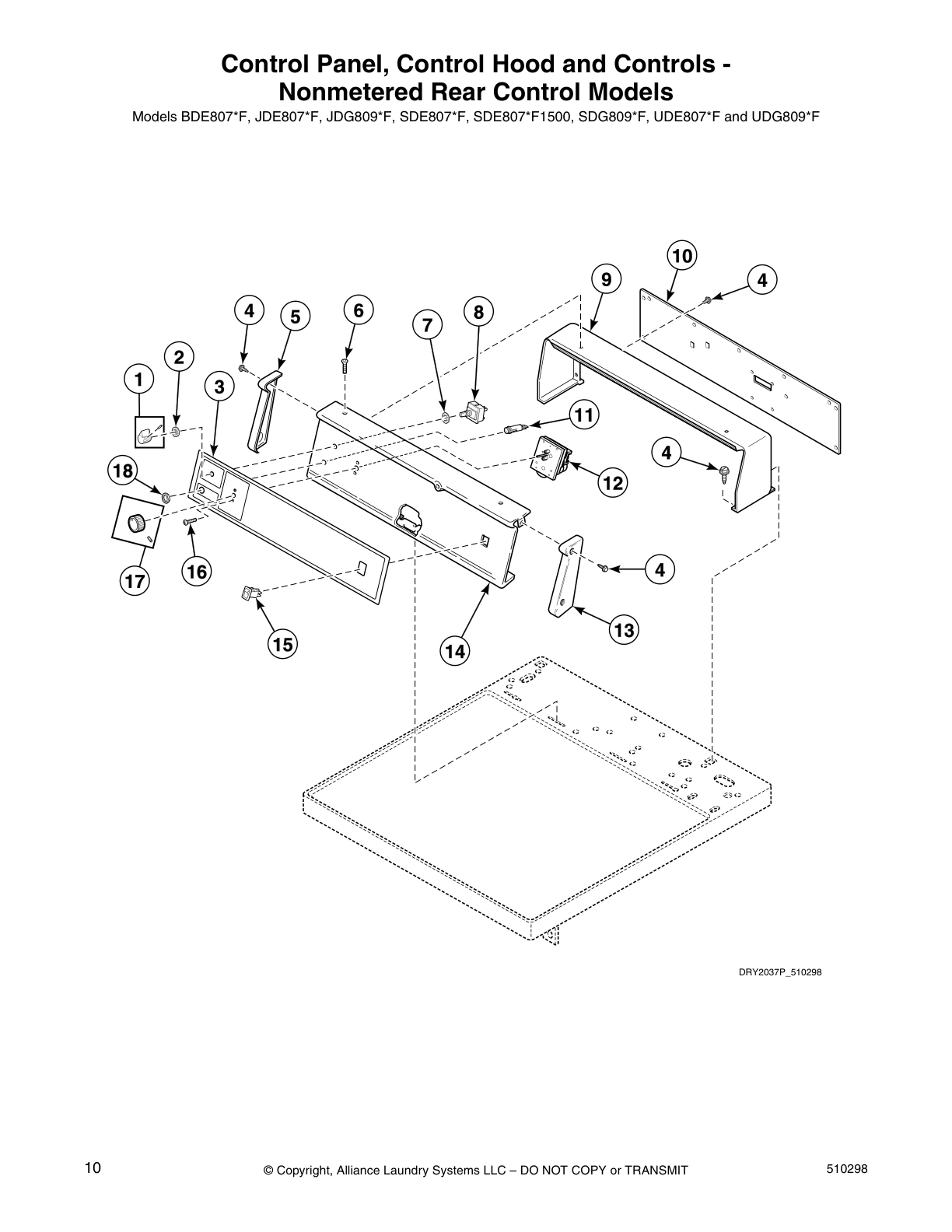

Control Panel, Control Hood and Controls -
Nonmetered Rear Control Models

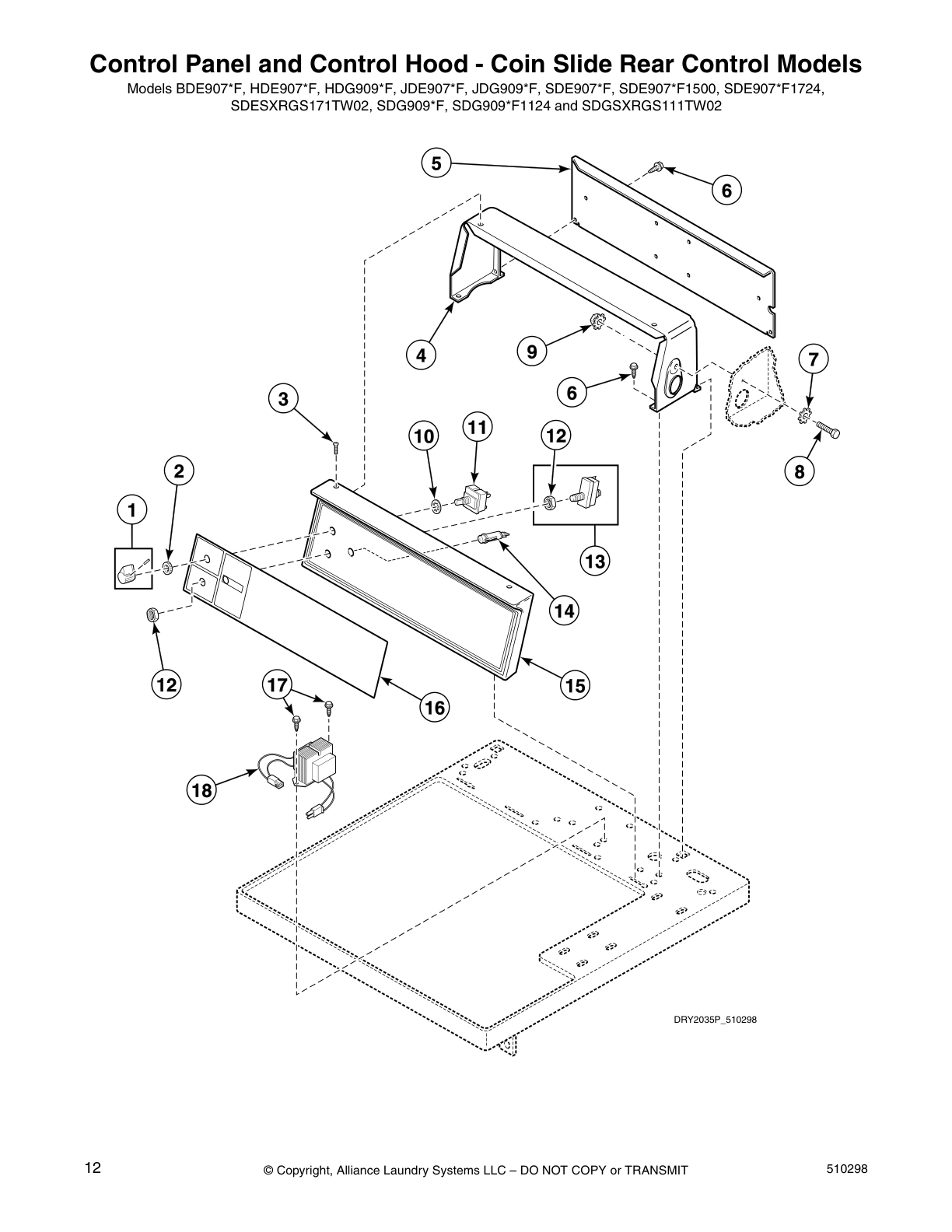

Control Panel and Control Hood - Coin Slide Rear Control Models

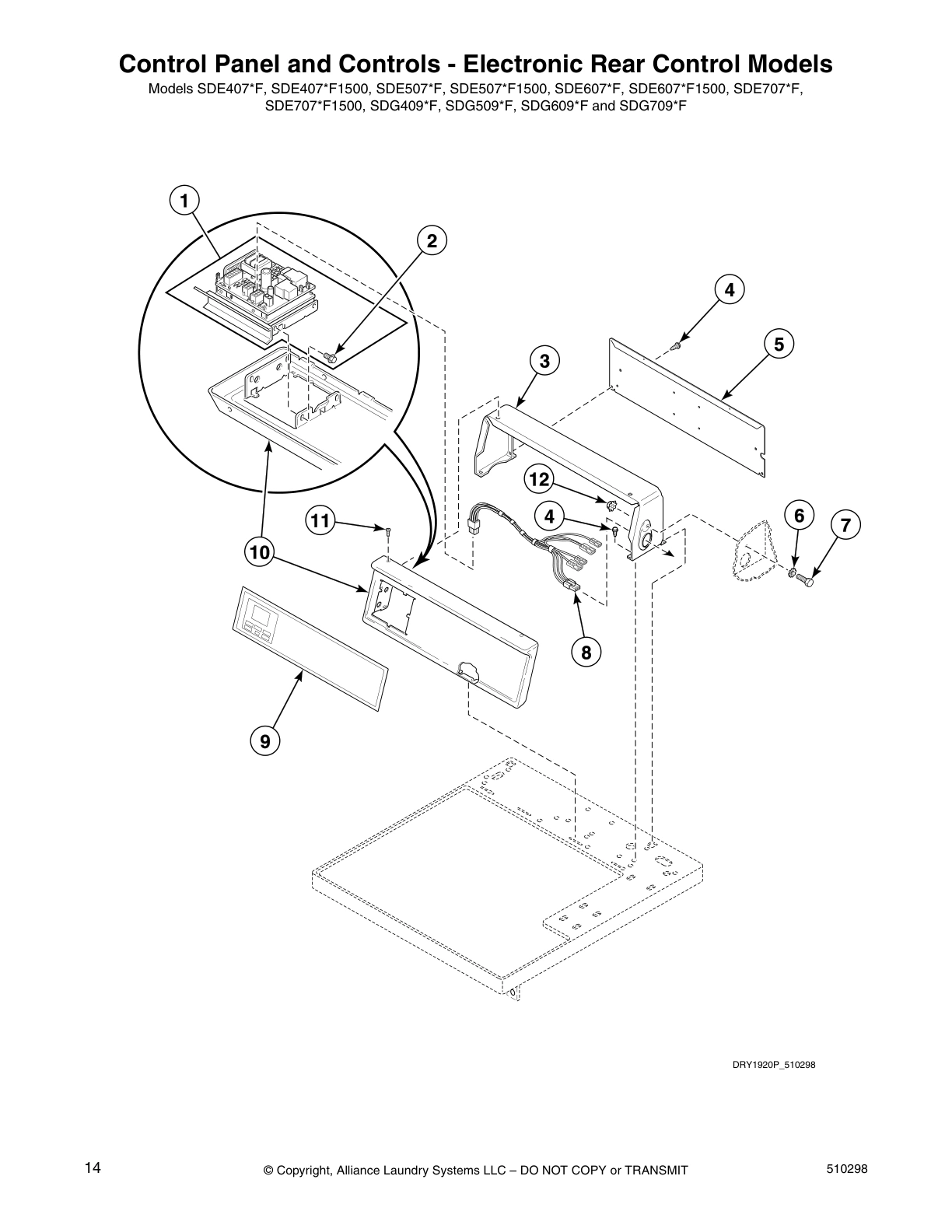

Control Panel and Controls - Electronic Rear Control Models

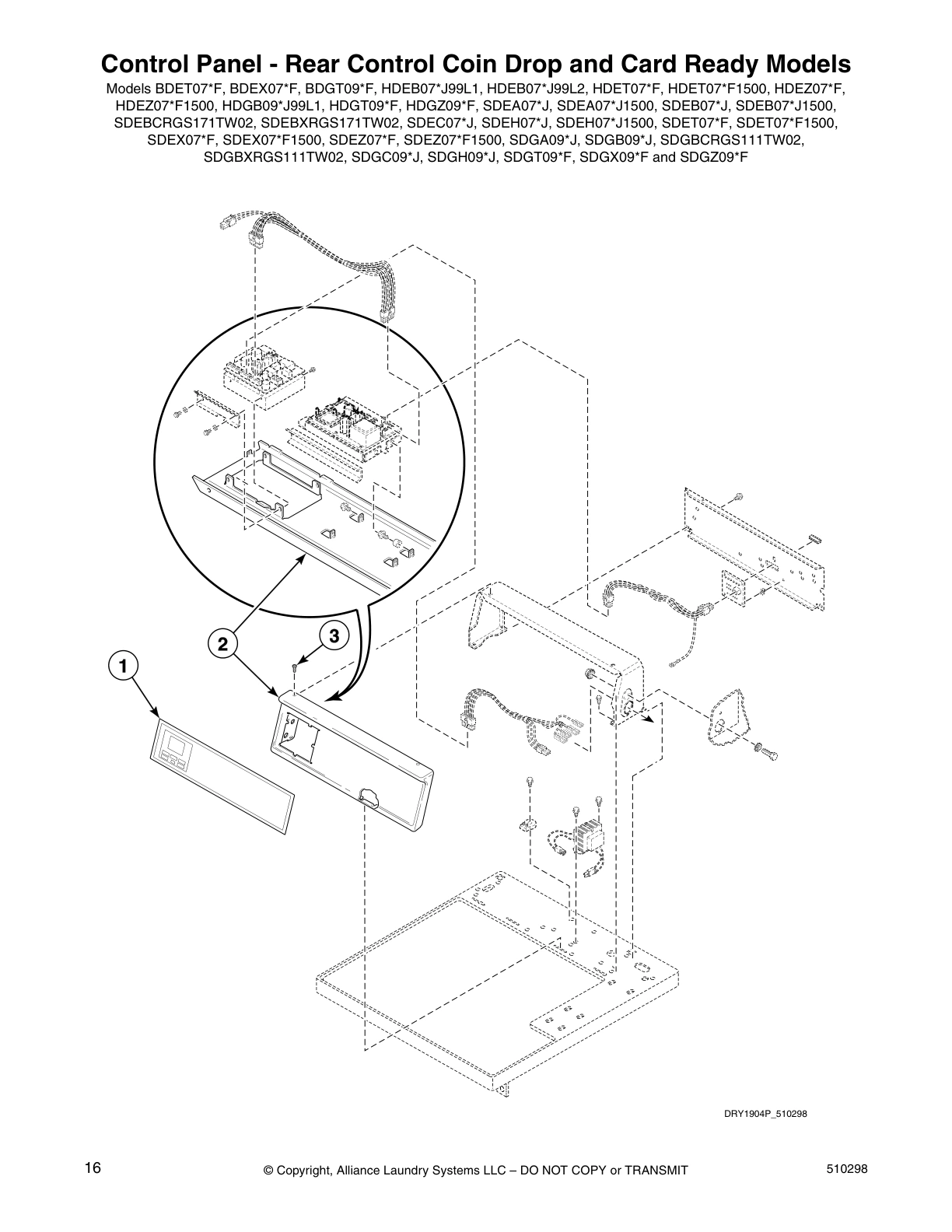

Control Panel - Rear Control Coin Drop and Card Ready Models

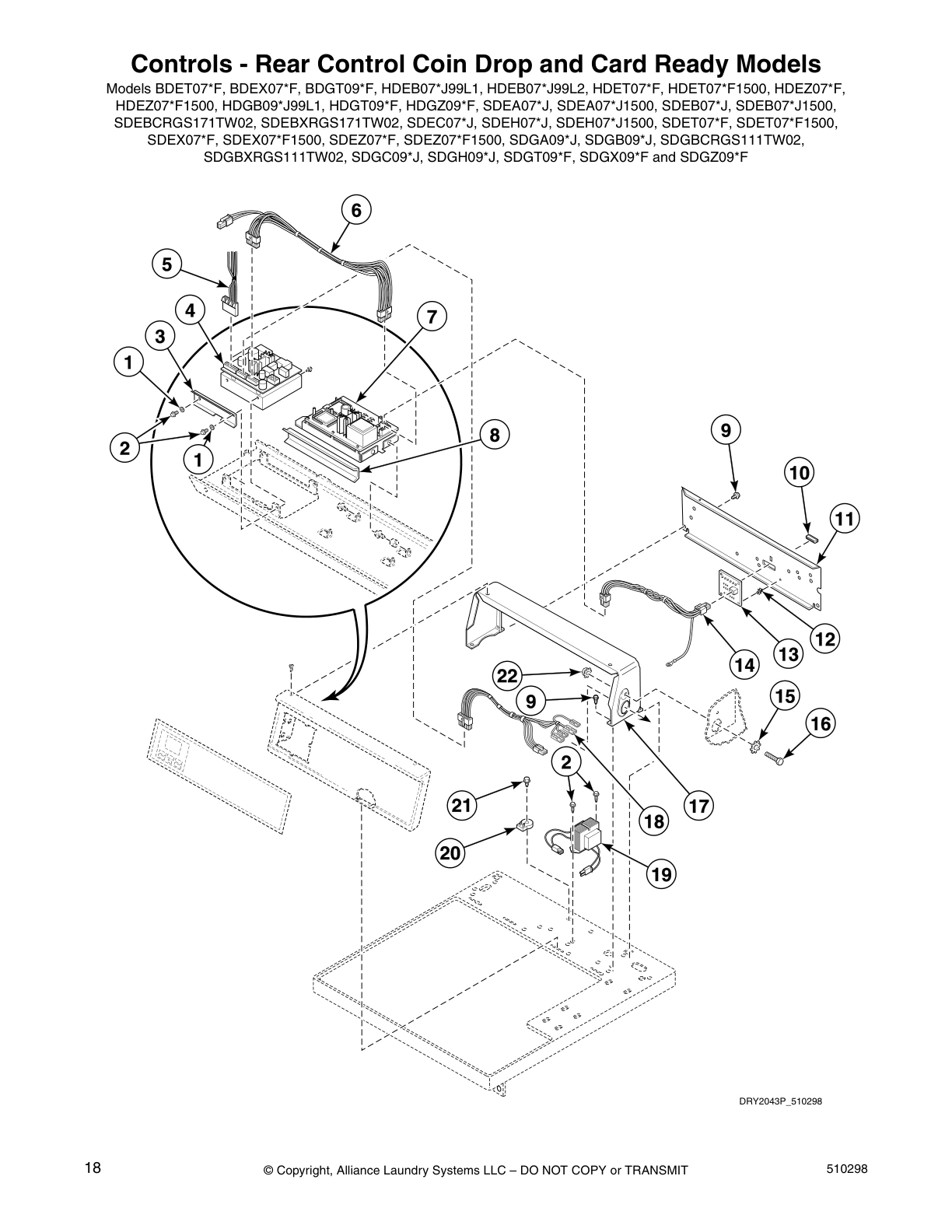

Controls - Rear Control Coin Drop and Card Ready Models

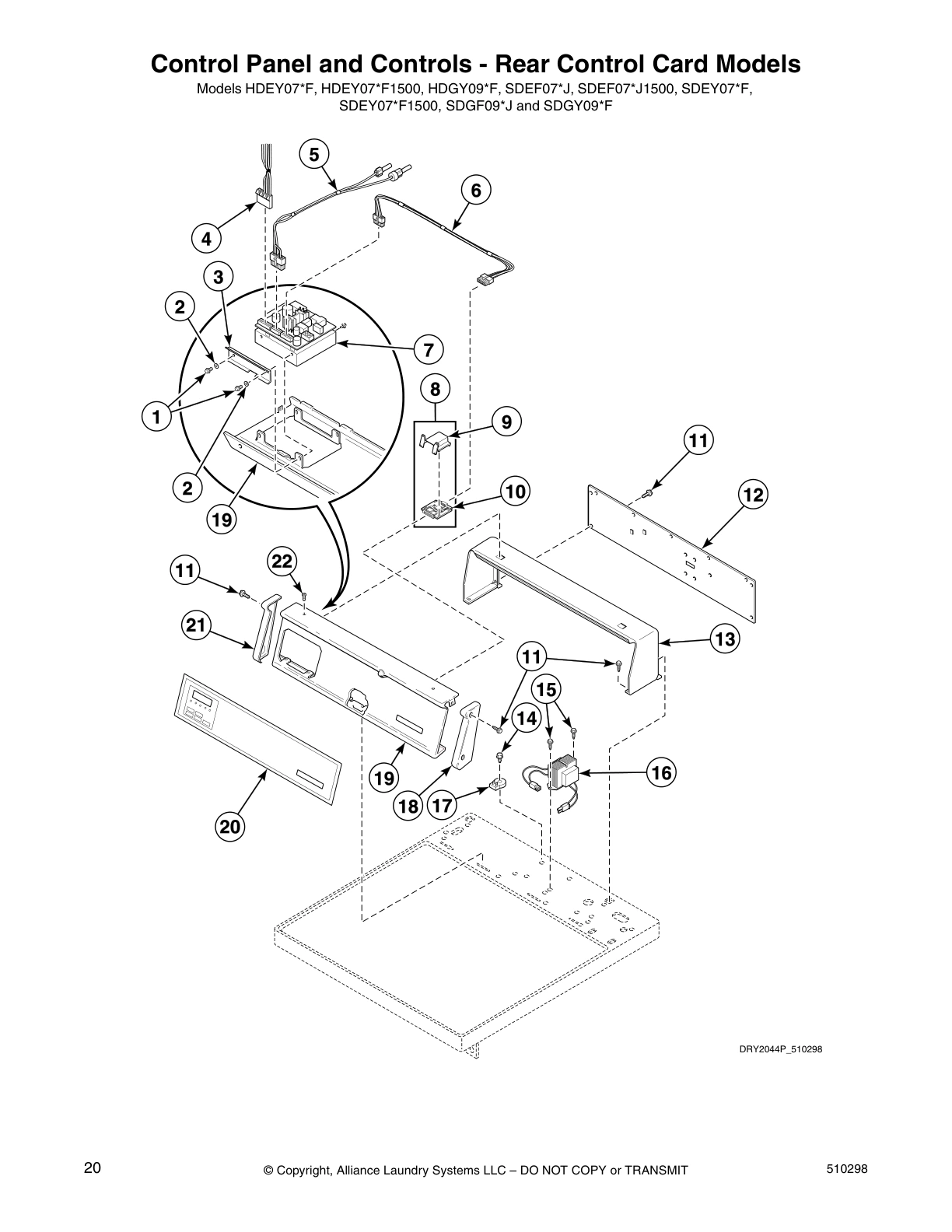

Control Panel and Controls - Rear Control Card Models

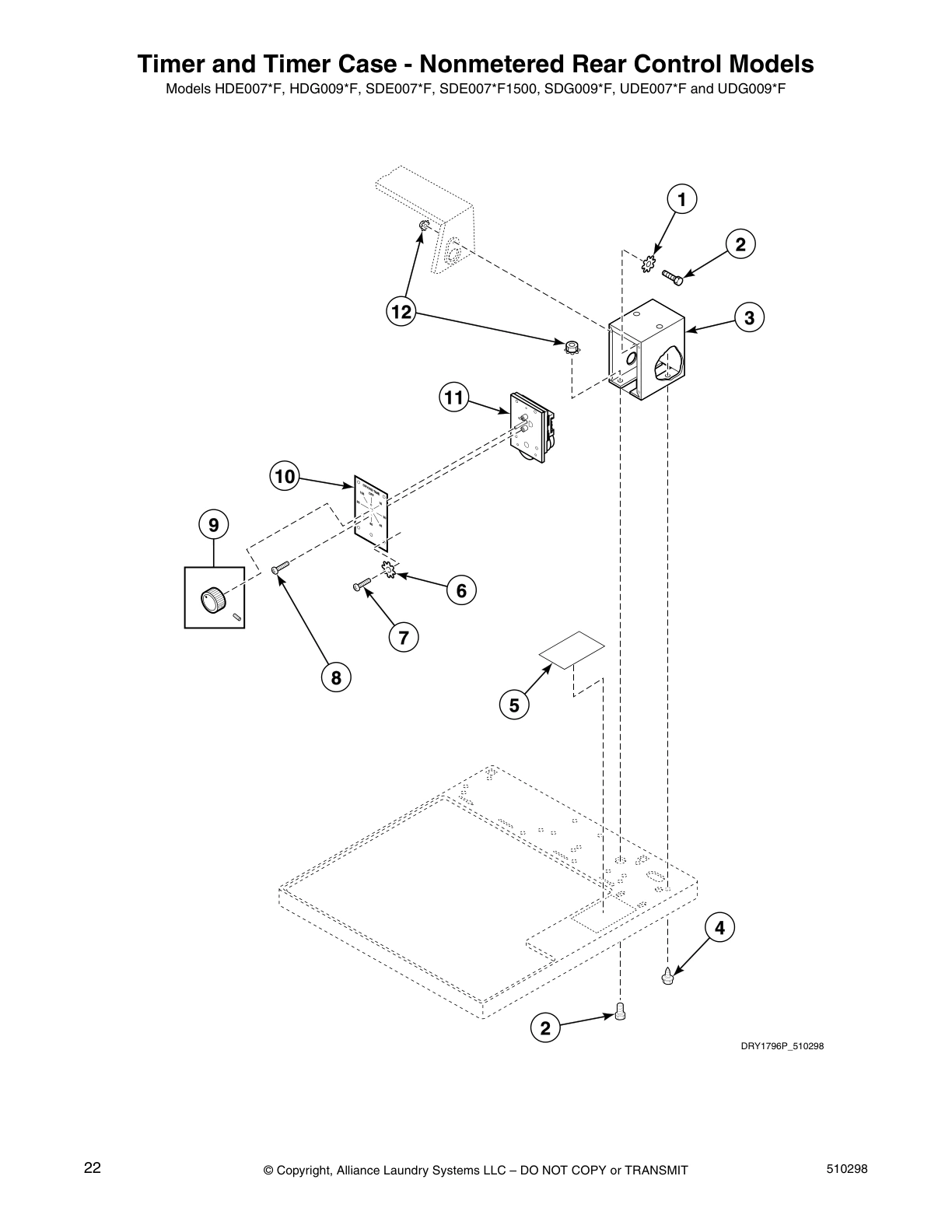

Timer and Timer Case - Nonmetered Rear Control Models

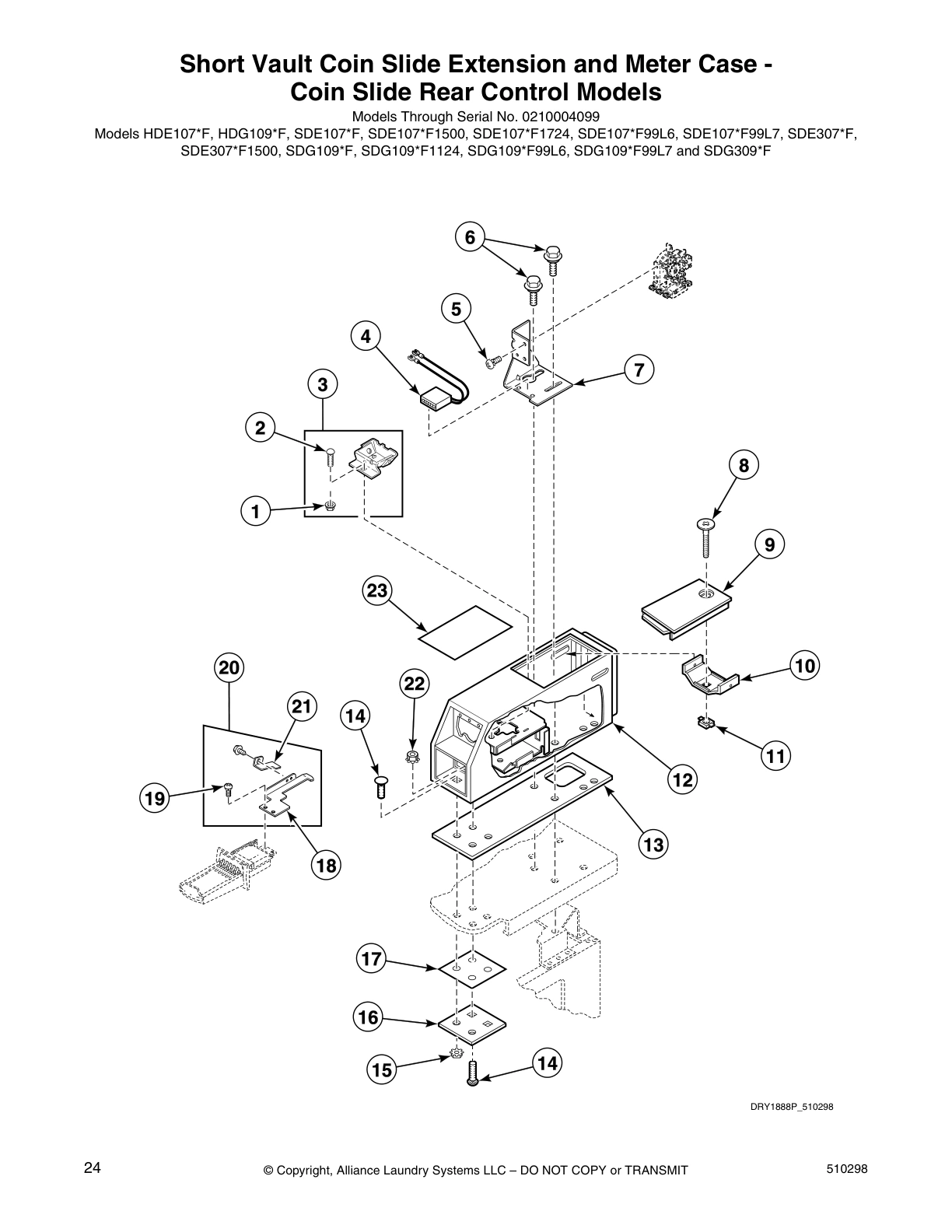

Short Vault Coin Slide Extension and Meter Case -
Coin Slide Rear Control Models

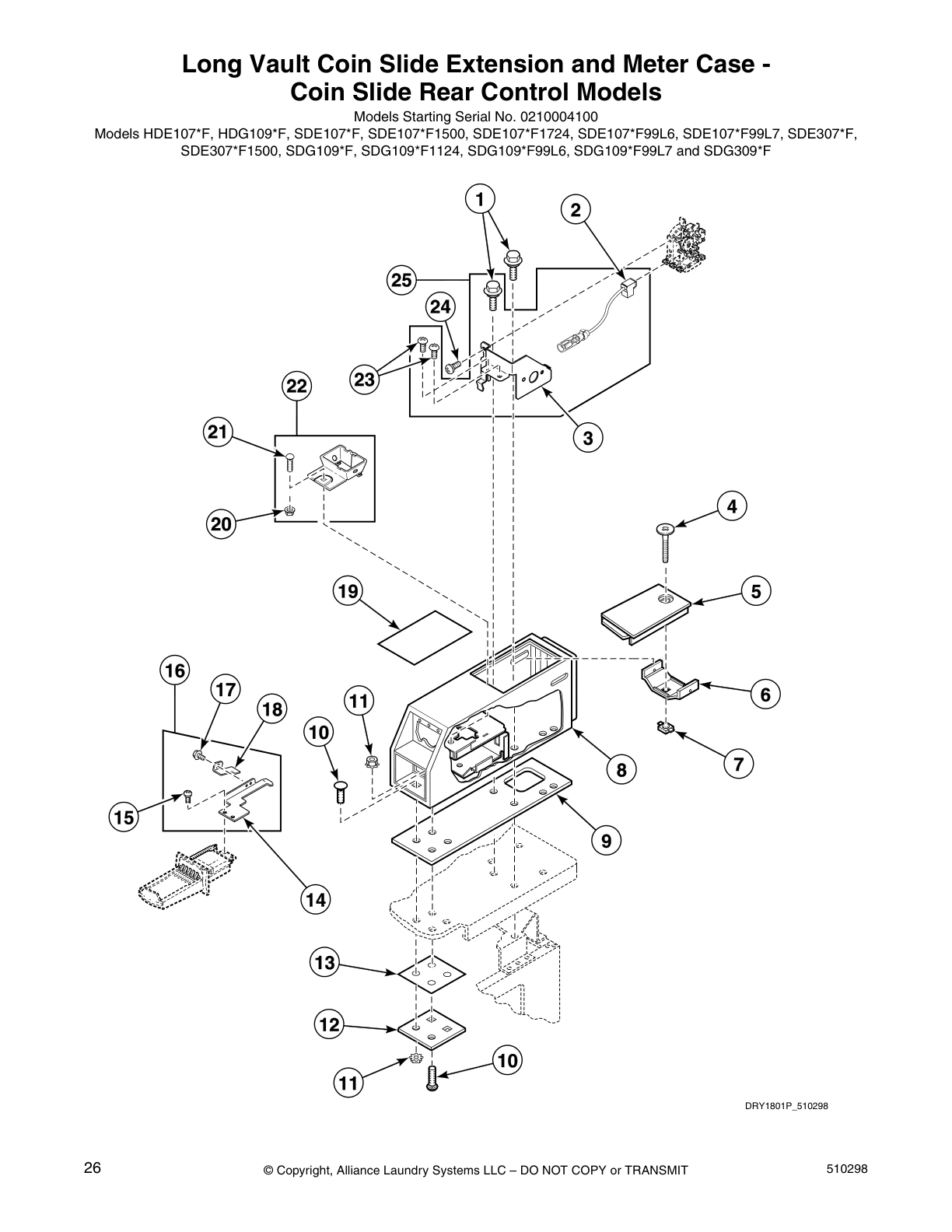

Long Vault Coin Slide Extension and Meter Case -
Coin Slide Rear Control Models

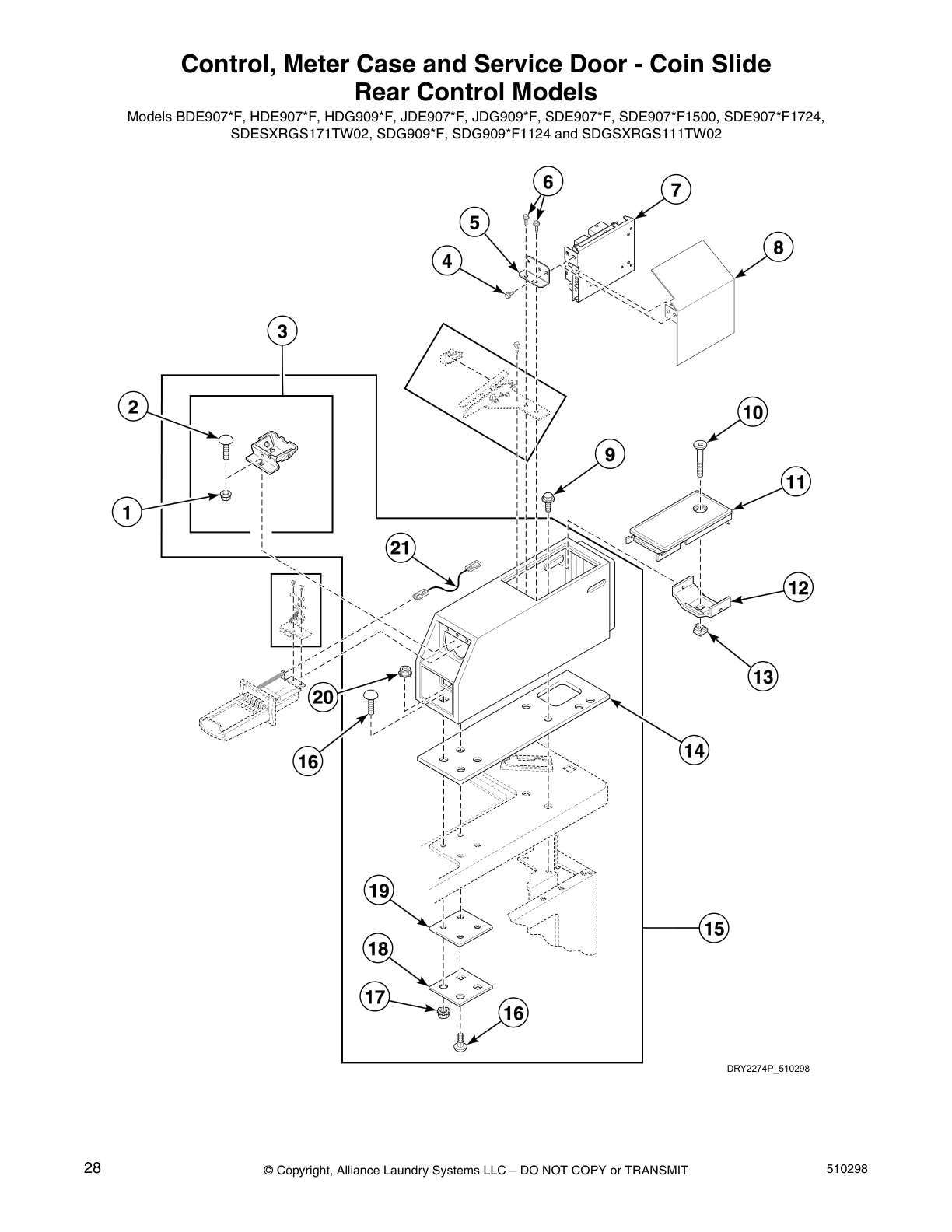

Control, Meter Case and Service Door - Coin Slide
Rear Control Models

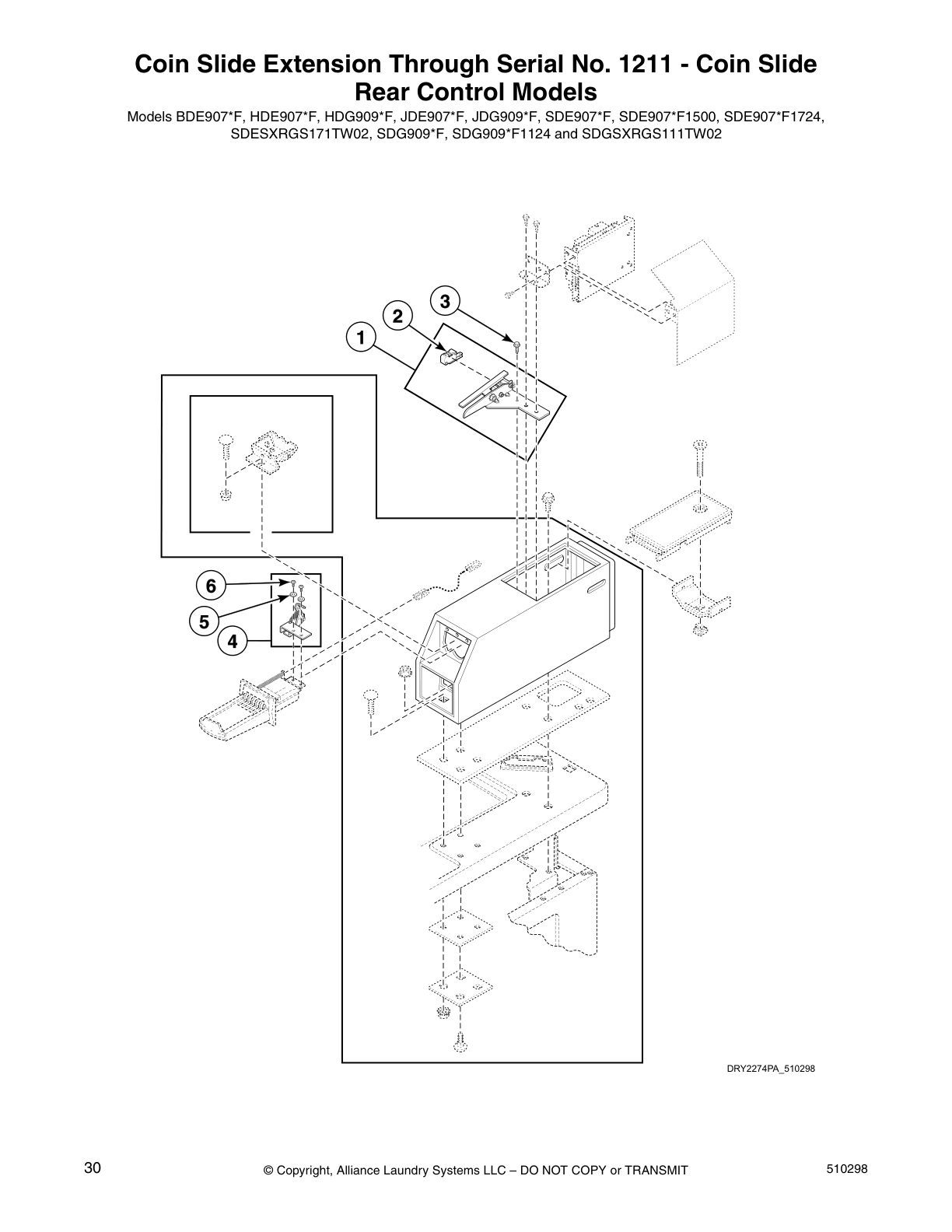

Coin Slide Extension Through Serial No. 1211 - Coin Slide
Rear Control Models
Common parts from model Speed Queen SDG309*F Dryer
6
SPQ 29651 SPQ 29651 Contact Us For Availability
8
SPQ 91176 SPQ 91176 Contact Us For Availability
10
Screw SPQ 503673 Contact Us For Availability
15
Long Vault Slide Extension Kit SPQ 511419 Contact Us For Availability
16
Bolt SPQ 201010WP Contact Us For Availability
17
Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability
18
Coin Funnel Kit SPQ 501796 Contact Us For Availability
22
Service Door Assembly SPQ 553P3 Contact Us For Availability
24
Meter Case Gasket SPQ 03203 Contact Us For Availability
NI
SPQ 36048 SPQ 36048 Contact Us For Availability
× ![]()
