Model Speed Queen SDG009*F Dryer – Common Parts & Diagrams

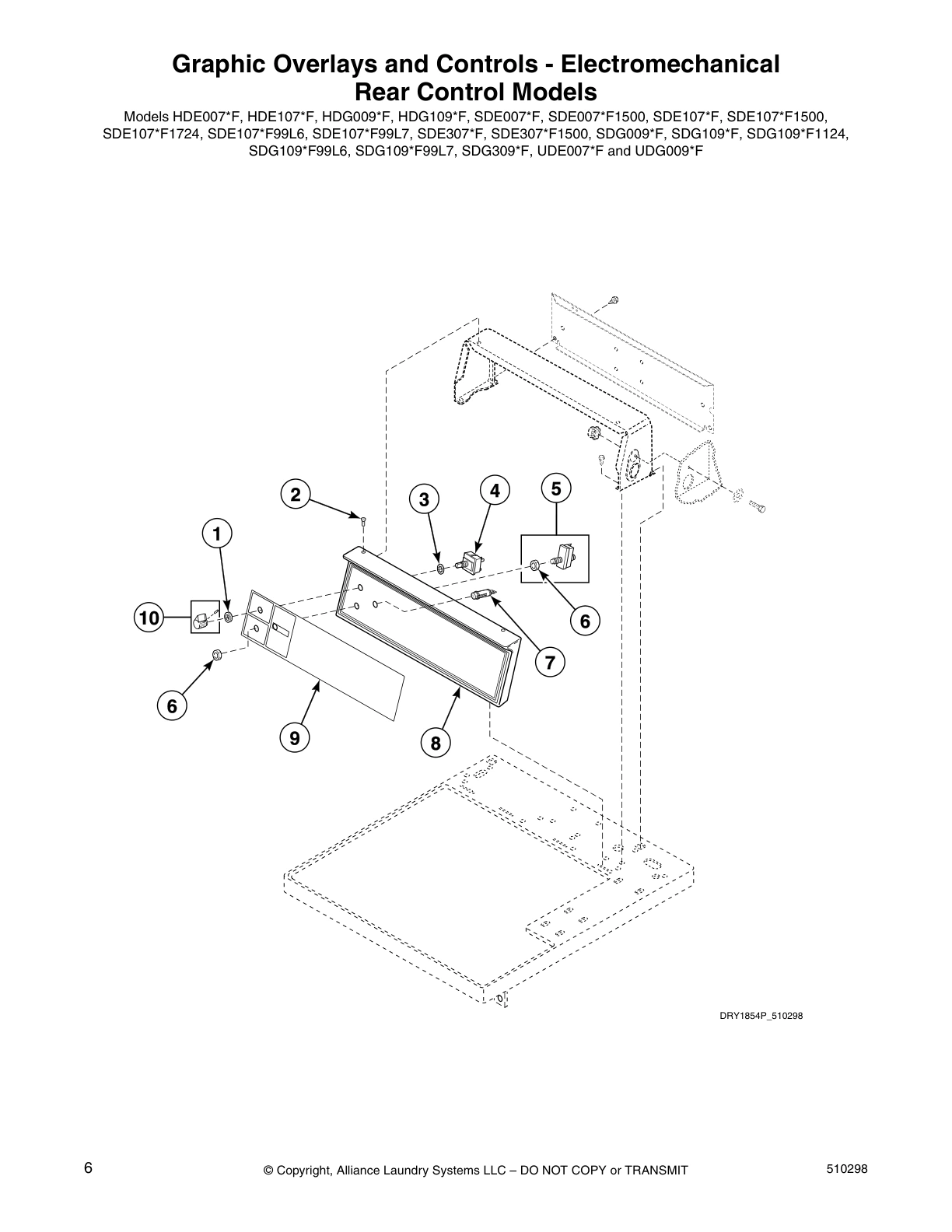

Graphic Overlays and Controls - Electromechanical
Rear Control Models

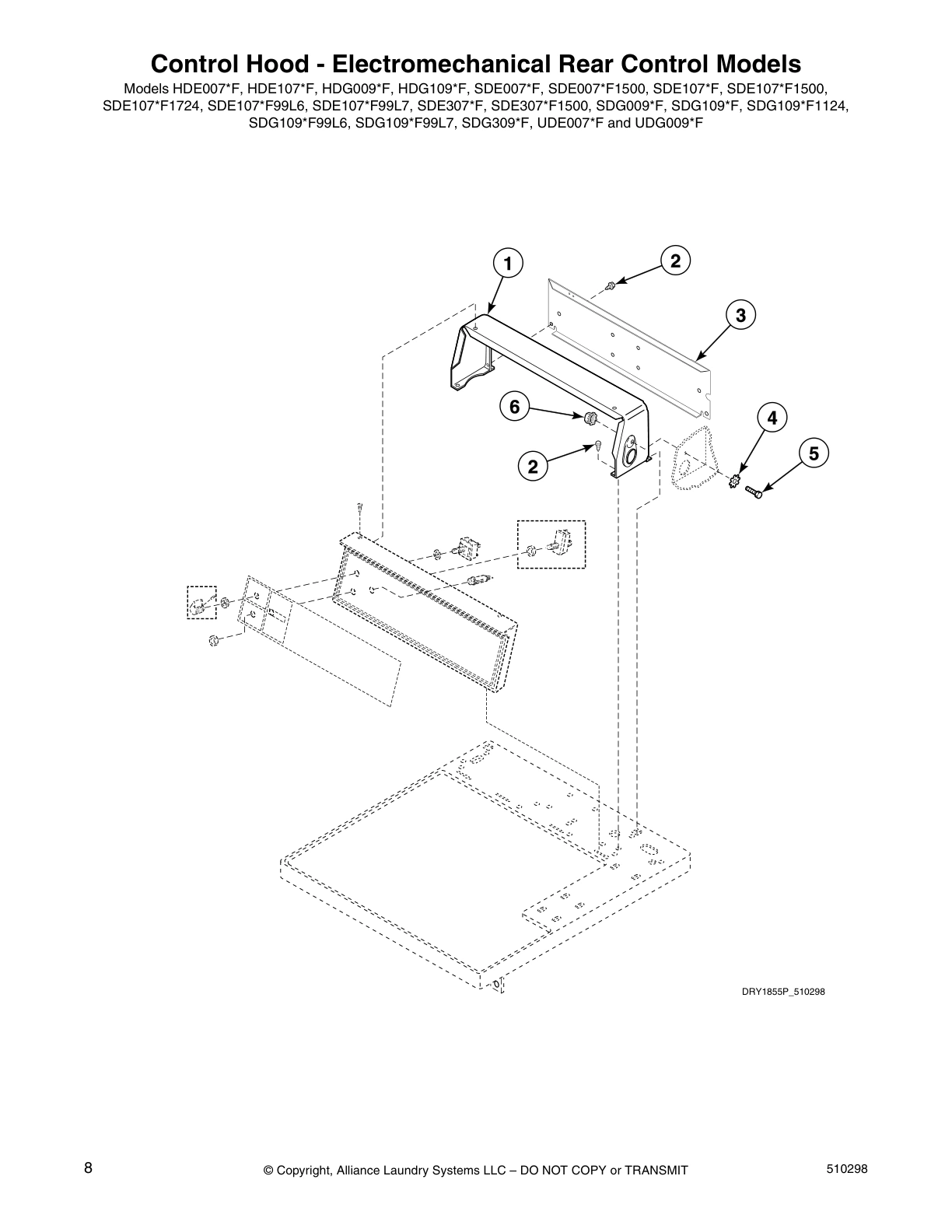

Control Hood - Electromechanical Rear Control Models

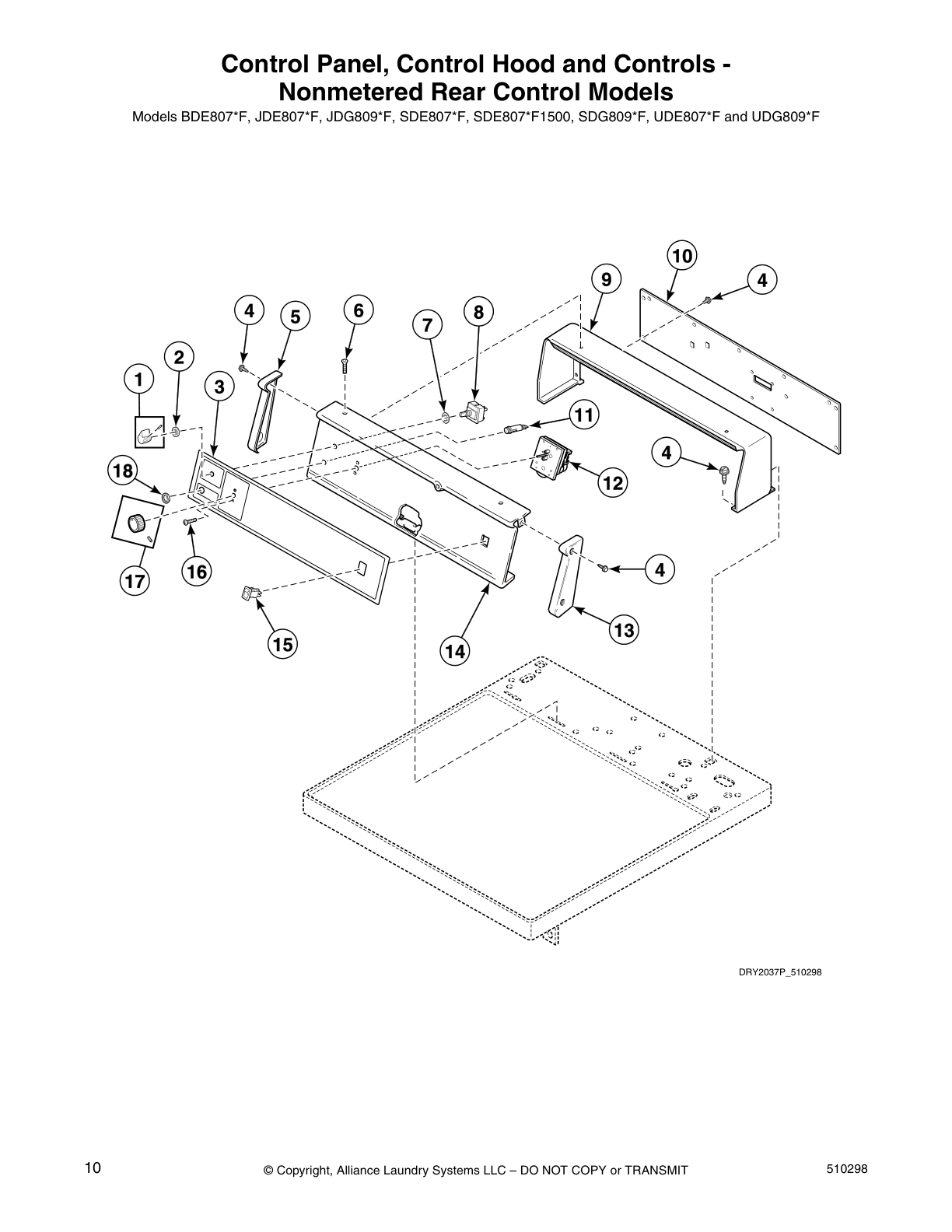

Control Panel, Control Hood and Controls -
Nonmetered Rear Control Models

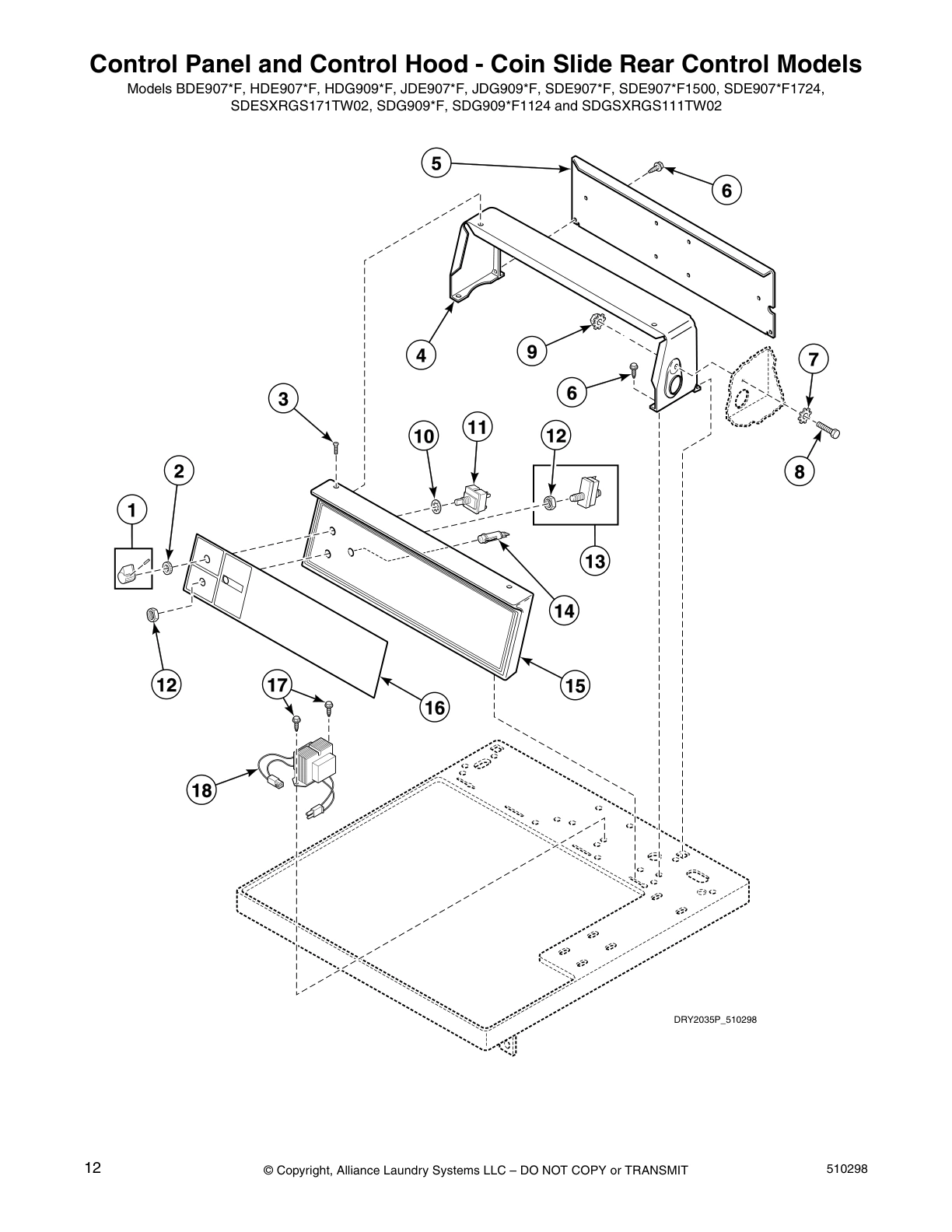

Control Panel and Control Hood - Coin Slide Rear Control Models

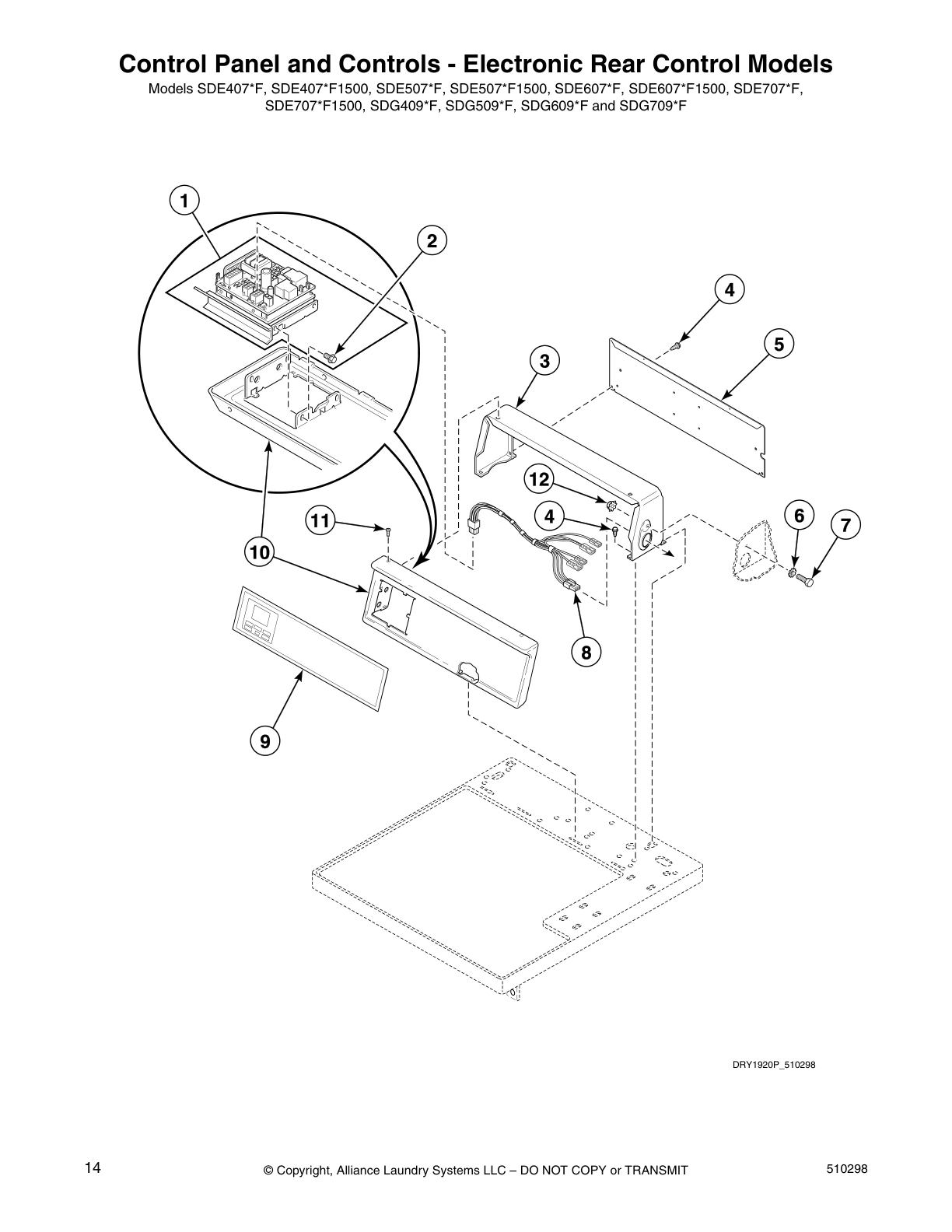

Control Panel and Controls - Electronic Rear Control Models

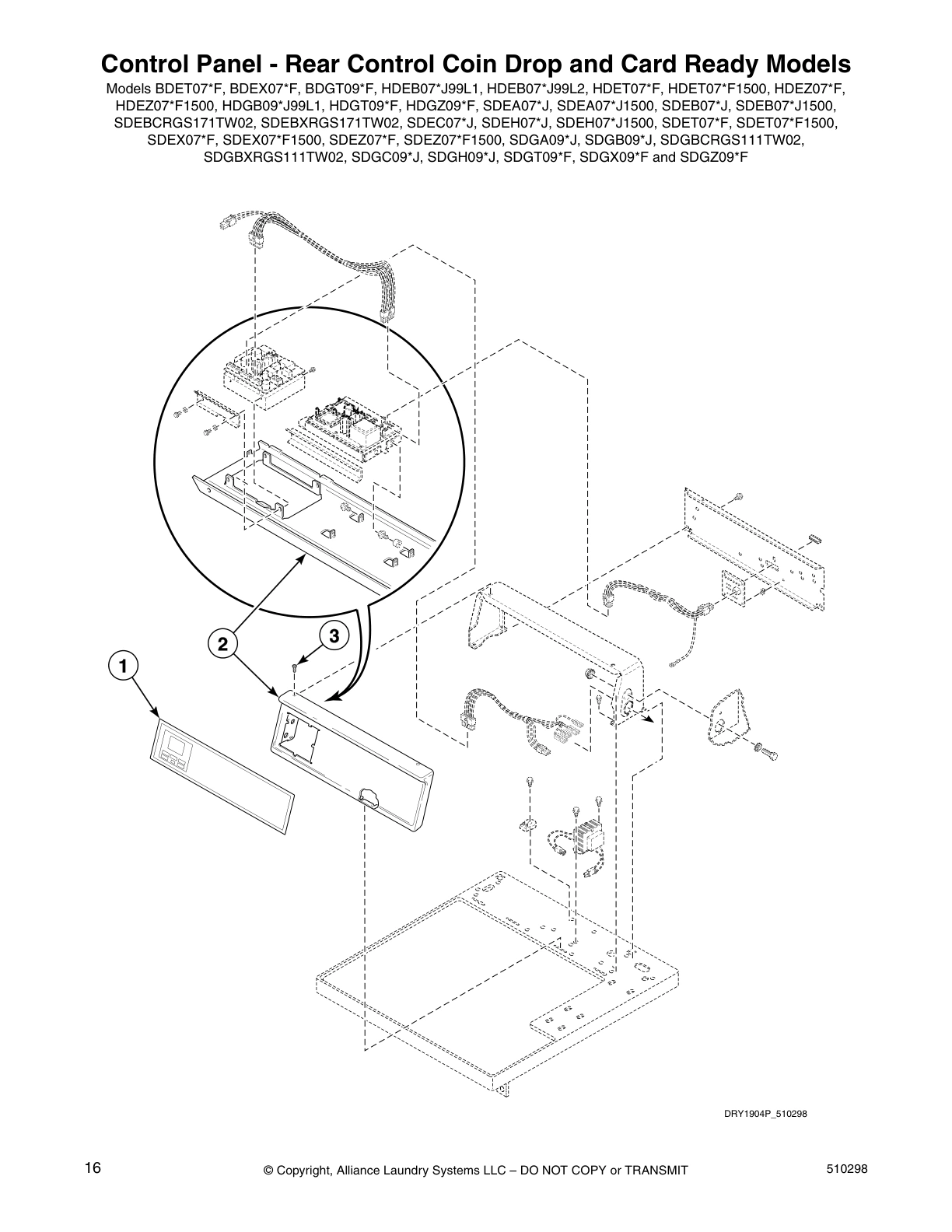

Control Panel - Rear Control Coin Drop and Card Ready Models

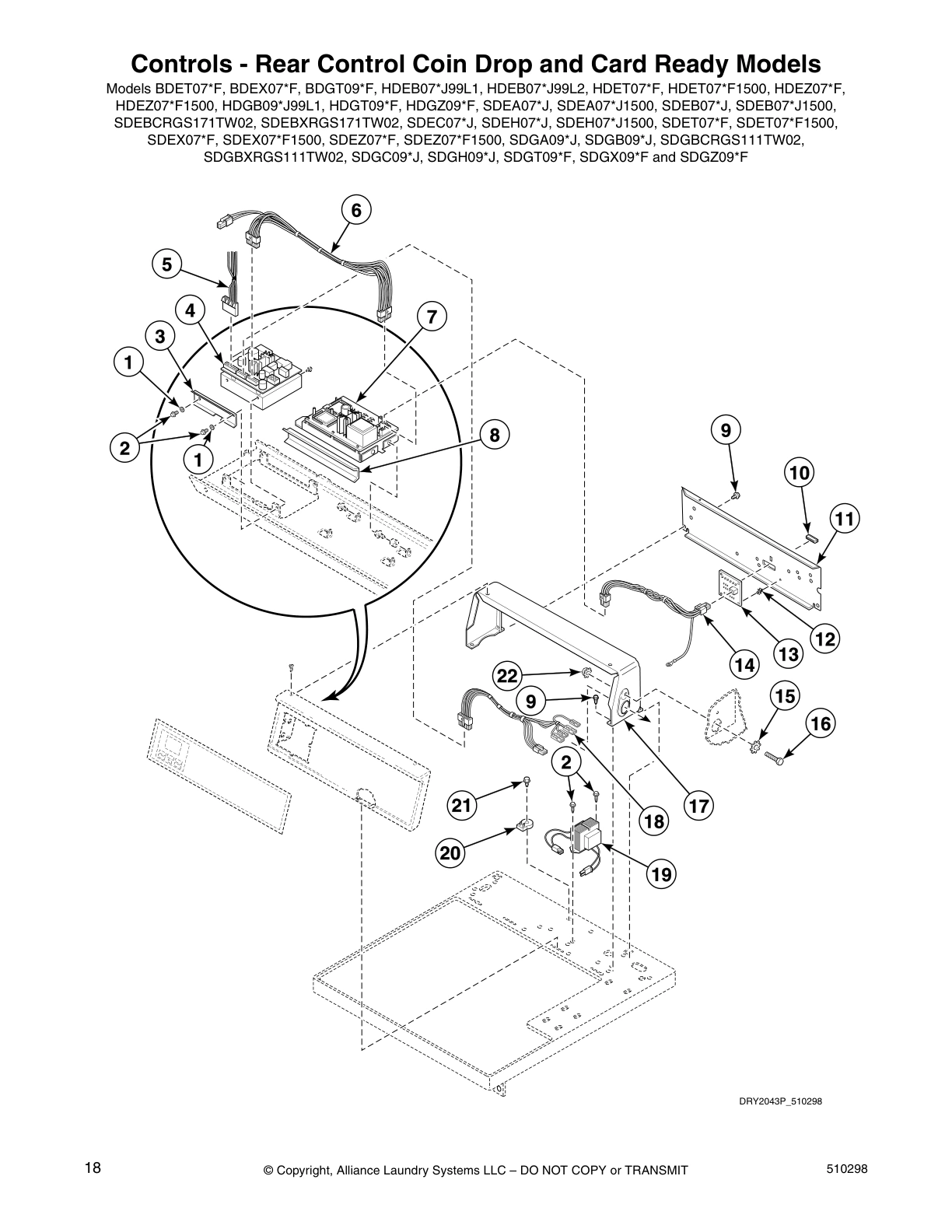

Controls - Rear Control Coin Drop and Card Ready Models

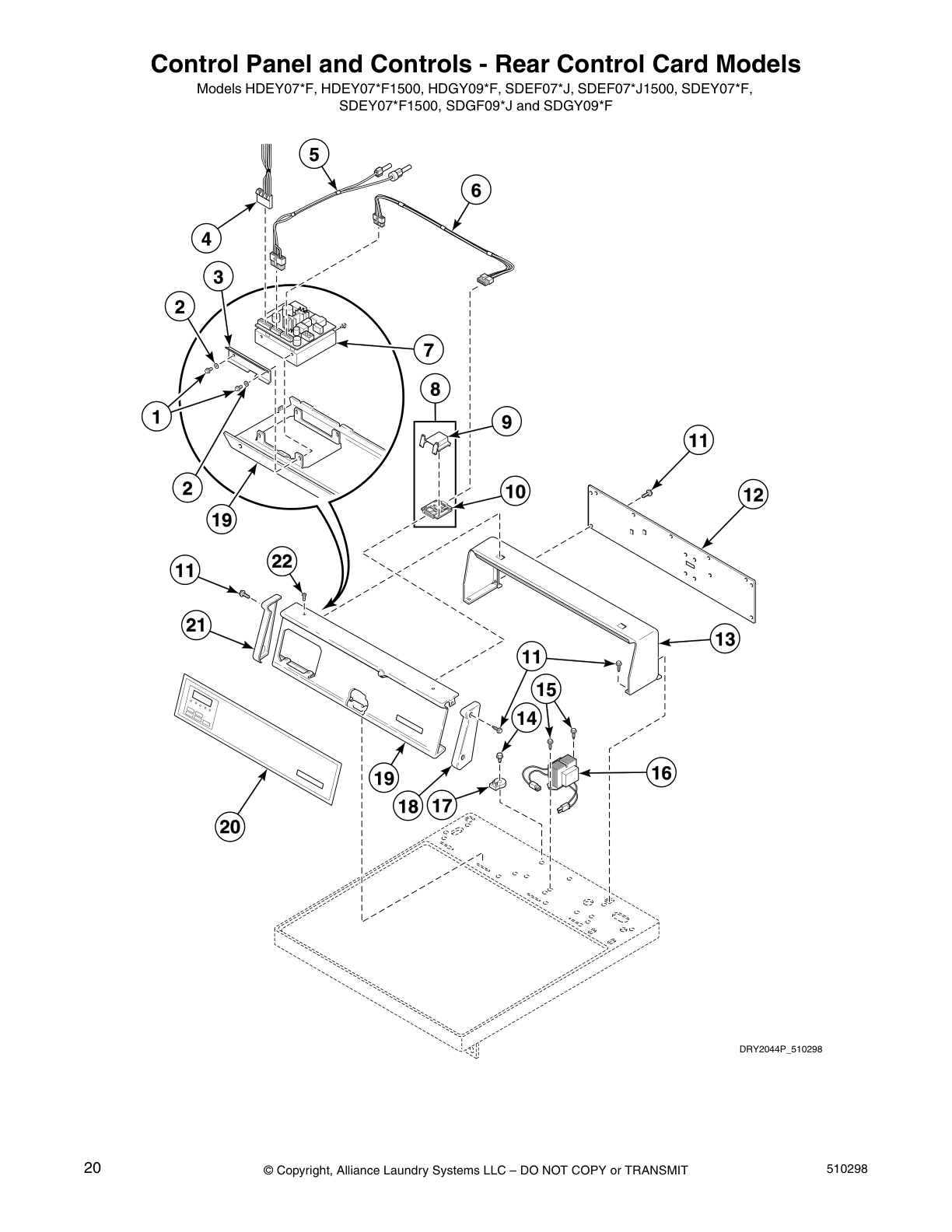

Control Panel and Controls - Rear Control Card Models

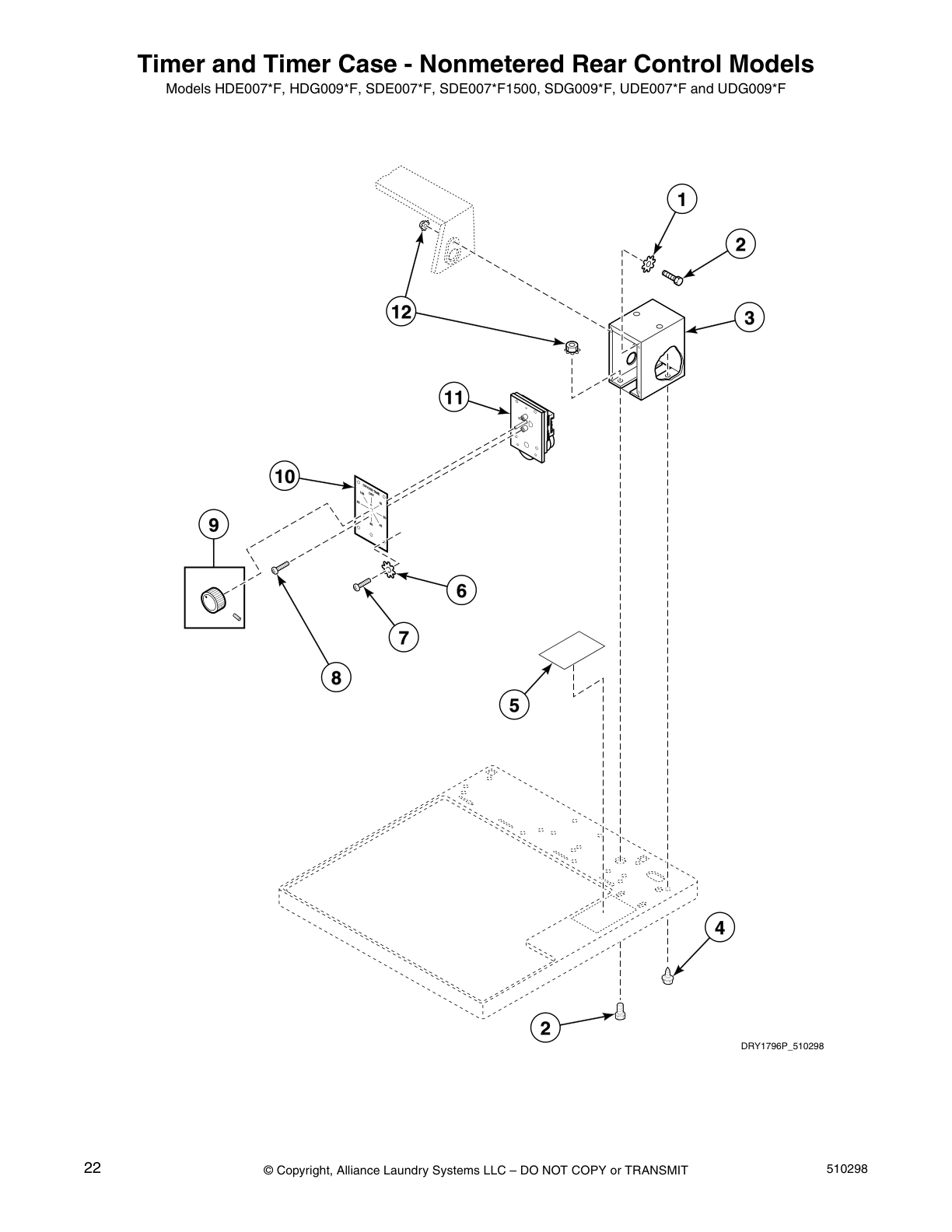

Timer and Timer Case - Nonmetered Rear Control Models

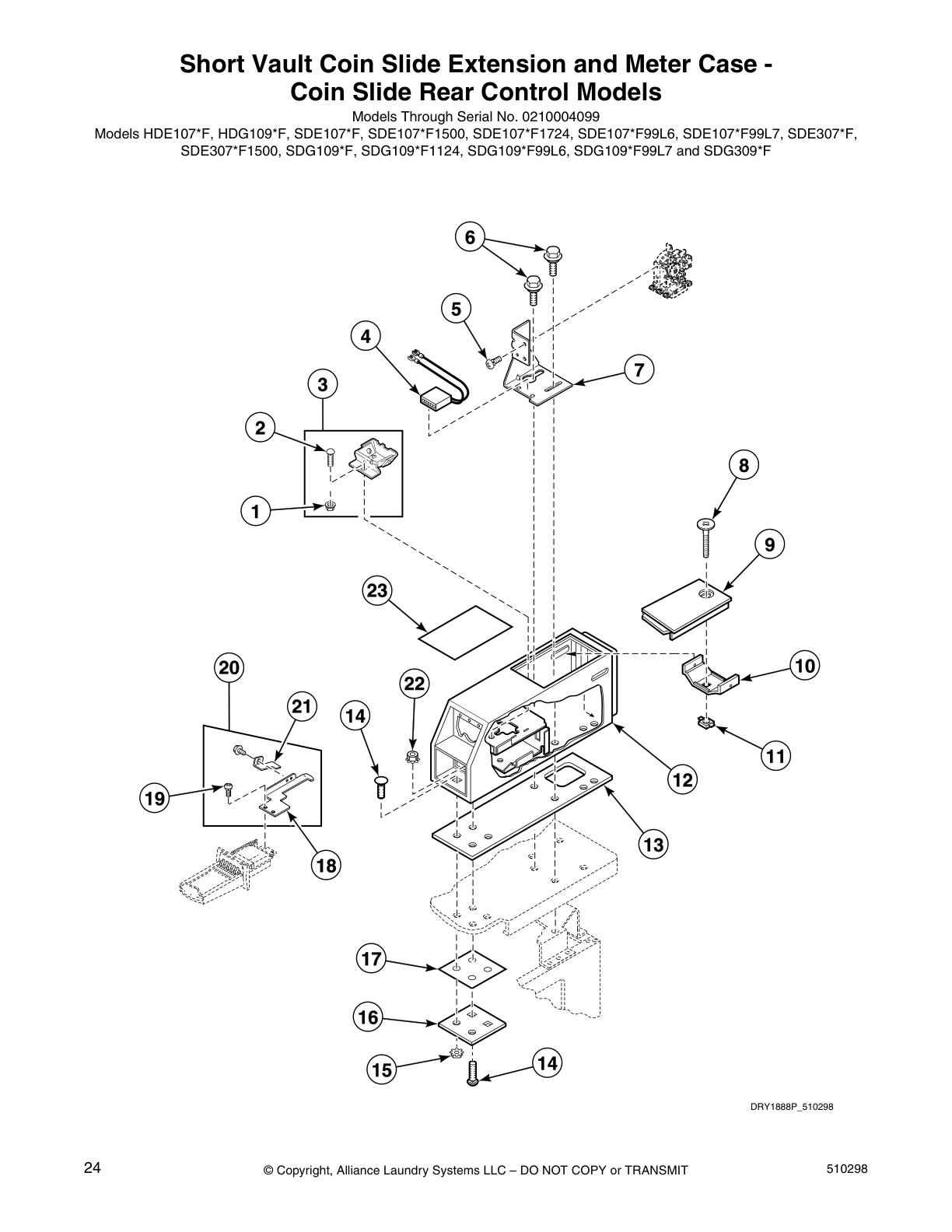

Short Vault Coin Slide Extension and Meter Case -
Coin Slide Rear Control Models

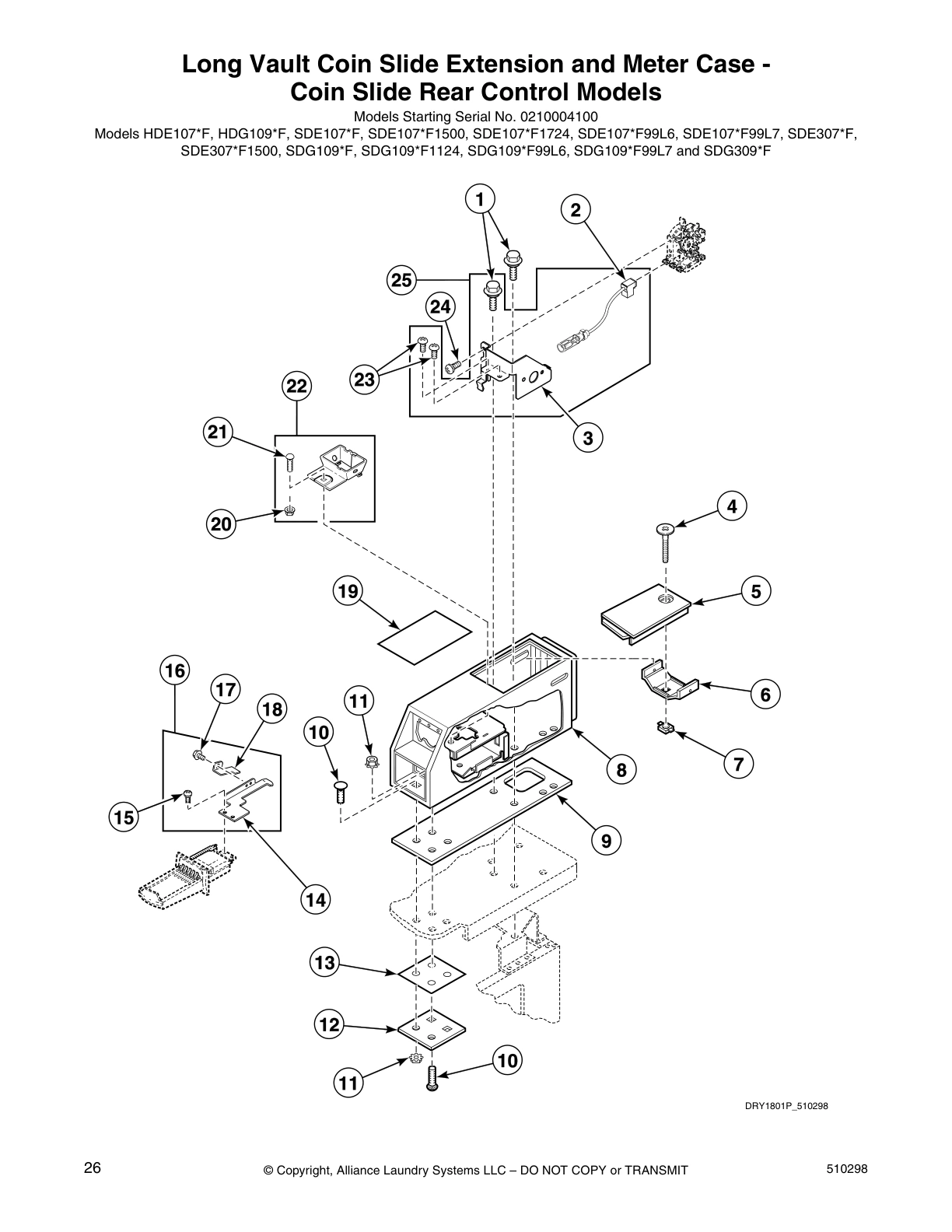

Long Vault Coin Slide Extension and Meter Case -
Coin Slide Rear Control Models

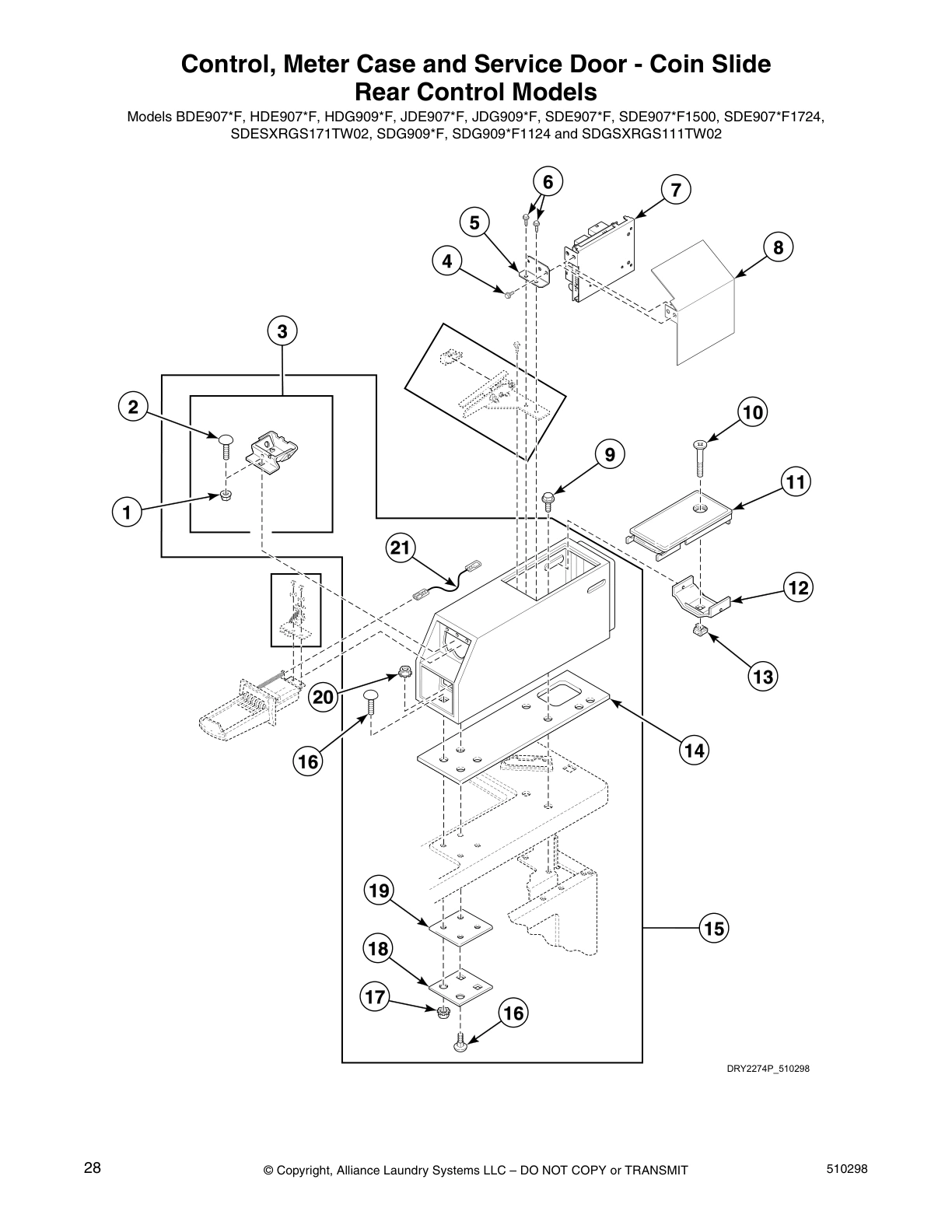

Control, Meter Case and Service Door - Coin Slide
Rear Control Models

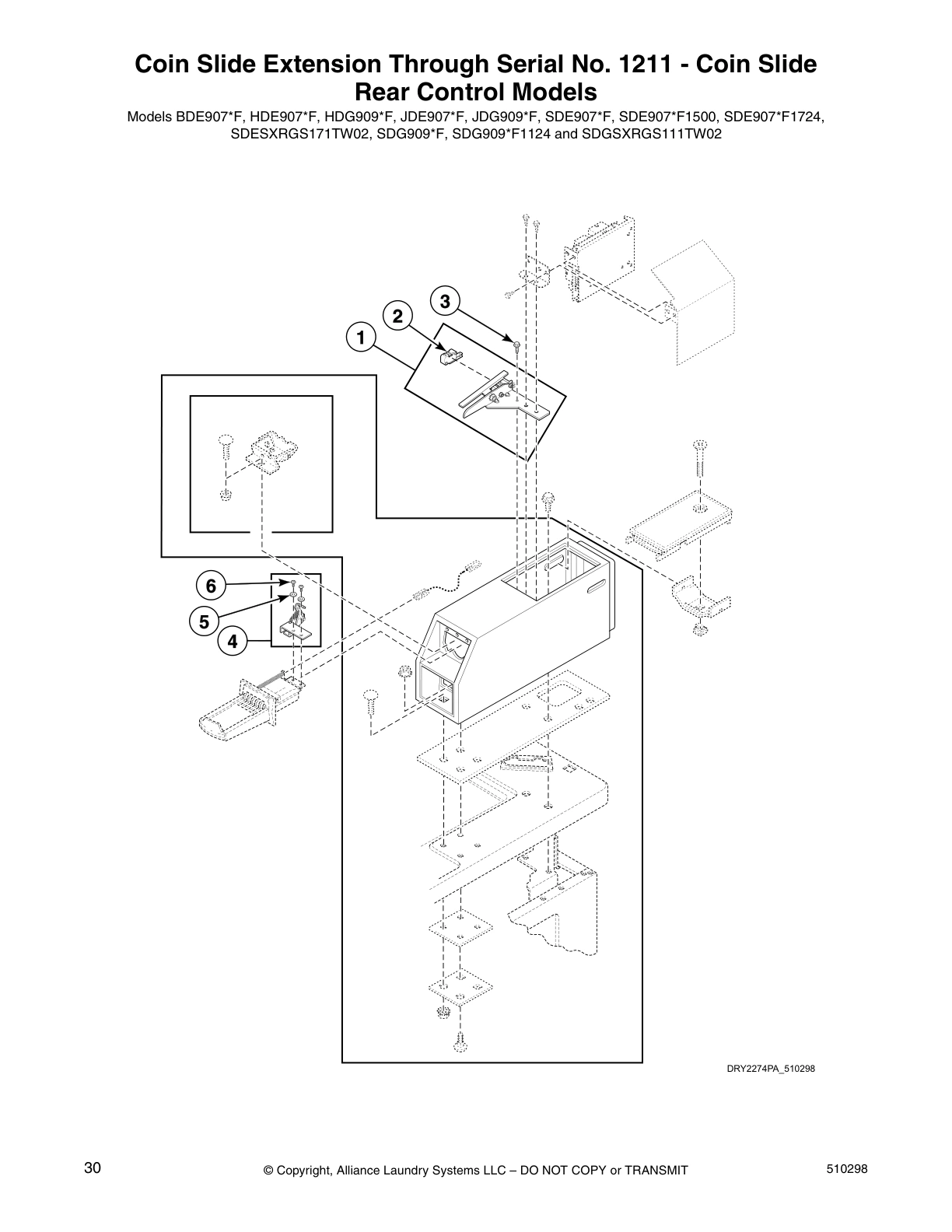

Coin Slide Extension Through Serial No. 1211 - Coin Slide
Rear Control Models
Common parts from model Speed Queen SDG009*F Dryer
4
Fabric Selector Switch SPQ 91176 Contact Us For Availability
7
SPQ 51778 SPQ 51778 Contact Us For Availability
8
Graphic Overlay SPQ 32464 Contact Us For Availability
10
Timer Plate Assembly SPQ 500921W Contact Us For Availability
10
Screw SPQ 503673 Contact Us For Availability
× ![]()
