Model Whirlpool SCS3617RS05 36`` GAS COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool SCS3617RS05 36`` GAS COOKTOP

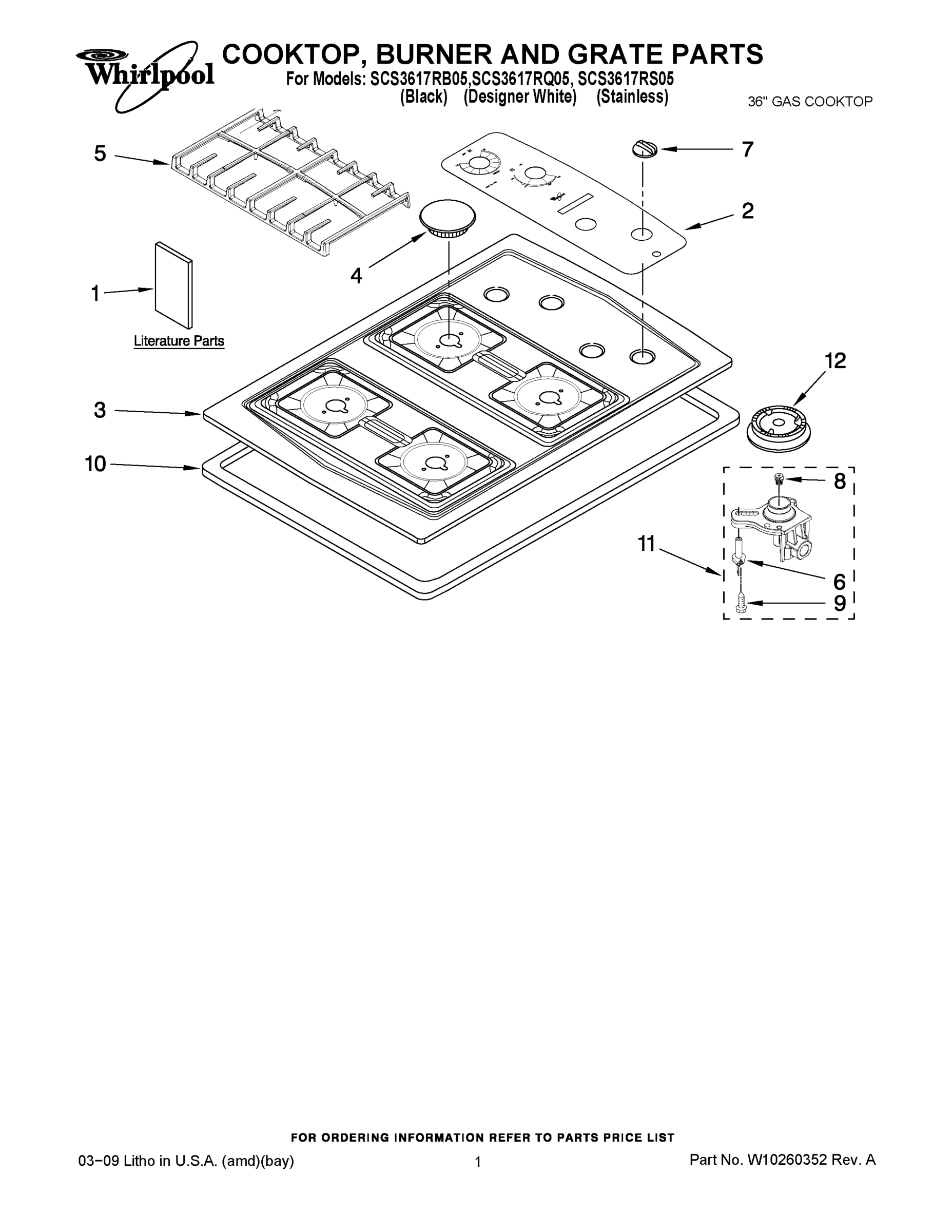

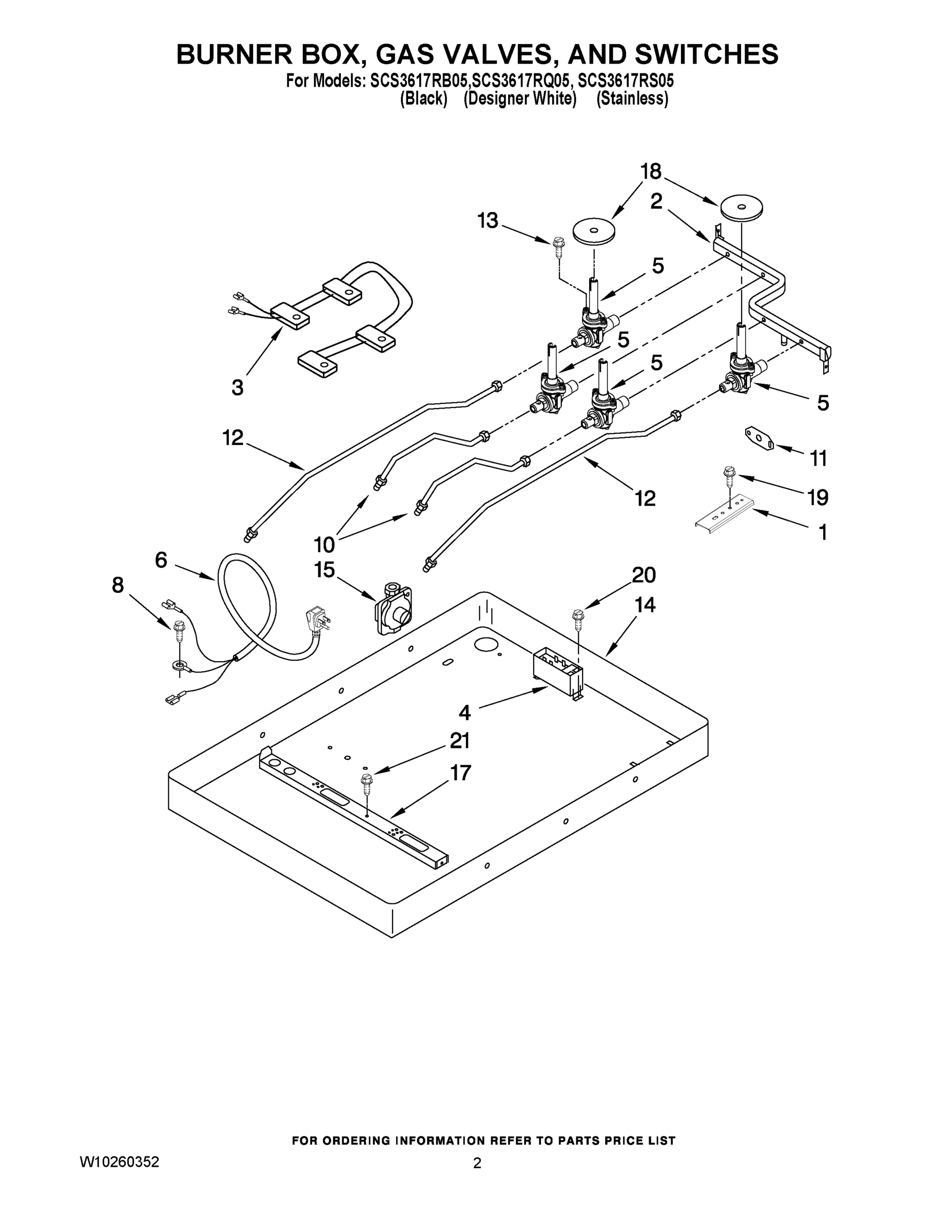

02 - BURNER BOX, GAS VALVES, AND SWITCHES

Print

• This Diagram
• All Diagrams

2

8286503 Whirlpool Oven Control Panel Backorder WPL 8286503 View Details $114.79

View on Model

2

9759354 Whirlpool Oven Manifold Pipe Backorder WPL 9759354 View Details $66.75

View on Model

2

WP8286502 Whirlpool Control Panel Backorder WPL WP8286502 View Details $54.73

View on Model

3

WP4456905 Whirlpool Wire Harness In Stock WPL WP4456905 View Details $94.43

View on Model

4

8286155EP Whirlpool Burner Cap Backorder WPL 8286155EP View Details $68.24

View on Model

4

WP8286153CB Whirlpool Burner Cap Backorder WPL WP8286153CB View Details $37.00

View on Model

4

WP8286154CB Whirlpool Burner Cap Backorder WPL WP8286154CB View Details $44.49

View on Model

4

WP8286155CB Whirlpool Burner Cap Backorder WPL WP8286155CB View Details $54.32

View on Model

4

WPW10110491 Whirlpool Spark Module In Stock WPL WPW10110491 View Details $112.05

View on Model

5

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 View Details $133.87

View on Model

5

Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability

View on Model

5

Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability

View on Model

6

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $35.56

View on Model

6

WP9782116 Whirlpool Surface Igniter In Stock WPL WP9782116 View Details $30.07

View on Model

7

WP8286057BL Whirlpool Knob Replacement In Stock WPL WP8286057BL View Details $11.58

View on Model

7

WP8286057WH Whirlpool Knob Backorder WPL WP8286057WH View Details $3.70

View on Model

8

8286473 Whirlpool Oven Orifice Backorder WPL 8286473 View Details $28.80

View on Model

8

8286551 Whirlpool Oven Orifice Backorder WPL 8286551 View Details $32.61

View on Model

8

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

8

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 View Details $32.30

View on Model

9

WP8273062 Whirlpool Screw In Stock WPL WP8273062 View Details $2.51

View on Model

10

Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability

View on Model

11

WPW10128449 Whirlpool Orifice Holder In Stock WPL WPW10128449 View Details $34.26

View on Model

11

WPW10128450 Whirlpool Orifice Holder In Stock WPL WPW10128450 View Details $42.82

View on Model

11

WPW10128451 Whirlpool Orifice Holder In Stock WPL WPW10128451 View Details $43.54

View on Model

12

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 View Details $32.96

View on Model

15

W11170853 Whirlpool Regulator Assembly Backorder WPL W11170853 View Details $117.28

View on Model

17

W10203756 Whirlpool Support Backorder WPL W10203756 View Details $6.37

View on Model

21

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.51

View on Model

NI

4456626 Whirlpool Wire Backorder WPL 4456626 View Details $28.58

View on Model

NI

4456627 Whirlpool Wire Harness Backorder WPL 4456627 View Details $47.14

View on Model

NI

WP8286320 Whirlpool Spud Orifice Backorder WPL WP8286320 View Details $51.73

View on Model

×
