Model Whirlpool SCS3617RB00 36`` GAS COOKTOP – Common Parts & Diagrams

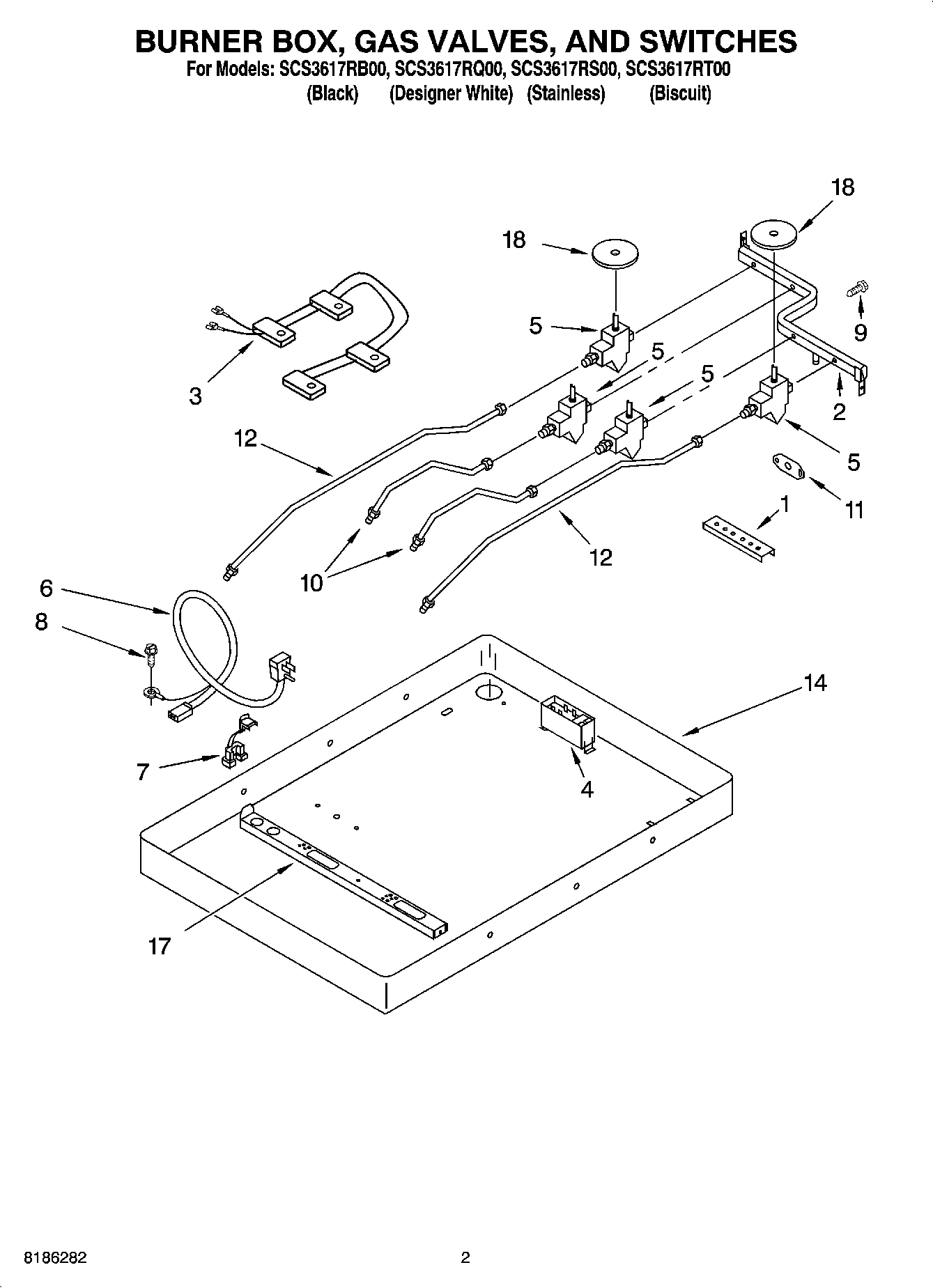

02 - BURNER BOX, GAS VALVES, AND SWITCHES

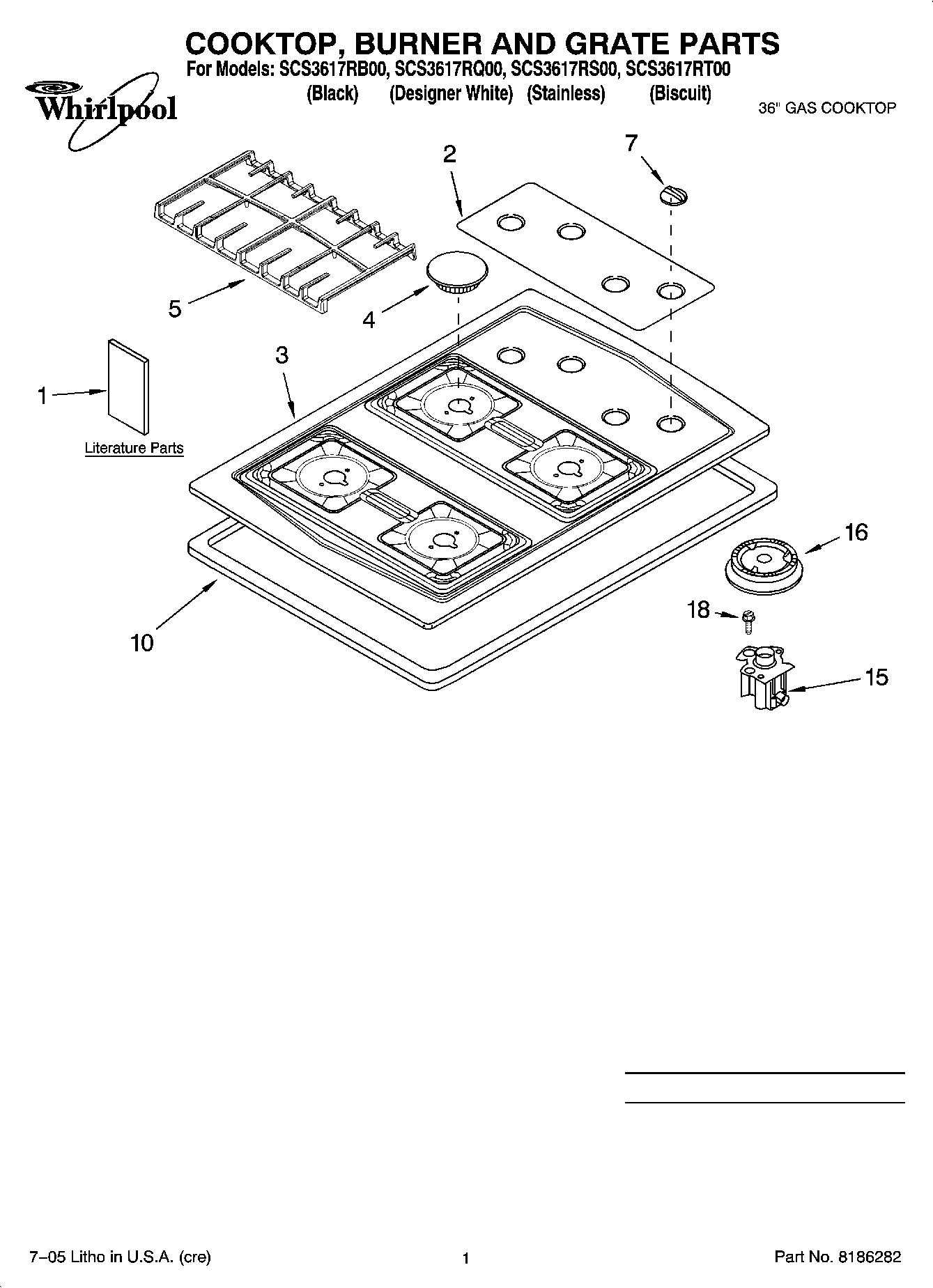

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool SCS3617RB00 36`` GAS COOKTOP
1
Safe Cooking Tips WPL 3191638 Contact Us For Availability
1
Wiring Diagram WPL 3192098 Contact Us For Availability
1
Installation Instructions WPL 8286304 Contact Us For Availability
1
Use & Care Guide WPL 8286313 Contact Us For Availability
1
LP Conversion Instructions WPL 8286314 Contact Us For Availability
1
SAFECOOKING TIPS WPL 9759133 Contact Us For Availability
2
Panel, Control (Biscuit) WPL 8286504 Contact Us For Availability
3
Cooktop (Black) WPL 3191252 Contact Us For Availability
3
Cooktop (White) WPL 3191253 Contact Us For Availability
3
Cooktop (Biscuit) WPL 8284706 Contact Us For Availability
4
Cap, Burner 6K (1) Espresso WPL 8286153EP Contact Us For Availability
4
Cap, Burner 9.5K (1) Espresso WPL 8286154EP Contact Us For Availability
5
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
5
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
5
Grate R.Hand (Black) WPL 8285885BL Contact Us For Availability
5
Grate R.Hand (Cumberland Gray) WPL 8285885CG Contact Us For Availability
5
Grate R.Hand (Espresso L.Hand 8285887Bl Black WPL 8285885EP Contact Us For Availability
5
Grate R.Hand (Cumberland Gray) WPL 8285887CG Contact Us For Availability
5
Grate R.Hand (Espresso) WPL 8285887EP Contact Us For Availability
10
Seal, Foam WPL 9760279 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLU WPL ARI128789A Contact Us For Availability
18
WPL ARI128790A WPL ARI128790A Contact Us For Availability
× ![]()
