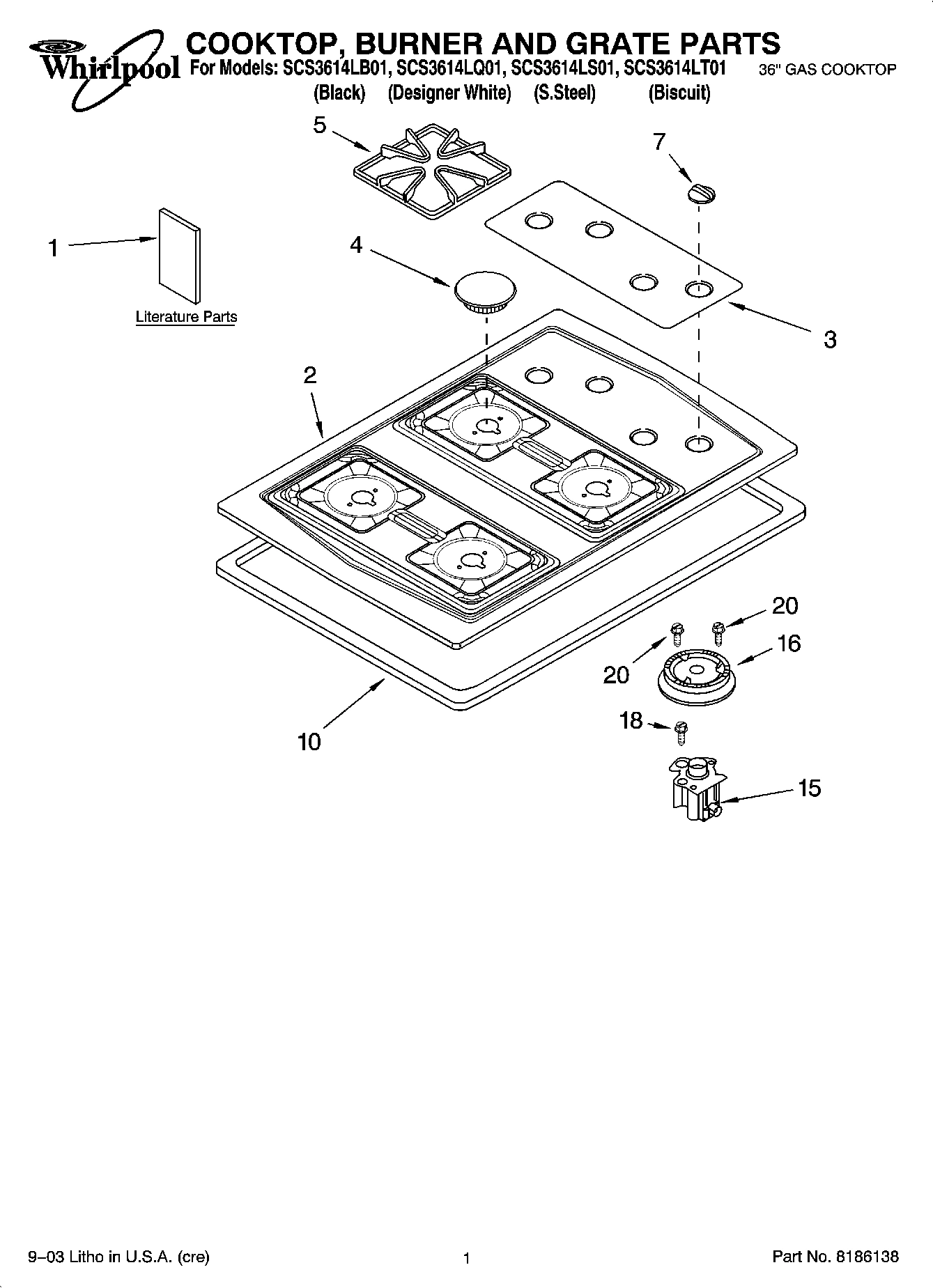

Model Whirlpool SCS3614LQ01 36`` GAS COOKTOP – Common Parts & Diagrams

3
Panel, Control (Black)
Panel, Control (Black) WPL 8285090 Contact Us For Availability
View on Model
3
Panel, Control (White)
Panel, Control (White) WPL 8285091 Contact Us For Availability
View on Model
3
Panel, Control (Biscuit)
Panel, Control (Biscuit) WPL 8285092 Contact Us For Availability
View on Model
4
Cap, Burner (Cumberland Gray) (RF)
Cap, Burner (Cumberland Gray) (RF) WPL 3191899 Contact Us For Availability
View on Model
5
Valve, Burner (Small (1))
Valve, Burner (Small (1)) WPL 3191292 Contact Us For Availability
View on Model
5
Valve, Burner (Large (3))
Valve, Burner (Large (3)) WPL 3191293 Contact Us For Availability
View on Model
5
Grate (4) (Espresso)
Grate (4) (Espresso) WPL 8522853 Contact Us For Availability
View on Model
7
Knob, Control (4) (Black)
Knob, Control (4) (Black) WPL 8285068 Contact Us For Availability
View on Model
7
Knob, Control (4) (White)
Knob, Control (4) (White) WPL 8285072 Contact Us For Availability
View on Model
7
Knob, Control (4) (Biscuit)
Knob, Control (4) (Biscuit) WPL 8285073 Contact Us For Availability
View on Model
7
Bushing, Cord
Bushing, Cord WPL 4173634 Contact Us For Availability
View on Model
9
Bolt (Gas Valve)
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
View on Model
10
Tubing, Burner RR & RF
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
View on Model
10
Seal, Foam
Seal, Foam WPL 3193091 Contact Us For Availability
View on Model
11
Bracket, Manifold
Bracket, Manifold WPL 3192491 Contact Us For Availability
View on Model
12
Tubing, Burner LR & LF
Tubing, Burner LR & LF WPL 3191322 Contact Us For Availability
View on Model
13
Regulator, Pressure
Regulator, Pressure WPL 3177120 Contact Us For Availability
View on Model
14

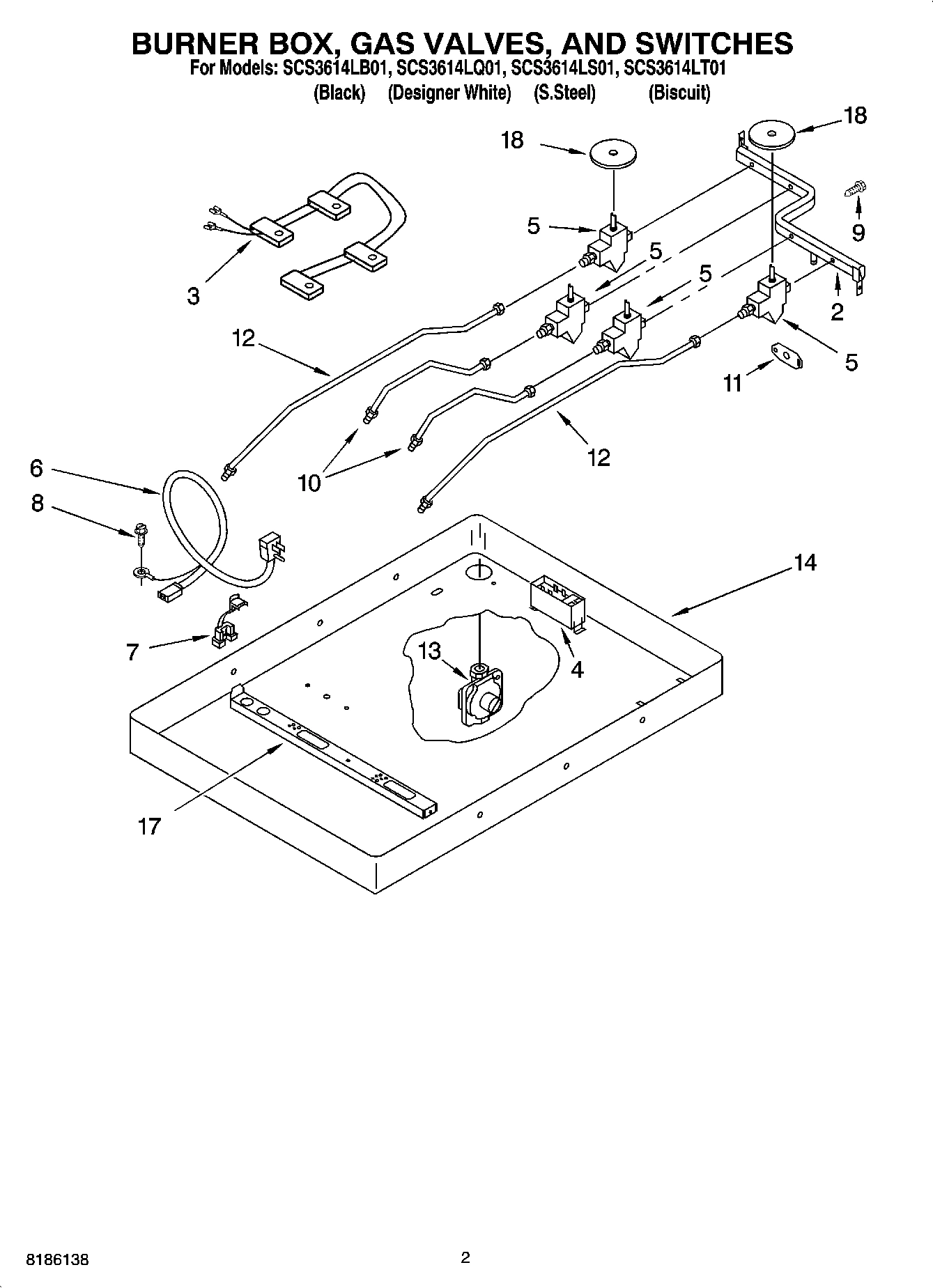

Box, Burner
Box, Burner WPL 4456781 Contact Us For Availability
View on Model
18
Gas Conversion Kit (Natural Gas To LP Gas)
Gas Conversion Kit (Natural Gas To LP Gas) WPL 3191827 Contact Us For Availability
View on Model
18
Hardware Kit (Mounting)
Hardware Kit (Mounting) WPL 4455918 Contact Us For Availability
View on Model
18
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI128773A Contact Us For Availability
View on Model
20
Harness, Wire (Ignitor 28``)
Harness, Wire (Ignitor 28``) WPL 4456627 Contact Us For Availability
View on Model
20
Harness, Wire Ignitor 15``
Harness, Wire Ignitor 15`` WPL 4456626 Contact Us For Availability
View on Model
20
FOLLOWING PARTS NOT ILLUSTRA
FOLLOWING PARTS NOT ILLUSTRA WPL ARI128771A Contact Us For Availability
View on Model
20
WPL ARI128772A
WPL ARI128772A WPL ARI128772A Contact Us For Availability
View on Model
