Model Whirlpool SCS3017RT02 30`` GAS COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool SCS3017RT02 30`` GAS COOKTOP

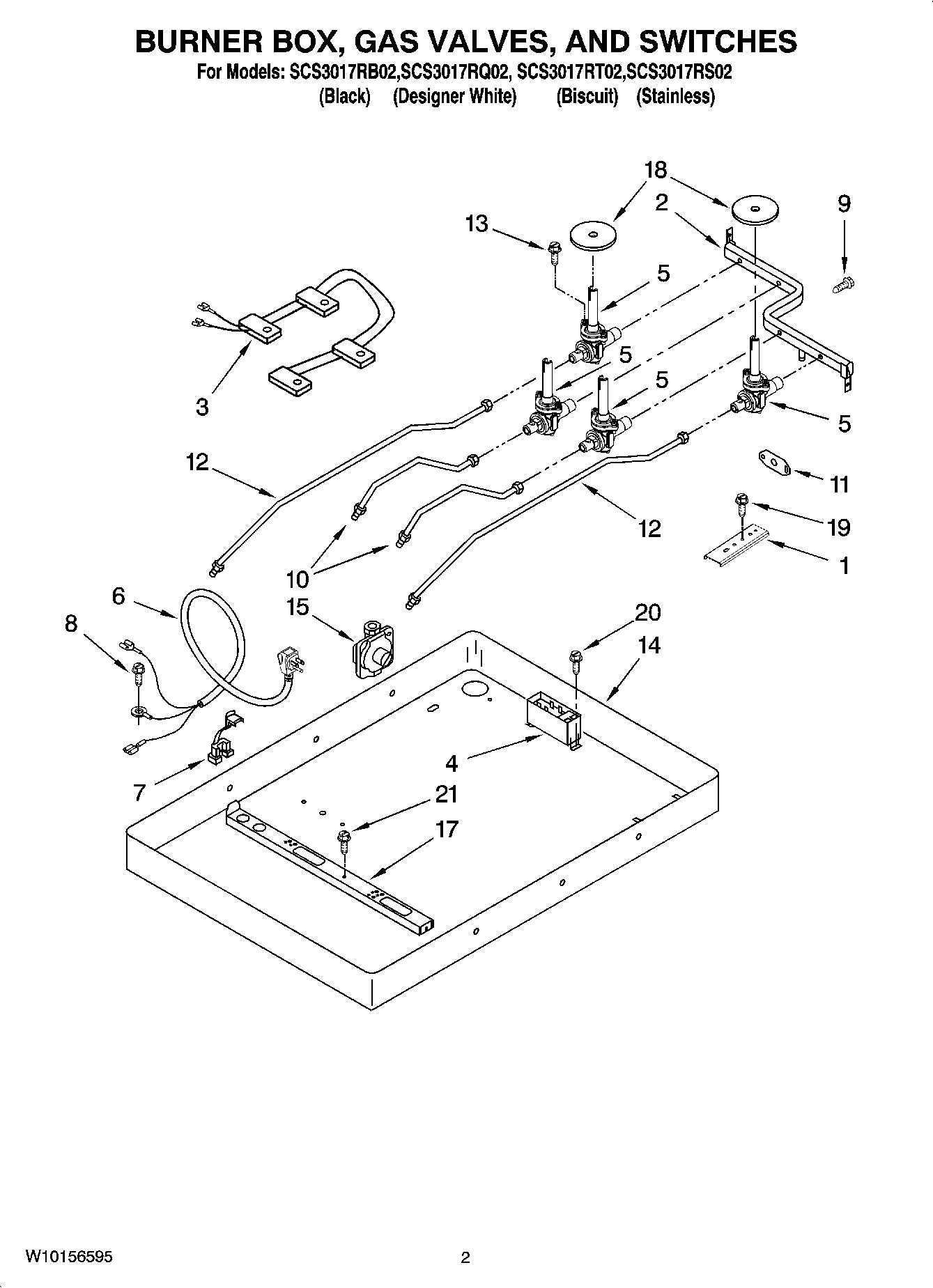

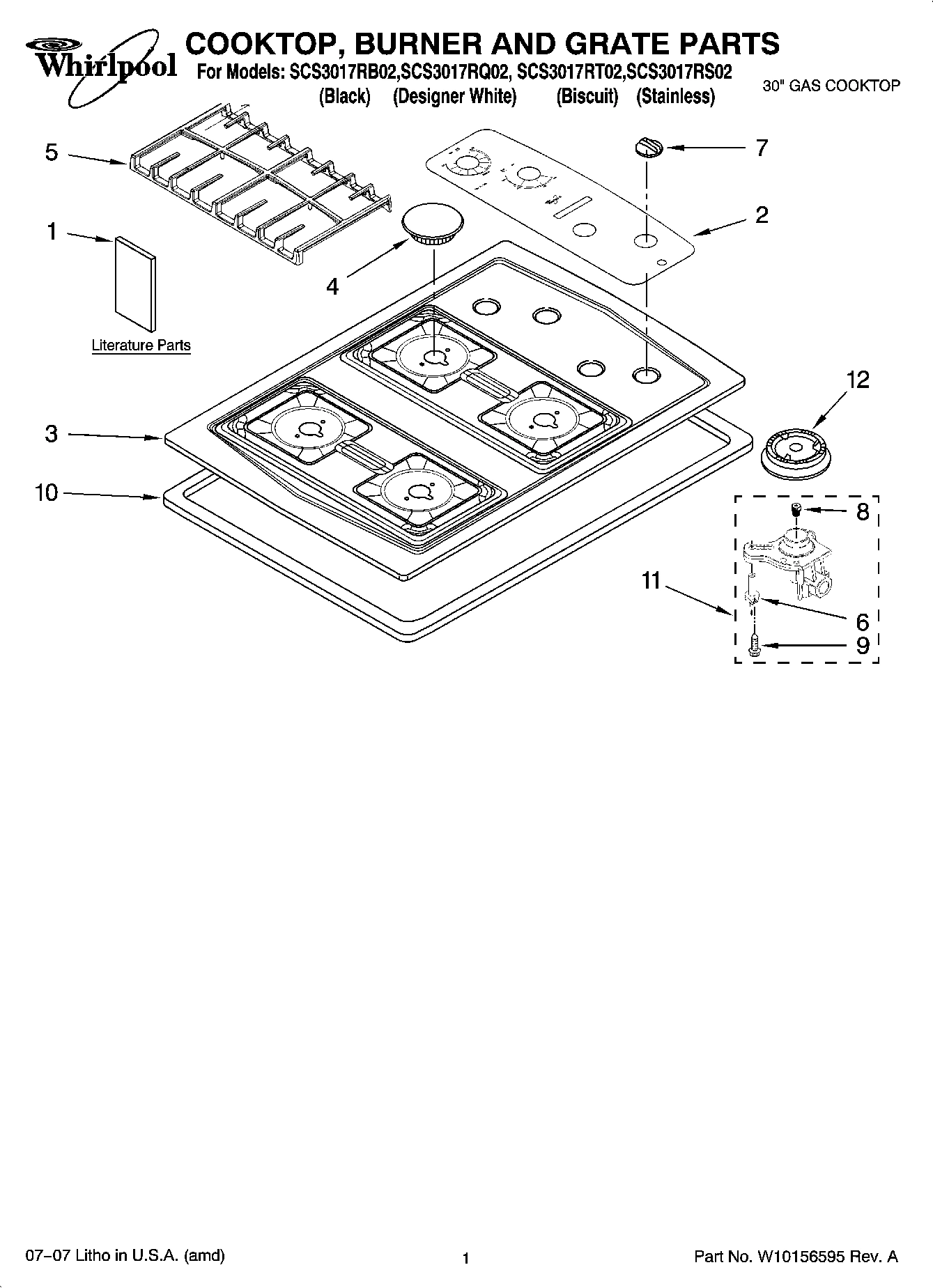

01 - COOKTOP, BURNER AND GRATE PARTS

Print

• This Diagram
• All Diagrams

4456626 Whirlpool Wire In Stock WPL 4456626 View Details $30.01

View on Model

4456627 Whirlpool Wire Harness In Stock WPL 4456627 View Details $49.50

View on Model

2

9759354 Whirlpool Oven Manifold Pipe Backorder WPL 9759354 View Details $70.08

View on Model

2

WP8286502 Whirlpool Control Panel Backorder WPL WP8286502 View Details $57.47

View on Model

2

Panel, Control (White) WPL 8286503 Contact Us For Availability

View on Model

3

WP4456905 Whirlpool Wire Harness In Stock WPL WP4456905 View Details $99.15

View on Model

4

8286155EP Whirlpool Burner Cap Backorder WPL 8286155EP View Details $71.66

View on Model

4

WP8286153CB Whirlpool Burner Cap Backorder WPL WP8286153CB View Details $38.85

View on Model

4

WP8286154CB Whirlpool Burner Cap Backorder WPL WP8286154CB View Details $46.72

View on Model

4

WP8286155CB Whirlpool Burner Cap Backorder WPL WP8286155CB View Details $57.03

View on Model

5

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 View Details $140.57

View on Model

5

Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability

View on Model

5

Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability

View on Model

6

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $37.33

View on Model

6

WP9782116 Whirlpool Surface Igniter In Stock WPL WP9782116 View Details $31.57

View on Model

7

WP8286057BL Whirlpool Knob Replacement Backorder WPL WP8286057BL View Details $11.58

View on Model

7

WP8286057WH Whirlpool Knob Backorder WPL WP8286057WH View Details $3.70

View on Model

8

8286473 Whirlpool Oven Orifice Backorder WPL 8286473 View Details $30.25

View on Model

8

8286551 Whirlpool Oven Orifice Backorder WPL 8286551 View Details $34.24

View on Model

8

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

8

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 View Details $33.91

View on Model

9

WP8273062 Whirlpool Screw In Stock WPL WP8273062 View Details $2.51

View on Model

9

Bolt, Gas Valve WPL 3186217 Contact Us For Availability

View on Model

10

Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability

View on Model

11

3192491 Whirlpool Support Bracket Backorder WPL 3192491 View Details $6.00

View on Model

11

WPW10128450 Whirlpool Orifice Holder In Stock WPL WPW10128450 View Details $44.96

View on Model

11

WPW10128451 Whirlpool Orifice Holder In Stock WPL WPW10128451 View Details $34.97

View on Model

11

Holder, Orifice (RF) WPL W10128449 Contact Us For Availability

View on Model

12

3191320 Whirlpool Oven Gas Tubing Backorder WPL 3191320 View Details $46.81

View on Model

13

W10491985 Whirlpool Screw Backorder WPL W10491985 View Details $2.51

View on Model

14

4456780 Whirlpool Oven Burner Box Backorder WPL 4456780 View Details $155.79

View on Model

15

W11170853 Whirlpool Regulator Assembly Backorder WPL W11170853 View Details $117.28

View on Model

17

W10203756 Whirlpool Support Backorder WPL W10203756 View Details $6.37

View on Model

18

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 View Details $30.25

View on Model

19

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

20

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 View Details $2.51

View on Model

21

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.64

View on Model

21

WP8286320 Whirlpool Spud Orifice Backorder WPL WP8286320 View Details $54.31

View on Model

21

Hardware Kit (Mounting) WPL 4455918 Contact Us For Availability

View on Model

21

Following Parts Not Illustrated and Optional WPL ARI128760A Contact Us For Availability
