Model Whirlpool SCS3017RT00 30`` GAS COOKTOP – Common Parts & Diagrams

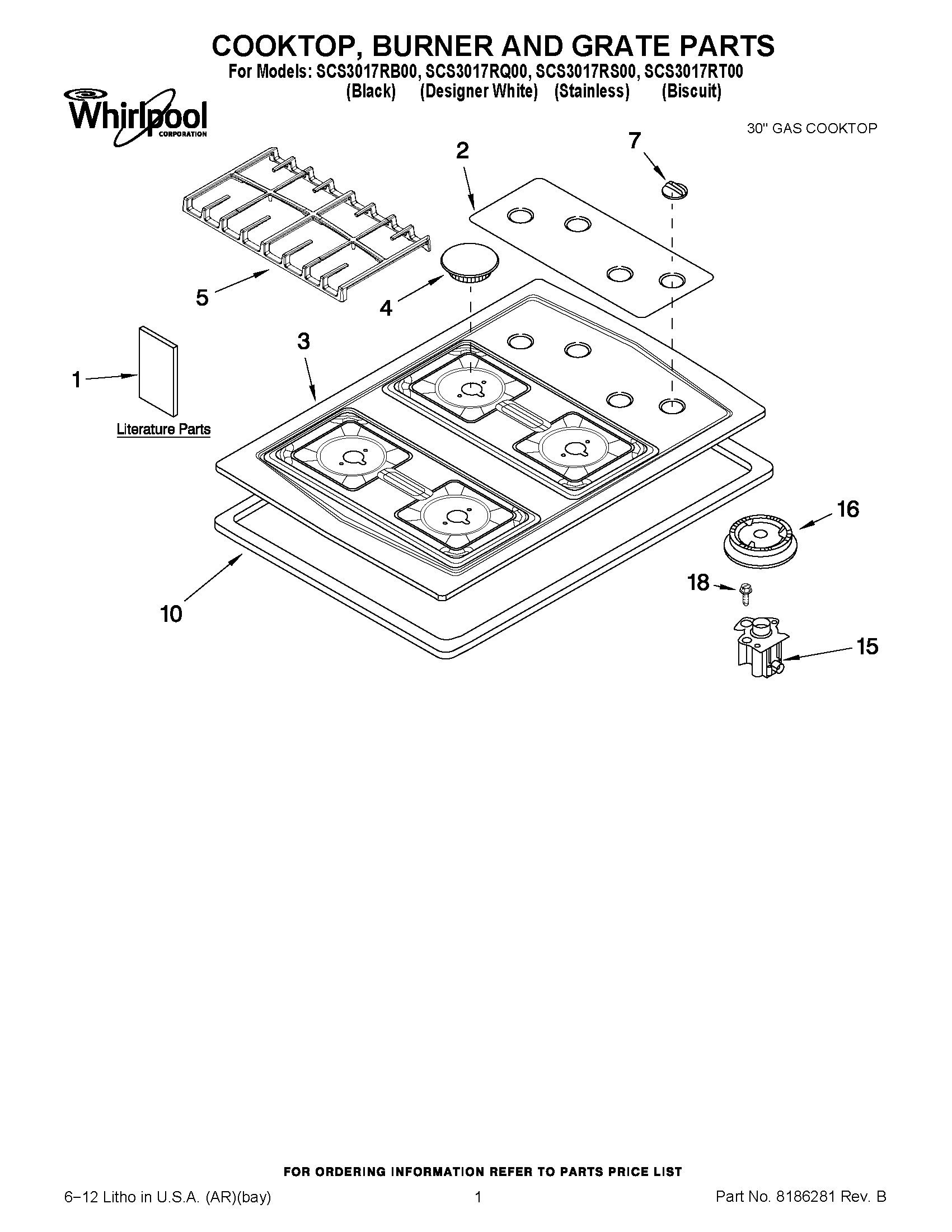

01 - COOKTOP, BURNER AND GRATE PARTS

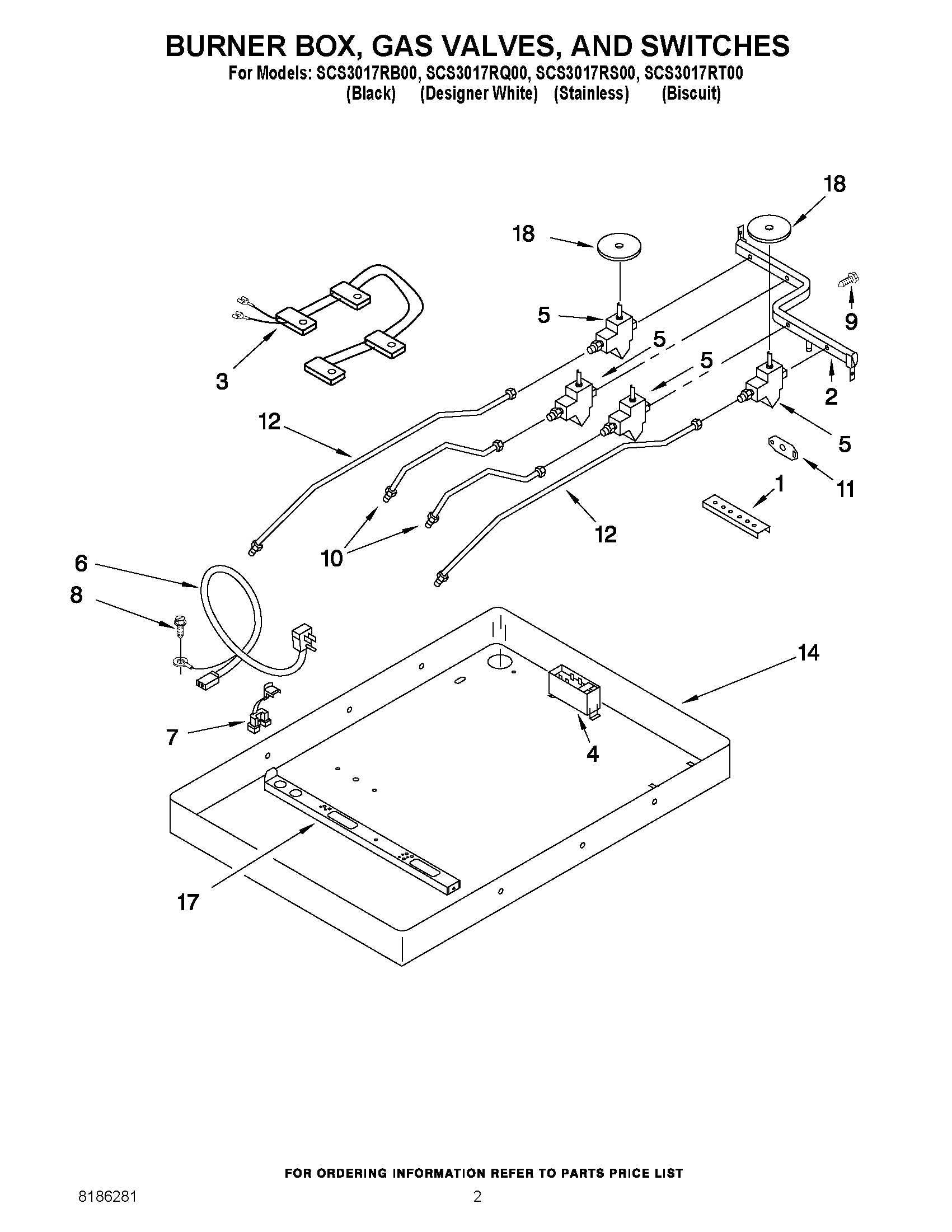

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool SCS3017RT00 30`` GAS COOKTOP
2
Pipe, Manifold WPL 9759354 Contact Us For Availability
2
Panel, Control (White) WPL 8286503 Contact Us For Availability
4
Cap, Burner 12.5K (2) Espresso WPL 8286155EP Contact Us For Availability
4
Cap, Burner 9.5K (1) Espresso WPL 8286154EP Contact Us For Availability
5
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
5
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
5
GRATE LEFT HAND (BLACK) WPL 8285886BL Contact Us For Availability
5
GRATE LEFT HAND (CUMBERLAND GRAY) WPL 8285886CG Contact Us For Availability
5
GRATE LEFT HAND (ESPRESSO) WPL 8285886EP Contact Us For Availability
5
GRATE RIGHT HAND (BLACK) WPL 8285888BL Contact Us For Availability
5
GRATE RIGHT HAND (CUMBERLAND GRAY) WPL 8285888CG Contact Us For Availability
5
GRATE RIGHT HAND (ESPRESSO) WPL 8285888EP Contact Us For Availability
7
KNOB, CONTROL (BISCUIT) WPL 8286057BT Contact Us For Availability
7
Bushing, Cord WPL 4173634 Contact Us For Availability
10
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
10
Seal, Foam WPL 3193090 Contact Us For Availability
11
Bracket, Manifold WPL 3192491 Contact Us For Availability
12
Tubing, Burner LR & LF WPL 3191320 Contact Us For Availability
14
Screw WPL 3179776 Contact Us For Availability
14
Box, Burner WPL 4456780 Contact Us For Availability
NI
WPL 4456627 WPL 4456627 Contact Us For Availability
NI
Harness, Wire Ig WPL 4456626 Contact Us For Availability
NI
HARDWARE MOUNTING KIT (INCLUDES REGULATOR) WPL 4455918 Contact Us For Availability
× ![]()
