Model Whirlpool SCS3017RB05 30`` GAS COOKTOP – Common Parts & Diagrams

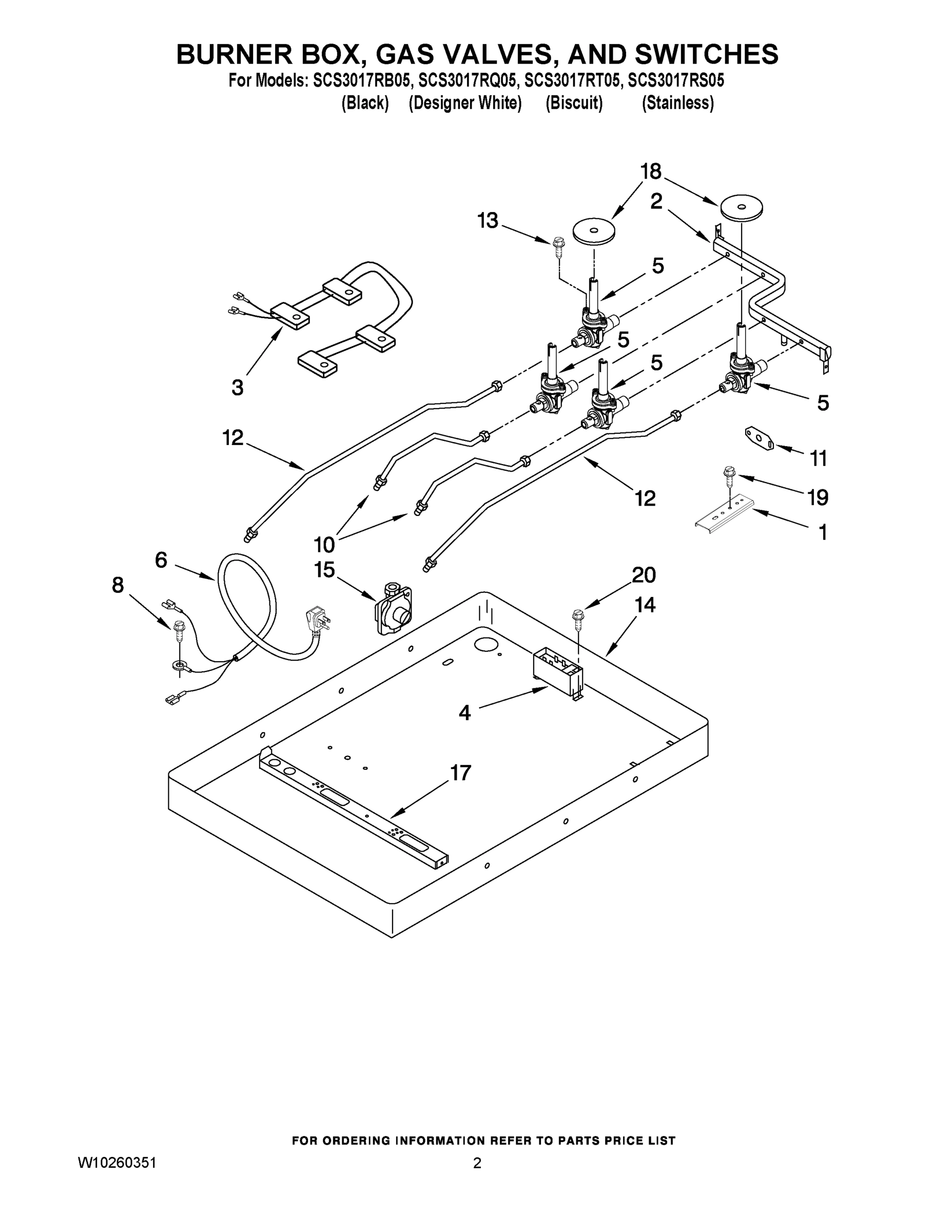

02 - BURNER BOX, GAS VALVES, AND SWITCHES

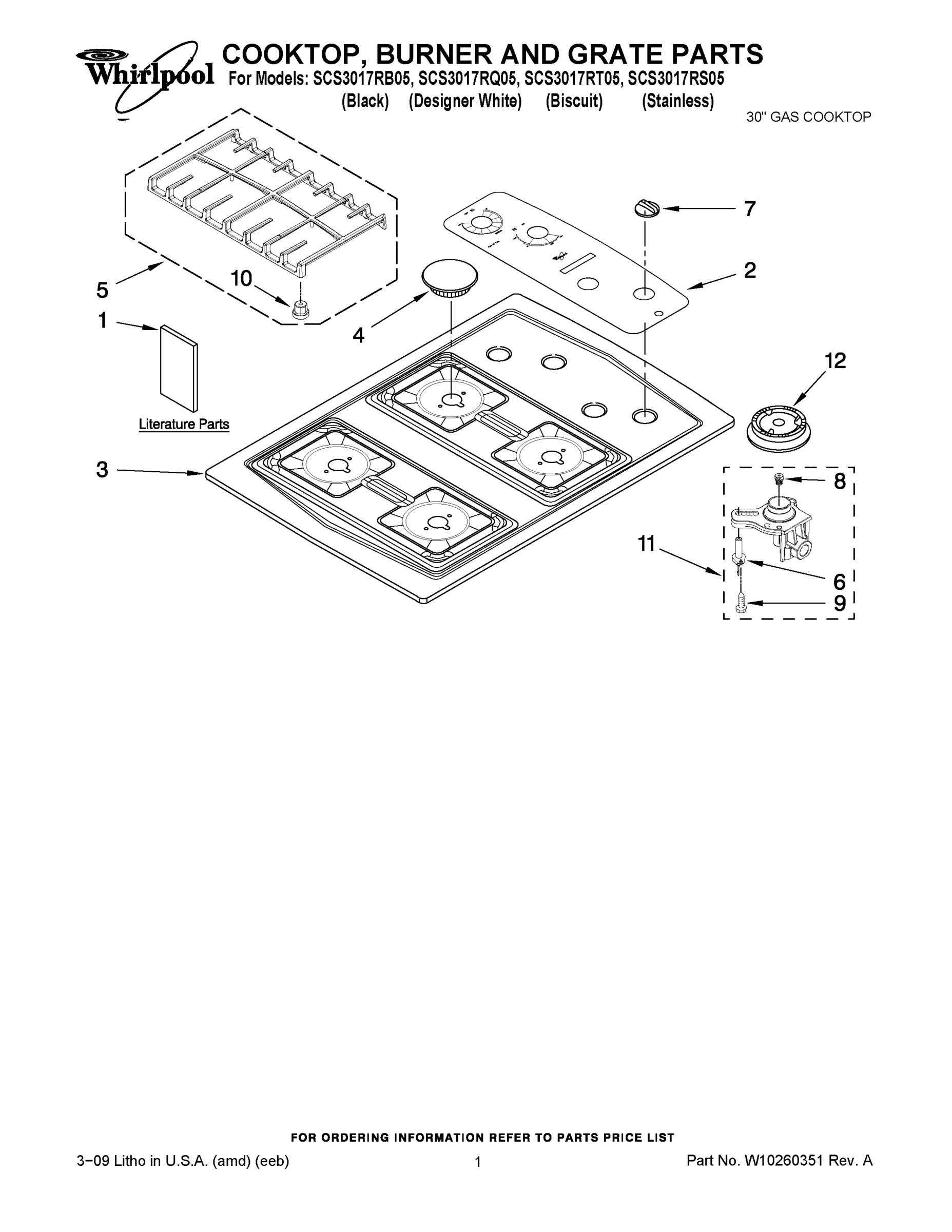

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool SCS3017RB05 30`` GAS COOKTOP
2
Pipe, Manifold WPL 9759354 Contact Us For Availability
2
Panel, Control (White) WPL 8286503 Contact Us For Availability
4
Cap, Burner LF & RR (Espresso) WPL 8286155EP Contact Us For Availability
4
Cap, Burner LR (Espresso) WPL 8286154EP Contact Us For Availability
5
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
5
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
5
Grate Left (Coal Matte Black) WPL 8285886CB Contact Us For Availability
5
Grate Left (Cumberland Gray) WPL 8285886CG Contact Us For Availability
5
Grate Left (Espresso) WPL 8285886EP Contact Us For Availability
5
Grate Right (Coal Matte Black) WPL 8285888CB Contact Us For Availability
5
Grate Right (Cumberland Gray) WPL 8285888CG Contact Us For Availability
5
Grate Right (Espresso) WPL 8285888EP Contact Us For Availability
7
Knob, Control (4) (Biscuit) WPL 8286057BT Contact Us For Availability
8
Orifice (RF) WPL 8286473 Contact Us For Availability
8
Orifice (LF & RR) WPL 8286551 Contact Us For Availability
10
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
12
Tubing, Burner LR & LF WPL 3191320 Contact Us For Availability
17
Rail, Burner (2) WPL W10203756 Contact Us For Availability
NI
WPL 4456627 WPL 4456627 Contact Us For Availability
NI
WPL 4456626 WPL 4456626 Contact Us For Availability
× ![]()
