Model Whirlpool SCS3017RB03 30`` GAS COOKTOP – Common Parts & Diagrams

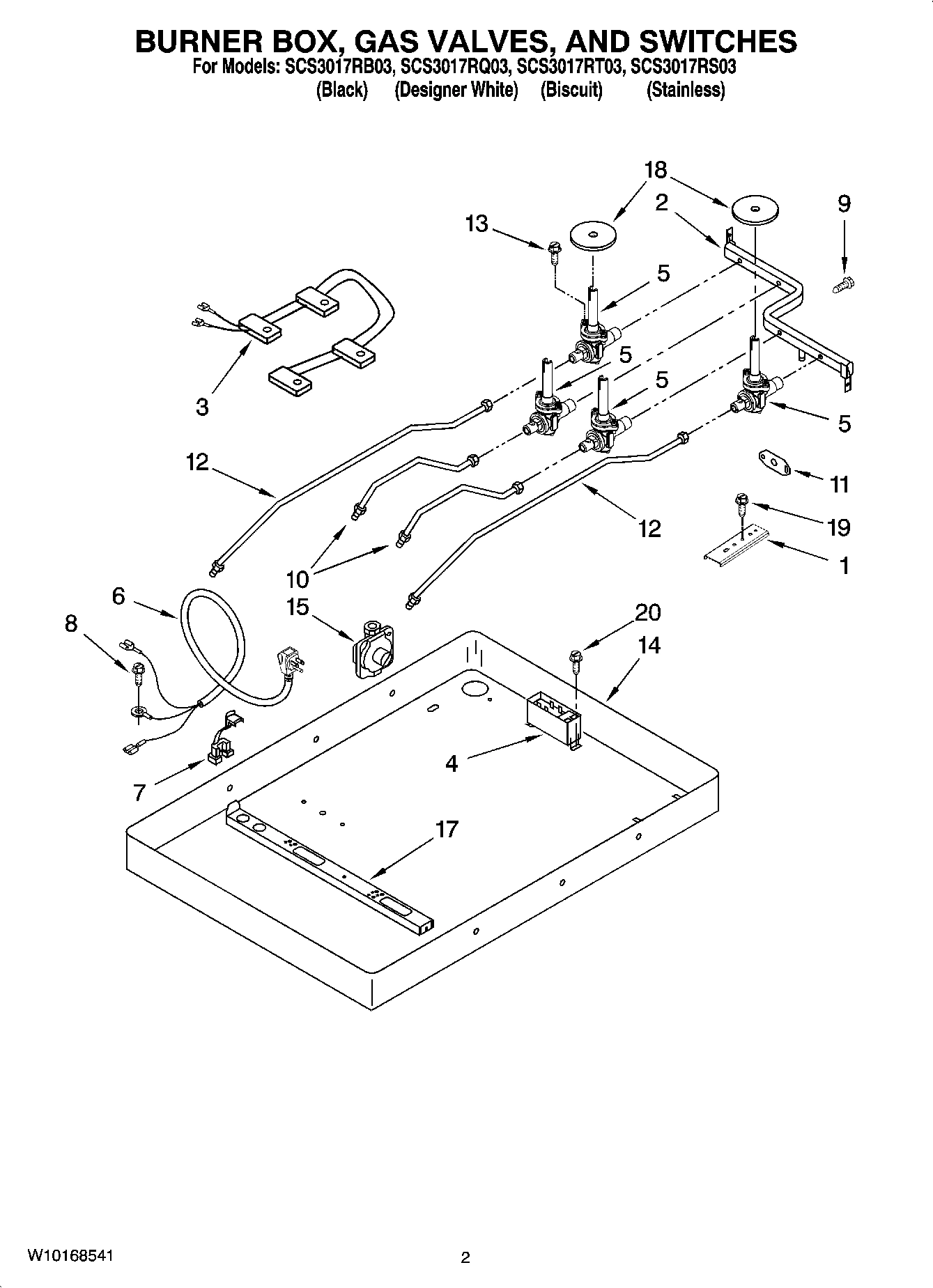

02 - BURNER BOX, GAS VALVES, AND SWITCHES

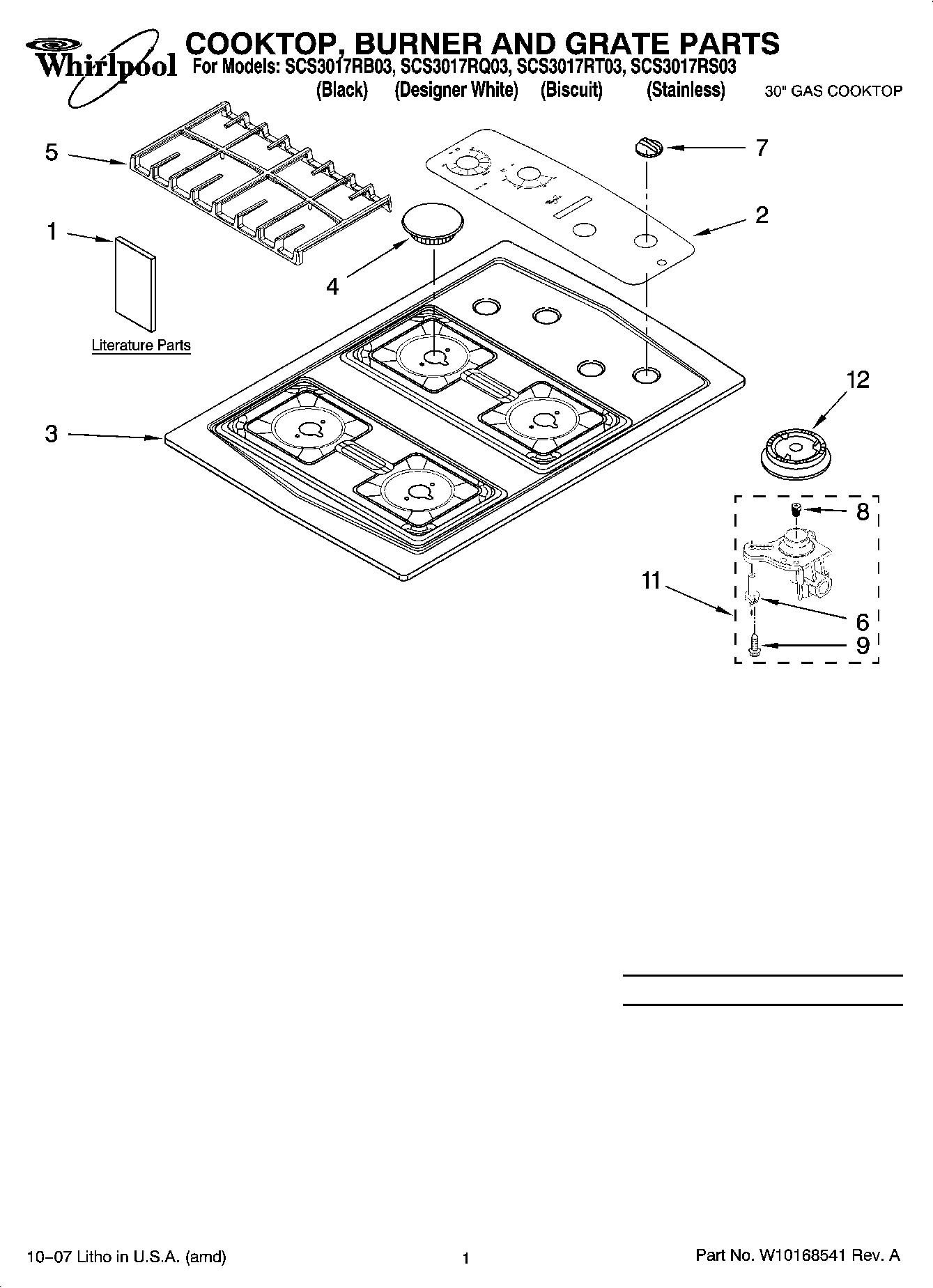

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool SCS3017RB03 30`` GAS COOKTOP
Harness, Wire (Ig WPL 4456627 Contact Us For Availability
Harness, Wire Ignitor 15`` WPL 4456626 Contact Us For Availability
2
Pipe, Manifold WPL 9759354 Contact Us For Availability
2
Panel, Control (White) WPL 8286503 Contact Us For Availability
4
Cap, Burner LF & RR (Espresso) WPL 8286155EP Contact Us For Availability
4
Cap, Burner RF (Espresso) WPL 8286153EP Contact Us For Availability
4
Cap, Burner LR (Espresso) WPL 8286154EP Contact Us For Availability
5
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
5
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
5
Grate Left (Coal Matte Black) WPL 8285886CB Contact Us For Availability
5
Grate Left (Cumberland Gray) WPL 8285886CG Contact Us For Availability
5
Grate Left (Espresso) WPL 8285886EP Contact Us For Availability
5
Grate Right (Coal Matte Black) WPL 8285888CB Contact Us For Availability
5
Grate Right (Cumberland Gray) WPL 8285888CG Contact Us For Availability
5
Grate Right (Espresso) WPL 8285888EP Contact Us For Availability
7
Knob, Control (4) (Biscuit) WPL 8286057BT Contact Us For Availability
8
Orifice (RF) WPL 8286473 Contact Us For Availability
8
Orifice (LF & RR) WPL 8286551 Contact Us For Availability
10
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
11
Holder, Orifice (LF & RR) WPL 8287052 Contact Us For Availability
12
Tubing, Burner LR & LF WPL 3191320 Contact Us For Availability
× ![]()
